1. Wrapping Your Head Around the
SharePoint Beast
Mark Rackley – Solutions Architect /
SharePoint Practice Lead / Developer
Email: mrackley@gmail.com
Blog: http://www.sharepointhillbilly.com
Twitter: @mrackley

2. My introduction to SharePoint

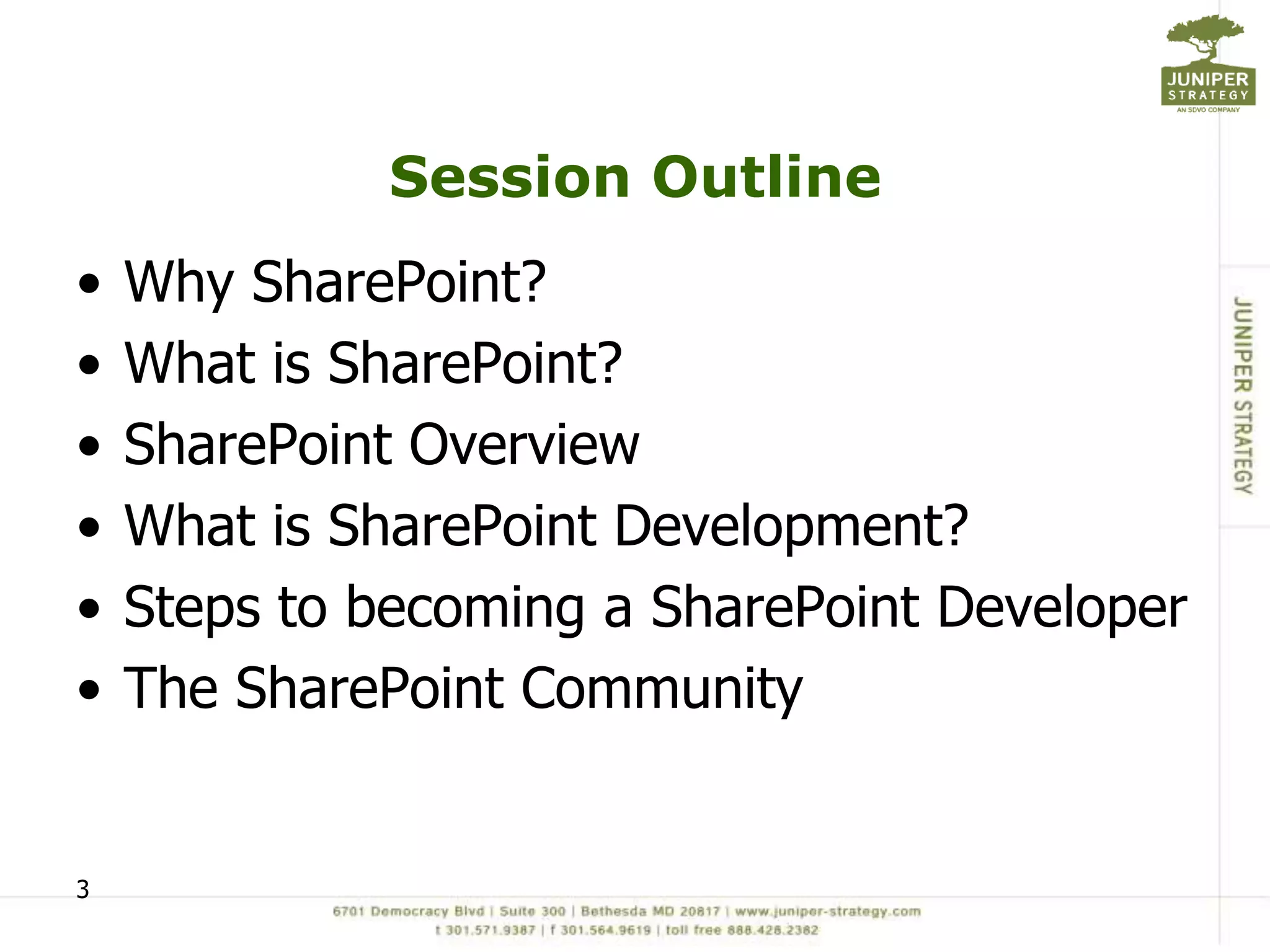

3. Session Outline
• Why SharePoint?
• What is SharePoint?
• SharePoint Overview
• What is SharePoint Development?
• Steps to becoming a SharePoint Developer
• The SharePoint Community
3

6. Learning SharePoint

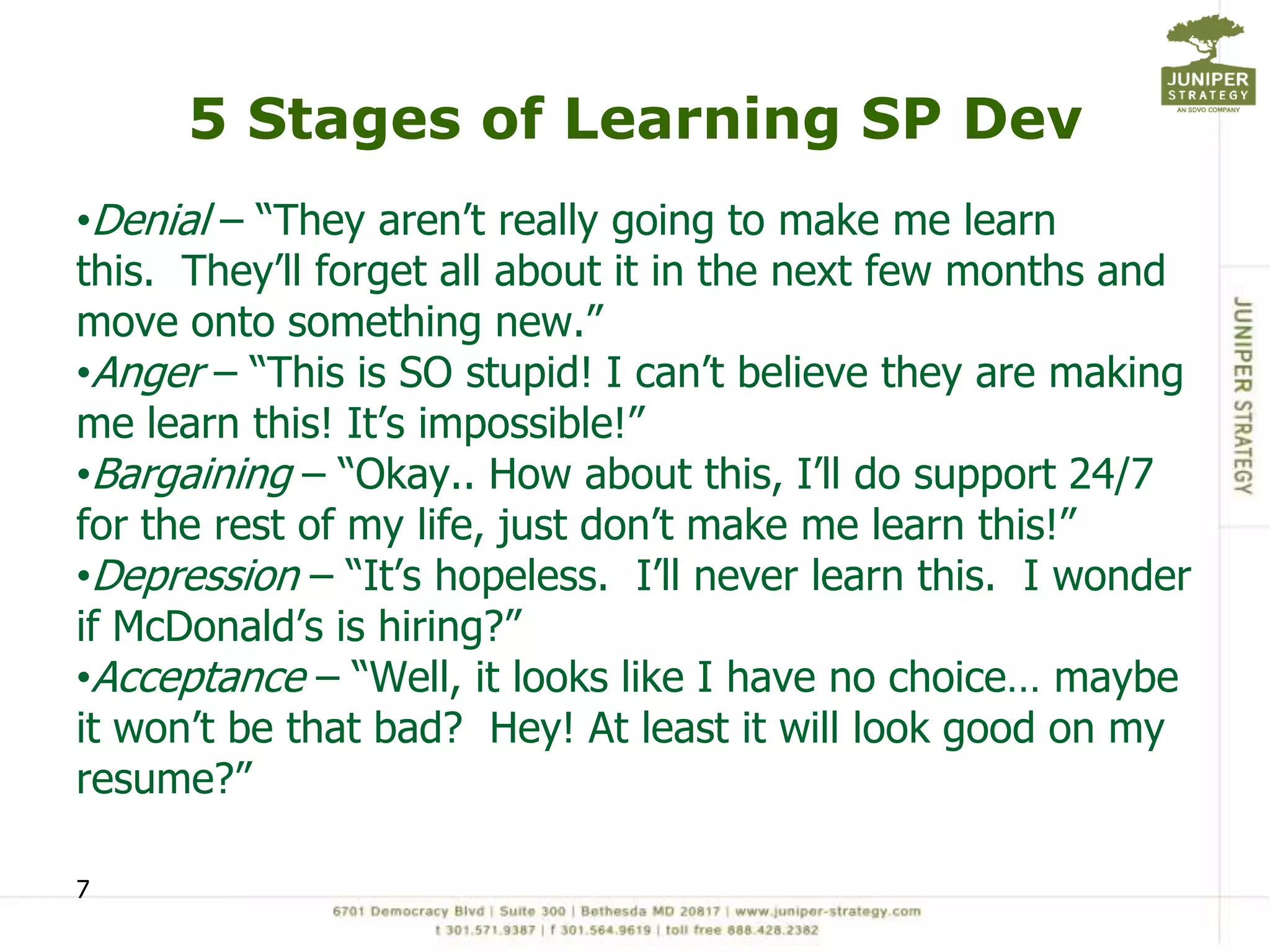

7. 5 Stages of Learning SP Dev
•Denial – “They aren’t really going to make me learn
this. They’ll forget all about it in the next few months and
move onto something new.”
•Anger – “This is SO stupid! I can’t believe they are making
me learn this! It’s impossible!”
•Bargaining – “Okay.. How about this, I’ll do support 24/7
for the rest of my life, just don’t make me learn this!”
•Depression – “It’s hopeless. I’ll never learn this. I wonder
if McDonald’s is hiring?”
•Acceptance – “Well, it looks like I have no choice… maybe
it won’t be that bad? Hey! At least it will look good on my
resume?”
7

8. Why SharePoint as a development Platform?
8

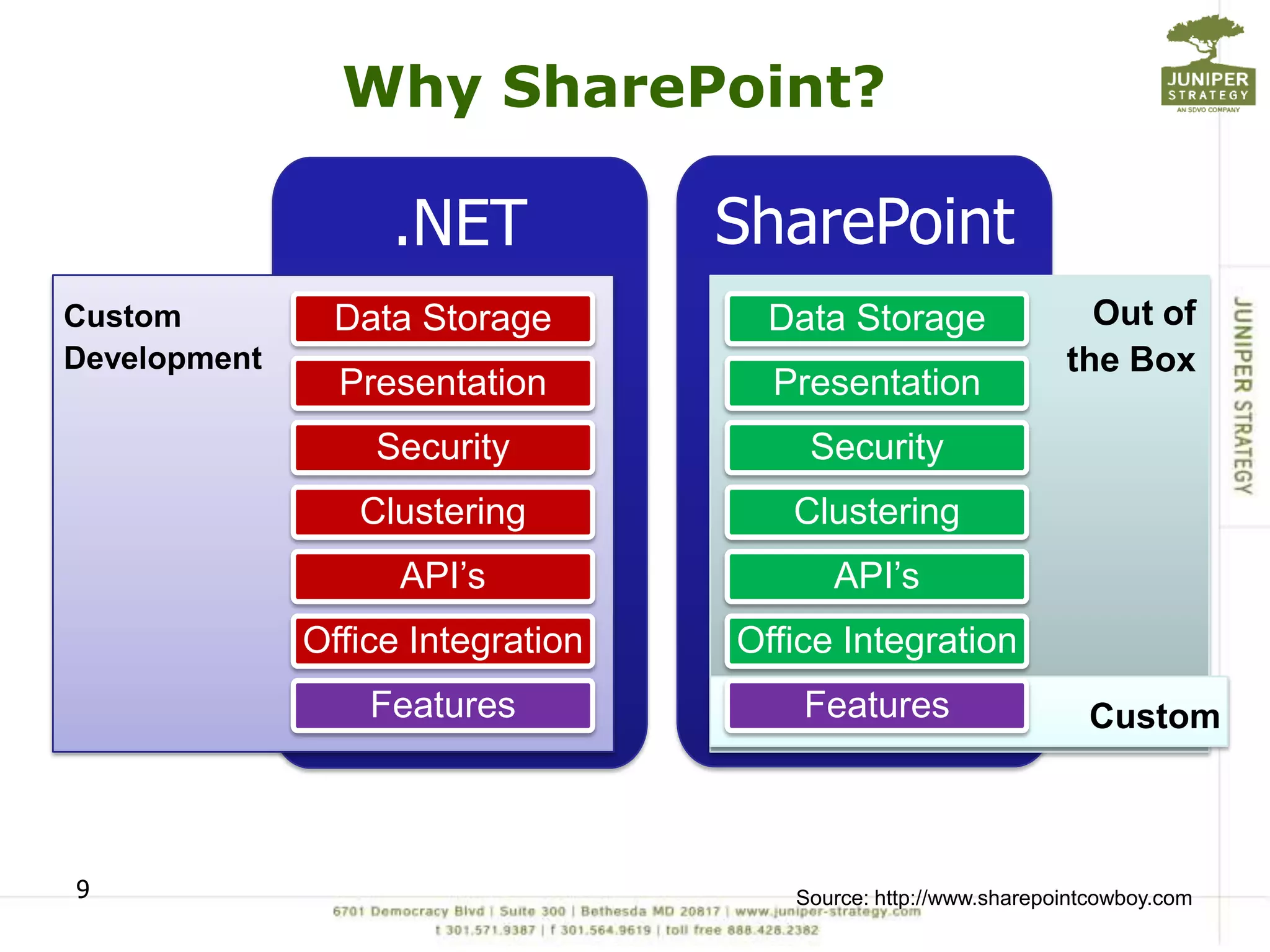

9. Why SharePoint?
.NET SharePoint
Data Storage Data Storage
Presentation Presentation
Security Security
Clustering Clustering
API’s API’s
Office Integration Office Integration
Features Features
9 Source: http://www.sharepointcowboy.com

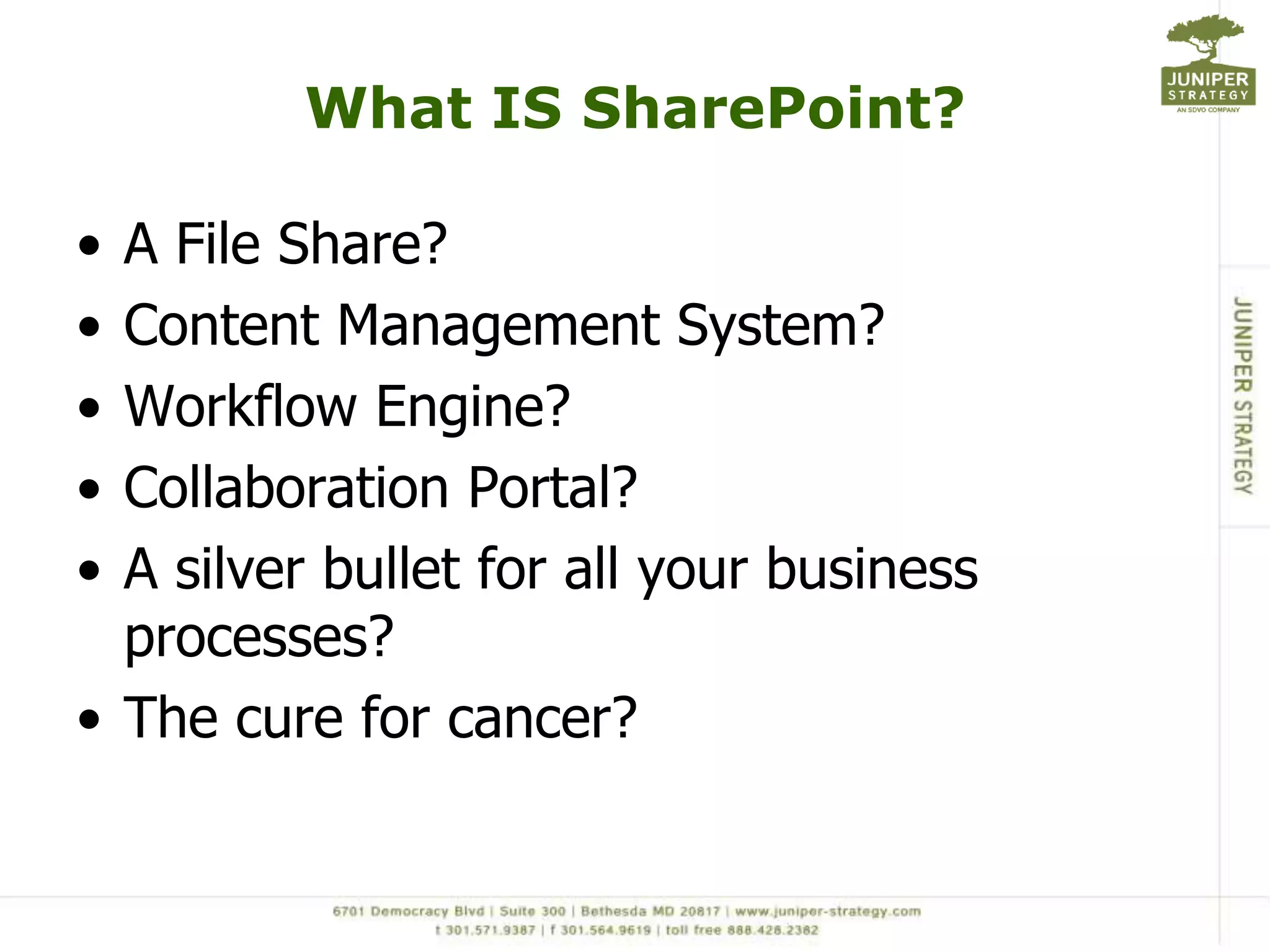

10. What IS SharePoint?
• A File Share?
• Content Management System?
• Workflow Engine?
• Collaboration Portal?
• A silver bullet for all your business
processes?
• The cure for cancer?

11. SharePoint – What it is

12. SharePoint – The Instructions

13. Terminology
(Remember when a Web Application was a Web Application)
Farm
Elevated Privileges Safe Control
CAML
Site Column Feature Declarative Workflow
STSADM
Site Collection Persisted Object Application Page
Content Type Site Definition List Definition
Solution Package
Scope
Content Database List Instance
Event Receiver
Central Administration
Publishing Page ONET
Web Application
Theme
List View Feature Receiver
Field Control Team Site
Client Object Model

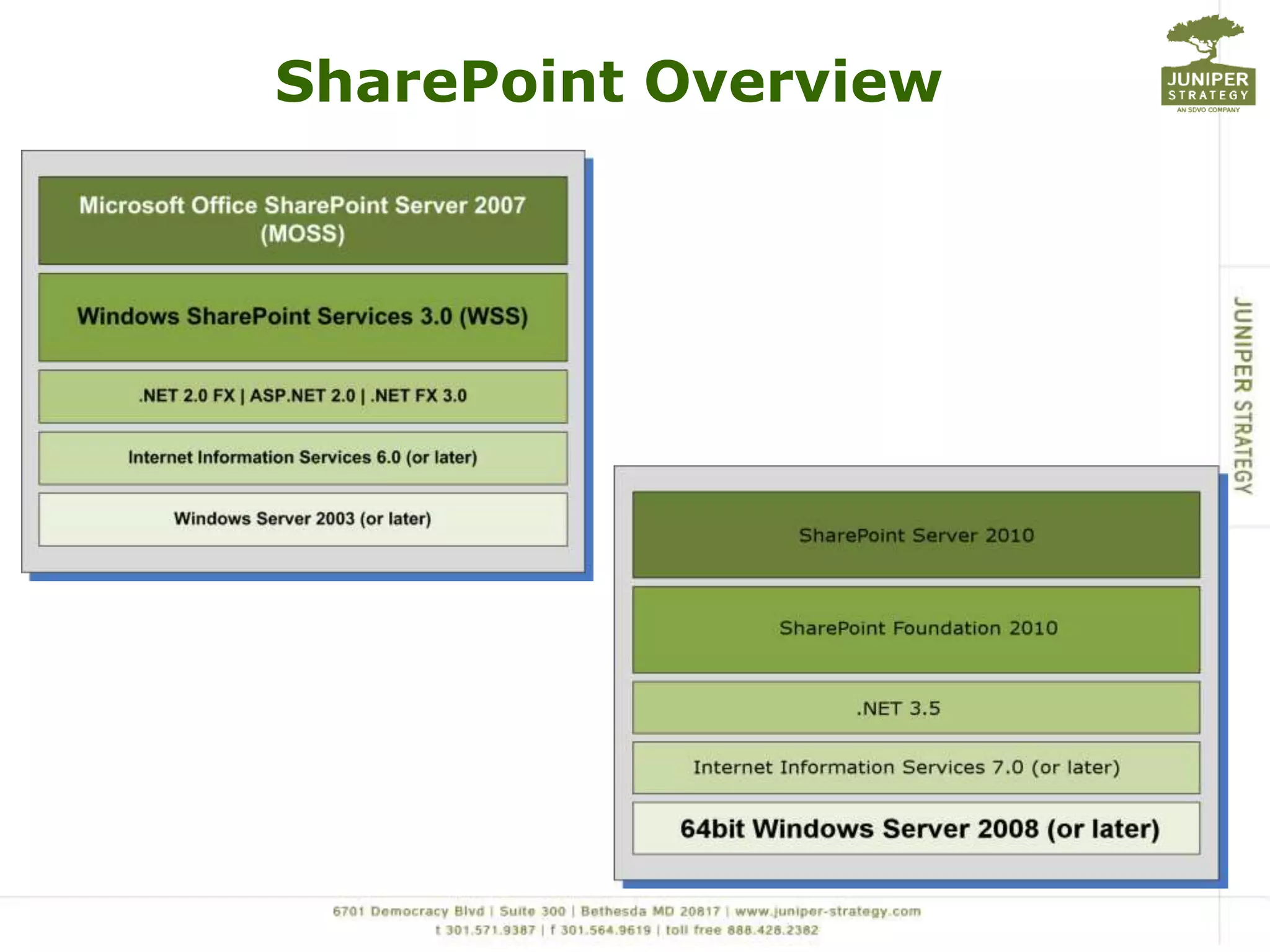

14. SharePoint Overview

15. SharePoint Overview

16. SharePoint Has a Farm…

17. Server Farms
• A collection of SharePoint role Server Farm
servers and a SQL database Web Front
server Ends
• Servers can perform one or more
functions (web front end, search,
application, etc.)
• Farm-level features are managed Application
via Central Administration
• Custom code can be deployed at
the Farm level and managed
centrally
• Solution Packages allow custom Database
code to be automatically deployed
across the farm

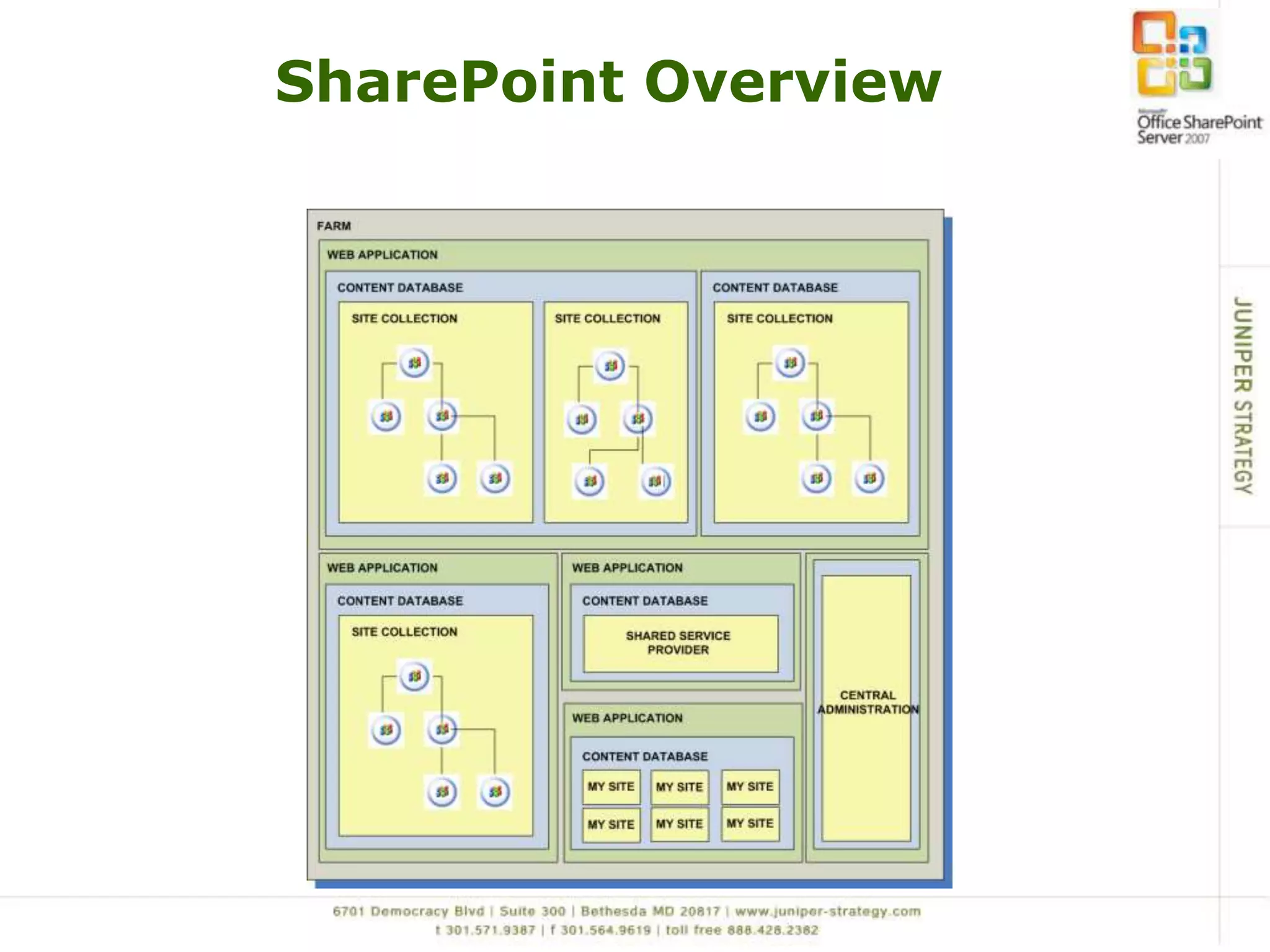

18. SharePoint Overview

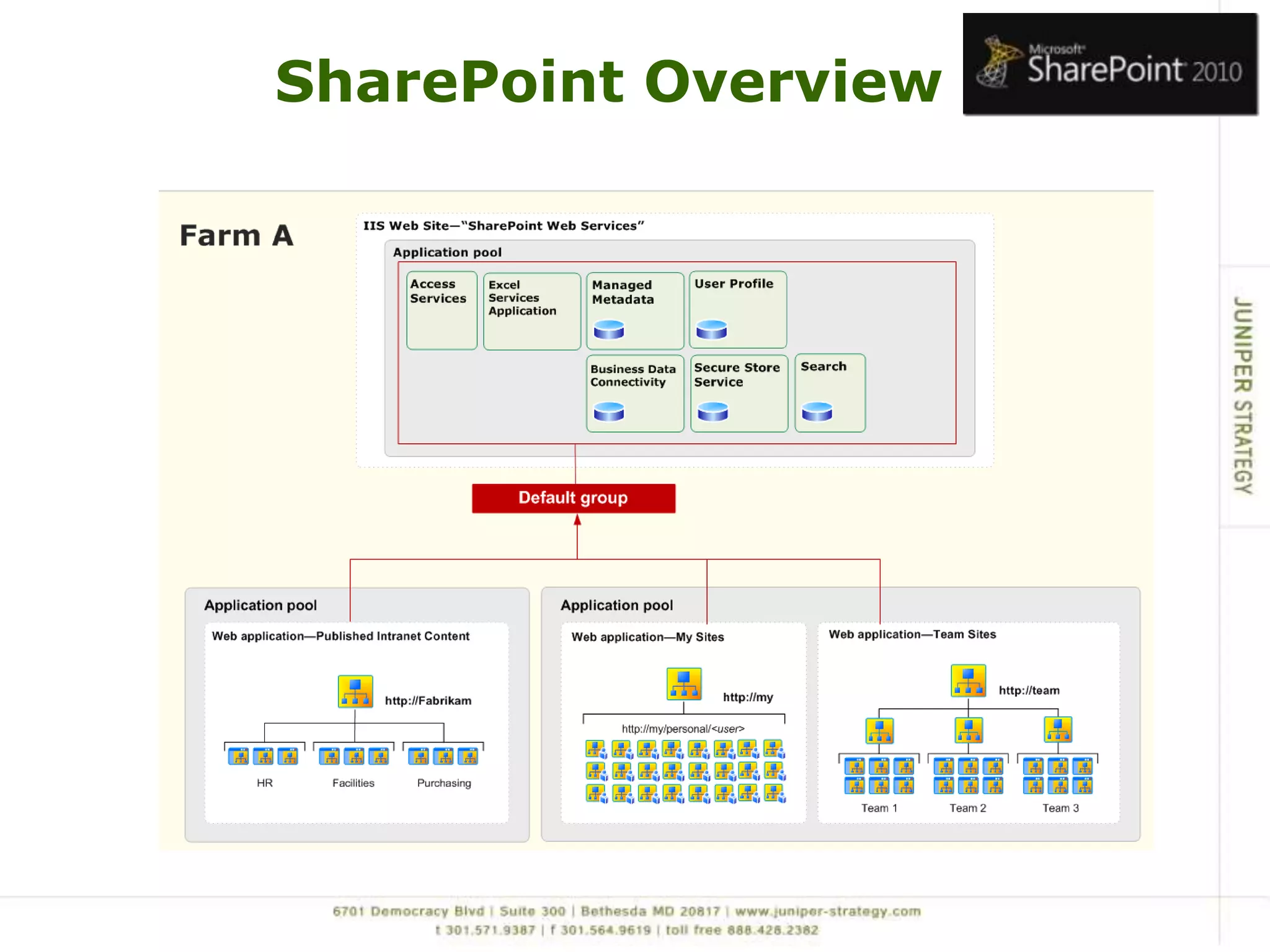

19. SharePoint Overview

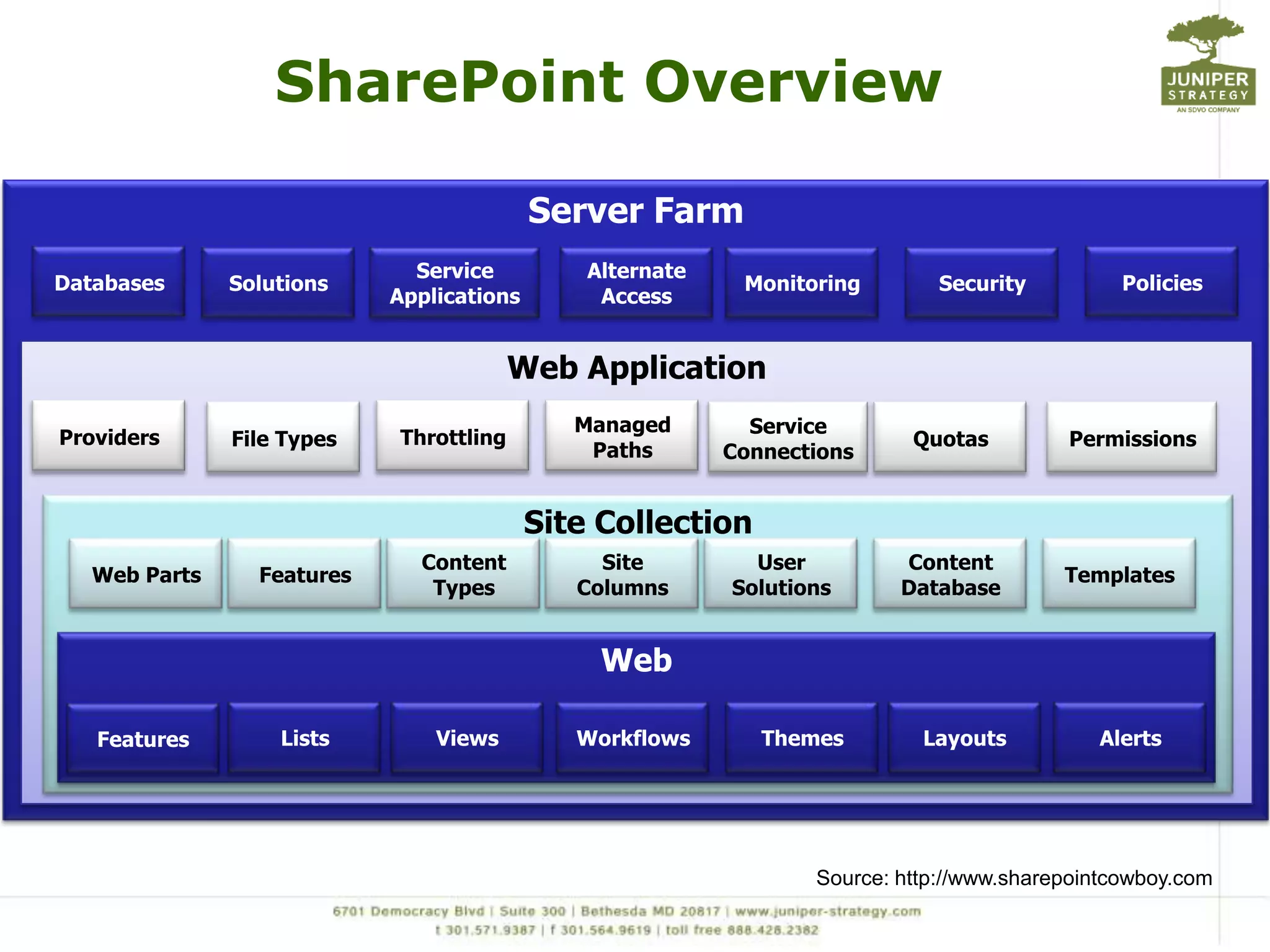

20. SharePoint Overview
Source: http://www.sharepointcowboy.com

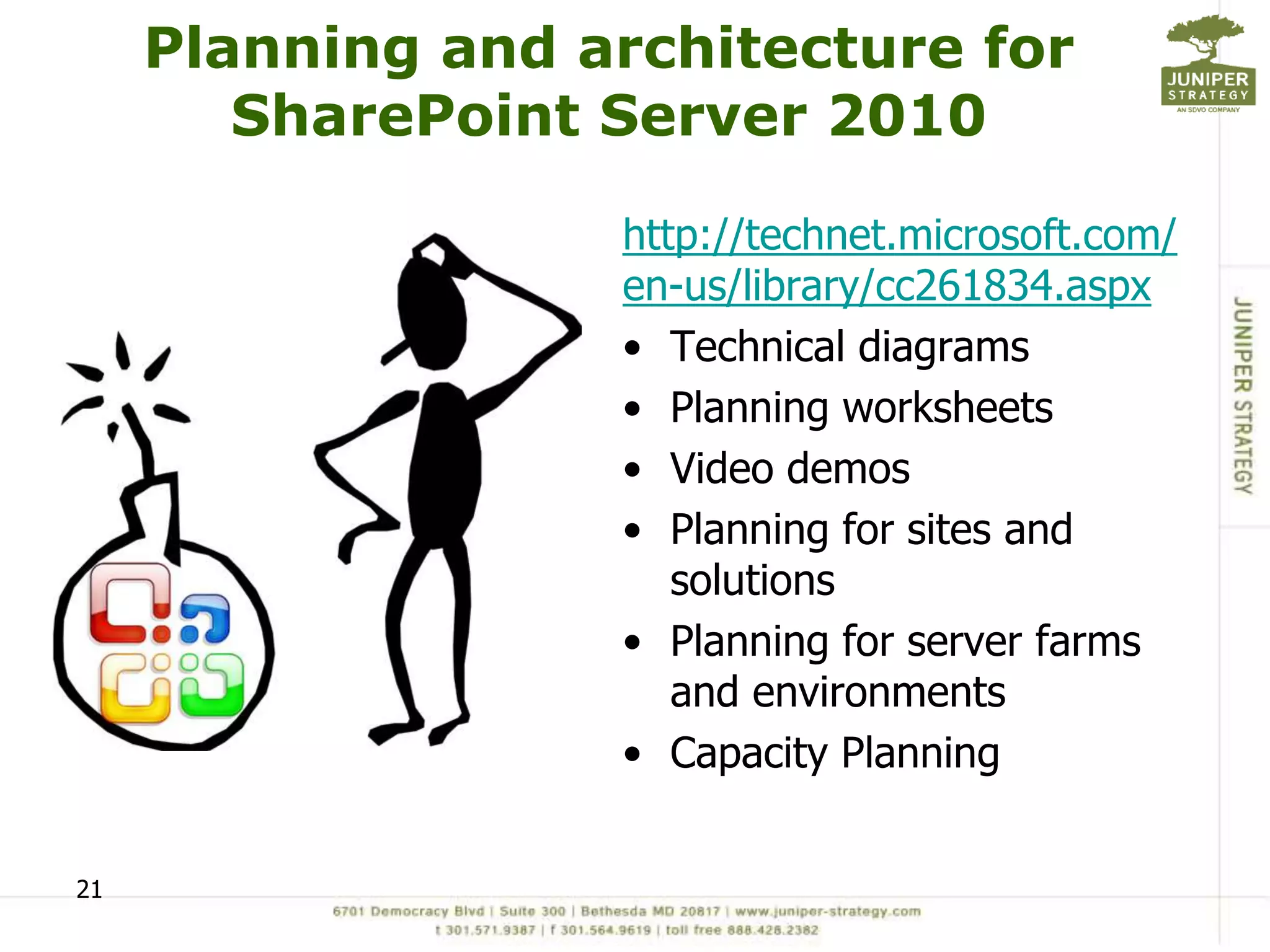

21. Planning and architecture for
SharePoint Server 2010
http://technet.microsoft.com/
en-us/library/cc261834.aspx
• Technical diagrams
• Planning worksheets
• Video demos
• Planning for sites and
solutions
• Planning for server farms
and environments
• Capacity Planning
21

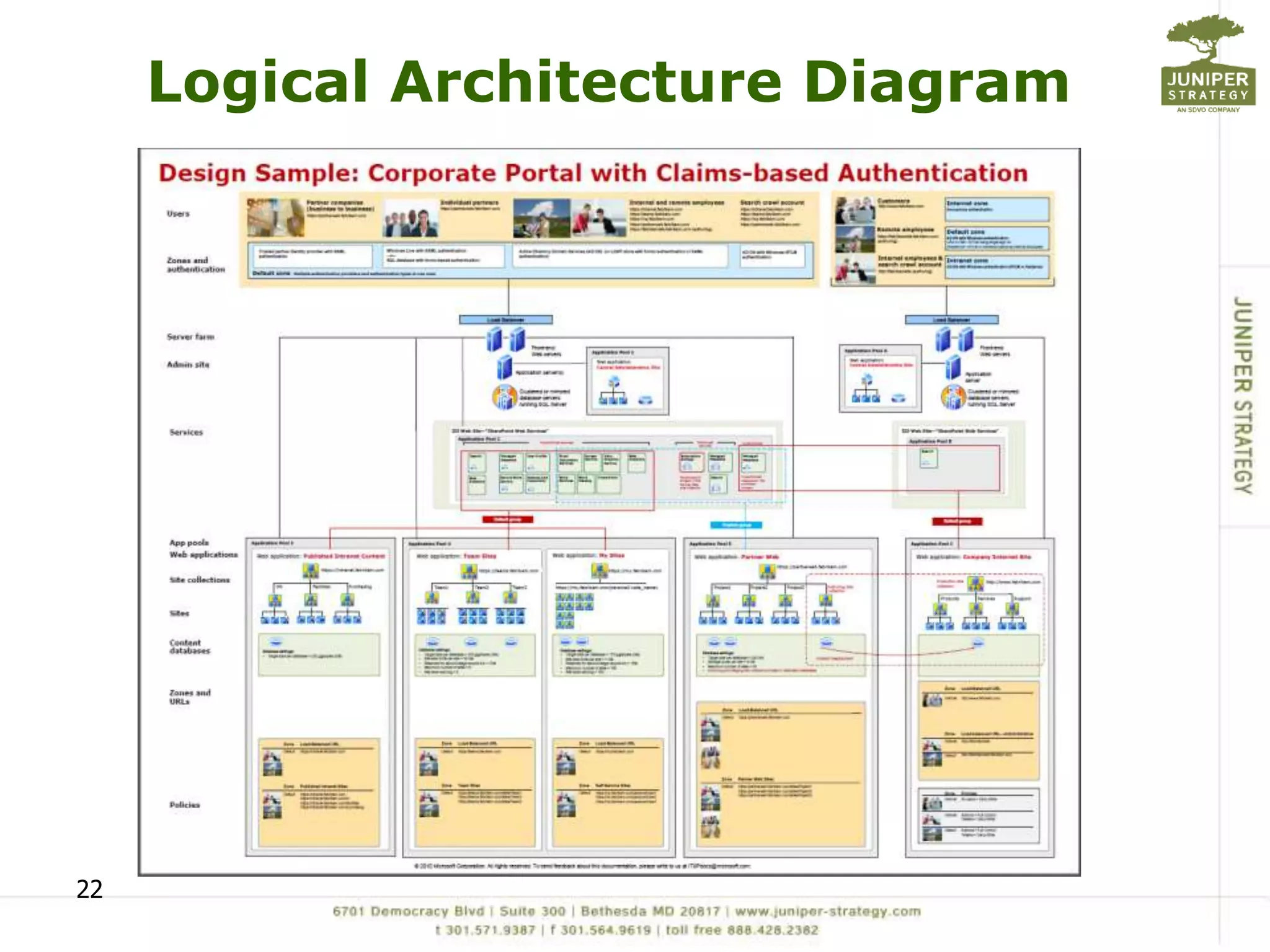

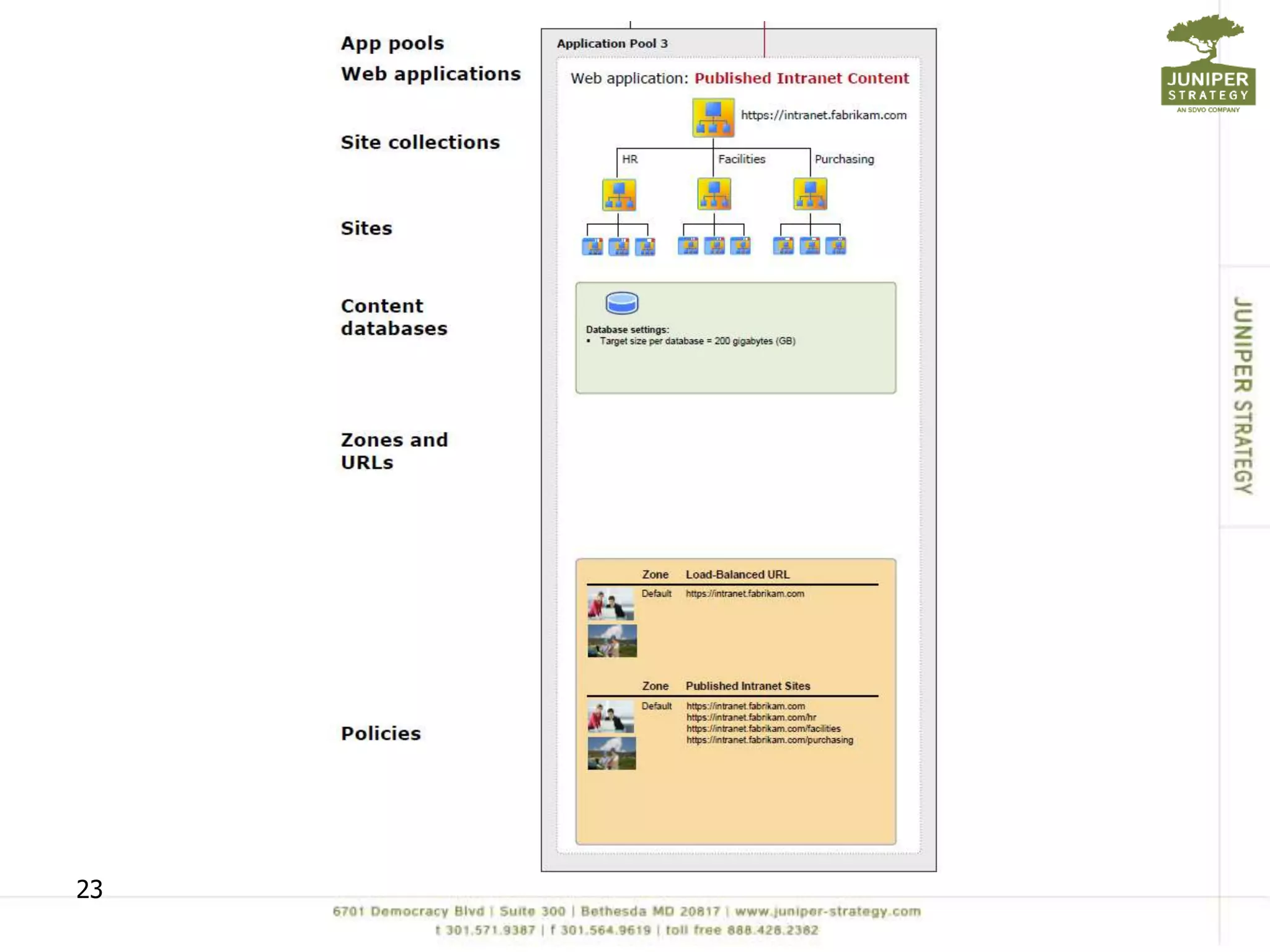

22. Logical Architecture Diagram
22

23. 23

24. Path To SharePoint Developer
24

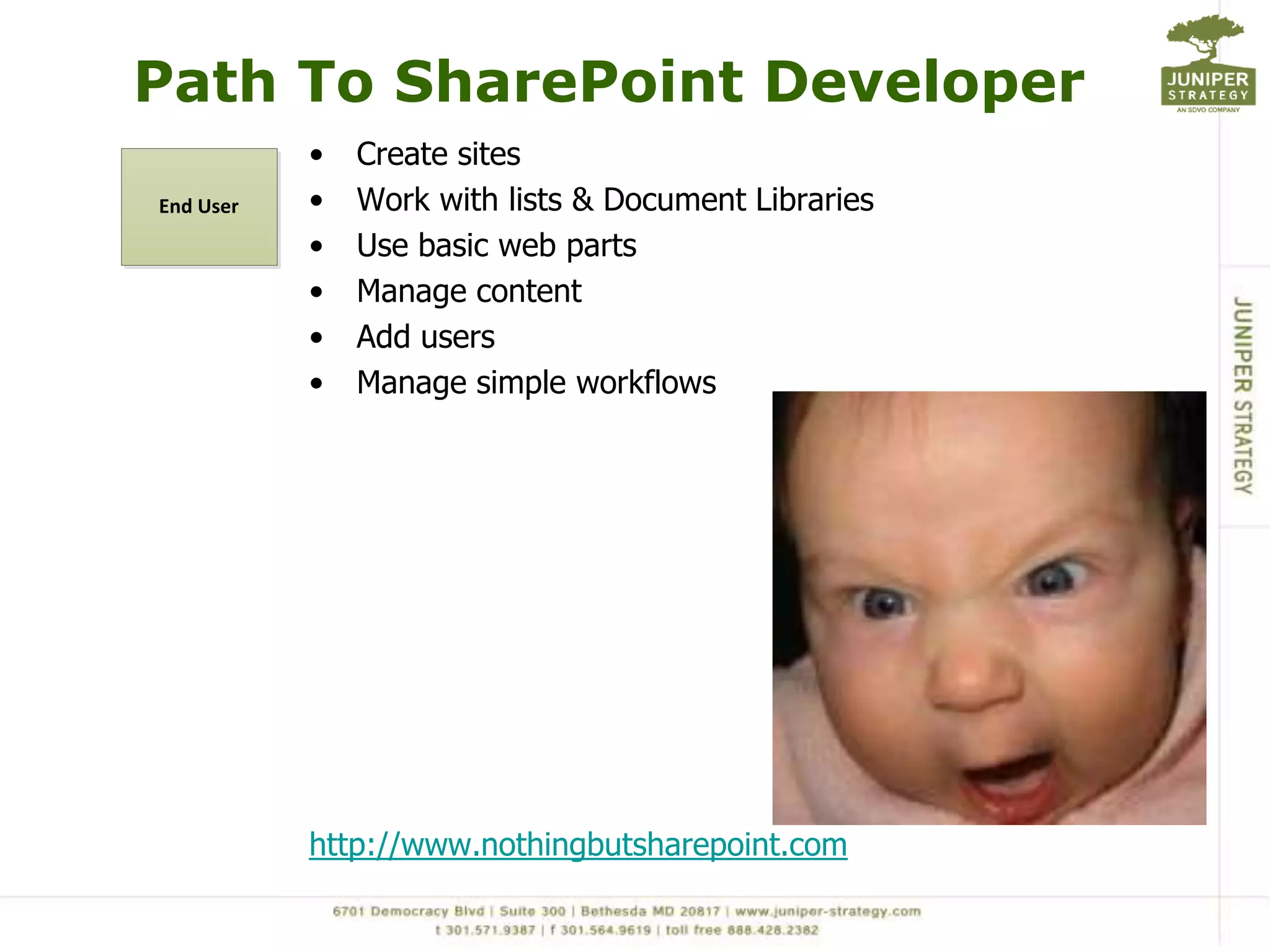

25. Path To SharePoint Developer
• Create sites
End User • Work with lists & Document Libraries
• Use basic web parts
• Manage content
• Add users
• Manage simple workflows
http://www.nothingbutsharepoint.com

26. Path To SharePoint Developer
• Configure SharePoint farm
• Use Central Admin
• STSADM / PowerShell
• Deploy Features
• Add Workflows to Lists
• Configure Search
• Be familiar with all out of the box web parts
• Know 12 Hive structure and what’s in there

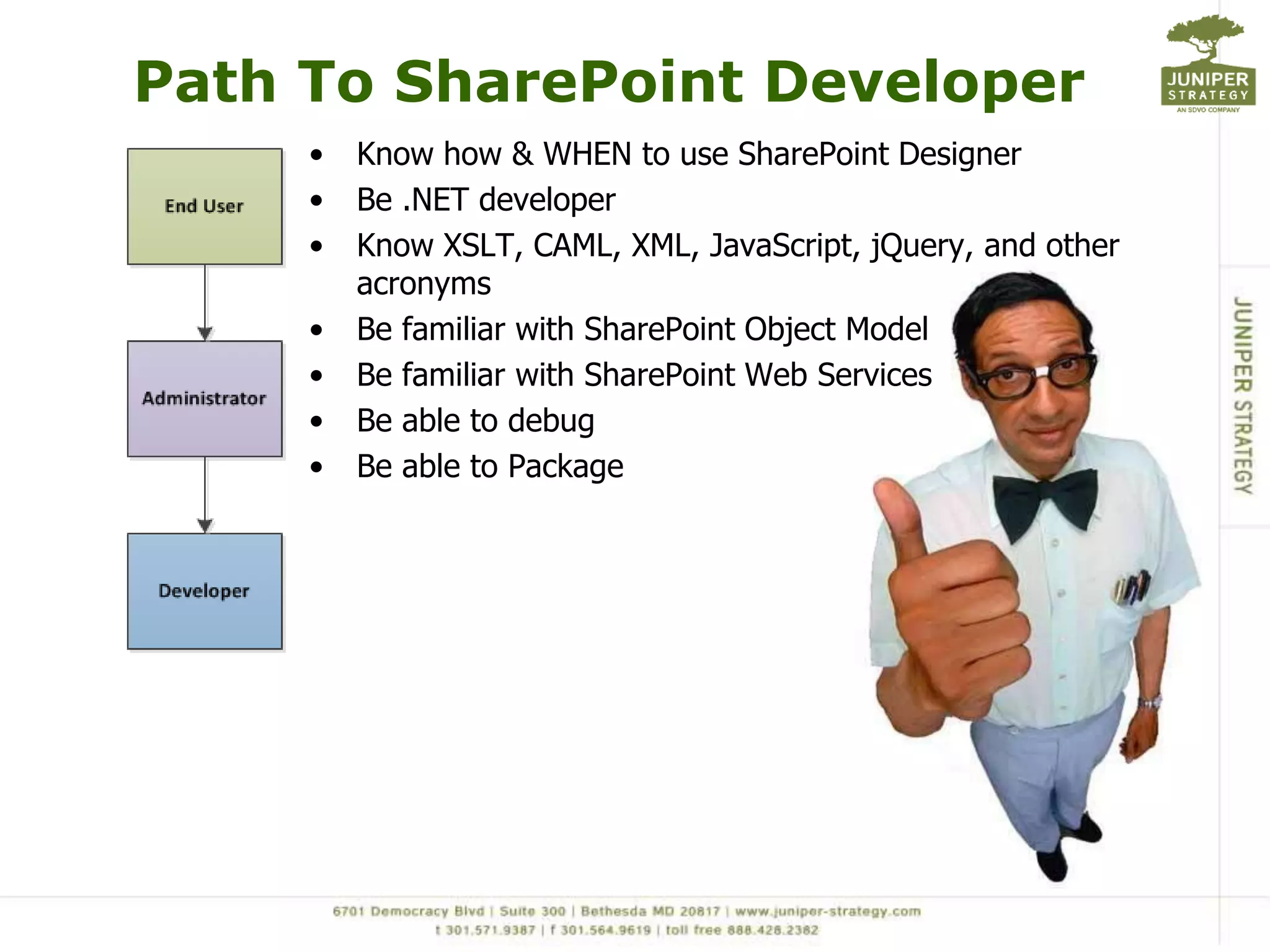

27. Path To SharePoint Developer
• Know how & WHEN to use SharePoint Designer
• Be .NET developer
• Know XSLT, CAML, XML, JavaScript, jQuery, and other
acronyms
• Be familiar with SharePoint Object Model
• Be familiar with SharePoint Web Services
• Be able to debug
• Be able to Package

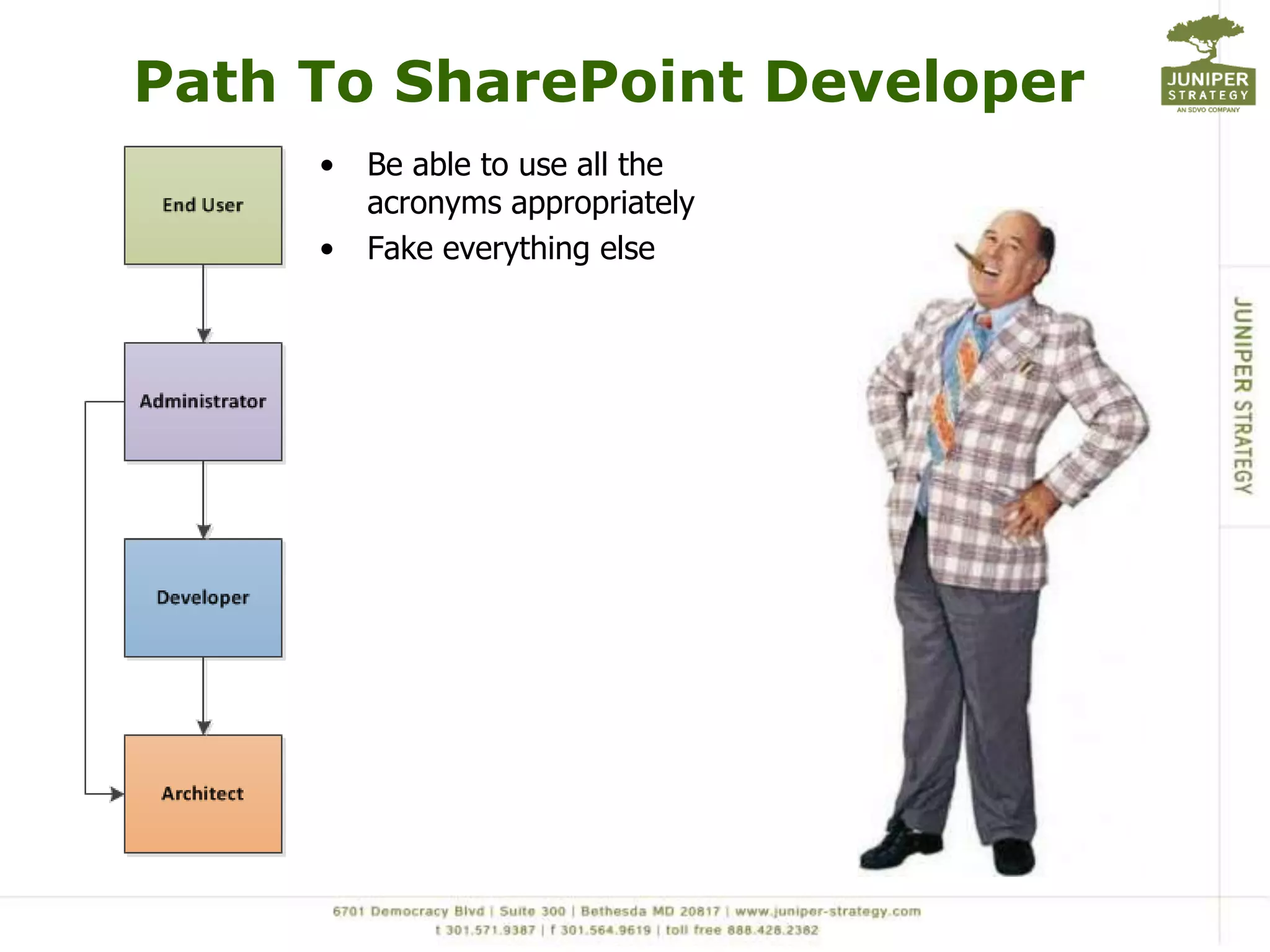

28. Path To SharePoint Developer
• Be able to use all the
acronyms appropriately
• Fake everything else

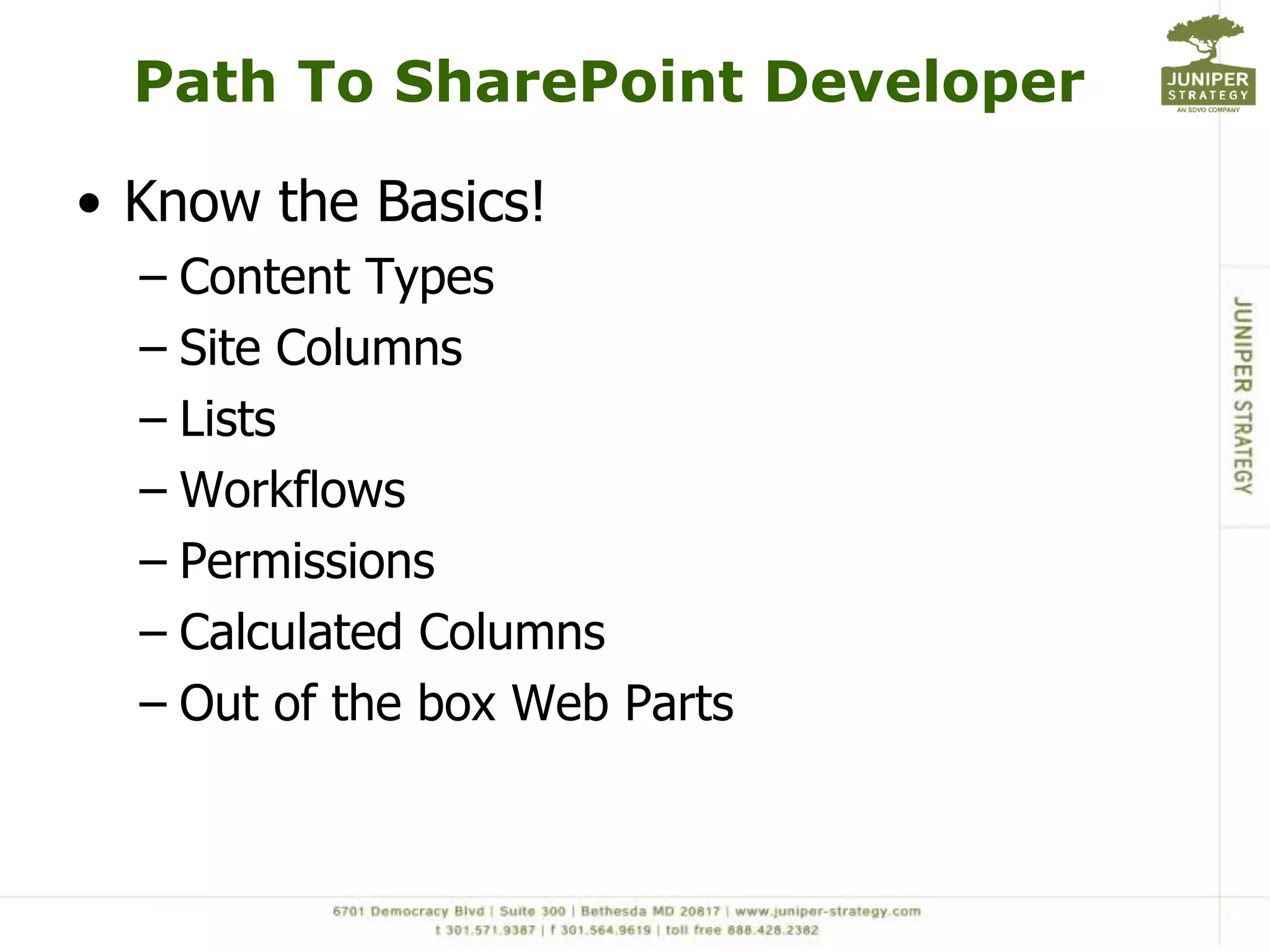

29. Path To SharePoint Developer
• Know the Basics!
– Content Types
– Site Columns
– Lists
– Workflows
– Permissions
– Calculated Columns
– Out of the box Web Parts

30. What IS SharePoint Development?
Gifted .NET Developer != SharePoint Developer
30

31. Development Options
31

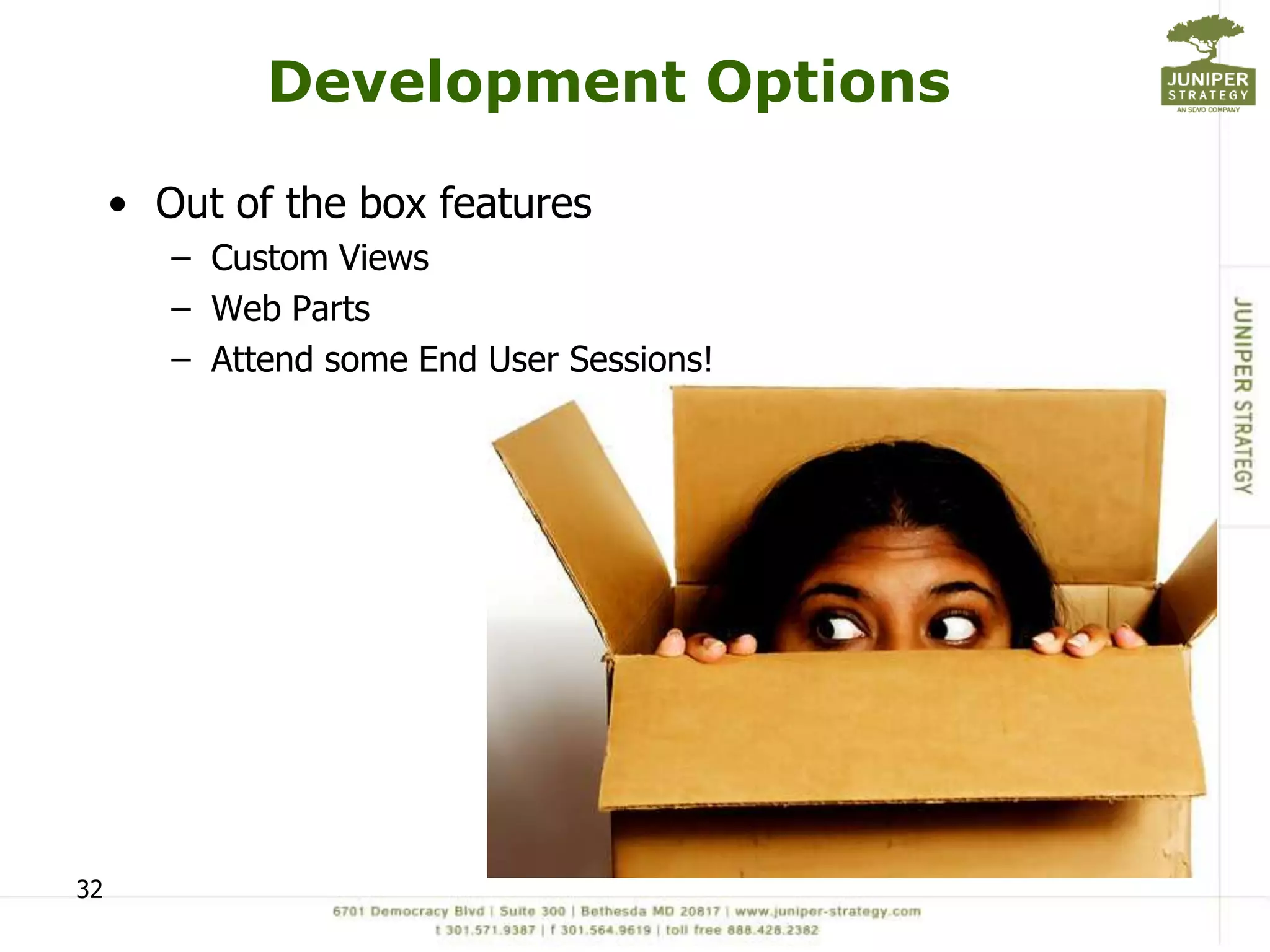

32. Development Options
• Out of the box features
– Custom Views
– Web Parts
– Attend some End User Sessions!
32

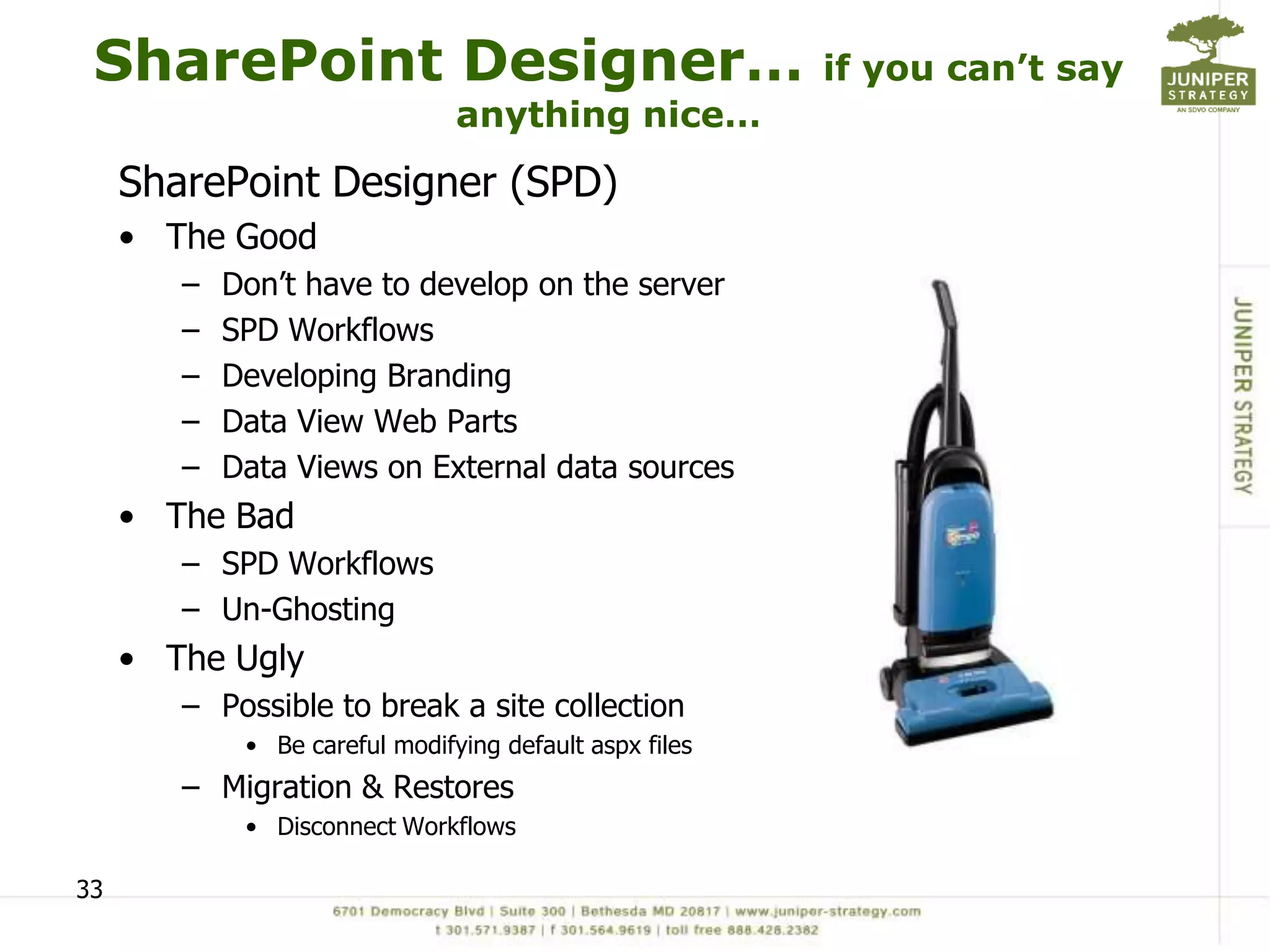

33. SharePoint Designer… if you can’t say
anything nice…
SharePoint Designer (SPD)
• The Good
– Don’t have to develop on the server
– SPD Workflows
– Developing Branding
– Data View Web Parts
– Data Views on External data sources
• The Bad
– SPD Workflows
– Un-Ghosting
• The Ugly
– Possible to break a site collection
• Be careful modifying default aspx files
– Migration & Restores
• Disconnect Workflows
33

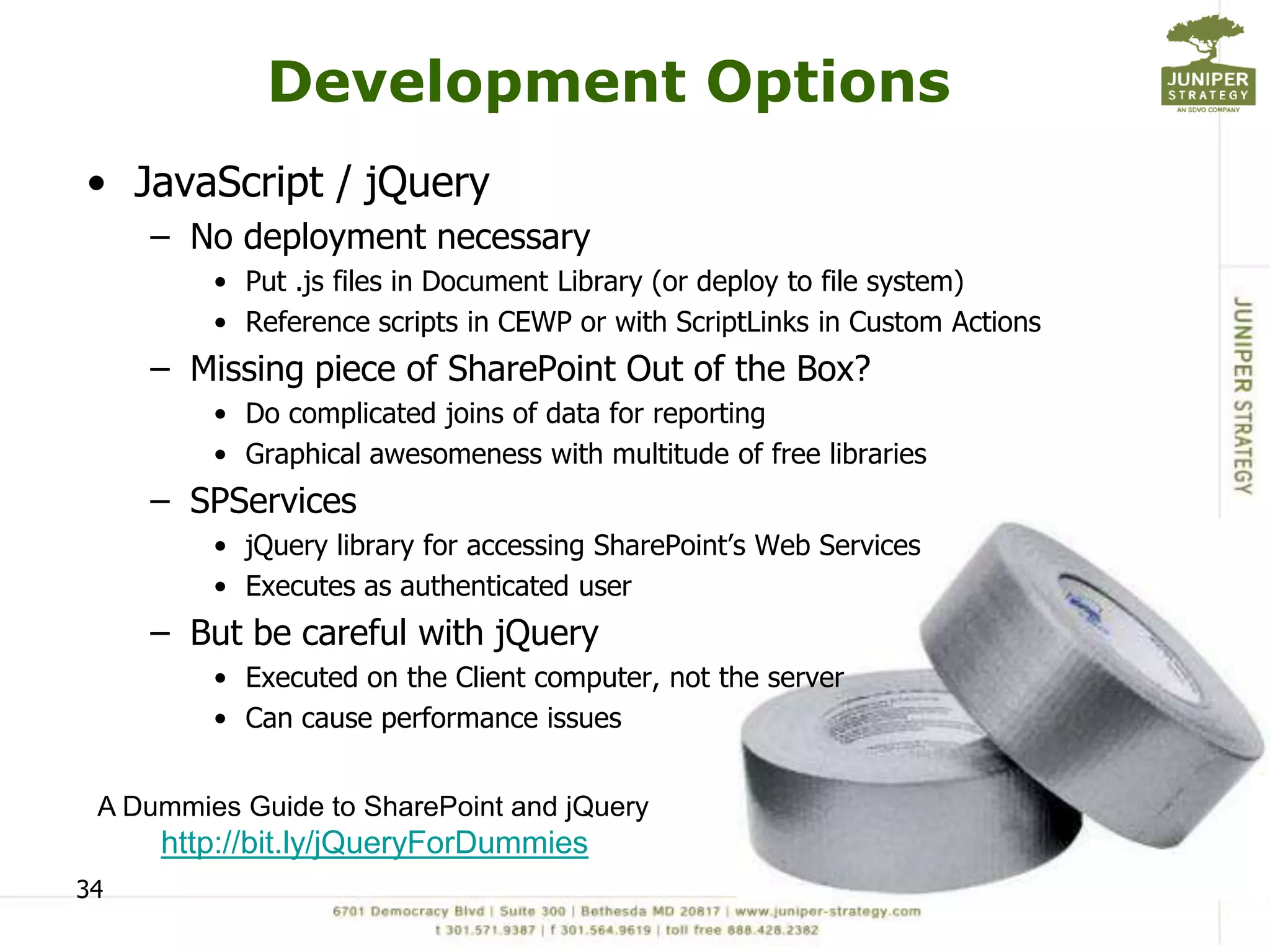

34. Development Options
• JavaScript / jQuery
– No deployment necessary
• Put .js files in Document Library (or deploy to file system)
• Reference scripts in CEWP or with ScriptLinks in Custom Actions
– Missing piece of SharePoint Out of the Box?
• Do complicated joins of data for reporting
• Graphical awesomeness with multitude of free libraries
– SPServices
• jQuery library for accessing SharePoint’s Web Services
• Executes as authenticated user
– But be careful with jQuery
• Executed on the Client computer, not the server
• Can cause performance issues
A Dummies Guide to SharePoint and jQuery
http://bit.ly/jQueryForDummies
34

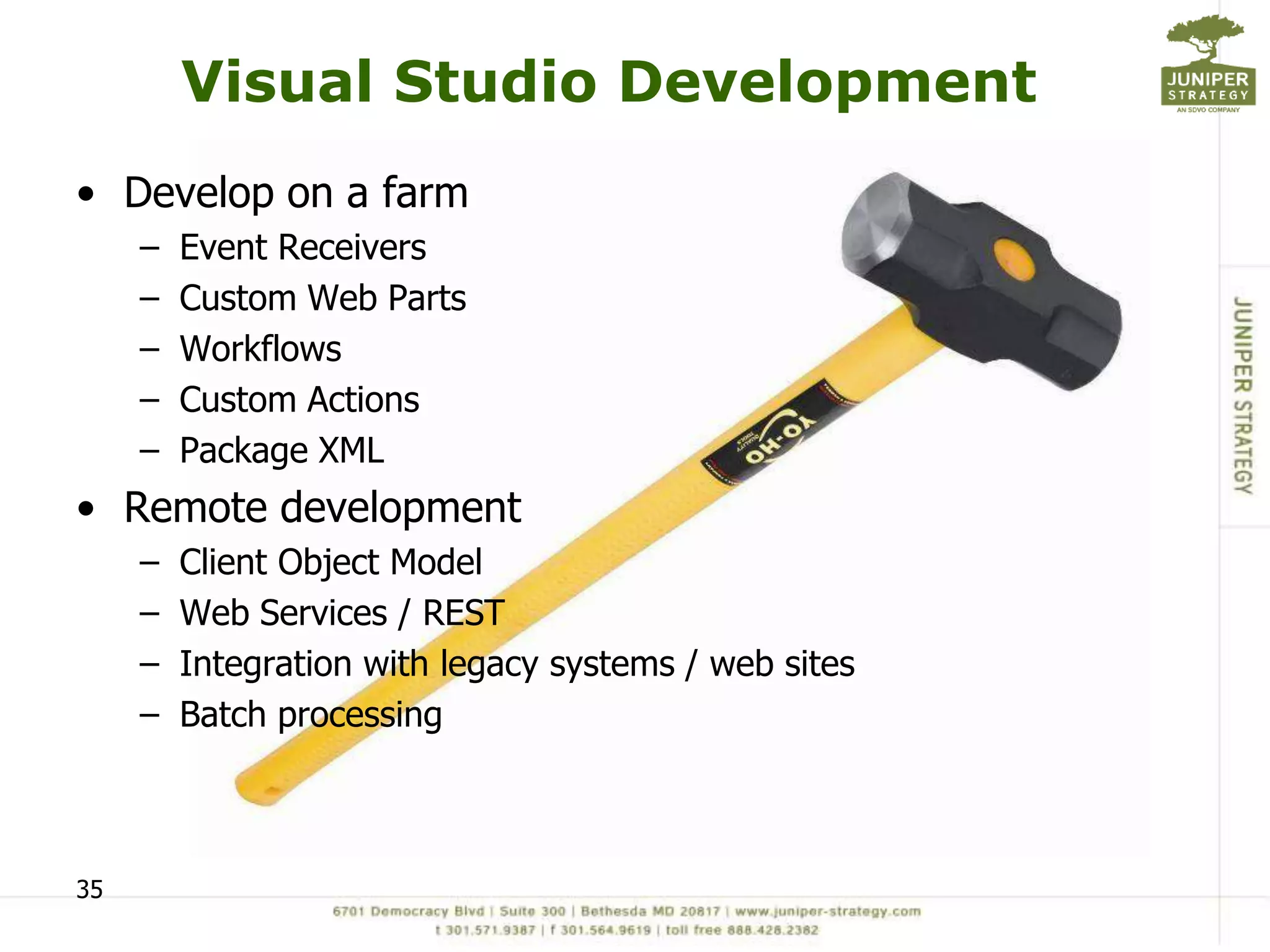

35. Visual Studio Development
• Develop on a farm
– Event Receivers
– Custom Web Parts
– Workflows
– Custom Actions
– Package XML
• Remote development
– Client Object Model
– Web Services / REST
– Integration with legacy systems / web sites
– Batch processing
35

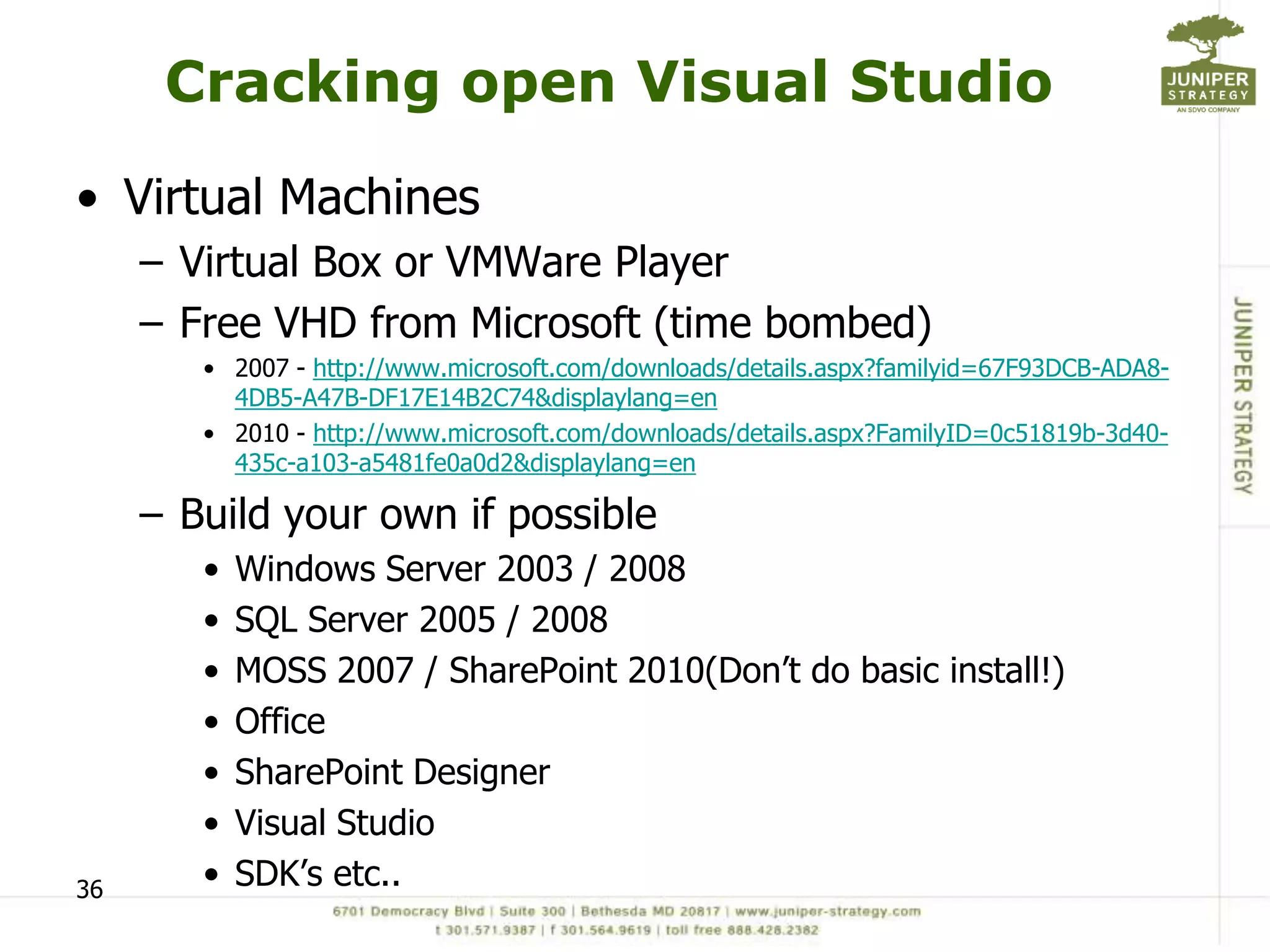

36. Cracking open Visual Studio
• Virtual Machines
– Virtual Box or VMWare Player
– Free VHD from Microsoft (time bombed)
• 2007 - http://www.microsoft.com/downloads/details.aspx?familyid=67F93DCB-ADA8-
4DB5-A47B-DF17E14B2C74&displaylang=en
• 2010 - http://www.microsoft.com/downloads/details.aspx?FamilyID=0c51819b-3d40-
435c-a103-a5481fe0a0d2&displaylang=en
– Build your own if possible
• Windows Server 2003 / 2008
• SQL Server 2005 / 2008
• MOSS 2007 / SharePoint 2010(Don’t do basic install!)
• Office
• SharePoint Designer
• Visual Studio
36 • SDK’s etc..

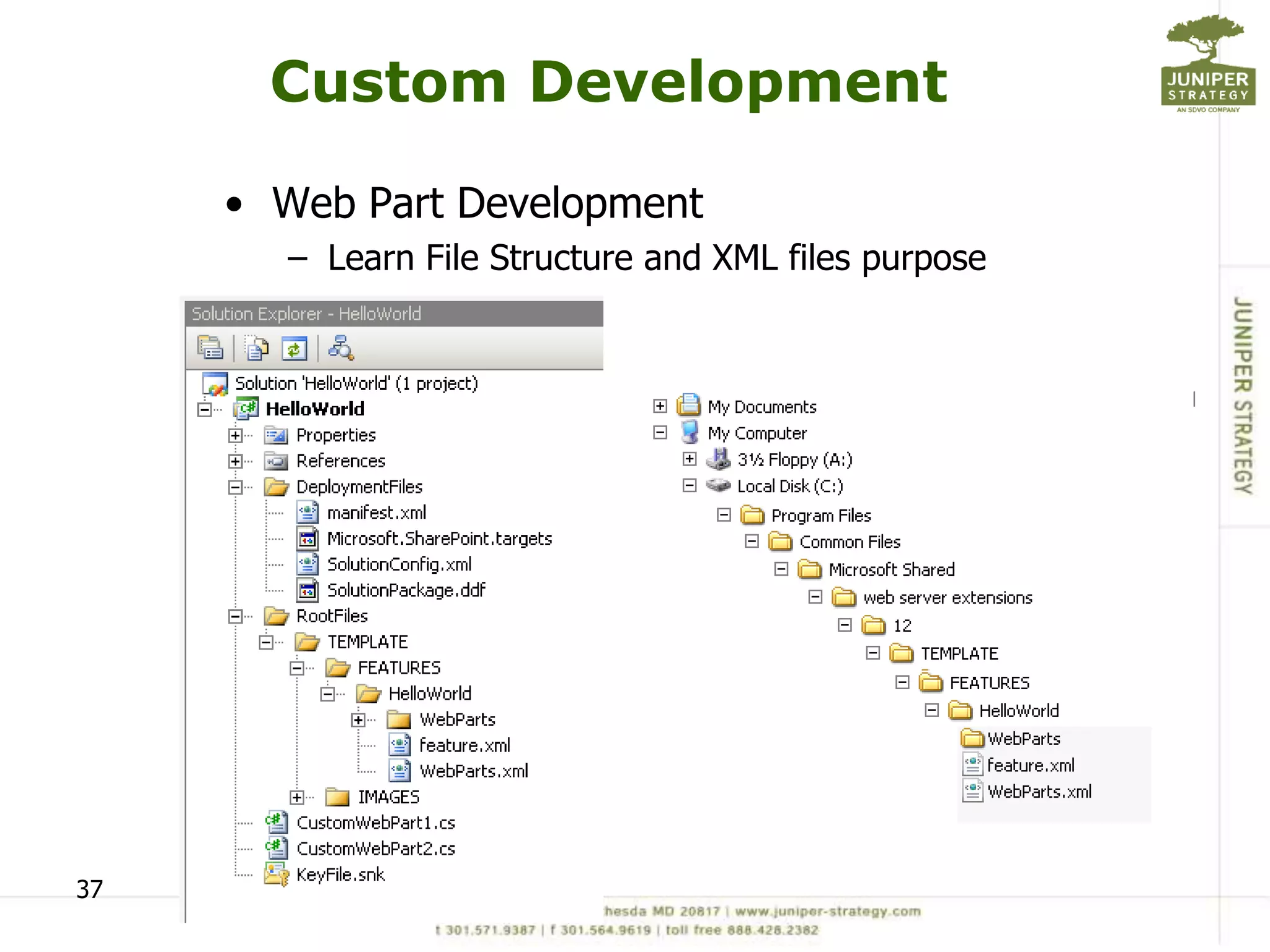

37. Custom Development
• Web Part Development
– Learn File Structure and XML files purpose
37

38. Development Tools…
(There’s an App For that)
• Web Part Development cont.
– STSDev from http://codeplex.com
• Creates structure and XML files for you – avoids typos in
XML
• Great build options:
38

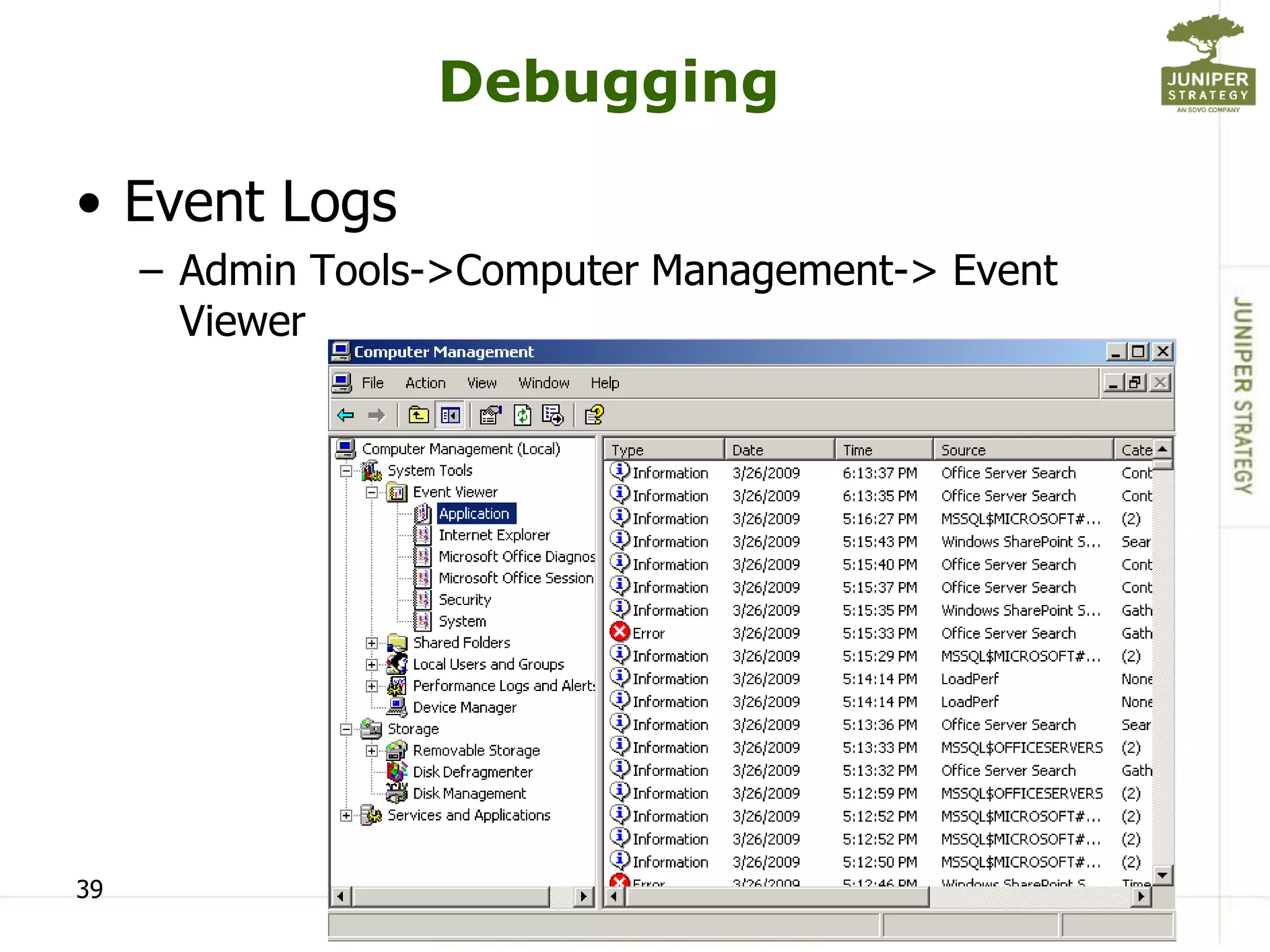

39. Debugging
• Event Logs
– Admin Tools->Computer Management-> Event
Viewer
39

40. Debugging
• SharePoint Logs
– C:Program FilesCommon FilesMicrosoft
ShareWeb Server Extensions12LOGS
– Can write to logs when writing custom code
40

41. Debugging – Visual Studio
41

42. Deployment
42

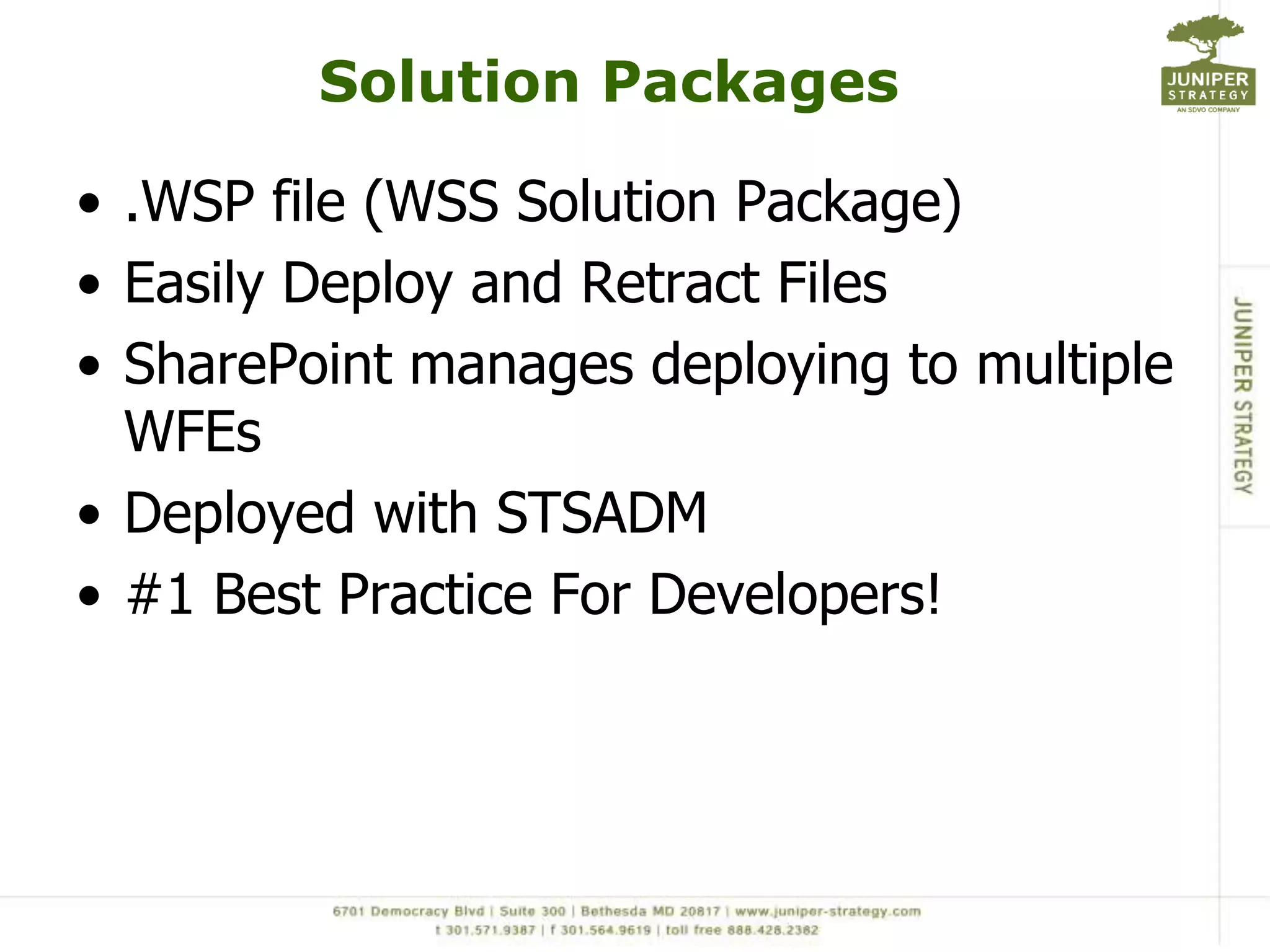

43. Solution Packages
• .WSP file (WSS Solution Package)
• Easily Deploy and Retract Files
• SharePoint manages deploying to multiple
WFEs
• Deployed with STSADM
• #1 Best Practice For Developers!

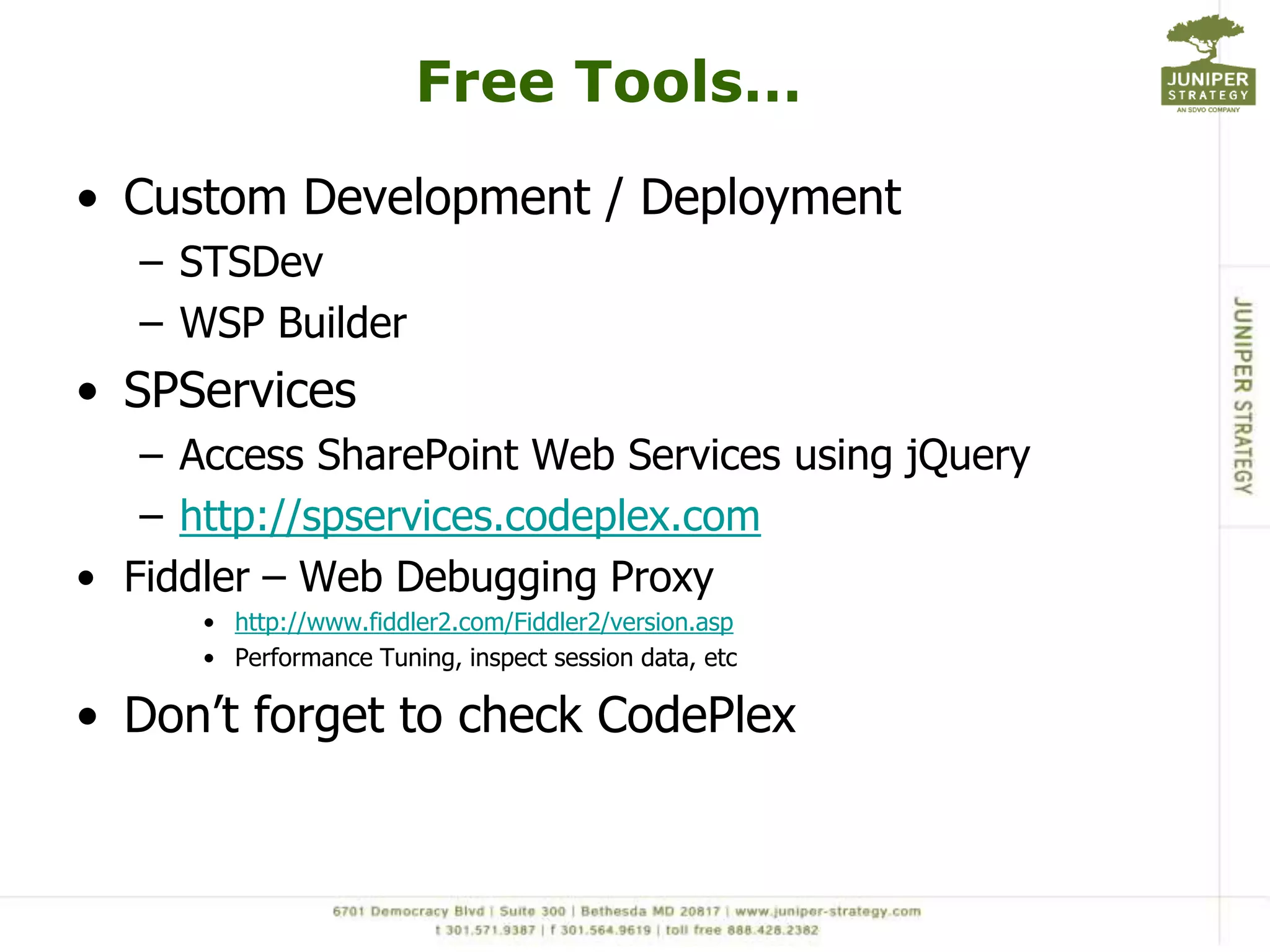

44. Free Tools…
• Custom Development / Deployment
– STSDev
– WSP Builder
• SPServices
– Access SharePoint Web Services using jQuery
– http://spservices.codeplex.com
• Fiddler – Web Debugging Proxy
• http://www.fiddler2.com/Fiddler2/version.asp
• Performance Tuning, inspect session data, etc
• Don’t forget to check CodePlex

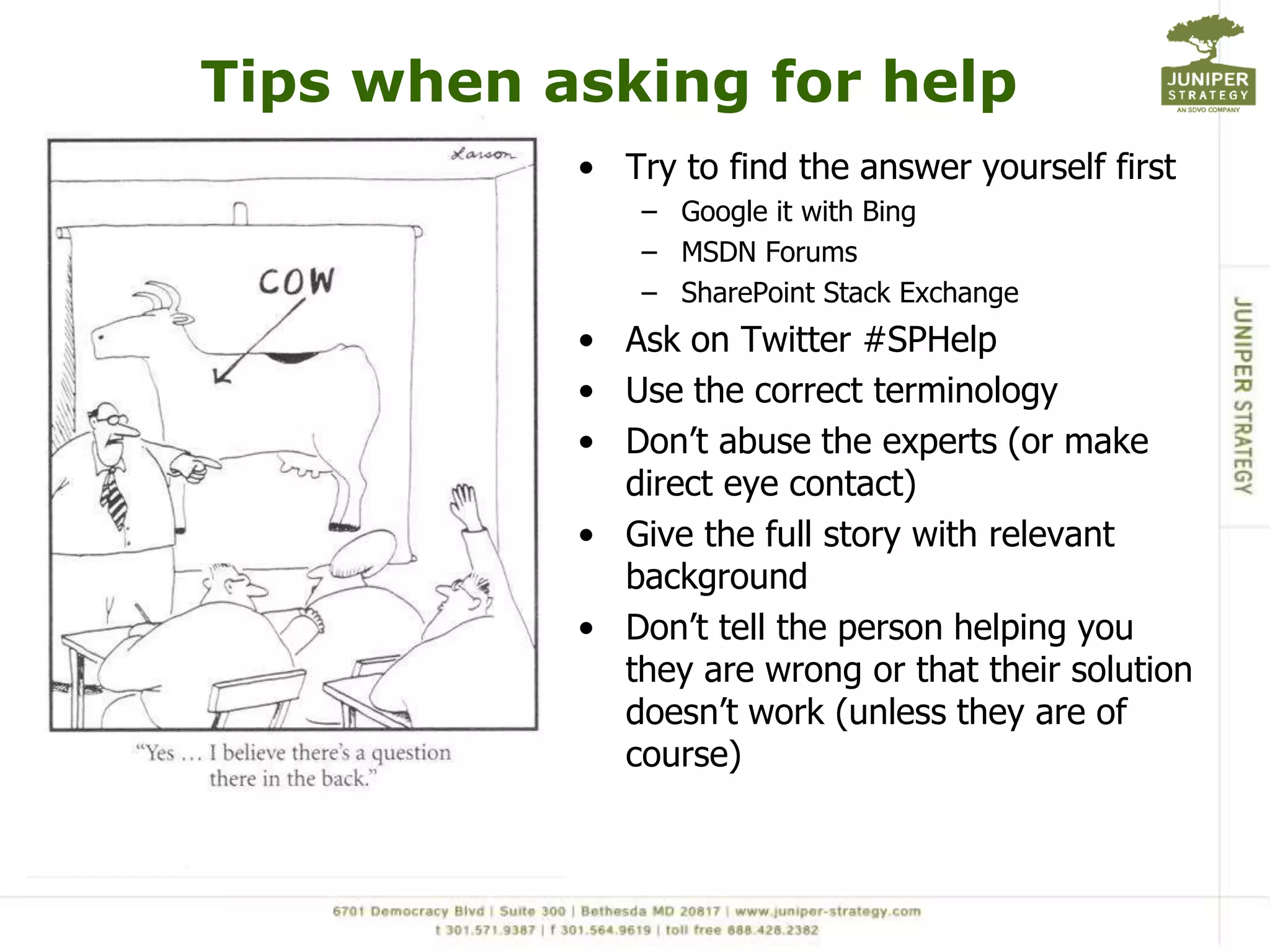

45. Tips when asking for help
• Try to find the answer yourself first
– Google it with Bing
– MSDN Forums
– SharePoint Stack Exchange
• Ask on Twitter #SPHelp
• Use the correct terminology
• Don’t abuse the experts (or make
direct eye contact)
• Give the full story with relevant
background
• Don’t tell the person helping you
they are wrong or that their solution
doesn’t work (unless they are of
course)

46. The SharePoint Community

47. A Word (or two) About
Community
Don’t leave home without it!
47

48. To Avoid SharePoint Fail…
48 Image Source: http://theroosterstrikes.files.wordpress.com

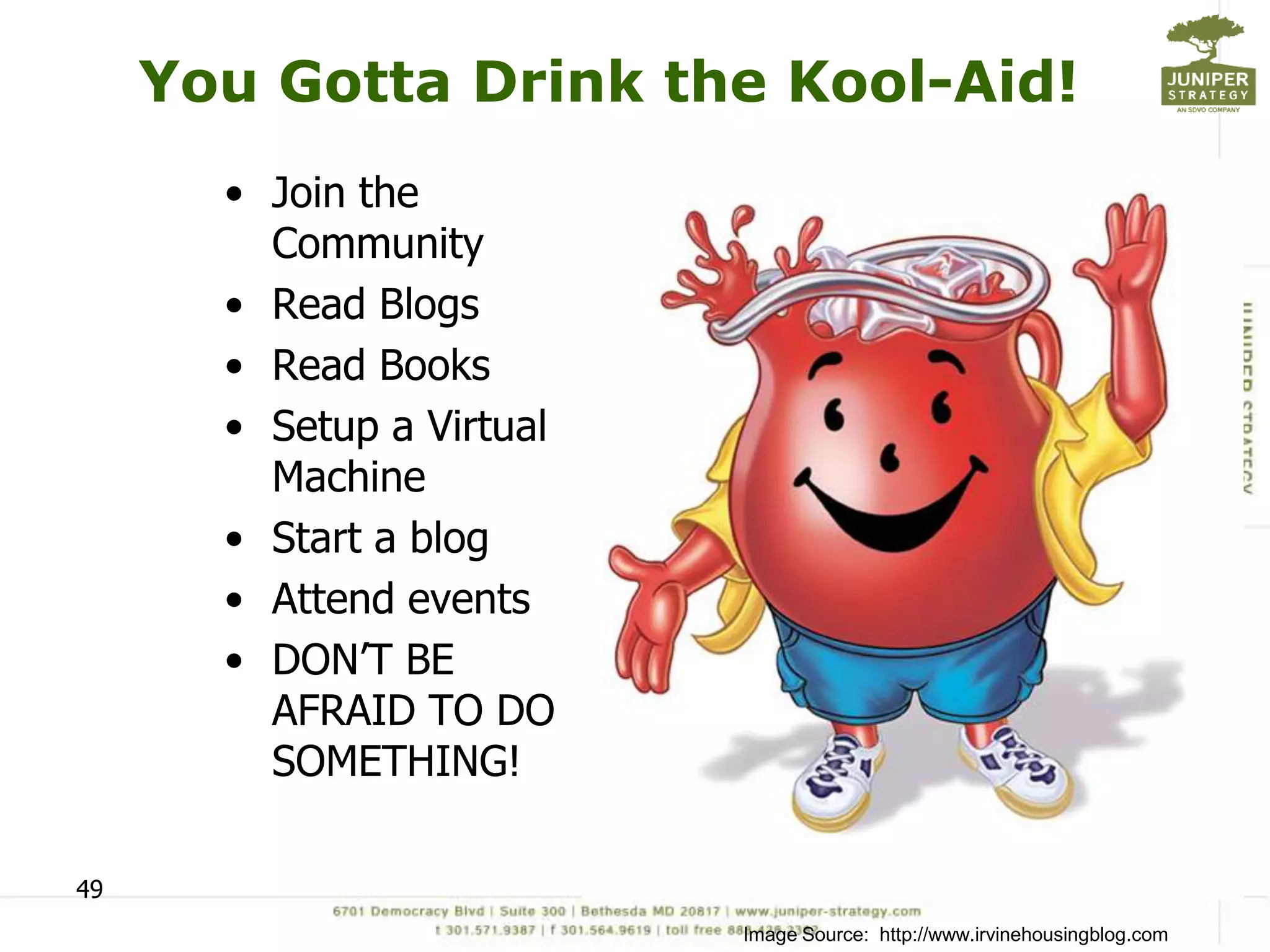

49. You Gotta Drink the Kool-Aid!
• Join the
Community
• Read Blogs
• Read Books
• Setup a Virtual
Machine
• Start a blog
• Attend events
• DON’T BE
AFRAID TO DO
SOMETHING!
49
Image Source: http://www.irvinehousingblog.com

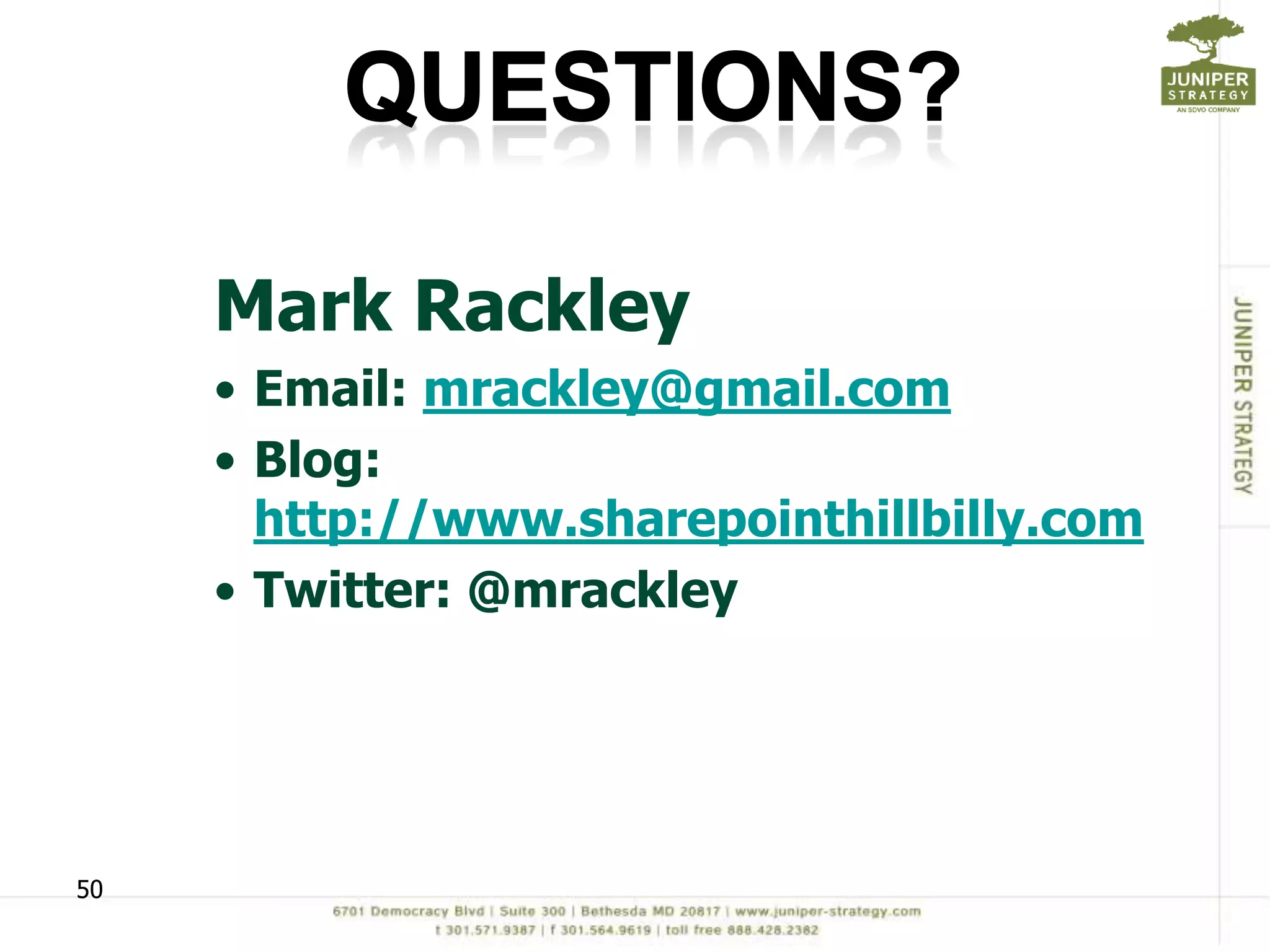

50. Mark Rackley
• Email: mrackley@gmail.com
• Blog:
http://www.sharepointhillbilly.com
• Twitter: @mrackley
50
