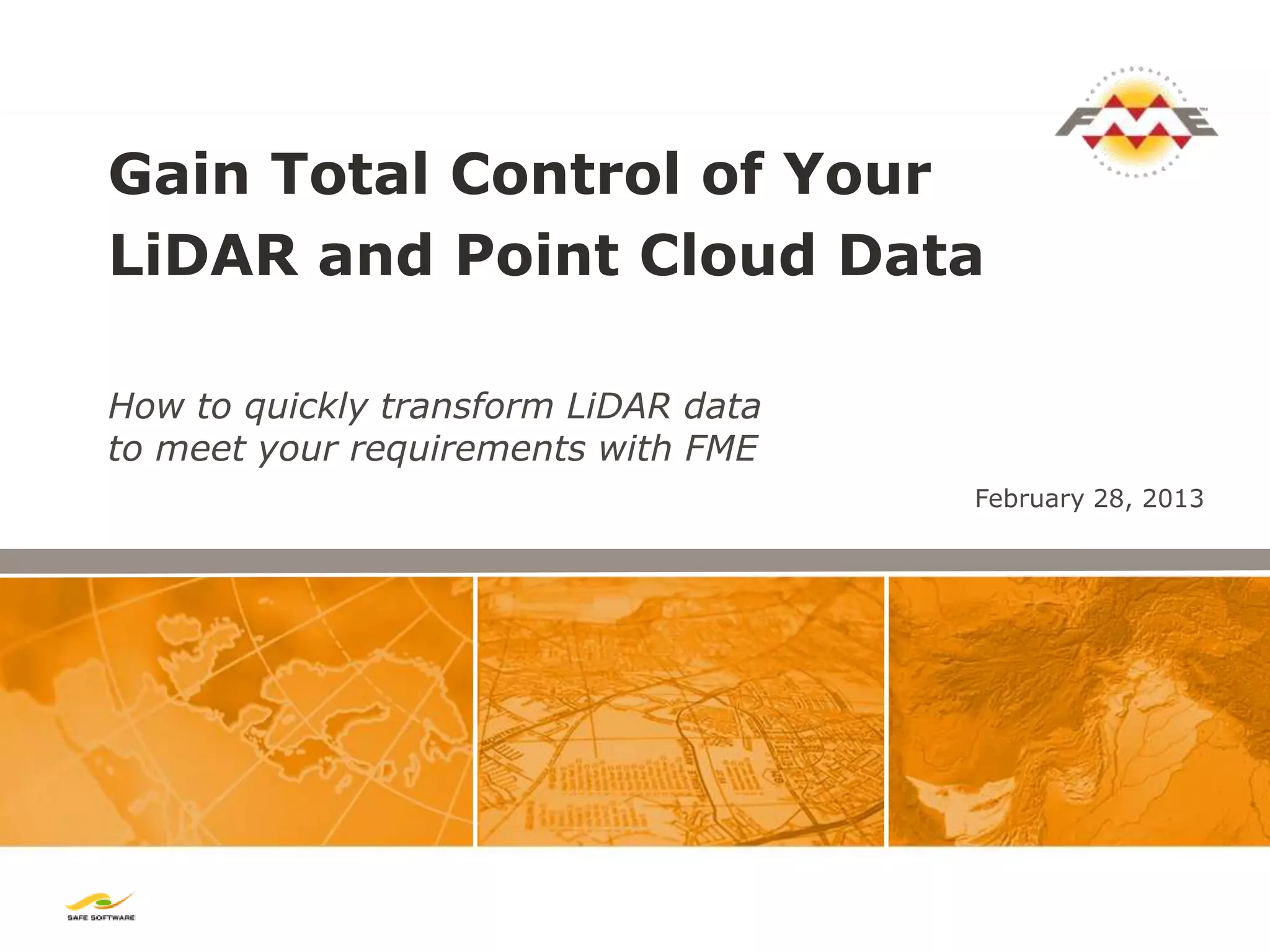

1. Gain Total Control of Your
LiDAR and Point Cloud Data
How to quickly transform LiDAR data
to meet your requirements with FME
February 28, 2013

2. Who Are We?
Dale Lutz
Co-Founder and
Vice President of Development
Safe Software
Dmitri Bagh
Scenario Creation and
Testing Analyst
Safe Software

3. Questions are Encouraged!
 This morning’s Q&A Support:
Dave Campanas,
Product Specialist
Safe Software
 Dean Hintz
Senior Analyst
Safe Software

5. FME – Feature Manipulation Engine
Powering The Flow of Spatial Data

6. Poll: Do you currently use
FME for LiDAR/Point cloud
processing?

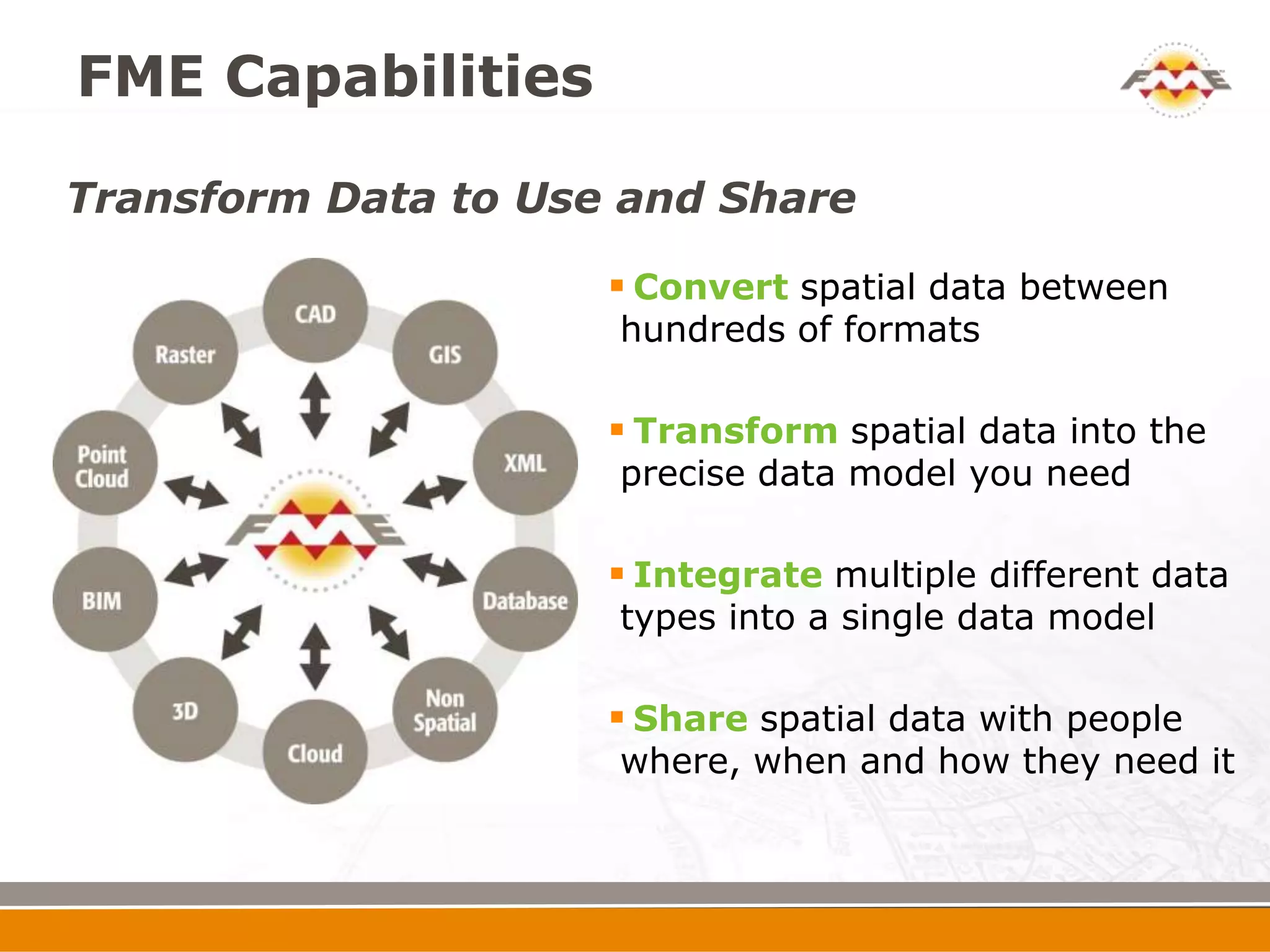

7. FME Capabilities
Transform Data to Use and Share
 Convert spatial data between
hundreds of formats
 Transform spatial data into the
precise data model you need
 Integrate multiple different data
types into a single data model
 Share spatial data with people
where, when and how they need it

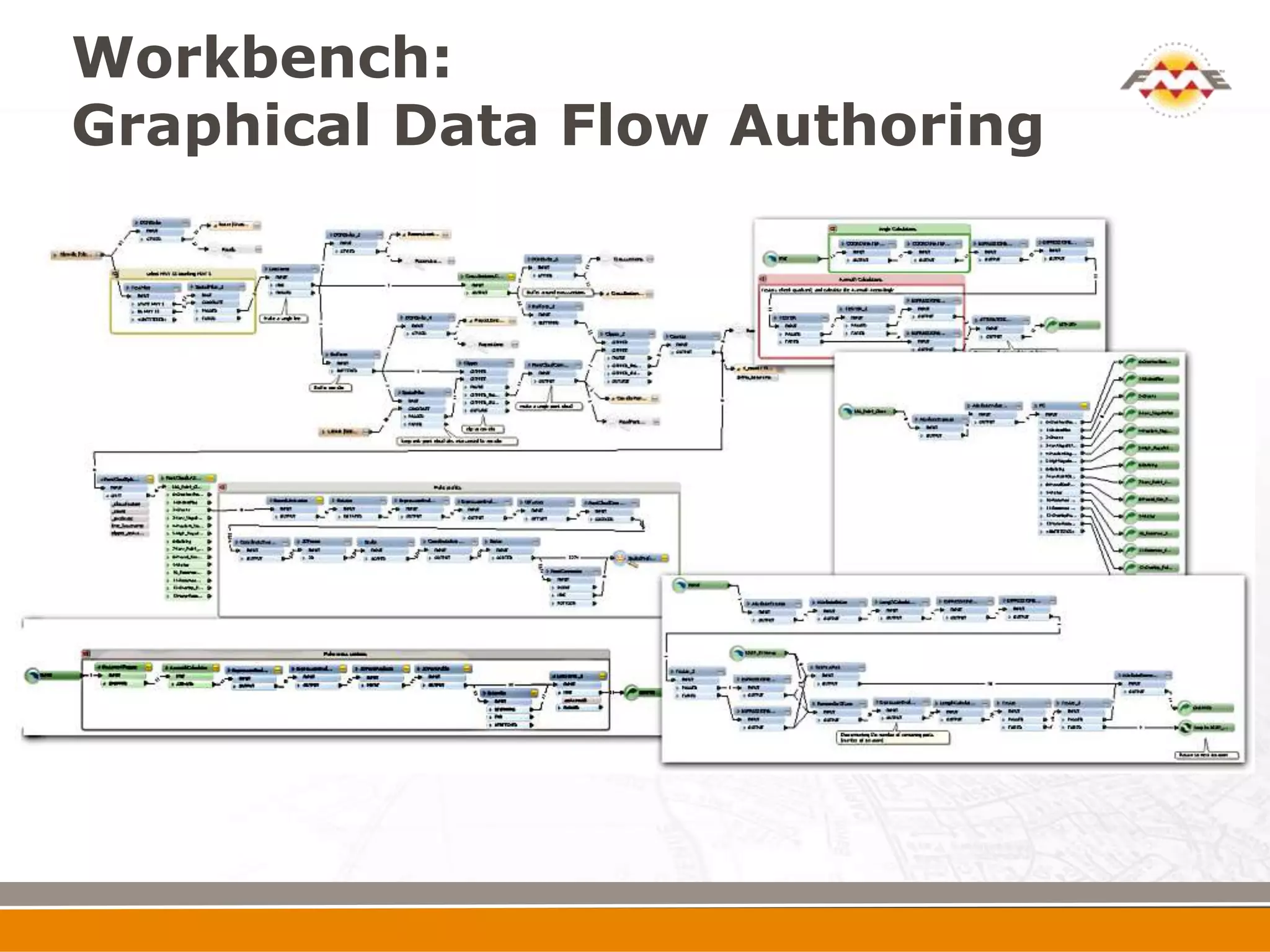

8. Workbench:
Graphical Data Flow Authoring

9. Demo 1

10. LiDAR & Point Clouds:
The Heartache

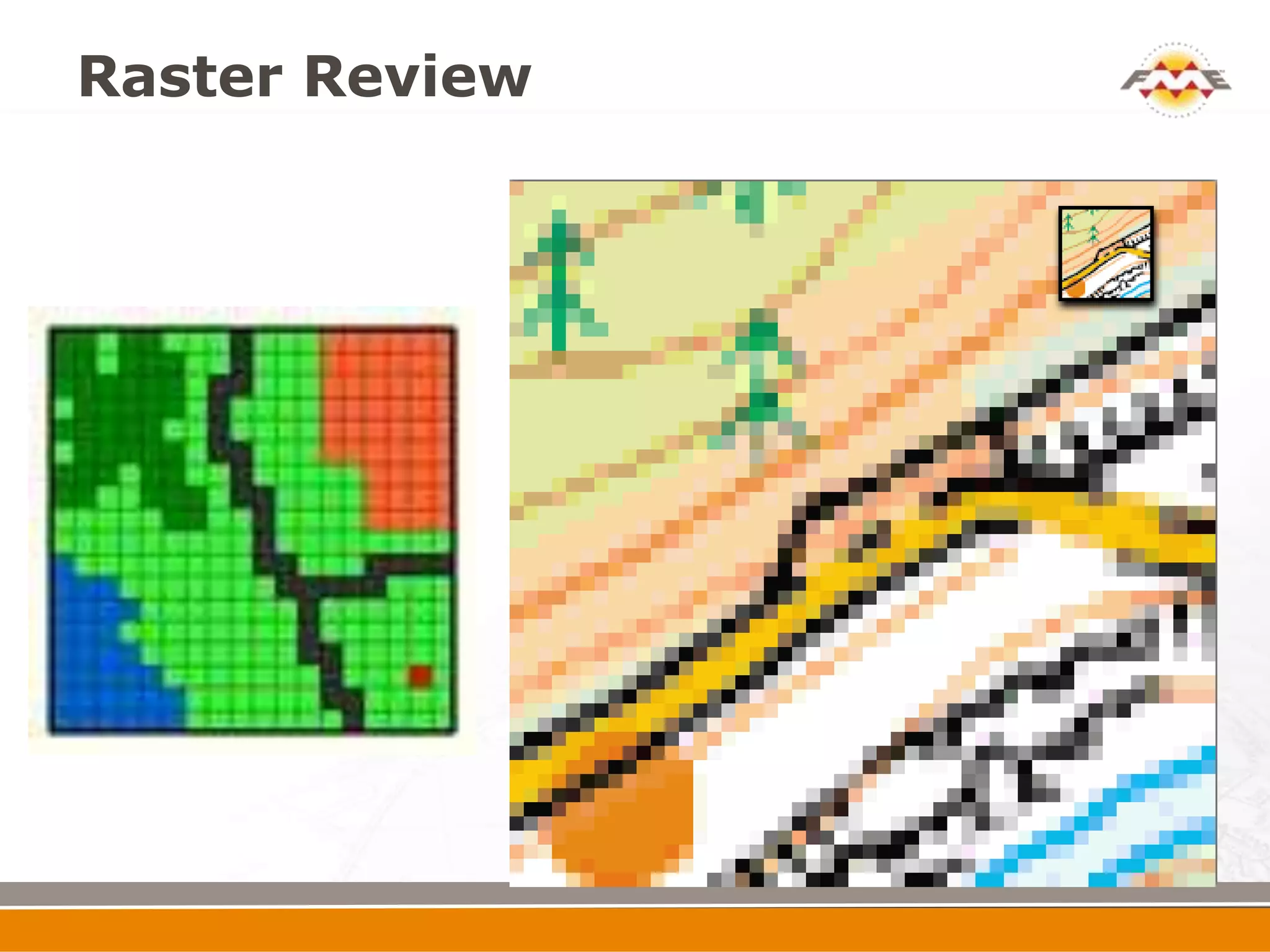

11. Raster Review

12. Point Clouds Are…
RASTERS
gone
WILD

14. Poll: Which point cloud formats
are you interested in?

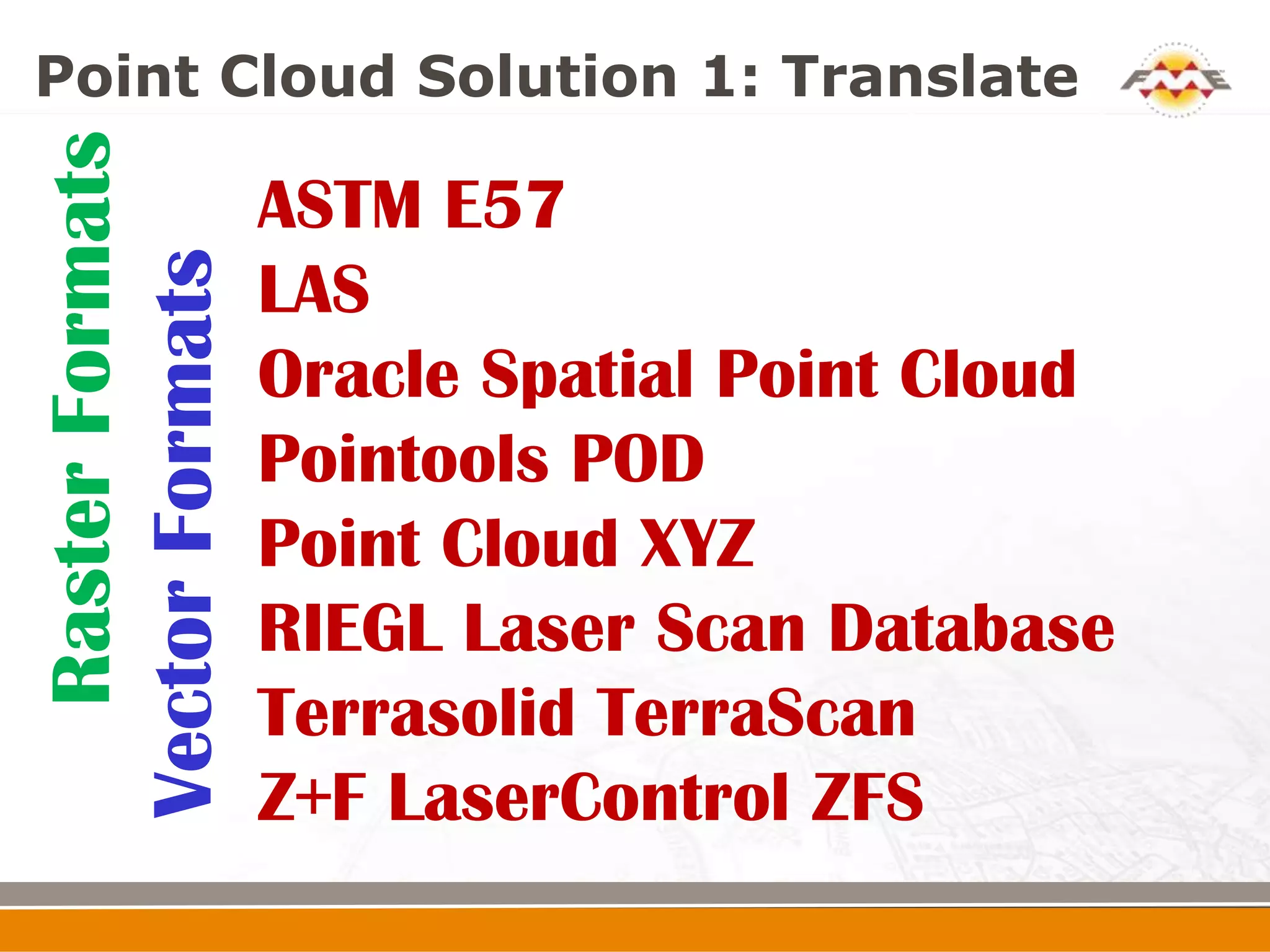

15. Point Cloud Solution 1: Translate
Raster Formats
Vector Formats ASTM E57
LAS
Oracle Spatial Point Cloud
Pointools POD
Point Cloud XYZ
RIEGL Laser Scan Database
Terrasolid TerraScan
Z+F LaserControl ZFS

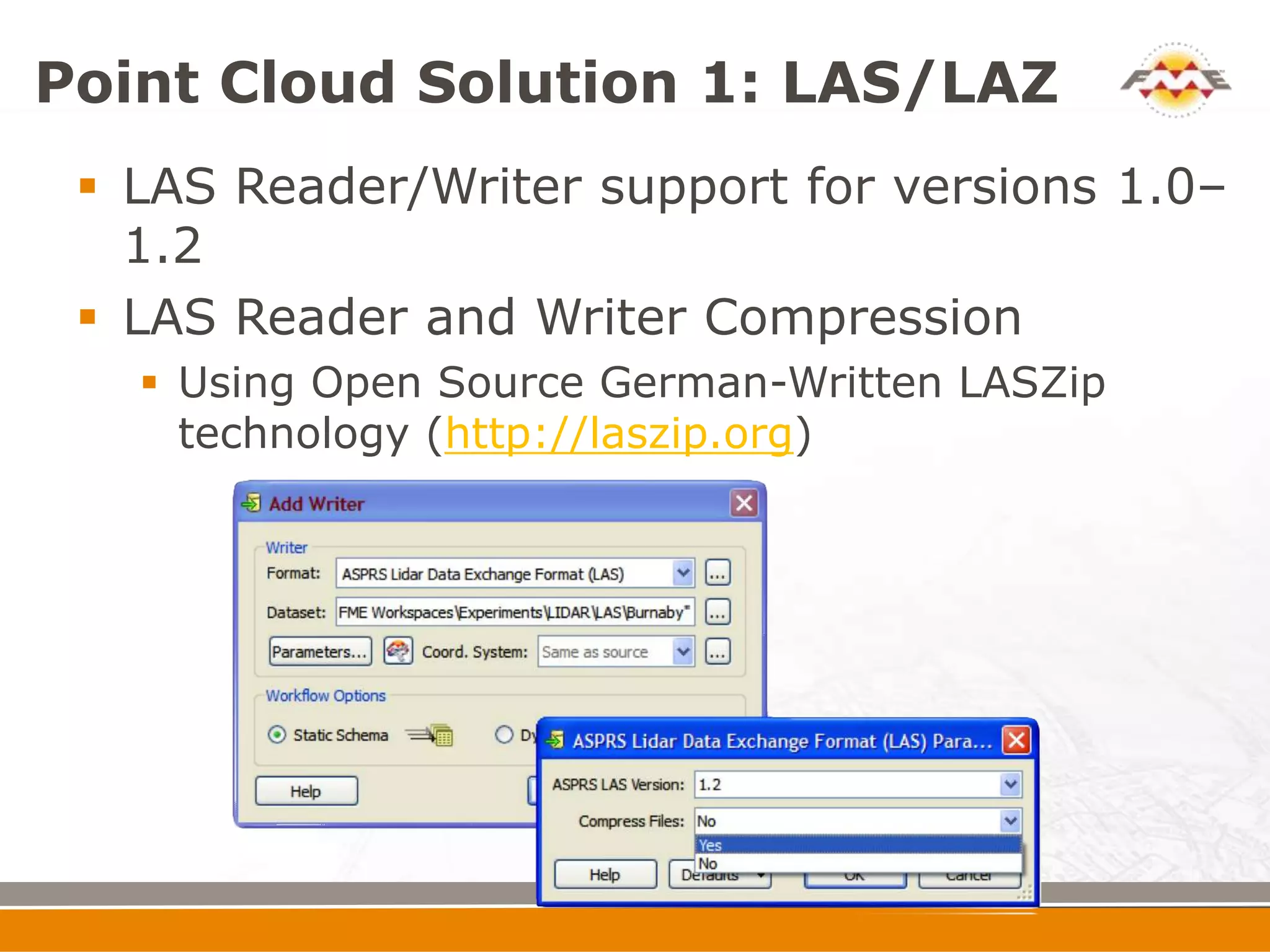

16. Point Cloud Solution 1: LAS/LAZ
 LAS Reader/Writer support for versions 1.0–
1.2
 LAS Reader and Writer Compression
 Using Open Source German-Written LASZip
technology (http://laszip.org)

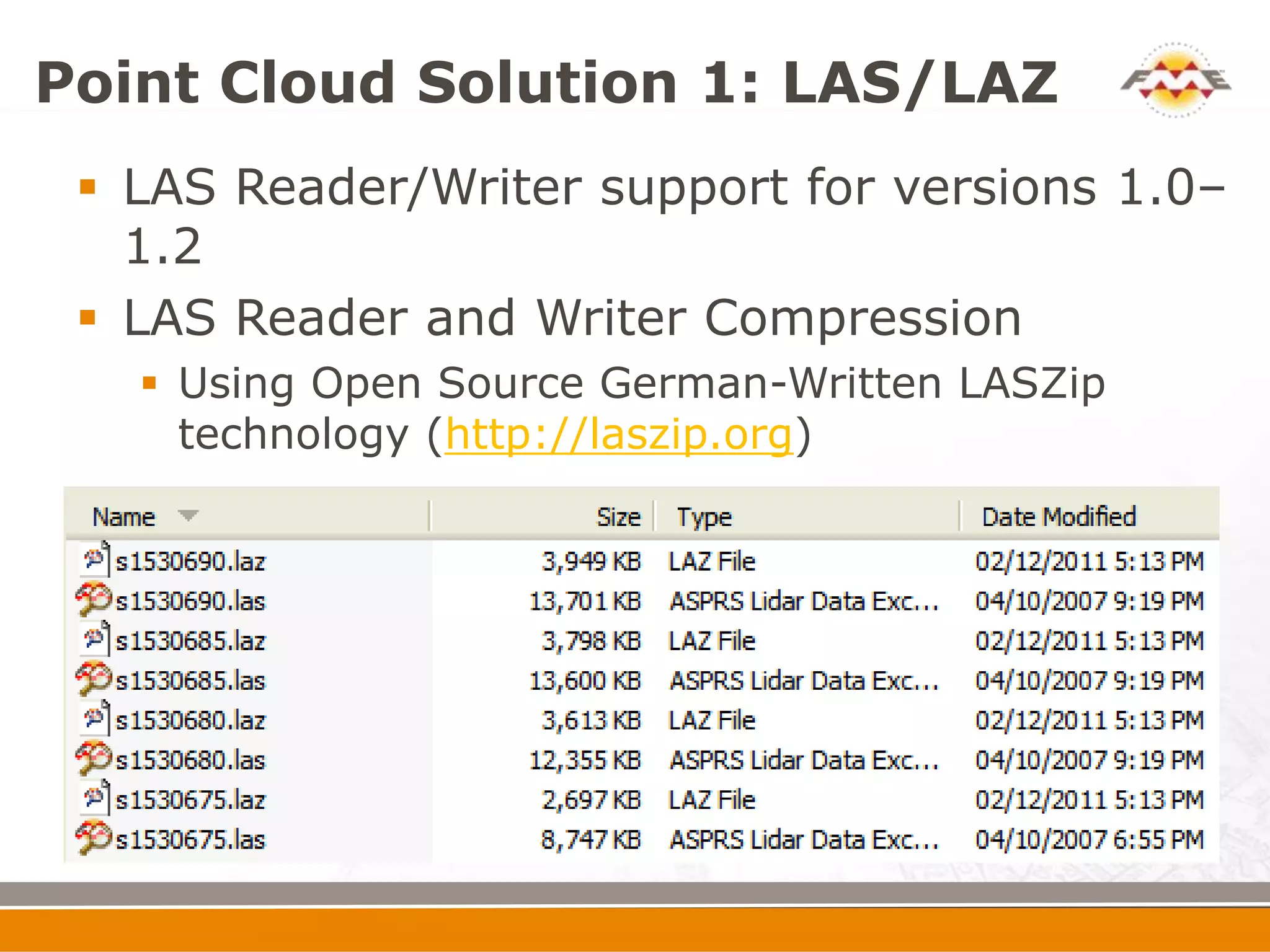

17. Point Cloud Solution 1: LAS/LAZ
 LAS Reader/Writer support for versions 1.0–
1.2
 LAS Reader and Writer Compression
 Using Open Source German-Written LASZip
technology (http://laszip.org)

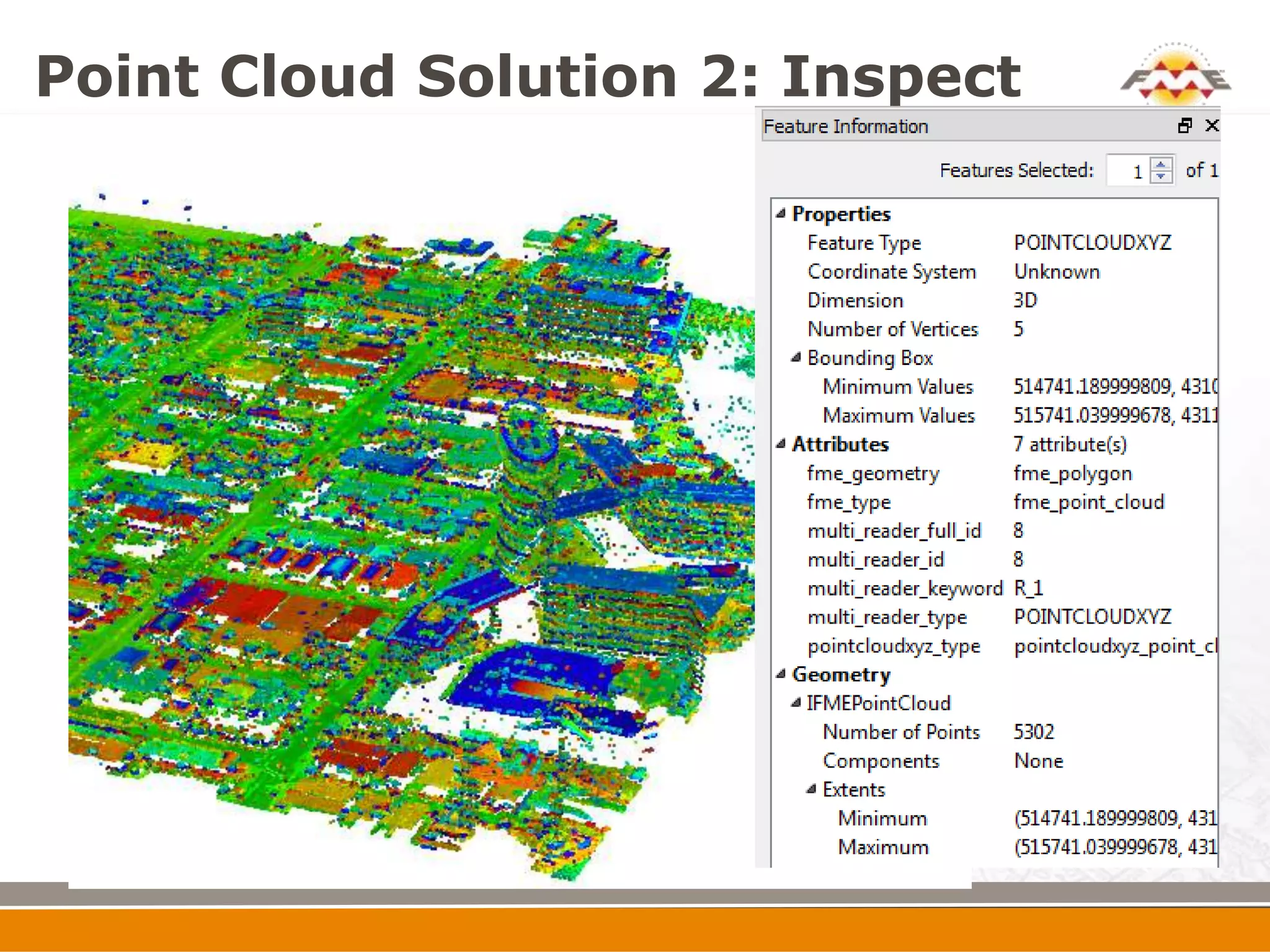

18. Point Cloud Solution 2: Inspect

19. Poll: What are the typical
operations you need to perform
on point clouds?

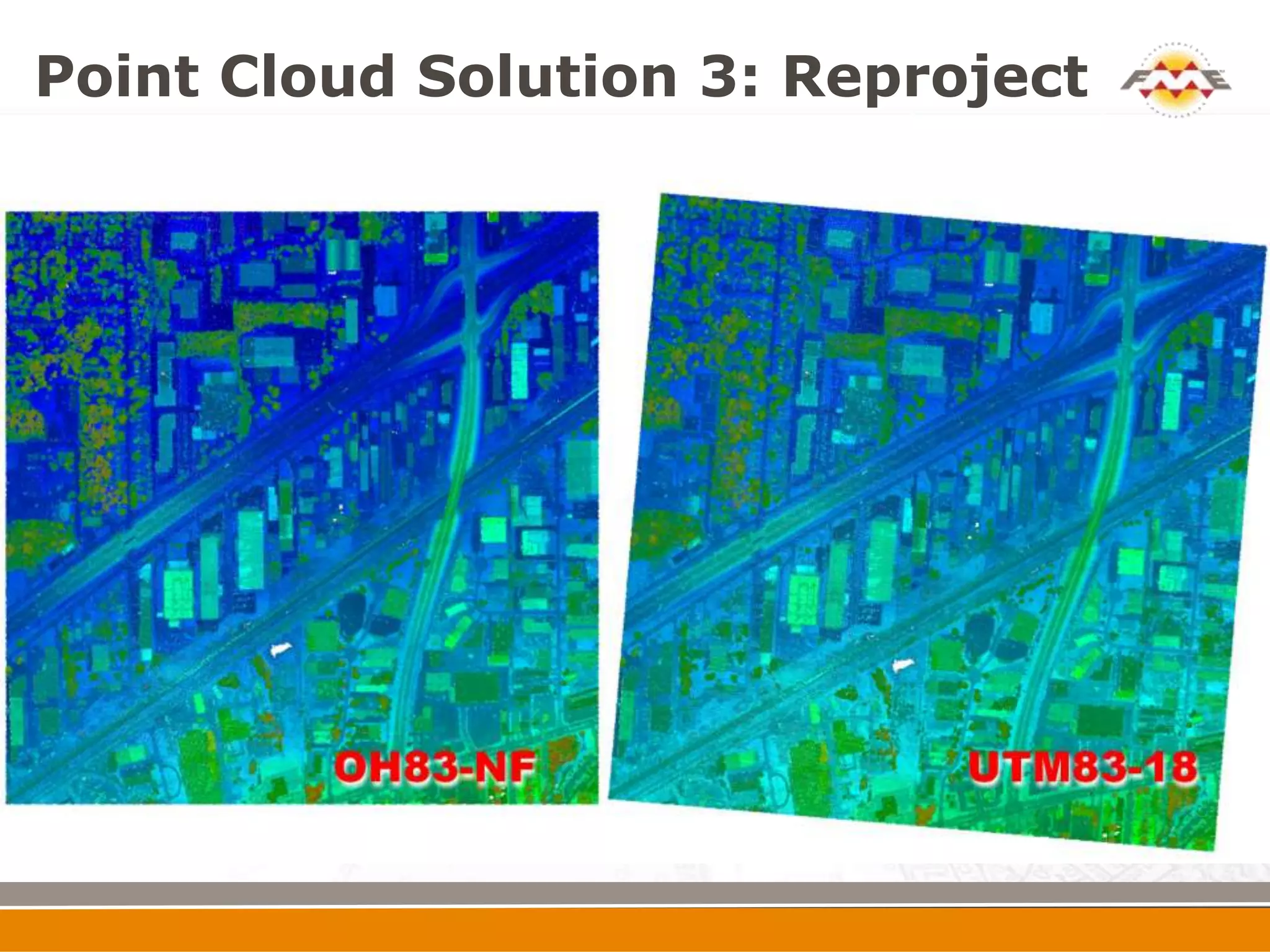

20. Point Cloud Solution 3: Reproject

21. Point Cloud Solution 3: Reproject
 Geocentric coordinates support
 Orthometric heights support

22. Demo 2

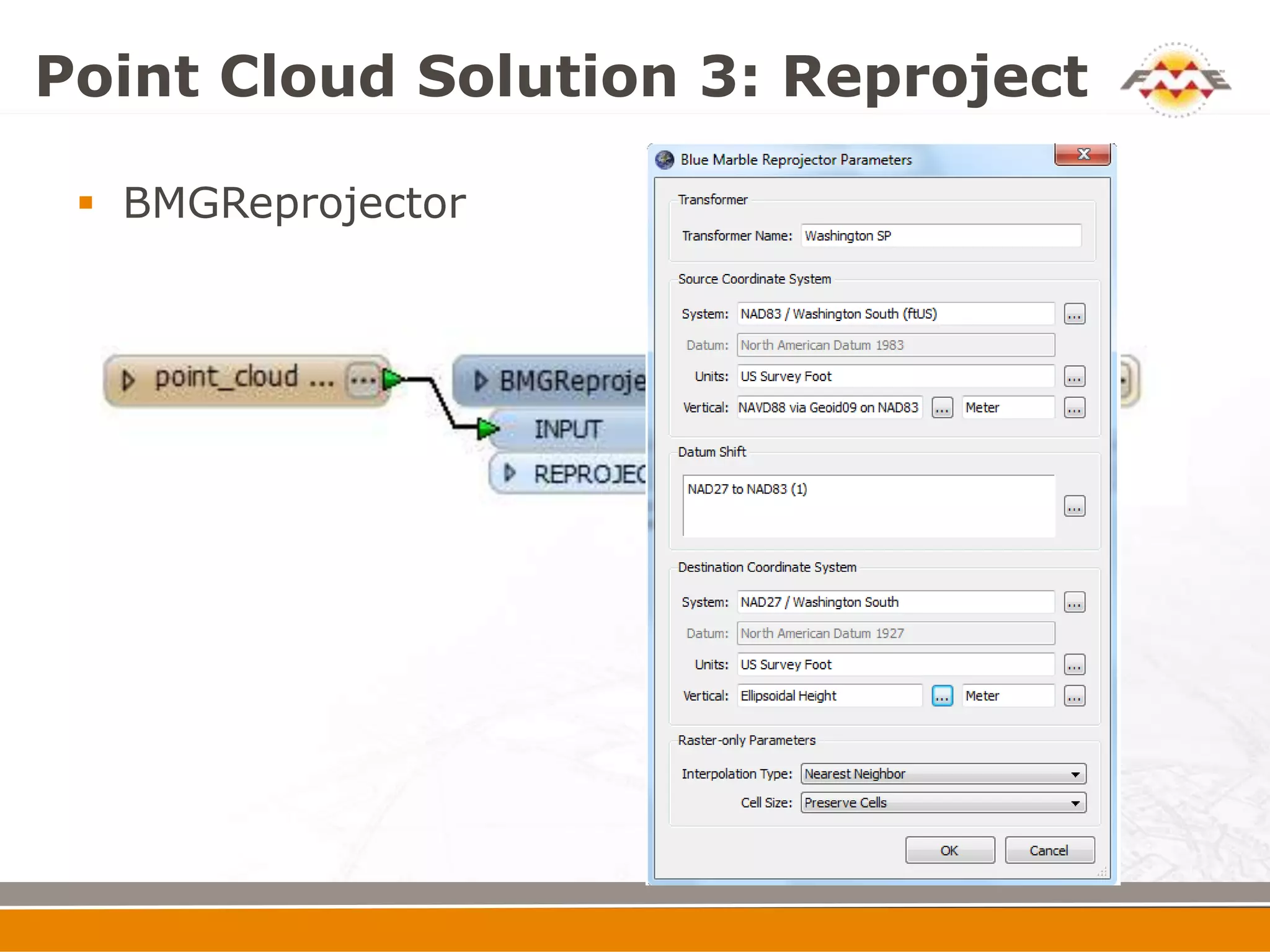

23. Point Cloud Solution 3: Reproject
 BMGReprojector

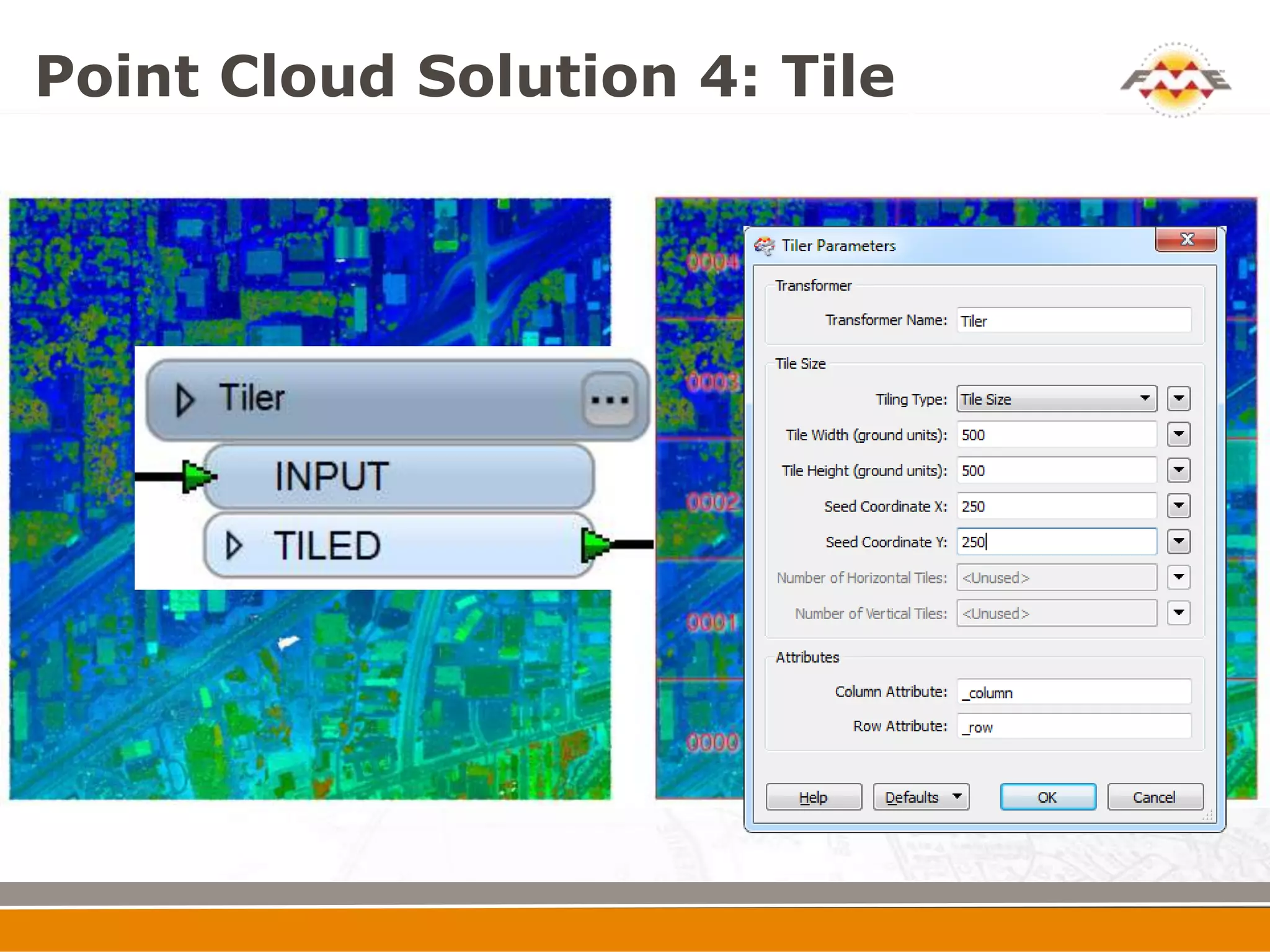

24. Point Cloud Solution 4: Tile

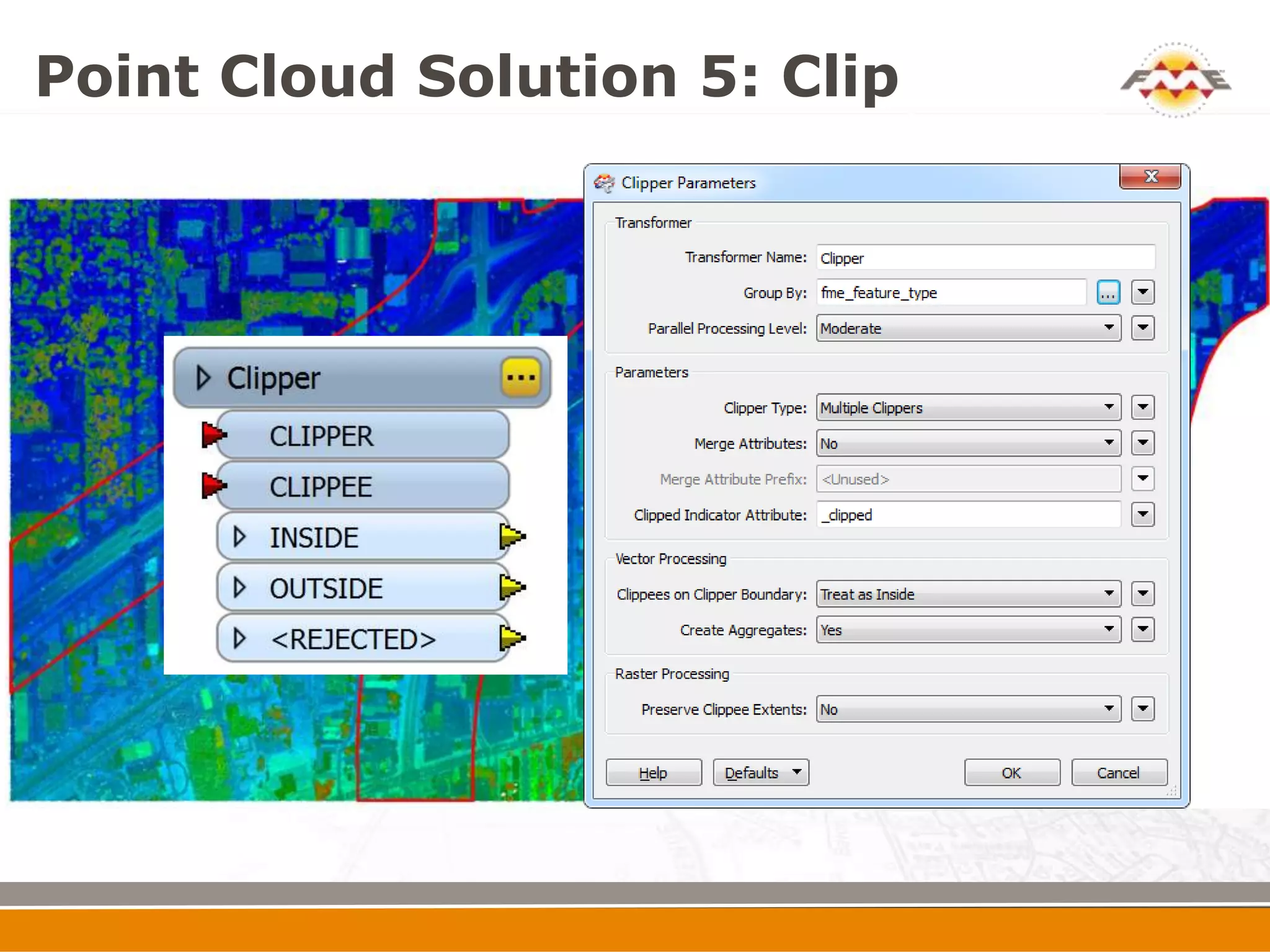

25. Point Cloud Solution 5: Clip

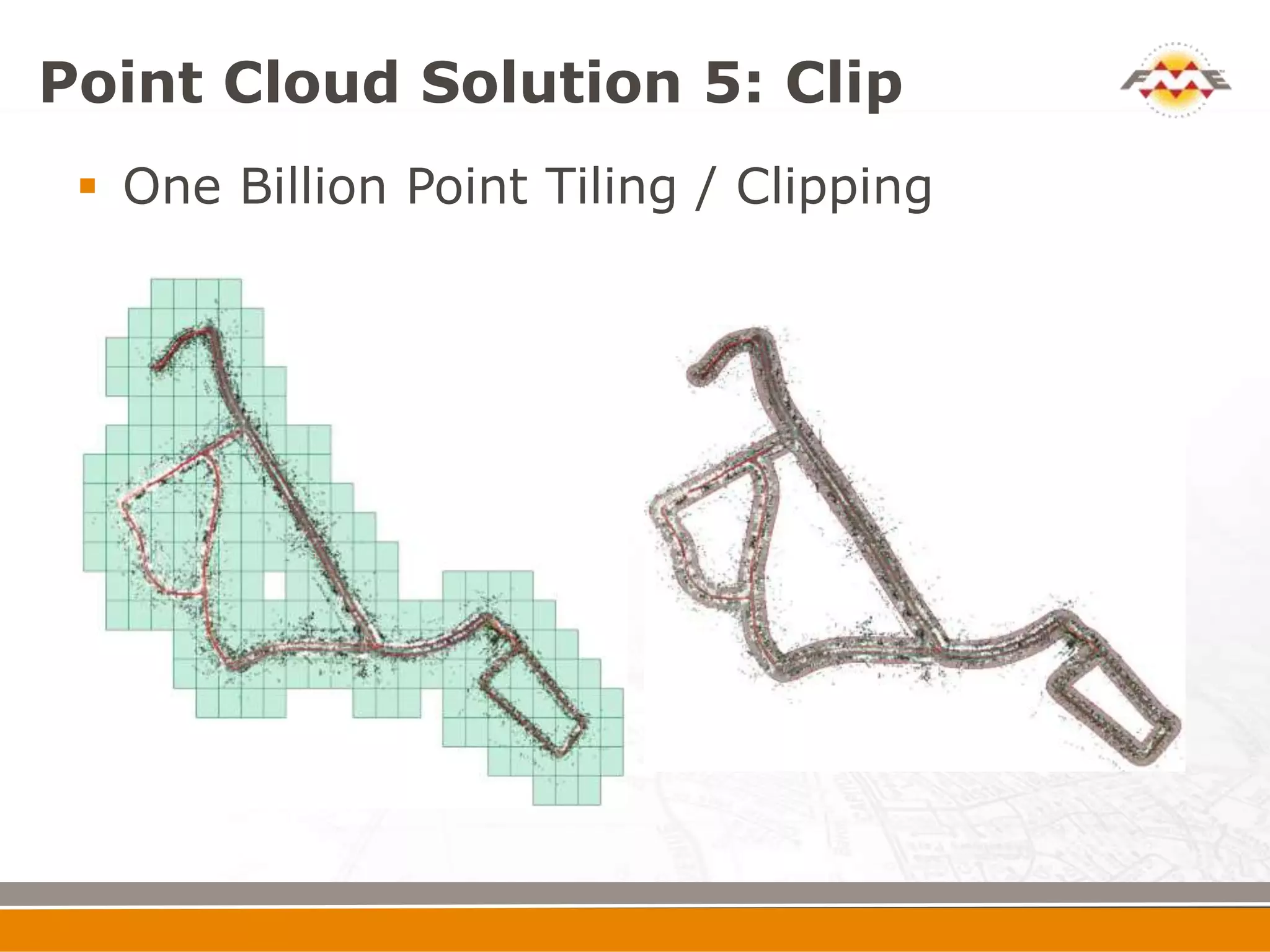

26. Point Cloud Solution 5: Clip
 One Billion Point Tiling / Clipping

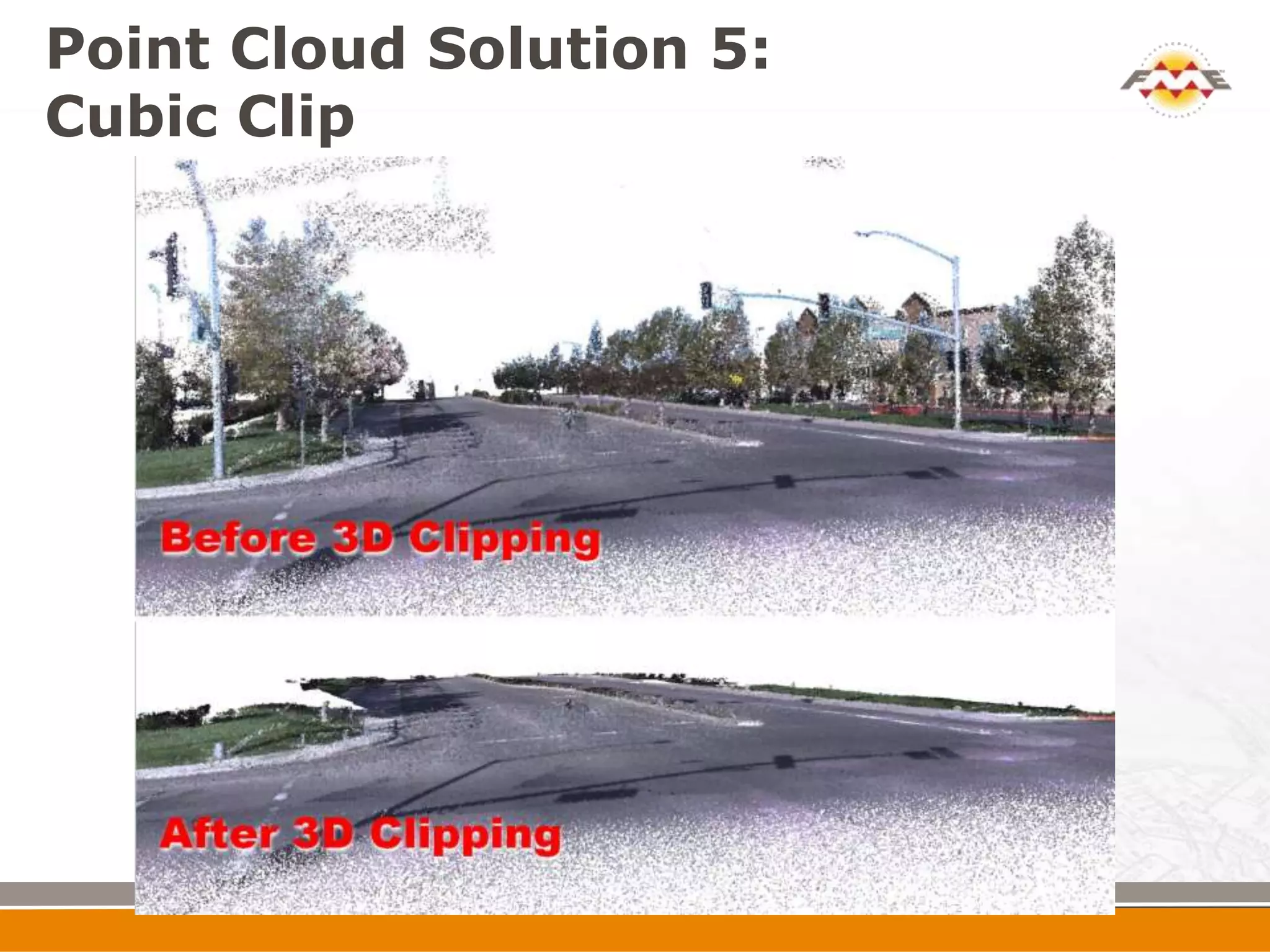

27. Point Cloud Solution 5:
Cubic Clip

28. Point Cloud Solution 5:
Cubic Clip

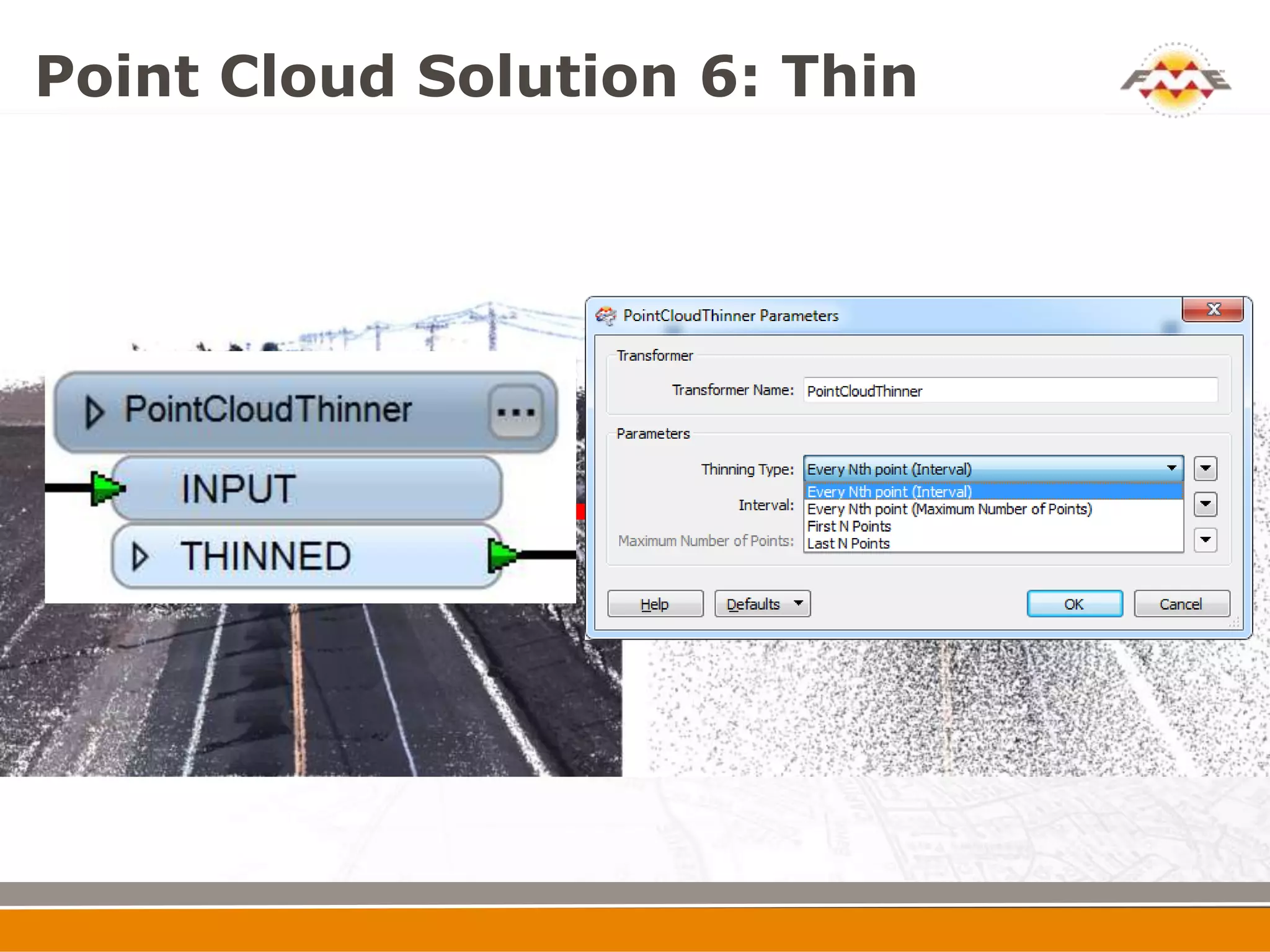

29. Point Cloud Solution 6: Thin

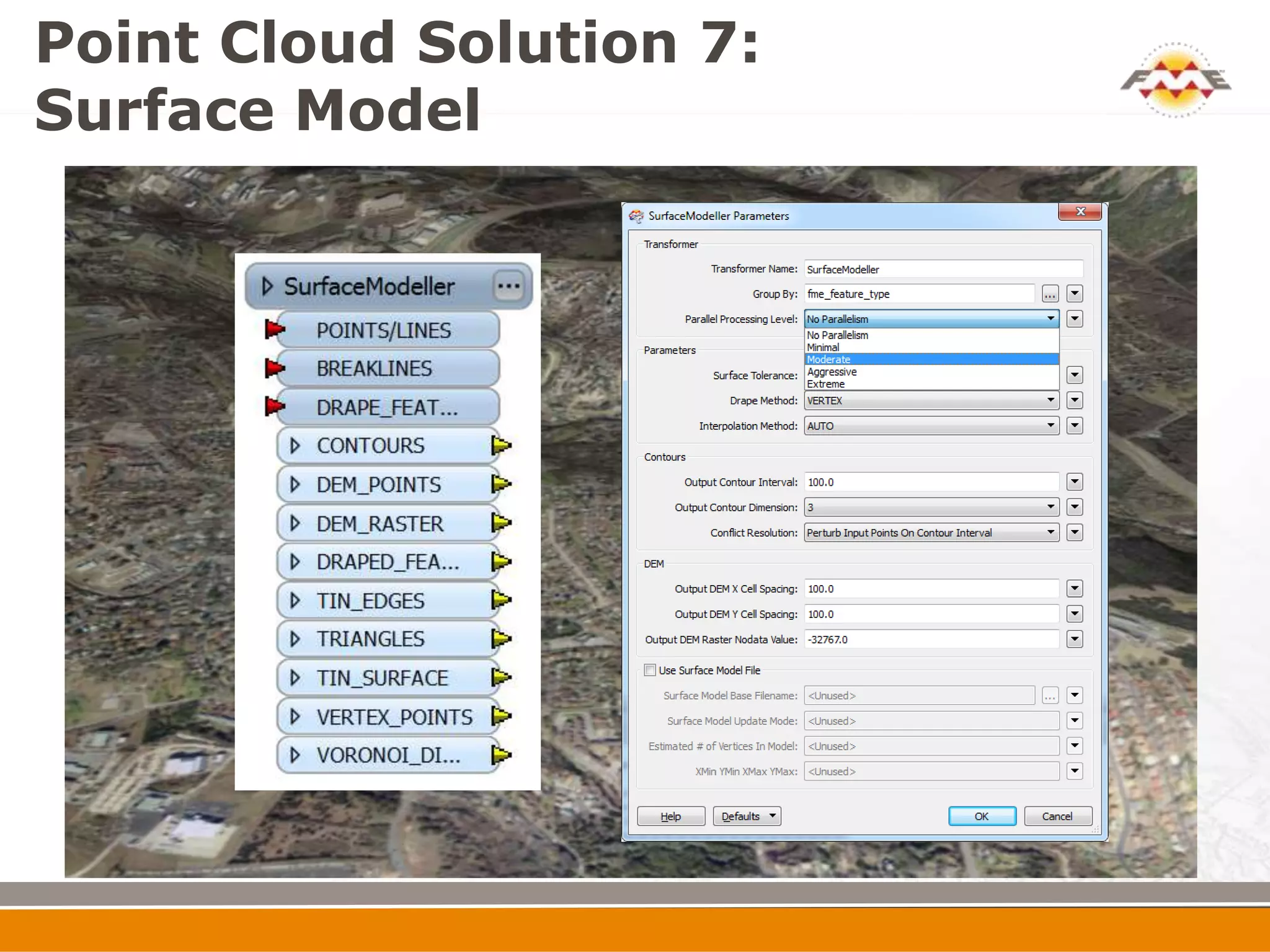

30. Point Cloud Solution 7:
Surface Model

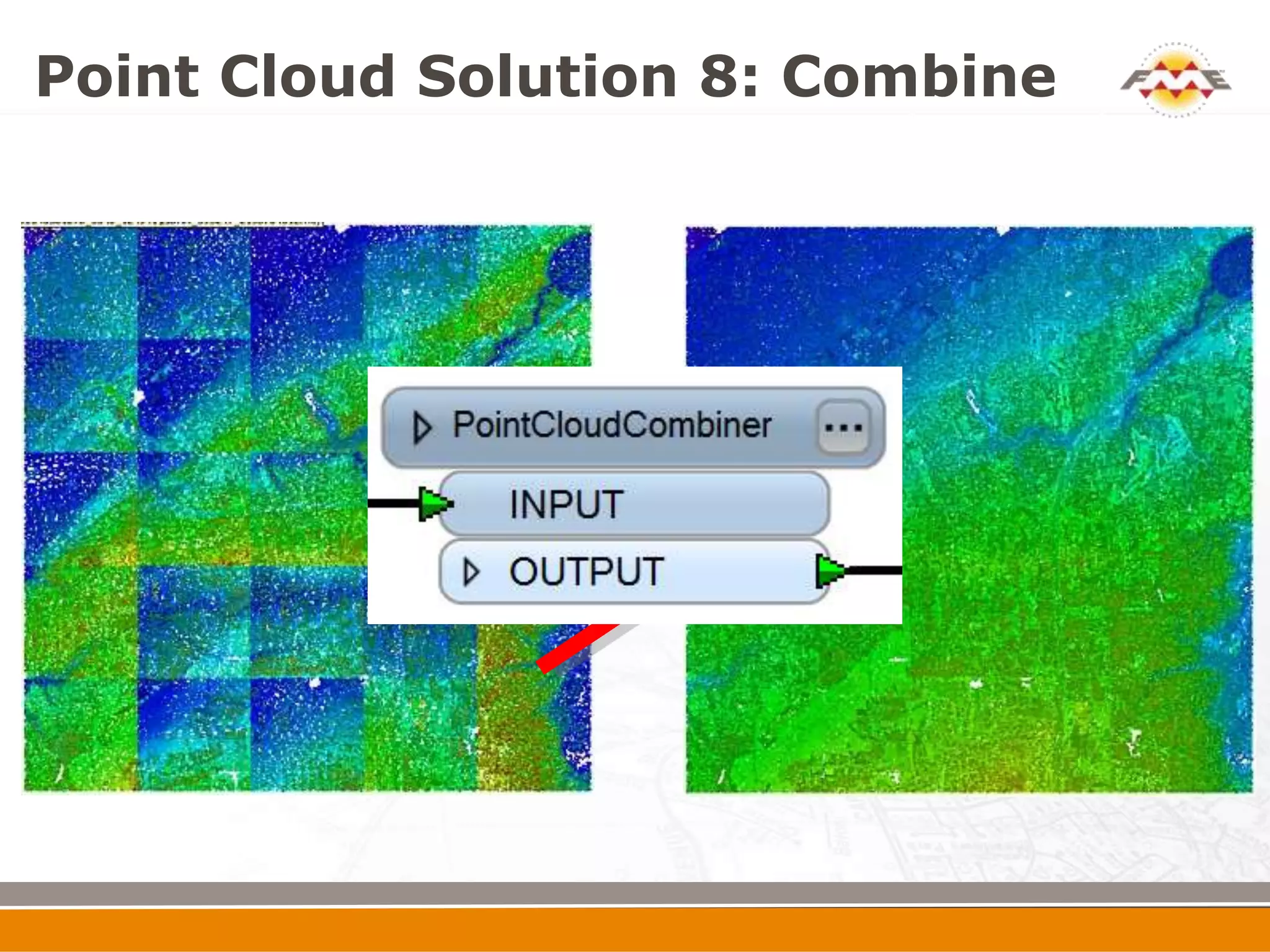

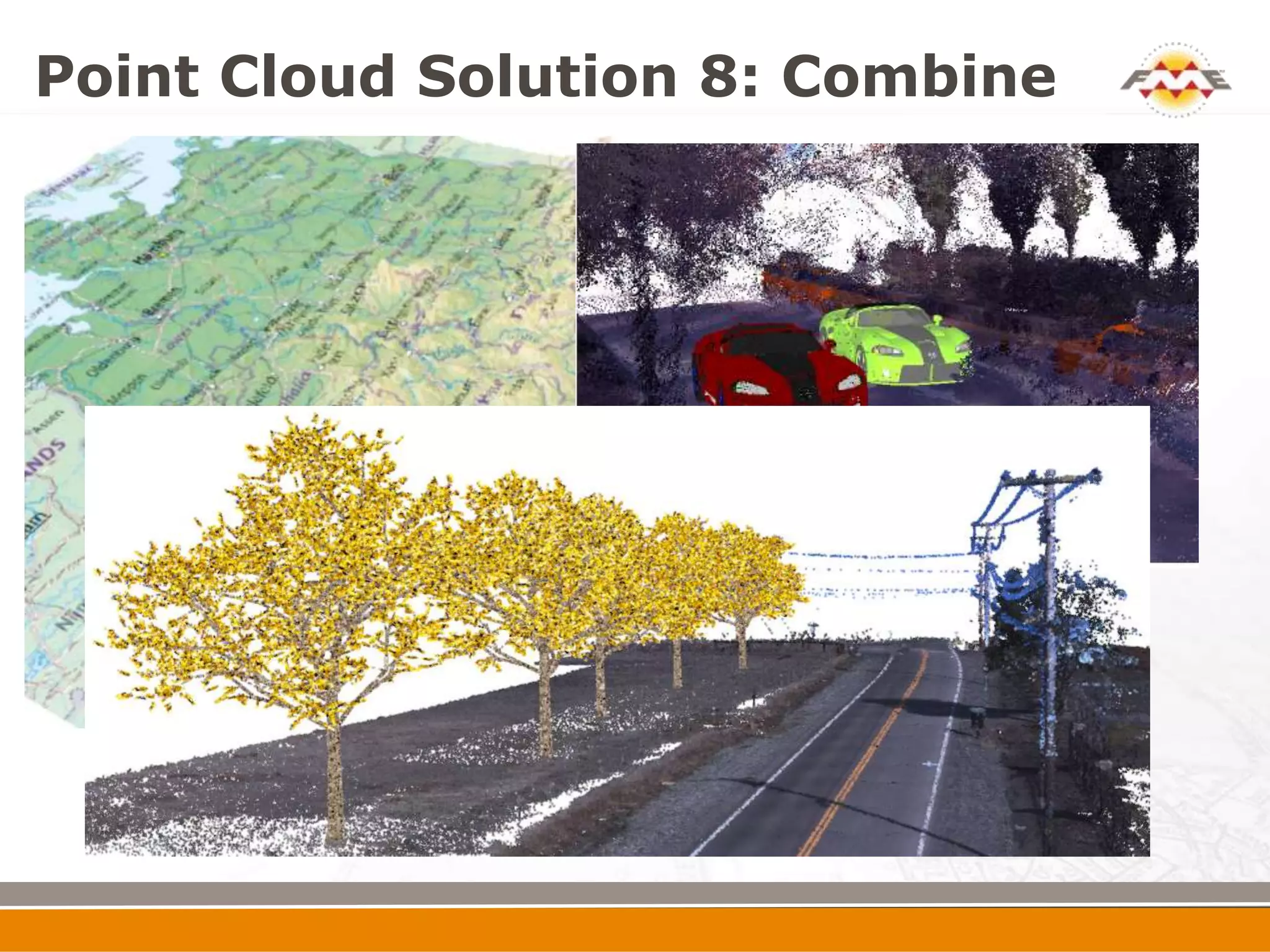

31. Point Cloud Solution 8: Combine

32. Point Cloud Solution 8: Combine

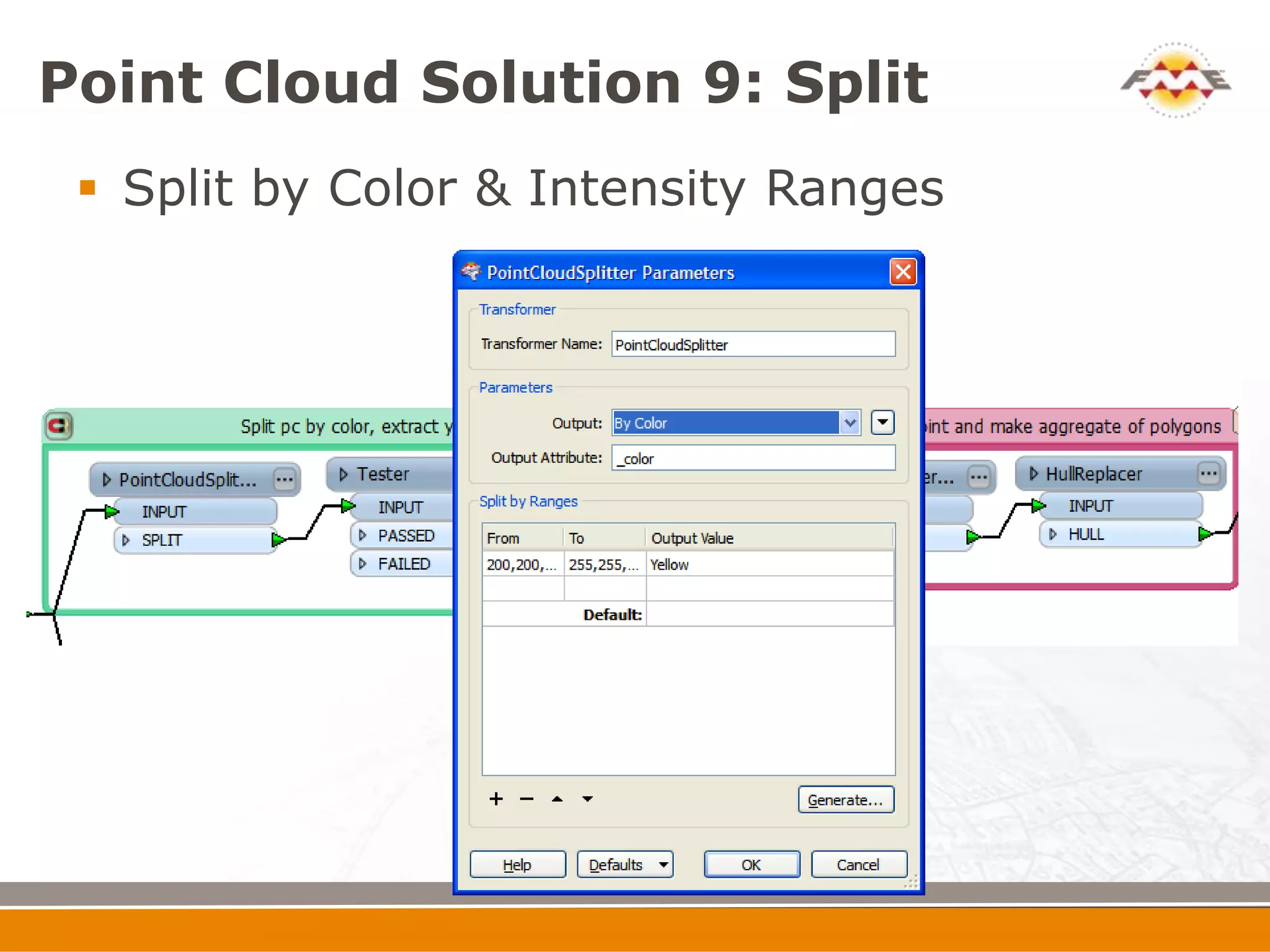

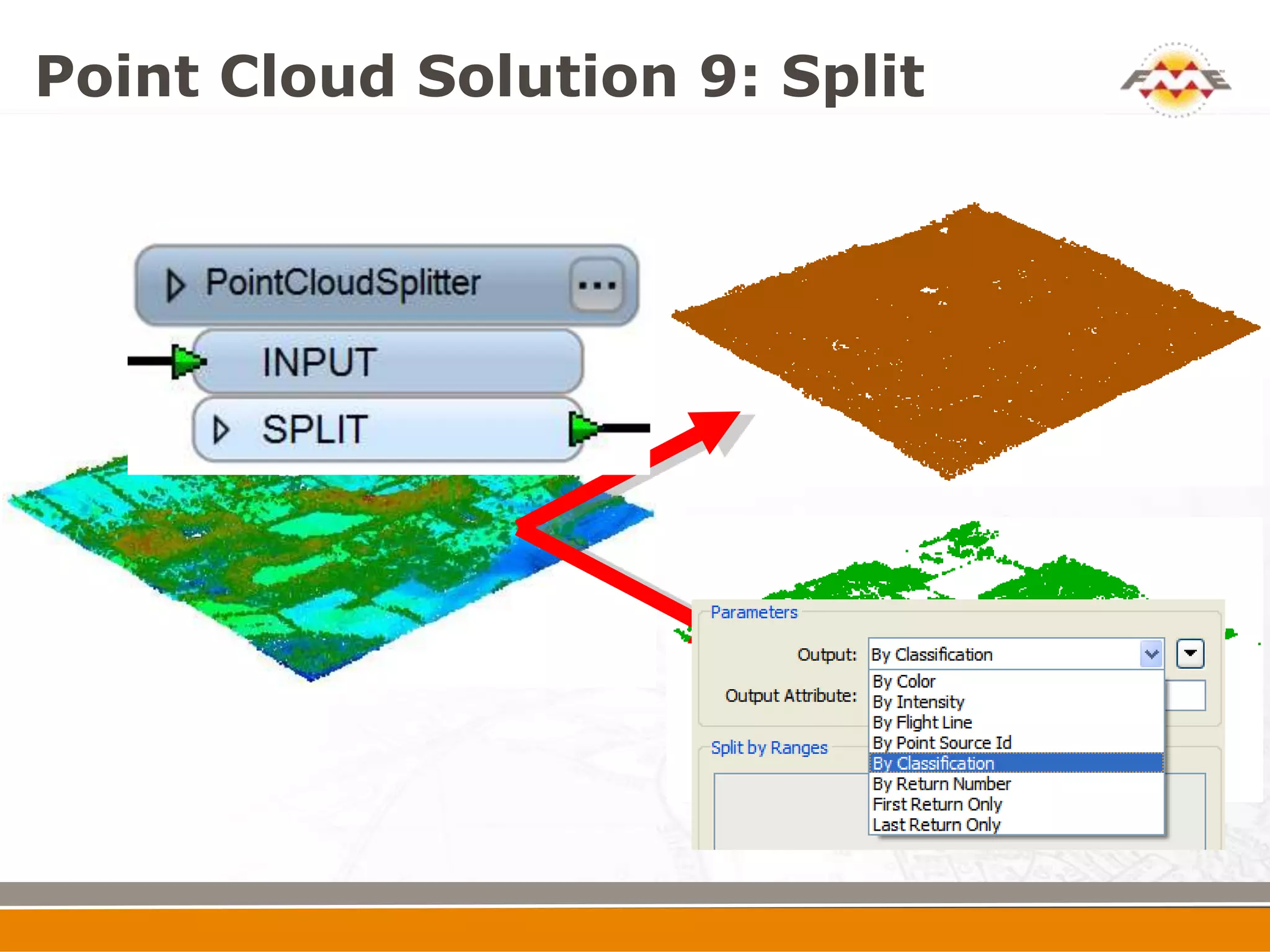

33. Point Cloud Solution 9: Split

34. Point Cloud Solution 9: Split
 Split by Color & Intensity Ranges

35. Demo 3

36. Point Cloud Solution 9: Split

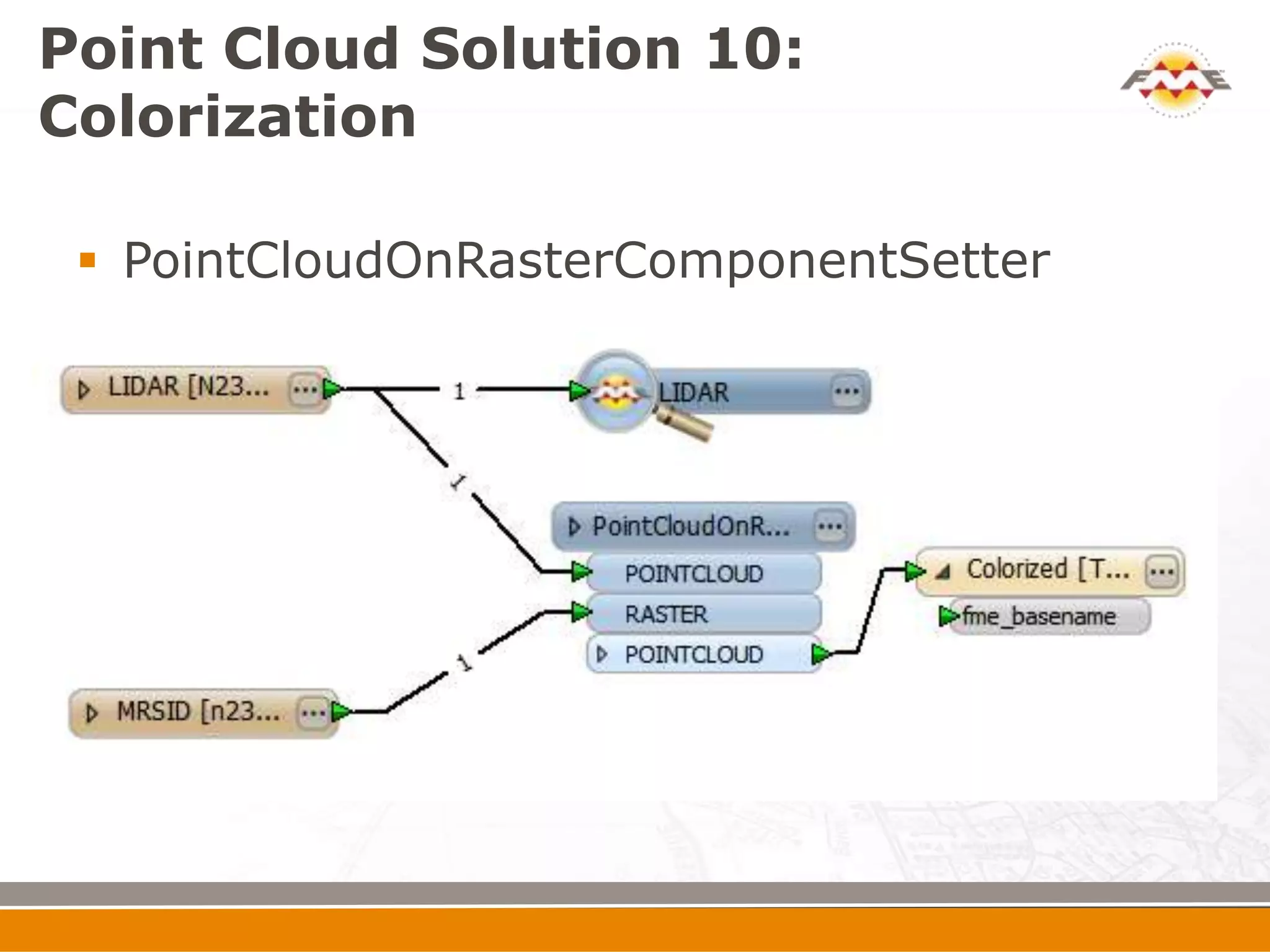

37. Point Cloud Solution 10:
Colorization
 PointCloudOnRasterComponentSetter

38. Point Cloud Solution 10:
Colorization

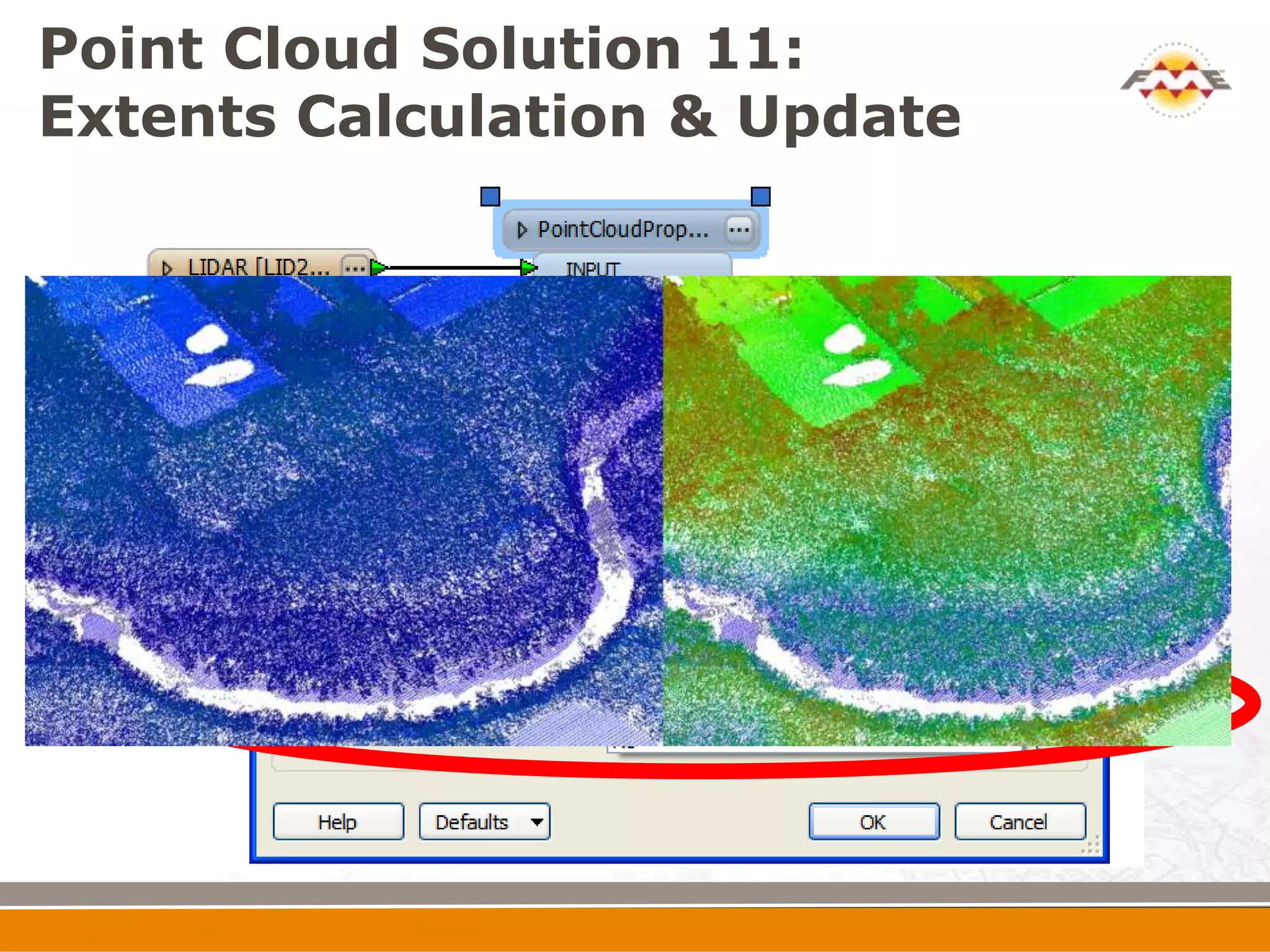

39. Point Cloud Solution 11:
Extents Calculation & Update

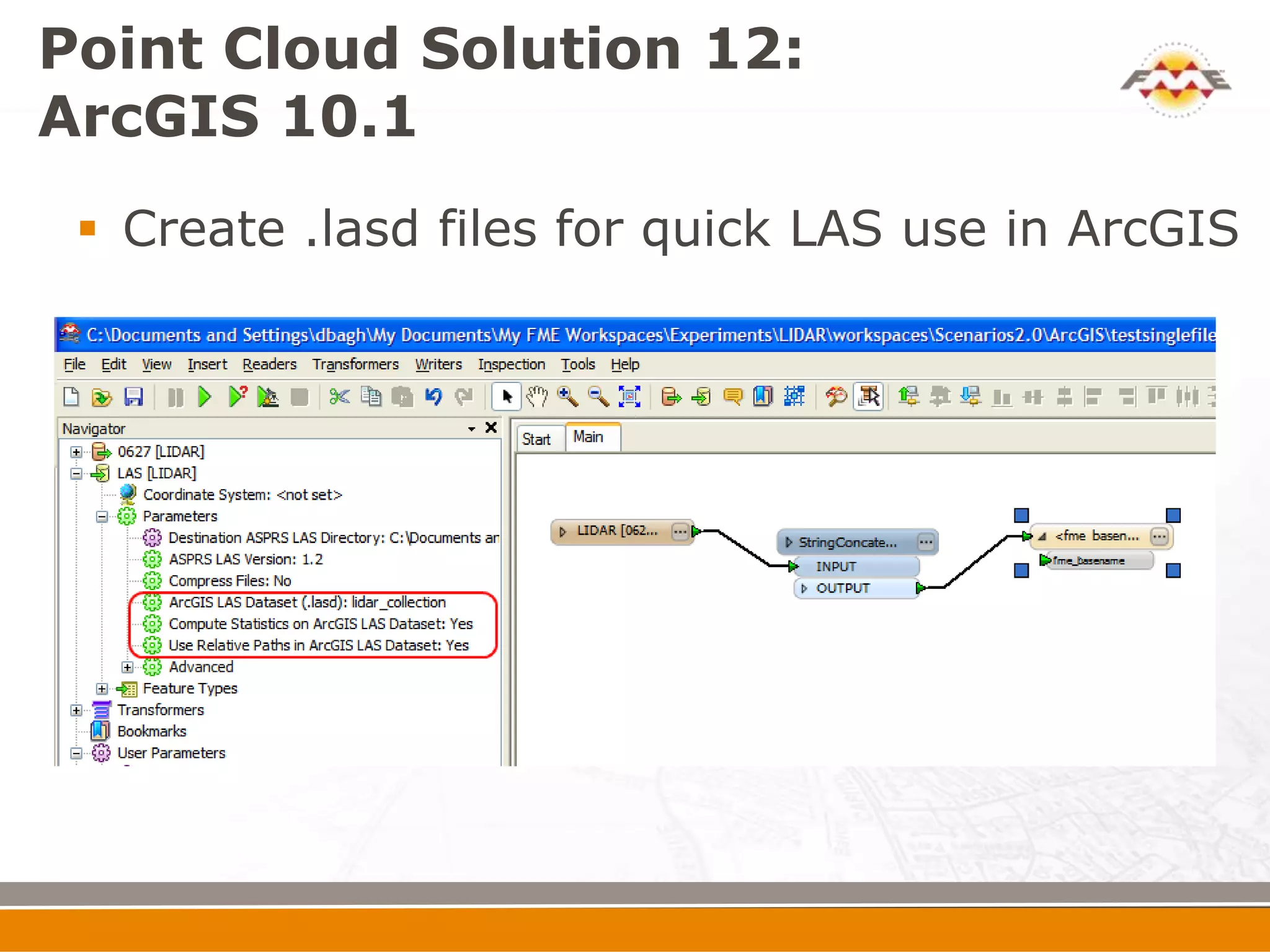

40. Point Cloud Solution 12:
ArcGIS 10.1
 Create .lasd files for quick LAS use in ArcGIS

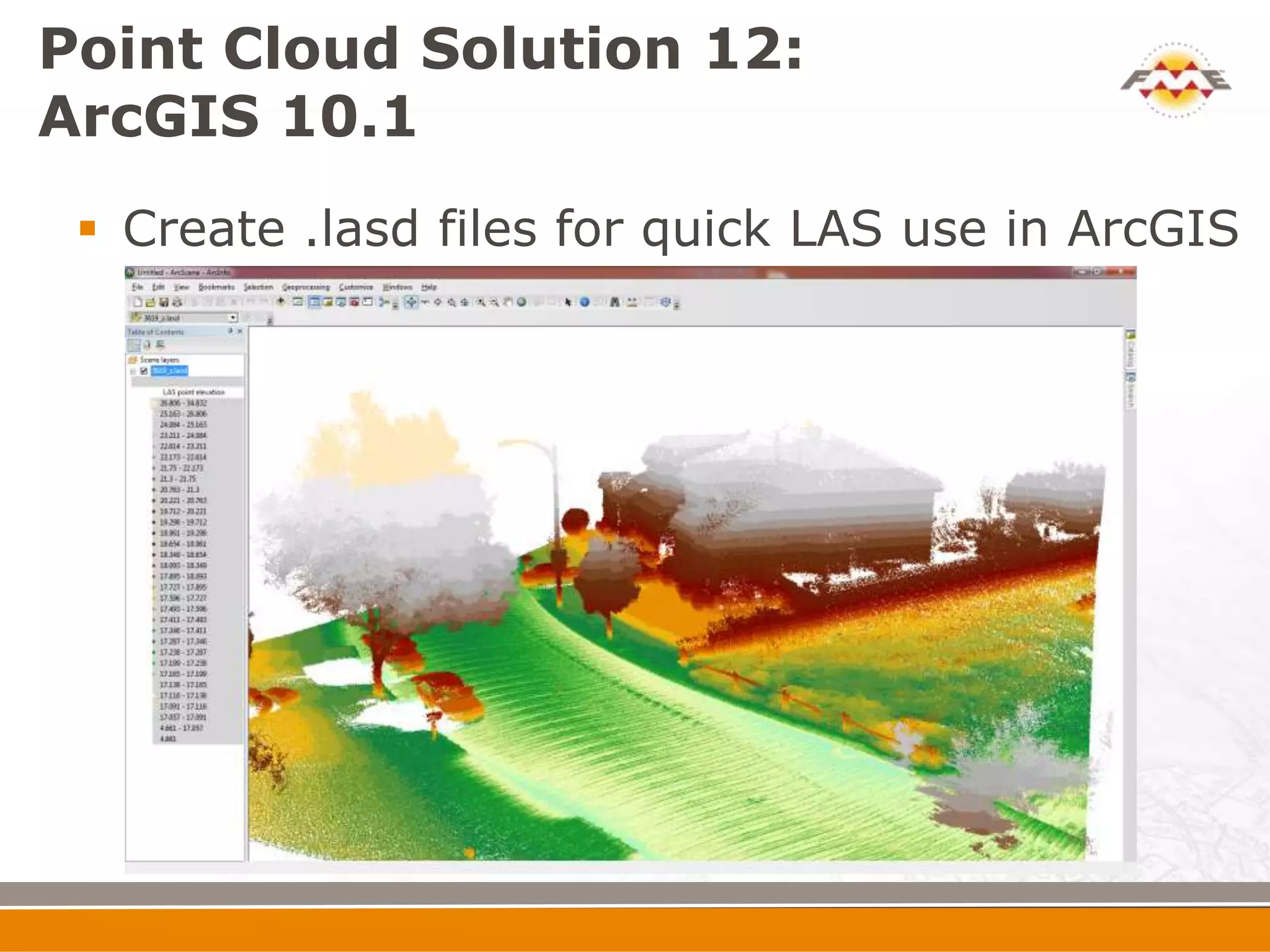

41. Point Cloud Solution 12:
ArcGIS 10.1
 Create .lasd files for quick LAS use in ArcGIS

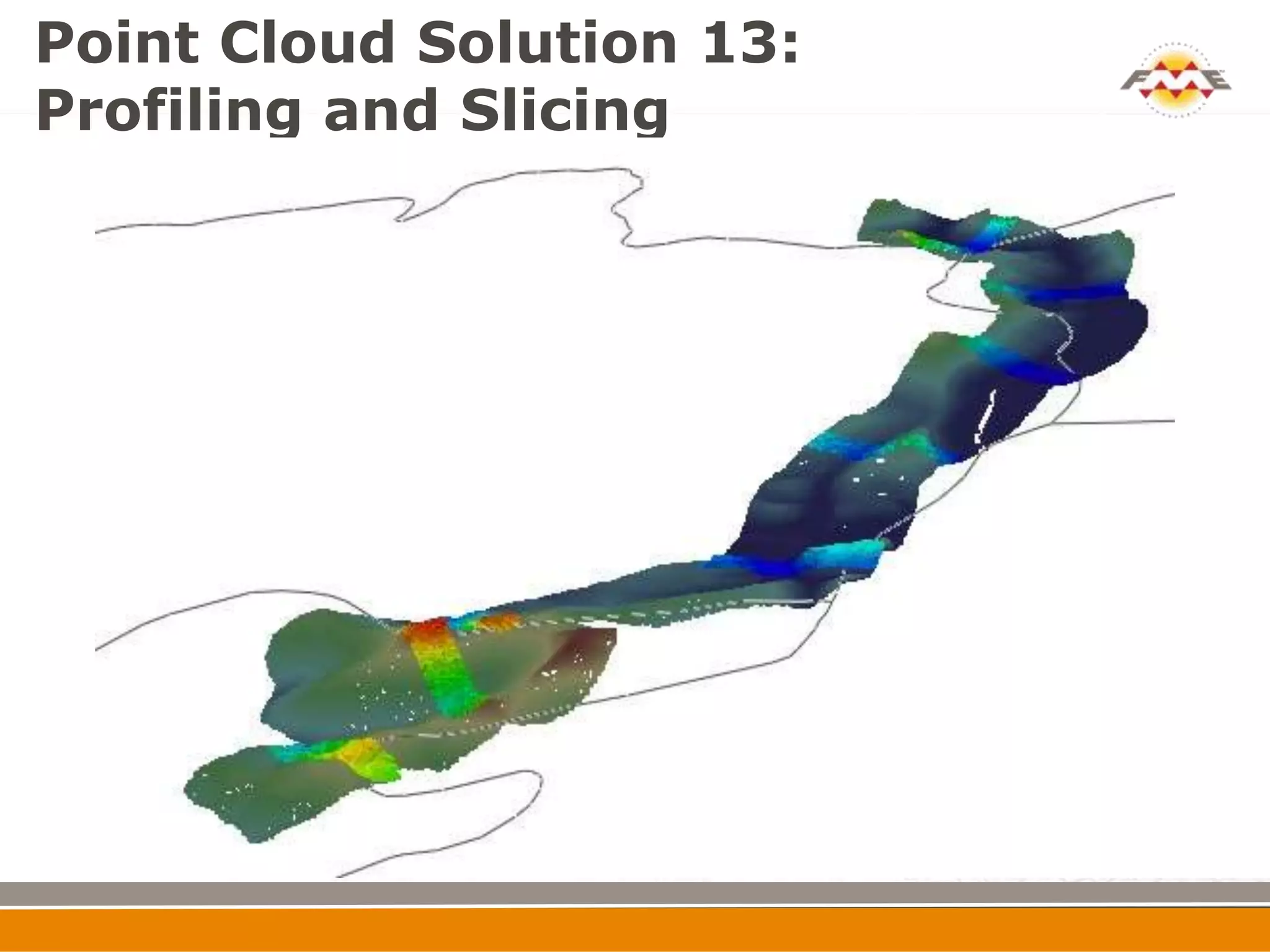

42. Point Cloud Solution 13:
Profiling and Slicing

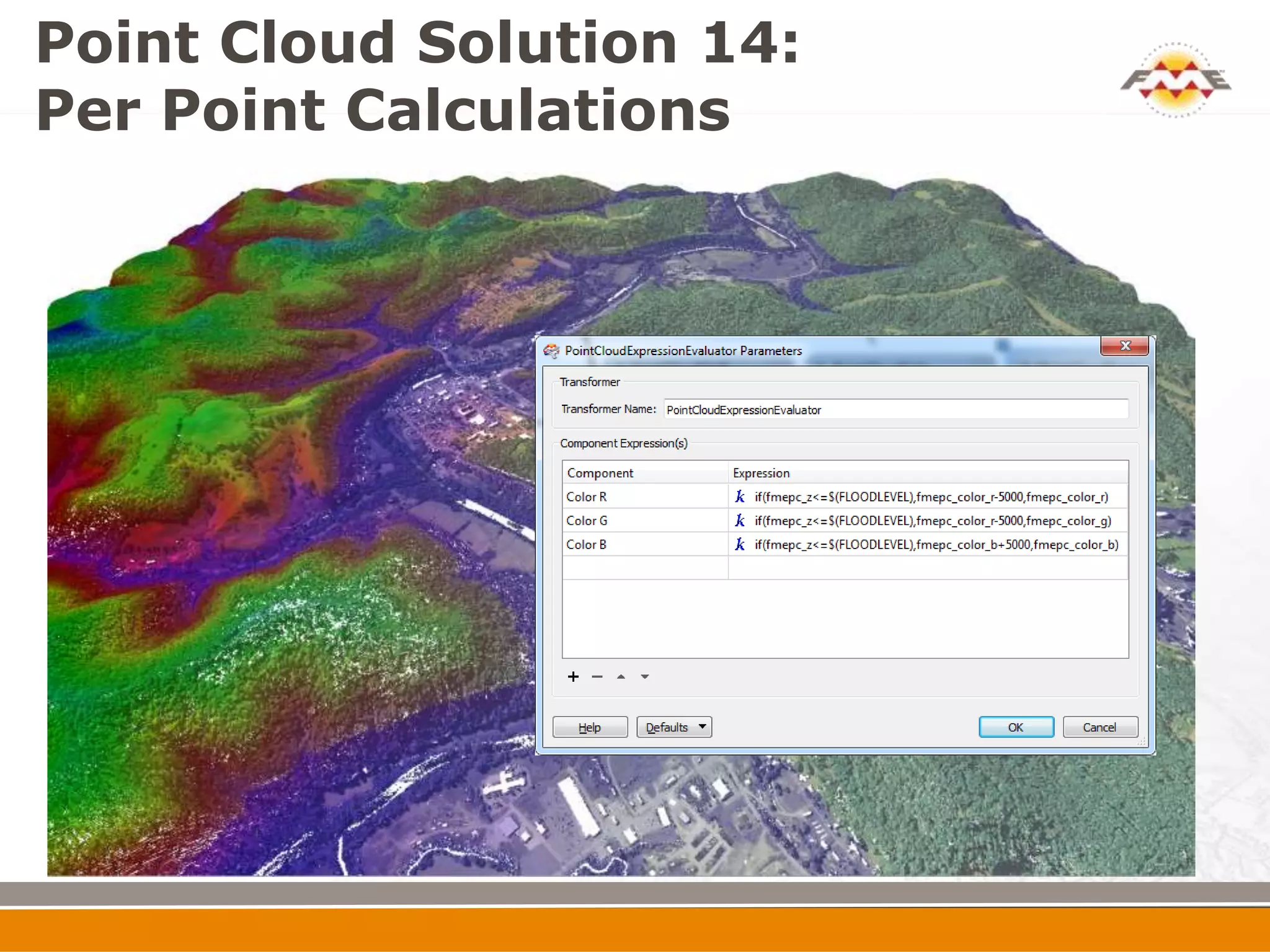

43. Point Cloud Solution 14:
Per Point Calculations

44. Demo 4
16/07/12

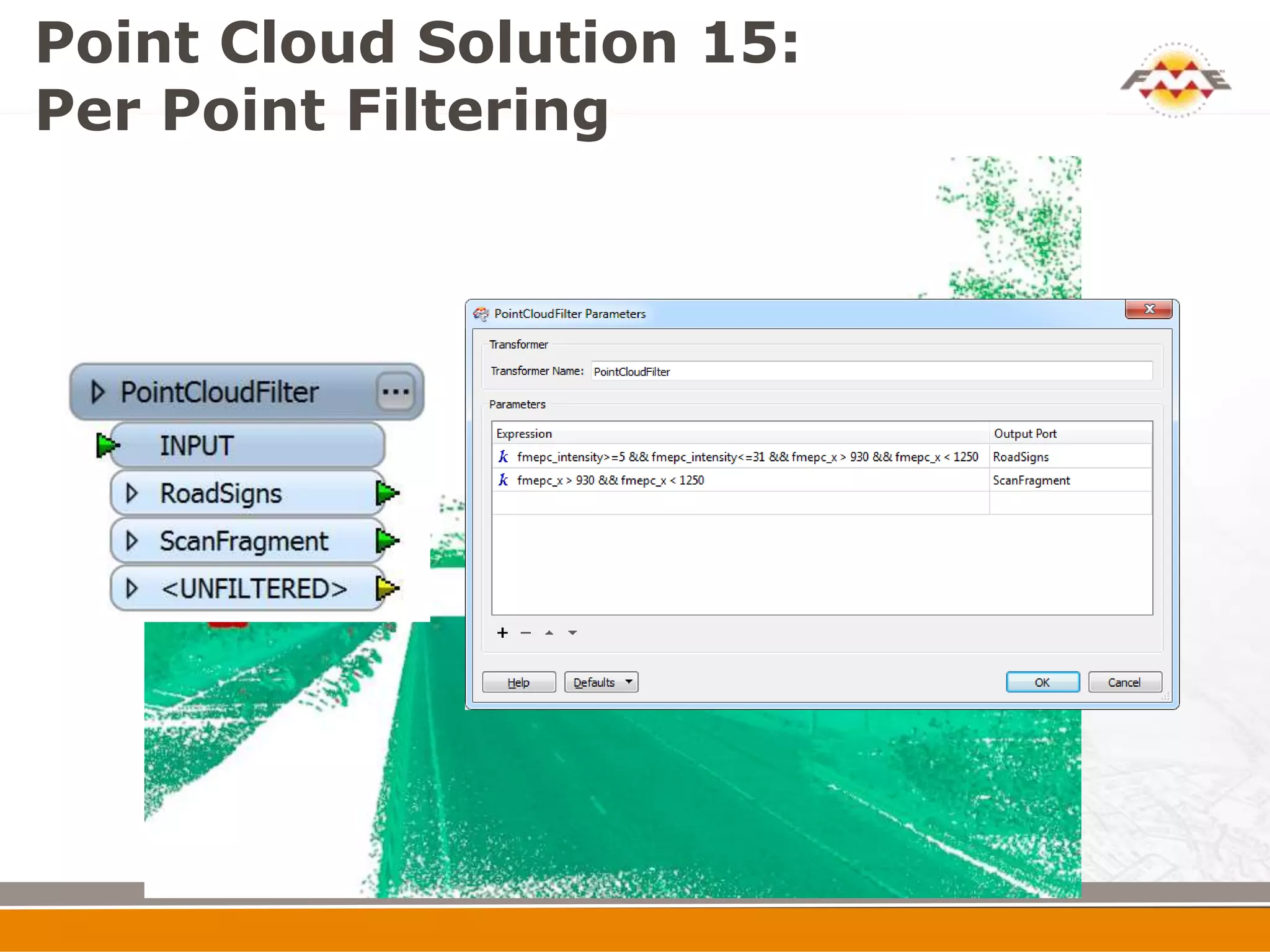

45. Point Cloud Solution 15:
Per Point Filtering

46. Demo 5

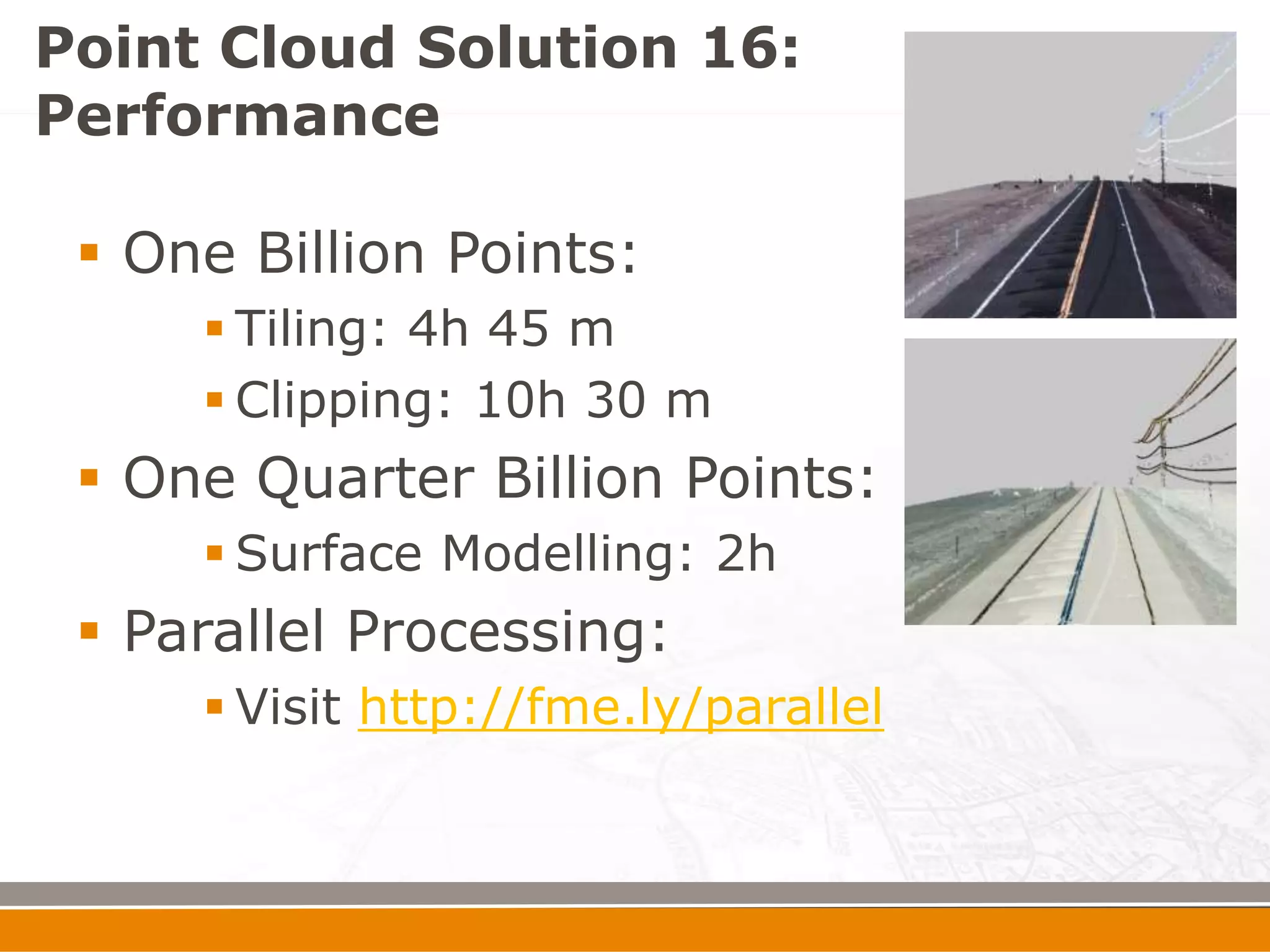

47. Point Cloud Solution 16:
Performance
 One Billion Points:
 Tiling: 4h 45 m
 Clipping: 10h 30 m
 One Quarter Billion Points:
 Surface Modelling: 2h
 Parallel Processing:
 Visit http://fme.ly/parallel

48. Demo 6

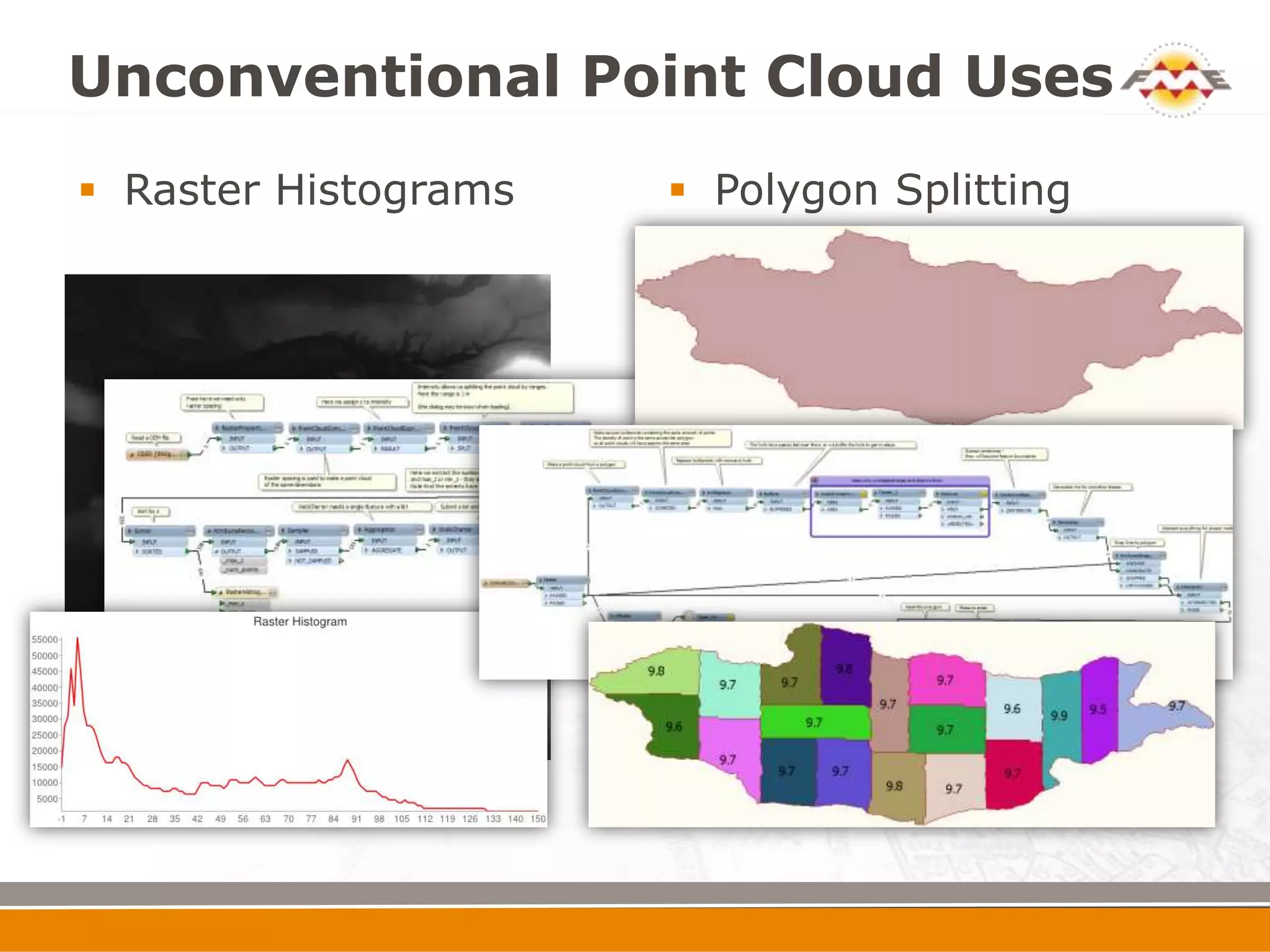

49. Unconventional Point Cloud Uses
 Raster Histograms  Polygon Splitting

50. Summary
 FME can help you put your Point Cloud
tiger in its cage!

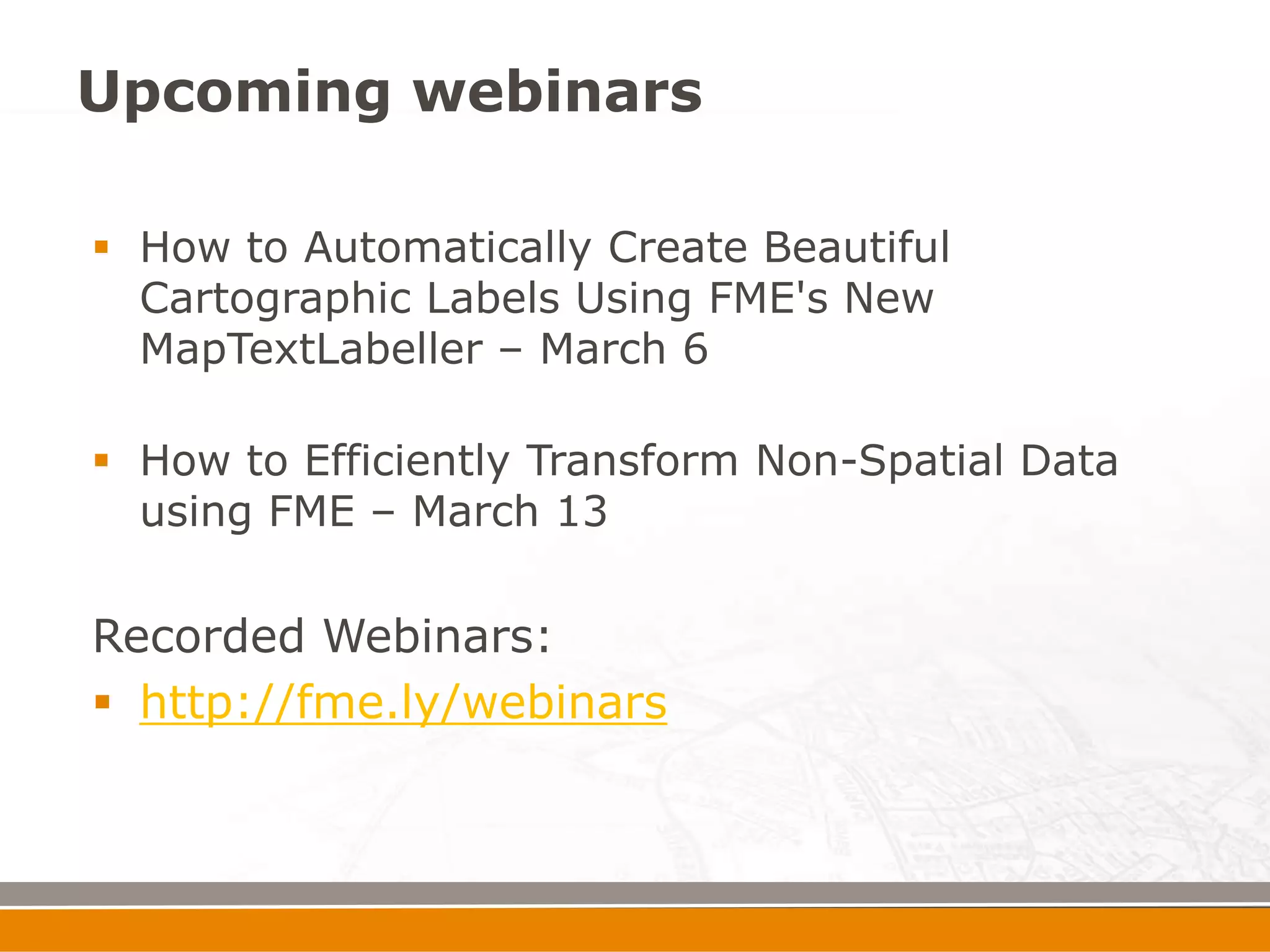

51. Upcoming webinars
 How to Automatically Create Beautiful
Cartographic Labels Using FME's New
MapTextLabeller – March 6
 How to Efficiently Transform Non-Spatial Data
using FME – March 13
Recorded Webinars:
 http://fme.ly/webinars

52. Poll: Would you like more
information on our free
training options?
 View the offerings at:
 http://fme.ly/online
