1 importance of light weight authentication in iot

1. The document summarizes key concepts related to Internet of Things (IoT) including definitions of IoT, the layered architecture of IoT, and security challenges in IoT. 2. It discusses IoT authentication approaches including device-to-device and global authentication as well as lightweight cryptography algorithms used for authentication and encryption in resource-constrained IoT devices. 3. The document also covers elliptic curve cryptography and its role in IoT security.

Technology◦
Chintan Patel Research Scholar Pandit Deendayal Petroleum University, Gandhinagar Gujarat
BEFORE LUNCH SESSION AFTER LUNCH SESSION LUNCH SESSION IoT Security SESSION FINITE STATE AUTOMETA OF WORKSHOP SESSION

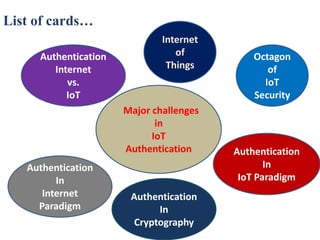

List of cards… Internet of Things Octagon of IoT Security Authentication In Cryptography Authentication In Internet Paradigm Authentication In IoT Paradigm Authentication Internet vs. IoT Major challenges in IoT Authentication

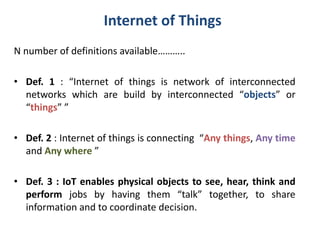

Internet of Things N number of definitions available……….. • Def. 1 : “Internet of things is network of interconnected networks which are build by interconnected “objects” or “things” ” • Def. 2 : Internet of things is connecting “Any things, Any time and Any where ” • Def. 3 : IoT enables physical objects to see, hear, think and perform jobs by having them “talk” together, to share information and to coordinate decision.

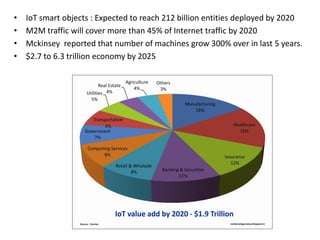

• IoT smart objects : Expected to reach 212 billion entities deployed by 2020 • M2M traffic will cover more than 45% of Internet traffic by 2020 • Mckinsey reported that number of machines grow 300% over in last 5 years. • $2.7 to 6.3 trillion economy by 2025

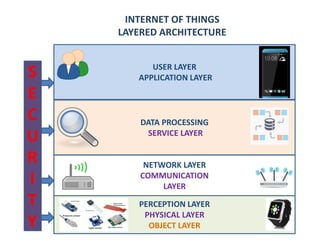

PERCEPTION LAYER PHYSICAL LAYER OBJECT LAYER USER LAYER APPLICATION LAYER DATA PROCESSING SERVICE LAYER NETWORK LAYER COMMUNICATION LAYER S E C U R I T Y INTERNET OF THINGS LAYERED ARCHITECTURE
PERCEPTION LAYER PHYSICAL LAYER OBJECT LAYER USER LAYER APPLICATION LAYER DATA PROCESSING SERVICE LAYER NETWORK LAYER COMMUNICATION LAYER S E C U R I T Y INTERNET OF THINGS LAYERED ARCHITECTURE

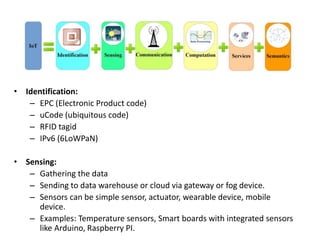

• Identification: – EPC (Electronic Product code) – uCode (ubiquitous code) – RFID tagid – IPv6 (6LoWPaN) • Sensing: – Gathering the data – Sending to data warehouse or cloud via gateway or fog device. – Sensors can be simple sensor, actuator, wearable device, mobile device. – Examples: Temperature sensors, Smart boards with integrated sensors like Arduino, Raspberry PI.

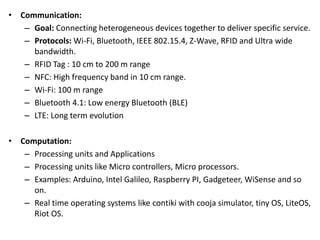

• Communication: – Goal: Connecting heterogeneous devices together to deliver specific service. – Protocols: Wi-Fi, Bluetooth, IEEE 802.15.4, Z-Wave, RFID and Ultra wide bandwidth. – RFID Tag : 10 cm to 200 m range – NFC: High frequency band in 10 cm range. – Wi-Fi: 100 m range – Bluetooth 4.1: Low energy Bluetooth (BLE) – LTE: Long term evolution • Computation: – Processing units and Applications – Processing units like Micro controllers, Micro processors. – Examples: Arduino, Intel Galileo, Raspberry PI, Gadgeteer, WiSense and so on. – Real time operating systems like contiki with cooja simulator, tiny OS, LiteOS, Riot OS.
• Services: – Identity Aware service : Object identification – Information aggregation service: Collecting and summarizing row data – Collaborative aware service: Any time, Any one, Any where – Ubiquitous service: • Semantics: – Knowledge extraction : Recognizing and analysing data to make sense of right decision to provide exact service. – Use of semantic web technologies like resource description frame work, web ontology network, Efficient XML interchange.

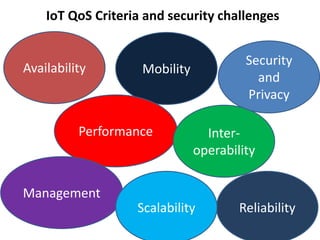

IoT QoS Criteria and security challenges Availability Reliability Mobility Performance Management Scalability Inter- operability Security and Privacy

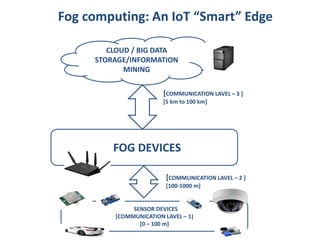

Fog computing: An IoT “Smart” Edge FOG DEVICES CLOUD / BIG DATA STORAGE/INFORMATION MINING SENSOR DEVICES [COMMUNICATION LAVEL – 1] [0 – 100 m] [COMMUNICATION LAVEL – 2 ] [100-1000 m] [COMMUNICATION LAVEL – 3 ] [5 km to 100 km]
• Fog computing: Bridge between smart devices and large scale cloud computing and storage devices • Extending cloud computing services to edge devices of network • Cloud has massive storage and computation capability while fog has limited storage, battery and computation capability. • Fog services: – Location : Batter delay performance – Distribution: Large number of Micro small cloud services – Scalability: Deployment of new fog device is easy – Density of devices: Better replicated services – Mobility: – Real time services: – Standardization: – Bird eye view:

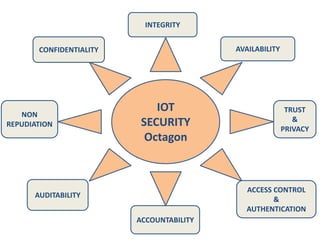

IOT SECURITY Octagon NON REPUDIATION CONFIDENTIALITY INTEGRITY AVAILABILITY TRUST & PRIVACY ACCESS CONTROL & AUTHENTICATION ACCOUNTABILITY AUDITABILITY

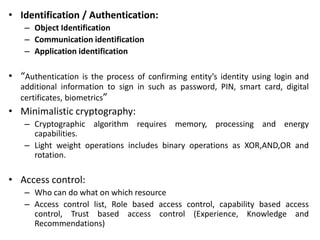

• Identification / Authentication: – Object Identification – Communication identification – Application identification • “Authentication is the process of confirming entity’s identity using login and additional information to sign in such as password, PIN, smart card, digital certificates, biometrics” • Minimalistic cryptography: – Cryptographic algorithm requires memory, processing and energy capabilities. – Light weight operations includes binary operations as XOR,AND,OR and rotation. • Access control: – Who can do what on which resource – Access control list, Role based access control, capability based access control, Trust based access control (Experience, Knowledge and Recommendations)
M E D KPUB C = E[KPUB,M] KPUB KPRB KPRB M = D[KPRB,C] CONFIDENTIALITY M E D KPRA C = E[KPRA,M] KPRA KPUA KPRA M = D[KPUA,C] AUTHENTICATION
CONFIDENTIALITY AND AUTHENTICATION

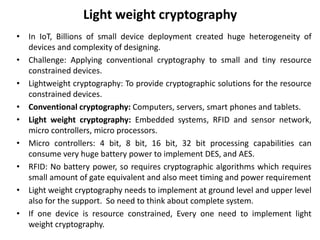

Light weight cryptography • In IoT, Billions of small device deployment created huge heterogeneity of devices and complexity of designing. • Challenge: Applying conventional cryptography to small and tiny resource constrained devices. • Lightweight cryptography: To provide cryptographic solutions for the resource constrained devices. • Conventional cryptography: Computers, servers, smart phones and tablets. • Light weight cryptography: Embedded systems, RFID and sensor network, micro controllers, micro processors. • Micro controllers: 4 bit, 8 bit, 16 bit, 32 bit processing capabilities can consume very huge battery power to implement DES, and AES. • RFID: No battery power, so requires cryptographic algorithms which requires small amount of gate equivalent and also meet timing and power requirement • Light weight cryptography needs to implement at ground level and upper level also for the support. So need to think about complete system. • If one device is resource constrained, Every one need to implement light weight cryptography.

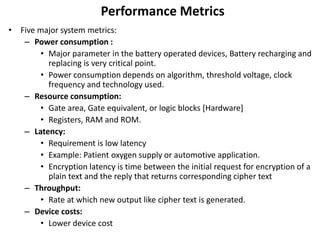

Performance Metrics • Five major system metrics: – Power consumption : • Major parameter in the battery operated devices, Battery recharging and replacing is very critical point. • Power consumption depends on algorithm, threshold voltage, clock frequency and technology used. – Resource consumption: • Gate area, Gate equivalent, or logic blocks [Hardware] • Registers, RAM and ROM. – Latency: • Requirement is low latency • Example: Patient oxygen supply or automotive application. • Encryption latency is time between the initial request for encryption of a plain text and the reply that returns corresponding cipher text – Throughput: • Rate at which new output like cipher text is generated. – Device costs: • Lower device cost

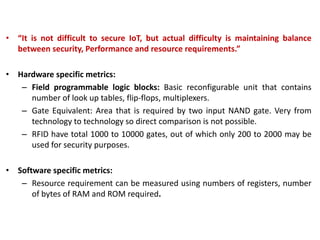

• “It is not difficult to secure IoT, but actual difficulty is maintaining balance between security, Performance and resource requirements.” • Hardware specific metrics: – Field programmable logic blocks: Basic reconfigurable unit that contains number of look up tables, flip-flops, multiplexers. – Gate Equivalent: Area that is required by two input NAND gate. Very from technology to technology so direct comparison is not possible. – RFID have total 1000 to 10000 gates, out of which only 200 to 2000 may be used for security purposes. • Software specific metrics: – Resource requirement can be measured using numbers of registers, number of bytes of RAM and ROM required.
Lightweight Block Cipher • AES 128: Advanced encryption standard 128 bit – 128 bit block size – 128 bit key size – 8 cycles or 10 Cycle of repetitions • PRESENT : First light weight block cipher – Substitution – permutation network – 64 bit block size – 80 bit or 128 bit key size – 31 Regular rounds • Performance Advantages: – Smaller block sizes – Smaller key sizes – Simple rounds : 4 bit S-box preferred over 8 bit S-box – Simple key schedule: Use key derivation Function – Minimal Implementation: Only encryption or decryption based on requirement
PRESENT Algorithm

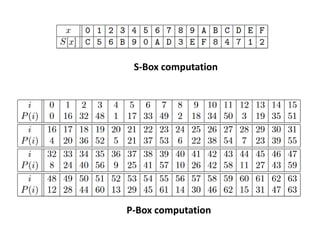

S-Box computation P-Box computation

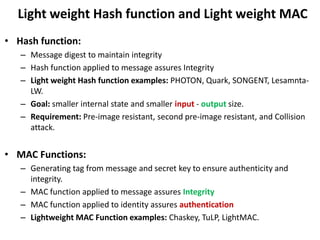

Light weight Hash function and Light weight MAC • Hash function: – Message digest to maintain integrity – Hash function applied to message assures Integrity – Light weight Hash function examples: PHOTON, Quark, SONGENT, Lesamnta- LW. – Goal: smaller internal state and smaller input - output size. – Requirement: Pre-image resistant, second pre-image resistant, and Collision attack. • MAC Functions: – Generating tag from message and secret key to ensure authenticity and integrity. – MAC function applied to message assures Integrity – MAC function applied to identity assures authentication – Lightweight MAC Function examples: Chaskey, TuLP, LightMAC.
Authentication In Internet vs. IoT What? Why?How?

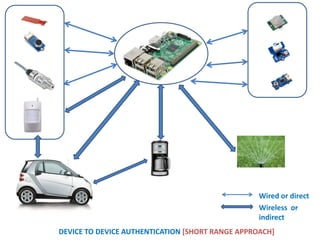

DEVICE TO DEVICE AUTHENTICATION [SHORT RANGE APPROACH] Wired or direct Wireless or indirect

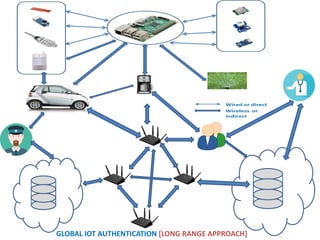

GLOBAL IOT AUTHENTICATION [LONG RANGE APPROACH]
Symmetric Key Algorithms Diffie-Hellman and Digital signature RSA ECC 80 KPUB : 1024 KPR : 160 1024 160-223 112 KPUB : 2048 KPR : 224 2048 224-255 128 KPUB : 3072 KPR : 256 3072 256-383 192 KPUB : 7680 KPR : 384 7680 384-511 256 KPUB : 15,360 KPR : 512 15360 512
Elliptic Curve cryptography and Its role in IoT

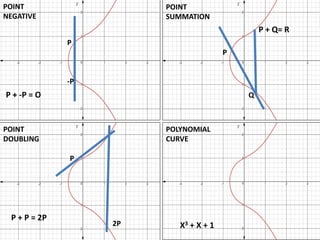

P -P P + -P = O P P 2P P + P = 2P Q P + Q= R X3 + X + 1 POINT NEGATIVE POINT SUMMATION POINT DOUBLING POLYNOMIAL CURVE
• Elliptic curve message encoding and decoding • Elliptic curve Diffie Hellman problem • Elliptic curve discrete logarithm problem
