The document provides instructions for getting started with Android development, including system requirements, downloading the Android Developer Tools, creating a "HelloWorld" project, understanding the structure of an Android app, and how to run and test the app on an emulator or real Android device. Key steps include downloading the Android SDK, creating a new project in Eclipse, configuring the "Run" settings, and ensuring USB debugging is enabled to run the app directly on a connected device.

1. 02.1. Getting Started Android
Oum Saokosal
Master of Engineering in Information Systems, South Korea
855-12-252-752
oum_saokosal@yahoo.com

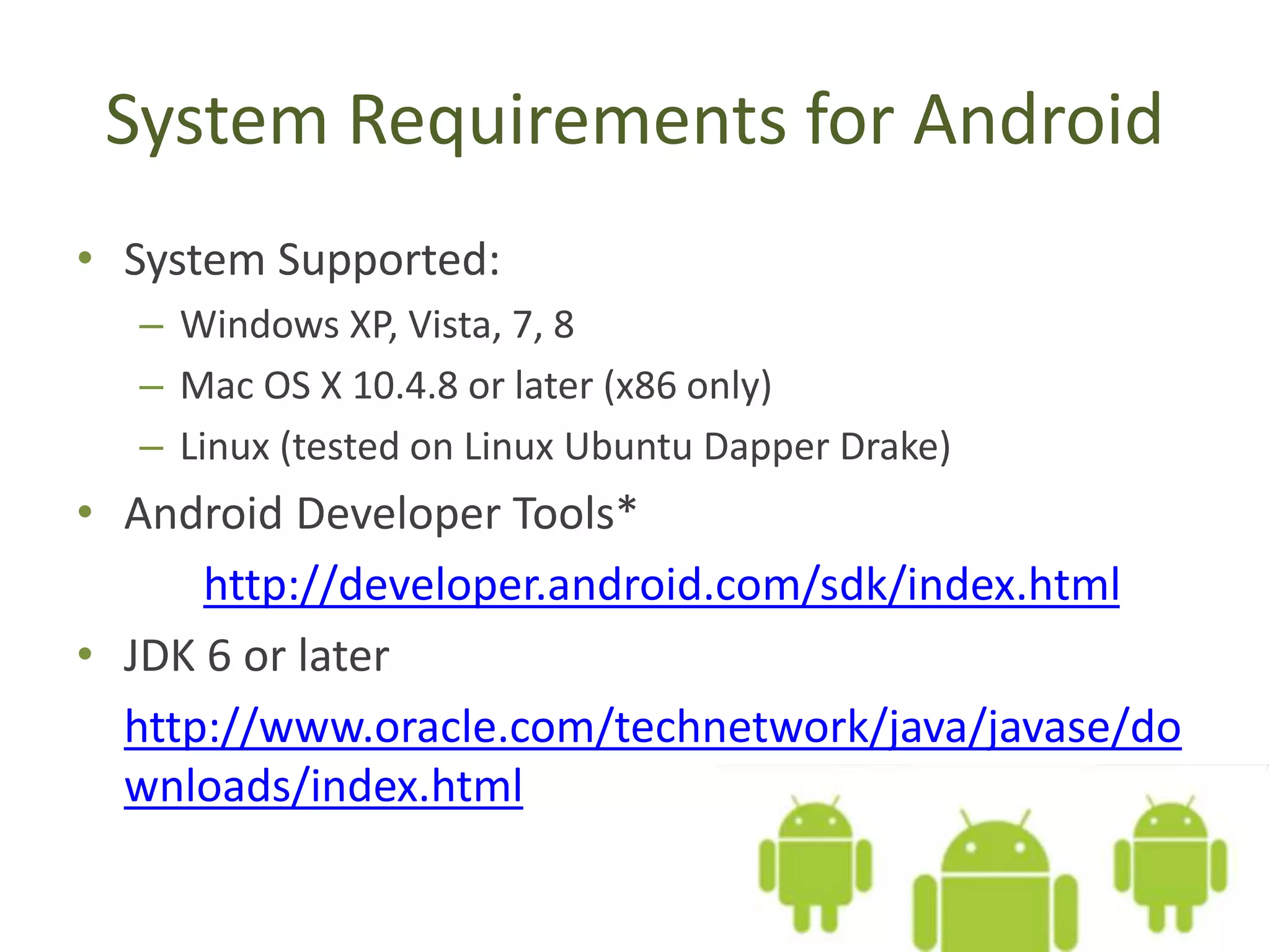

2. System Requirements for Android
• System Supported:
– Windows XP, Vista, 7, 8
– Mac OS X 10.4.8 or later (x86 only)
– Linux (tested on Linux Ubuntu Dapper Drake)
• Android Developer Tools*
http://developer.android.com/sdk/index.html
• JDK 6 or later
http://www.oracle.com/technetwork/java/javase/do
wnloads/index.html

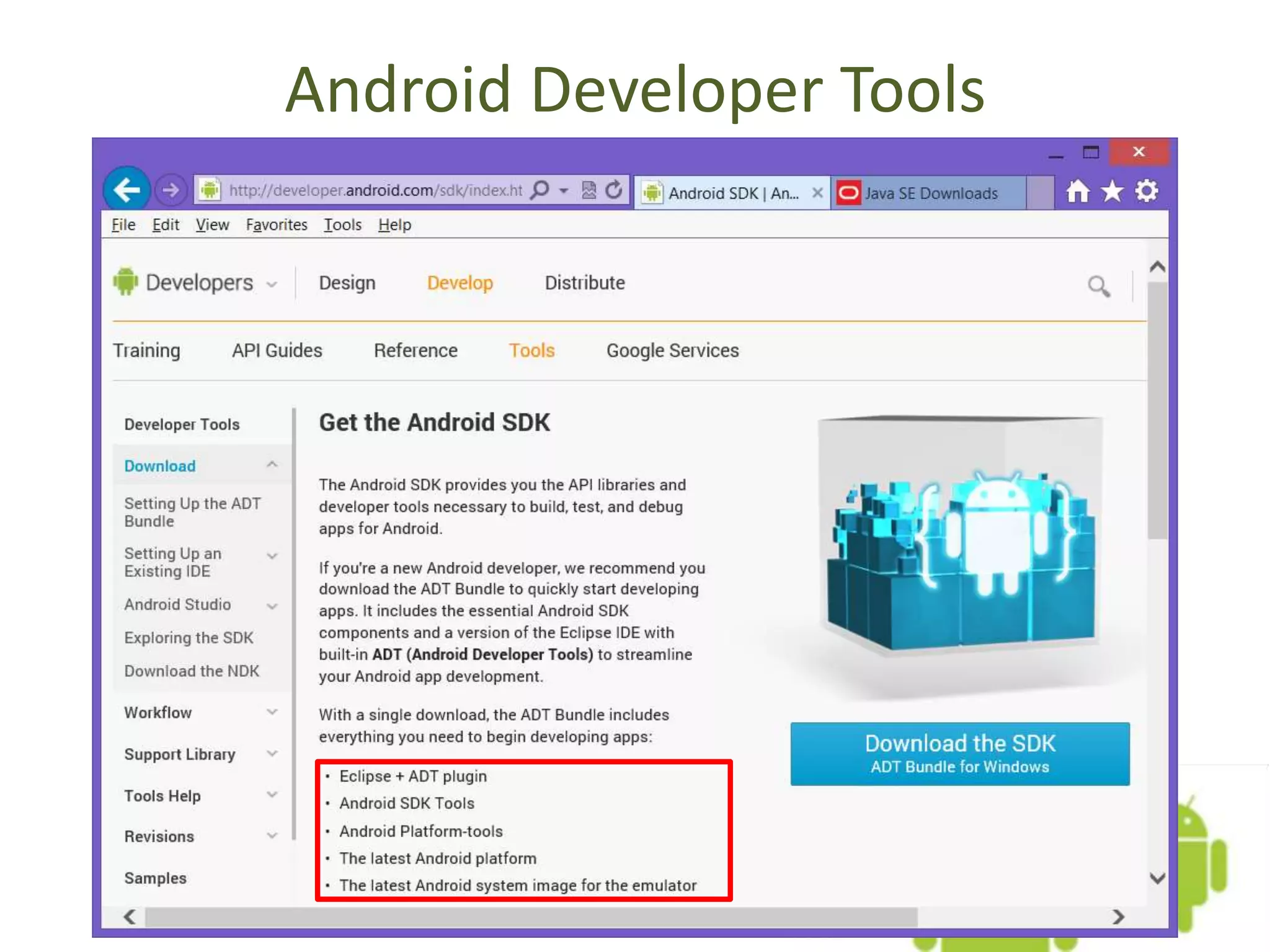

3. Android Developer Tools

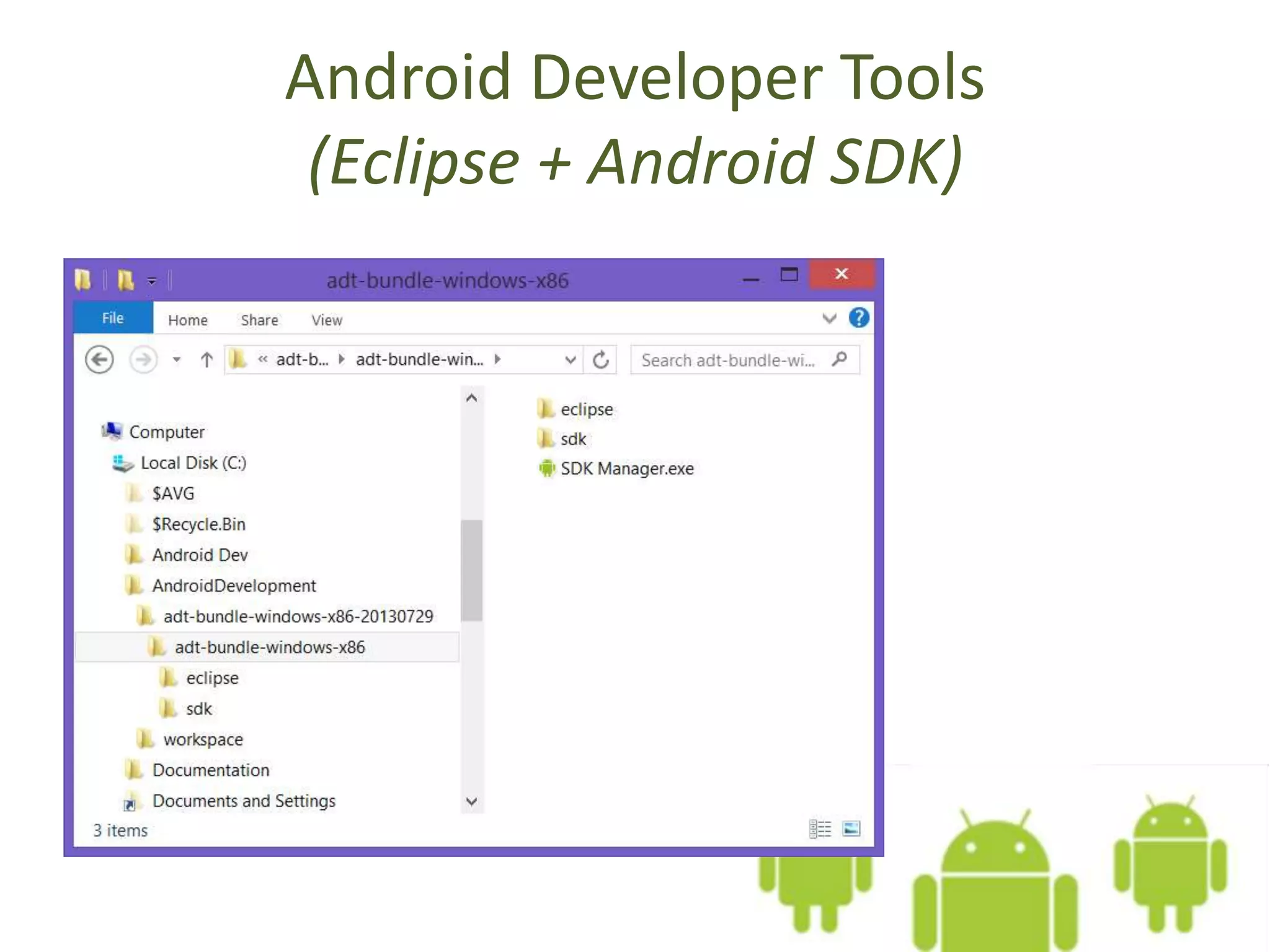

4. Android Developer Tools
(Eclipse + Android SDK)

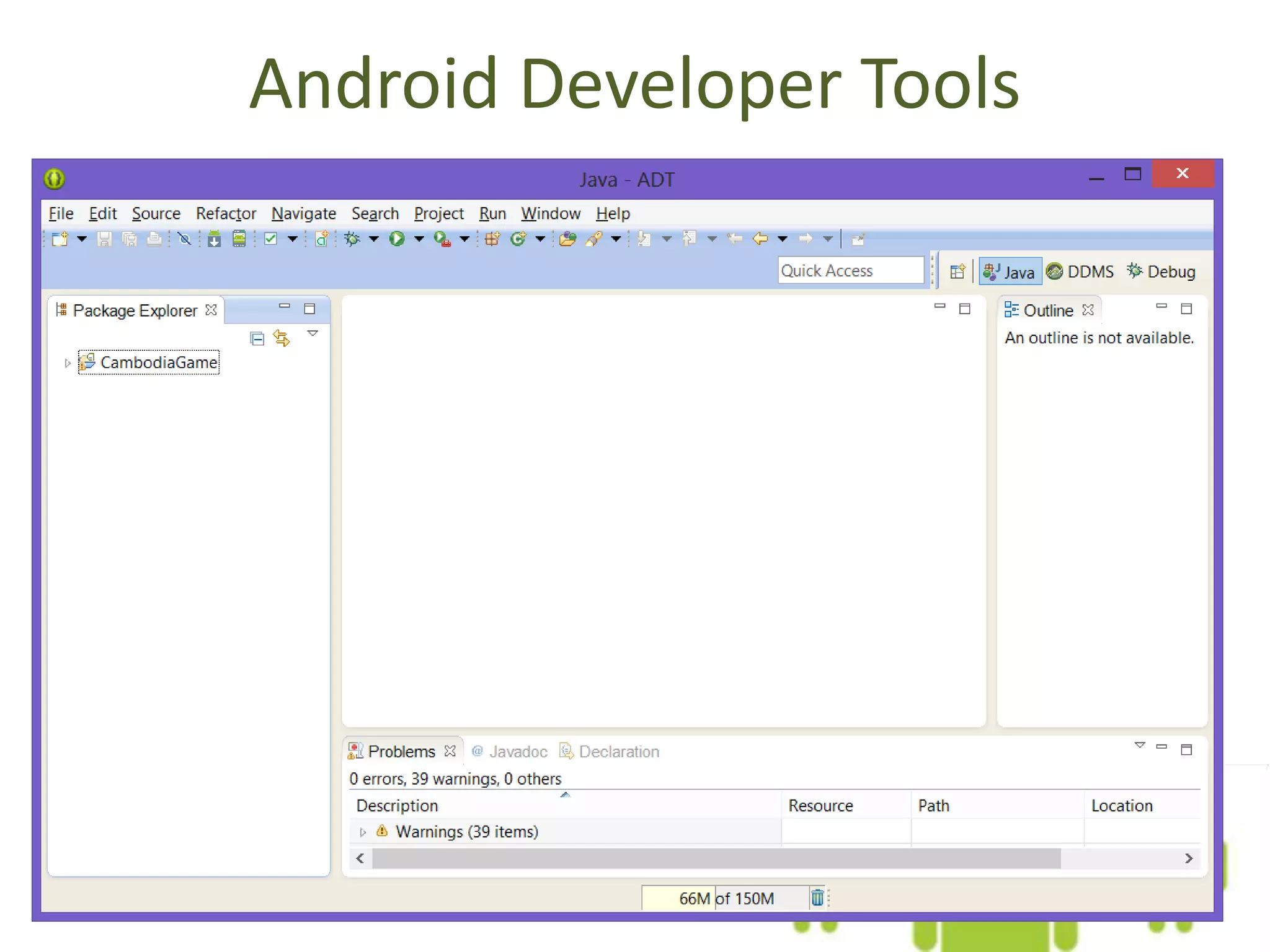

5. Android Developer Tools

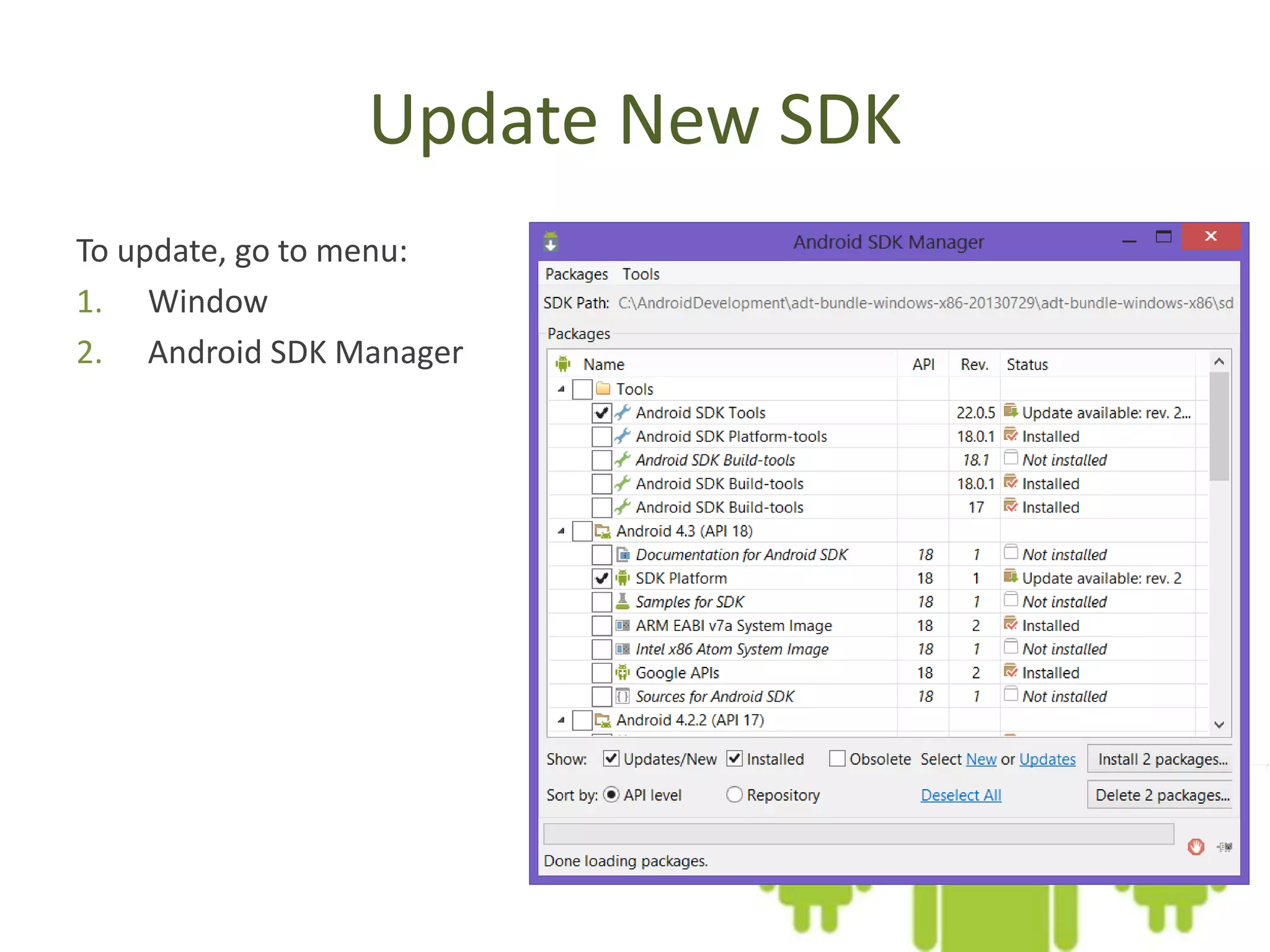

6. Update New SDK
To update, go to menu:
1. Window
2. Android SDK Manager

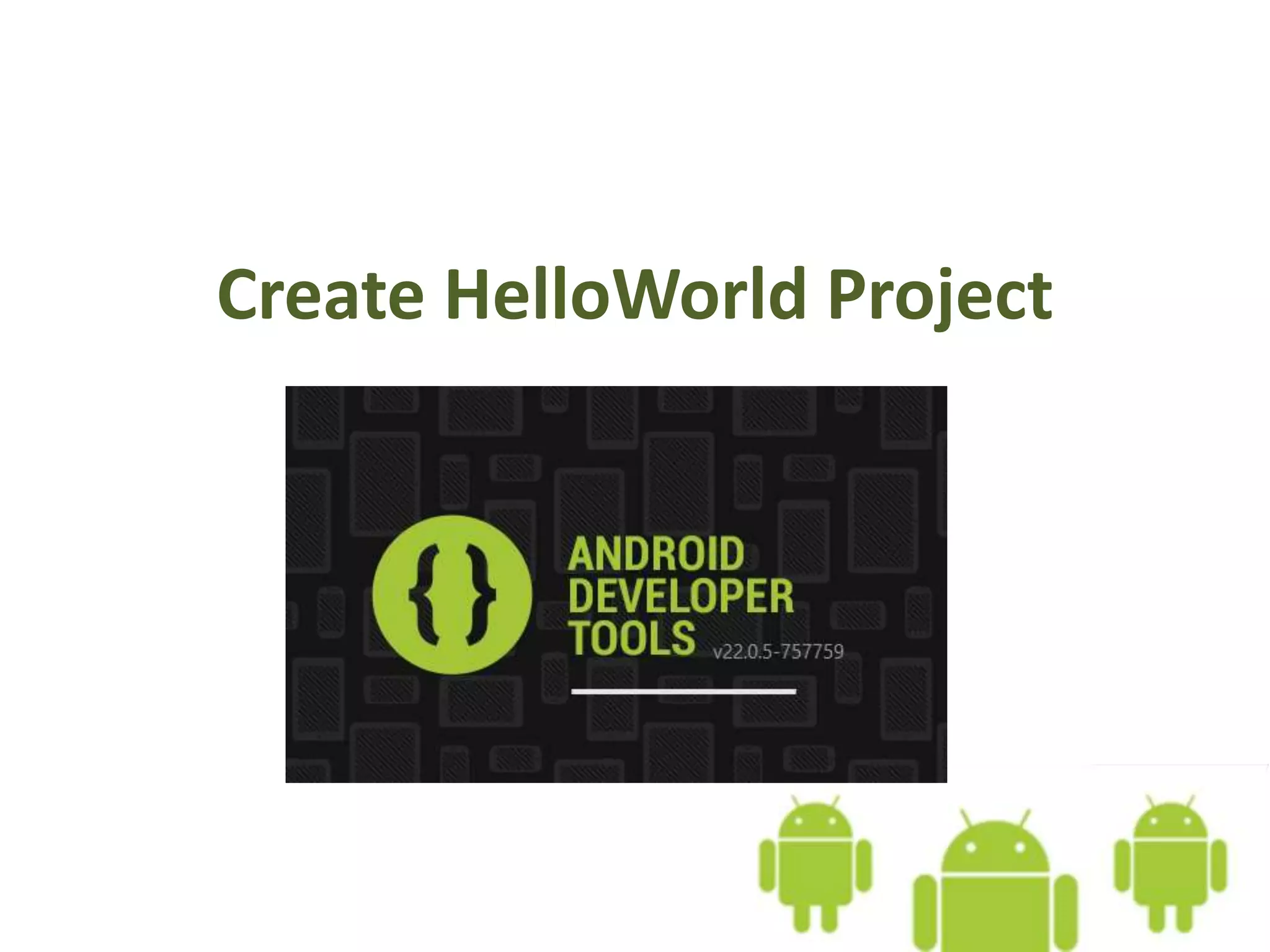

7. Create HelloWorld Project

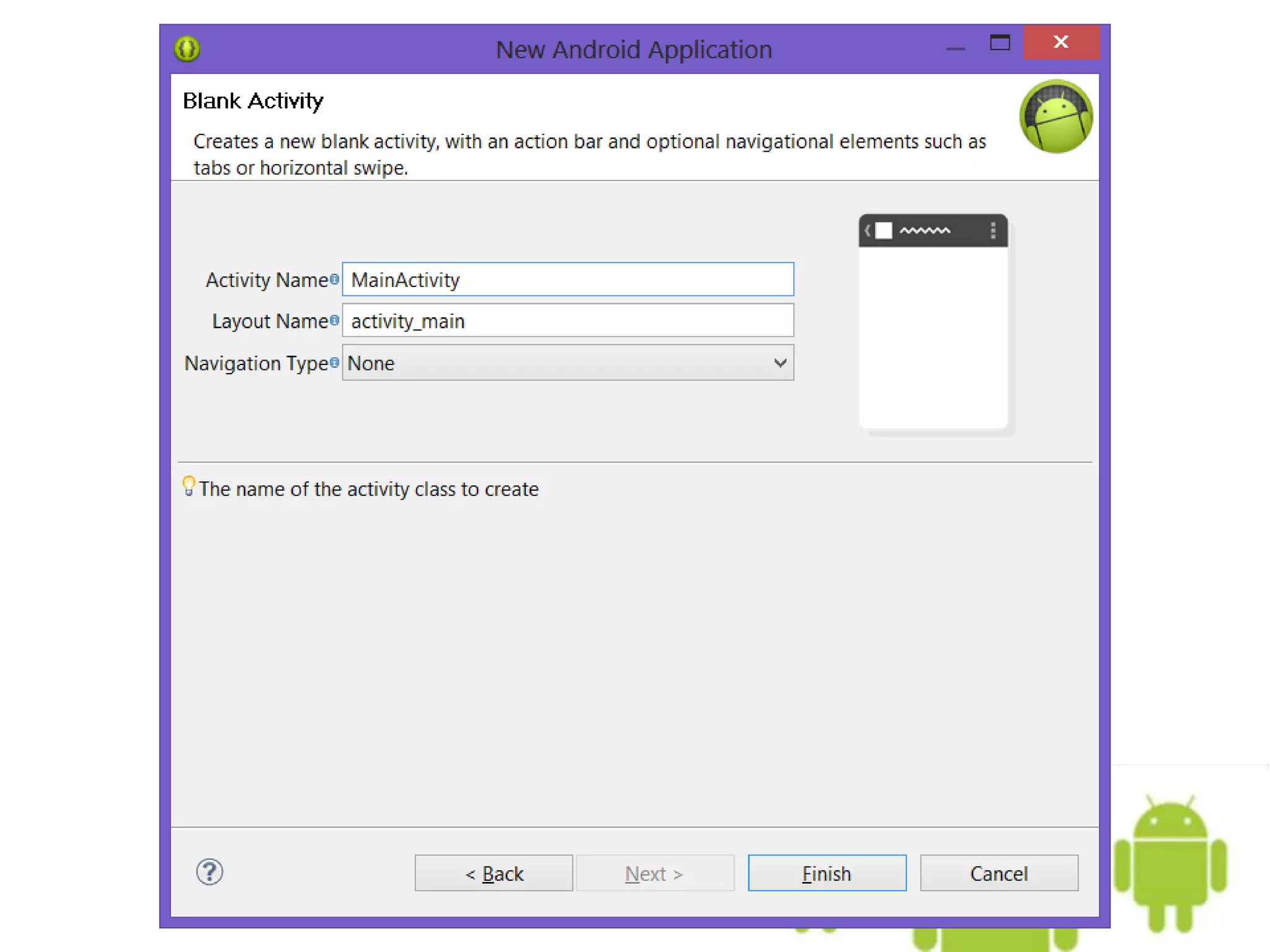

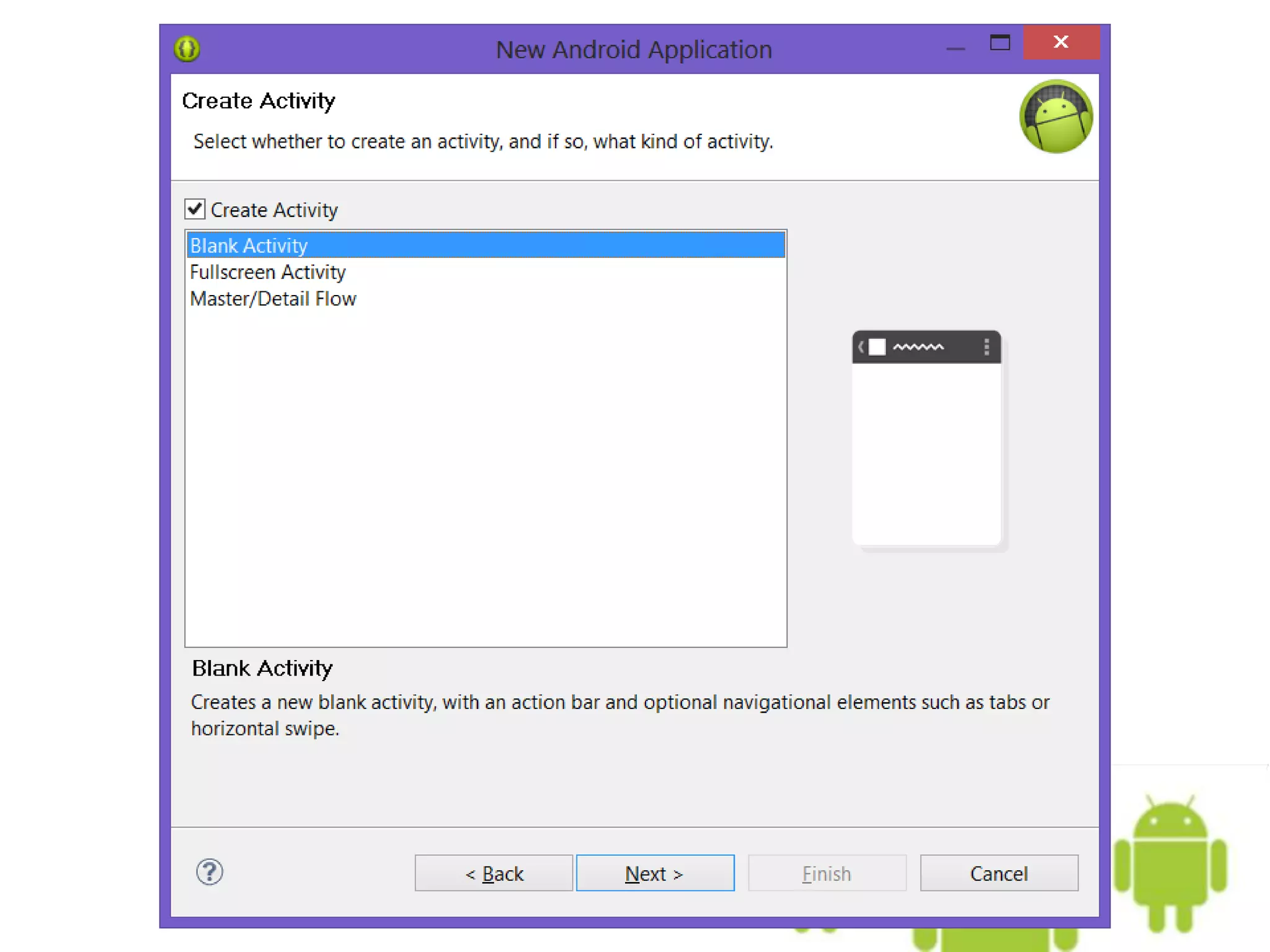

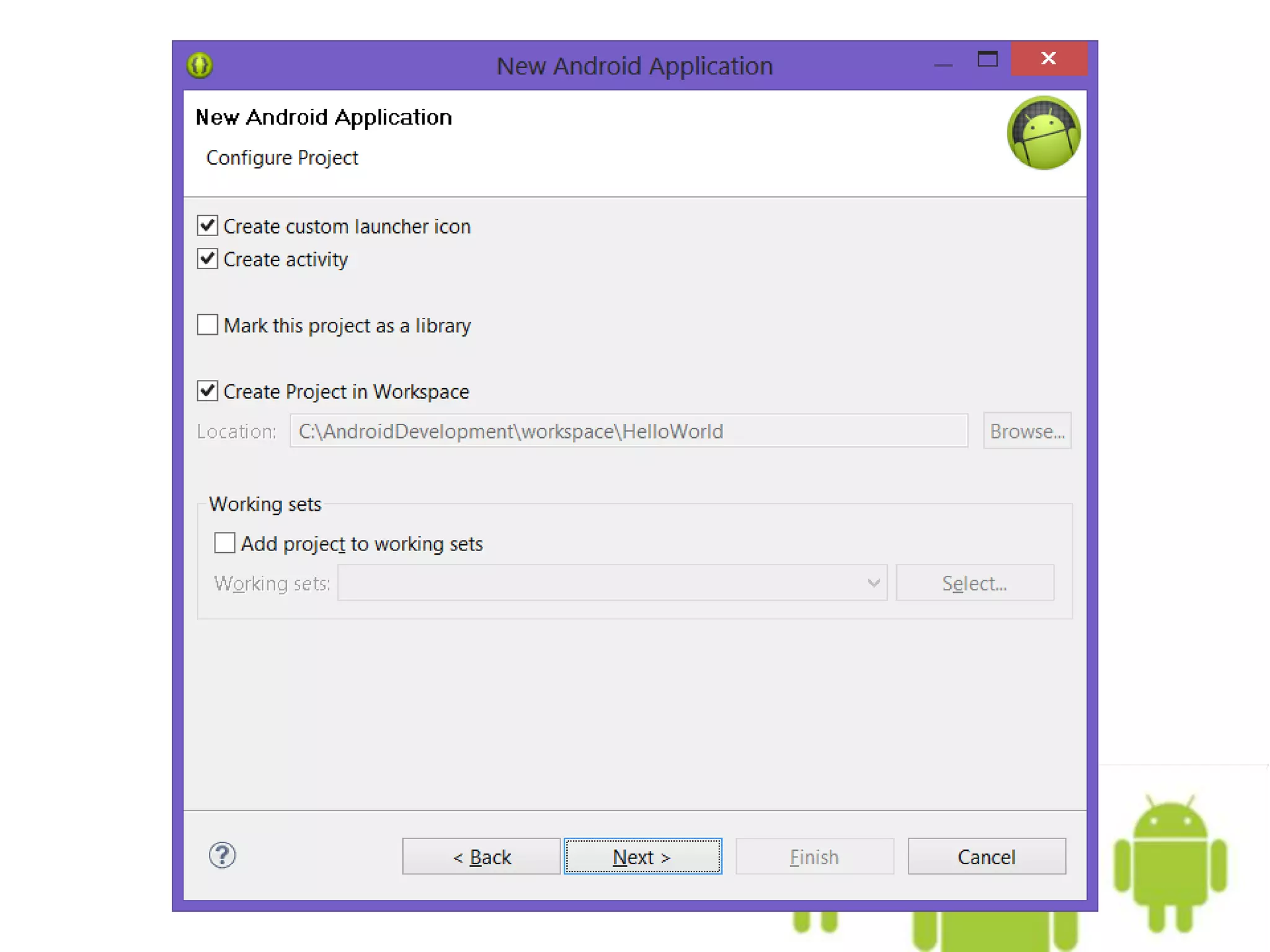

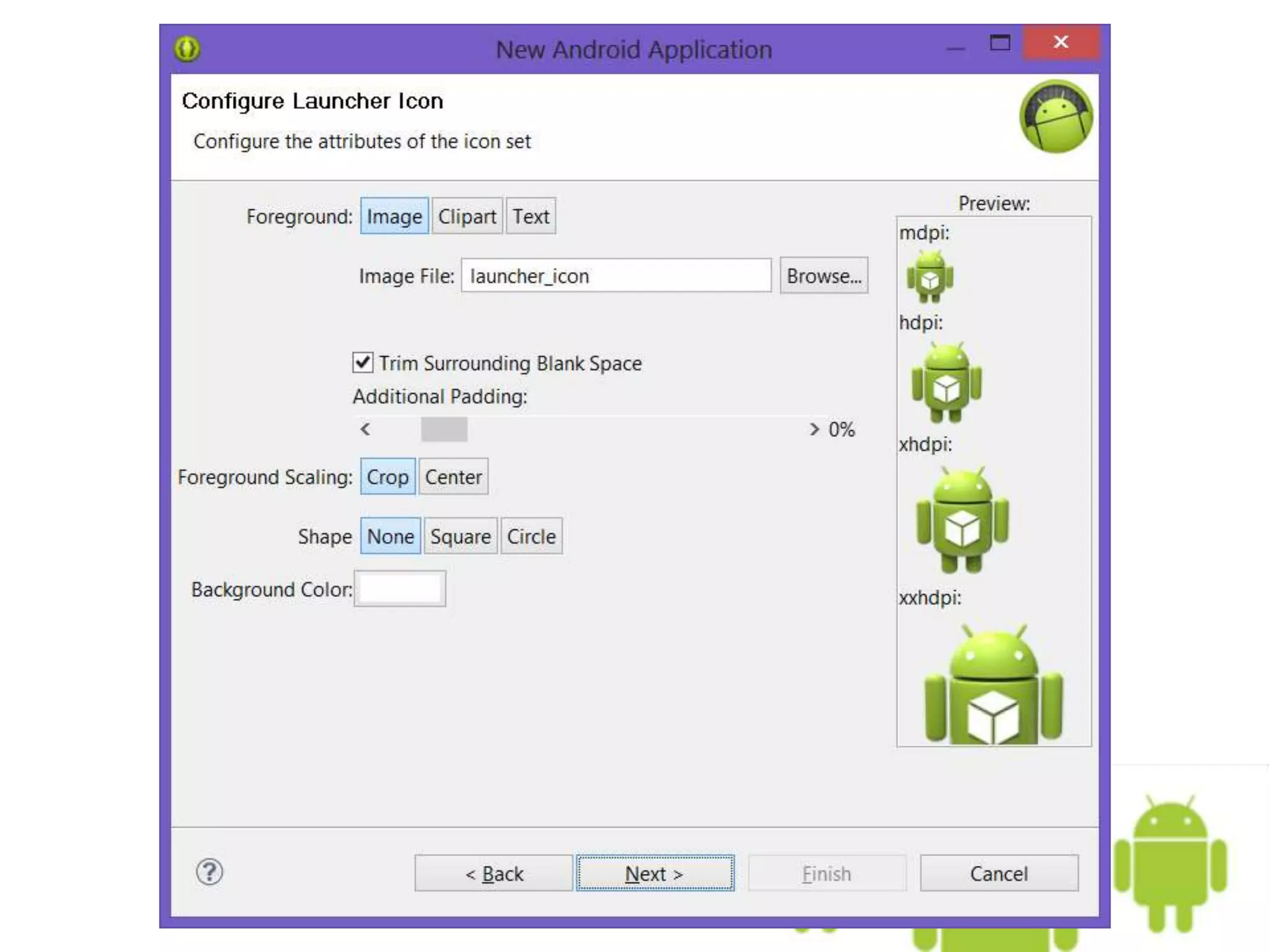

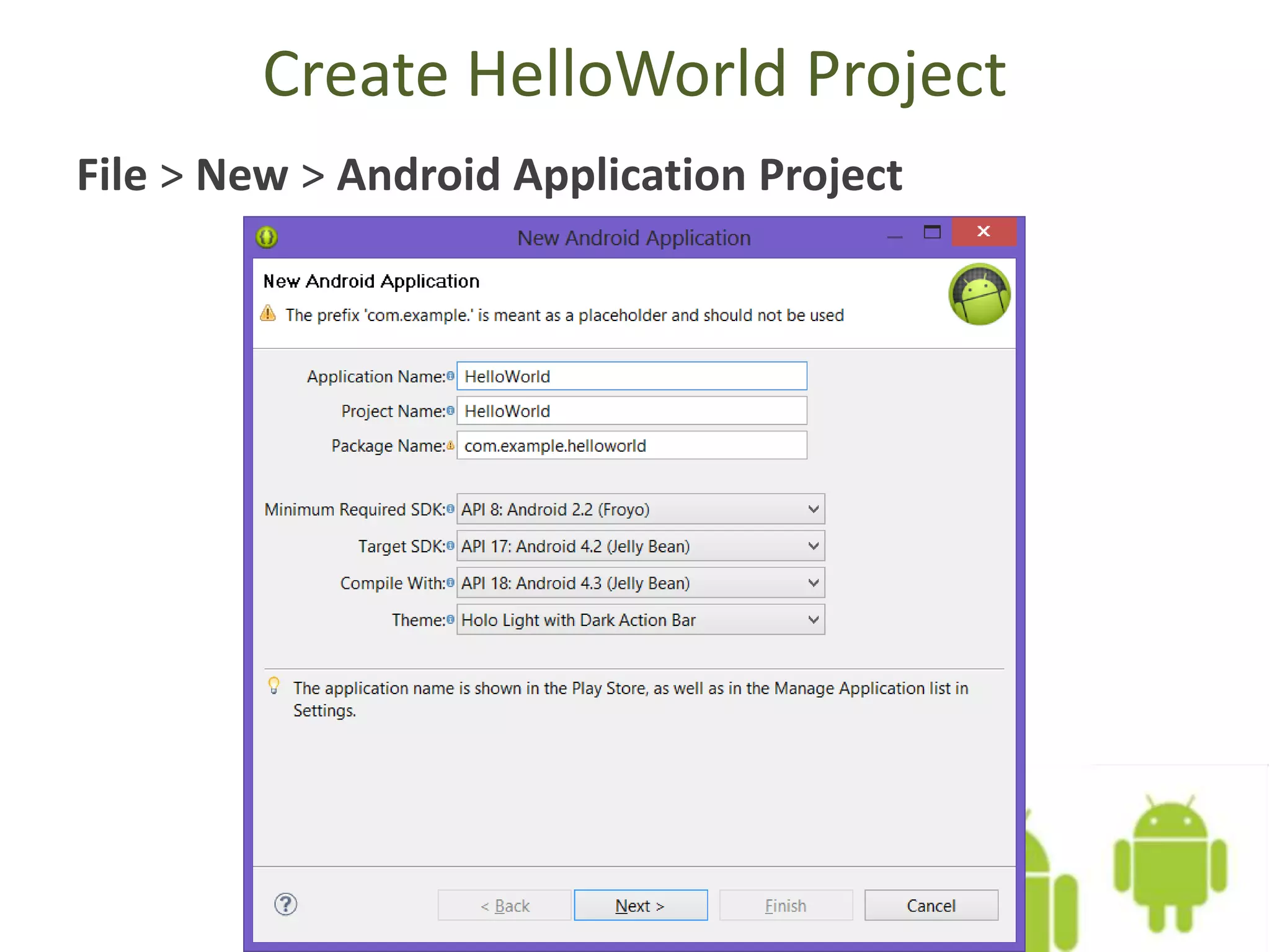

8. Create HelloWorld Project
File > New > Android Application Project

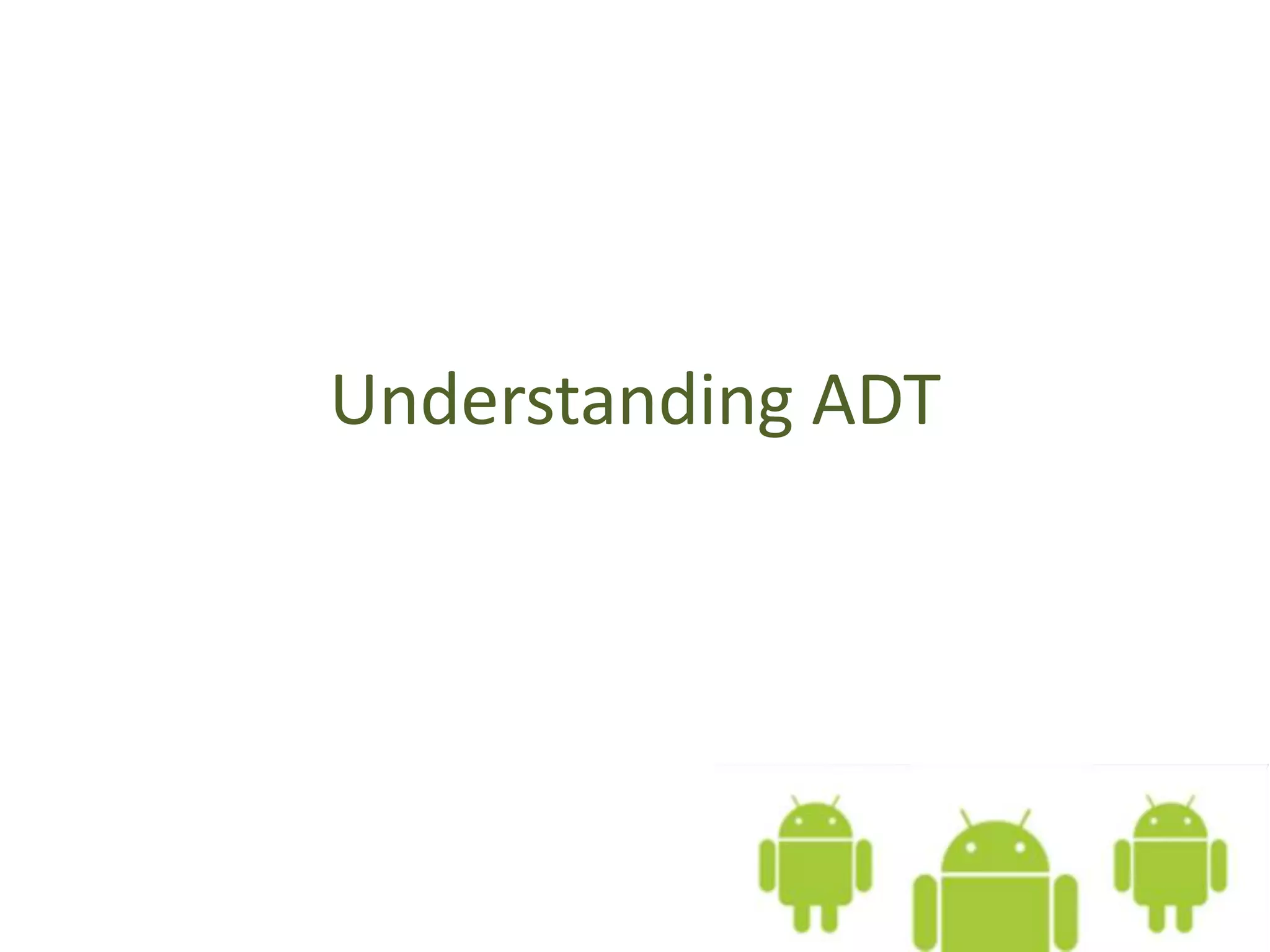

13. Understanding ADT

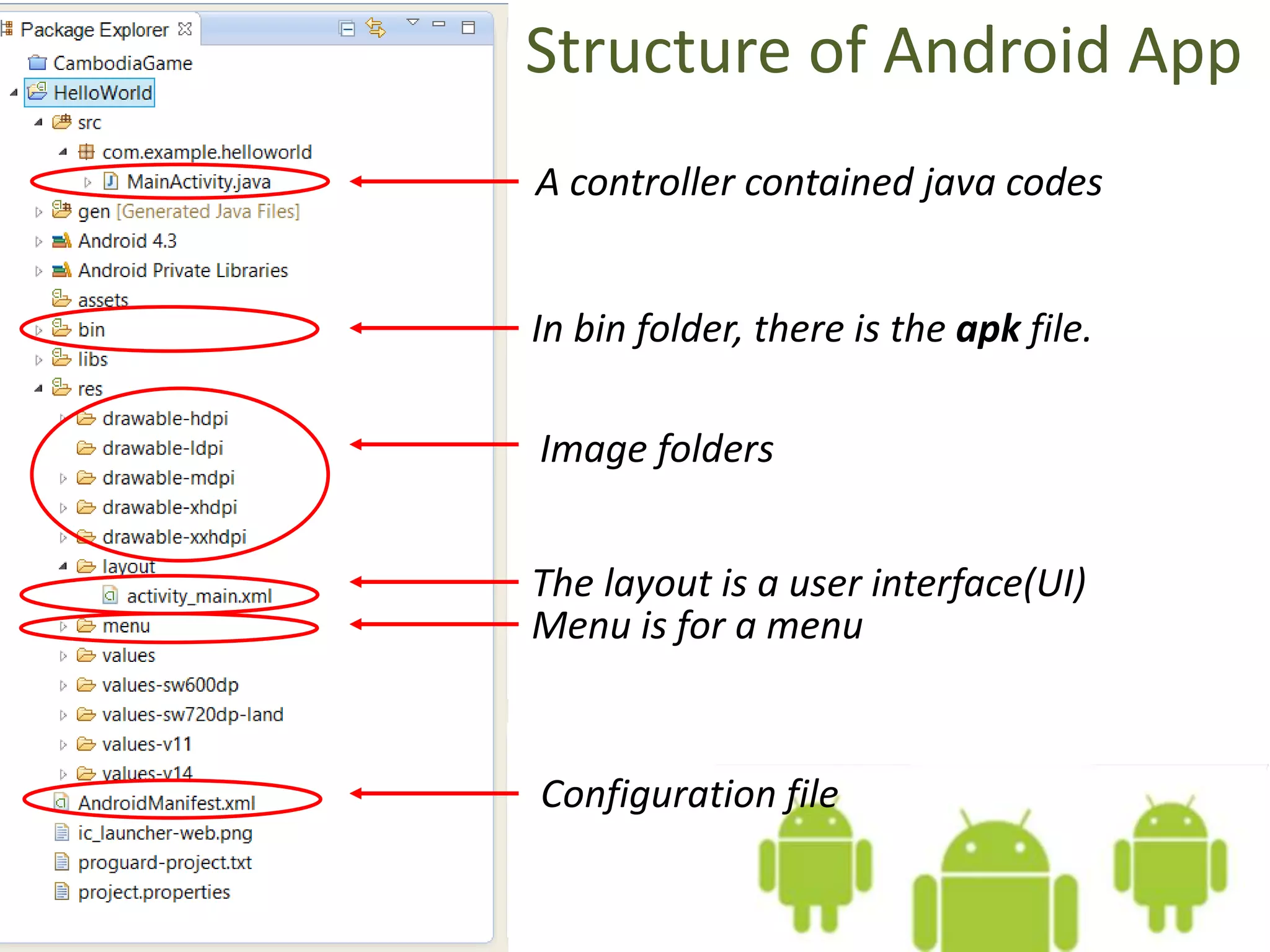

14. Structure of Android App
A controller contained java codes
In bin folder, there is the apk file.
Image folders
The layout is a user interface(UI)
Menu is for a menu
Configuration file

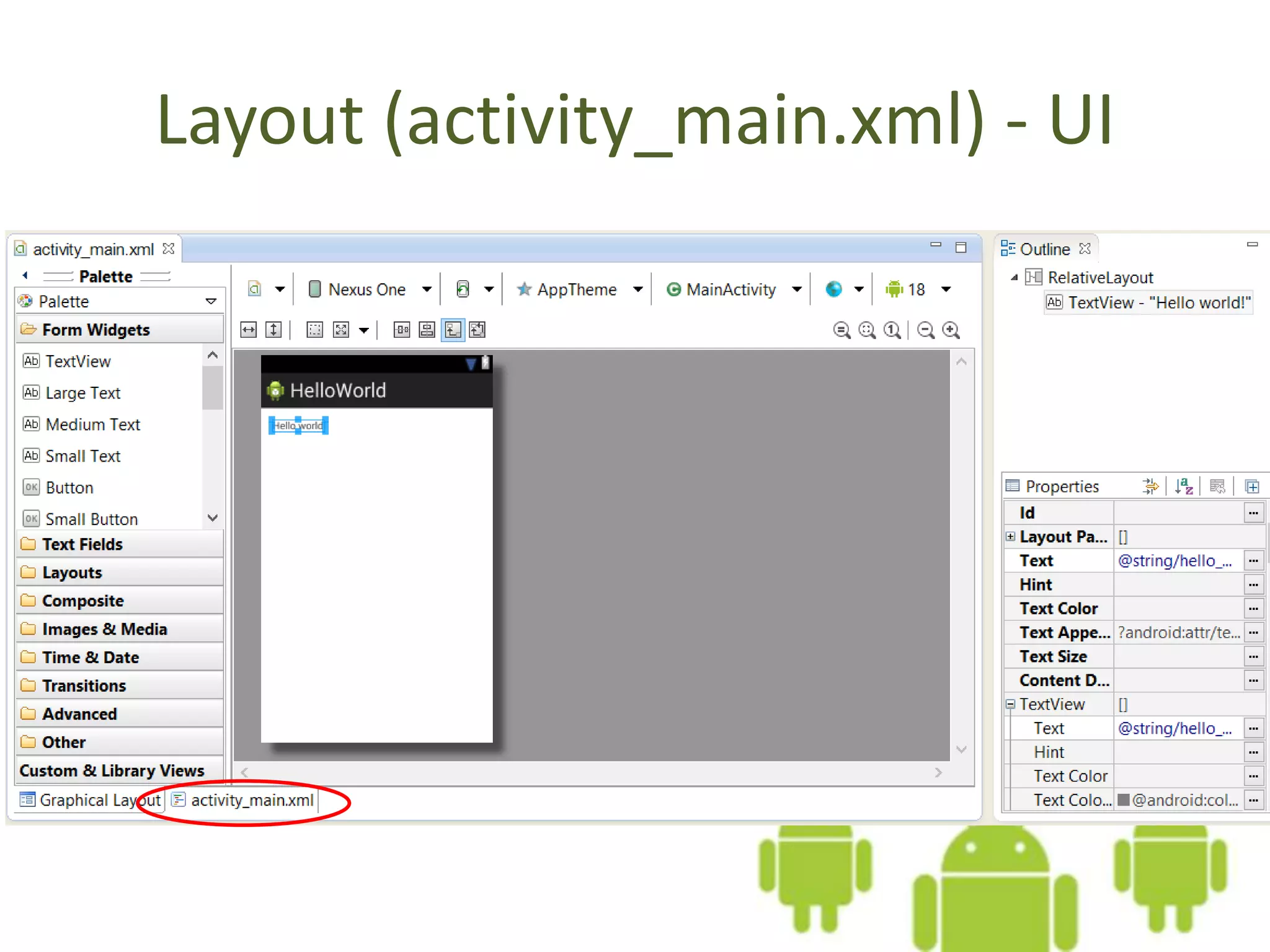

15. Layout (activity_main.xml) - UI

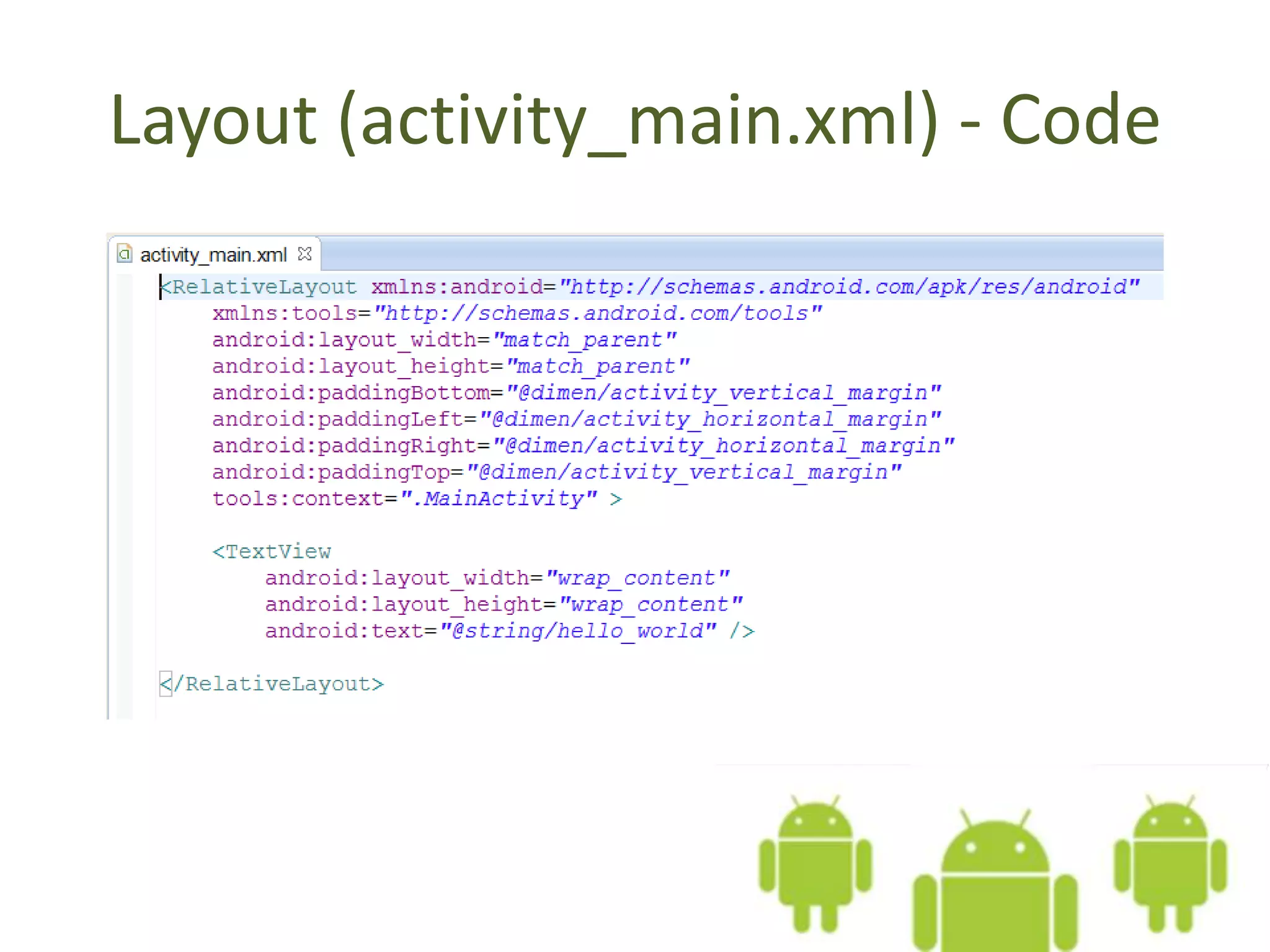

16. Layout (activity_main.xml) - Code

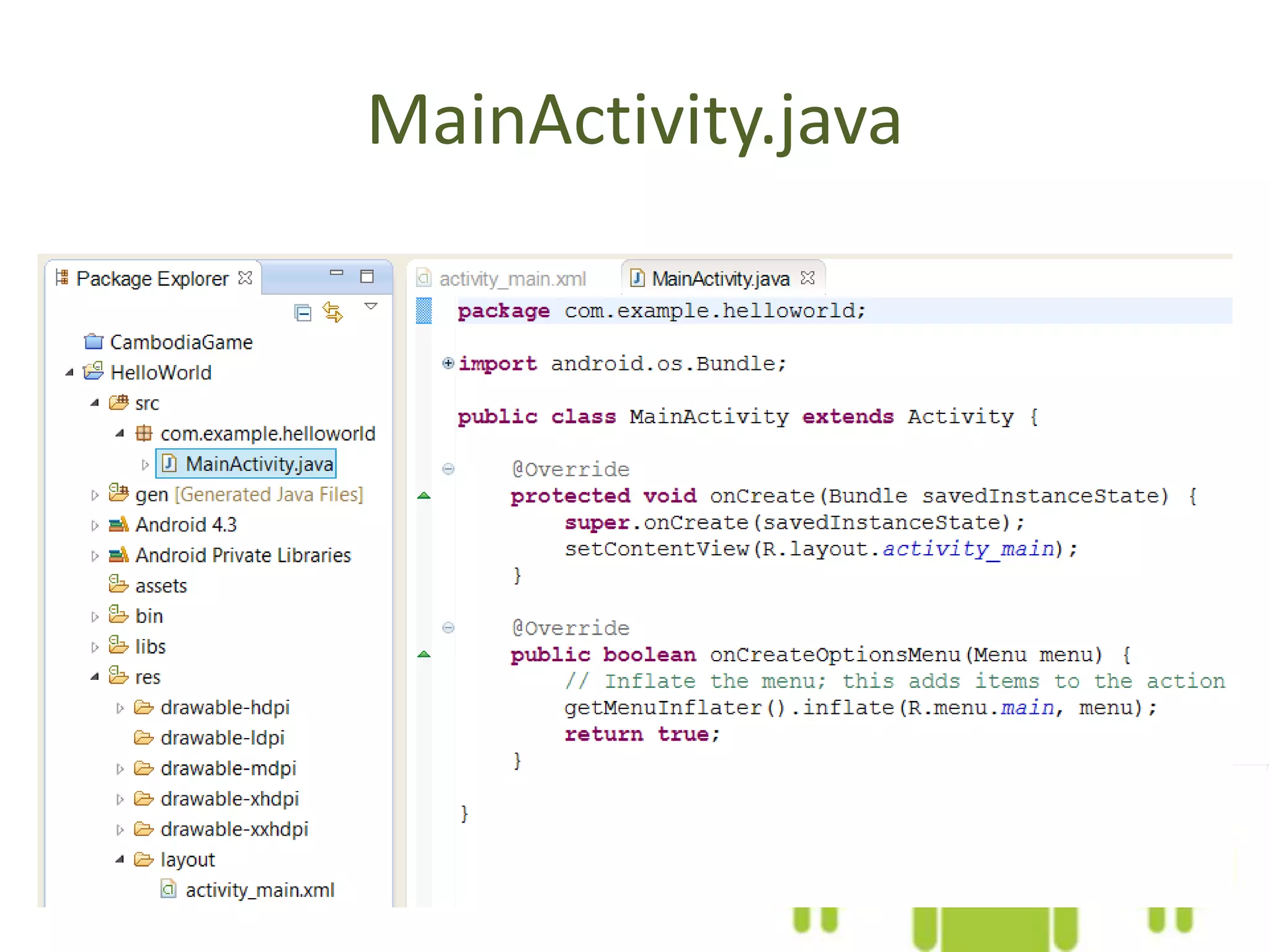

17. MainActivity.java

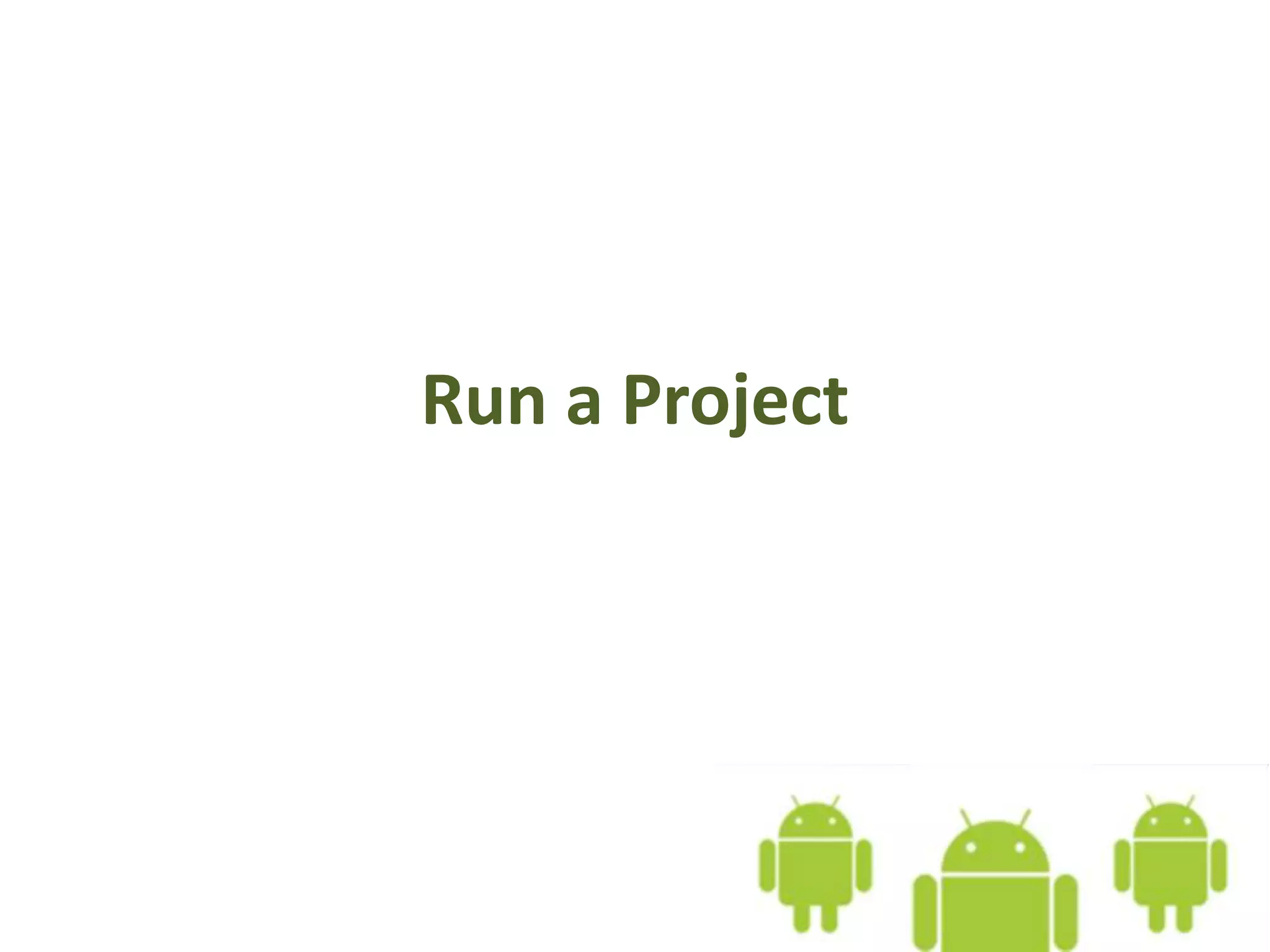

18. Run a Project

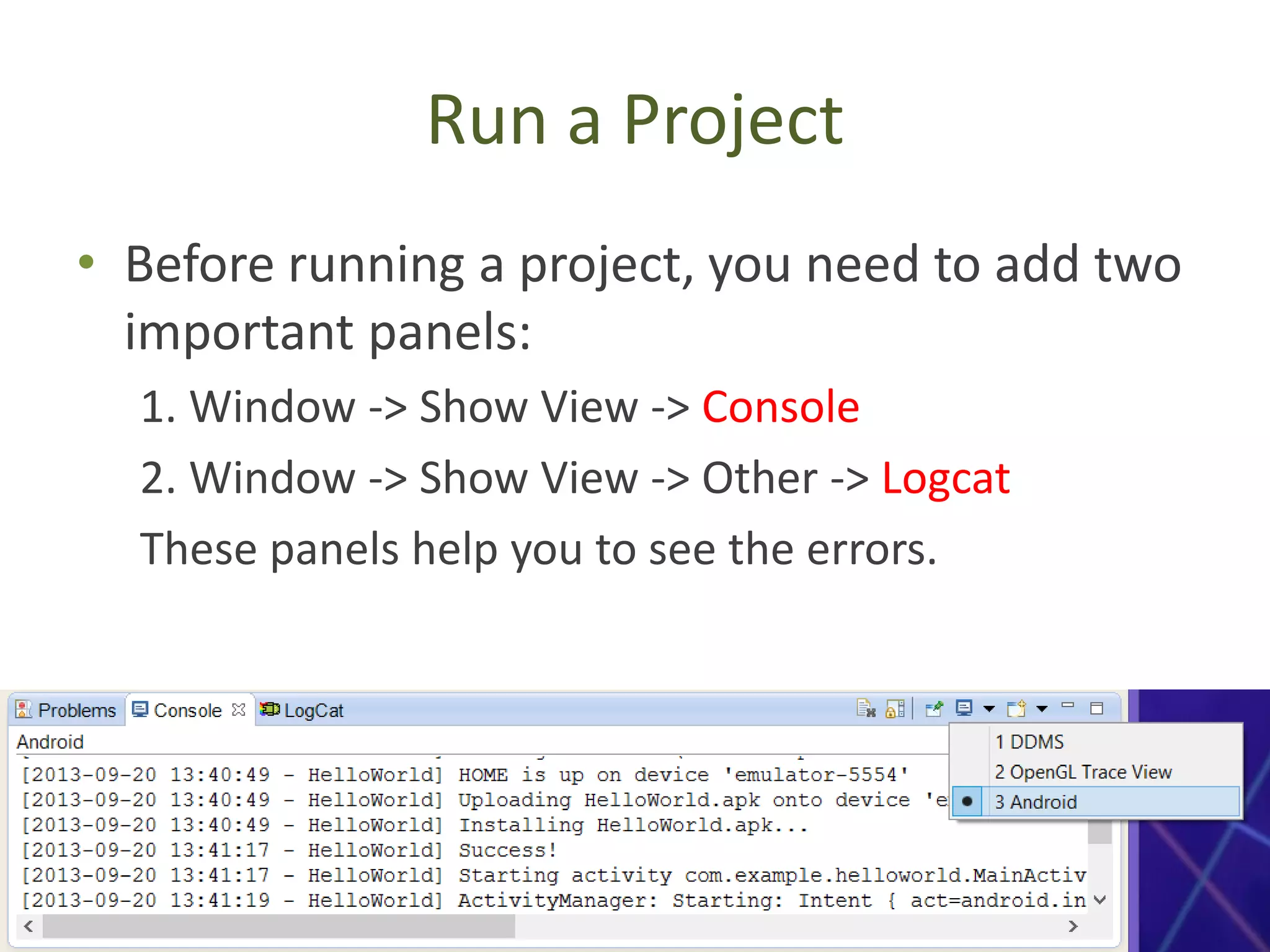

19. Run a Project
• Before running a project, you need to add two
important panels:
1. Window -> Show View -> Console
2. Window -> Show View -> Other -> Logcat
These panels help you to see the errors.

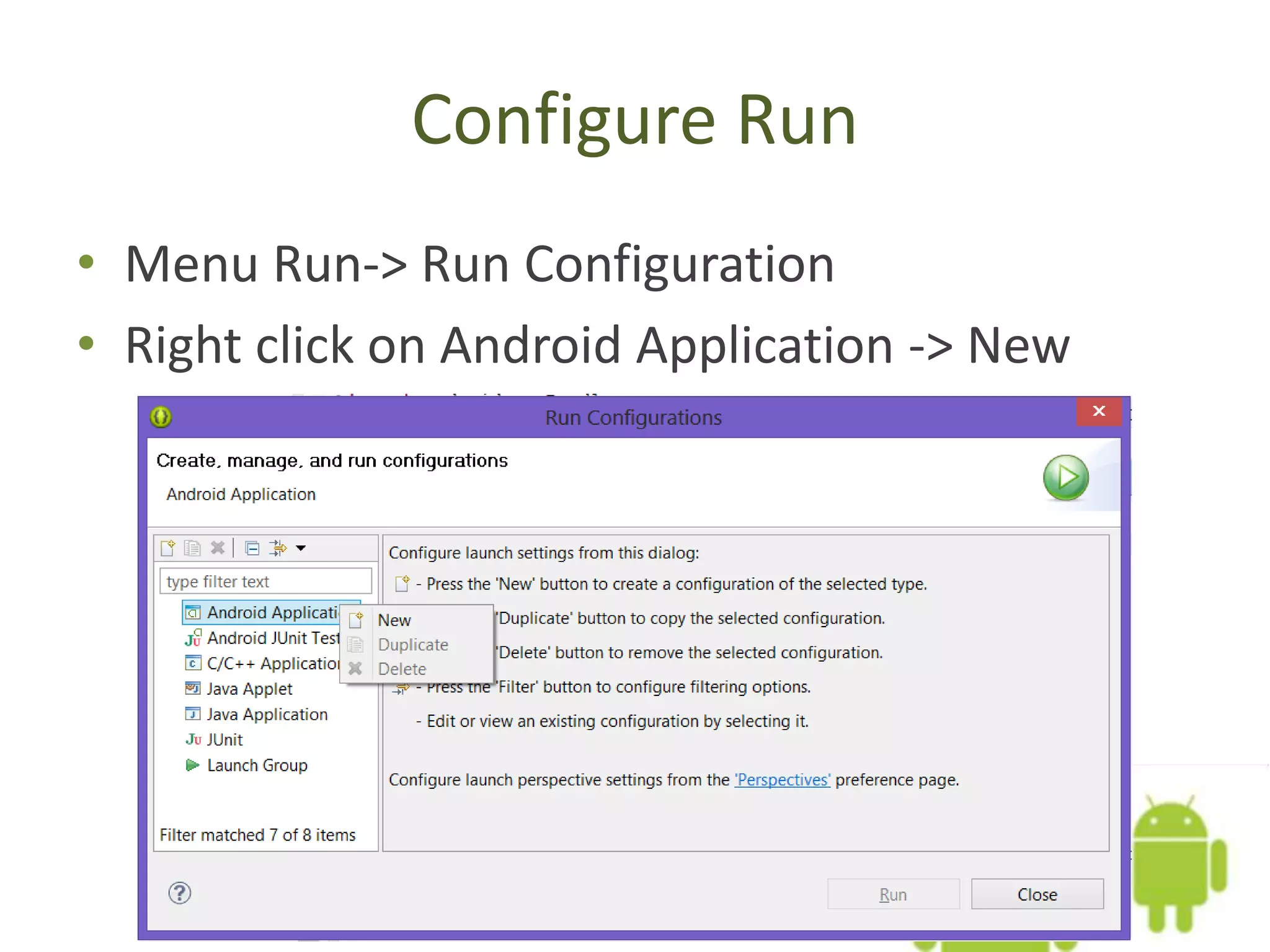

20. Configure Run
• Menu Run-> Run Configuration
• Right click on Android Application -> New

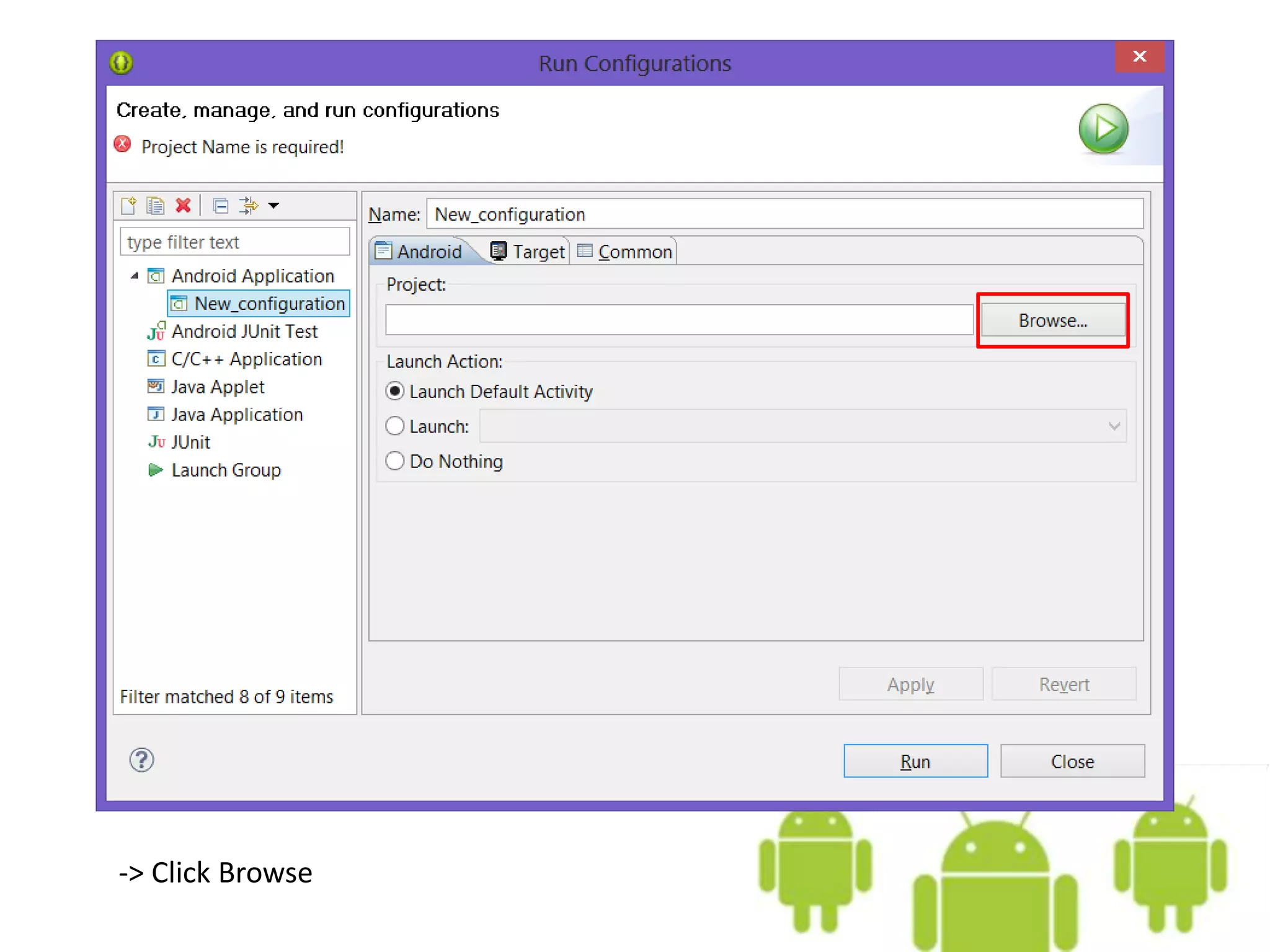

21. -> Click Browse

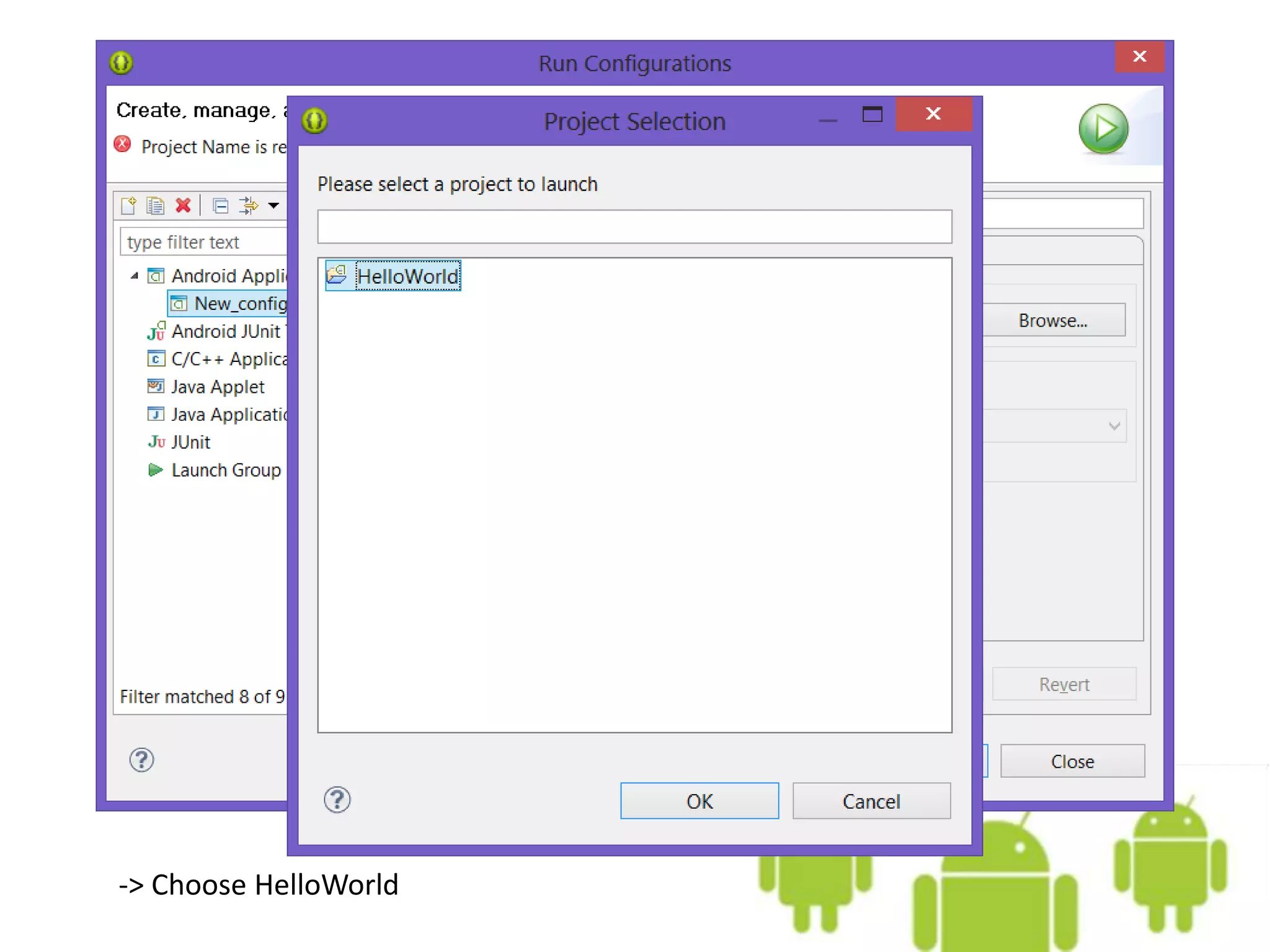

22. -> Choose HelloWorld

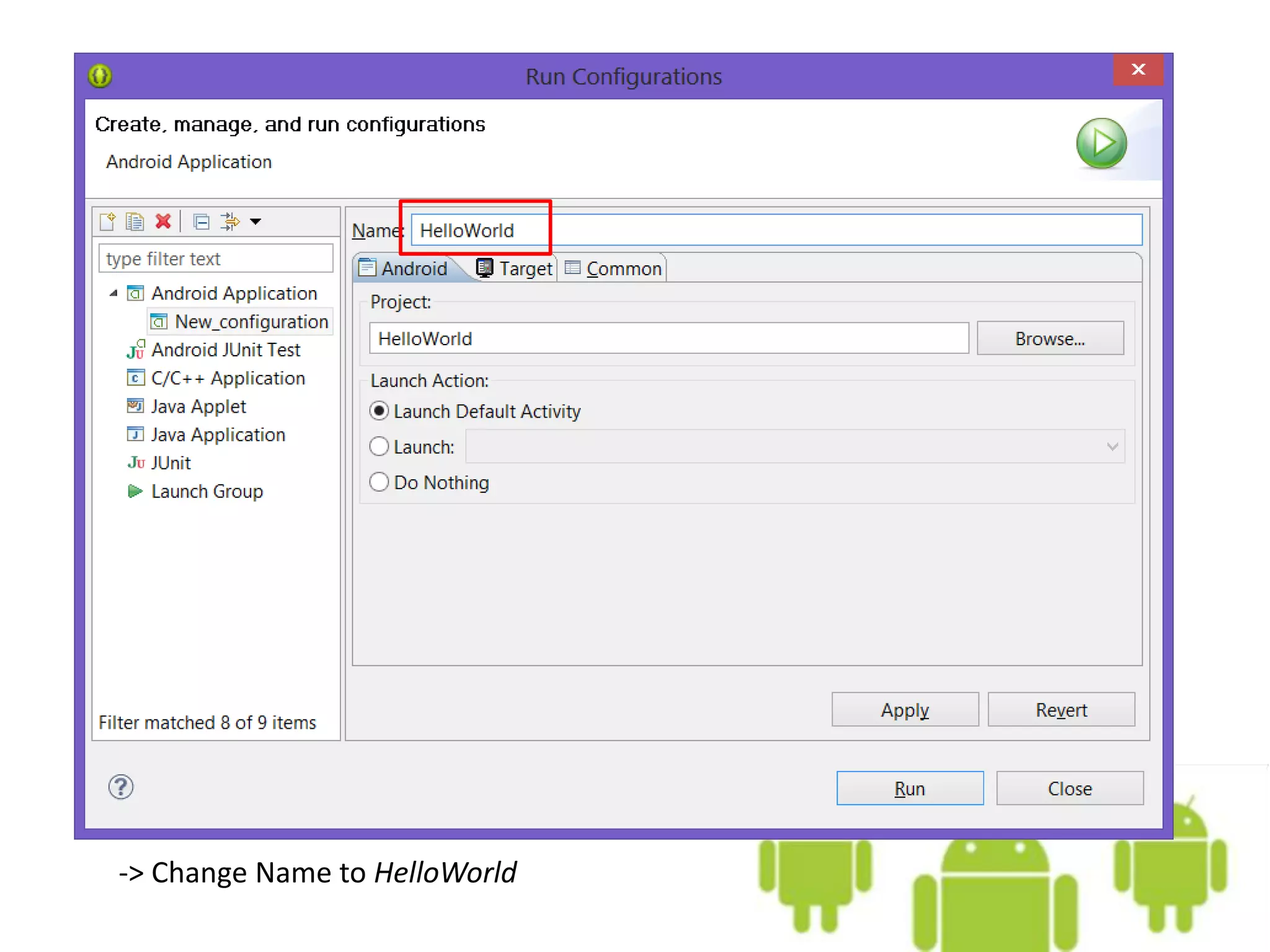

23. -> Change Name to HelloWorld

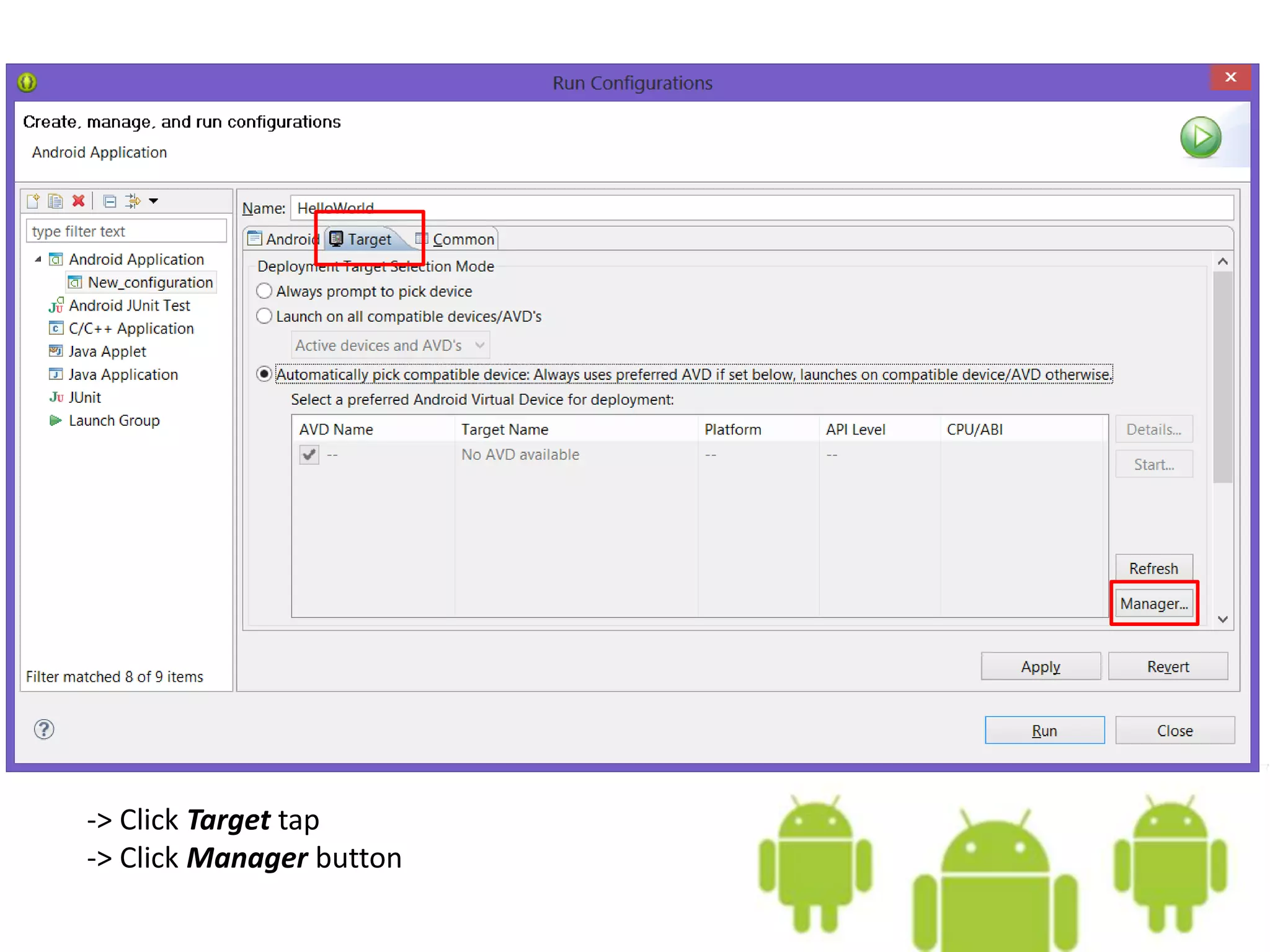

24. -> Click Target tap
-> Click Manager button

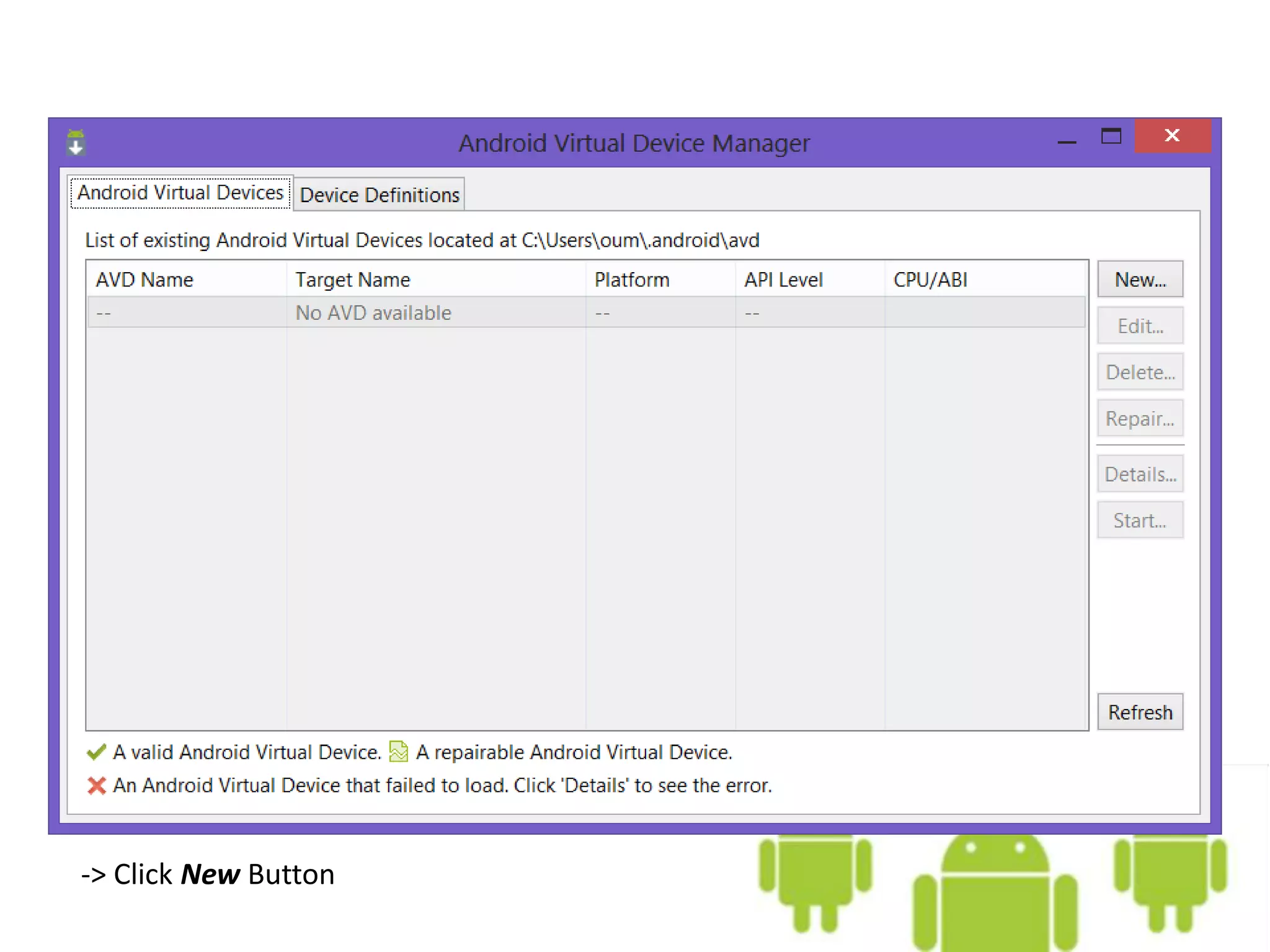

25. -> Click New Button

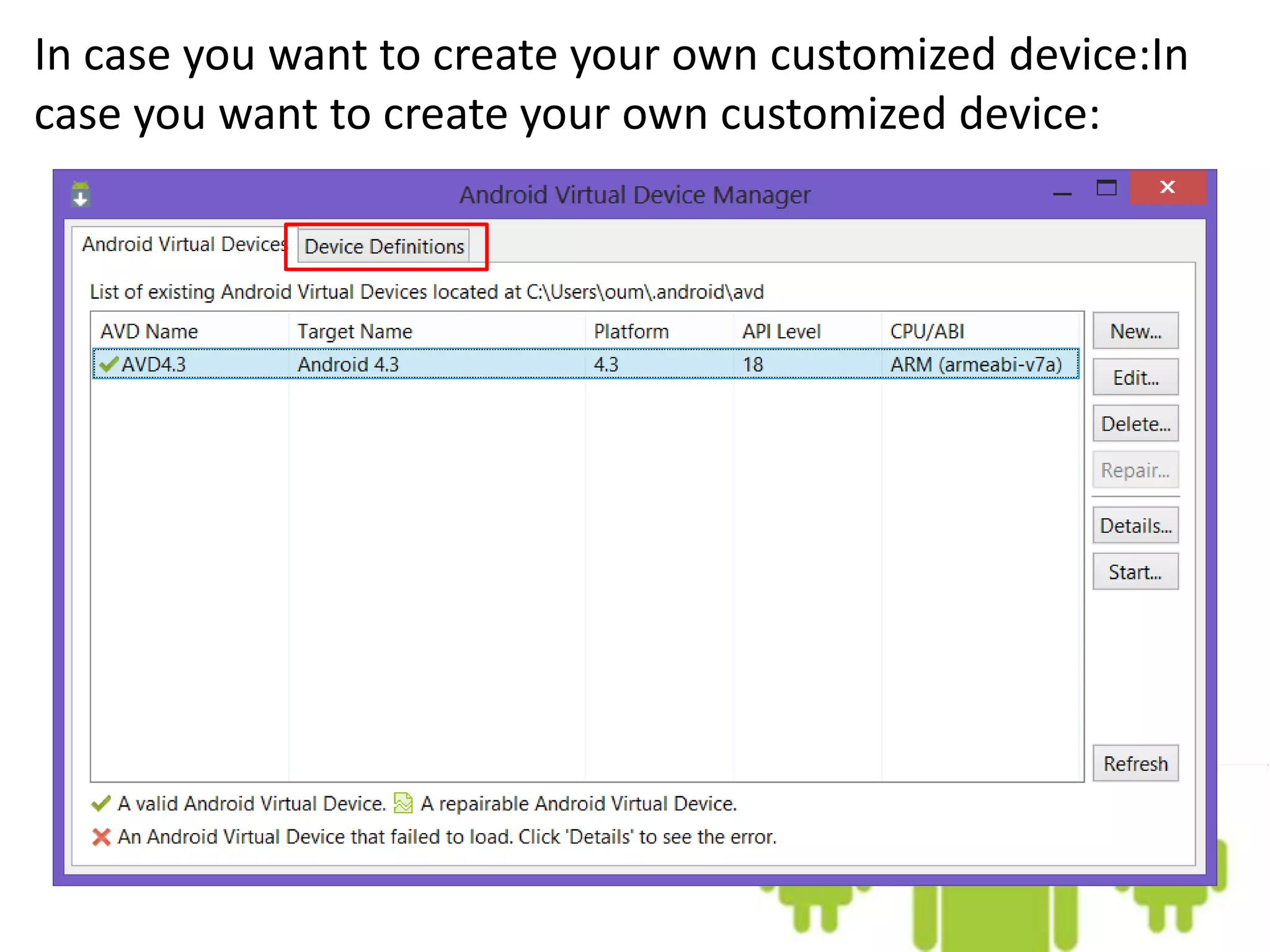

26. In case you want to create your own customized device:In
case you want to create your own customized device:

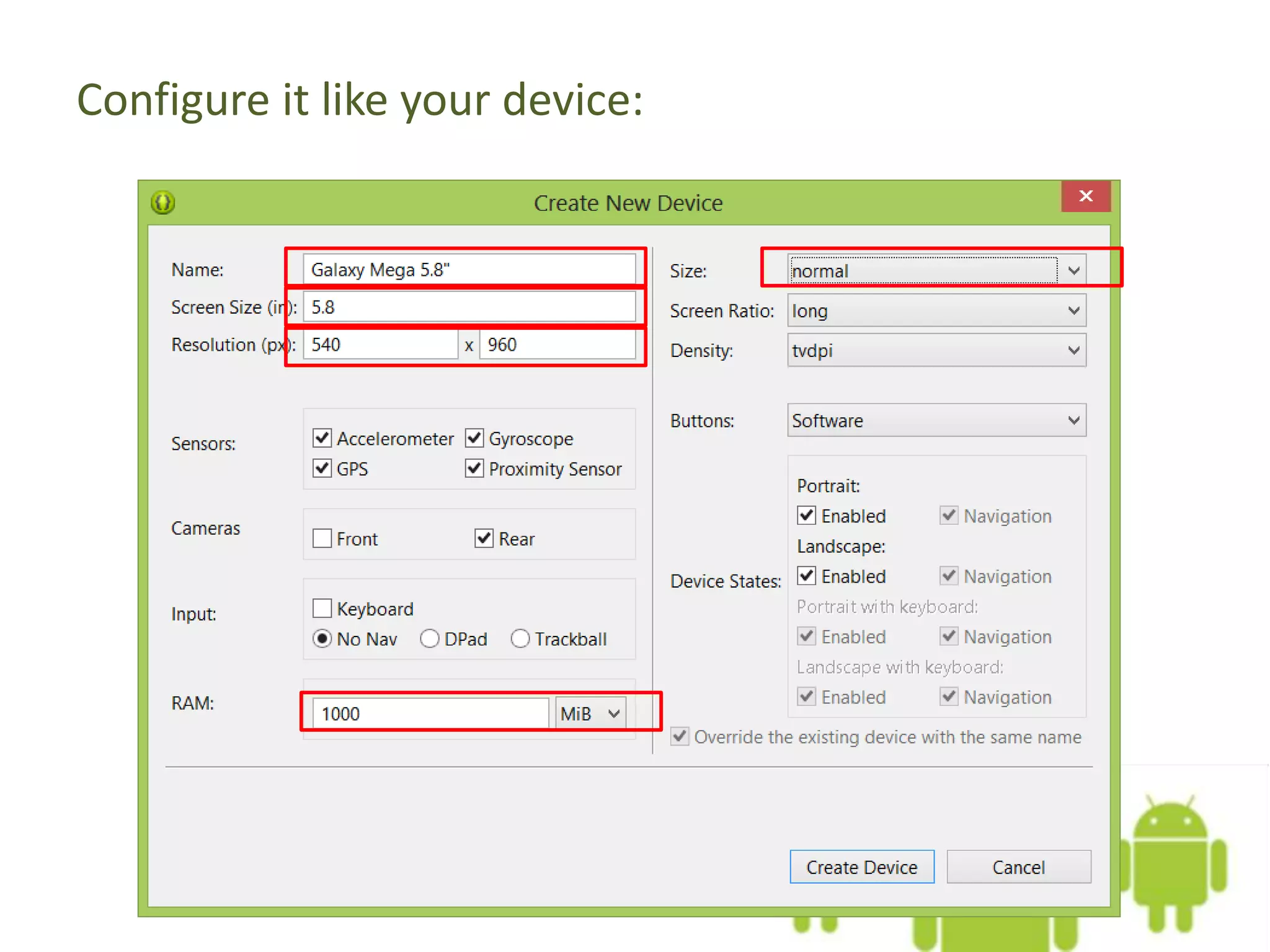

27. Configure it like your device:

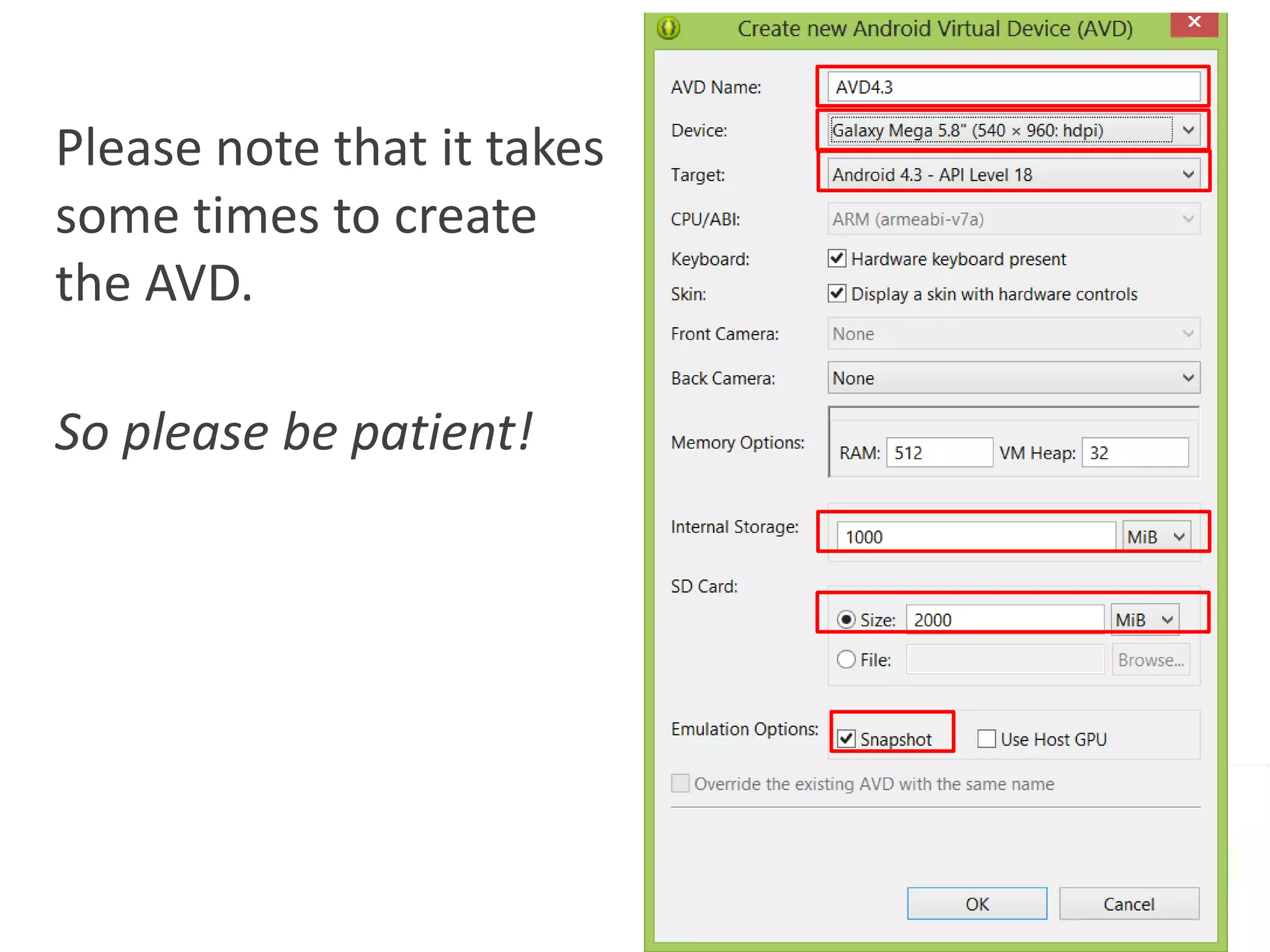

28. Please note that it takes
some times to create
the AVD.
So please be patient!

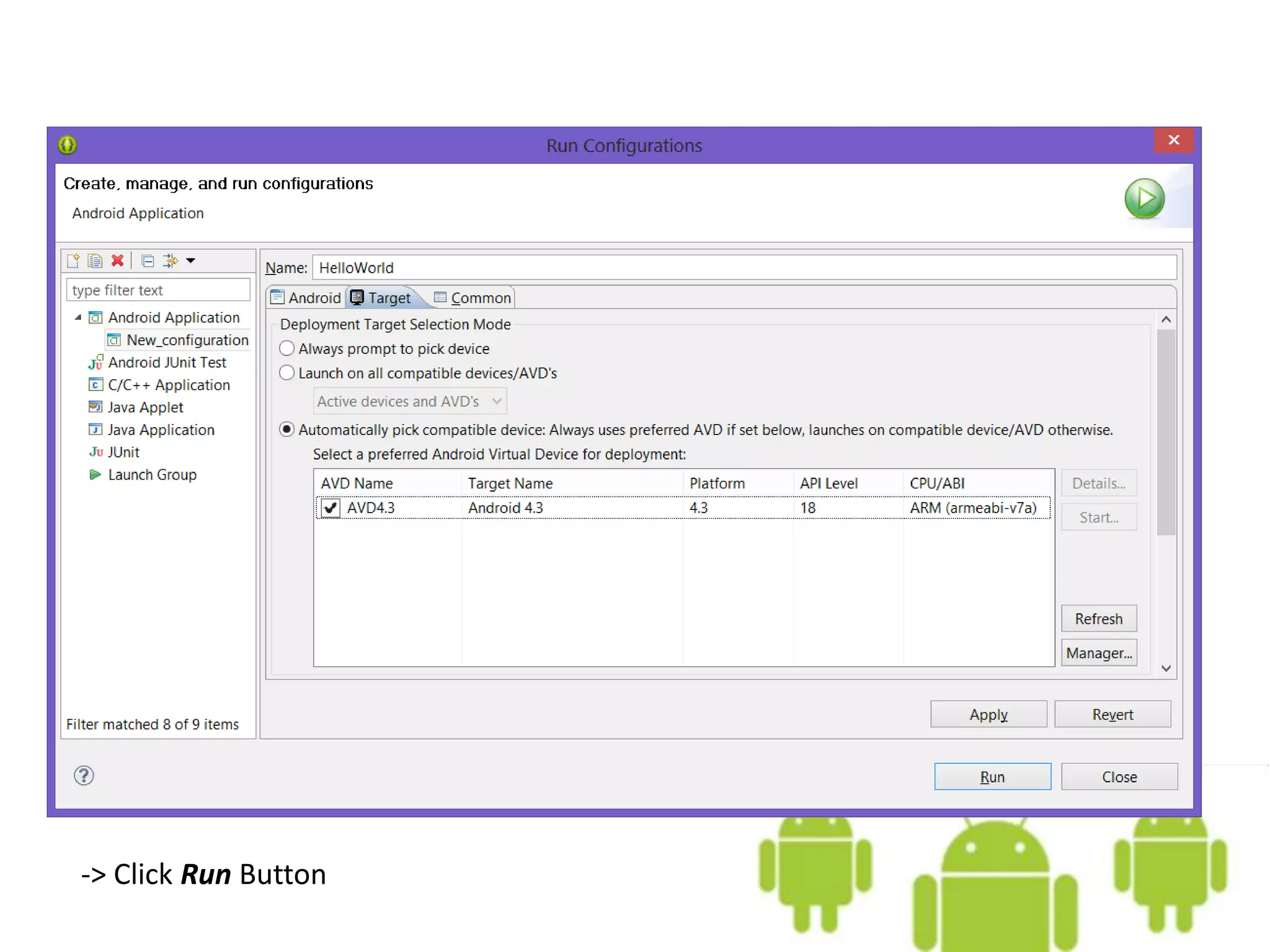

29. -> Click Run Button

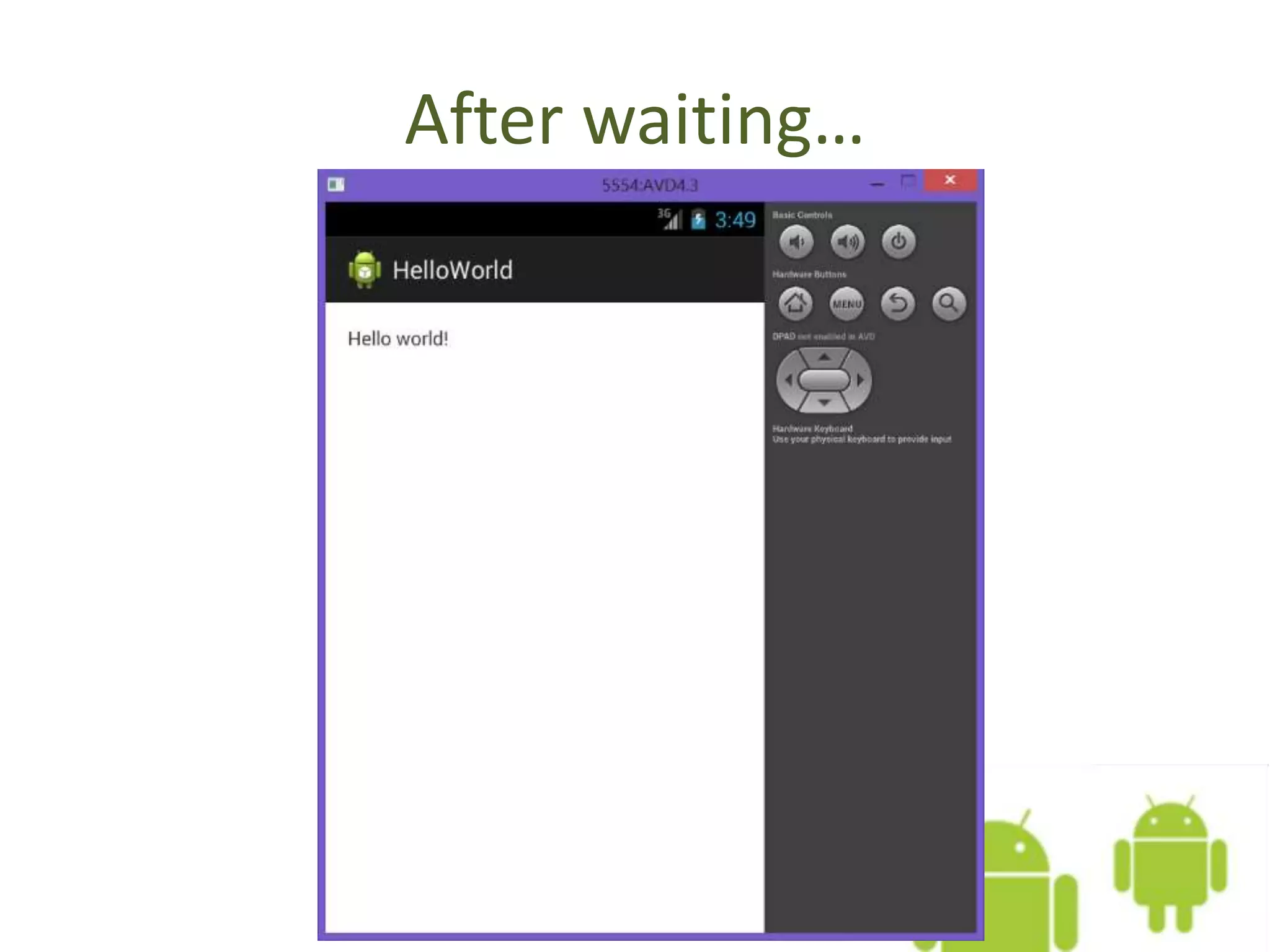

30. After waiting…

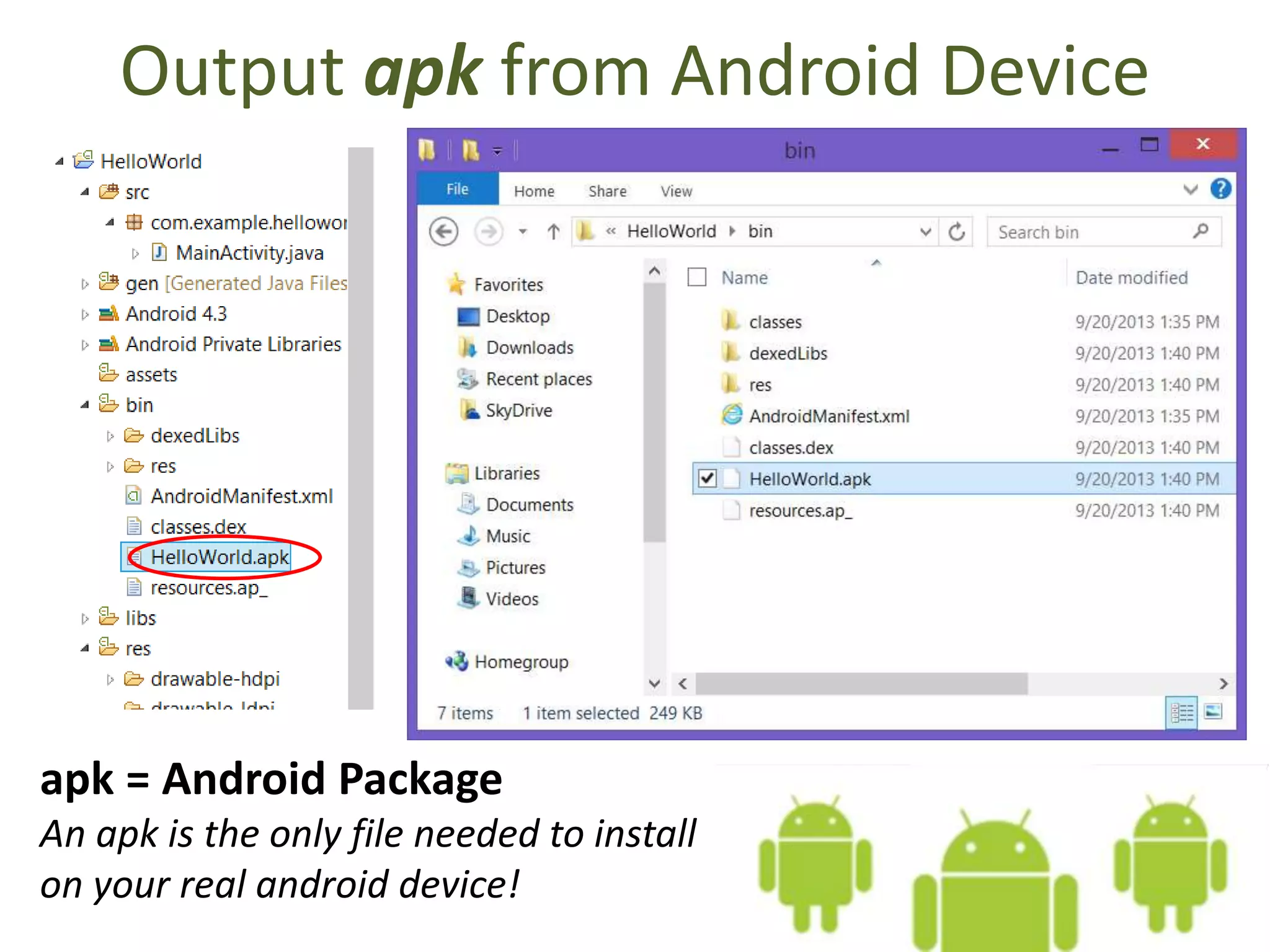

31. Output apk from Android Device
apk = Android Package
An apk is the only file needed to install
on your real android device!

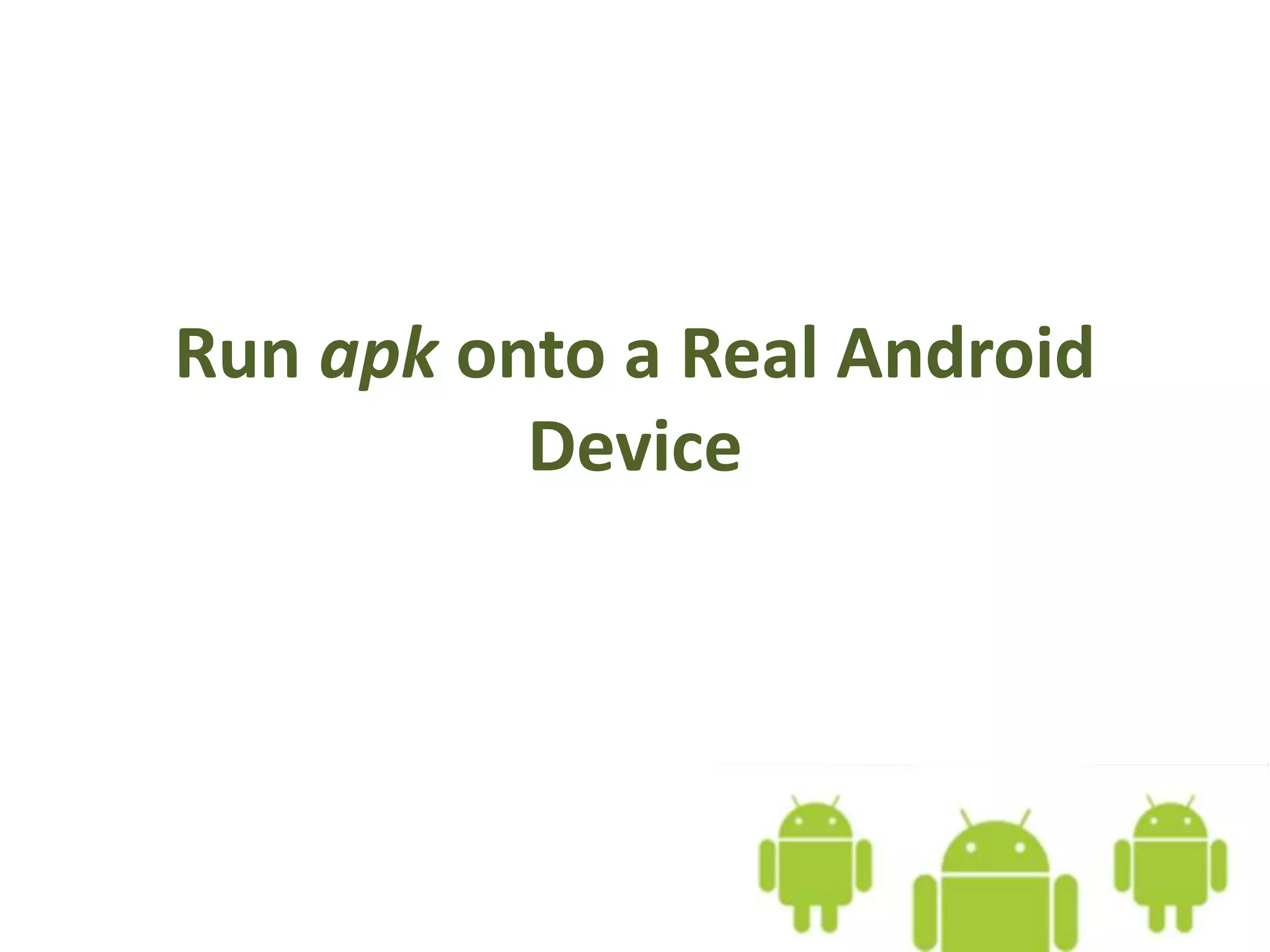

32. Run apk onto a Real Android
Device

33. Run Directly on a Connect Device
1. On your android device, go to setting ->
locate and tick on "USB Debugging " that
mostly in Developer options
2. Connect your device to a computer, and
might installed a correct driver

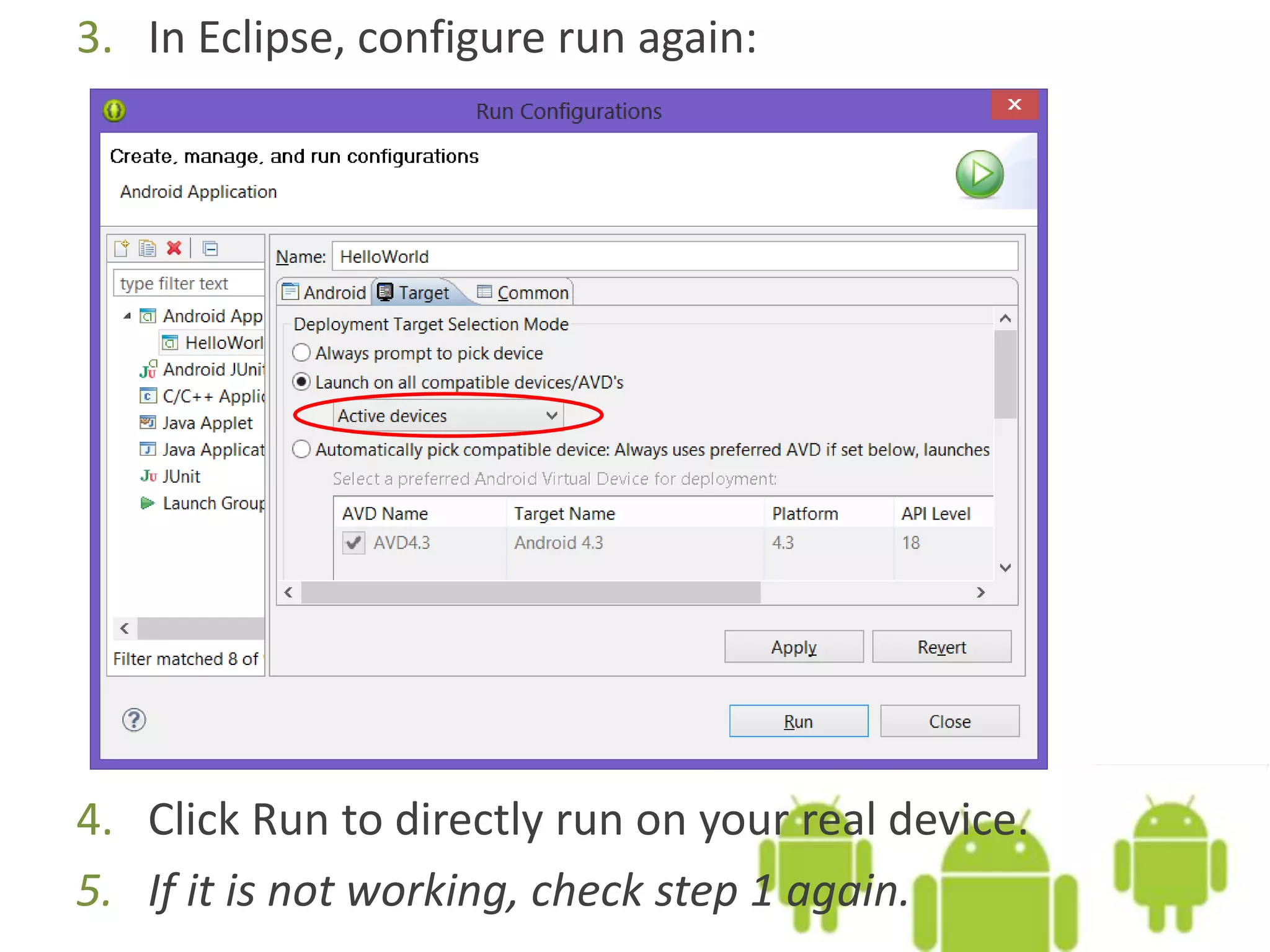

34. 3. In Eclipse, configure run again:
4. Click Run to directly run on your real device.
5. If it is not working, check step 1 again.

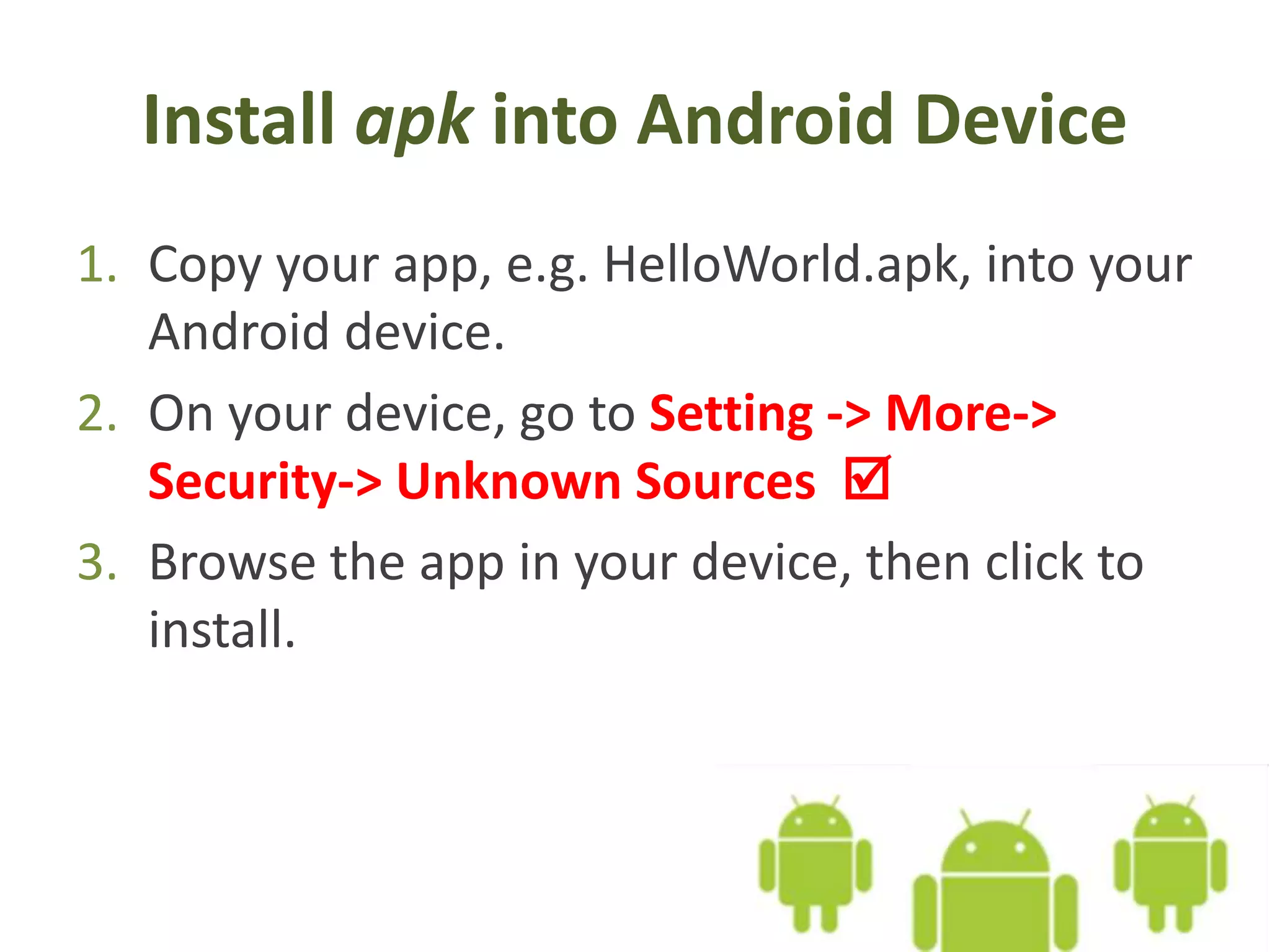

35. Install apk into Android Device
1. Copy your app, e.g. HelloWorld.apk, into your
Android device.
2. On your device, go to Setting -> More->
Security-> Unknown Sources 
3. Browse the app in your device, then click to
install.

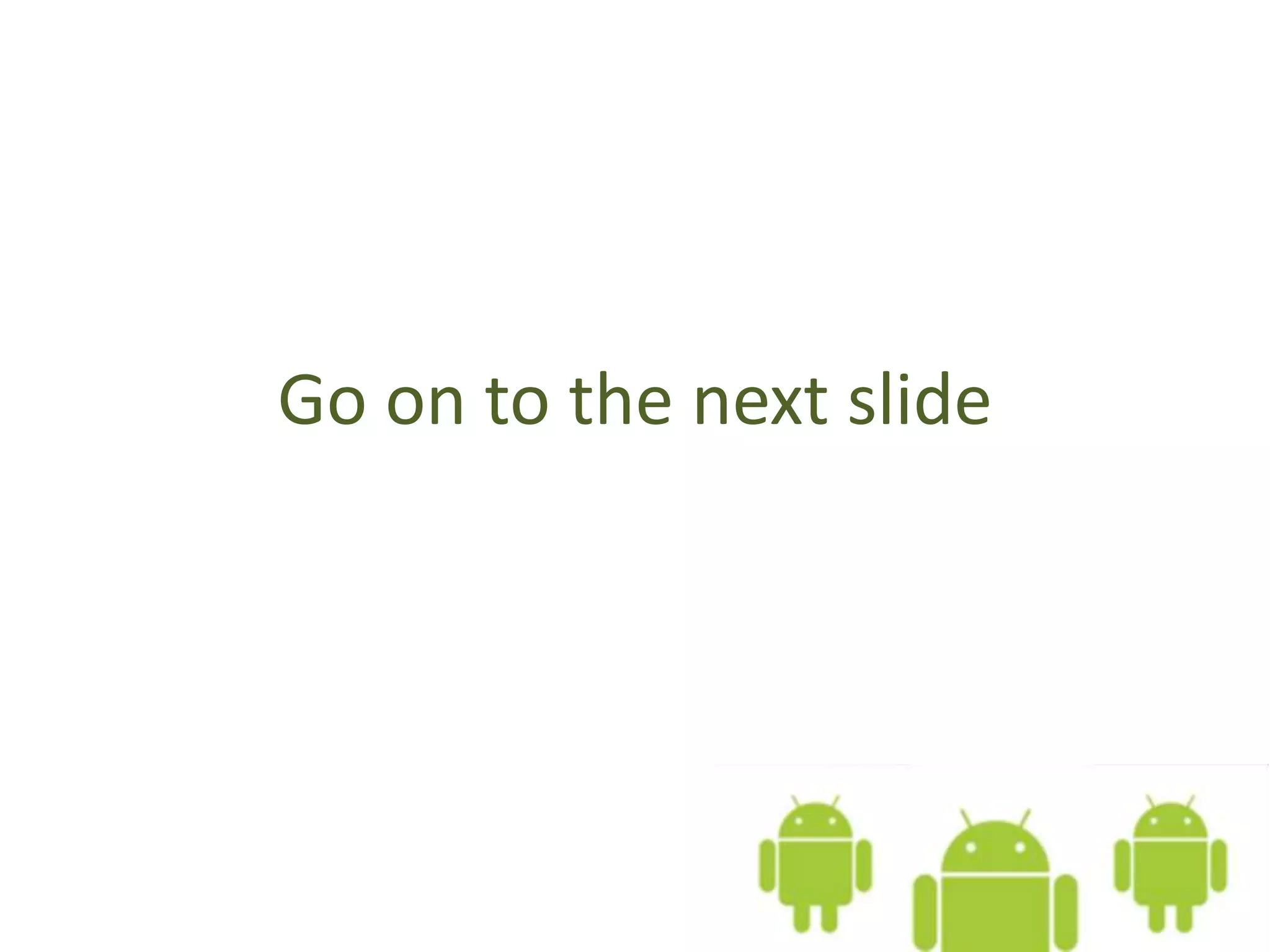

36. Go on to the next slide
