Takayuki Shimizukawa
Sphinx co-maintainer
Sphinx-users.jp
1
Who am I
@shimizukawa
1. Sphinx co-maintainer
2. Sphinx-users.jp
3. PyCon JP committee
 BePROUD co, ltd.
2
http://pycon.jp/
3
4

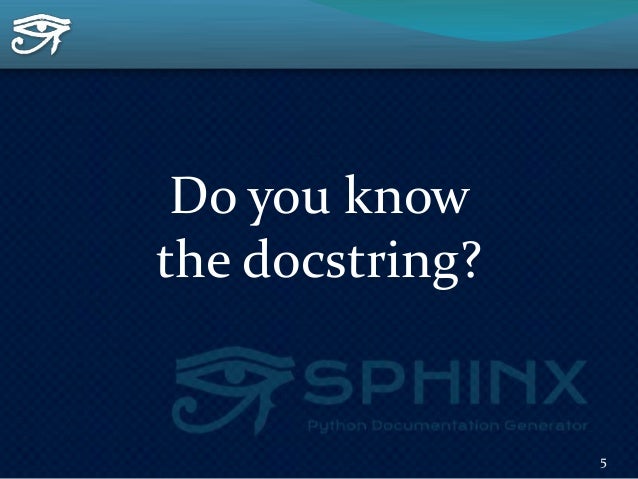

Do you know
the docstring?
5
1. def dumps(obj, ensure_ascii=True):
2. """Serialize ``obj`` to a JSON formatted
``str``.
3. """
4.
5. ...
6. return ...
...

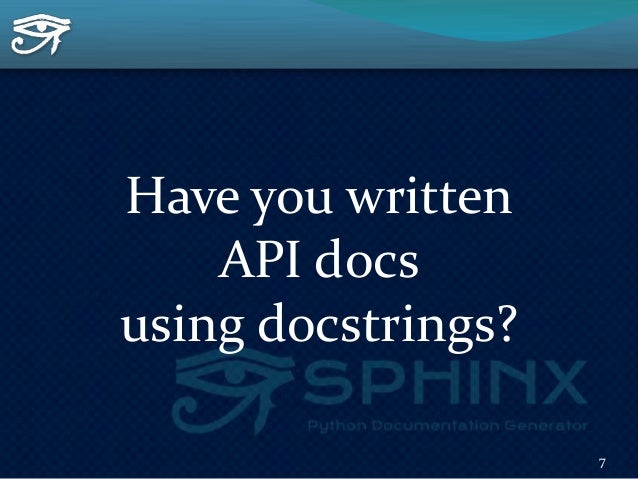

Have you written
API docs
using docstrings?
7

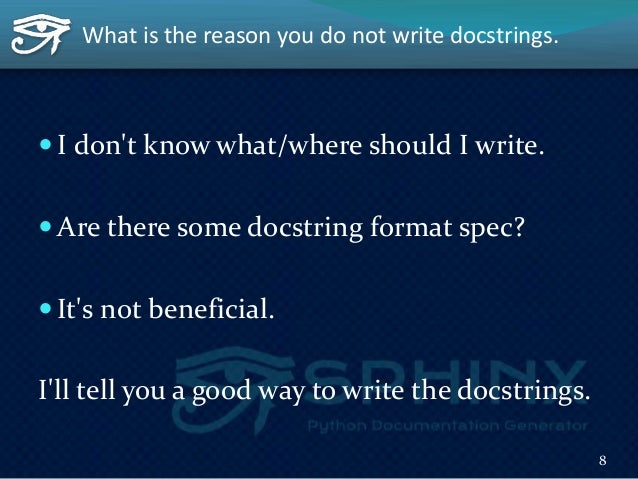

What is the reason you do not write docstrings.
 I don't know what/where should I write.
 Are there some docstring forma...

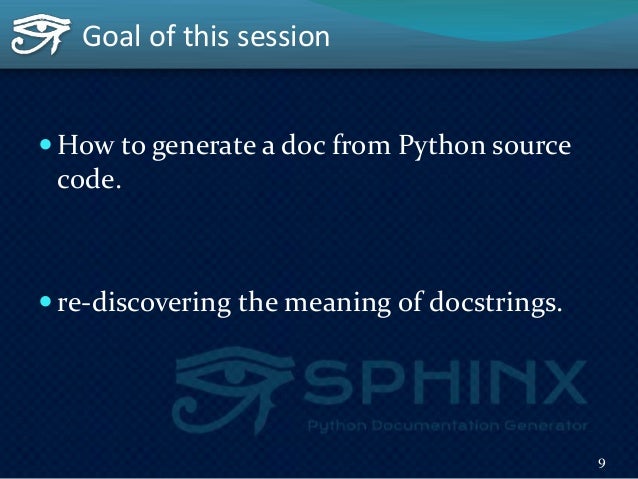

Goal of this session
 How to generate a doc from Python source
code.
 re-discovering the meaning of docstrings.
9
10
What is Sphinx?
11
Sphinx is a documentation generator
Sphinx generates doc as several output
formats from the reST text m...
The history of Sphinx (short ver.)
12
The father of
Sphinx
Too hard to
maintenance
~2007
Easy to write
Easy to maintenance...

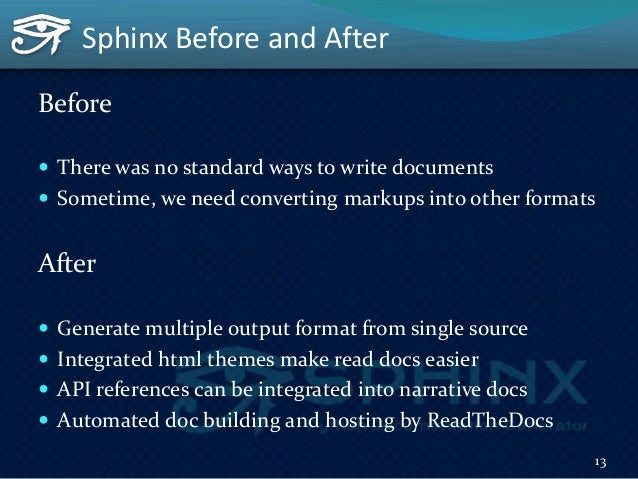

Sphinx Before and After
Before
 There was no standard ways to write documents
 Sometime, we need converting markups into...

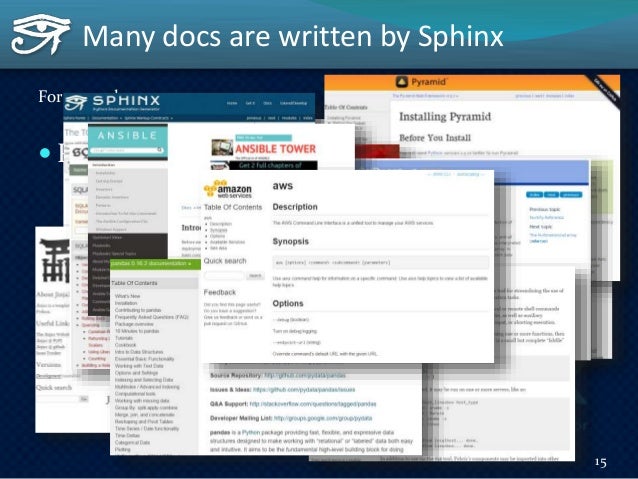

Many docs are written by Sphinx
For examples
 Python libraries/tools:
Python, Sphinx, Flask, Jinja2, Django, Pyramid,
SQL...
Many docs are written by Sphinx
For examples
 Python libraries/tools:
Python, Sphinx, Flask, Jinja2, Django, Pyramid,
SQL...

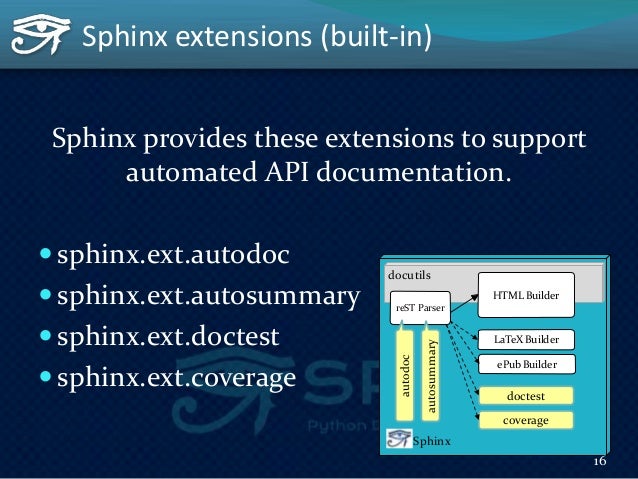

Sphinx extensions (built-in)
Sphinx provides these extensions to support
automated API documentation.
 sphinx.ext.autodoc...
library code example
1. "utility functions"
2.
3. def dumps(obj, ensure_ascii=True):
4. """Serialize ``obj`` to a JSON for...

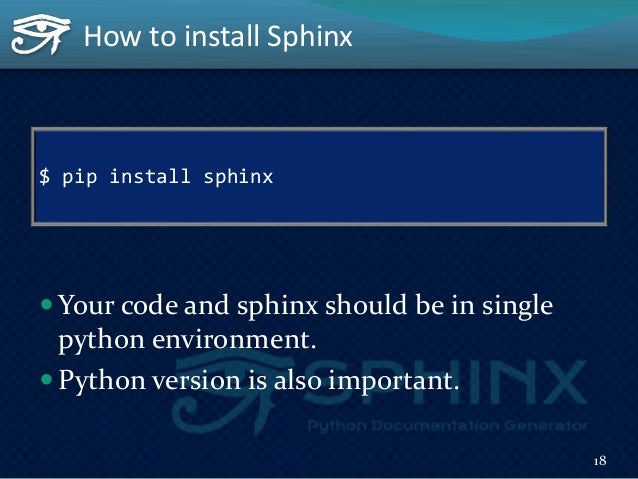

$ pip install sphinx
 Your code and sphinx should be in single
python environment.
 Python version is also important.
Ho...

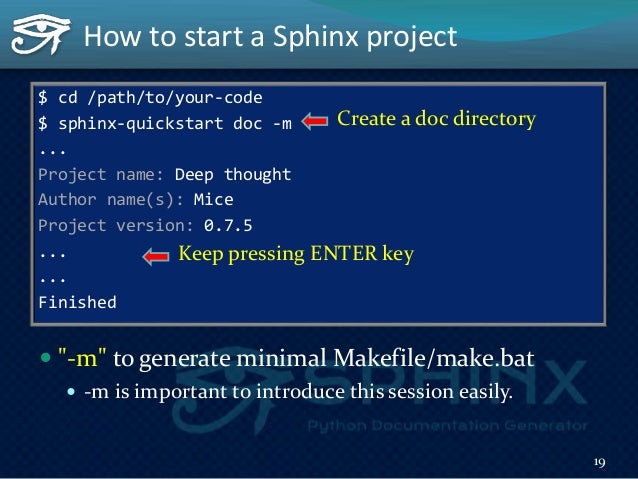

$ cd /path/to/your-code
$ sphinx-quickstart doc -m
...
Project name: Deep thought
Author name(s): Mice
Project version: 0....

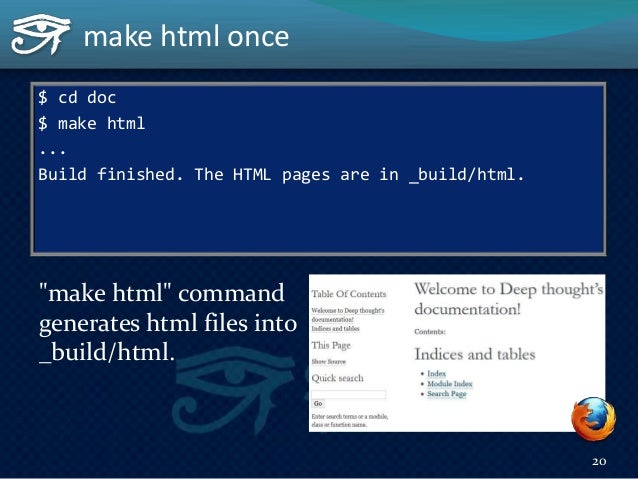

$ cd doc
$ make html
...
Build finished. The HTML pages are in _build/html.
"make html" command
generates html files into
...
Current files structure
$ tree /path/to/your-code
+- deep_thought
| +- __init__.py
| +- api.py
| +- calc.py
| +- utils.py
...
22
$ tree /path/to/your-code
+- deep_thought
| +- __init__.py
| +- api.py
| +- calc.py
| +- utils.py
+- doc
| +- _build/
| | ...

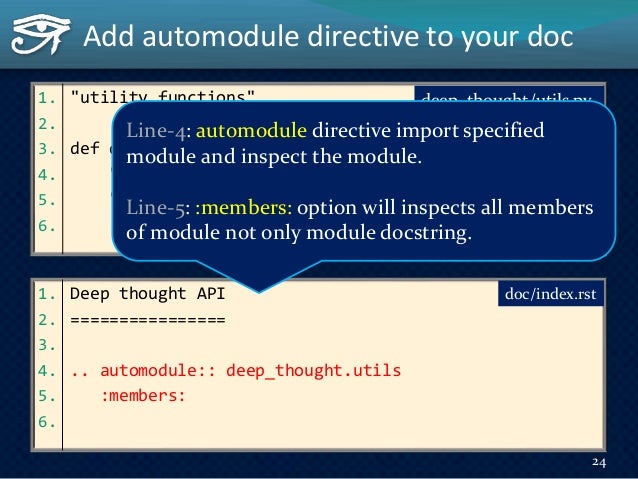

Add automodule directive to your doc
1. Deep thought API
2. ================
3.
4. .. automodule:: deep_thought.utils
5. :...

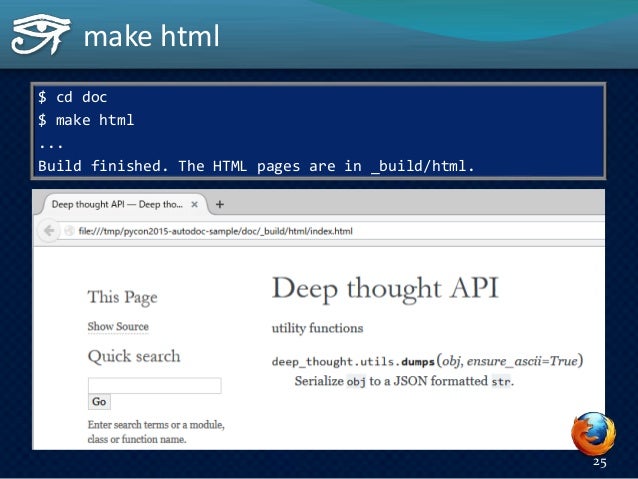

$ cd doc
$ make html
...
Build finished. The HTML pages are in _build/html.
make html
25

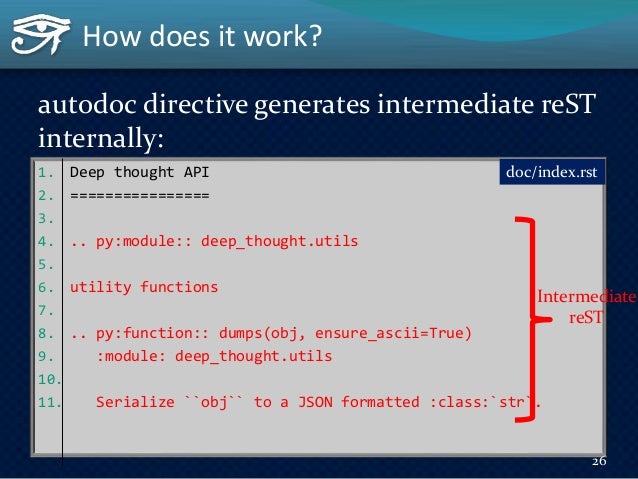

How does it work?
autodoc directive generates intermediate reST
internally:
1. Deep thought API
2. ================
3.
4. ...
$ make html SPHINXOPTS=-vvv
...
...
[autodoc] output:
.. py:module:: deep_thought.utils
utility functions
.. py:function::...

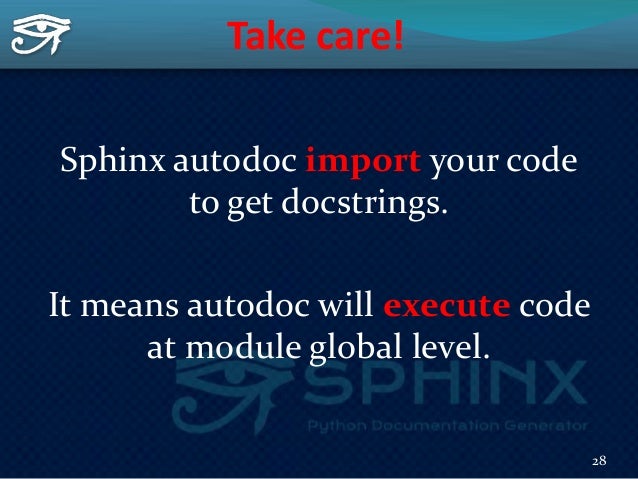

Take care!
Sphinx autodoc import your code
to get docstrings.
It means autodoc will execute code
at module global level.
28

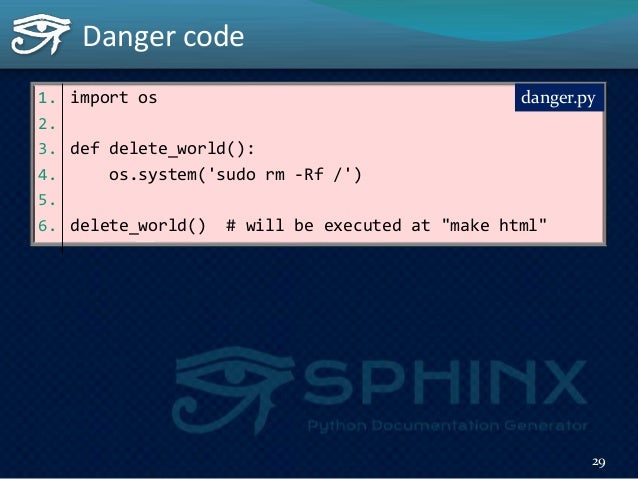

Danger code
1. import os
2.
3. def delete_world():
4. os.system('sudo rm -Rf /')
5.
6. delete_world() # will be executed a...

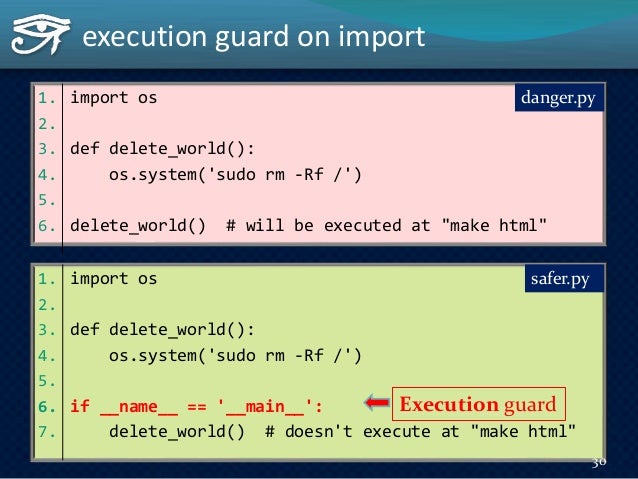

execution guard on import
1. import os
2.
3. def delete_world():
4. os.system('sudo rm -Rf /')
5.
6. delete_world() # will...
execution guard on import
1. import os
2.
3. def delete_world():
4. os.system('sudo rm -Rf /')
5.
6. delete_world() # will...

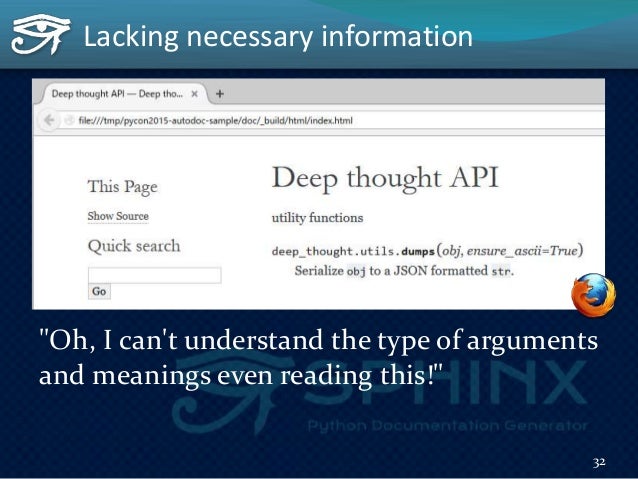

"Oh, I can't understand the type of arguments
and meanings even reading this!"
32

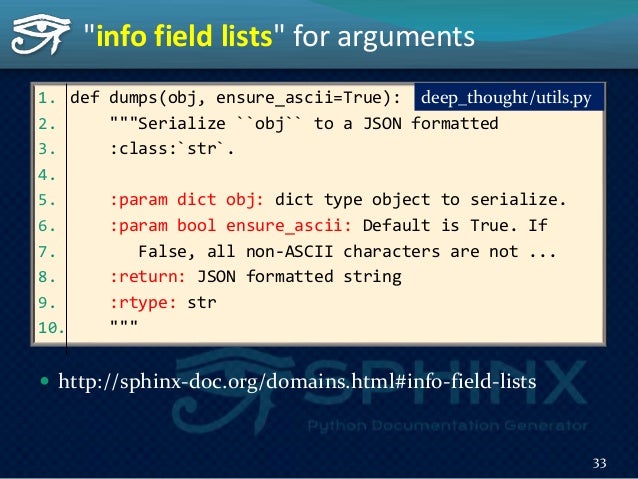

Lacking necessary information
1. def dumps(obj, ensure_ascii=True):
2. """Serialize ``obj`` to a JSON formatted
3. :class:`str`.
4.
5. :param dict obj: ...

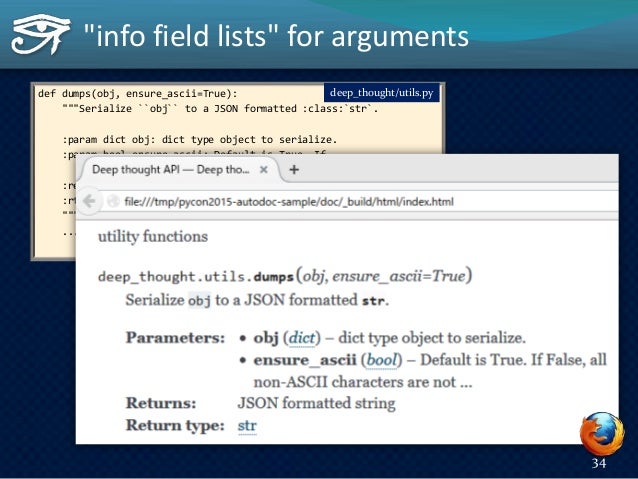

def dumps(obj, ensure_ascii=True):
"""Serialize ``obj`` to a JSON formatted :class:`str`.
:param dict obj: dict type objec...

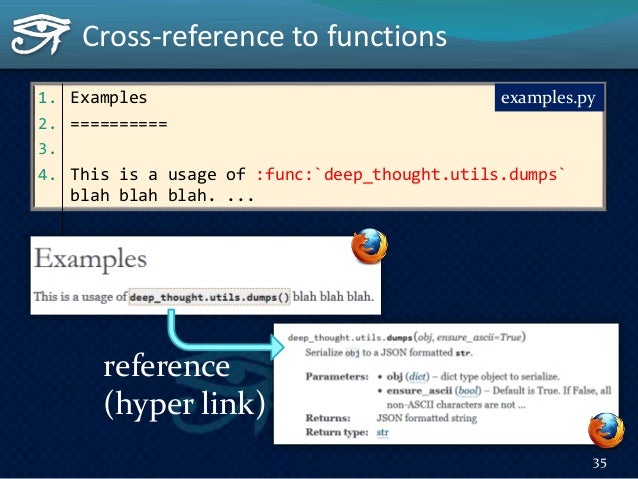

Cross-reference to functions
1. Examples
2. ==========
3.
4. This is a usage of :func:`deep_thought.utils.dumps`
blah blah...
36

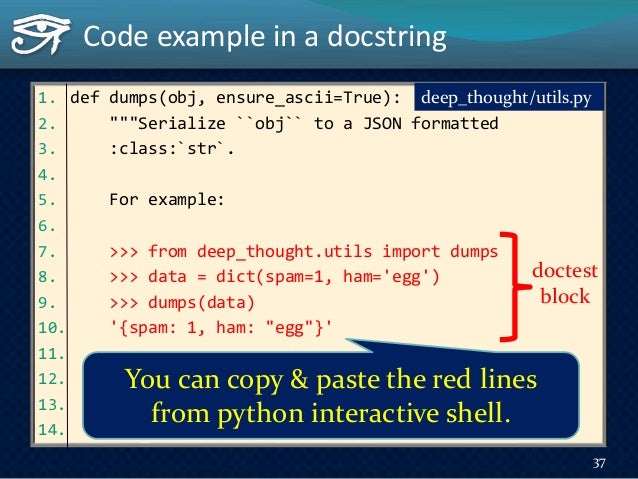

Code example in a docstring
1. def dumps(obj, ensure_ascii=True):
2. """Serialize ``obj`` to a JSON formatted
3. :class:`s...

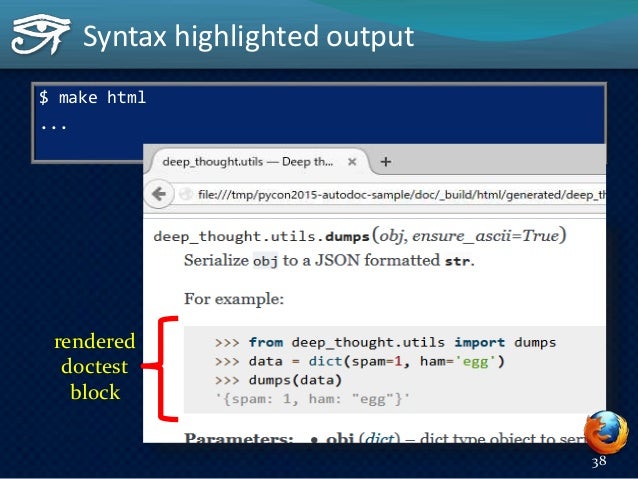

Syntax highlighted output
$ make html
...
rendered
doctest
block
38

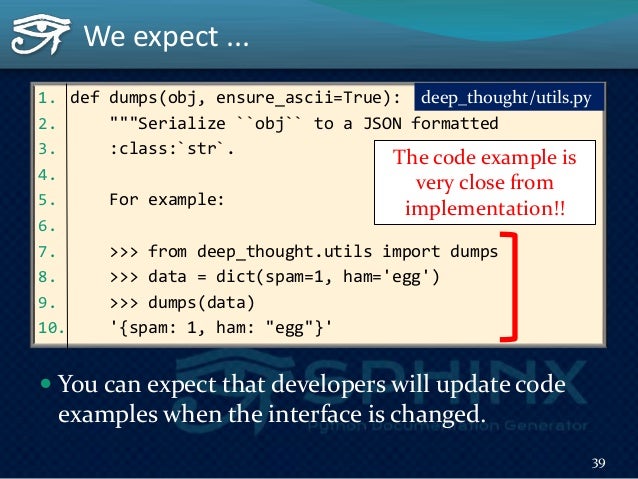

 You can expect that developers will update code
examples when the interface is changed.
We expect ...
1. def dumps(obj, ...
 ̄\_(ツ)_/ ̄
40
doctest builder
41

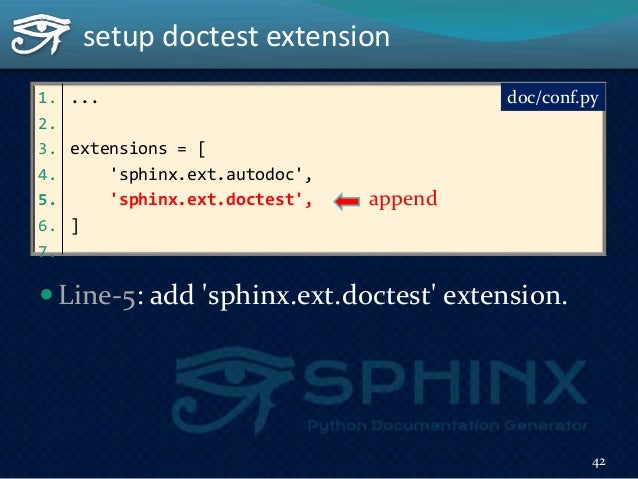

1. ...
2.
3. extensions = [
4. 'sphinx.ext.autodoc',
5. 'sphinx.ext.doctest',
6. ]
7.
 Line-5: add 'sphinx.ext.doctest' e...
$ make doctest
...
Document: api
-------------
********************************************************
File "api.rst", li...
44

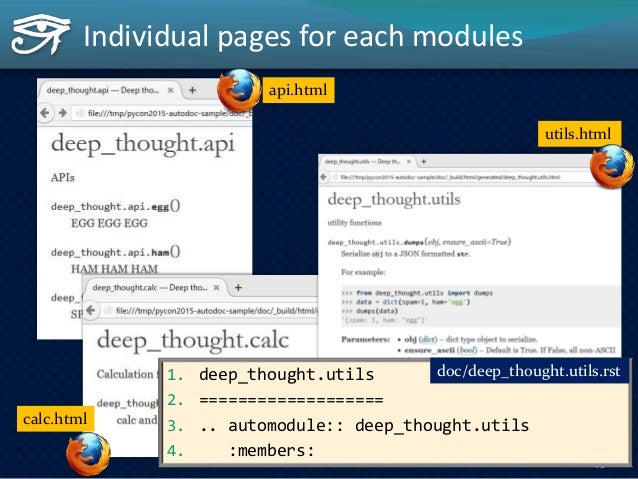

Individual pages for each modules
api.html
calc.html
utils.html
45
1. deep_thought.utils
2. ===================
3. .. auto...

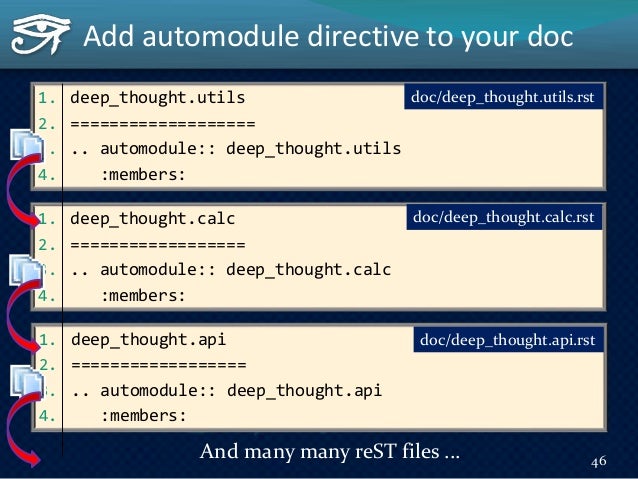

1. deep_thought.utils
2. ===================
3. .. automodule:: deep_thought.utils
4. :members:
Add automodule directive t...
 ̄\_(ツ)_/ ̄
47

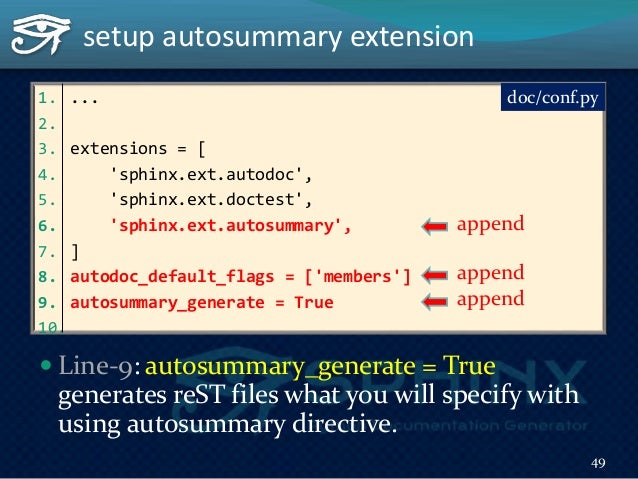

autosummary extension
48
1. ...
2.
3. extensions = [
4. 'sphinx.ext.autodoc',
5. 'sphinx.ext.doctest',
6. 'sphinx.ext.autosummary',
7. ]
8. autodoc...

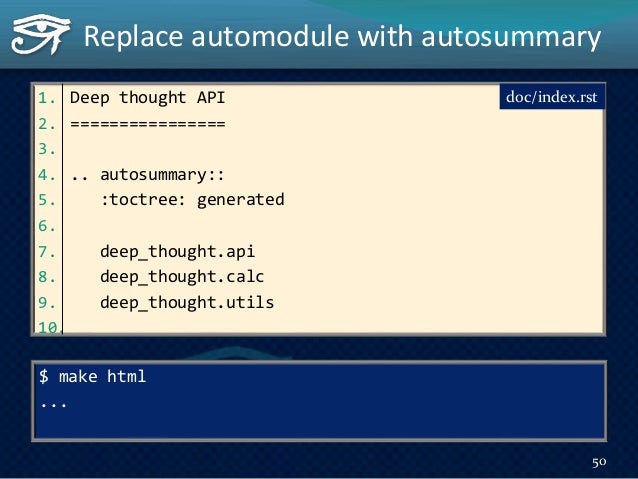

1. Deep thought API
2. ================
3.
4. .. autosummary::
5. :toctree: generated
6.
7. deep_thought.api
8. deep_thoug...

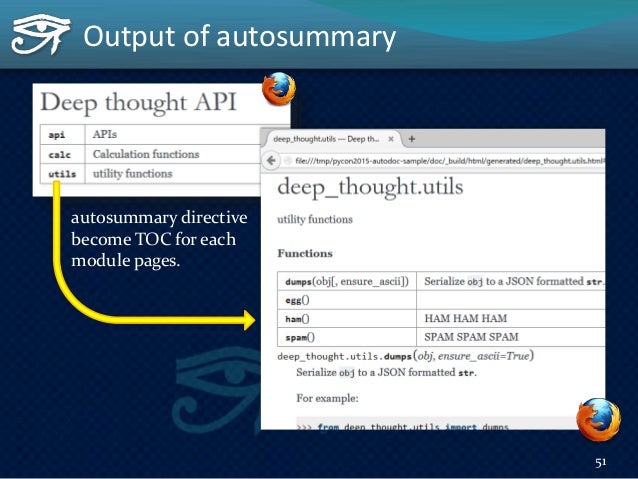

Output of autosummary
autosummary directive
become TOC for each
module pages.
51
52

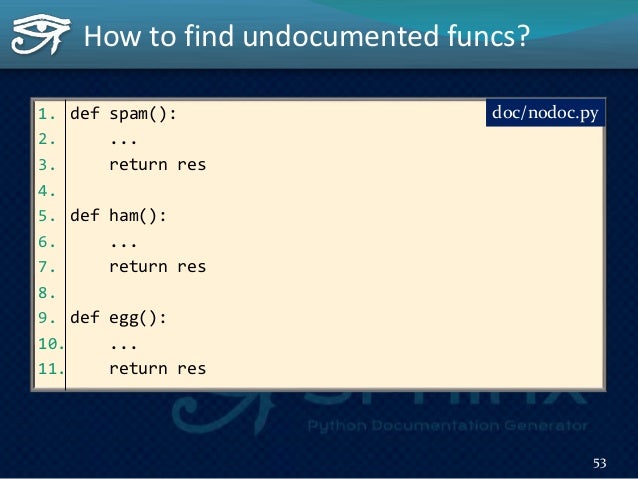

1. def spam():
2. ...
3. return res
4.
5. def ham():
6. ...
7. return res
8.
9. def egg():
10. ...
11. return res
How to f...

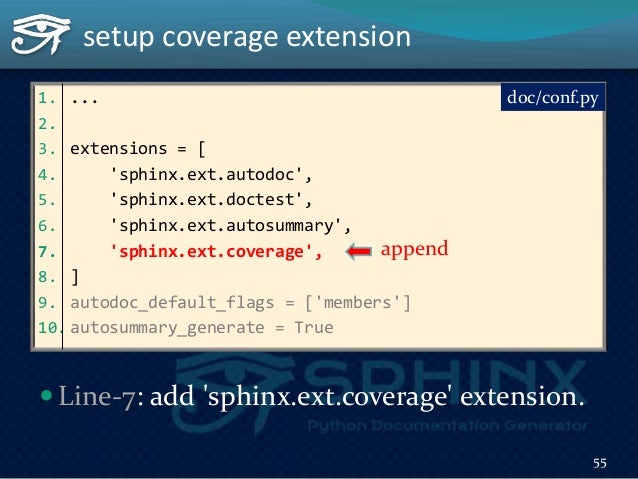

coverage extension
54
1. ...
2.
3. extensions = [
4. 'sphinx.ext.autodoc',
5. 'sphinx.ext.doctest',
6. 'sphinx.ext.autosummary',
7. 'sphinx.ext....
make coverage and check the result
$ make coverage
...
Testing of coverage in the sources finished, look at the
results in...

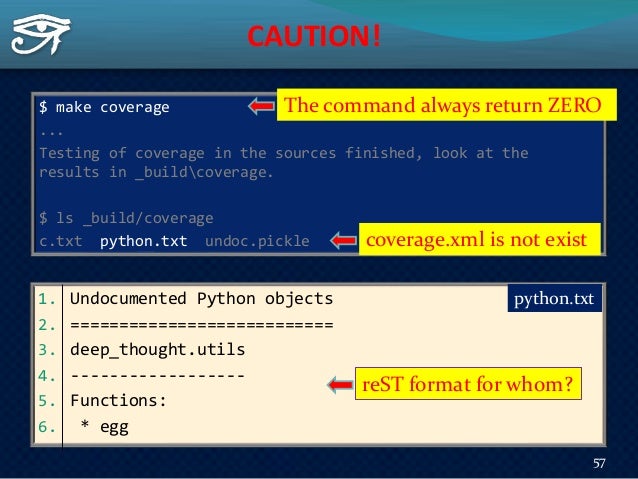

CAUTION!
1. Undocumented Python objects
2. ===========================
3. deep_thought.utils
4. ------------------
5. Func...
Let's make Pull-Request!
We are waiting for your contribution
to solve the problem.
(bow)
58
59
Why don't you write docstrings?
 I don't know what/where should I write.
 Let's write a description, arguments and docte...
61
1. Options
62

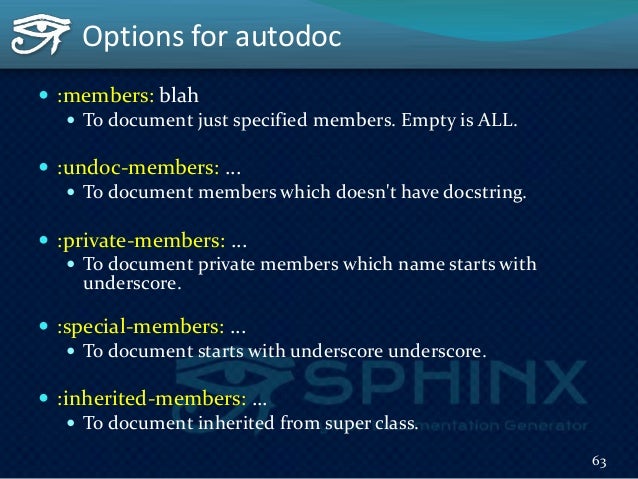

Options for autodoc
 :members: blah
 To document just specified members. Empty is ALL.
 :undoc-members: ...
 To docume...
2. Directives for Web API
64

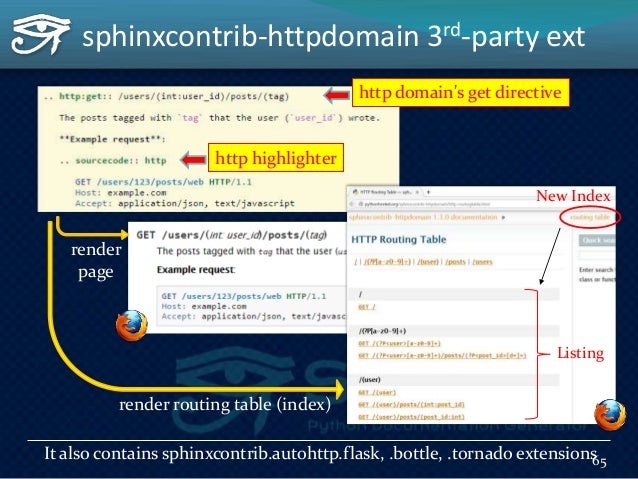

sphinxcontrib-httpdomain 3rd-party ext
http domain's get directive
render
page
render routing table (index)
http highlight...

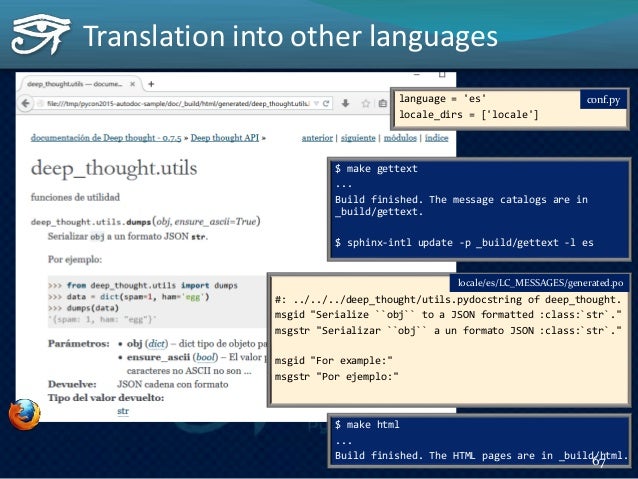

3. Document translation
66
Translation into other languages
$ make gettext
...
Build finished. The message catalogs are in
_build/gettext.
$ sphinx-i...
Questions?
@shimizukawa
Grab me at Party or Sprint!
68
Thanks :)
69
