Designing and Executing Multimodal Interfaces for the Web based on State Chart XML

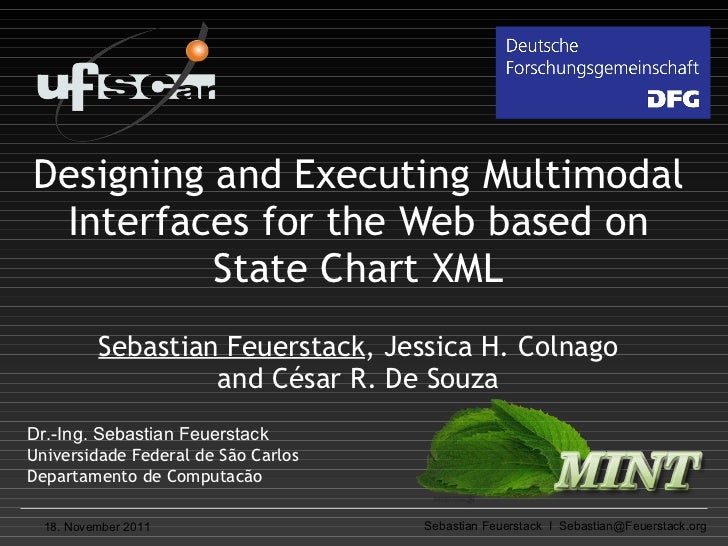

  1. 1. Designing and Executing Multimodal Interfaces for the Web based on State Chart XML Sebastian Feuerstack , Jessica H. Colnago and César R. De Souza 18. November 2011 Dr.-Ing. Sebastian Feuerstack Universidade Federal de São Carlos Departamento de Computacão
  2. 2. <ul><li>Basic Challenge </li></ul><ul><li>How to enable Multimodal Interfaces for the Web ? </li></ul>18. November 2011
  3. 3. <ul><li>Multi-Touch </li></ul><ul><li>Server-sided speech processing </li></ul><ul><ul><li>Google Voice Search, SIRI, Nuance Speech API </li></ul></ul><ul><li>Sound API </li></ul><ul><li>Native API </li></ul><ul><li>CSS3 Speech, Media Query, … </li></ul><ul><li>Device Orientation </li></ul>18. November 2011 What`s the new Hype?
  4. 4. <ul><li>Distribution </li></ul><ul><li>Migration </li></ul><ul><li>Adaptation </li></ul><ul><ul><li>(Ok, there is Content Selection & Device Discovery – but who uses more than the Browser UA?) </li></ul></ul><ul><li>Meta-UI </li></ul><ul><li>=> Natural Interaction </li></ul>18. November 2011 What is missing?
  5. 5. <ul><li>Developing Methods </li></ul><ul><ul><li>How do I design and implement complex Interactions ? (Native API…?) </li></ul></ul><ul><li>Free Tools </li></ul><ul><ul><li>What supports implementation and Debugging (Javascript Console?) </li></ul></ul><ul><li>Open Source Implementation </li></ul><ul><ul><li> success </li></ul></ul><ul><li>Missing Standards </li></ul><ul><ul><li>W3C Model-Based User Interfaces (MBUI) Working Group </li></ul></ul>18. November 2011 What`s the barrier?
  6. 6. 18. November 2011 Multimodal Interaction Framework
  7. 7. <ul><li>Implemented </li></ul><ul><li>Use Cases </li></ul>18. November 2011
  8. 8. <ul><li>Rapid model-based Design and Comparison of three variants </li></ul><ul><ul><li> Published: HCII 2011, MoBe 2011, I-Com Journal </li></ul></ul>The Augmented “Drag-and-Drop 18. November 2011 Use Case I: Test and Evaluation Gesture-based Interface Navigation
  9. 9. Gesture-based Interface Navigation 18. November 2011
  10. 10. <ul><li>Furniture Drag and Drop </li></ul><ul><ul><li>Published: SVR 2011 </li></ul></ul>18. November 2011 Use Case II: Paradigm Design Augmented Drag and Drop Cam Cam Pointing Command Monitor Jessica
  11. 11. Gesture-based Drag and Drop Control 18. November 2011
  12. 12. <ul><li>Evaluation of controling a music sheet by using head movements </li></ul>18. November 2011 Use Case III: Test and Evaluation Head-based Interface Control
  13. 13. <ul><li>Two concepts </li></ul><ul><ul><li>Interactors </li></ul></ul><ul><ul><li>Mappings </li></ul></ul><ul><li>3 steps </li></ul><ul><ul><li>Widget Design </li></ul></ul><ul><ul><li>Interacton Design </li></ul></ul><ul><ul><li>Mapping </li></ul></ul>18. November 2011 SCXML-based Interactor Design
  14. 14. 1) Interactive Music Sheet Widget 18. November 2011 The Augmented “Drag-and-Drop
  15. 15. 2) Interaction Design 18. November 2011
  16. 16. 3) Mapping 18. November 2011
  17. 17. Thanks for you interest! <ul><li>On our website : </li></ul><ul><ul><li>All articles </li></ul></ul><ul><ul><li>Videos </li></ul></ul><ul><ul><li>Open Source Software </li></ul></ul><ul><ul><li>MINT Framework </li></ul></ul><ul><li>Focus on: </li></ul><ul><ul><li>Fusion </li></ul></ul><ul><ul><li>Paradigm Design </li></ul></ul><ul><ul><li>Formalization </li></ul></ul><ul><ul><li>Tools </li></ul></ul><ul><ul><li>MINT Framework </li></ul></ul>Design of Multimodal Interaction 18. November 2011 Visit our website!
