At Netflix we are building Content Delivery Network called OpenConnect to power the traffic from Netflix customers (that currently takes up to 36.5% of peak internet traffic in the US). Currently the network consists of thousands of caches spread around the world and we are actively deploying more as Netflix is adding new customers and coming into new markets.
Apparently, monitoring is important part of the our work day as we operate and grow the system, make changes to the network and the software powering the caches to make sure Netflix customers are not affected.
While we follow 'testing in production' development style, we don't have 24/7 NOC and the whole network is maintained by relatively small operations team. Given the size of the system we have something failing all the time, but the network is resilient to small failures. Therefore, while we want to track all issues, not all of them are equally urgent.
Given specifics of the problem domain we decided to build our own monitoring system, optimized for our environment and providing:
* Integration with different metric sources to get monitoring signals
* Programmable API for automated tools to communicate with the monitoring system
* Prioritization of issues
* Aggregation of metrics per logical groups representing structure of the monitored system
* UI elements providing OPS with control over visualization of data, issues troubleshooting and triage

While currently our monitoring system is targeted for our problem domain we believe that our experience in building our monitoring tools will benefit the community and can be adapted to any distributed system.
Main topics:
* The concept of stateful monitoring and alerting based on state changes
* Issues aggregation and prioritization
* Building UI that turns your monitoring system into collaborative tool for ops to detect, triage and troubleshoot issues
* Lessons learned

At Netflix we are building Content Delivery Network called OpenConnect to power the traffic from Netflix customers (that currently takes up to 36.5% of peak internet traffic in the US). Currently the network consists of thousands of caches spread around the world and we are actively deploying more as Netflix is adding new customers and coming into new markets.
Apparently, monitoring is important part of the our work day as we operate and grow the system, make changes to the network and the software powering the caches to make sure Netflix customers are not affected.
While we follow 'testing in production' development style, we don't have 24/7 NOC and the whole network is maintained by relatively small operations team. Given the size of the system we have something failing all the time, but the network is resilient to small failures. Therefore, while we want to track all issues, not all of them are equally urgent.
Given specifics of the problem domain we decided to build our own monitoring system, optimized for our environment and providing:
* Integration with different metric sources to get monitoring signals
* Programmable API for automated tools to communicate with the monitoring system
* Prioritization of issues
* Aggregation of metrics per logical groups representing structure of the monitored system
* UI elements providing OPS with control over visualization of data, issues troubleshooting and triage

While currently our monitoring system is targeted for our problem domain we believe that our experience in building our monitoring tools will benefit the community and can be adapted to any distributed system.
Main topics:
* The concept of stateful monitoring and alerting based on state changes
* Issues aggregation and prioritization
* Building UI that turns your monitoring system into collaborative tool for ops to detect, triage and troubleshoot issues
* Lessons learned

Technology
Advertisement

Recommended

Monitorama 2015 Netflix Instance Analysis
Brendan Gregg
34.6k views
69 slides
2014 devops conferences
David Lutz
3.6k views
12 slides
Monitorama: How monitoring can improve the rest of the company
Jeff Weinstein
6.6k views
24 slides
Grokking Grok: Monitorama PDX 2015
GregMefford
4.3k views
54 slides
Monitorama PDX 2016 - Vizceral: Traffic Intuition
Justin Reynolds
527 views
29 slides
Stream Processing Inside Librato [Monitorama PDX 2015]
Librato, Inc.
1.6k views
87 slides
Metrics 2.0 @ Monitorama PDX 2014
Dieter Plaetinck
16.7k views
95 slides
On Centralizing Logs
Sematext Group, Inc.
15.5k views
39 slides
Advertisement

More Related Content

Viewers also liked (20)

ElasticSearch: Distributed Multitenant NoSQL Datastore and Search Engine
Daniel N
733 views
Monitoring Is Never Done
Melanie Cey
3.4k views
A People's History of Microservices
Camille Fournier
2.8k views
Envisioning your Monitoring Strategy
intuit_india
833 views
Grafana
NoelMc Grath
5.1k views
Monitorama 2016
Sarah Hagan
264 views
Sysdig Monitorama Slides
Loris Degioanni
5.7k views
Monitoring As A Service - Monitorama 2015
James Turnbull
25.2k views
Statistics for Engineers
Heinrich Hartmann
4.2k views
Operational Insight: Concepts and Examples (w/o Presenter Notes)
royrapoport
1.6k views
Prometheus (Monitorama 2016)
Brian Brazil
4.5k views
Log forwarding at Scale
Eduardo Silva Pereira
1k views
Elasticsearch in Zalando
Alaa Elhadba
2.2k views
Linux Performance Analysis: New Tools and Old Secrets
Brendan Gregg
603.3k views
Linux Systems Performance 2016
Brendan Gregg
504.4k views
Broken Linux Performance Tools 2016
Brendan Gregg
789.9k views
BPF: Tracing and more
Brendan Gregg
200k views
Expanding Elastic: Learn how anyone can leverage heterogeneous compute to ext...
Ryft
217 views
Velocity 2015 linux perf tools
Brendan Gregg
1.1M views
Linux Profiling at Netflix
Brendan Gregg
1M views
ElasticSearch: Distributed Multitenant NoSQL Datastore and Search Engine
Daniel N
733 views
33 slides
Monitoring Is Never Done
Melanie Cey
3.4k views
22 slides
A People's History of Microservices
Camille Fournier
2.8k views
48 slides
Envisioning your Monitoring Strategy
intuit_india
833 views
22 slides
Grafana
NoelMc Grath
5.1k views
14 slides
Monitorama 2016
Sarah Hagan
264 views
20 slides

Recently uploaded (20)

IT-Audit-Manual-2017-1st-Edition.pdf
JacobYeboa1
0 views
Unleashing The Power Of Pardot Boosting Your Business's Efficiency & ROI
GetOnCRM Solutions
10 views
Building Modern Applications on AWS.pptx
Nelson Kimathi
0 views
So Predictable! Continuous 3D Hand Trajectory Prediction in Virtual Reality
ivaderivader
5 views
AI and Future job.pptx
razibulraj1
3 views
10probs.ppt
ssuser483c2c
2 views
NetWitness Platform 11.7: What’s New
CarloCristofanilli
0 views
Accenture-Cloud-Data-Migration-POV-Final.pdf
Rajvir Kaushal
0 views
wk 4 -- linking.ppt
ankurgupta171066
0 views
Neo4j GraphSummit London - The Path To Success With Graph Database and Data S...
Neo4j
0 views
UN BUSINESS TRANSFORMATION ORACLE EOI.pdf
JacobYeboa1
0 views
Introduction to the NetWitness Platform
CarloCristofanilli
0 views
BT_Neo4j GraphSummit 2023_Graph for Vena.pptx
Neo4j
0 views
Elsevier_Neo4j GraphSummit London 2023 .pptx
Neo4j
0 views
S4_Classification-Thoracolumar-Spine.ppt
yiminli12
0 views
MDT_Interpretation.ppt
TemitopeBello6
2 views
Top 10 Gaming Laptops under 50000
ankitrana744793
0 views
5 Web Development Trends for 2023 Predicted by Experts
naeemanwar22
0 views
overview of DRILLING OPERATION.pptx
TemitopeBello6
2 views
Topic 4 Chapter 12.pdf
JuanmaAlvarez2
0 views
IT-Audit-Manual-2017-1st-Edition.pdf
JacobYeboa1
0 views
106 slides
Unleashing The Power Of Pardot Boosting Your Business's Efficiency & ROI
GetOnCRM Solutions
10 views
7 slides
Building Modern Applications on AWS.pptx
Nelson Kimathi
0 views
66 slides
So Predictable! Continuous 3D Hand Trajectory Prediction in Virtual Reality
ivaderivader
5 views
21 slides
AI and Future job.pptx
razibulraj1
3 views
7 slides
10probs.ppt
ssuser483c2c
2 views
15 slides
Advertisement

Monitorama 2015 Monitoring OpenConnect CDN

  1. 1. Monitoring OpenConnect CDN Sergey Fedorov, Netflix Monitorama 2015 Sergey Fedorov, Netflix, Monitorama 2015

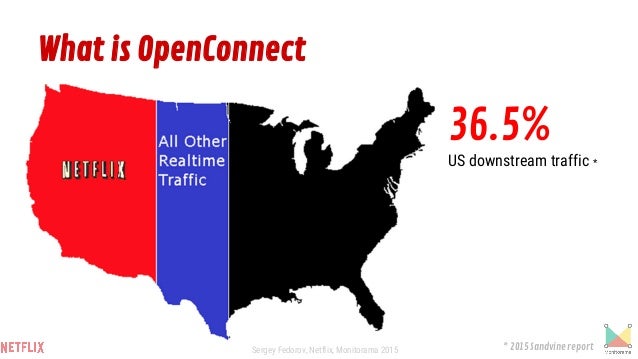

  2. 2. What is OpenConnect 36.5% US downstream traffic * * 2015 Sandvine reportSergey Fedorov, Netflix, Monitorama 2015

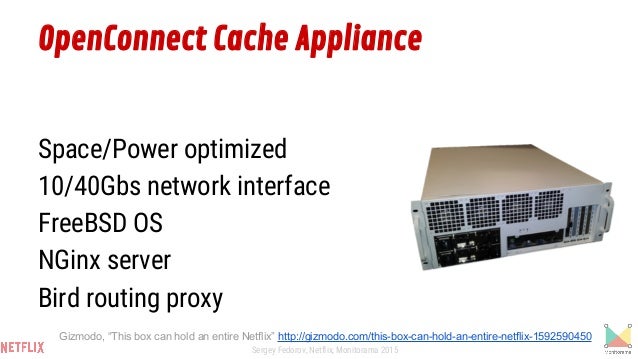

  3. 3. OpenConnect Cache Appliance Space/Power optimized 10/40Gbs network interface FreeBSD OS NGinx server Bird routing proxy Gizmodo, “This box can hold an entire Netflix” http://gizmodo.com/this-box-can-hold-an-entire-netflix-1592590450 Sergey Fedorov, Netflix, Monitorama 2015

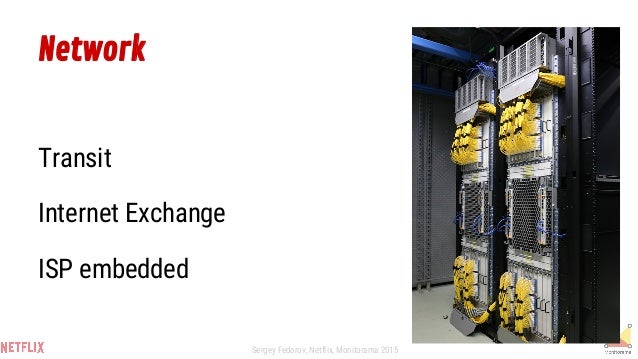

  4. 4. Network Transit Internet Exchange ISP embedded Sergey Fedorov, Netflix, Monitorama 2015

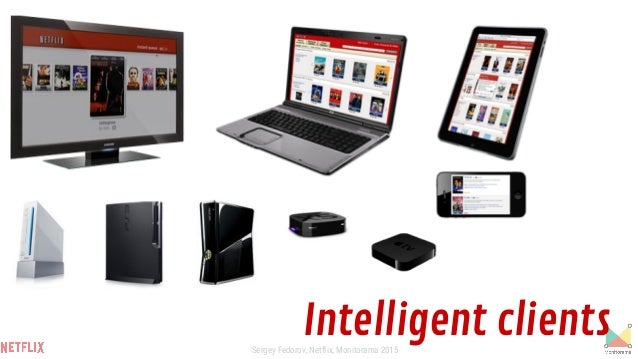

  5. 5. Sergey Fedorov, Netflix, Monitorama 2015 Intelligent clients
  6. 6. Control Plane end-user content request router client location network conditions server utilization content distribution Sergey Fedorov, Netflix, Monitorama 2015
  7. 7. Who we are Sergey Fedorov Stefan Praszalowicz Sergey Fedorov, Netflix, Monitorama 2015
  8. 8. Monitoring challenge
  9. 9. Testing in prod* Network changes Firmware deployments App pushes Updating content ... Sergey Fedorov, Netflix, Monitorama 2015

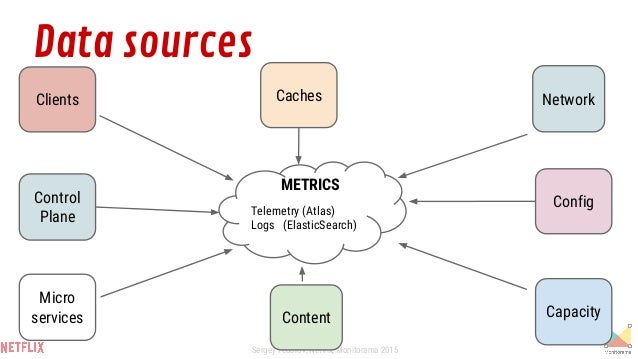

  10. 10. Sergey Fedorov, Netflix, Monitorama 2015 CachesClients Control Plane Micro services Network Capacity Config Content Telemetry (Atlas) Logs (ElasticSearch) Data sources METRICS
  11. 11. Something breaks all the time
  12. 12. Big problems start small
  13. 13. Context matters Sergey Fedorov, Netflix, Monitorama 2015
  14. 14. Sergey Fedorov, Netflix, Monitorama 2015
  15. 15. Small SRE team
  16. 16. Elastic
  17. 17. How we do it

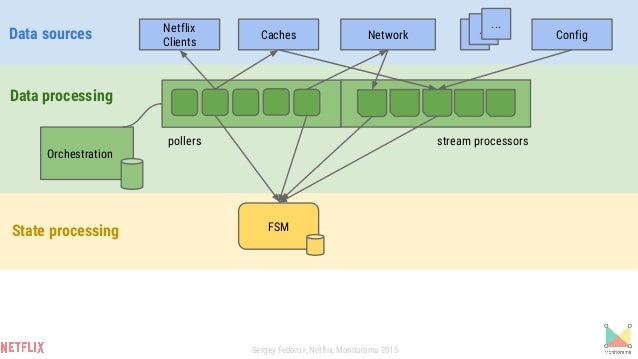

  18. 18. Netflix Clients Caches Network ConfigData sources ...... ... Sergey Fedorov, Netflix, Monitorama 2015
  19. 19. Netflix Clients Caches Network ConfigData sources ...... ... Orchestration Data processing stream processorspollers Sergey Fedorov, Netflix, Monitorama 2015

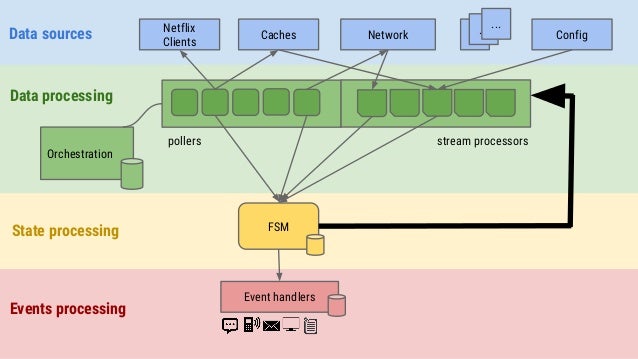

  20. 20. FSMState processing Netflix Clients Caches Network ConfigData sources ...... ... Orchestration Data processing stream processorspollers Sergey Fedorov, Netflix, Monitorama 2015
  21. 21. MAINTENANCE start fixing end fixing threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  22. 22. start fixing end fixing action: ok from: cpu threshold=75% MAINTENANCE Sergey Fedorov, Netflix, Monitorama 2015

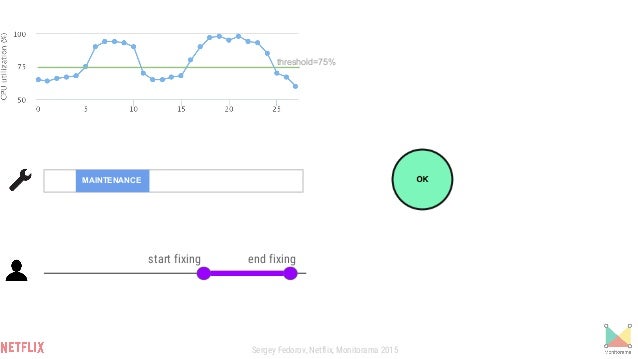

  23. 23. start fixing end fixing action: ok from: cpu threshold=75% MAINTENANCE Sergey Fedorov, Netflix, Monitorama 2015

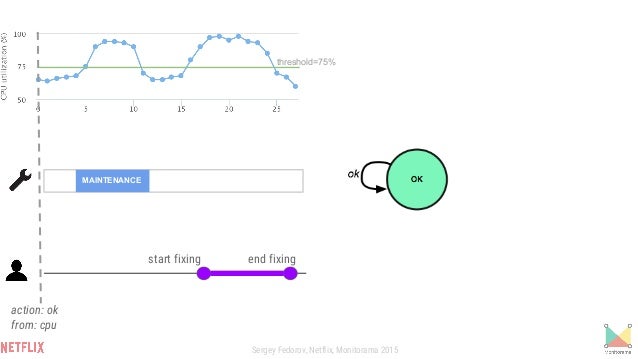

  24. 24. start fixing end fixing action: ok from: cpu threshold=75% MAINTENANCE Sergey Fedorov, Netflix, Monitorama 2015

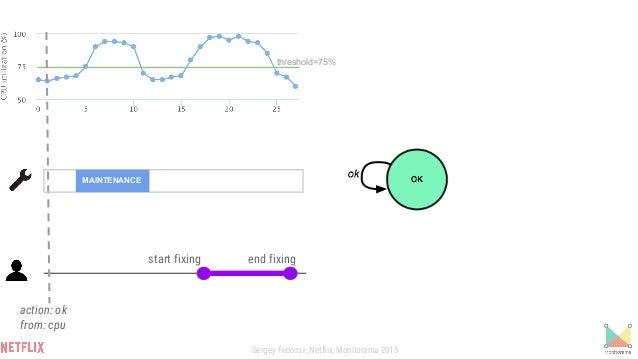

  25. 25. start fixing end fixing action: ok from: cpu threshold=75% MAINTENANCE Sergey Fedorov, Netflix, Monitorama 2015
  26. 26. MAINTENANCE start fixing end fixing action: silence from: config threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  27. 27. MAINTENANCE start fixing end fixing action: ok from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015

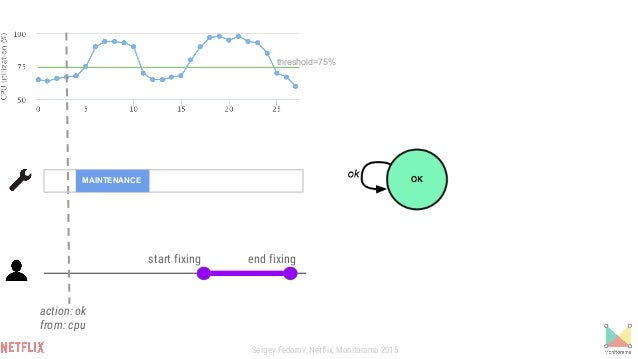

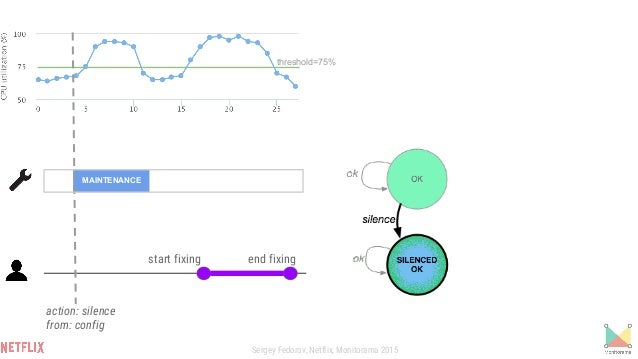

  28. 28. MAINTENANCE start fixing end fixing action: silence from: config threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  29. 29. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015

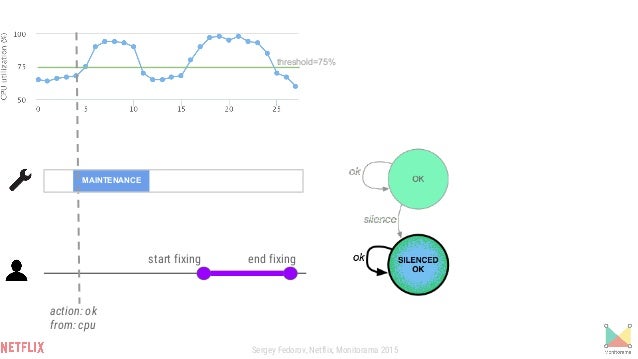

  30. 30. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015

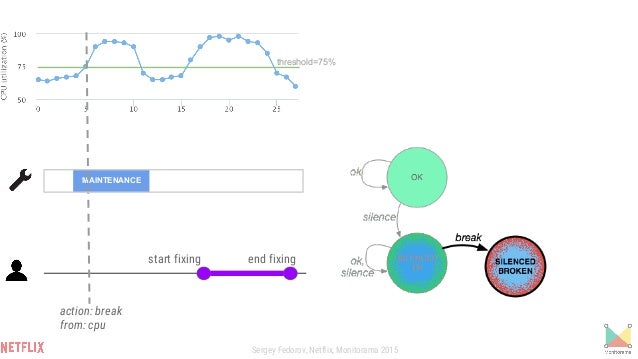

  31. 31. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015

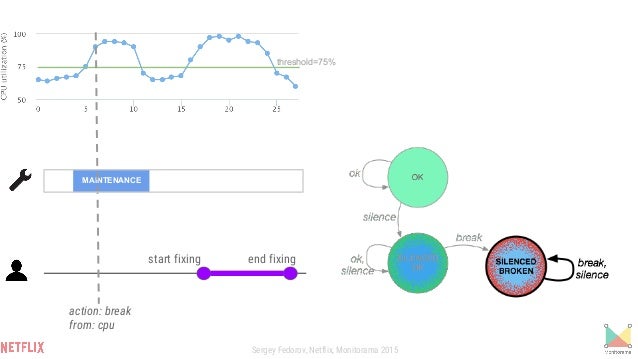

  32. 32. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  33. 33. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  34. 34. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  35. 35. MAINTENANCE start fixing end fixing action: ok from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015

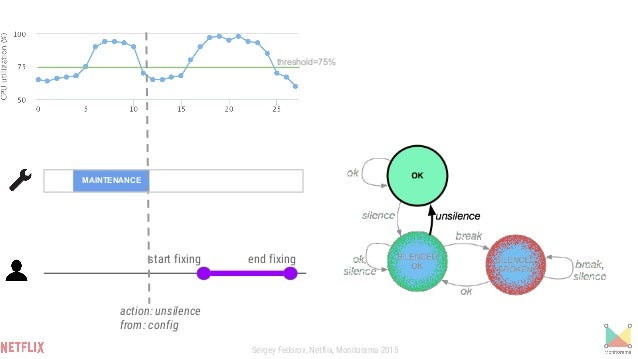

  36. 36. MAINTENANCE start fixing end fixing action: unsilence from: config threshold=75% Sergey Fedorov, Netflix, Monitorama 2015

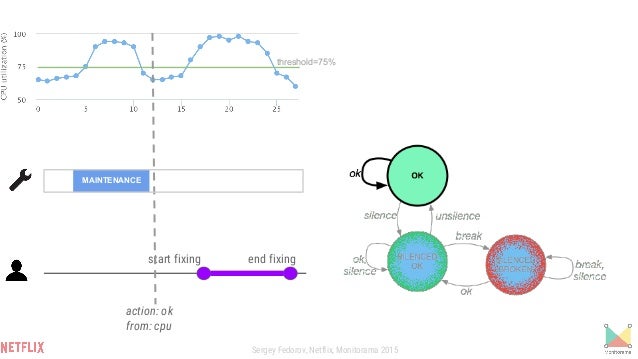

  37. 37. MAINTENANCE start fixing end fixing action: ok from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015

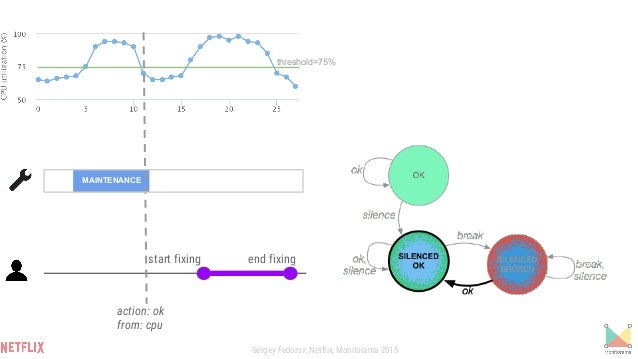

  38. 38. MAINTENANCE start fixing end fixing action: ok from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  39. 39. MAINTENANCE start fixing end fixing action: ok from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  40. 40. MAINTENANCE start fixing end fixing action: ok from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  41. 41. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  42. 42. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015

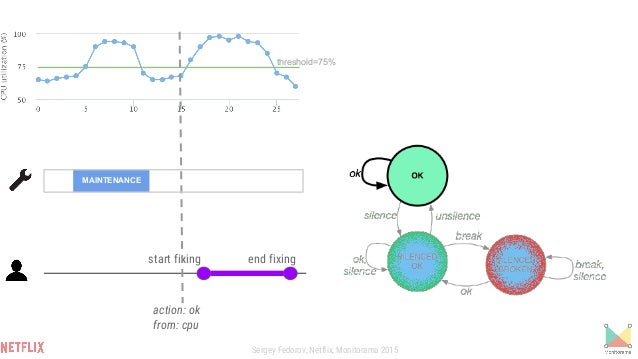

  43. 43. MAINTENANCE start fixing end fixing action: start_fix from: user threshold=75% Sergey Fedorov, Netflix, Monitorama 2015

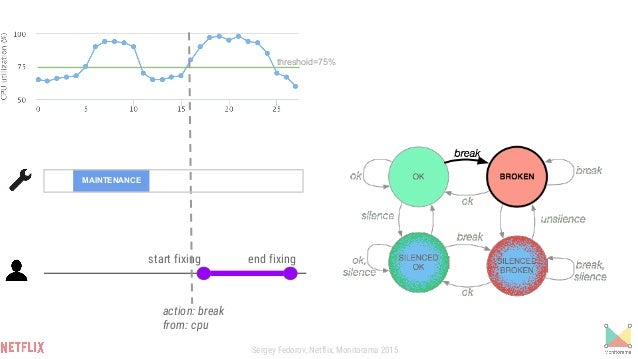

  44. 44. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  45. 45. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  46. 46. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  47. 47. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  48. 48. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  49. 49. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  50. 50. MAINTENANCE start fixing end fixing action: break from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  51. 51. MAINTENANCE start fixing end fixing action: ok from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  52. 52. MAINTENANCE start fixing end fixing action: ok from: cpu threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  53. 53. MAINTENANCE start fixing end fixing action: end_fix from: user threshold=75% Sergey Fedorov, Netflix, Monitorama 2015

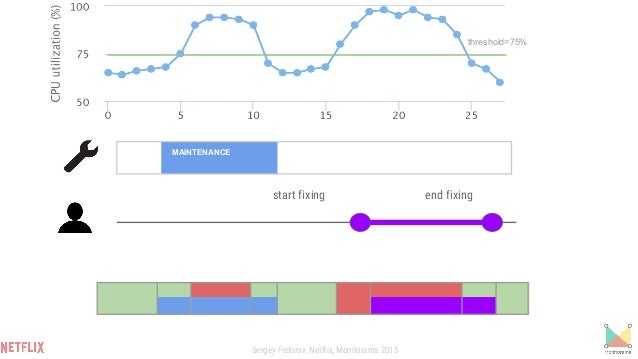

  54. 54. MAINTENANCE start fixing end fixing threshold=75% Sergey Fedorov, Netflix, Monitorama 2015
  55. 55. FSMState processing Netflix Clients Caches Network ConfigData sources ...... ... Orchestration Data processing stream processorspollers Sergey Fedorov, Netflix, Monitorama 2015
  56. 56. FSMState processing Netflix Clients Caches Network ConfigData sources ...... ... Orchestration Data processing stream processorspollers Events processing Event handlers

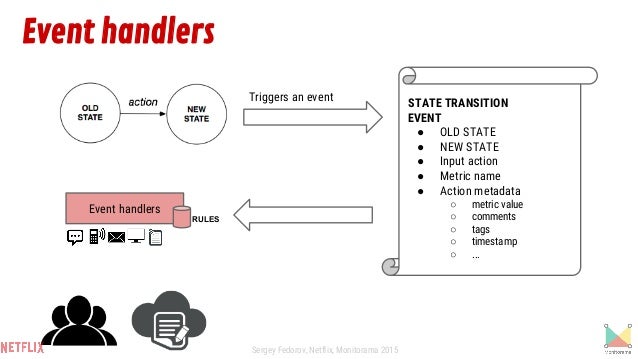

  57. 57. STATE TRANSITION EVENT ● OLD STATE ● NEW STATE ● Input action ● Metric name ● Action metadata ○ metric value ○ comments ○ tags ○ timestamp ○ ... Event handlers Triggers an event Event handlers RULES Sergey Fedorov, Netflix, Monitorama 2015

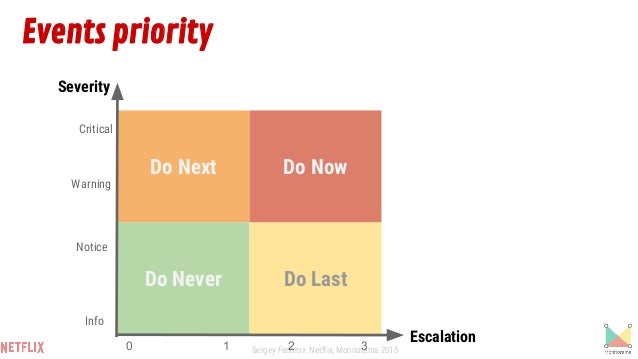

  58. 58. Sergey Fedorov, Netflix, Monitorama 2015 Events priority Escalation Do Never Notice Warning Critical Severity Info Do Next Do Last Do Now 0 1 2 3

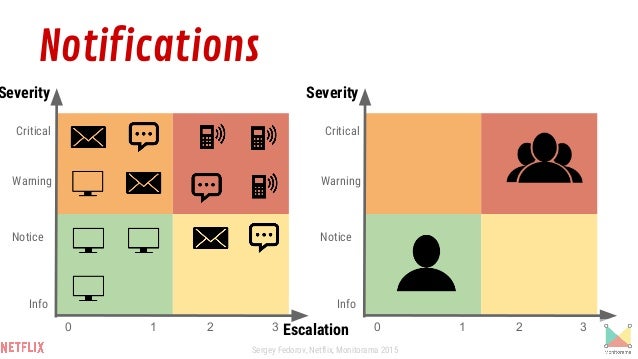

  59. 59. Notice Warning Critical Severity Info 0 1 2 3Escalation Notice Warning Critical Severity Info 0 1 2 3 Notifications Sergey Fedorov, Netflix, Monitorama 2015

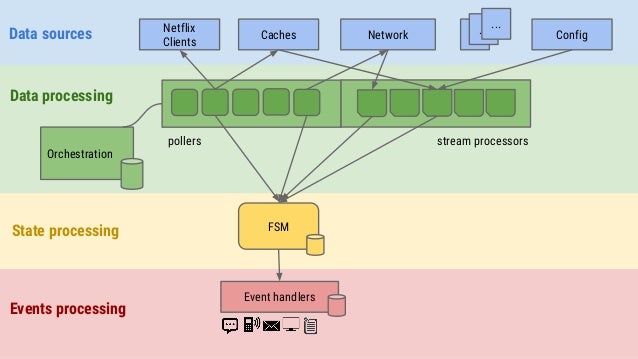

  60. 60. FSMState processing Netflix Clients Caches Network ConfigData sources ...... ... Orchestration Data processing stream processorspollers Events processing Event handlers

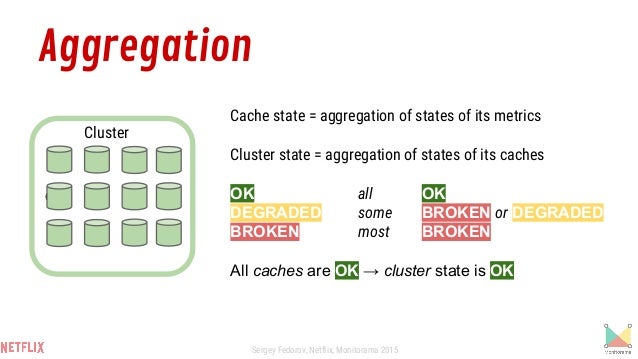

  61. 61. Aggregation C Cluster Cache state = aggregation of states of its metrics Cluster state = aggregation of states of its caches OK all OK DEGRADED some BROKEN or DEGRADED BROKEN most BROKEN All caches are OK → cluster state is OK Sergey Fedorov, Netflix, Monitorama 2015

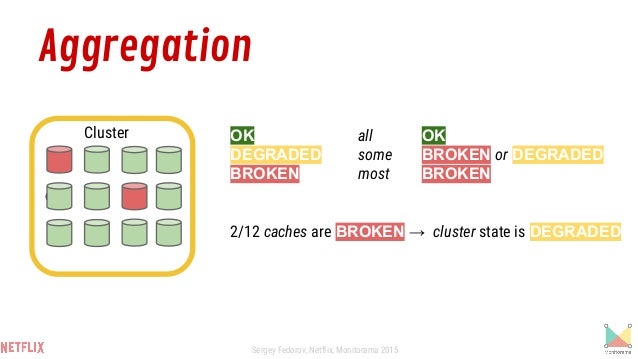

  62. 62. Aggregation C Cluster OK all OK DEGRADED some BROKEN or DEGRADED BROKEN most BROKEN 2/12 caches are BROKEN → cluster state is DEGRADED Sergey Fedorov, Netflix, Monitorama 2015
  63. 63. Aggregation C Cluster OK all OK DEGRADED some BROKEN or DEGRADED BROKEN most BROKEN 7/12 caches are BROKEN → cluster state is BROKEN Sergey Fedorov, Netflix, Monitorama 2015
  64. 64. FSMState processing Netflix Clients Caches Network ConfigData sources ...... ... Orchestration Data processing stream processorspollers Events processing Event handlers
  65. 65. Challenges Setup Sergey Fedorov, Netflix, Monitorama 2015
  66. 66. Challenges Setup Predefined groupings Sergey Fedorov, Netflix, Monitorama 2015
  67. 67. Challenges Setup Predefined groupings UI Sergey Fedorov, Netflix, Monitorama 2015
  68. 68. Challenges Setup Predefined groupings UI Issues correlation Sergey Fedorov, Netflix, Monitorama 2015
  69. 69. Challenges Setup Predefined groupings UI Issues correlation Failure forecasting Sergey Fedorov, Netflix, Monitorama 2015
  70. 70. Challenges Setup Predefined groupings UI Issues correlation Failure forecasting OSS Sergey Fedorov, Netflix, Monitorama 2015
  71. 71. Feedback
  72. 72. jobs.netflix.com/jobs/1693/ jobs.netflix.com/jobs/2240/ Sergey Fedorov OpenConnect, Netflix sfedorov@netflix.com

×
