Writing Fast Code PyCon HK 2015 iam@younggun.kim
Younggun, Kim http://younggun.kim @scari_net scari
Badass Alien @ District 9, SMARTSTUDY http://pengpenghu.com PyCon Korea Organizer http://pycon.kr @pyconkr PyCon APAC 2016...
What I Think My Code Run Movie - The Good The Bad The Weird, 2008
How My Code Really Run The Killers : All These Things That I’ve Done M/V
 https://youtu.be/sZTpLvsYYHw

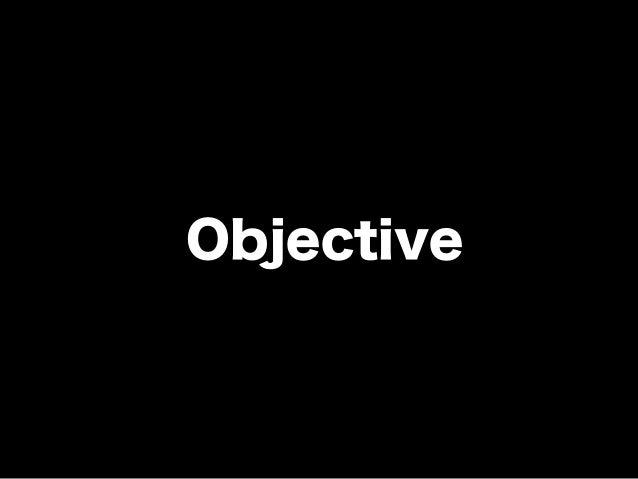

Objective

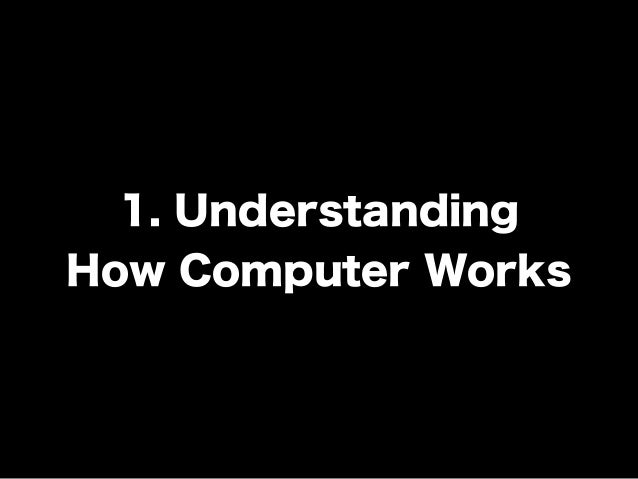

1. Understanding How Computer Works
2. How to use Profiler
But why?
Say, thousands of people using your code everyday and if you save 1 second to run it, this means you could save over 4 day...

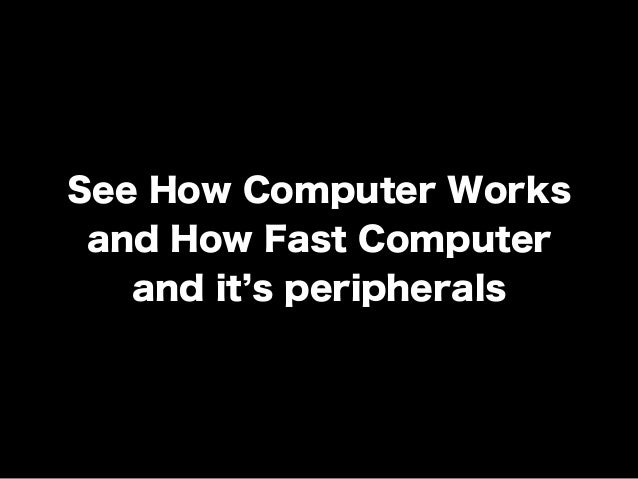

See How Computer Works and How Fast Computer and it s peripherals

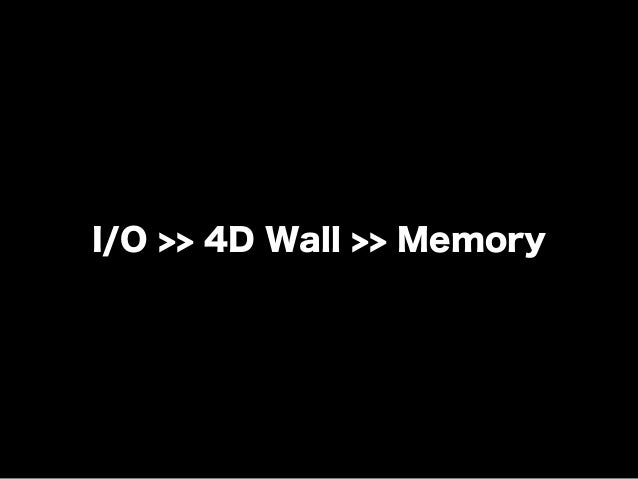

I/O >> 4D Wall >> Memory

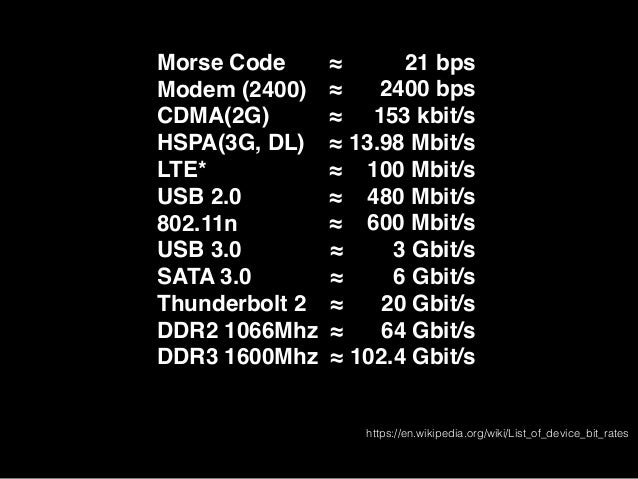

Morse Code Modem (2400) CDMA(2G) HSPA(3G, DL) LTE* USB 2.0 802.11n USB 3.0 SATA 3.0 Thunderbolt 2 DDR2 1066Mhz DDR3 1600Mh...
Yes! Memory is blazing fast! (Really?)

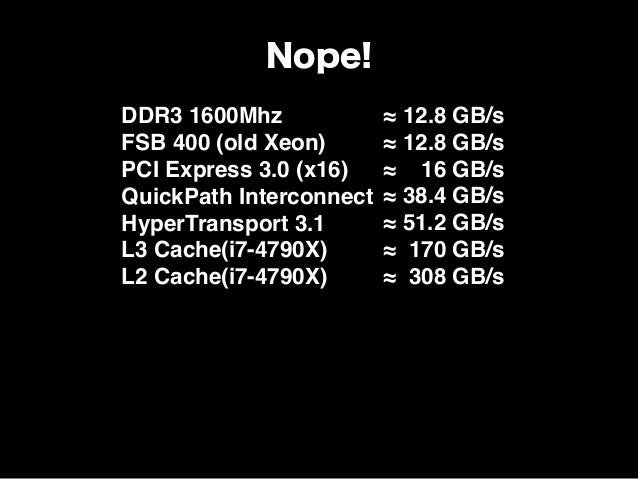

DDR3 1600Mhz FSB 400 (old Xeon) PCI Express 3.0 (x16) QuickPath Interconnect HyperTransport 3.1 L3 Cache(i7-4790X) L2 Cach...

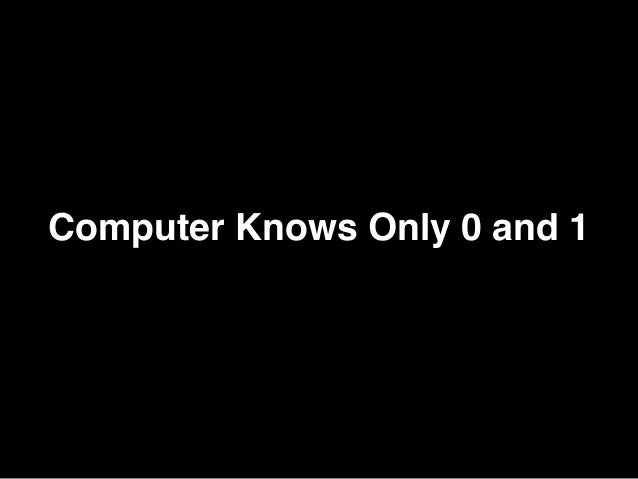

Computer Knows Only 0 and 1

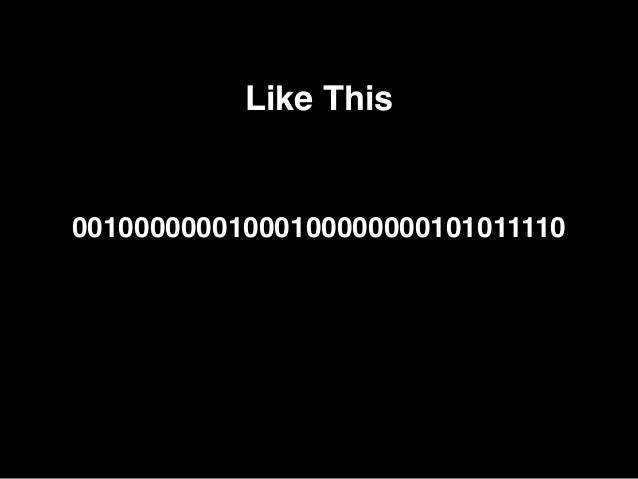

00100000001000100000000101011110 Like This
00100000001000100000000101011110 opcode addr 1 addr 2 value MIPS32 Add Immediate instruction (ADDI) addi $r1, $r2, 350 $r1...
Computer Execute These Instruction per clock basis
Clock (Hz)
1Hz
1Hz L1 Cache Acces L2 Cache Access L3 Cache Access RAM Access SSD I/O HDD I/O Internet: Tokyo to SF Run IPython (0.6s) Reb...

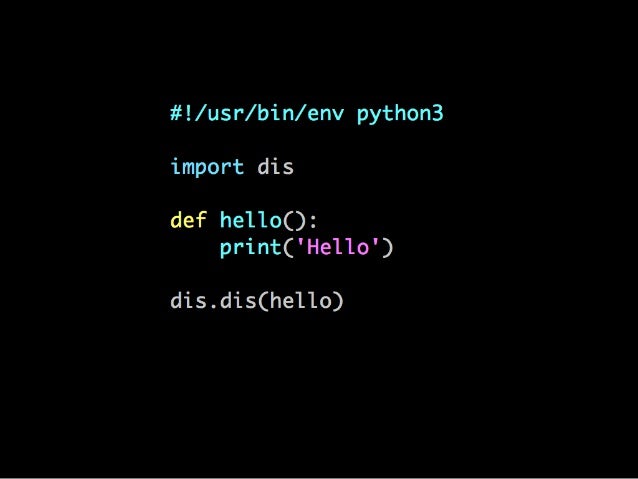

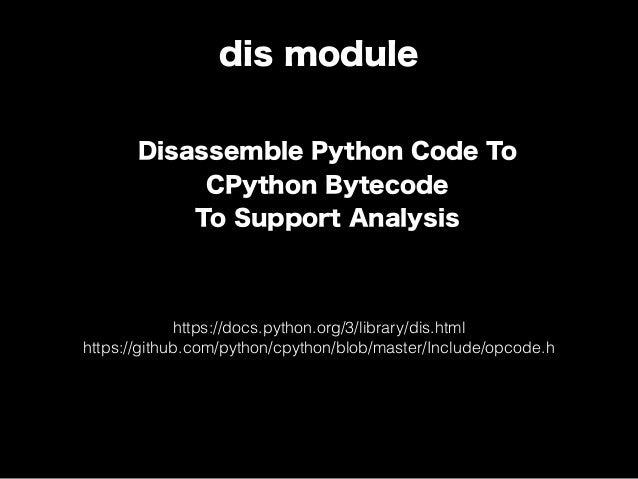

Disassemble Python Code To CPython Bytecode To Support Analysis dis module https://docs.python.org/3/library/dis.html
 htt...
line # of source op addr / instruction annotations param

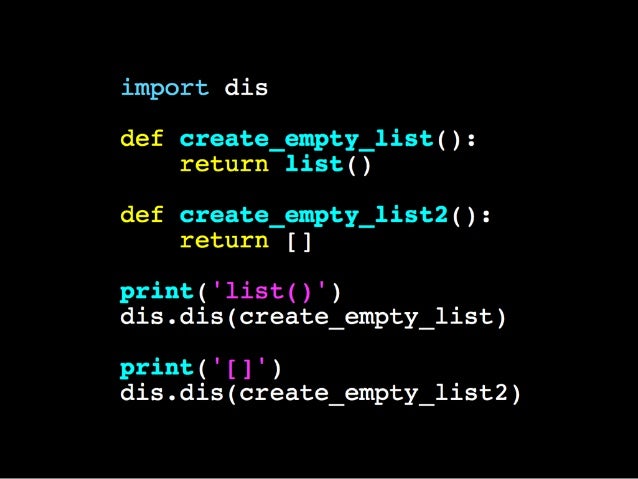

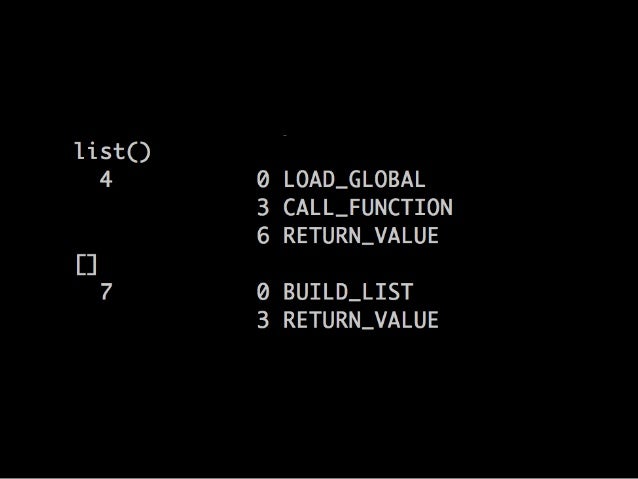

An Empty List Creation [] vs list()

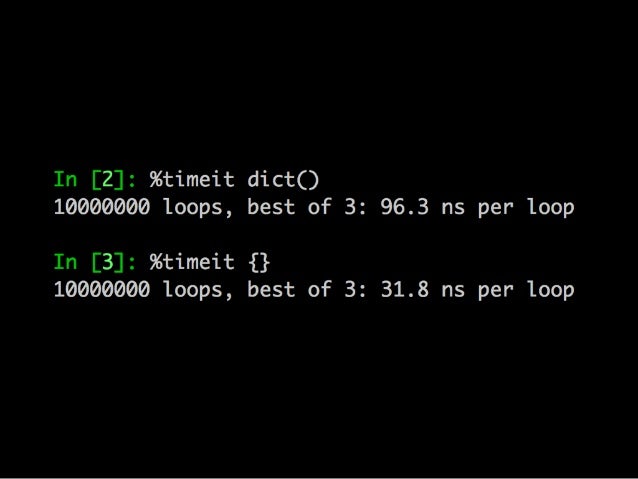

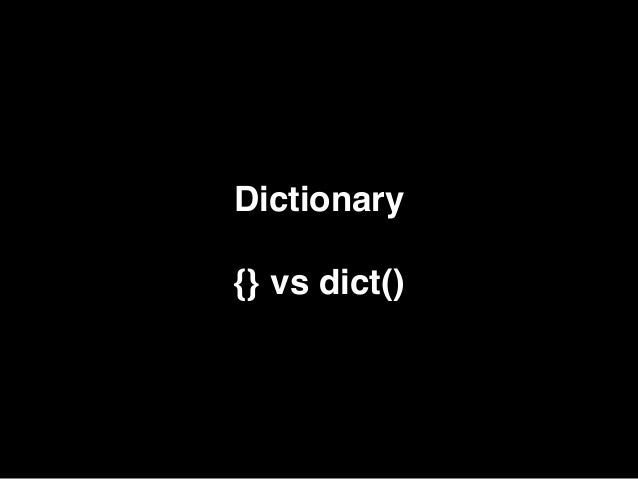

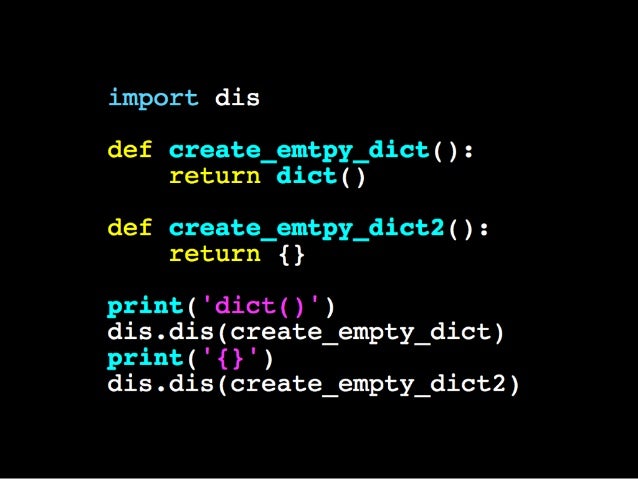

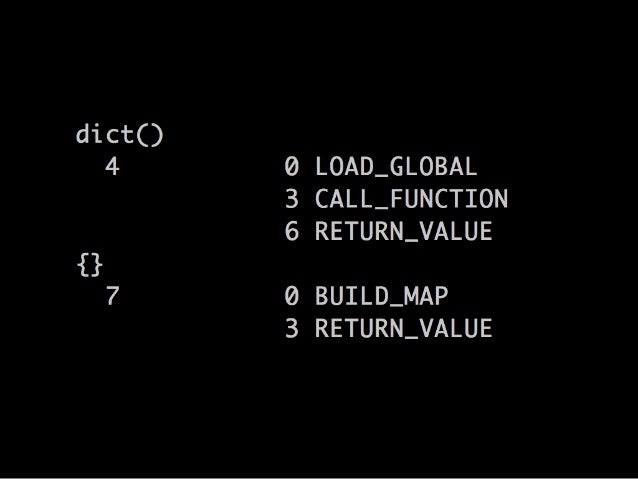

Dictionary {} vs dict()

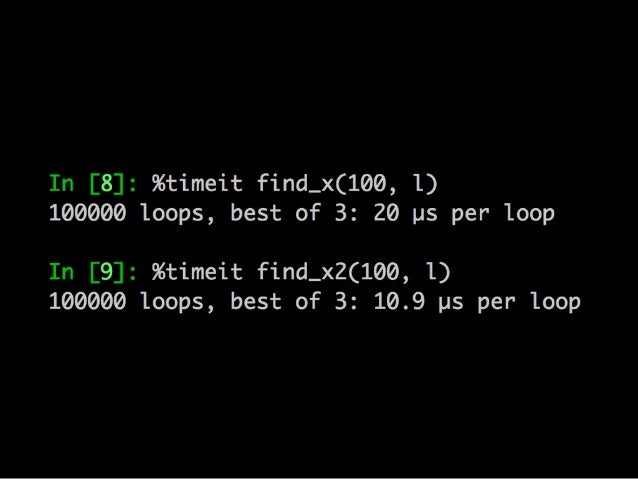

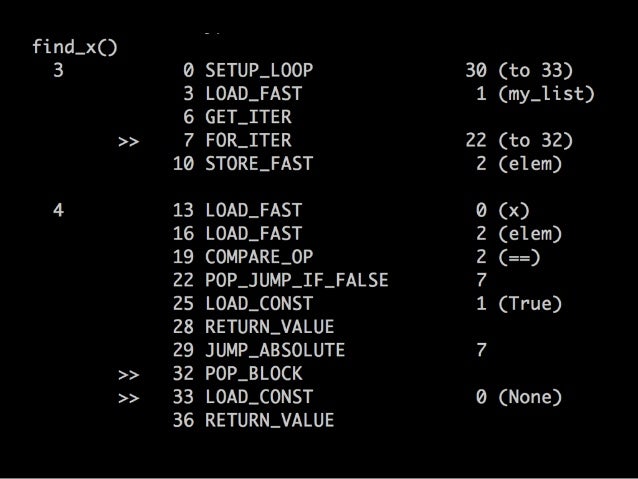

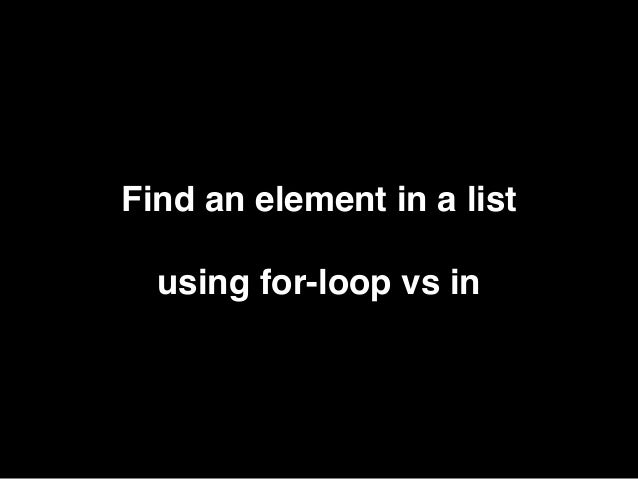

Find an element in a list using for-loop vs in
A tool for dynamic program analysis that measure the space or time complexity of a program. Profilers
• cProfile (profile) • hotshot • line_profiler • memory_profiler • yappi • profiling • pyinstrument • plop • pprofile
cProfile • built-in profiling tool • hook into the VM in CPython • introduces overhead a bit https://docs.python.org/3.5/lib...

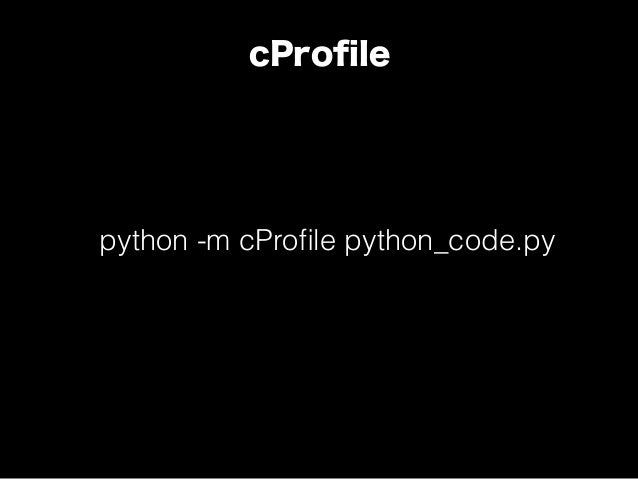

cProfile python -m cProfile python_code.py

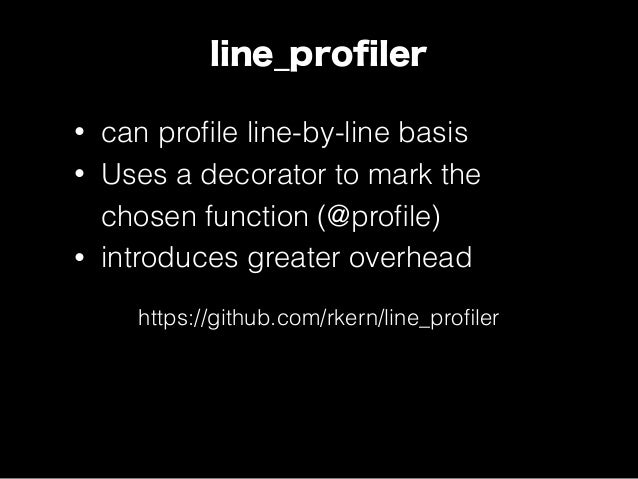

line_profiler • can profile line-by-line basis • Uses a decorator to mark the chosen function (@profile) • introduces greater...
profiling • Interactive Python profiler which inspired from Unity3D Profiler • Keep the call stack. • Live Profiling • Only Su...
https://github.com/sublee/pyconkr2015-profiling-resources/blob/master/continuous.gif
fibona Use profiler with real code

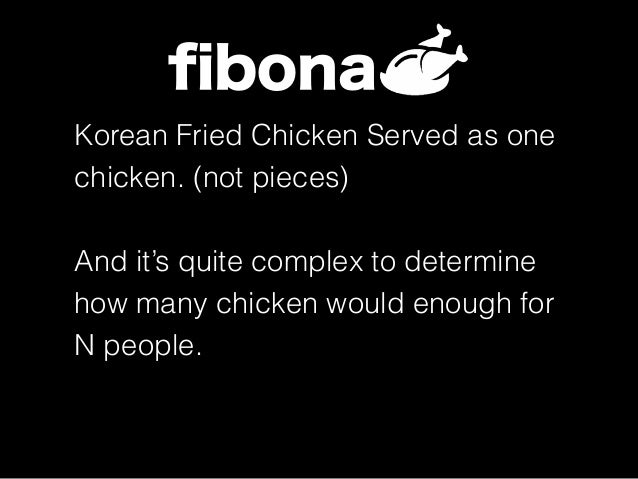

fibona Korean Fried Chicken Served as one chicken. (not pieces) And it’s quite complex to determine how many chicken would ...
fibona The problem can be solved easily using fibonacci number. 1 1 2 3 5 8 13 21 34 … For Nth fibonacci number of people, N-...

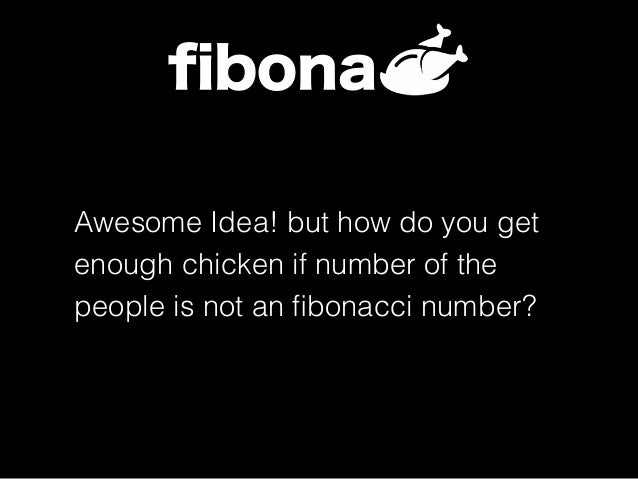

fibona Awesome Idea! but how do you get enough chicken if number of the people is not an fibonacci number?

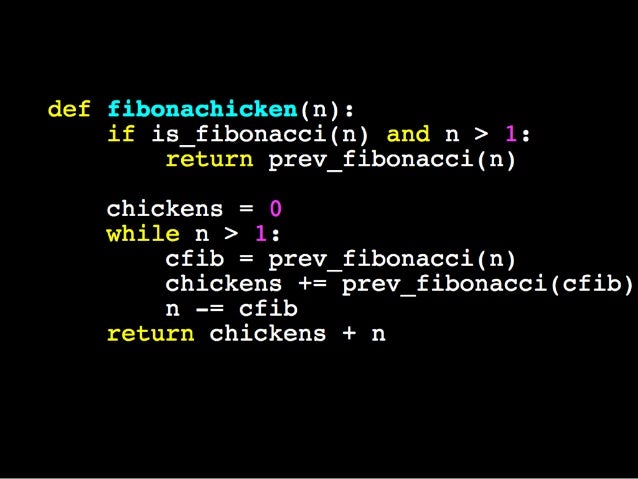

fibona Apply Zeckendorf’s theorem, which is about the representation of integers as sum of Fibonacci number

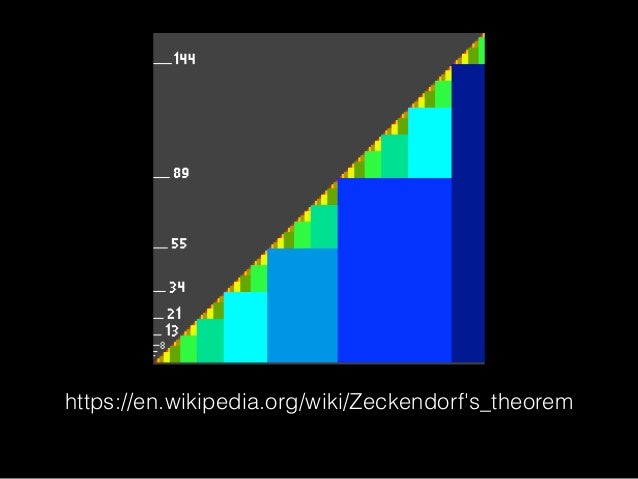

https://en.wikipedia.org/wiki/Zeckendorf's_theorem
KEEP
 CALM AND USE THE
 PROFILER
cProfile python -m cProfile fibonachicken.py
cProfile
line_profiler
line_profiler kernprof -l -v fibonachicken.py
line_profiler
line_profiler
line_profiler
line_profiler
Both fib() and is_fibonacci() is the bottleneck. Should replace these with better one
Hypothesis #1 Improvement of fib() could result better performance
Binet s Formula https://en.wikipedia.org/wiki/Jacques_Philippe_Marie_Binet
cProfile

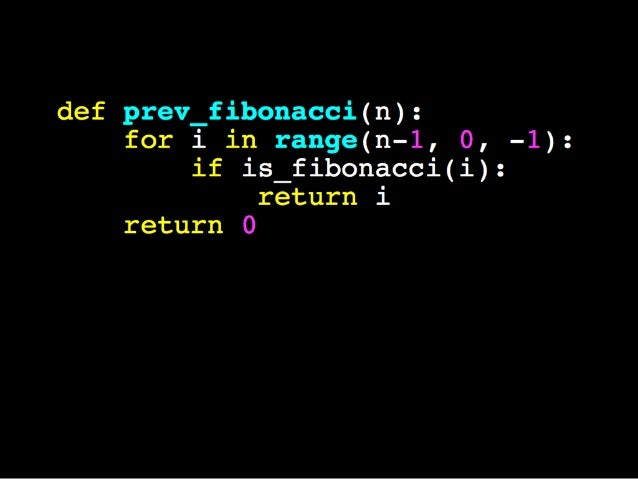

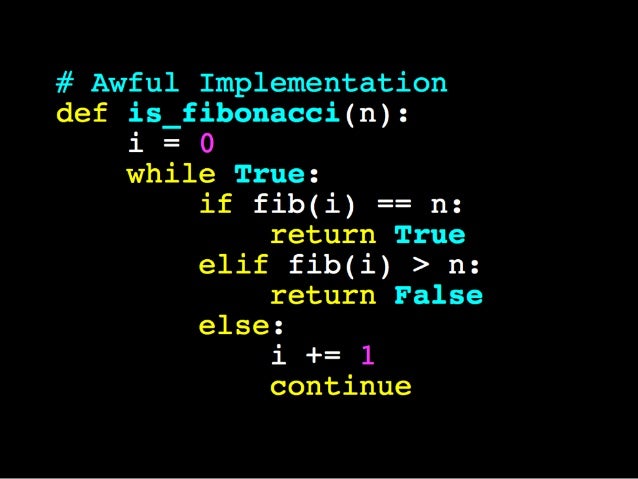

Hypothesis #2 Can we improve is_fibonacci() not to use fib() at all?
n is a Fibonacci number if and only if 5n*n+4 or 5n*n-4 is a square Gessel s Formula http://www.maths.surrey.ac.uk/hosted-...
cProfile
Summary Consider efficiency of codes, along with peripherals, and
 circumstances around you Form a hypothesis and confirm (...
QA
Thanks!
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Writing Fast Code - PyCon HK 2015
Upcoming SlideShare
Loading in …5
×

Writing Fast Code - PyCon HK 2015

435 views

Published on

Do profile, please.

Published in: Engineering
License: CC Attribution-NonCommercial-ShareAlike License
no profile picture user

  • Be the first to comment

Writing Fast Code - PyCon HK 2015

  1. 1. Writing Fast Code PyCon HK 2015 iam@younggun.kim
  2. 2. Younggun, Kim http://younggun.kim @scari_net scari
  3. 3. Badass Alien @ District 9, SMARTSTUDY http://pengpenghu.com PyCon Korea Organizer http://pycon.kr @pyconkr PyCon APAC 2016 Host (2016/Aug/13-15)
  4. 4. What I Think My Code Run Movie - The Good The Bad The Weird, 2008
  5. 5. How My Code Really Run The Killers : All These Things That I’ve Done M/V
 https://youtu.be/sZTpLvsYYHw
  6. 6. Objective
  7. 7. 1. Understanding How Computer Works
  8. 8. 2. How to use Profiler
  9. 9. But why?
  10. 10. Say, thousands of people using your code everyday and if you save 1 second to run it, this means you could save over 4 days of time human race wasted per a year.
  11. 11. See How Computer Works and How Fast Computer and it s peripherals
  12. 12. I/O >> 4D Wall >> Memory
  13. 13. Morse Code Modem (2400) CDMA(2G) HSPA(3G, DL) LTE* USB 2.0 802.11n USB 3.0 SATA 3.0 Thunderbolt 2 DDR2 1066Mhz DDR3 1600Mhz ≈ 21 bps ≈ 2400 bps ≈ 153 kbit/s ≈ 13.98 Mbit/s ≈ 100 Mbit/s ≈ 480 Mbit/s ≈ 600 Mbit/s ≈ 3 Gbit/s ≈ 6 Gbit/s ≈ 20 Gbit/s ≈ 64 Gbit/s ≈ 102.4 Gbit/s https://en.wikipedia.org/wiki/List_of_device_bit_rates
  14. 14. Yes! Memory is blazing fast! (Really?)
  15. 15. DDR3 1600Mhz FSB 400 (old Xeon) PCI Express 3.0 (x16) QuickPath Interconnect HyperTransport 3.1 L3 Cache(i7-4790X) L2 Cache(i7-4790X) ≈ 12.8 GB/s ≈ 12.8 GB/s ≈ 16 GB/s ≈ 38.4 GB/s ≈ 51.2 GB/s ≈ 170 GB/s ≈ 308 GB/s Nope!
  16. 16. Computer Knows Only 0 and 1
  17. 17. 00100000001000100000000101011110 Like This

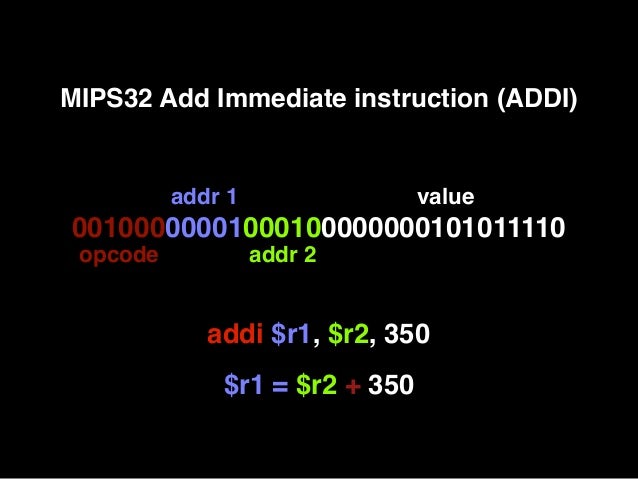

  18. 18. 00100000001000100000000101011110 opcode addr 1 addr 2 value MIPS32 Add Immediate instruction (ADDI) addi $r1, $r2, 350 $r1 = $r2 + 350
  19. 19. Computer Execute These Instruction per clock basis
  20. 20. Clock (Hz)
  21. 21. 1Hz

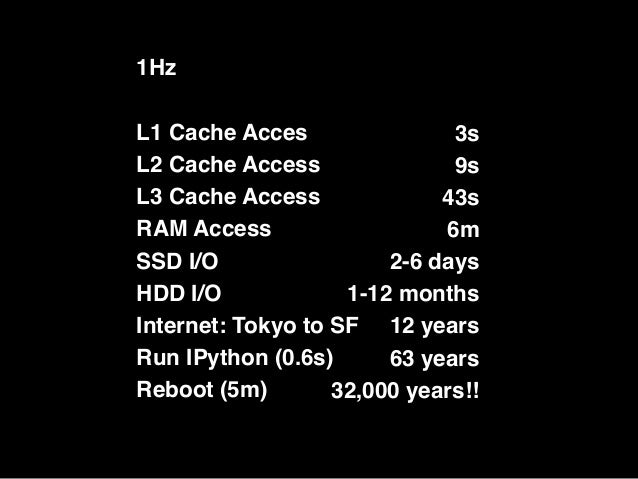

  22. 22. 1Hz L1 Cache Acces L2 Cache Access L3 Cache Access RAM Access SSD I/O HDD I/O Internet: Tokyo to SF Run IPython (0.6s) Reboot (5m) 3s 9s 43s 6m 2-6 days 1-12 months 12 years 63 years 32,000 years!!
  23. 23. Disassemble Python Code To CPython Bytecode To Support Analysis dis module https://docs.python.org/3/library/dis.html
 https://github.com/python/cpython/blob/master/Include/opcode.h
  24. 24. line # of source op addr / instruction annotations param

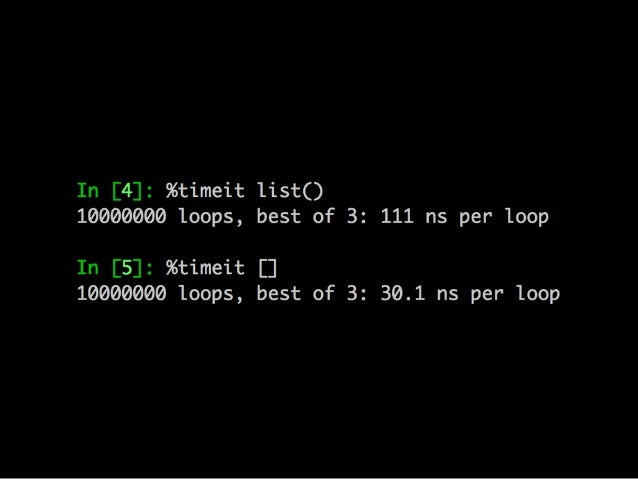

  25. 25. An Empty List Creation [] vs list()
  26. 26. Dictionary {} vs dict()

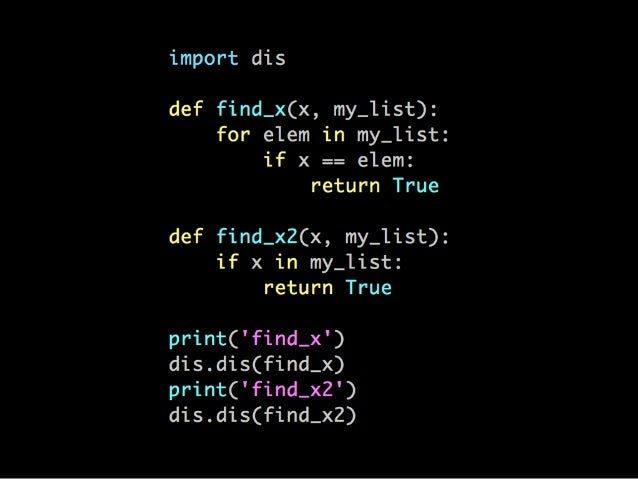

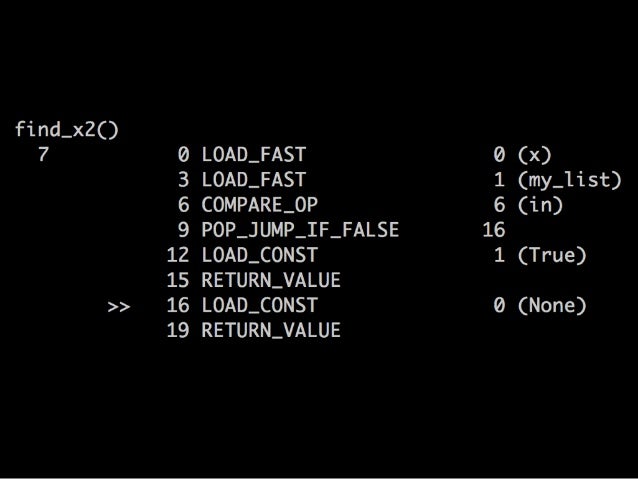

  27. 27. Find an element in a list using for-loop vs in
  28. 28. A tool for dynamic program analysis that measure the space or time complexity of a program. Profilers

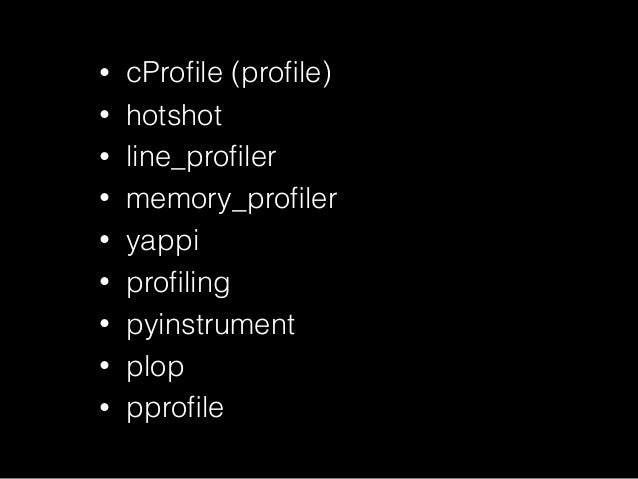

  29. 29. • cProfile (profile) • hotshot • line_profiler • memory_profiler • yappi • profiling • pyinstrument • plop • pprofile

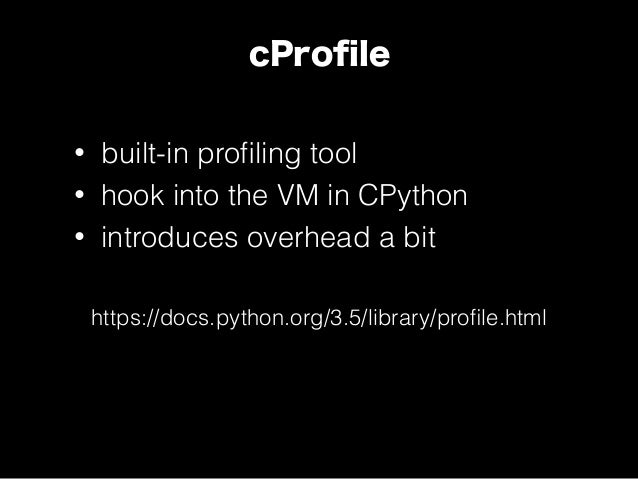

  30. 30. cProfile • built-in profiling tool • hook into the VM in CPython • introduces overhead a bit https://docs.python.org/3.5/library/profile.html
  31. 31. cProfile python -m cProfile python_code.py
  32. 32. line_profiler • can profile line-by-line basis • Uses a decorator to mark the chosen function (@profile) • introduces greater overhead https://github.com/rkern/line_profiler

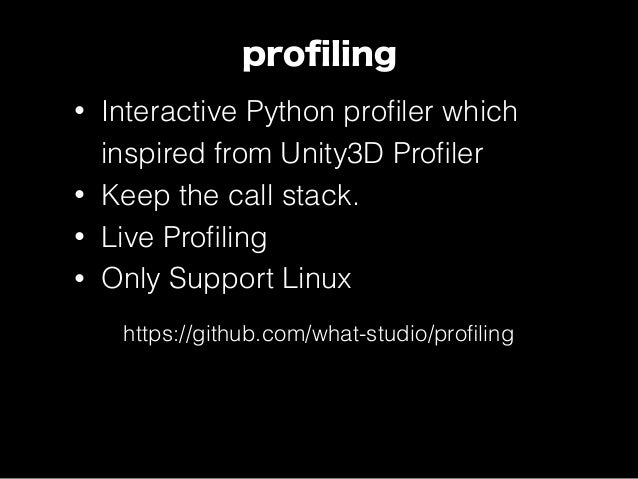

  33. 33. profiling • Interactive Python profiler which inspired from Unity3D Profiler • Keep the call stack. • Live Profiling • Only Support Linux https://github.com/what-studio/profiling

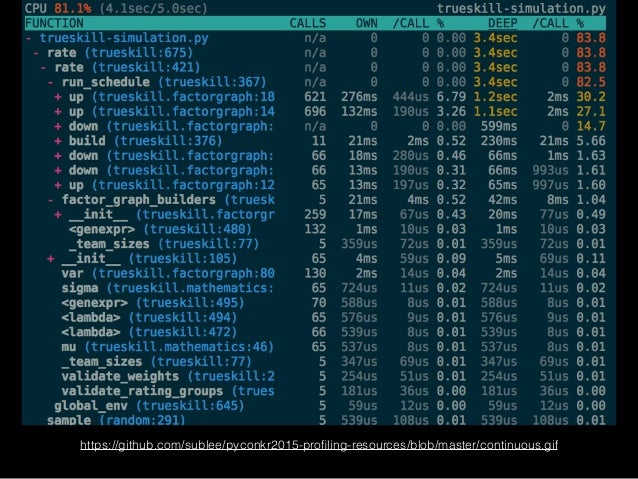

  34. 34. https://github.com/sublee/pyconkr2015-profiling-resources/blob/master/continuous.gif
