KILL THE MUTANTS
a better way to test your tests
ABOUT ME
• Roy van Rijn
• Mutants:
• Nora
• Lucas
• Works for
let's do a
SHOW OF HANDS

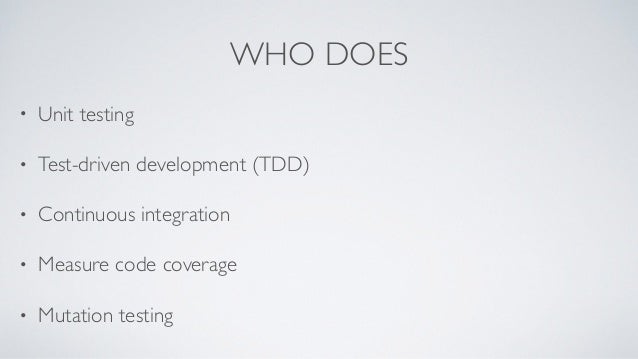

WHO DOES
• Unit testing
• Test-driven development (TDD)
• Continuous integration
• Measure code coverage
• Mutation testing
UNIT TESTING
• Prove your code works
• Instant regression tests
• Improve code design
• Has become a mainstream practise over the last 10 years

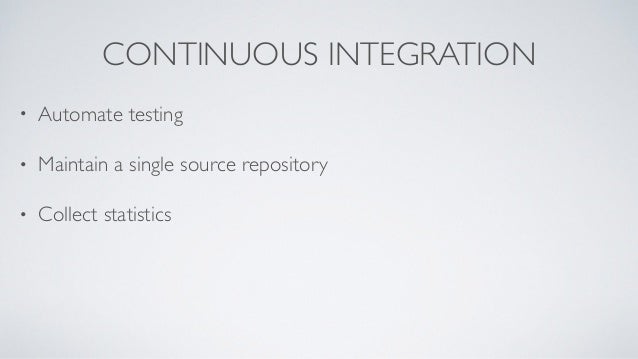

CONTINUOUS INTEGRATION
• Automate testing
• Maintain a single source repository
• Collect statistics

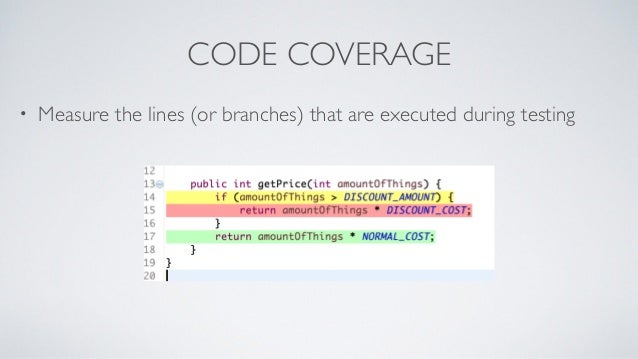

CODE COVERAGE
• Measure the lines (or branches) that are executed during testing
CODE COVERAGE
• How did they test your car?

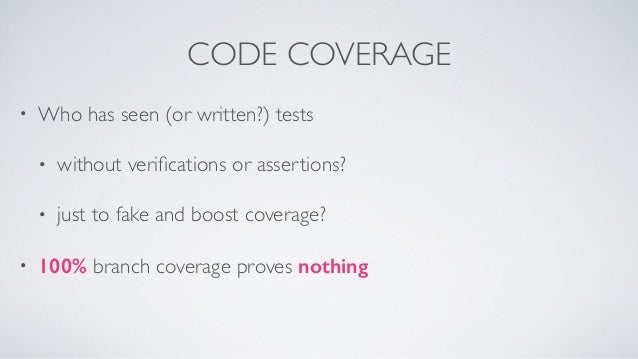

CODE COVERAGE
• Who has seen (or written?) tests
• without verifications or assertions?
• just to fake and boost coverage?
• 100% branch coverage proves nothing
QUIS CUSTODIET IPSOS CUSTODES?
Who watches the watchmen?

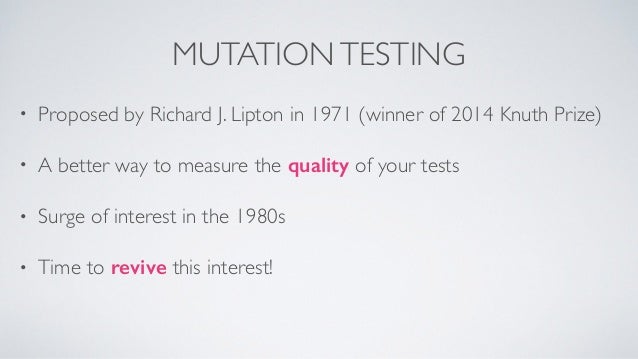

MUTATION TESTING
• Proposed by Richard J. Lipton in 1971 (winner of 2014 Knuth Prize)
• A better way to measure the quality of your tests
• Surge of interest in the 1980s
• Time to revive this interest!

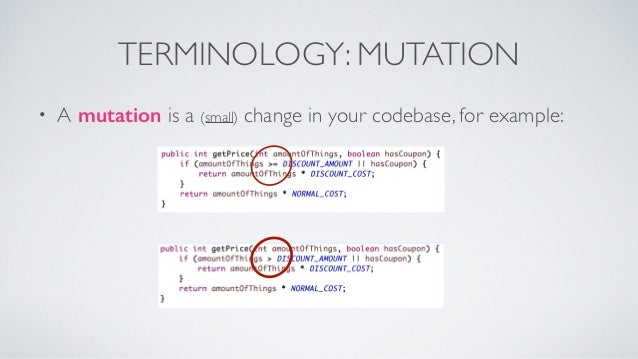

TERMINOLOGY: MUTATION
• A mutation is a (small) change in your codebase, for example:

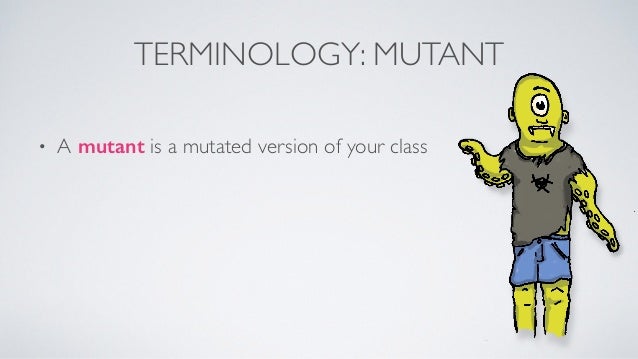

TERMINOLOGY: MUTANT
• A mutant is a mutated version of your class

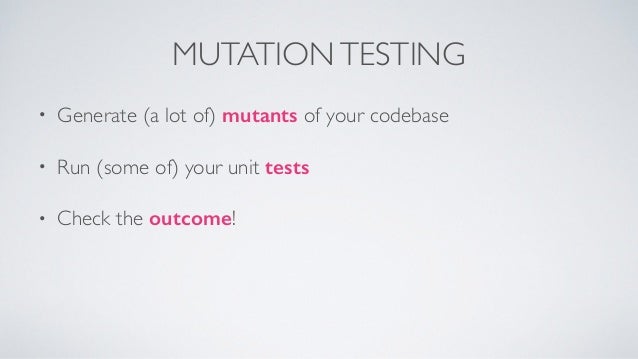

MUTATION TESTING
• Generate (a lot of) mutants of your codebase
• Run (some of) your unit tests
• Check the outcome!

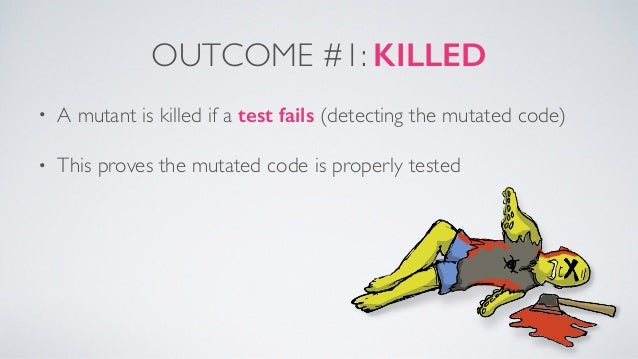

OUTCOME #1: KILLED
• A mutant is killed if a test fails (detecting the mutated code)
• This proves the mutated code is properly tested

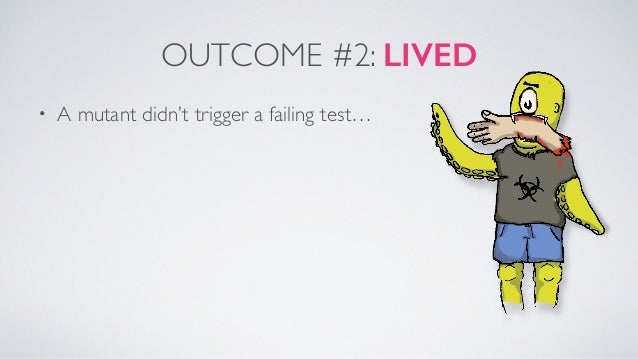

OUTCOME #2: LIVED
• A mutant didn’t trigger a failing test…

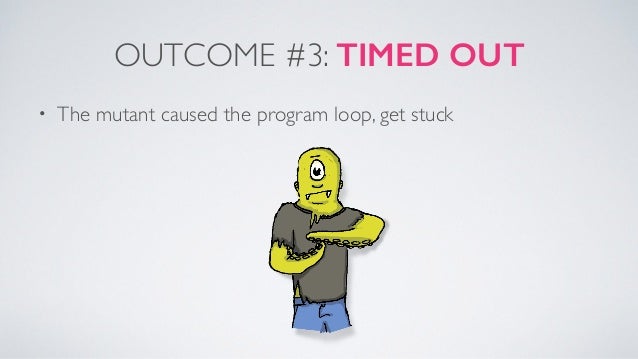

OUTCOME #3: TIMED OUT
• The mutant caused the program loop, get stuck

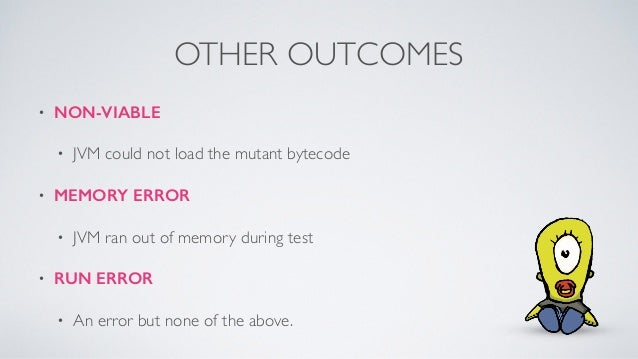

OTHER OUTCOMES
• NON-VIABLE
• JVM could not load the mutant bytecode
• MEMORY ERROR
• JVM ran out of memory during test
• RUN ERROR
• An error but none of the above.

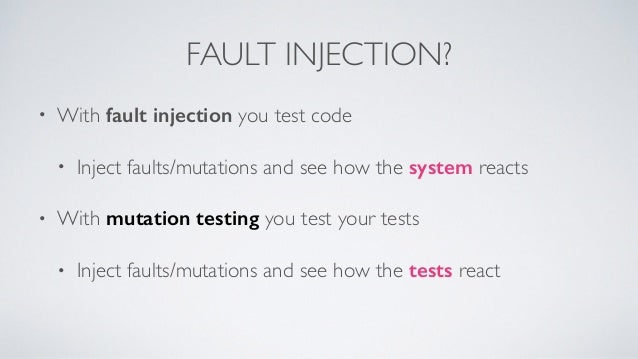

FAULT INJECTION?
• With fault injection you test code
• Inject faults/mutations and see how the system reacts
• With mutation testing you test your tests
• Inject faults/mutations and see how the tests react

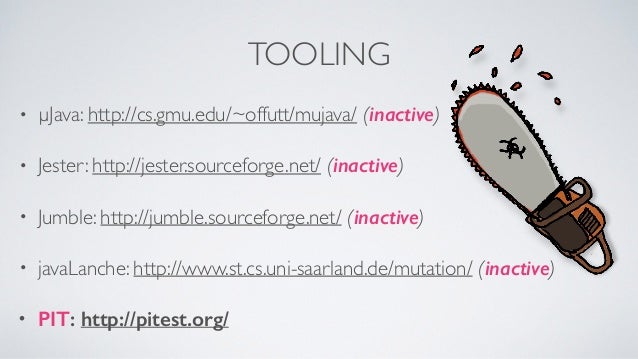

TOOLING
• μJava: http://cs.gmu.edu/~offutt/mujava/ (inactive)
• Jester: http://jester.sourceforge.net/ (inactive)
• Jumble: http://jumble.sourceforge.net/ (inactive)
• javaLanche: http://www.st.cs.uni-saarland.de/mutation/ (inactive)
• PIT: http://pitest.org/

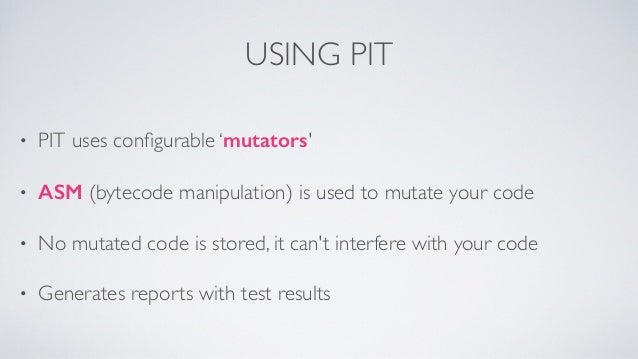

USING PIT
• PIT uses configurable ‘mutators'
• ASM (bytecode manipulation) is used to mutate your code
• No mutated code is stored, it can't interfere with your code
• Generates reports with test results

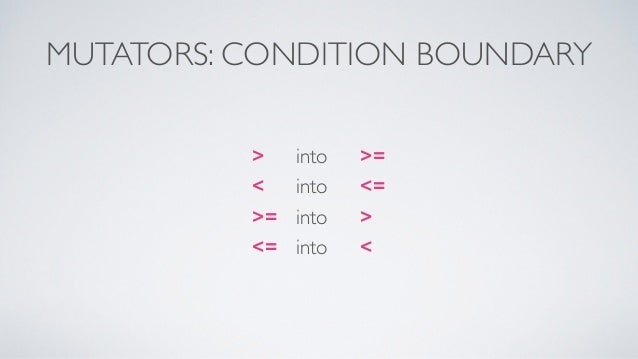

MUTATORS: CONDITION BOUNDARY
> into >=
< into <=
>= into >
<= into <

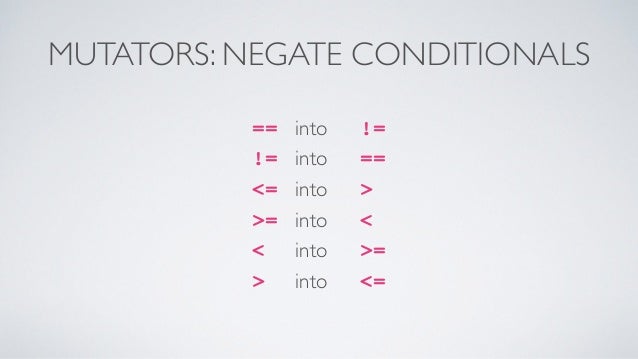

MUTATORS: NEGATE CONDITIONALS
== into !=
!= into ==
<= into >
>= into <
< into >=
> into <=

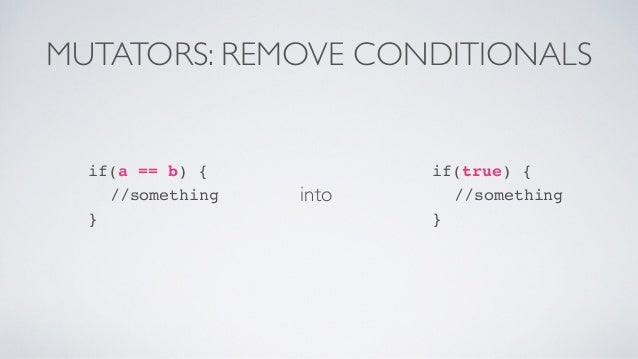

MUTATORS: REMOVE CONDITIONALS
into
if(true) {
//something
}
if(a == b) {
//something
}
MUTATORS: MATH
+ into -
- into +
* into /
/ into *
% into *
& into |
<< into >>
>> into <<
>>> into <<<
a++ into a--
a-- into a++

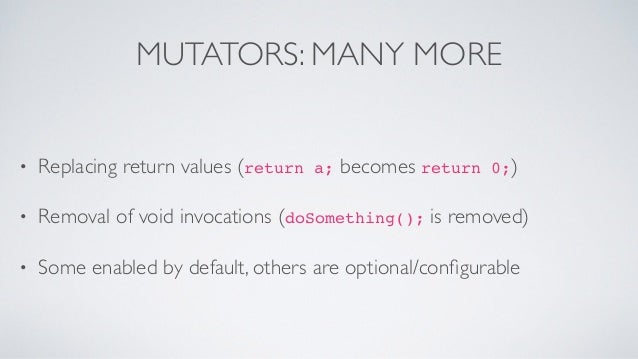

MUTATORS: MANY MORE
• Replacing return values (return a; becomes return 0;)
• Removal of void invocations (doSomething(); is removed)
• Some enabled by default, others are optional/configurable

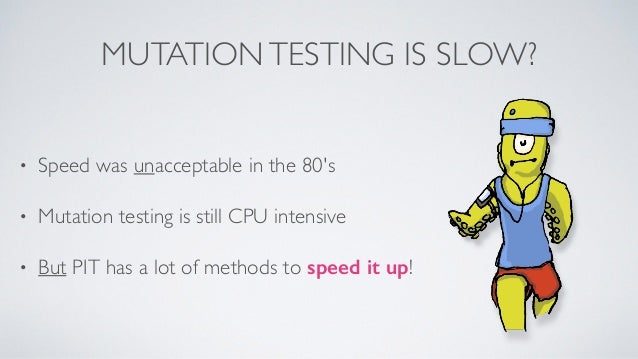

MUTATION TESTING IS SLOW?
• Speed was unacceptable in the 80's
• Mutation testing is still CPU intensive
• But PIT has a lot of methods to speed it up!

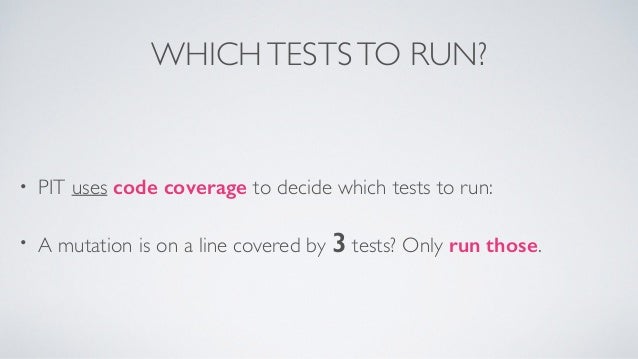

WHICH TESTS TO RUN?
• PIT uses code coverage to decide which tests to run:
• A mutation is on a line covered by 3 tests? Only run those.

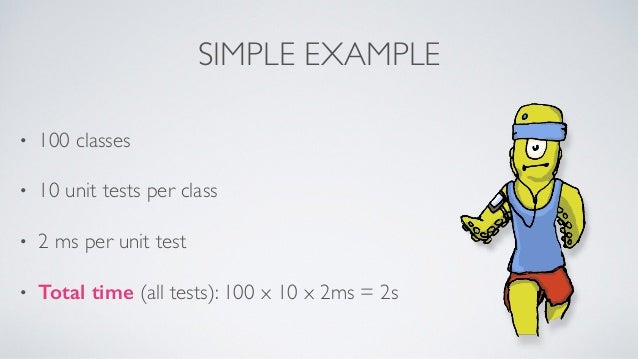

SIMPLE EXAMPLE
• 100 classes
• 10 unit tests per class
• 2 ms per unit test
• Total time (all tests): 100 x 10 x 2ms = 2s
SIMPLE EXAMPLE
• Total time (all tests): 100 x 10 x 2ms = 2s
• 8 mutants per class, 100 classes x 8 = 800 mutants
• Brute force: 800 x 2s = 26m40s
• Smart testing: 800 x 10 x 2ms = 16s

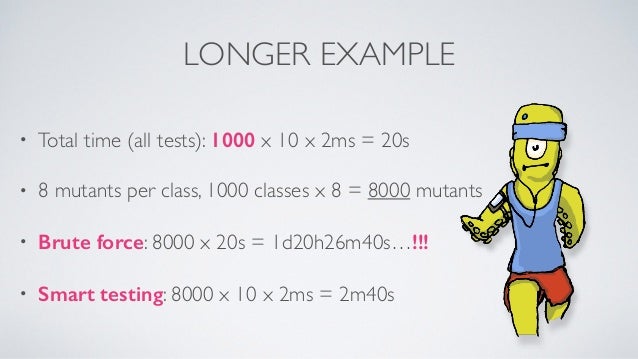

LONGER EXAMPLE
• Total time (all tests): 1000 x 10 x 2ms = 20s
• 8 mutants per class, 1000 classes x 8 = 8000 mutants
• Brute force: 8000 x 20s = 1d20h26m40s…!!!
• Smart testing: 8000 x 10 x 2ms = 2m40s

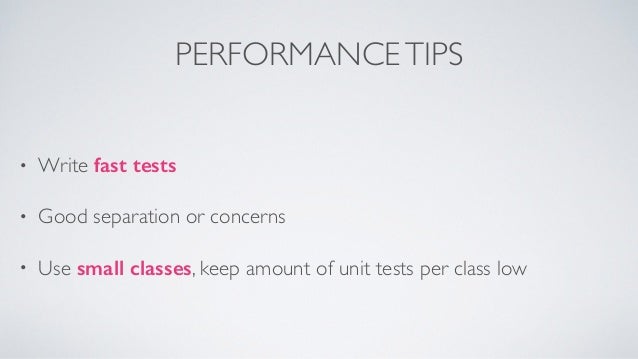

PERFORMANCE TIPS
• Write fast tests
• Good separation or concerns
• Use small classes, keep amount of unit tests per class low

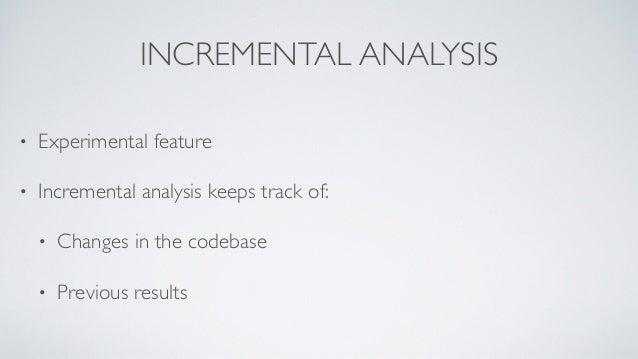

INCREMENTAL ANALYSIS
• Experimental feature
• Incremental analysis keeps track of:
• Changes in the codebase
• Previous results

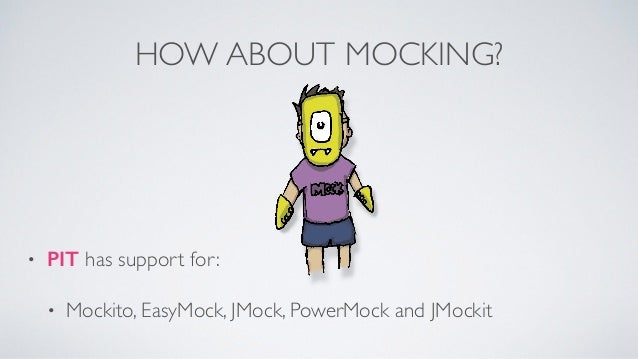

HOW ABOUT MOCKING?
• PIT has support for:
• Mockito, EasyMock, JMock, PowerMock and JMockit

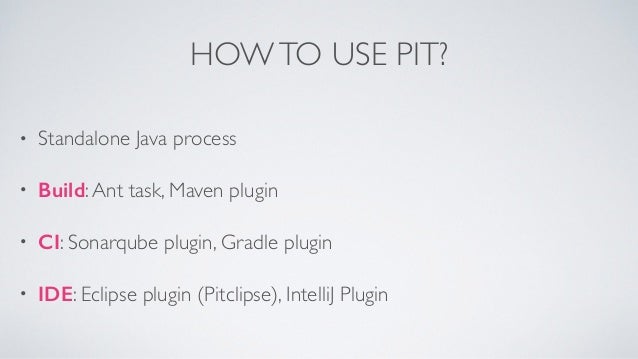

HOW TO USE PIT?
• Standalone Java process
• Build: Ant task, Maven plugin
• CI: Sonarqube plugin, Gradle plugin
• IDE: Eclipse plugin (Pitclipse), IntelliJ Plugin
STANDALONE JAVA
java -cp <your classpath including pit jar and dependencies>
org.pitest.mutationtest.commandline.MutationCoverageReport
--reportDir /somePath/
--targetClasses com.your.package.tobemutated*
--targetTests com.your.package.*
--sourceDirs /sourcePath/

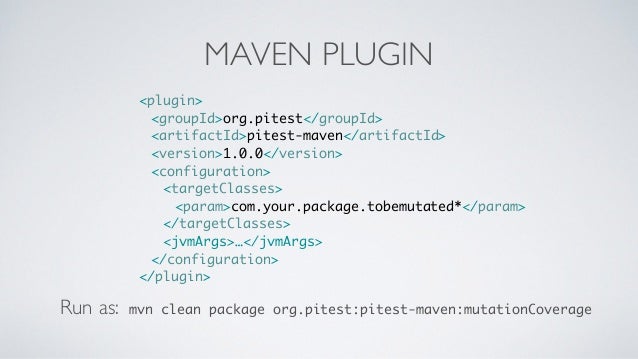

MAVEN PLUGIN
<plugin>
<groupId>org.pitest</groupId>
<artifactId>pitest-maven</artifactId>
<version>1.0.0</version>
<configuration>
<targetClasses>
<param>com.your.package.tobemutated*</param>
</targetClasses>
<jvmArgs>…</jvmArgs>
</configuration>
</plugin>
Run as: mvn clean package org.pitest:pitest-maven:mutationCoverage
EXAMPLE
Let’s kill some mutants… or be killed.

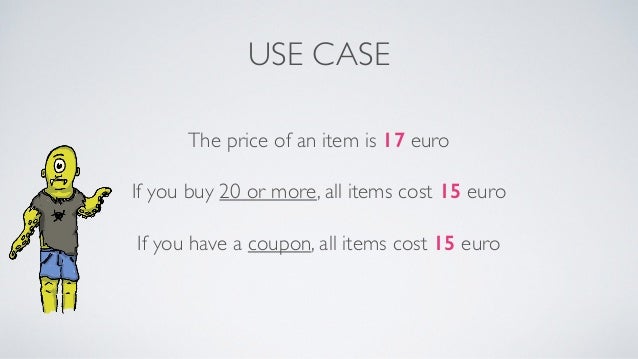

USE CASE
The price of an item is 17 euro
If you buy 20 or more, all items cost 15 euro
If you have a coupon, all items cost 15 euro

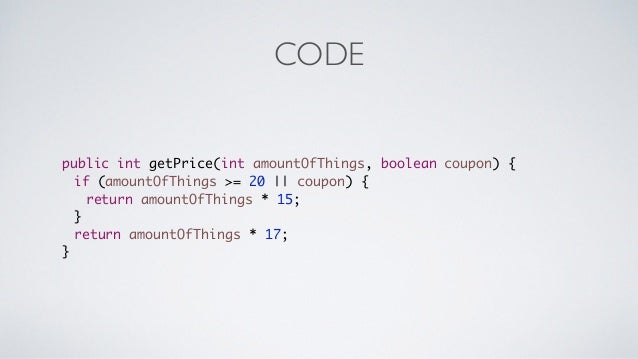

CODE
public int getPrice(int amountOfThings, boolean coupon) {
if (amountOfThings >= 20 || coupon) {
return amountOfThings * 15;
}
return amountOfThings * 17;
}

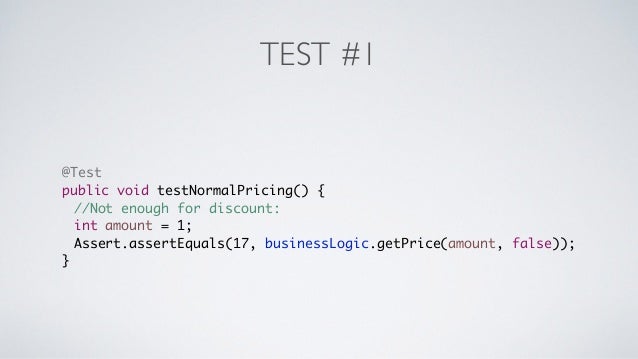

TEST #1
@Test
public void testNormalPricing() {
//Not enough for discount:
int amount = 1;
Assert.assertEquals(17, businessLogic.getPrice(amount, false));
}
BRANCH COVERAGE
public int getPrice(int amountOfThings, boolean coupon) {
if (amountOfThings >= 20 || coupon) {
return amountOfThings * 15;
}
return amountOfThings * 17;
}

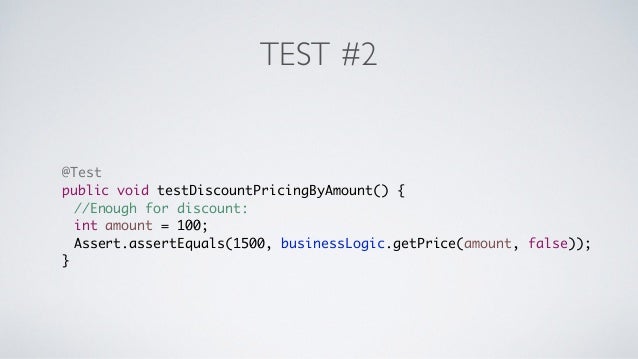

TEST #2
@Test
public void testDiscountPricingByAmount() {
//Enough for discount:
int amount = 100;
Assert.assertEquals(1500, businessLogic.getPrice(amount, false));
}

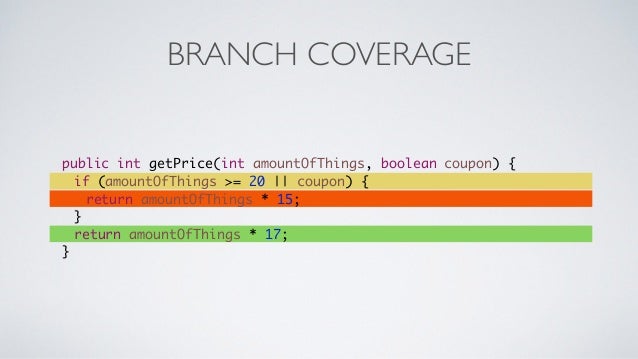

BRANCH COVERAGE
public int getPrice(int amountOfThings, boolean coupon) {
if (amountOfThings >= 20 || coupon) {
return amountOfThings * 15;
}
return amountOfThings * 17;
}

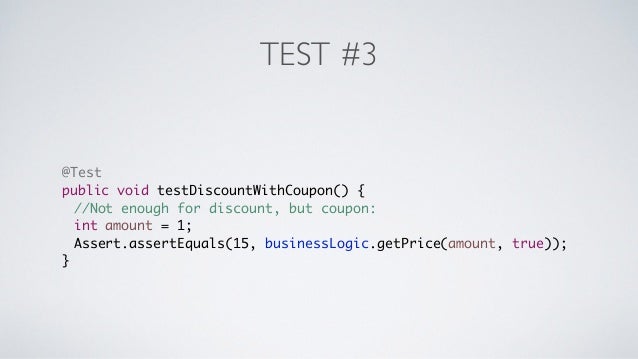

TEST #3
@Test
public void testDiscountWithCoupon() {
//Not enough for discount, but coupon:
int amount = 1;
Assert.assertEquals(15, businessLogic.getPrice(amount, true));
}

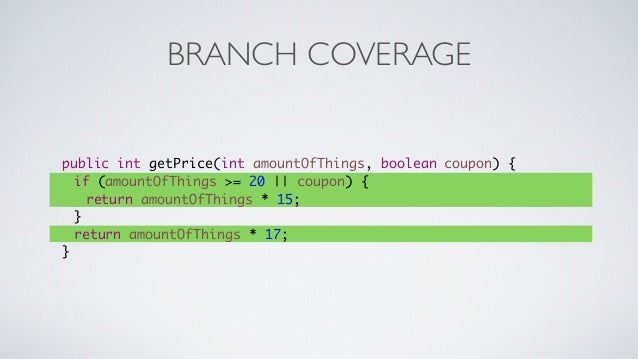

BRANCH COVERAGE
public int getPrice(int amountOfThings, boolean coupon) {
if (amountOfThings >= 20 || coupon) {
return amountOfThings * 15;
}
return amountOfThings * 17;
}

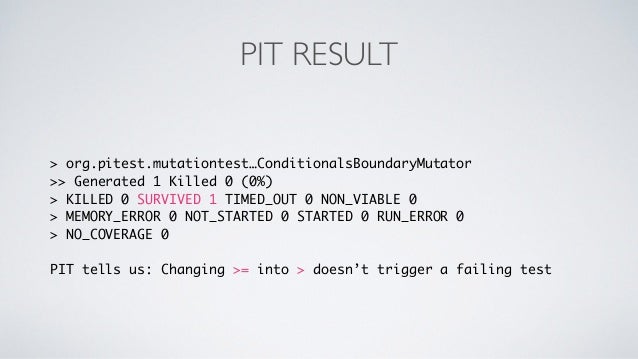

PIT RESULT
PIT RESULT
> org.pitest.mutationtest…ConditionalsBoundaryMutator
>> Generated 1 Killed 0 (0%)
> KILLED 0 SURVIVED 1 TIMED_OUT 0 NON_VIABLE 0
> MEMORY_ERROR 0 NOT_STARTED 0 STARTED 0 RUN_ERROR 0
> NO_COVERAGE 0
PIT tells us: Changing >= into > doesn’t trigger a failing test

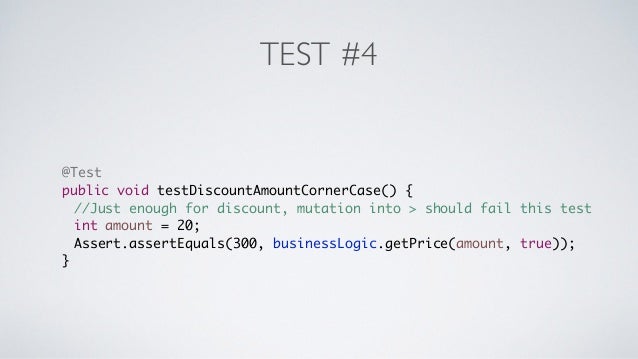

TEST #4
@Test
public void testDiscountAmountCornerCase() {
//Just enough for discount, mutation into > should fail this test
int amount = 20;
Assert.assertEquals(300, businessLogic.getPrice(amount, true));
}
BRANCH COVERAGE
public int getPrice(int amountOfThings, boolean coupon) {
if (amountOfThings >= 20 || coupon) {
return amountOfThings * 15;
}
return amountOfThings * 17;
}

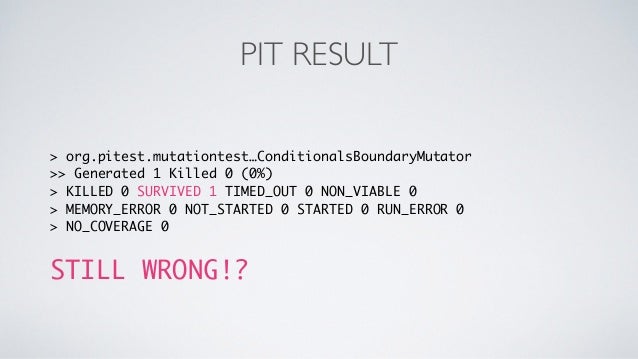

PIT RESULT
PIT RESULT
> org.pitest.mutationtest…ConditionalsBoundaryMutator
>> Generated 1 Killed 0 (0%)
> KILLED 0 SURVIVED 1 TIMED_OUT 0 NON_VIABLE 0
> MEMORY_ERROR 0 NOT_STARTED 0 STARTED 0 RUN_ERROR 0
> NO_COVERAGE 0
STILL WRONG!?

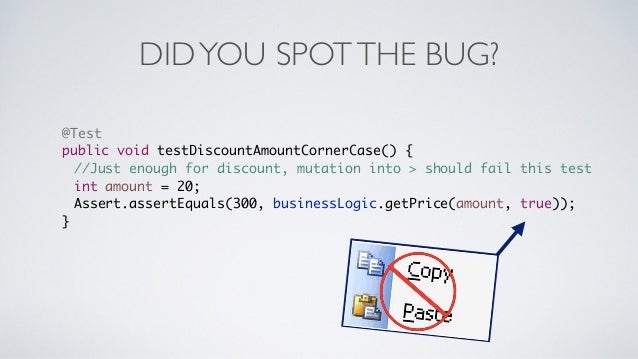

DID YOU SPOT THE BUG?
@Test
public void testDiscountAmountCornerCase() {
//Just enough for discount, mutation into > should fail this test
int amount = 20;
Assert.assertEquals(300, businessLogic.getPrice(amount, true));
}

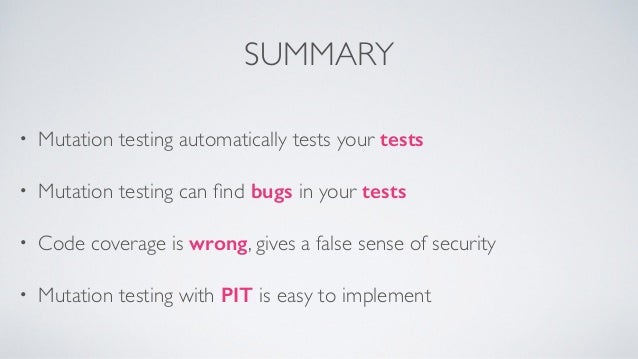

SUMMARY
• Mutation testing automatically tests your tests
• Mutation testing can find bugs in your tests
• Code coverage is wrong, gives a false sense of security
• Mutation testing with PIT is easy to implement

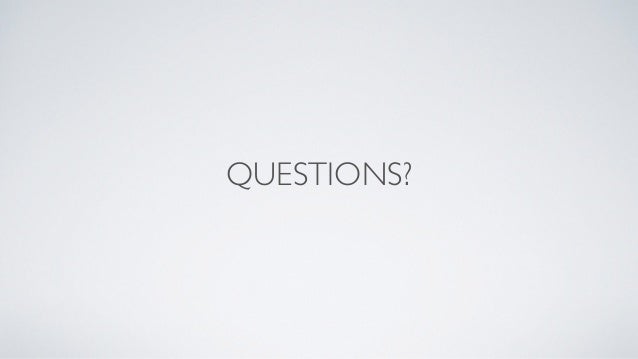

QUESTIONS?
