1. From alert(‘xss’) to Meterpreter with a single click
Roberto Suggi Liverani
Ruhr-Universität Bochum
HackPra 2012/2013
1

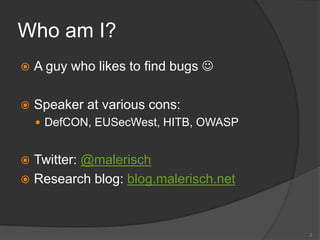

2. Who am I?
 A guy who likes to find bugs 
 Speaker at various cons:
 DefCON, EUSecWest, HITB, OWASP
 Twitter: @malerisch
 Research blog: blog.malerisch.net
2

3. Outline
 Cross Context Scripting (XCS)
 Past research
 Recent discoveries
 Further attack surface
3

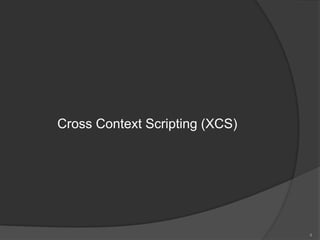

4. Cross Context Scripting (XCS)
4

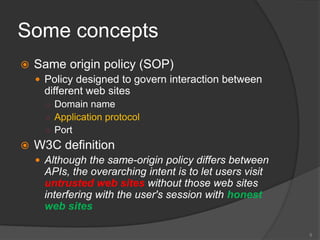

5. Some concepts
 Same origin policy (SOP)
 Policy designed to govern interaction between
different web sites
○ Domain name
○ Application protocol
○ Port
 W3C definition
 Although the same-origin policy differs between
APIs, the overarching intent is to let users visit
untrusted web sites without those web sites
interfering with the user's session with honest
web sites
5

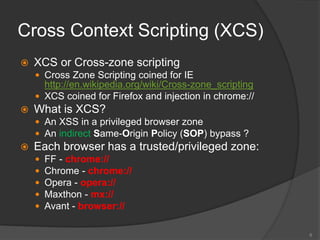

6. Cross Context Scripting (XCS)
 XCS or Cross-zone scripting
 Cross Zone Scripting coined for IE
http://en.wikipedia.org/wiki/Cross-zone_scripting
 XCS coined for Firefox and injection in chrome://
 What is XCS?
 An XSS in a privileged browser zone
 An indirect Same-Origin Policy (SOP) bypass ?
 Each browser has a trusted/privileged zone:
 FF - chrome://
 Chrome - chrome://
 Opera - opera://
 Maxthon - mx://
 Avant - browser://
6

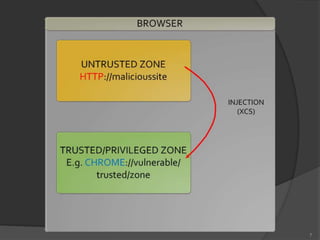

7. 7

8. XCS
 Browser privileged/trusted zone
 Access to internal API interfaces:
○ Browser
 Browser settings
 Bookmarks, storage, etc.
○ OS
 File system – I/O
 Example
○ Firefox model
 Firefox addons can run privileged code
8

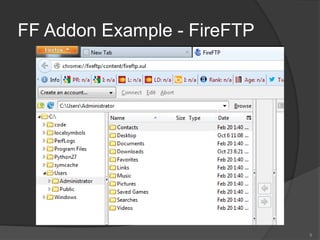

9. FF Addon Example - FireFTP
9

10. Google Chrome – Settings
Page
10

11. Opera History
11

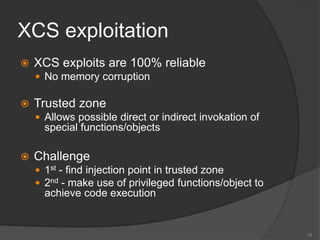

12. XCS exploitation
 XCS exploits are 100% reliable
 No memory corruption
 Trusted zone
 Allows possible direct or indirect invokation of
special functions/objects
 Challenge
 1st - find injection point in trusted zone
 2nd - make use of privileged functions/object to
achieve code execution
12

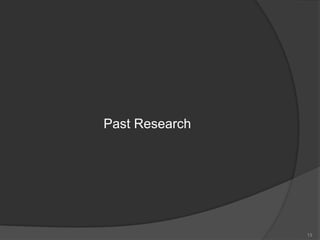

13. Past Research
13

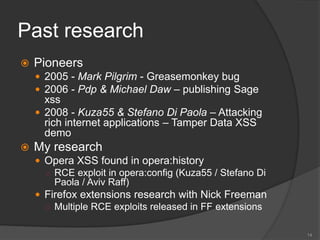

14. Past research
 Pioneers
 2005 - Mark Pilgrim - Greasemonkey bug
 2006 - Pdp & Michael Daw – publishing Sage
xss
 2008 - Kuza55 & Stefano Di Paola – Attacking
rich internet applications – Tamper Data XSS
demo
 My research
 Opera XSS found in opera:history
○ RCE exploit in opera:config (Kuza55 / Stefano Di
Paola / Aviv Raff)
 Firefox extensions research with Nick Freeman
○ Multiple RCE exploits released in FF extensions
14

15. Opera XSS history (1/3)
 Opera XSS history – CVE 2008-4696
 Metasploit - 'egypt', # msf module
 Step 1 - Injection in opera:history via the
fragment part
15

16. Opera XSS Exploit (2/3)
 Step 2 - Force redirection to
opera:history to trigger execution
 Note : SOP bypass
16

17. Opera XSS Exploit (3/3)
 Step 3 – Execute exploit payload
17

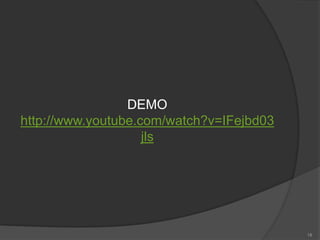

18. DEMO
http://www.youtube.com/watch?v=IFejbd03
jls
18

19. Firefox extensions
 Firefox and extensions security model
 Extension code is fully trusted by Firefox
 No security boundaries between extensions
 Extensions vulnerabilities are platform
independent
 Lack of security policies to allow/deny Firefox
access to internal API, XPCOM components,
etc.
 After 3 years…
 No much change
 A vulnerable extension can still be used to
compromise a system
19

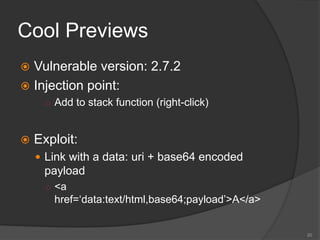

20. Cool Previews
 Vulnerable version: 2.7.2
 Injection point:
○ Add to stack function (right-click)
 Exploit:
 Link with a data: uri + base64 encoded
payload
○ <a
href=‘data:text/html,base64;payload’>A</a>
20

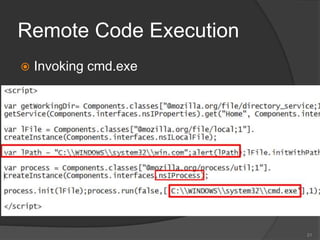

21. Remote Code Execution
 Invoking cmd.exe
21

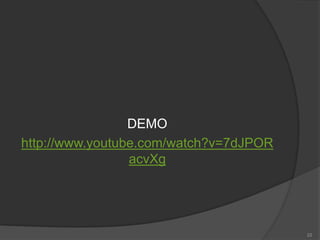

22. DEMO
http://www.youtube.com/watch?v=7dJPOR
acvXg
22

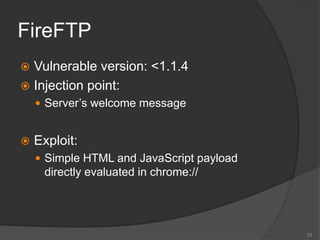

23. FireFTP
 Vulnerable version: <1.1.4
 Injection point:
 Server’s welcome message
 Exploit:
 Simple HTML and JavaScript payload
directly evaluated in chrome://
23

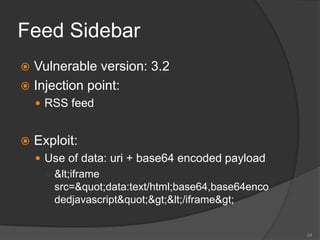

24. Feed Sidebar
 Vulnerable version: 3.2
 Injection point:
 RSS feed
 Exploit:
 Use of data: uri + base64 encoded payload
○ &lt;iframe
src=&quot;data:text/html;base64,base64enco
dedjavascript&quot;&gt;&lt;/iframe&gt;
24

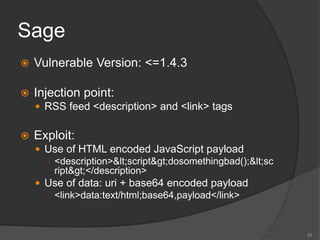

25. Sage
 Vulnerable Version: <=1.4.3
 Injection point:
 RSS feed <description> and <link> tags
 Exploit:
 Use of HTML encoded JavaScript payload
○ <description>&lt;script&gt;dosomethingbad();&lt;sc
ript&gt;</description>
 Use of data: uri + base64 encoded payload
○ <link>data:text/html;base64,payload</link>
25

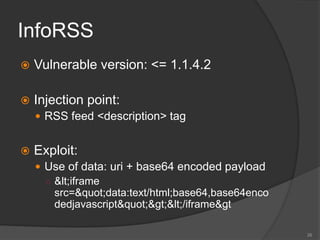

26. InfoRSS
 Vulnerable version: <= 1.1.4.2
 Injection point:
 RSS feed <description> tag
 Exploit:
 Use of data: uri + base64 encoded payload
○ &lt;iframe
src=&quot;data:text/html;base64,base64enco
dedjavascript&quot;&gt;&lt;/iframe&gt
26

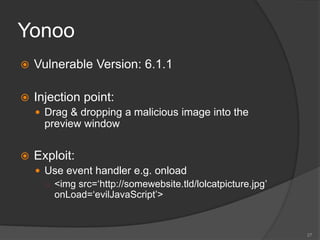

27. Yonoo
 Vulnerable Version: 6.1.1
 Injection point:
 Drag & dropping a malicious image into the
preview window
 Exploit:
 Use event handler e.g. onload
○ <img src=‘http://somewebsite.tld/lolcatpicture.jpg’
onLoad=‘evilJavaScript’>
27

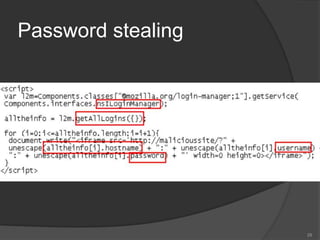

28. Password stealing
28

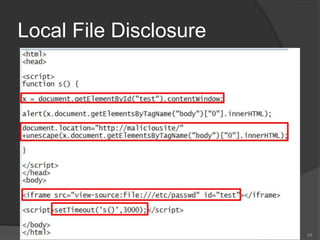

29. Local File Disclosure
29

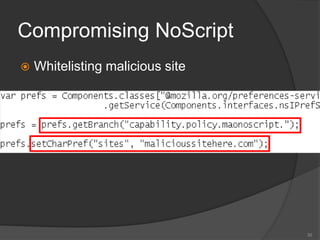

30. Compromising NoScript
 Whitelisting malicious site
30

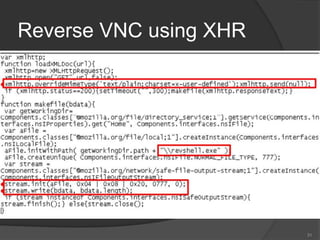

31. Reverse VNC using XHR
31

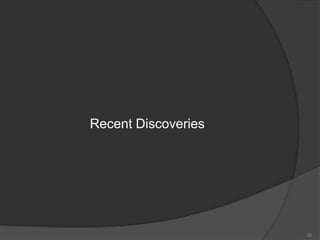

32. Recent Discoveries
32

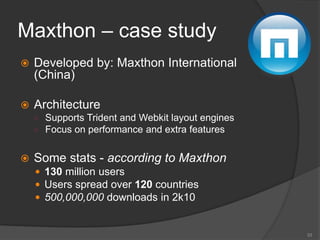

33. Maxthon – case study
 Developed by: Maxthon International
(China)
 Architecture
○ Supports Trident and Webkit layout engines
○ Focus on performance and extra features
 Some stats - according to Maxthon
 130 million users
 Users spread over 120 countries
 500,000,000 downloads in 2k10
33

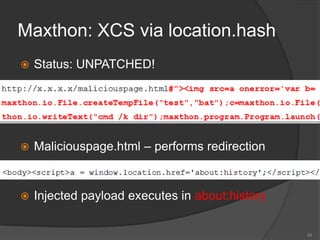

34. Maxthon: XCS via location.hash
 Status: UNPATCHED!
 Maliciouspage.html – performs redirection
 Injected payload executes in about:history
34

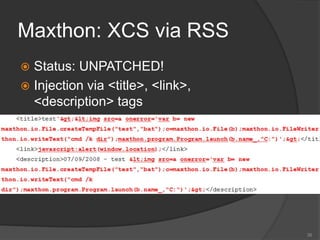

35. Maxthon: XCS via RSS
 Status: UNPATCHED!
 Injection via <title>, <link>,
<description> tags
35

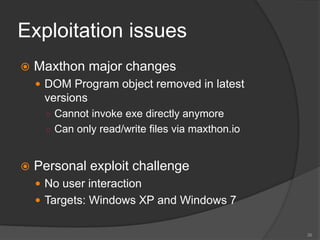

36. Exploitation issues
 Maxthon major changes
 DOM Program object removed in latest
versions
○ Cannot invoke exe directly anymore
○ Can only read/write files via maxthon.io
 Personal exploit challenge
 No user interaction
 Targets: Windows XP and Windows 7
36

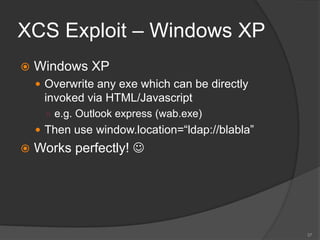

37. XCS Exploit – Windows XP
 Windows XP
 Overwrite any exe which can be directly
invoked via HTML/Javascript
○ e.g. Outlook express (wab.exe)
 Then use window.location=“ldap://blabla”
 Works perfectly! 
37

38. XCS Exploit – Windows 7
 In Windows 7 (universal approach)
 User is prompted using WinXP approach
 Overwrite registry hives?
 Touch registry?
 Dirty approach but effective:
○ Overwrite one of the exe when Java applet is
rendered
○ jp2launcher.exe is a good candidate
 Then point to an iframe with a java applet =
WIN! 
38

39. Metasploit modules
 https://github.com/malerisch/metasploit-
framework/blob/maxthon3/modules/exploits/windows/browser/maxt
hon_history_xcs.rb
 https://github.com/malerisch/metasploit-
framework/blob/maxthon3/modules/exploits/windows/browser/maxt
hon_rss_xcs.rb
39

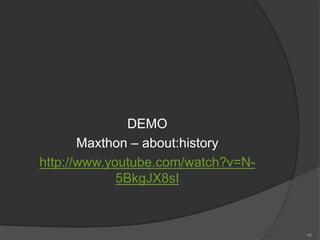

40. DEMO
Maxthon – about:history
http://www.youtube.com/watch?v=N-
5BkgJX8sI
40

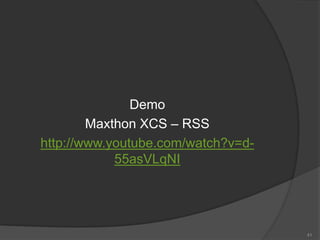

41. Demo
Maxthon XCS – RSS
http://www.youtube.com/watch?v=d-
55asVLqNI
41

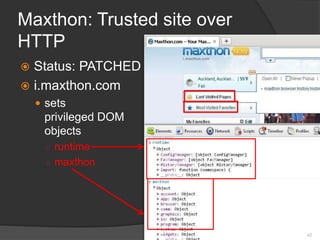

42. Maxthon: Trusted site over
HTTP
 Status: PATCHED
 i.maxthon.com
 sets
privileged DOM
objects
○ runtime
○ maxthon
42

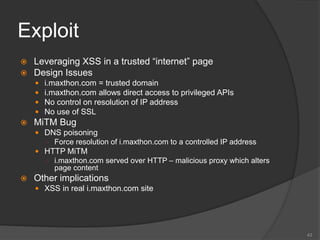

43. Exploit
 Leveraging XSS in a trusted “internet” page
 Design Issues
 i.maxthon.com = trusted domain
 i.maxthon.com allows direct access to privileged APIs
 No control on resolution of IP address
 No use of SSL
 MiTM Bug
 DNS poisoning
○ Force resolution of i.maxthon.com to a controlled IP address
 HTTP MiTM
○ i.maxthon.com served over HTTP – malicious proxy which alters
page content
 Other implications
 XSS in real i.maxthon.com site
43

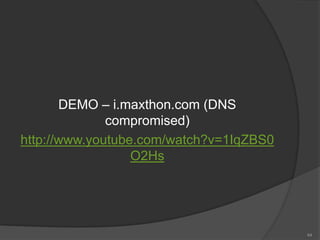

44. DEMO – i.maxthon.com (DNS
compromised)
http://www.youtube.com/watch?v=1IqZBS0
O2Hs
44

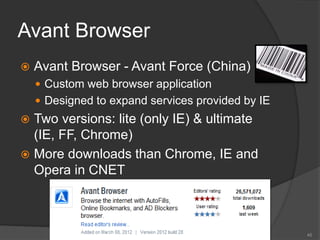

45. Avant Browser
 Avant Browser - Avant Force (China)
 Custom web browser application
 Designed to expand services provided by IE
 Two versions: lite (only IE) & ultimate
(IE, FF, Chrome)
 More downloads than Chrome, IE and
Opera in CNET
45

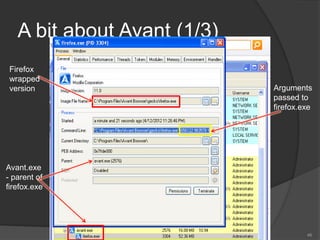

46. A bit about Avant (1/3)
Firefox
wrapped
version Arguments
passed to
firefox.exe
Avant.exe
- parent of
firefox.exe
46

47. A bit about Avant (2/3)
 Interesting files
 "C:Program FilesAvant Browserres" folder:
 Observations
 home.tpl is rendered at browser:home
 rss.tpl is rendered at browser://localhost/lst?url/path/to/rss/feed
 Such pages use privileged JavaScript function
window.AFRunCommand()
 Pages provided examples on how to call privileged functions and
aided exploitation
47

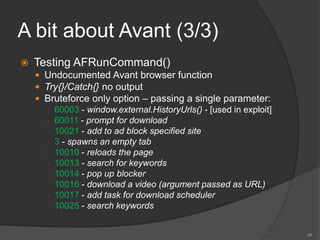

48. A bit about Avant (3/3)
 Testing AFRunCommand()
 Undocumented Avant browser function
 Try{}/Catch{} no output
 Bruteforce only option – passing a single parameter:
○ 60003 - window.external.HistoryUrls() - [used in exploit]
○ 60011 - prompt for download
○ 10021 - add to ad block specified site
○ 3 - spawns an empty tab
○ 10010 - reloads the page
○ 10013 - search for keywords
○ 10014 - pop up blocker
○ 10016 - download a video (argument passed as URL)
○ 10017 - add task for download scheduler
○ 10025 - search keywords
48

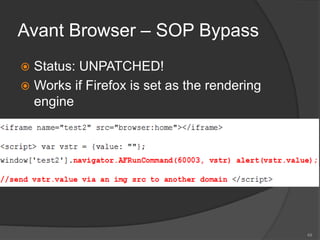

49. Avant Browser – SOP Bypass
 Status: UNPATCHED!
 Works if Firefox is set as the rendering
engine
49

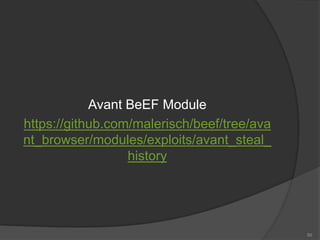

50. Avant BeEF Module
https://github.com/malerisch/beef/tree/ava
nt_browser/modules/exploits/avant_steal_
history
50

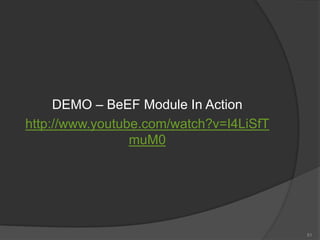

51. DEMO – BeEF Module In Action
http://www.youtube.com/watch?v=I4LiSfT
muM0
51

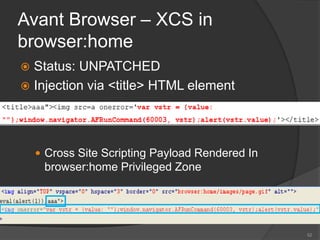

52. Avant Browser – XCS in
browser:home
 Status: UNPATCHED
 Injection via <title> HTML element
 Cross Site Scripting Payload Rendered In
browser:home Privileged Zone
52

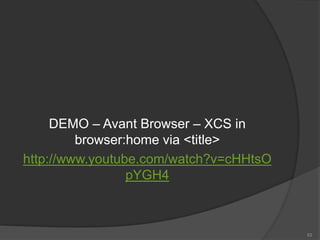

53. DEMO – Avant Browser – XCS in
browser:home via <title>
http://www.youtube.com/watch?v=cHHtsO
pYGH4
53

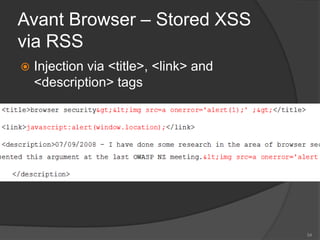

54. Avant Browser – Stored XSS
via RSS
 Injection via <title>, <link> and
<description> tags
54

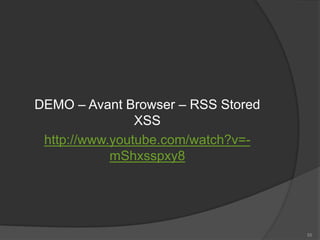

55. DEMO – Avant Browser – RSS Stored
XSS
http://www.youtube.com/watch?v=-
mShxsspxy8
55

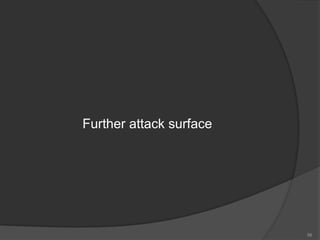

56. Further attack surface
56

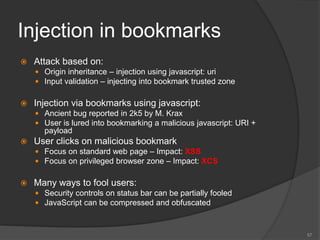

57. Injection in bookmarks
 Attack based on:
 Origin inheritance – injection using javascript: uri
 Input validation – injecting into bookmark trusted zone
 Injection via bookmarks using javascript:
 Ancient bug reported in 2k5 by M. Krax
 User is lured into bookmarking a malicious javascript: URI +
payload
 User clicks on malicious bookmark
 Focus on standard web page – Impact: XSS
 Focus on privileged browser zone – Impact: XCS
 Many ways to fool users:
 Security controls on status bar can be partially fooled
 JavaScript can be compressed and obfuscated
57

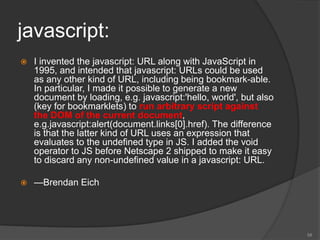

58. javascript:
 I invented the javascript: URL along with JavaScript in
1995, and intended that javascript: URLs could be used
as any other kind of URL, including being bookmark-able.
In particular, I made it possible to generate a new
document by loading, e.g. javascript:'hello, world', but also
(key for bookmarklets) to run arbitrary script against
the DOM of the current document,
e.g.javascript:alert(document.links[0].href). The difference
is that the latter kind of URL uses an expression that
evaluates to the undefined type in JS. I added the void
operator to JS before Netscape 2 shipped to make it easy
to discard any non-undefined value in a javascript: URL.
 —Brendan Eich
58

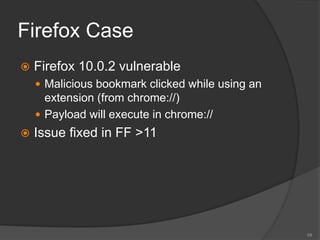

59. Firefox Case
 Firefox 10.0.2 vulnerable
 Malicious bookmark clicked while using an
extension (from chrome://)
 Payload will execute in chrome://
 Issue fixed in FF >11
59

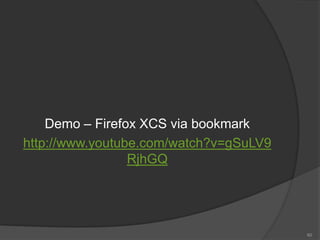

60. Demo – Firefox XCS via bookmark
http://www.youtube.com/watch?v=gSuLV9
RjhGQ
60

61. Opera
 Opera 12.10
 javascript: can be bookmarked
 Origin inheritance - opera:config vulnerable
to XCS if javascript:// bookmarklet is
triggered
 Mail app handler can be set with a UNC
path e.g. myremotemeterpreter.exe
61

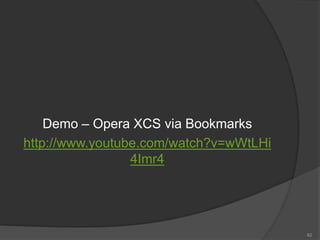

62. Demo – Opera XCS via Bookmarks
http://www.youtube.com/watch?v=wWtLHi
4Imr4
62

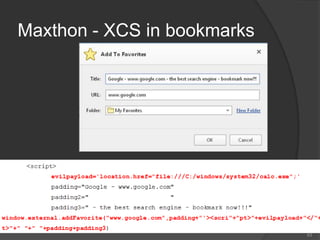

63. Maxthon - XCS in bookmarks
63

64. Demo – Maxthon XCS in bookmarks
http://www.youtube.com/watch?v=YR0RQ
z45t3M
64

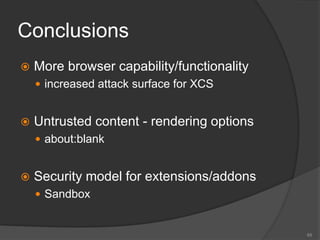

65. Conclusions
 More browser capability/functionality
 increased attack surface for XCS
 Untrusted content - rendering options
 about:blank
 Security model for extensions/addons
 Sandbox
65

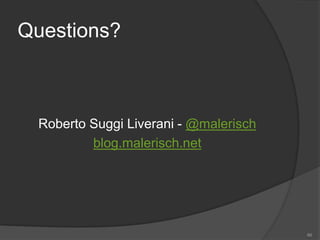

66. Questions?
Roberto Suggi Liverani - @malerisch
blog.malerisch.net
66

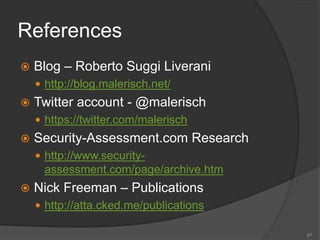

67. References
 Blog – Roberto Suggi Liverani
 http://blog.malerisch.net/
 Twitter account - @malerisch
 https://twitter.com/malerisch
 Security-Assessment.com Research
 http://www.security-
assessment.com/page/archive.htm
 Nick Freeman – Publications
 http://atta.cked.me/publications
67

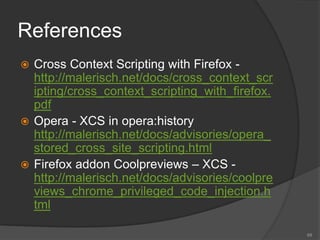

68. References
 Cross Context Scripting with Firefox -
http://malerisch.net/docs/cross_context_scr
ipting/cross_context_scripting_with_firefox.
pdf
 Opera - XCS in opera:history
http://malerisch.net/docs/advisories/opera_
stored_cross_site_scripting.html
 Firefox addon Coolpreviews – XCS -
http://malerisch.net/docs/advisories/coolpre
views_chrome_privileged_code_injection.h
tml
68

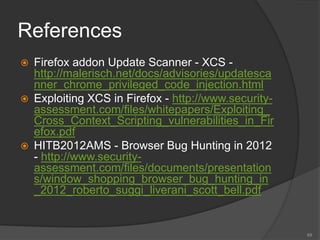

69. References
 Firefox addon Update Scanner - XCS -
http://malerisch.net/docs/advisories/updatesca
nner_chrome_privileged_code_injection.html
 Exploiting XCS in Firefox - http://www.security-
assessment.com/files/whitepapers/Exploiting_
Cross_Context_Scripting_vulnerabilities_in_Fir
efox.pdf
 HITB2012AMS - Browser Bug Hunting in 2012
- http://www.security-
assessment.com/files/documents/presentation
s/window_shopping_browser_bug_hunting_in
_2012_roberto_suggi_liverani_scott_bell.pdf
69
