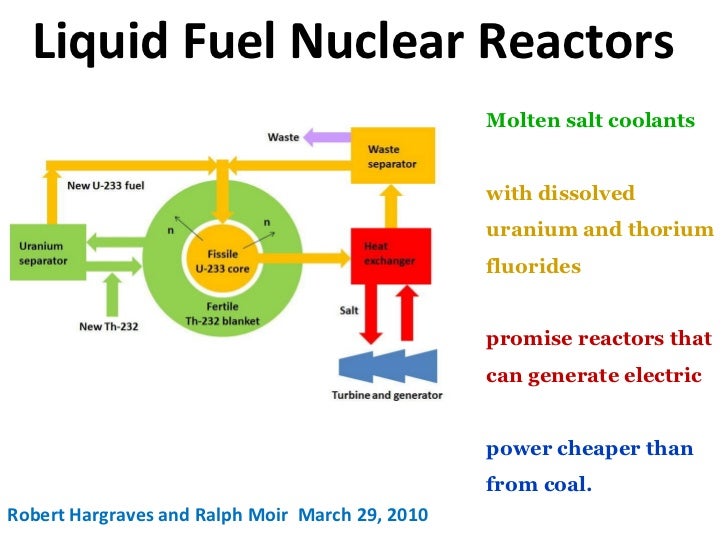

Liquid Fuel Nuclear Reactors Molten salt coolants with dissolved uranium and thorium fluorides  promise reactors that can ...
1934: Hungarian physicist Leó Szilárd filed a patent for chain reaction fission.
Enrico Fermi sketched a lattice of graphite and uranium oxide.
Fermi's 1942 Chicago pile illustrated criticality.
Fermi's 1944 first fluid reactor measured U-235 critical mass. uranyl sulfate in water all the world's U-235 ! beryllium o...
Weinberg's PWR was heterogeneous. uranium fuel rods moderating water
The aqueous homogeneous reactor at Oak Ridge generated 140 kW in 1953. Richard Engel adds 300 g of uranium in 500 ml of he...
LAMPRE Los Alamos Molten Plutonium Reactor Experiment 1961-1963 molten iron and plutonium fuel liquid sodium cooled
J J Went developed a 1 MW suspension test reactor in 1974 at KEMA, Netherlands. A homogeneous slurry of uranium and thoriu...
Weinberg had proposed the PWR to Rickover's team for naval propulsion.
Rickover + Shippingport    100 US PWRs.
Radiation, fission products, and heat damage solid fuel. Zirconium cladding must contain fuel for centuries.
Spent fuel contains  fission products ,  fissile fuel , and  fertile uranium . trace % minor actinides Np, Am, Cm, … Enric...
France reprocesses some spent fuel. in temporary or permanent storage http://spectrum.ieee.org/print/4891 1450 T fresh fue...
Actinides fission or absorb neutrons to form new actinides, which ....
LMFBR LFTR PWR Two breeding technologies provide 10 2  X more energy than 0.7% U-235.
All five US LMFBRs were shut down, as was the Integral Fast Reactor project. Fission product wastes Oxides to metals Futur...
In LFTR the liquid Th-232 blanket becomes the U-233 liquid fuel.
Weinberg and Oak Ridge developed the first molten salt nuclear reactor in 1954. 860 C Red hot! 100 hours 2.5 MW
235 UF 4  fuel in molten NaF and ZrF 4  salt flowed through beryllium moderators. intrinsic reactivity stability automatic...

1.4 m diameter NaK metal would transfer 200 MW thermal power to jet engines.
The Molten Salt Reactor Experiment ran until 1965. Salt flowed through channels in this graphite core.
http://www.ornl.gov/~webworks/cppr/y2006/pres/124659.pdf <ul><li>The Molten Salt Reactor Experiment succeeded. </li></ul><...
http://www.ornl.gov/~webworks/cppr/y2006/pres/124659.pdf <ul><li>The Molten Salt Reactor Experiment succeeded. </li></ul><...
http://www.ornl.gov/~webworks/cppr/y2006/pres/124659.pdf <ul><li>The Molten Salt Reactor Experiment succeeded. </li></ul><...

Weinberg had envisioned LFTR ever since the 1943 Wigner aqueous design. &quot; humankind's whole future depended upon this...
Global warming, overpopulation, and resources competition are increasing.
Dennis Meadows’  Limits to Growth  showed effects of finite resources. http://www.aspoitalia.net/images/stories/aspo5prese...
Energy cheaper than from coal is important.
Energy cheaper than from coal is important. Copenhagen failed.
Energy cheaper than from coal is important. Copenhagen failed. Coal costs $40 a ton – $0.02 / kWh just for the coal.
Population is stable in developed nations. http://caliban.sourceoecd.org/vl=1260748/cl=17/nw=1/rpsv/factbook/010101.htm US...
Prosperity stabilizes population. https://www.cia.gov/library/publications/the-world-factbook/docs/rankorderguide.html GDP...
Prosperity stabilizes population. https://www.cia.gov/library/publications/the-world-factbook/docs/rankorderguide.html GDP...
Prosperity stabilizes population. https://www.cia.gov/library/publications/the-world-factbook/docs/rankorderguide.html GDP...
Prosperity depends on energy. https://www.cia.gov/library/publications/the-world-factbook/rankorder/2042rank.html GDP per ...
Prosperity depends on energy. Prosperity  https://www.cia.gov/library/publications/the-world-factbook/rankorder/2042rank.h...
LFTR can make electricity cheaper than from coal. http://www.bloomberg.com/apps/news?pid=20601080&refer=asia&sid=aV_2FPlVx...
The median of five cost estimates for molten salt reactors is < $2/watt. Estimate Year $/watt 2009 $/watt Sargent & Lundy ...
LFTR needs no costly 160-atmosphere pressure vessel and containment dome. GE-Hitachi ABWR 39 months 1,356 MW 36 x 29 meter...
The Westinghouse Toshiba AP-1000 is massively larger than a 100 MW LFTR. AP-1000 Samen, China Jan 2010
The Westinghouse AP-1000 is massively larger than LFTR. 1.4 m 1.4 m AP-1000 Samen, China Jan 2010
LFTR relies on simple, intrinsic safety systems, not costly defense in depth. Stable reactivity. Fuel already melted. Atmo...
High thermal energy efficiencies keep LFTR compact and low cost. Molten salt is a high thermal capacity heat exchange flui...
Closed cycle Brayton turbine raises power conversion efficiency to 45+%.  Halving rejected heat enables air cooling.
Boeing makes one $200 million aircraft per day.
The learning curve experience runs counter to economy of scale. 10% learning ratio
By-product   U-232’ s   decay chain emits  gamma rays  hazardous to bomb builders . neutron absorption beta decay neutron ...
Uranium separator Fertile Th-232 blanket Fissile U-233 core New U-233 fuel New Th-232 n n Uranium from a commercial LFTR w...
Uranium separator Fertile Th-232 blanket Fissile U-233 core New U-233 fuel New Th-232 n n Uranium from a commercial LFTR w...
Uranium separator Fertile Th-232 blanket Fissile U-233 core New U-233 fuel New Th-232 n n Uranium from a commercial LFTR w...
Uranium separator Fertile Th-232 blanket Fissile U-233 core New U-233 fuel New Th-232 n n Uranium from a commercial LFTR w...
LFTR produces much less long lived radiotoxic actinide waste.
Moir and Teller proposed LFTR R&D in 2005
US R&D in nuclear fission had dropped – to zero for breeders. IAEA, via Inter. Panel on Fissile Materials Feb 2010
A prototype LFTR could be operational in 5 years. 2010 2015 2020 Develop Scale up Produce $ 1 B $ 5 B $ 70 B per year indu...
A prototype LFTR could be operational in 5 years. 2010 2015 2020 Develop Scale up Produce $ 1 B $ 5 B $ 70 B per year indu...
Aim High! Zero emissions worldwide. http://www.eia.doe.gov/pub/international/iealf/table63.xls Install one 100 MW LFTR eac...
Aim High! Synthesize fuel and fertilizer. http://wwwtest.iri.tudelft.nl/~klooster/reports/hydro_slides_2003.pdf Dissociate...
Aim High!  Check population growth, pollution, and resources use. Resources Population Food Pollution Industrial Output
Liquid Fuel Nuclear Reactors  will be published this summer.
