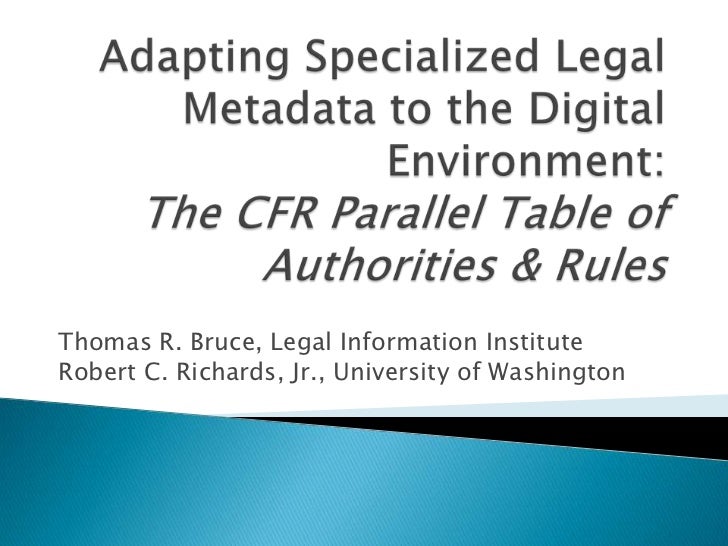

Adapting Specialized Legal Metadata to the Digital Environment: The CFR Parallel Table of Authorities & Rules<br />Thomas ...
Governments create multiple sources of law<br />The sources are interrelated, but exist as isolated “islands” of legal kno...
Example: How to find all regulations issued pursuant to US Food, Drug, & Cosmetic Act, 21 U.S.C. ch.9?<br />Two “Islands”:...
In the print environment, specialized legal metadata sources were created, to make explicit relationships between differen...
Parallel Table of Authorities & Rules (PTOA)<br />Metadata in the Code of Federal Regulations (CFR)<br />Links statutes to...
1 U.S.C.  112.......................................................1 Part 2  112a--112b.....................................
Most ponts created for print environment require human intervention to ensure connection between the different legal sourc...
Goals:<br />Disintermediation:<br />Make PTOA processable by software without human intervention<br />Foster interoperabil...
Recommended formats:<br />XML <br />RDF/OWL<br />Why XML & RDF/OWL?<br />Open, international standards<br />Widely used an...
Information Retrieval & Discovery<br />Bidirectional discovery<br />Revelation of implicit relationships<br />Automated re...
Semantics (Ambiguity)<br />Directionality<br />Granularity<br />Data Quality<br />PTOA: Obstacles to Preparation for Digit...
1. Relationships between sources are ambiguous<br />Relationships represented in a PTOA row may be of four possible types:...
2. Some PTOA rows list multiple sources on one or both sides:<br />1 U.S.C.  112.............................................
Result: In many PTOA rows, relationships between sources are multiple and complex<br />Result: In most rows, the precise m...
In PTOA, retrieval and discovery can only occur in one direction: from statute to regulation<br />1 U.S.C. […]<br />  112a...
But in digital world, PTOA could add great value if it were bidirectional: if it enabled discovery from regulations to sta...
PTOA regulation cites refer only to the “Part” level of CFR<br />But the relationships intended to be represented in PTOA ...
“1 U.S.C. […]<br />“112a--112b................................22 Part 181”<br />1 U.S.C. section 112b (subsection (f)) fur...
So each PTOA row must be analyzed & divided into multiple rows at accurate level of granularity<br />PTOA Obstacles: Granu...
Production of PTOA is decentralized: each individual agency creates rows for its regulations<br />Result: Inconsistent qua...
<?xml version="1.0" encoding="UTF-8"?><br />  <ptoa><br />       <ptoaentry><br />          <!-- Example 1 --><br />      ...
<?xml version="1.0" encoding="UTF-8"?><br />  <ptoa><br /><ptoaentry><br /><authority type="implicit_authority"><br /><usc...
<owl:ObjectPropertyrdf:ID="implicitlyAuthorizes"><br /> <owl:inverseOf><br />         <owl:ObjectProperty<br />rdf:ID="isI...
<owl:ObjectProperty<br />rdf:ID="hasUSCSectionFragment"><br />  <rdfs:domain<br />rdf:resource="#USCodeSection"/><br /><ow...
Earlier studies of print-based ponts introduced into digital environment: Al-Kofahi et al. (2001); Dabney (1986) McDermott...
Legislation.gov.uk (Legislative Information Retrieval): Table of Legislative Effects, CEN MetaLex (legislative status)<br ...
Congressional Record: “History of Bills & Resolutions”<br />CFR List of Subjects & Subject Index<br />United States Code S...
Spring 2011: Receive input from colleagues at conferences<br />Summer & Fall 2011: Build prototype<br />Digital PTOA: Next...
Al-Kofahi, K., Tyrrell, A., Vachher, A., Travers, T., and Jackson, P. 2001. Combining multiple classifiers for text catego...
Boer, A. and Van Engers, T. 2009. The Agile project: Reconciling agility and legal accountability. In Proceedings ofICT4JU...
Dabney, D. P. 1986. The curse of Thamus: An analysis of full-text legal document retrieval. Law Libr. J. 78 ,1 (Win. 1986)...
García, R. and Gil, R. 2008. A Web ontology for copyright contracts management. Int. J. Electron. Comm. 12, 4 (Sum. 2008),...
Nadah, N., Dulong de Rosnay, M., and Bachimont, B. 2007. Licensing digital content with a generic ontology: Escaping from ...
Tom Bruce, Legal Information Institute, trb2 [at] cornell.edu<br />Robert Richards, University of Washington, robertrichar...
