Hackfest 2019 Talk

  1. 1. Why Johnny Still Can’t Pentest: A Comparative Analysis of Open-source Web Application Vulnerability Scanners @rana__khali By: Rana Khalil
  2. 2. whoami @rana__khali • Security assessment analyst • Master in Computer Science under the supervision of Dr. Carlisle Adams • Speaker at BSides, ISSA and OWASP Ottawa, and WiCyS
  3. 3. Let me weave you a tale…. @rana__khali
  4. 4. This is Johnny @rana__khali
  5. 5. @rana__khali Company X You need to develop secure software!

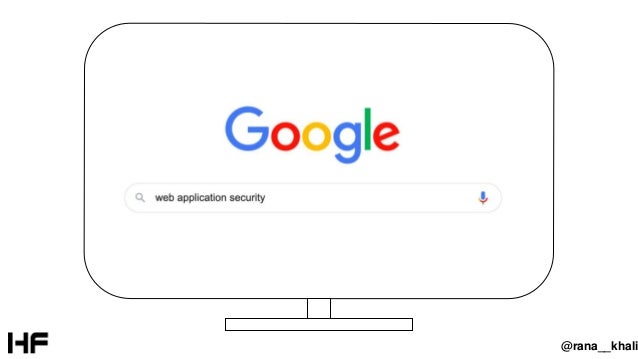

  6. 6. @rana__khali

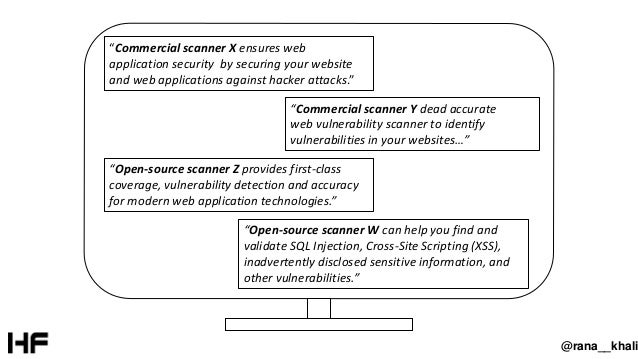

  7. 7. @rana__khali “Commercial scanner X ensures web application security by securing your website and web applications against hacker attacks.” “Commercial scanner Y dead accurate web vulnerability scanner to identify vulnerabilities in your websites…” “Open-source scanner Z provides first-class coverage, vulnerability detection and accuracy for modern web application technologies.” “Open-source scanner W can help you find and validate SQL Injection, Cross-Site Scripting (XSS), inadvertently disclosed sensitive information, and other vulnerabilities.”

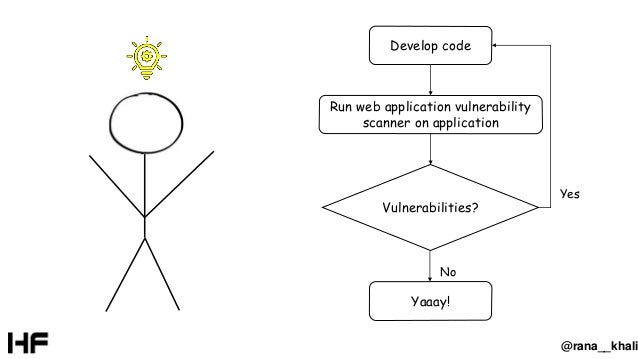

  8. 8. @rana__khali Vulnerabilities? Develop code Run web application vulnerability scanner on application Yes Yaaay! No
  9. 9. @rana__khali I’m freaking amazing! I can do it all! And that worked out great for Johnny
  10. 10. @rana__khali And that worked out great for Johnny….until it didn’t Vulnerability #1 Vulnerability #2 Vulnerability #3 ………… Vulnerability ∞ Pentest Findings
  11. 11. @rana__khali • How do these tools work? • Do they require special configuration? • How much coverage do they achieve? • What vulnerabilities can they find? • What vulnerabilities can they NOT find?
  12. 12. Let the research begin…. @rana__khali
  13. 13. How do these scanners work? @rana__khali Web Application Vulnerability Scanners have three modules: Crawler Attacker Analysis *XSS found* *SQLi found* *LFI found* *RFI found*

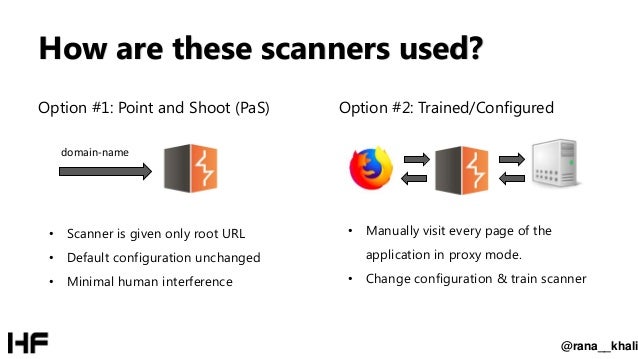

  14. 14. How are these scanners used? @rana__khali Option #1: Point and Shoot (PaS) Option #2: Trained/Configured domain-name • Scanner is given only root URL • Default configuration unchanged • Minimal human interference • Manually visit every page of the application in proxy mode. • Change configuration & train scanner

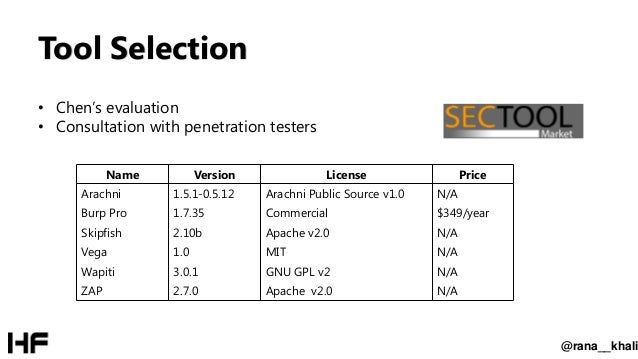

  15. 15. Tool Selection @rana__khali • Chen’s evaluation • Consultation with penetration testers Name Version License Price Arachni 1.5.1-0.5.12 Arachni Public Source v1.0 N/A Burp Pro 1.7.35 Commercial $349/year Skipfish 2.10b Apache v2.0 N/A Vega 1.0 MIT N/A Wapiti 3.0.1 GNU GPL v2 N/A ZAP 2.7.0 Apache v2.0 N/A

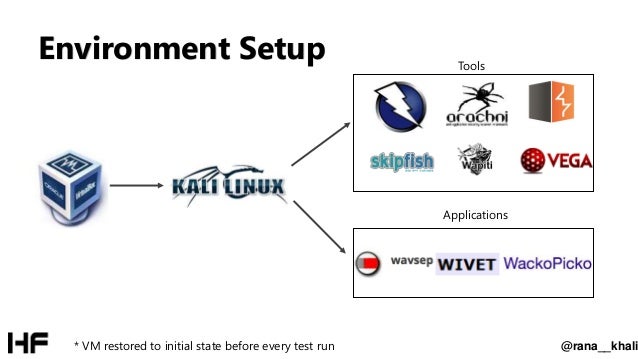

  16. 16. Environment Setup @rana__khali Tools Applications * VM restored to initial state before every test run
  17. 17. If it sounds too good to be true, it probably is.…. @rana__khali

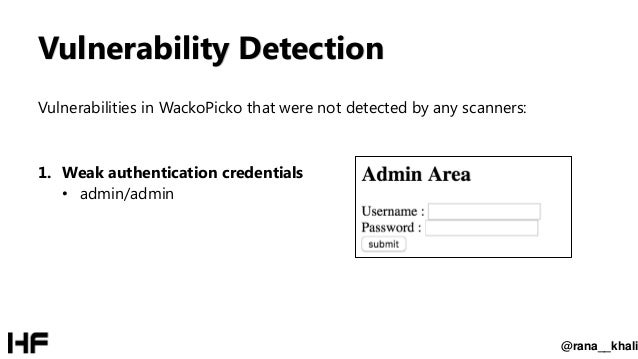

  18. 18. Vulnerability Detection @rana__khali Vulnerabilities in WackoPicko that were not detected by any scanners: 1. Weak authentication credentials • admin/admin

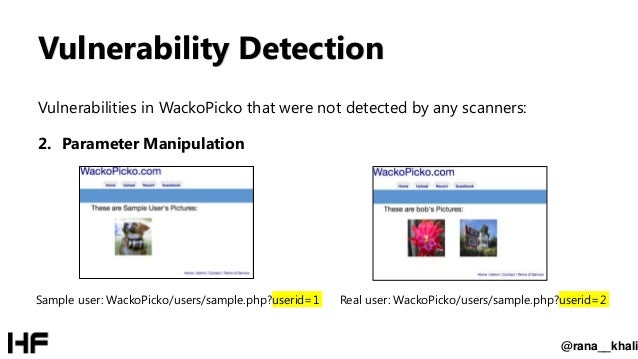

  19. 19. Vulnerability Detection @rana__khali Vulnerabilities in WackoPicko that were not detected by any scanners: 2. Parameter Manipulation Sample user: WackoPicko/users/sample.php?userid=1 Real user: WackoPicko/users/sample.php?userid=2

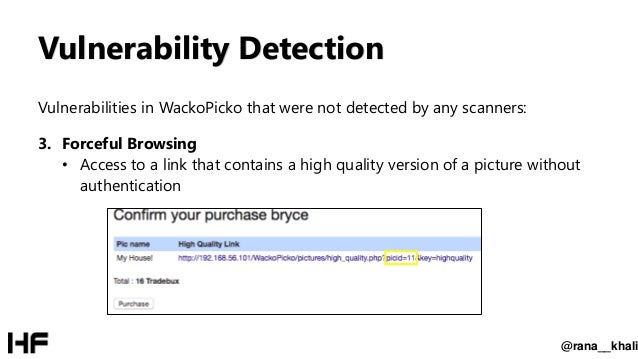

  20. 20. Vulnerability Detection @rana__khali Vulnerabilities in WackoPicko that were not detected by any scanners: 3. Forceful Browsing • Access to a link that contains a high quality version of a picture without authentication

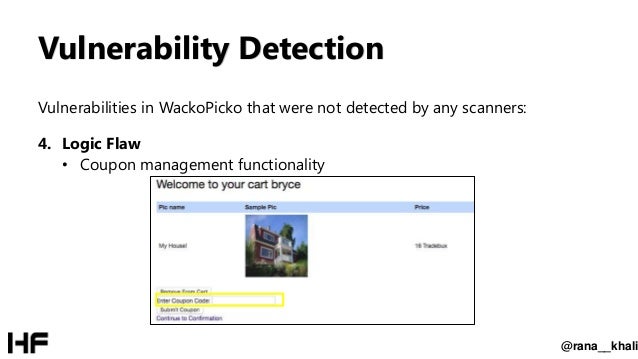

  21. 21. Vulnerability Detection @rana__khali Vulnerabilities in WackoPicko that were not detected by any scanners: 4. Logic Flaw • Coupon management functionality
  22. 22. @rana__khali Note: This slide is shamelessly stolen from David Caissy’s 2017 Appsec Talk. Can scanners catch everything?
  23. 23. Vulnerability Detection @rana__khali On average scanners found only 40% of the vulnerabilities. 0 10 20 30 40 50 60 70 80 90 100 Arachni Burp Skipfish Wapiti Vega ZAP %ofDetectedVulnerabilities

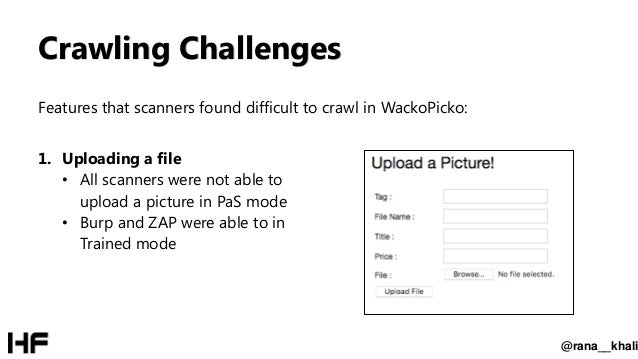

  24. 24. Crawling Challenges @rana__khali Features that scanners found difficult to crawl in WackoPicko: 1. Uploading a file • All scanners were not able to upload a picture in PaS mode • Burp and ZAP were able to in Trained mode

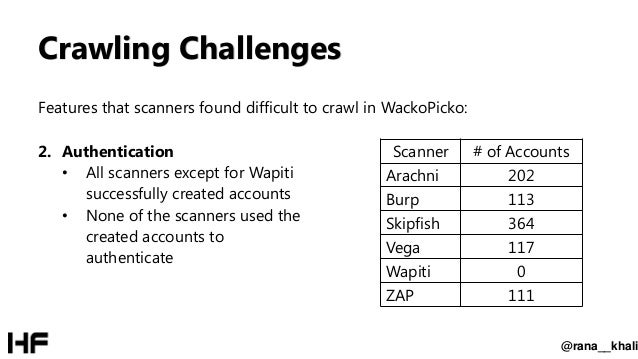

  25. 25. Crawling Challenges @rana__khali Features that scanners found difficult to crawl in WackoPicko: 2. Authentication • All scanners except for Wapiti successfully created accounts • None of the scanners used the created accounts to authenticate Scanner # of Accounts Arachni 202 Burp 113 Skipfish 364 Vega 117 Wapiti 0 ZAP 111

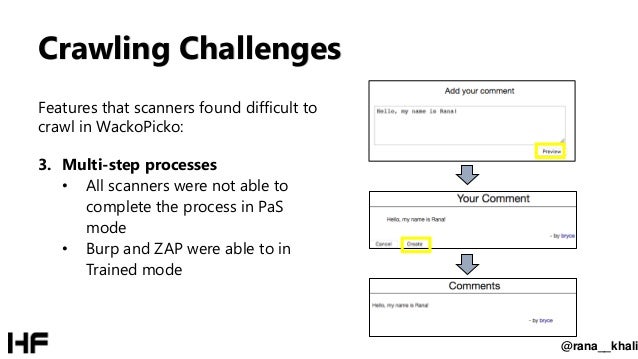

  26. 26. Crawling Challenges @rana__khali Features that scanners found difficult to crawl in WackoPicko: 3. Multi-step processes • All scanners were not able to complete the process in PaS mode • Burp and ZAP were able to in Trained mode

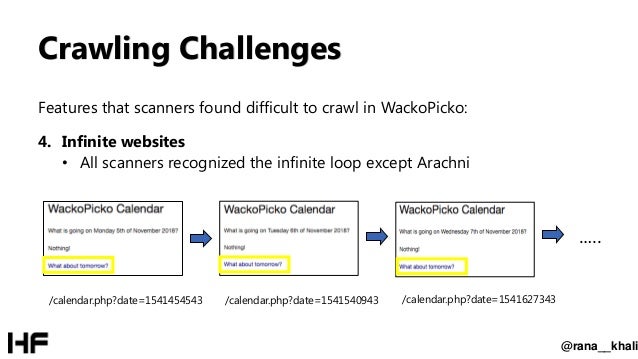

  27. 27. Crawling Challenges @rana__khali Features that scanners found difficult to crawl in WackoPicko: 4. Infinite websites • All scanners recognized the infinite loop except Arachni ….. /calendar.php?date=1541454543 /calendar.php?date=1541540943 /calendar.php?date=1541627343

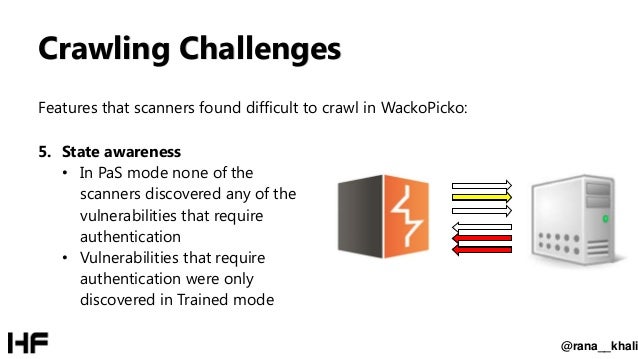

  28. 28. Crawling Challenges @rana__khali Features that scanners found difficult to crawl in WackoPicko: 5. State awareness • In PaS mode none of the scanners discovered any of the vulnerabilities that require authentication • Vulnerabilities that require authentication were only discovered in Trained mode

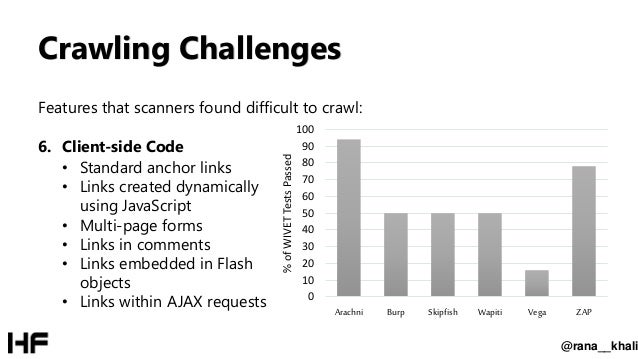

  29. 29. Crawling Challenges @rana__khali Features that scanners found difficult to crawl: 6. Client-side Code • Standard anchor links • Links created dynamically using JavaScript • Multi-page forms • Links in comments • Links embedded in Flash objects • Links within AJAX requests 0 10 20 30 40 50 60 70 80 90 100 Arachni Burp Skipfish Wapiti Vega ZAP %ofWIVETTestsPassed

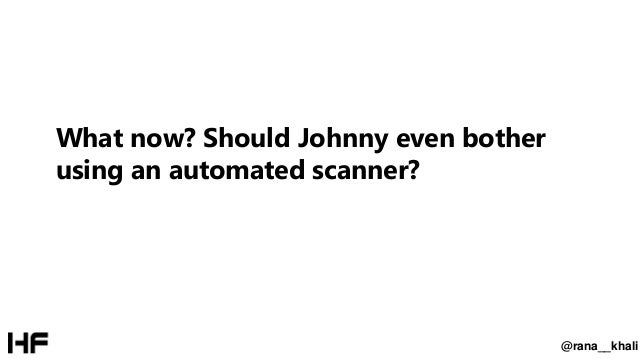

  30. 30. What now? Should Johnny even bother using an automated scanner? @rana__khali

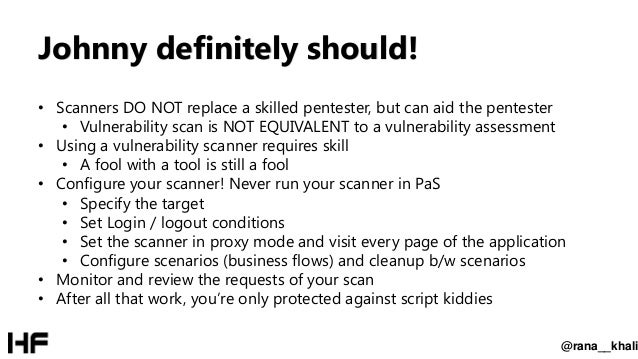

  31. 31. Johnny definitely should! @rana__khali • Scanners DO NOT replace a skilled pentester, but can aid the pentester • Vulnerability scan is NOT EQUIVALENT to a vulnerability assessment • Using a vulnerability scanner requires skill • A fool with a tool is still a fool • Configure your scanner! Never run your scanner in PaS • Specify the target • Set Login / logout conditions • Set the scanner in proxy mode and visit every page of the application • Configure scenarios (business flows) and cleanup b/w scenarios • Monitor and review the requests of your scan • After all that work, you’re only protected against script kiddies
  32. 32. That’s why Johnny still can’t pentest. @rana__khali
  33. 33. Get in Touch! @rana__khali https://medium.com/@ranakhalil101 https://www.linkedin.com/in/ranakhalil1/ https://twitter.com/rana__khalil https://ruor.uottawa.ca/handle/10393/38595

×
