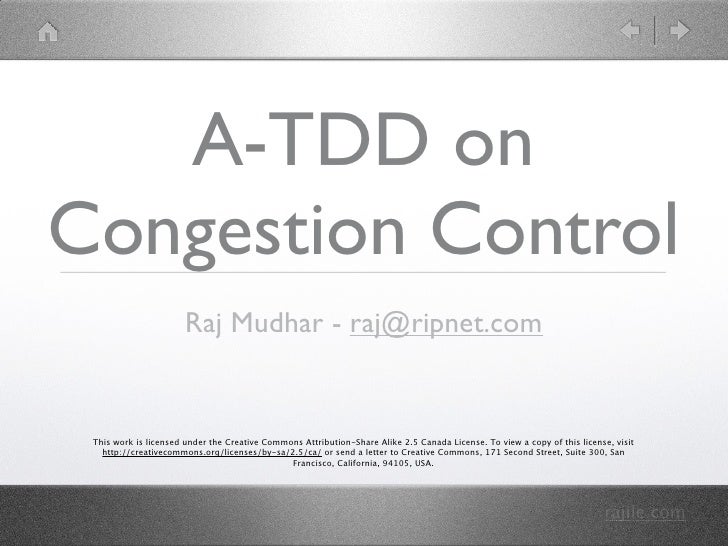

A-TDD on
Congestion Control
                       Raj Mudhar - raj@ripnet.com


 This work is licensed under the Creative...
Example
Using a typical Congestion Control
requirement, common in telecom and
networking applications.
Show how to get fro...
Congestion Control
              Redundant messaging paths for payload



 NE a                                           ...
Acceptance Criteria
User Story: As a Network Operator, I want to automatically control the
throughput between network elem...
Think “Black Box”

Acceptance Criteria should be:
  Customer visible
  If the criteria is “internal” then it is not
  acce...
Acceptance Criteria
Are the Acceptance Criteria below “black box”?
Acceptance criteria (Second Pass):
   NE can detect con...
SMART AC
Acceptance Criteria should be:
  Specific - definite and explicit
  Measurable - quantifiable, observable
  Achievab...
SMART AC Applied
          Acceptance                   Specific            Measurable           Achievable         Relev  ...
Acceptance Criteria
Are the Acceptance Criteria below “black box”?

Acceptance criteria (Third Pass):

   NE informs conne...
SMART AC Applied
          Acceptance                  Specific            Measurable             Achievable         Relev ...
Updated User Stories
 As a Network Operator, I want to automatically control the throughput between network
 elements so t...
Acceptance Test Format
 Use the BDD format:

   Narrative:

      As a [role] I want [feature] so that [benefit]

   Follow...
Acceptance Tests
The SMART table on slide 10 gives us what we need to write Acceptance tests for
our first User Story.
    ...
A-TDD as a design tool
 ATs help us uncover architectural and design
 considerations.
 Provides a customer-centric structu...
Ask Yourself
Did defining Acceptance Tests make you think about:
  Engineering Guidelines for Network Topology?
  The messa...
What if...?
You could learn and apply A-TDD in your team FAST?
How could this help you deliver higher quality features
mor...
About
Raj Mudhar is currently leading the Agile transition in the W-CDMA business at
Alcatel-Lucent, serving a population ...
