Cassandra Summit 2014: Performance Tuning Cassandra in AWS

  1. 1. Performance Tuning Cassandra In AWS" Cassandra Summit 2014! Michael Nelson! 1! © 2014 by Intellectual Reserve, Inc. All rights reserved.!

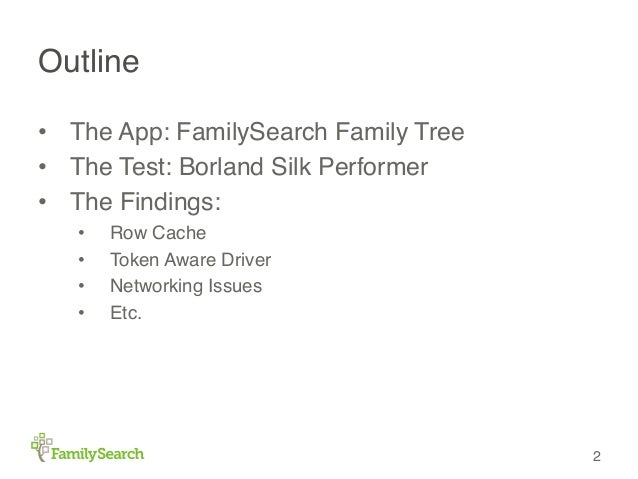

  2. 2. 2! Outline! • The App: FamilySearch Family Tree! • The Test: Borland Silk Performer! • The Findings:! • Row Cache! • Token Aware Driver! • Networking Issues! • Etc.!

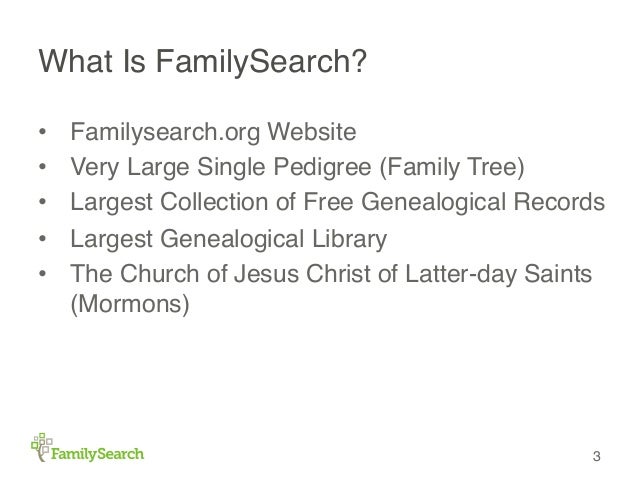

  3. 3. 3! What Is FamilySearch?! • Familysearch.org Website! • Very Large Single Pedigree (Family Tree)! • Largest Collection of Free Genealogical Records! • Largest Genealogical Library! • The Church of Jesus Christ of Latter-day Saints (Mormons)!
  4. 4. 4! Why does FamilySearch exist?! Visit http://mormon.org/family-history/! !
  5. 5. 5! Family Tree Data! Family Tree: ! • 900M+ Person Records, Open-Edit! • 500M+ Relationships, Open-Edit! • 8.4B Change Log Entries, ~1M / day! • 7TB in Cassandra (13TB in Oracle)! • Dynamic OLTP system! • Data-dependent performance issues!

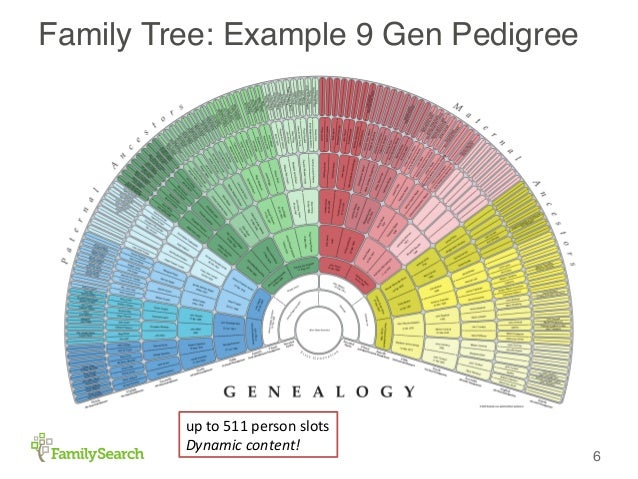

  6. 6. 6! Family Tree: Example 9 Gen Pedigree! up to 511 person slots Dynamic content!

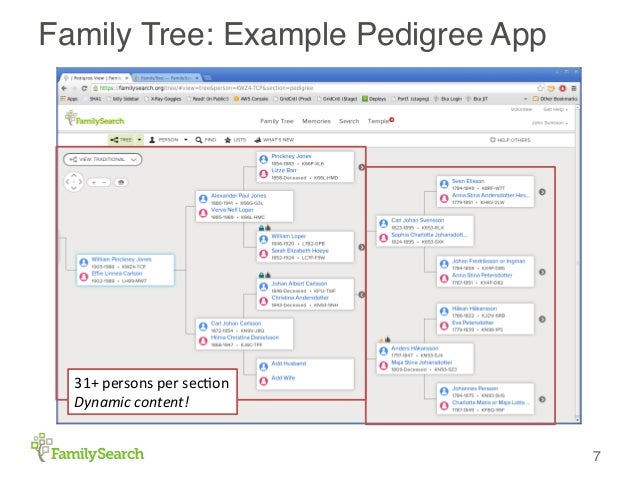

  7. 7. 7! Family Tree: Example Pedigree App! 31+ persons per sec0on Dynamic content!

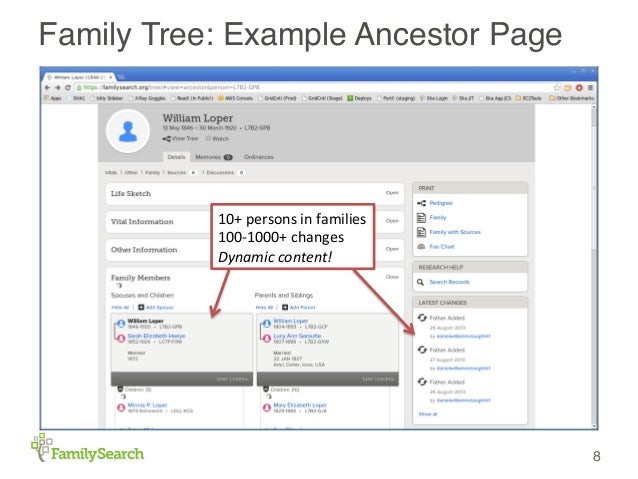

  8. 8. 8! Family Tree: Example Ancestor Page! 10+ persons in families 100-­‐1000+ changes Dynamic content!

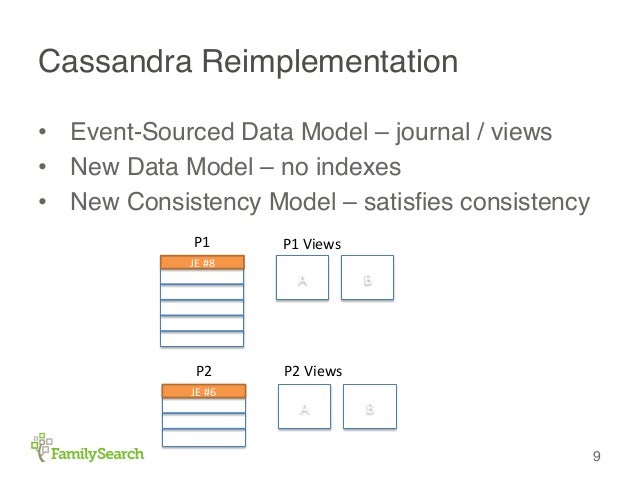

  9. 9. 9! Cassandra Reimplementation! • Event-Sourced Data Model – journal / views! • New Data Model – no indexes! • New Consistency Model – satisfies consistency! P1 JE #8 P1 Views A B P2 P2 Views JE #6 A B
  10. 10. 10! 77% Reads / 23% Writes! Reads:! • LOCAL_ONE! • Simple Queries! Writes:! • LOCAL_QUORUM! • Atomic Batches! • Multiple Tables! • Multiple Rows! • Business Logic!

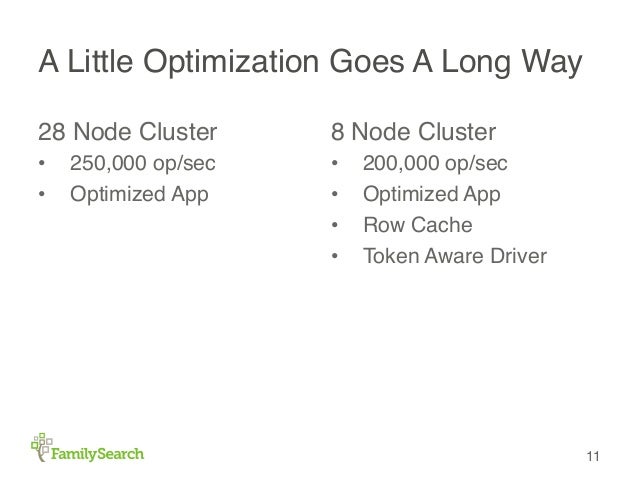

  11. 11. A Little Optimization Goes A Long Way! 11! 28 Node Cluster! • 250,000 op/sec! • Optimized App! 8 Node Cluster! • 200,000 op/sec! • Optimized App! • Row Cache! • Token Aware Driver!

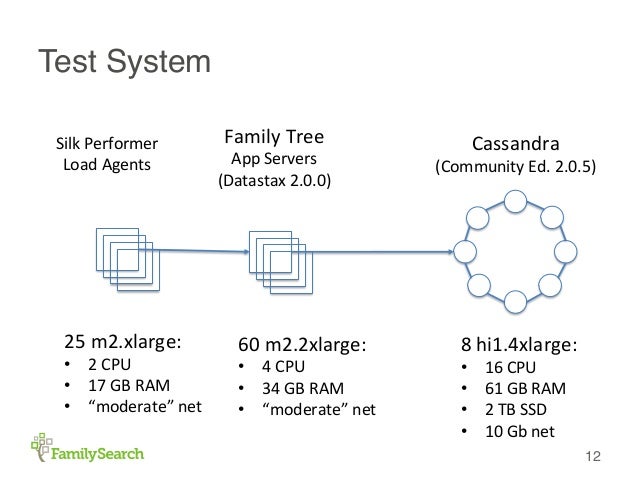

  12. 12. 12! Test System! Cassandra (Community Ed. 2.0.5) Family Tree App Servers (Datastax 2.0.0) Silk Performer Load Agents 8 hi1.4xlarge: • 16 CPU • 61 GB RAM • 2 TB SSD • 10 Gb net 60 m2.2xlarge: • 4 CPU • 34 GB RAM • “moderate” net 25 m2.xlarge: • 2 CPU • 17 GB RAM • “moderate” net

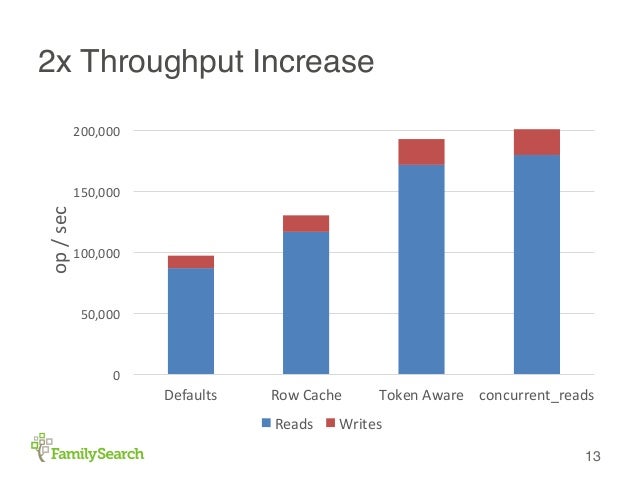

  13. 13. 13! 2x Throughput Increase! 200,000 150,000 100,000 50,000 0 Defaults Row Cache Token Aware concurrent_reads op / sec Reads Writes
  14. 14. 14! Row Cache = 35% More Throughput! Default Key Cache:! • Cached Disk Location! • Data From Disk Cache! • ~11ms Reads! Row Cache:! • Cached Row Contents! • ~7ms Reads!

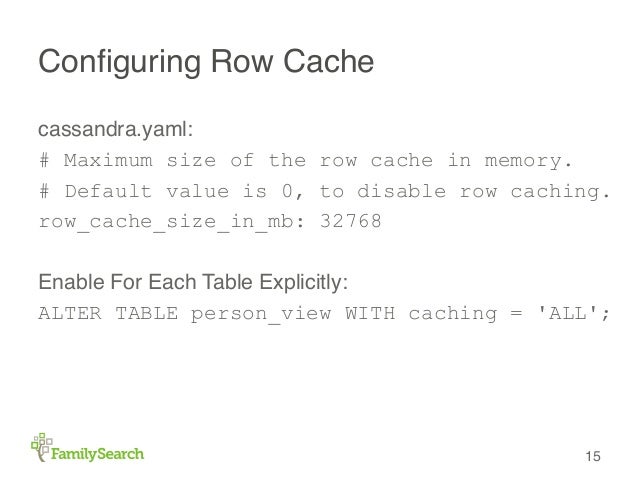

  15. 15. 15! Configuring Row Cache! cassandra.yaml:! # Maximum size of the row cache in memory. # Default value is 0, to disable row caching. row_cache_size_in_mb: 32768 ! Enable For Each Table Explicitly:! ALTER TABLE person_view WITH caching = 'ALL'; !

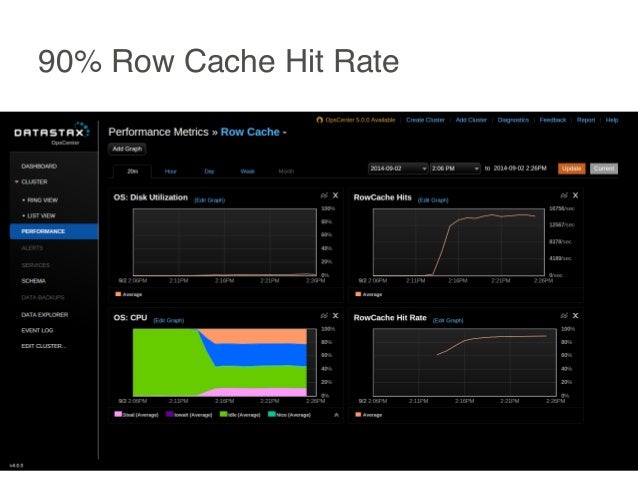

  16. 16. 16! 90% Row Cache Hit Rate!

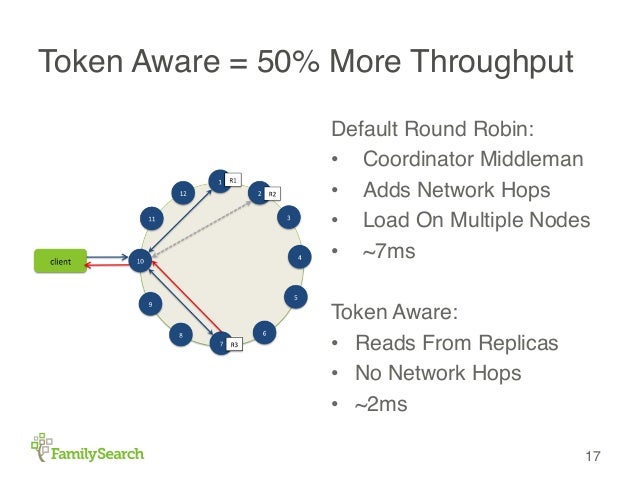

  17. 17. 17! Token Aware = 50% More Throughput! Default Round Robin:! • Coordinator Middleman! • Adds Network Hops! • Load On Multiple Nodes! • ~7ms! Token Aware:! • Reads From Replicas! • No Network Hops! • ~2ms!

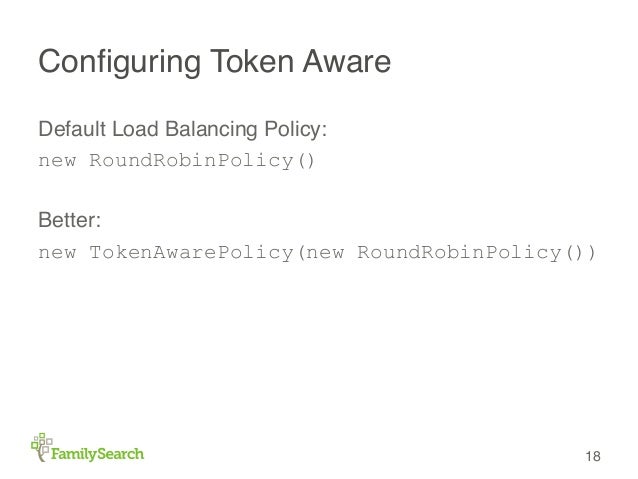

  18. 18. 18! Configuring Token Aware! Default Load Balancing Policy:! new RoundRobinPolicy() Better:! new TokenAwarePolicy(new RoundRobinPolicy())

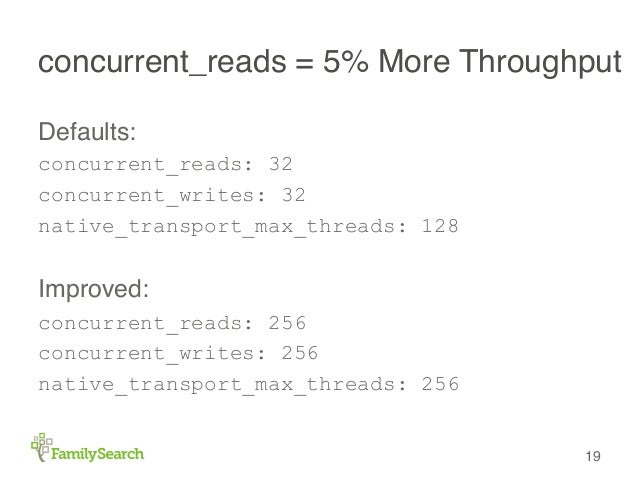

  19. 19. concurrent_reads = 5% More Throughput! 19! Defaults:! concurrent_reads: 32 concurrent_writes: 32 native_transport_max_threads: 128 Improved:! concurrent_reads: 256 concurrent_writes: 256 native_transport_max_threads: 256

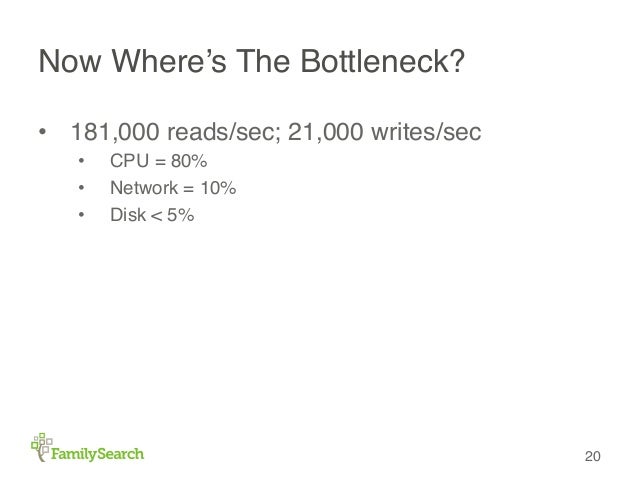

  20. 20. 20! Now Where’s The Bottleneck?! • 181,000 reads/sec; 21,000 writes/sec! • CPU = 80%! • Network = 10%! • Disk < 5%!

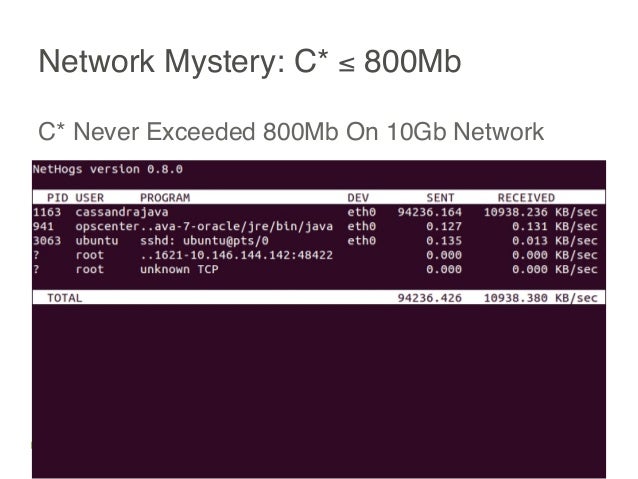

  21. 21. 21! Network Mystery: C* ≤ 800Mb! C* Never Exceeded 800Mb On 10Gb Network! ! !

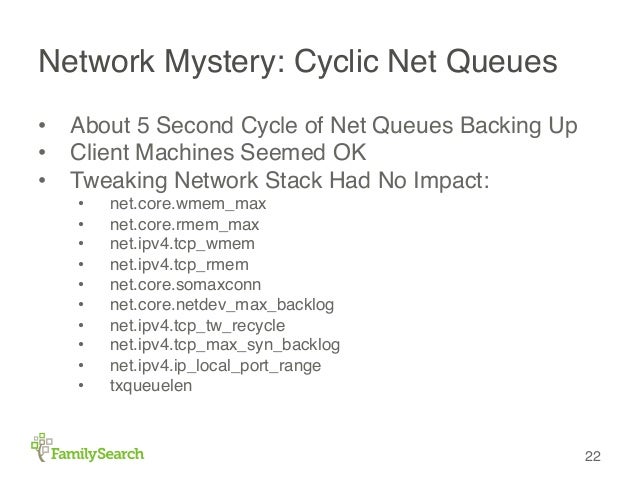

  22. 22. 22! Network Mystery: Cyclic Net Queues! • About 5 Second Cycle of Net Queues Backing Up! • Client Machines Seemed OK! • Tweaking Network Stack Had No Impact:! • net.core.wmem_max! • net.core.rmem_max! • net.ipv4.tcp_wmem! • net.ipv4.tcp_rmem! • net.core.somaxconn! • net.core.netdev_max_backlog! • net.ipv4.tcp_tw_recycle! • net.ipv4.tcp_max_syn_backlog! • net.ipv4.ip_local_port_range! • txqueuelen!

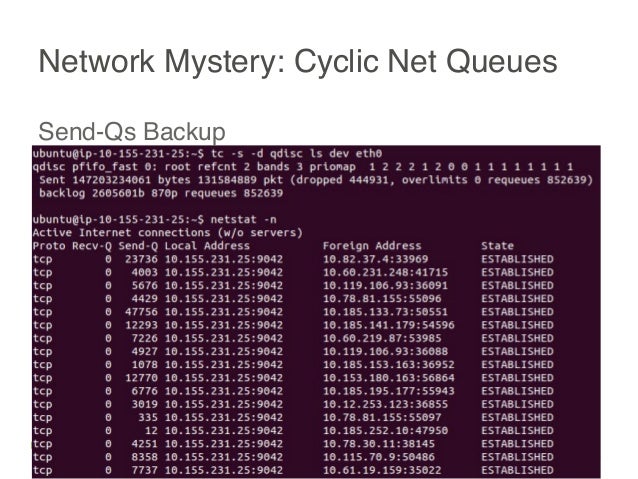

  23. 23. 23! Network Mystery: Cyclic Net Queues! Send-Qs Backup! !

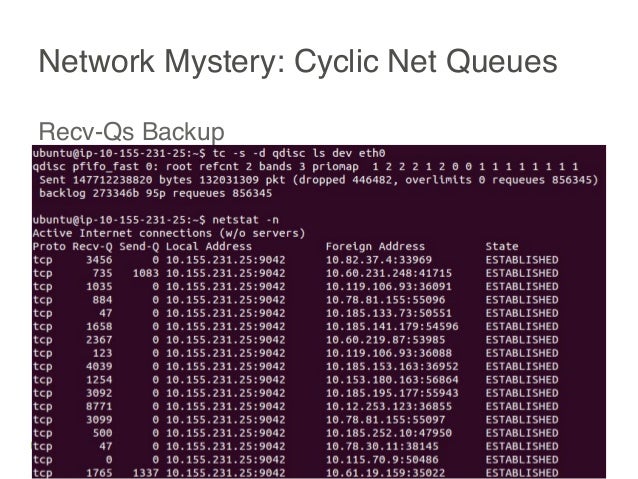

  24. 24. 24! Network Mystery: Cyclic Net Queues! Recv-Qs Backup! !

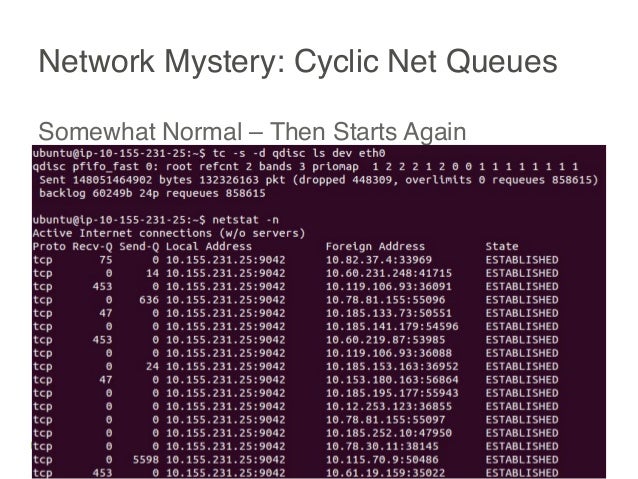

  25. 25. 25! Network Mystery: Cyclic Net Queues! Somewhat Normal – Then Starts Again! !
  26. 26. 26! 2x Throughput Increase! 200,000 150,000 100,000 50,000 0 Defaults Row Cache Token Aware concurrent_reads op / sec Reads Writes

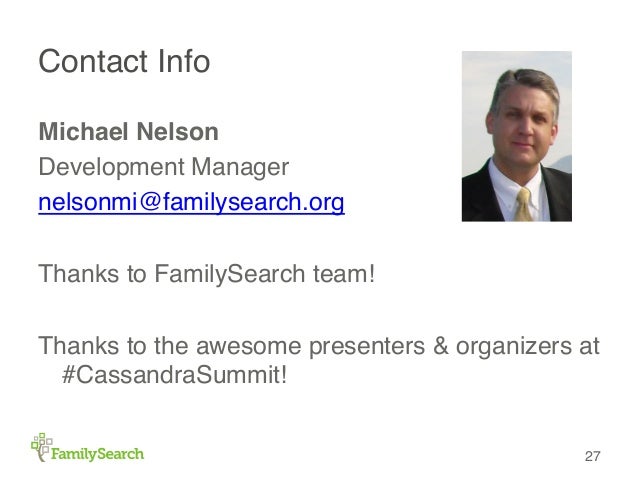

  27. 27. 27! Contact Info! Michael Nelson" Development Manager! nelsonmi@familysearch.org! ! Thanks to FamilySearch team!! ! Thanks to the awesome presenters & organizers at #CassandraSummit!!

×
