You got schema in my json

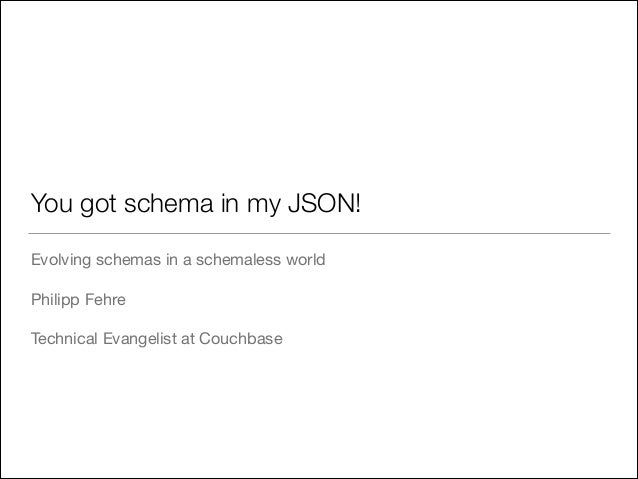

  1. 1. You got schema in my JSON! Evolving schemas in a schemaless world ! Philipp Fehre ! Technical Evangelist at Couchbase
  2. 2. From prototype to production and beyond
  3. 3. “Create an available, scalable search index” –The Spec

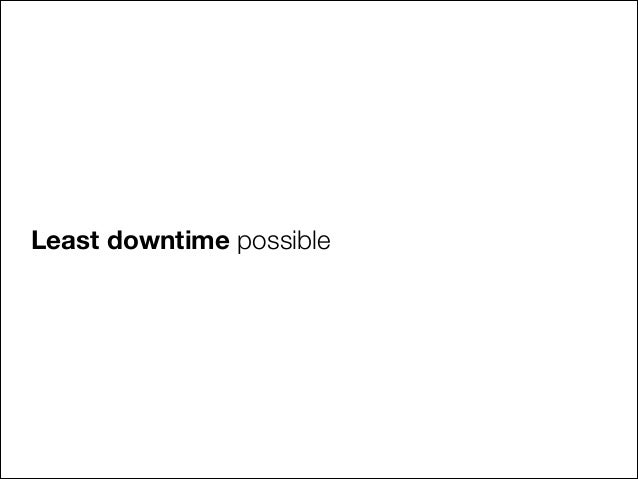

  4. 4. Least downtime possible
  5. 5. Scale horizontally

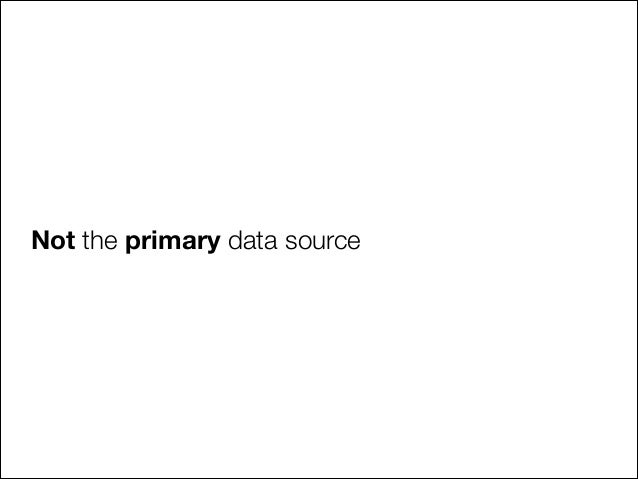

  6. 6. Not the primary data source

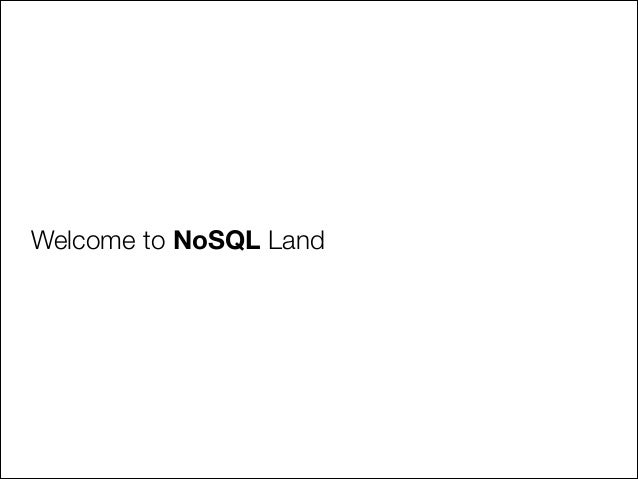

  7. 7. Welcome to NoSQL Land

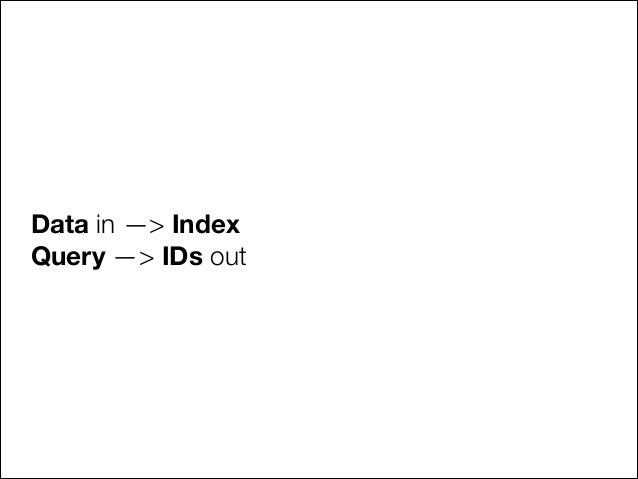

  8. 8. Data in —> Index Query —> IDs out

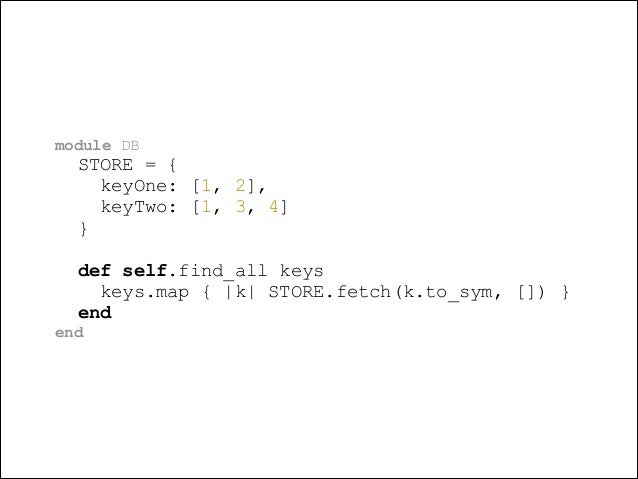

  9. 9. module DB STORE = { keyOne: [1, 2], keyTwo: [1, 3, 4] } ! def self.find_all keys keys.map { |k| STORE.fetch(k.to_sym, []) } end end

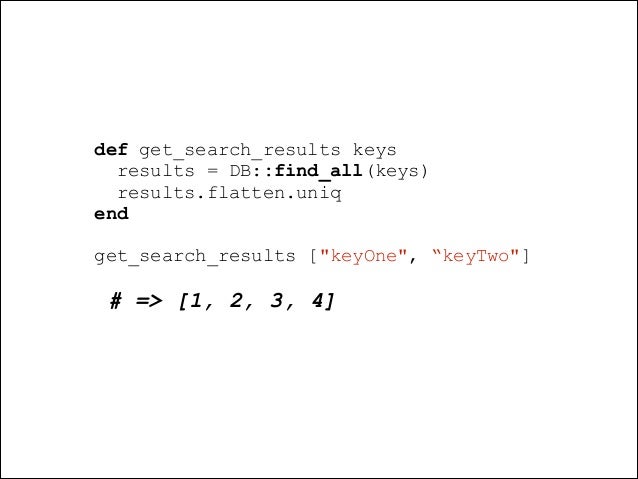

  10. 10. def get_search_results keys results = DB::find_all(keys) results.flatten.uniq end ! get_search_results ["keyOne", “keyTwo"] ! # => [1, 2, 3, 4]
  11. 11. “Add options for dynamic filtering.” –The Spec

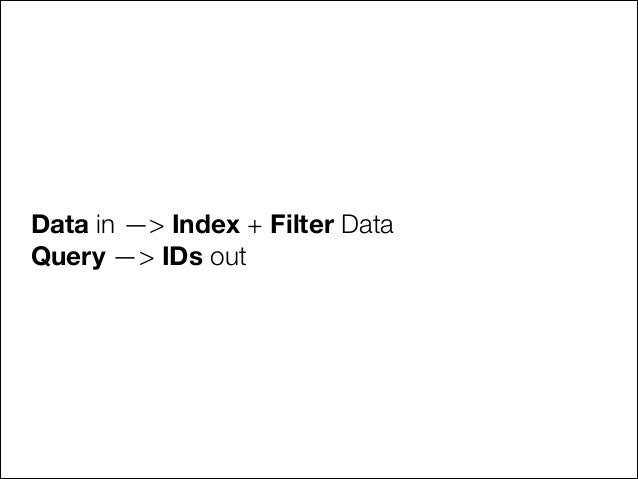

  12. 12. Data in —> Index + Filter Data Query —> IDs out
  13. 13. How to evolve the data?

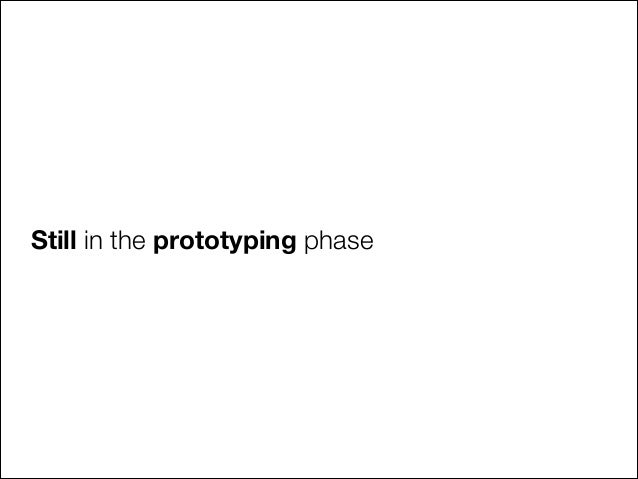

  14. 14. Still in the prototyping phase

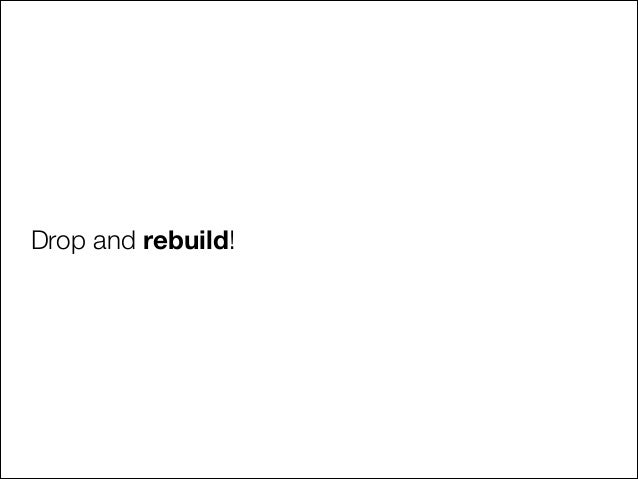

  15. 15. Drop and rebuild!

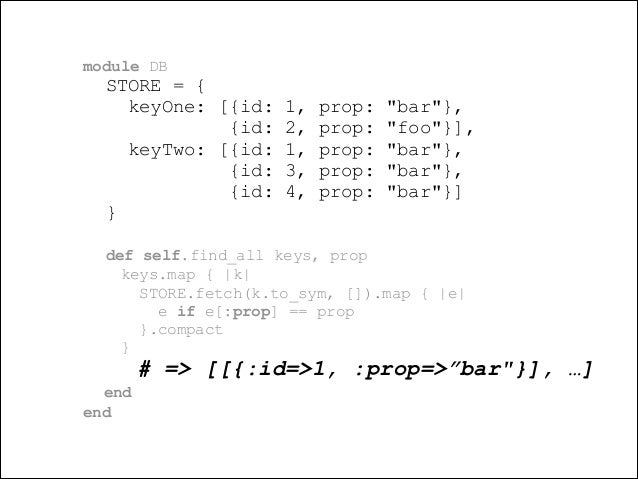

  16. 16. module DB STORE = { keyOne: [{id: {id: keyTwo: [{id: {id: {id: } 1, 2, 1, 3, 4, prop: prop: prop: prop: prop: "bar"}, "foo"}], "bar"}, "bar"}, "bar"}] ! def self.find_all keys, prop keys.map { |k| STORE.fetch(k.to_sym, []).map { |e| e if e[:prop] == prop }.compact } # => [[{:id=>1, :prop=>”bar"}], …] end end
  17. 17. 1 != {id: 1, …}

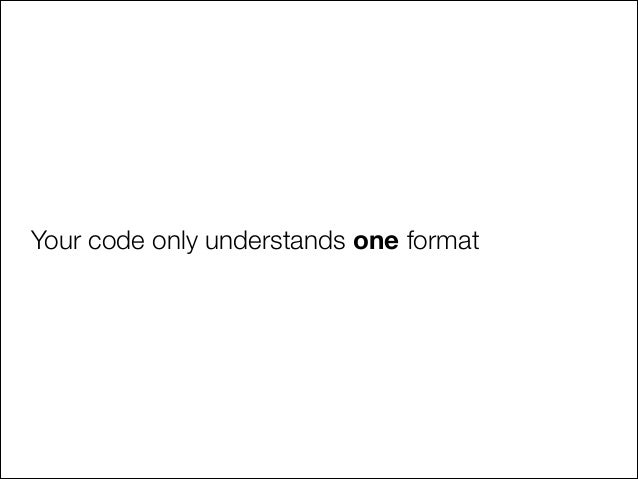

  18. 18. Your code only understands one format
  19. 19. Your code should only understand one format
  20. 20. Implicit Schema
  21. 21. def get_search_results keys, prop = "bar" results = DB::find_all(keys, prop) results.flatten.uniq.map { |e| e[:id] } end ! get_search_results ["keyOne", “keyTwo"] ! # => [1, 3, 4]

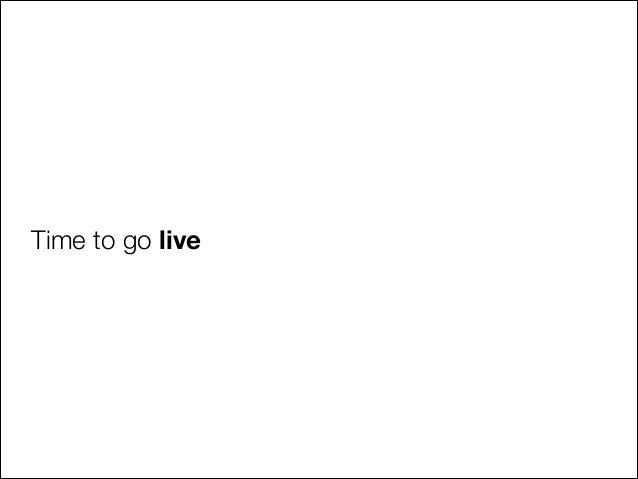

  22. 22. Time to go live

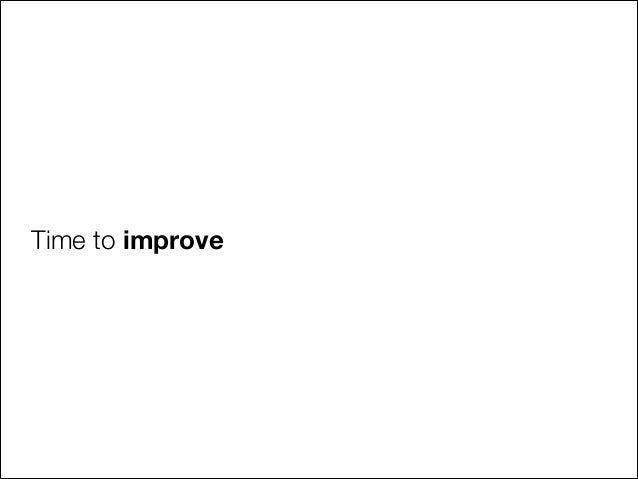

  23. 23. Time to improve

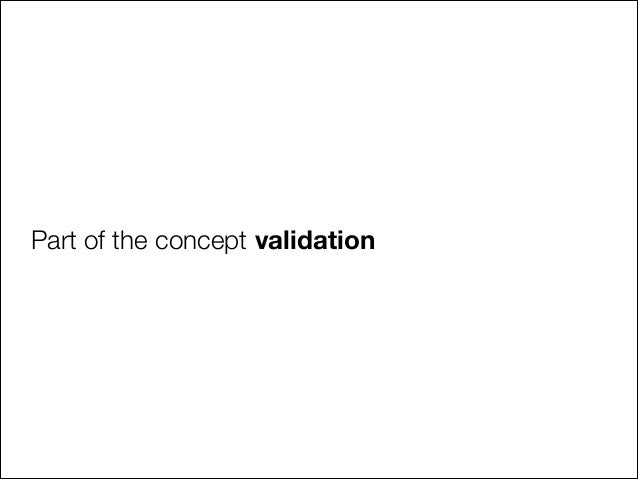

  24. 24. Part of the concept validation

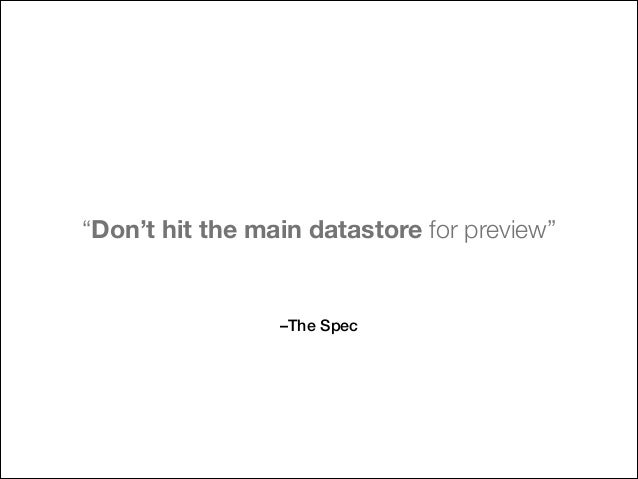

  25. 25. “Don’t hit the main datastore for preview” –The Spec
  26. 26. Data in —> Index + Filter Data + Cached Data Query —> JSON out
  27. 27. How to evolve the data, now?

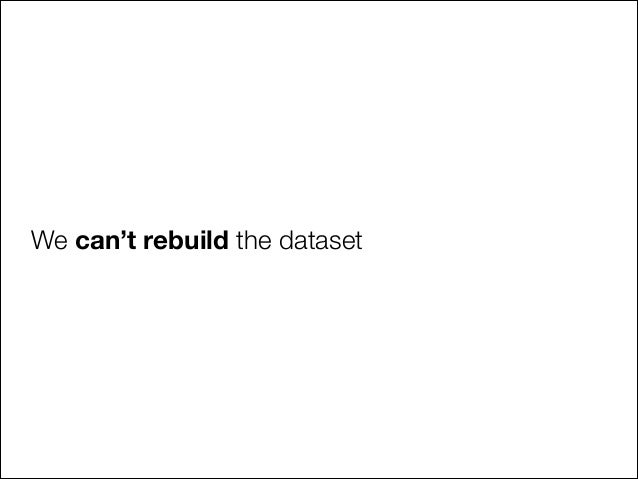

  28. 28. We can’t rebuild the dataset

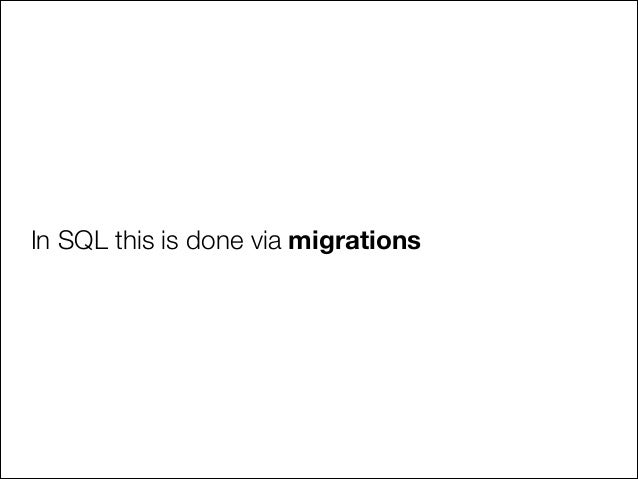

  29. 29. In SQL this is done via migrations

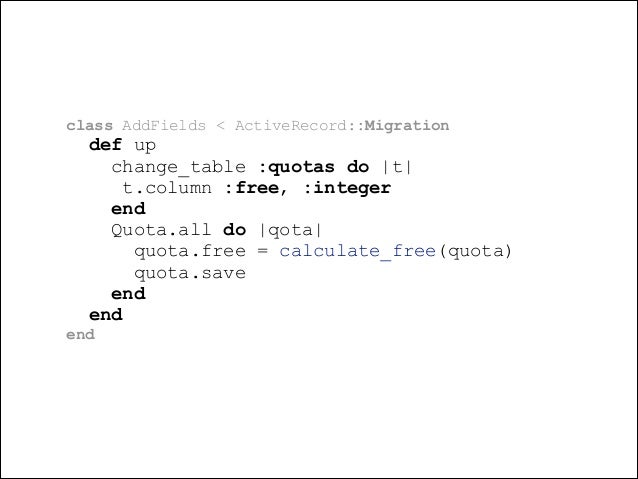

  30. 30. class AddFields < ActiveRecord::Migration def up change_table :quotas do |t| t.column :free, :integer end Quota.all do |qota| quota.free = calculate_free(quota) quota.save end end end
  31. 31. Crawling all data is slow

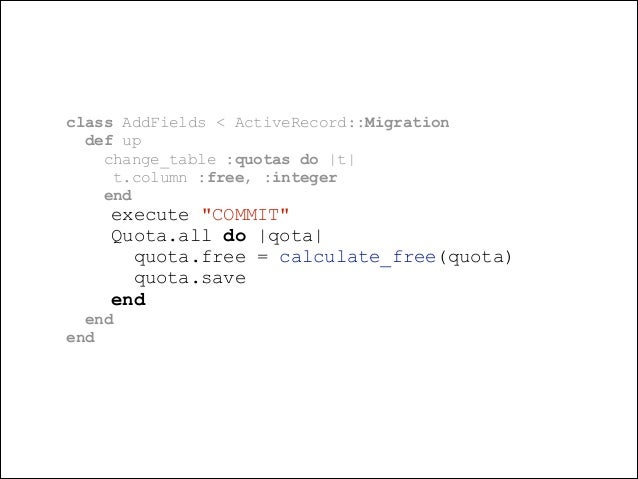

  32. 32. class AddFields < ActiveRecord::Migration def up change_table :quotas do |t| t.column :free, :integer end execute "COMMIT" Quota.all do |qota| quota.free = calculate_free(quota) quota.save end end end
  33. 33. During Migration the implicit Schema broken

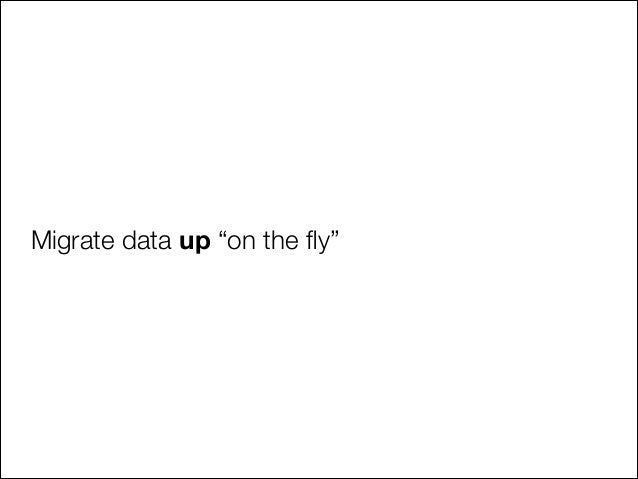

  34. 34. Migrate data up “on the fly”
  35. 35. Migrate data down “on the fly”
  36. 36. Shorten the time until the new data is usable

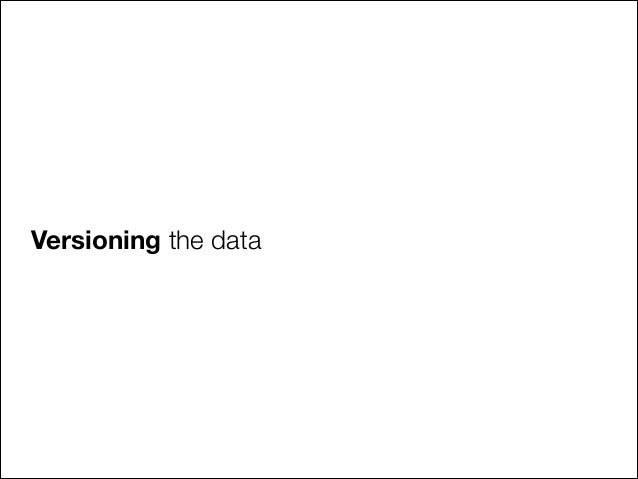

  37. 37. Versioning the data

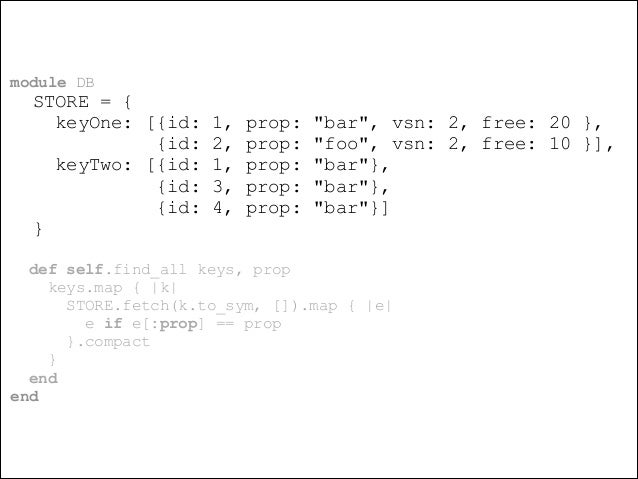

  38. 38. module DB STORE = { keyOne: [{id: {id: keyTwo: [{id: {id: {id: } 1, 2, 1, 3, 4, prop: prop: prop: prop: prop: "bar", vsn: 2, free: 20 }, "foo", vsn: 2, free: 10 }], "bar"}, "bar"}, "bar"}] ! def self.find_all keys, prop keys.map { |k| STORE.fetch(k.to_sym, []).map { |e| e if e[:prop] == prop }.compact } end end

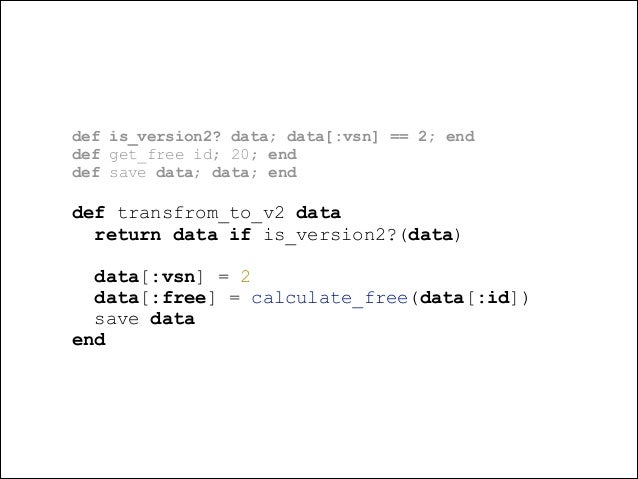

  39. 39. def is_version2? data; data[:vsn] == 2; end def get_free id; 20; end def save data; data; end ! def transfrom_to_v2 data return data if is_version2?(data) ! data[:vsn] = 2 data[:free] = calculate_free(data[:id]) save data end

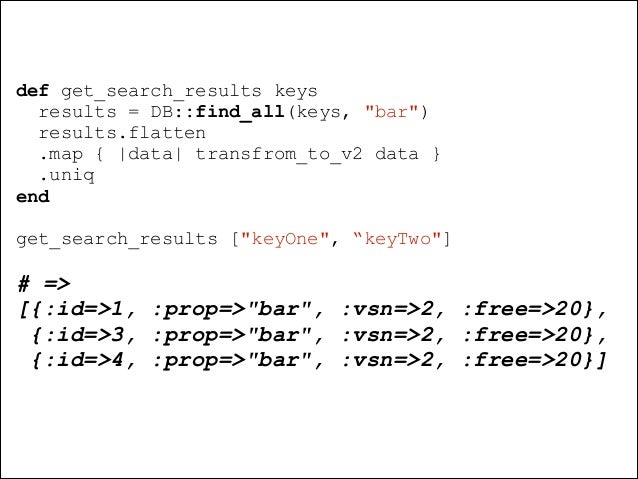

  40. 40. def get_search_results keys results = DB::find_all(keys, "bar") results.flatten .map { |data| transfrom_to_v2 data } .uniq end ! get_search_results ["keyOne", “keyTwo"] ! # => [{:id=>1, :prop=>"bar", :vsn=>2, :free=>20}, {:id=>3, :prop=>"bar", :vsn=>2, :free=>20}, {:id=>4, :prop=>"bar", :vsn=>2, :free=>20}]
  41. 41. DRY it up: Deprecator https://github.com/sideshowcoder/deprecator

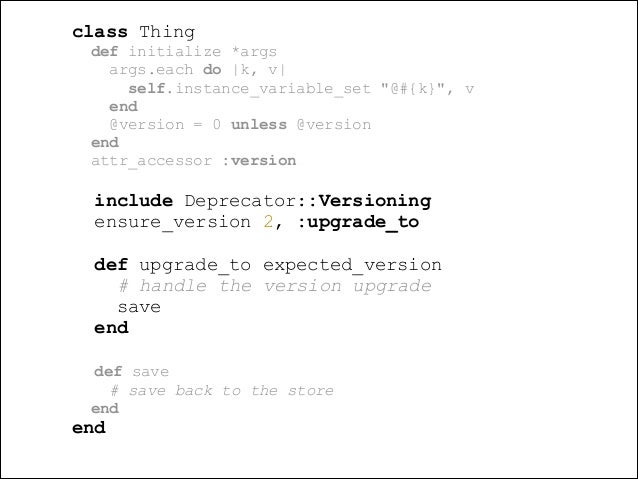

  42. 42. class Thing def initialize *args args.each do |k, v| self.instance_variable_set "@#{k}", v end @version = 0 unless @version end attr_accessor :version ! include Deprecator::Versioning ensure_version 2, :upgrade_to ! def upgrade_to expected_version # handle the version upgrade save end ! def save # save back to the store end end

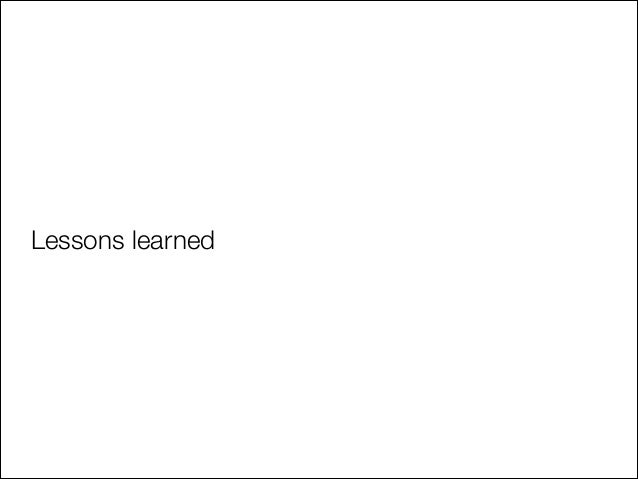

  43. 43. Lessons learned

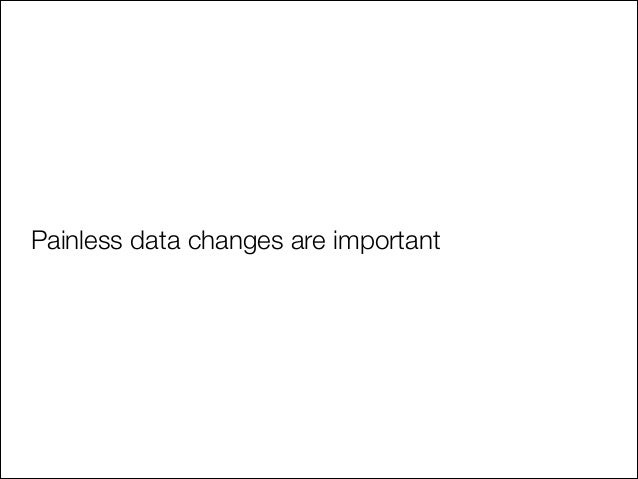

  44. 44. Painless data changes are important
  45. 45. Schemaless does not mean no Schema at all
  46. 46. With freedom comes more responsibility

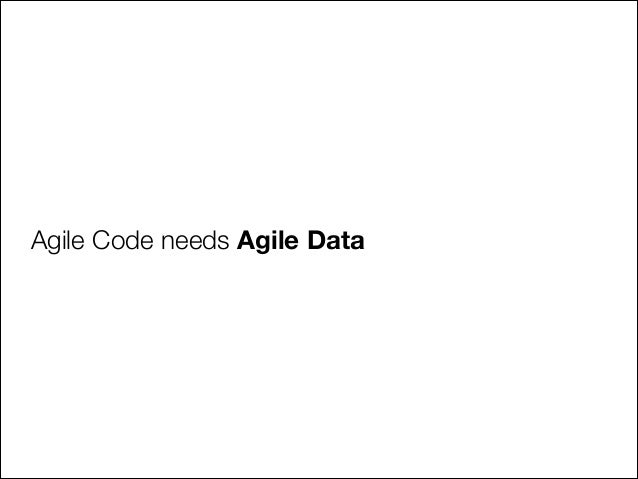

  47. 47. Agile Code needs Agile Data
  48. 48. Couchbase NoSQL Database

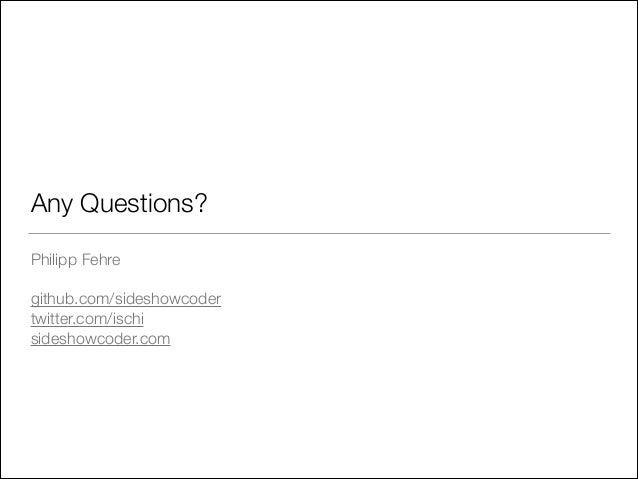

  49. 49. ! Any Questions? Philipp Fehre ! github.com/sideshowcoder twitter.com/ischi sideshowcoder.com
  50. 50. Talks to listen to ! • Schemalessness: http://cloud.dzone.com/articles/martinfowler-schemalessness • Introduction to NoSQL: http://www.youtube.com/watch? v=qI_g07C_Q5I

×
