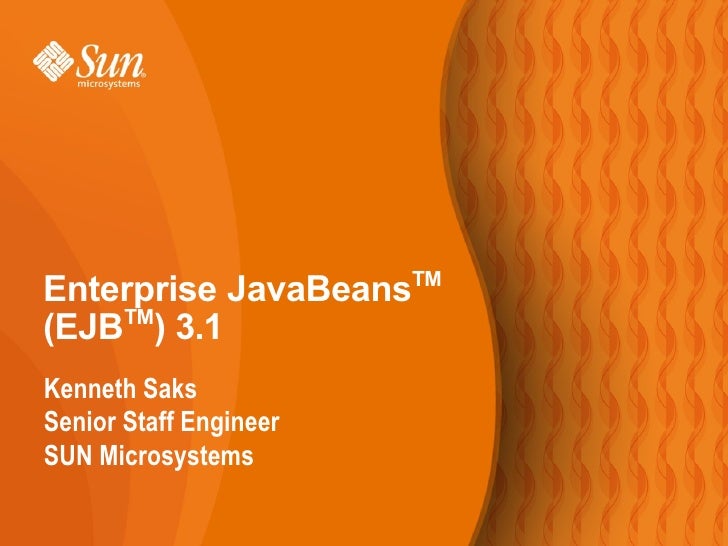

TM
Enterprise JavaBeans
(EJBTM) 3.1
Kenneth Saks
Senior Staff Engineer
SUN Microsystems
EJB 3.1 Specification
• Goals
  > Continued focus on ease-of-use
  > New features
• JSR (Java Specification Request) 318
 ...
Ease of Use Improvements

•   Optional Local Business Interfaces
•   Simplified Packaging in .war
•   EJB “Lite”
•   Porta...
Session Bean with “No-interface”
View
 @Stateless
 public class HelloBean {
     public String sayHello(String msg) {
    ...
Web/EJB Application in
    TM
Java EE Platform 5
           foo.ear                          foo.ear

                    ...
Web/EJB Application in
    TM
Java EE Platform 6
                  foo.war

          WEB-INF/classes/
           com/acme...
EJB “Lite” vs. Full EJB 3.1 API
EJB Lite                      Full = Lite + :
• Local Session Beans         • Message Driv...
Portable Global JNDI Names
 “java:global[/<app-name>]/<module-
 name>/<bean-name>”

 // Client in a Java EE container
 @EJ...
Enhanced Testing Support
 public class BankTester {

   public static void main(String[] args) {

       EJBContainer cont...
Example : Embeddable API (cont.)
 % java -classpath bankClient.jar :
                   bank.jar :
                   java...
New Features

•   Singletons
•   Application startup / shutdown callbacks
•   Calendar-based timer expressions
•   Automat...
Simple Singleton
 @Singleton
 public class SharedBean {

     private SharedData shared;

     @PostConstruct private void...
Singleton Client
 @Stateless
 public class FooBean {

     @EJB
     private SharedBean shared;

     public void foo() {
...
Automatic Timer Creation
 @Stateless
 public class BankBean {

     @PersistenceContext EntityManager accountDB;
     @Res...
Simple Asynchrony
 @Stateless public class DocBean {

     @Resource SessionContext ctx;

     public void processDocument...
Asynchronous Operation Results --
Client
 @EJB Processor processor;

 Task task = new Task(...);

 Future<int> computeTask...
EJB 3.1 and Glassfish V3 Prelude
• Glassfish V3 is reference implementation for EJB 3.1
• V3 Prelude has preview implement...
For More Information
• JSR 318 Home : http://jcp.org/en/jsr/detail?id=318
  > Send comments to jsr-318-comments@jcp.org
• ...
Upcoming SlideShare
Loading in …5
×

EJB 3.1 and GlassFish v3 Prelude

9,878 views

Published on

A quick overview of EJB 3.1 from the perspective of GlassFish v3 Prelude

Published in: Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
9,878
On SlideShare
0
From Embeds
0
Number of Embeds
99
Actions
Shares
0
Downloads
336
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

EJB 3.1 and GlassFish v3 Prelude

  1. 1. TM Enterprise JavaBeans (EJBTM) 3.1 Kenneth Saks Senior Staff Engineer SUN Microsystems
  2. 2. EJB 3.1 Specification • Goals > Continued focus on ease-of-use > New features • JSR (Java Specification Request) 318 > Part of Java EE 6 > Java Persistence API will evolve separately ( JSR 317 ) > Public Draft Released October 2008 • Caveat – APIs still subject to change 2
  3. 3. Ease of Use Improvements • Optional Local Business Interfaces • Simplified Packaging in .war • EJB “Lite” • Portable Global JNDI Names • Simplified Unit Testing 3
  4. 4. Session Bean with “No-interface” View @Stateless public class HelloBean { public String sayHello(String msg) { return “Hello “ + msg; } } // Client of HelloBean no-interface view @EJB HelloBean h; … h.sayHello(“bob”); 4
  5. 5. Web/EJB Application in TM Java EE Platform 5 foo.ear foo.ear lib/foo_common.jar foo_web.war WEB-INF/web.xml com/acme/Foo.class WEB-INF/classes/ com/acme/FooServlet.class foo_web.war WEB-INF/classes com/acme/Foo.class OR WEB-INF/web.xml WEB-INF/classes/ com/acme/FooServlet.class foo_ejb.jar com/acme/FooBean.class foo_ejb.jar com/acme/Foo.class com/acme/FooBean.class 5
  6. 6. Web/EJB Application in TM Java EE Platform 6 foo.war WEB-INF/classes/ com/acme/FooServlet.class WEB-INF/classes/ com/acme/FooBean.class 6
  7. 7. EJB “Lite” vs. Full EJB 3.1 API EJB Lite Full = Lite + : • Local Session Beans • Message Driven Beans • Annotations / ejb-jar.xml • EJB Web Service • CMT / BMT Endpoints • Declarative Security • RMI-IIOP Interoperability • Interceptors • 2.x / 3.x Remote view • 2.x Local view • Timer Service • CMP / BMP 7
  8. 8. Portable Global JNDI Names “java:global[/<app-name>]/<module- name>/<bean-name>” // Client in a Java EE container @EJB(mappedName= ”java:global/hello/HelloBean”) Hello hello; // Client in a Java SE environment Hello hello = (Hello) new InitialContext() lookup(“java:global/hello/HelloBean”); 8
  9. 9. Enhanced Testing Support public class BankTester { public static void main(String[] args) { EJBContainer container = EJBContainer.createEJBContainer(); // Acquire EJB component reference BankBean bank = (BankBean)container.getContext(). lookup(“java:global/bank/BankBean”); testBank(bank); ... container.close(); } 9
  10. 10. Example : Embeddable API (cont.) % java -classpath bankClient.jar : bank.jar : javaee.jar : <vendor_rt>.jar com.acme.BankTester 10
  11. 11. New Features • Singletons • Application startup / shutdown callbacks • Calendar-based timer expressions • Automatic timer creation • Simple Asynchrony 11
  12. 12. Simple Singleton @Singleton public class SharedBean { private SharedData shared; @PostConstruct private void init() { shared = ...; } public int getXYZ() { return shared.xyz; } } 12
  13. 13. Singleton Client @Stateless public class FooBean { @EJB private SharedBean shared; public void foo() { int xyz = shared.getXYZ(); ... } } 13
  14. 14. Automatic Timer Creation @Stateless public class BankBean { @PersistenceContext EntityManager accountDB; @Resource javax.mail.Session mailSession; // Callback the 1st of each month at 8 a.m. @Schedule(hour=”8”, dayOfMonth=”1”) void sendMonthlyBankStatements() { ... } } 14
  15. 15. Simple Asynchrony @Stateless public class DocBean { @Resource SessionContext ctx; public void processDocument(Document document) { DocBean me = ctx.getBusinessObject(DocBean.class); me.doAnalysisA(document); me.doAnalysisB(document); } @Asynchronous public void doAnalysisA(Document d) {...} @Asynchronous public void doAnalysisB(Document d) {...} } 15
  16. 16. Asynchronous Operation Results -- Client @EJB Processor processor; Task task = new Task(...); Future<int> computeTask = processor.compute(task); ... int result = computeTask.get(); 16
  17. 17. EJB 3.1 and Glassfish V3 Prelude • Glassfish V3 is reference implementation for EJB 3.1 • V3 Prelude has preview implementations of these EJB 3.1 features : > No-interface view > .war packaging of stateless session beans > Singletons > Portable Global JNDI Names • EJB 3.1 preview module available from Update Tool 17
  18. 18. For More Information • JSR 318 Home : http://jcp.org/en/jsr/detail?id=318 > Send comments to jsr-318-comments@jcp.org • Blog : http://blogs.sun.com/kensaks/ • Reference Implementation : GlassFish project V3 > http://glassfish.dev.java.net > ejb@glassfish.dev.java.net 18

×
