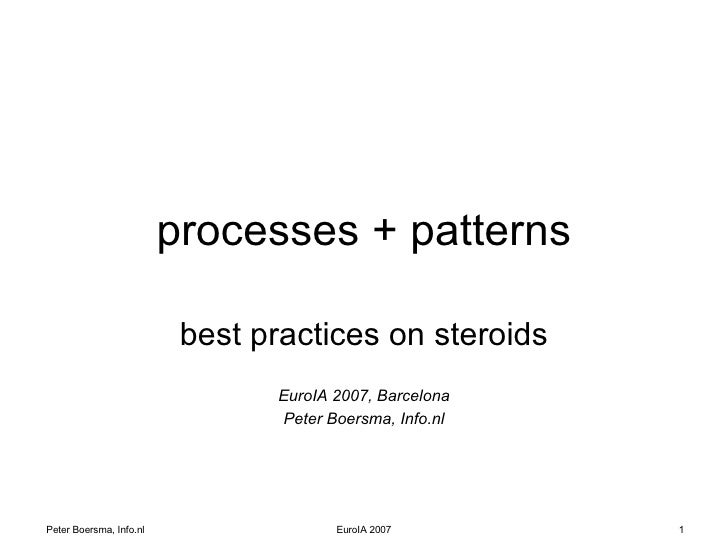

processes + patterns best practices on steroids EuroIA 2007, Barcelona Peter Boersma, Info.nl
processes + patterns best practices on steroids EuroIA 2007, Barcelona Peter Boersma, Info.nl design design
processes + patterns best practices on steroids EuroIA 2007, Barcelona Peter Boersma, Info.nl patterns design
design patterns + process patterns best practices on steroids EuroIA 2007, Barcelona Peter Boersma, Info.nl on codeïne
what if we could prove that <ul><li>a social network site requires remote evaluation </li></ul><ul><li>a card sort improve...
what if we could prove that <ul><li><design pattern> requires <process pattern> </li></ul><ul><li>a card sort improves bre...
what if we could prove that <ul><li><design pattern> requires <process pattern> </li></ul><ul><li><process pattern> improv...
what if we could prove that <ul><li><design pattern> requires <process pattern> </li></ul><ul><li><process pattern> improv...
what if we could combine <ul><li><design pattern> with <process pattern>  </li></ul><ul><li><process pattern> with <design...
what if we could combine <ul><li><design patterns>   + <process patterns>  </li></ul><ul><li>best practices on steroids! <...
<design pattern> <ul><li>is a general, repeatable solution to a commonly-occurring problem </li></ul><ul><li>is either pro...
<design pattern> examples <ul><li>Shopping cart (summary of items and prices, add, delete, details, checkout,  ) </li></ul...
<design pattern> collections <ul><li>a library of patterns </li></ul><ul><li>structured, layered and linked (a pattern lan...
<design pattern> collections
<design pattern> collections
<design pattern> collections
<design pattern> collections
<process pattern> <ul><li>describes sequences of general techniques, tasks, actions </li></ul><ul><li>works at the task, s...
<process pattern> examples <ul><li>team review task (announce review, distribute deliverable, review with team, publish re...
<proces pattern> collections <ul><li>a library of patterns </li></ul><ul><li>structured, layered and linked (a pattern lan...
IconProcess: UX Workflow “ The project team transforms the Vision or Business Concept for the application into concrete re...
IconProcess: Develop IA Purpose: - Organize the website's content and features into a logical structure of the whole websi...
<design patterns> + <process patterns> <ul><li>are different </li></ul><ul><li>yet similar </li></ul><ul><li>give a feel f...
the patterns are different <ul><li><design patterns> describe context of use  when is it good for the user (and the busine...
but the patterns are similar too <ul><li>both are driven by “forces” (&quot;users want...&quot; vs. &quot;the project requ...
patterns give a feel for the work <ul><li><design pattern> collections tell you how much you have to design from scratch a...
patterns give a feel for the work
patterns give a feel for the work
in the strategy layer you use <ul><li><design patterns> experience patterns, site type patterns </li></ul><ul><li><process...
in the scope layer you use <ul><li><design patterns> entire collections to see what's already there, main user concept, me...
in the structure layer you use <ul><li><design patterns> site type, main navigation, search, search results, index, sitema...
in the skeleton layer you use <ul><li><design patterns> layout, visual hierarchy, tone of voice, action buttons </li></ul>...
in the surface layer you use <ul><li><design patterns> mood, grid, layout, eye direction </li></ul><ul><li><process patter...
patterns give a feel for the work
the patterns can be linked <ul><li><design patterns> are used/generated when applying a <process pattern> Examples: review...
<process pattern> : review Create Deliver
<process pattern> : review Create Deliver Edit
<process pattern> : review Edit Review Deliver Create
<process pattern> : review Edit Deliver Review Prepare Review Technical Review Team Review Client Review Project Review pr...
<process pattern> : review Edit Review Deliver Create
<process pattern> : review Create Edit Project Approach Review Technical Approach Review Create Approach Review
<process pattern> : review Edit Review Deliver Create
<process pattern> : review Create Edit Project Evaluation Technical Evaluation Review Deliver
<process pattern> : review Edit Review Deliver Approach Evaluate
<process pattern> : review uses/generates <design patterns> Edit Review Deliver Approach Evaluate <design patterns>
<process pattern> : user research Set-up research Perform research Analyse results Determine goals Promote results <design...
the patterns are linked <ul><li><design patterns> are used/generated when applying a <process pattern> Examples: review pr...
welie.com + <proces patterns> (warning: vaporware!)
welie.com + <proces patterns>
welie.com + <proces patterns>
welie.com + <proces patterns> what how ( user research ,  card sort )
welie.com + <proces patterns> who ( user researcher ,  information architect )
the patterns are linked <ul><li><design patterns> are used/generated when applying a <process pattern> Examples: review pr...
<design patterns> + <process patterns> <ul><li>are different </li></ul><ul><li>yet similar </li></ul><ul><li>give a feel f...
what if we could <ul><li>browse <design pattern> collections and find <process patterns> associated with them </li></ul><u...
what if we gathered data on <ul><li>which <design patterns> work best for which site types </li></ul><ul><li>which <proces...
then we could <ul><li>apply that data when composing: - designs, - design processes - design teams for all types of sites ...
challenge <ul><li>“ in New York State, architects have developed a database on roof design and performance. The database t...
challenge <ul><li>“ How interesting it would be to go even deeper in the analysis: what were the organizational patterns a...
challenge <ul><li>“ in  Barcelona, Information Architects  have developed a database on  infospaces’   design patterns and...
challenge <ul><li>“ How interesting it would be to go even deeper in the analysis: what were the organizational patterns a...
challenge <ul><li>I challenge you to think about ways to combine <design patterns> + <process patterns> </li></ul>
design patterns + process patterns best practices on steroids EuroIA 2007, Barcelona Peter Boersma, Info.nl
