Diffusion of Gases            M1 – Cardiovascular/Respiratory                      Sequence                 Thomas Sisson,...
Objectives•  To understand the diffusion of gases in the lung  –  Define diffusion and contrast with bulk flow  –  State F...
Airway Branching                                                            Trachea                     0                 ...
Bulk Flow vs. Diffusion                                                       •  The cross sectional area                 ...
Gas Movement due to Diffusion•  Diffusion - movement of gas due to   molecular motion, rather than flow.  – Akin to the sp...
Gas Movement due to DiffusionT. Sisson
Diffusion•  Driven by concentration gradients:  – differences in partial pressure of the individual    gases.•  Movement o...
Diffusion of Gas Through the        Alveolar Wall Alveolar airspace                           Pathway of diffusion     Sou...
Diffusion of Oxygen Across the         Alveolar Wall            Pulmonary Surfactant                        Diffuses/Disso...
Fick’s Law for Diffusion      Vgas = A x D x (P1 – P2)                    TVgas = volume of gas diffusing through        t...
Diffusivity                  D ≅ Solubility/√MW•  O2 has lower MW than CO2•  Solubility of CO2 is 24x that of O2•  CO2 dif...
Diffusion Across a Membrane  West. Respiratory Physiology: The Essentials 8th ed. Lippincott Williams & Wilkins. 2008
Limitations of Gas Transfer•  Diffusion Coefficient.  – Different gases behave differently.•  Surface Area and Thickness o...
Change in Blood Partial Pressure ofThree Gases with Time in the Capillary                                                 ...
N2O is Perfusion Limited– N2O is very soluble in biological tissues and  diffuses rapidly.– PcN2O rises rapidly in the alv...
Change in Blood Partial Pressure ofThree Gases with Time in the Capillary                                                 ...
Carbon Monoxide is Diffusion Limited – Blood PCO rises very slowly because CO is   bound to Hgb, with very little dissolve...
Transfer of OxygenLevitzky. Pulmonary Physiology, 6th ed. McGraw-Hill. 2003
Transfer of Oxygen•  Under normal conditions, PcO2 reaches PAO2 about 1/3   of the distance through the capillary.•  There...
Transfer of Oxygen is Limited at        Low Alveolar O2    Levitzky. Pulmonary Physiology, 6th ed. McGraw-Hill. 2003
Transfer of CO2                                                            •  Is transfer of                              ...
Levitzky. Pulmonary Physiology, 6th ed. McGraw-Hill. 2003
Transfer of CO2Why is the transfer of CO2 so similar to that of O2?          Vgas = A x D x (P1 – P2)                     ...
Fick’s Law for Diffusion        ( AxD) ( Vgas =       x P1 P 2 )           TVgas = volume of gas diffusing through        ...
Diffusing Capacity( AxD)      V gas       =              = DLx   T     (P1x P 2 x )
Measuring Diffusing Capacity•  Inhale mixture containing known concentration of tracer gas.•  Allow diffusion from alveolu...
We Could Use DLO2  AxD = D O          L 2   TV =  O2         DLO2   ( PAO2   PCO2) = ml O2 /min                           ...
Carbon Monoxide is an Ideal Gas for   Measuring Diffusing Capacity                                                        ...
Carbon Monoxide Measurement     of Diffusing Capacity                     •                 V CO      DLCO =             P...
DLCO Has Two Components                       Diffusion across the                       alveolar membrane.               ...
Conditions that Impact Diffusion        Capacity for CO.                   AxD            DLCO =                    T•  De...
How would the Following Change the Diffusion Capacity of the Lungs?•    Changing from supine to upright•    Exercise•    A...
Additional Source Information                            for more information see: http://open.umich.edu/wiki/CitationPoli...
Upcoming SlideShare
Loading in …5
×

11.18.08(c): Diffusion of Gases

1,090 views

Published on

Slideshow is from the University of Michigan Medical School's M1 Cardiovascular / Respiratory sequence

View additional course materials on Open.Michigan:
openmi.ch/med-M1Cardio

Published in: Education, Technology
  • Be the first to comment

11.18.08(c): Diffusion of Gases

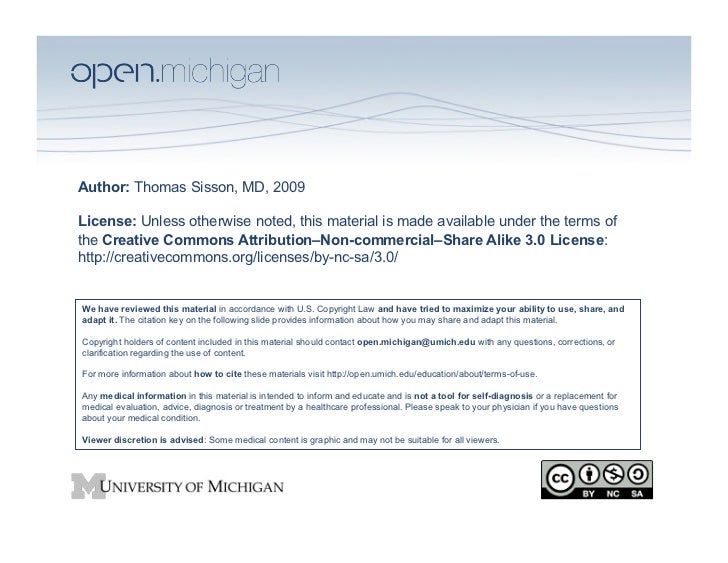

  1. 1. Author: Thomas Sisson, MD, 2009License: Unless otherwise noted, this material is made available under the terms ofthe Creative Commons Attribution–Non-commercial–Share Alike 3.0 License:http://creativecommons.org/licenses/by-nc-sa/3.0/We have reviewed this material in accordance with U.S. Copyright Law and have tried to maximize your ability to use, share, andadapt it. The citation key on the following slide provides information about how you may share and adapt this material.Copyright holders of content included in this material should contact open.michigan@umich.edu with any questions, corrections, orclarification regarding the use of content.For more information about how to cite these materials visit http://open.umich.edu/education/about/terms-of-use.Any medical information in this material is intended to inform and educate and is not a tool for self-diagnosis or a replacement formedical evaluation, advice, diagnosis or treatment by a healthcare professional. Please speak to your physician if you have questionsabout your medical condition.Viewer discretion is advised: Some medical content is graphic and may not be suitable for all viewers.
