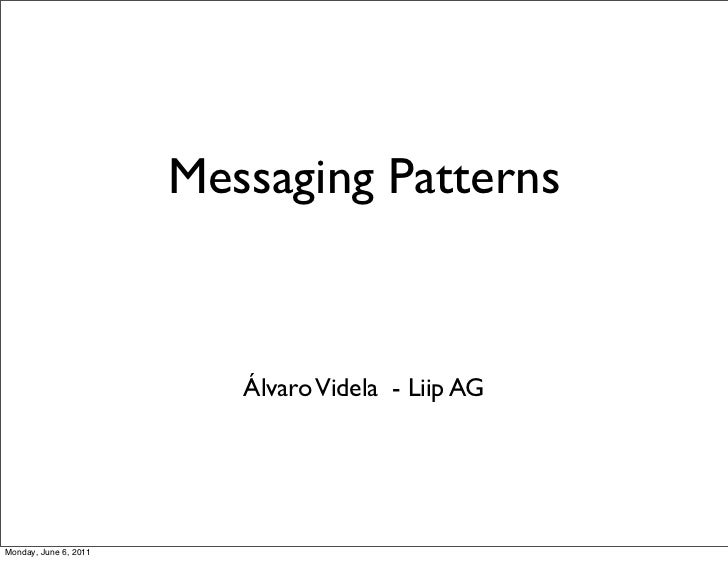

Messaging Patterns                          Álvaro Videla - Liip AGMonday, June 6, 2011
About Me                       •   Developer at Liip AG                       •   Blog: http://videlalvaro.github.com/    ...
About Me                       Co-authoring               RabbitMQ in Action              http://bit.ly/rabbitmqMonday, Ju...
Why Do I need                        Messaging?Monday, June 6, 2011
An ExampleMonday, June 6, 2011
Implement a                       Photo GalleryMonday, June 6, 2011
Two Parts:Monday, June 6, 2011
Pretty SimpleMonday, June 6, 2011
‘Till new                       requirements arriveMonday, June 6, 2011
The Product OwnerMonday, June 6, 2011
Can we also notify the                       user friends when she                       uploads a new image?Monday, June ...
Can we also notify the                       user friends when she                       uploads a new image?      I forgo...
The Social Media GuruMonday, June 6, 2011
We need to give badges                  to users for each                   picture uploadMonday, June 6, 2011
We need to give badges                  to users for each                   picture upload                       and post ...
The SysadminMonday, June 6, 2011
Dumb! You’re delivering                    full size images!                 The bandwidth bill has                       ...
Dumb! You’re delivering                    full size images!                 The bandwidth bill has                       ...
The Developer in the                           other teamMonday, June 6, 2011
I need to call your PHP                   stuff but from PythonMonday, June 6, 2011
I need to call your PHP                   stuff but from Python                       And also Java starting next weekMond...
The UserMonday, June 6, 2011
I don’t want to wait                       till your app resizes                             my image!Monday, June 6, 2011
YouMonday, June 6, 2011
FML!Monday, June 6, 2011
Let’s see the                       code evolutionMonday, June 6, 2011
First Implementation:           %% image_controller           handle(PUT, "/user/image", ReqData) ->             image_han...
Second Implementation:           %% image_controller           handle(PUT, "/user/image", ReqData) ->             {ok, Ima...
Third Implementation:           %% image_controller           handle(PUT, "/user/image", ReqData) ->             {ok, Imag...
Fourth Implementation:           %% image_controller           handle(PUT, "/user/image", ReqData) ->             {ok, Ima...
Final Implementation:           %% image_controller           handle(PUT, "/user/image", ReqData) ->             {ok, Imag...
Can our code scale to                        new requirements?Monday, June 6, 2011
What ifMonday, June 6, 2011
What if                       • We need to speed up image conversionMonday, June 6, 2011
What if                       • We need to speed up image conversion                       • User notification has to be se...
What if                       • We need to speed up image conversion                       • User notification has to be se...
What if                       • We need to speed up image conversion                       • User notification has to be se...
Can we do better?Monday, June 6, 2011
Sure.                       Using messagingMonday, June 6, 2011
Design                       Publish / Subscribe PatternMonday, June 6, 2011
First Implementation:           %% image_controller           handle(PUT, "/user/image", ReqData) ->             {ok, Imag...
First Implementation:           %% image_controller           handle(PUT, "/user/image", ReqData) ->             {ok, Imag...
First Implementation:           %% image_controller           handle(PUT, "/user/image", ReqData) ->             {ok, Imag...
First Implementation:           %% image_controller           handle(PUT, "/user/image", ReqData) ->             {ok, Imag...
Second Implementation:Monday, June 6, 2011
Second Implementation:           %% there’s none.Monday, June 6, 2011
MessagingMonday, June 6, 2011
Messaging                       • Share data across processesMonday, June 6, 2011
Messaging                       • Share data across processes                       • Processes can be part of different a...
Messaging                       • Share data across processes                       • Processes can be part of different a...
Messaging                       • Share data across processes                       • Processes can be part of different a...
Main ConceptsMonday, June 6, 2011
Main Concepts                       • Messages are sent by ProducersMonday, June 6, 2011
Main Concepts                       • Messages are sent by Producers                       • Messages are delivered to Con...
Main Concepts                       • Messages are sent by Producers                       • Messages are delivered to Con...
Messaging                          and                       RabbitMQMonday, June 6, 2011
What is RabbitMQ?Monday, June 6, 2011
RabbitMQ                       • Enterprise Messaging System                       • Open Source MPL                      ...
Features                       • Reliable and High Scalable                       • Easy To install                       ...
Client Libraries                       • Java                       • .NET/C#                       • Erlang              ...
AMQP                       • Advanced Message Queuing Protocol                       • Suits Interoperability             ...
Message Flow                  http://www.redhat.com/docs/en-US/Red_Hat_Enterprise_MRG/1.0/html/Messaging_Tutorial/chap-Mes...
AMQP Model                       • Exchanges                       • Message Queues                       • Bindings      ...
Exchange Types                       • Fanout                       • Direct                       • TopicMonday, June 6, ...
http://www.redhat.com/docs/en-US/Red_Hat_Enterprise_MRG/1.0/html/Messaging_Tutorial/sect-Messaging_Tutorial-Initial_Concep...
http://www.redhat.com/docs/en-US/Red_Hat_Enterprise_MRG/1.0/html/Messaging_Tutorial/sect-Messaging_Tutorial-Initial_Concep...
http://www.redhat.com/docs/en-US/Red_Hat_Enterprise_MRG/1.0/html/Messaging_Tutorial/sect-Messaging_Tutorial-Initial_Concep...
Messaging PatternsMonday, June 6, 2011
There are many                       messaging patterns                          http://www.eaipatterns.com/Monday, June 6...
Basic PatternsMonday, June 6, 2011
Competing Consumers                        How can a messaging                        client process multiple             ...
Competing Consumers                         Create multiple Competing                       Consumers on a single channel ...
Competing ConsumersMonday, June 6, 2011
Publisher Code  init(Exchange, Queue) ->      #exchange.declare{exchange = Exchange,                          type = <<"di...
Consumer Code   init_consumer(Exchange, Queue) ->       init(Exchange, Queue),       #basic.consume{ticket = 0, queue = Qu...
Publish/Subscribe                            How can the sender                         broadcast an event to all         ...
Publish/Subscribe                       Send the event on a Publish-Subscribe                        Channel, which delive...
Publish/SubscribeMonday, June 6, 2011
Publisher Code  init(Exchange, Queue) ->      #exchange.declare{exchange = Exchange,                          type = <<"fa...
Consumer Code A   init_consumer(Exchange, ResizeImageQueue) ->       init(Exchange, ResizeImageQueue),       #basic.consum...
Consumer Code B   init_consumer(Exchange, NotifyFriendsQueue) ->       init(Exchange, NotifyFriendsQueue),       #basic.co...
Consumer Code C   init_consumer(Exchange, LogImageUpload) ->       init(Exchange, LogImageUpload),       #basic.consume{qu...
Request/Reply                       When an application sends a message,                        how can it get a response ...
Request/Reply                         Send a pair of Request-Reply                       messages, each on its own channel...
Request/ReplyMonday, June 6, 2011
Return Address                       How does a replier know where to                              send the reply?Monday, ...
Return Address                         The request message should contain a                       Return Address that indi...
Return AddressMonday, June 6, 2011
Correlation Identifier                         How does a requestor that has                          received a reply know...
Correlation Identifier             Each reply message should contain a Correlation             Identifier, a unique identifie...
Correlation IdentifierMonday, June 6, 2011
Putting it all togetherMonday, June 6, 2011
RPC Client  init() ->      #queue.declare_ok{queue = SelfQueue} =          #queue.declare{exclusive = true, auto_delete = ...
RPC Client  init() ->      #queue.declare_ok{queue = SelfQueue} =          #queue.declare{exclusive = true, auto_delete = ...
RPC Client  init() ->      #queue.declare_ok{queue = SelfQueue} =          #queue.declare{exclusive = true, auto_delete = ...
RPC Server  on(#basic.deliver{},     #amqp_msg{props = Props, payload = Payload}) ->           CorrelationId = Props.corre...
Advanced PatternsMonday, June 6, 2011
Control Bus                How can we effectively administer a messaging                  system that is distributed acros...
Control Bus                       Use a Control Bus to                       manage an enterprise                        i...
Control Bus                       • Send Configuration Messages                       • Start/Stop Services                ...
Control BusMonday, June 6, 2011
Control Bus                          Make Services                       “Control Bus” EnabledMonday, June 6, 2011
Detour                        How can you route a message through                       intermediate steps to perform vali...
Detour                Construct a Detour with a context-based router                       controlled via the Control Bus....
DetourMonday, June 6, 2011
Wire Tap                       How do you inspect messages that                       travel on a point-to-point channel?M...
Wire Tap            Insert a simple Recipient List into the channel that              publishes each incoming message to t...
Wire Tap                       How do you inspect messages that                       travel on a point-to-point channel?M...
Wire Tap            Insert a simple Recipient List into the channel that              publishes each incoming message to t...
Wire TapMonday, June 6, 2011
Smart Proxy               How can you track messages on a service that              publishes reply messages to the Return...
Smart Proxy                       Use a Smart Proxy to store the Return                         Address supplied by the or...
Smart ProxyMonday, June 6, 2011
Credits                       Pattern graphics and description taken from:                               http://www.eaipat...
Thanks!                                    @old_sound                          http://vimeo.com/user1169087               ...
