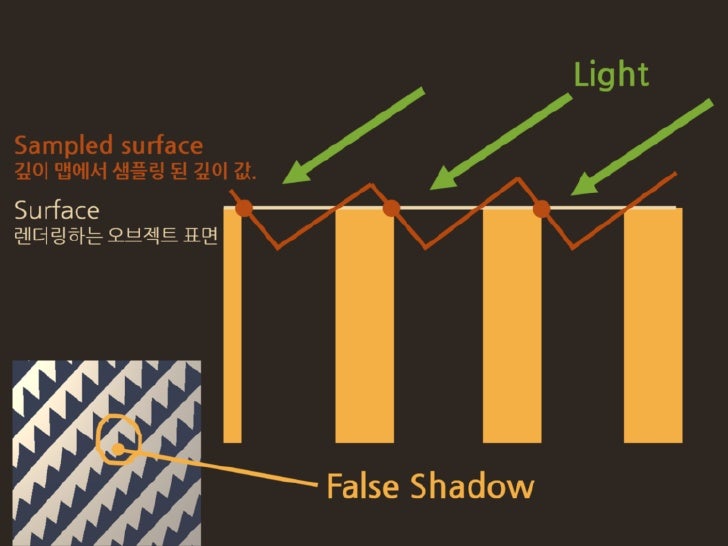

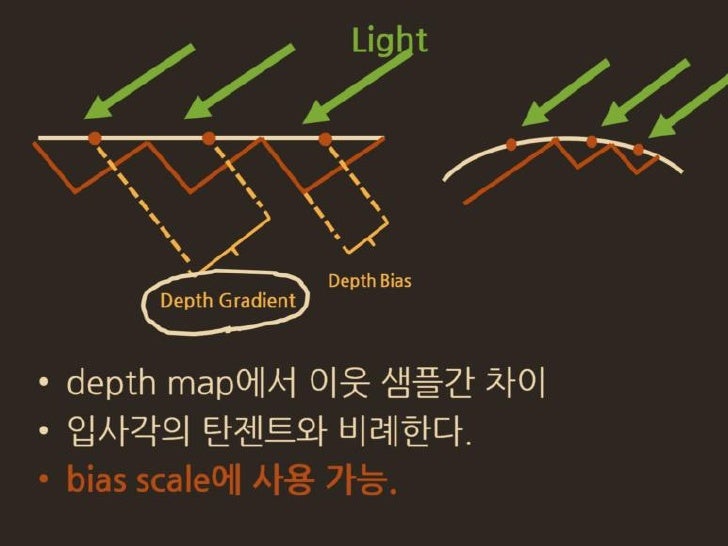

• Slope-scale depth bias
  – gradient를 depth bias에 사용

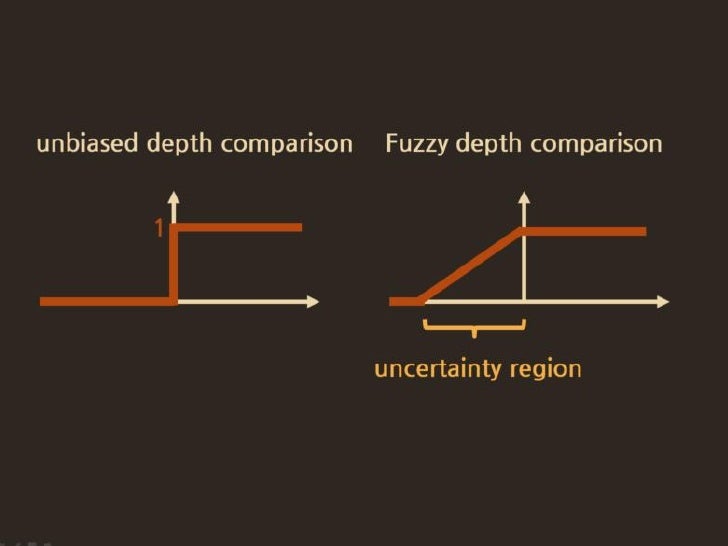

• Fuzzy depth comparison
  – 1 or 0이 아니라 0~1 값을 쓴다.


• Linearly f...
float lightVisibility_GSM(float3 lightCoord)
{
  // get the magnitude of the gradient, by either method
  float gradient =...
Overview of Gradient Shadow Maps
Multisampling and PCF
Merging the Algorithms
Optimizing Texture Look-ups
Conclusion
float lightVisibility_PCF(float3 ligthCoord)
{
  float result = 0;

    for (int i = 0; i < n; ++i)
    {
      float3 off...
Overview of Gradient Shadow Maps
Multisampling and PCF
Merging the Algorithms
Optimizing Texture Look-ups
Conclusion
float lightVisibility_PCF_with_GSM(float3 lightCoord)
{
  float result = 0;

    for (int i = 0; i < n; ++i)
    {
      r...
incident light             incident light



                 surface                    surface




      shadow volume  ...
float lightVisibility_GSM_modified(float3 lightCoord,
float2 offset)
{
  // get the gradient, by either method
  float2 gr...
Overview of Gradient Shadow Maps
Multisampling and PCF
Merging the Algorithms
Optimizing Texture Look-ups
Conclusion
• depth map에 scalar depth 저장했을 때
 – gradient vector : texture loockup 3번


• 추가로 depth sampling 한번, PCF에서 4번

• 전체 PCF 영역에...
z    x 2  xy  1  z x 
 x     i                   i  i

 z   xy  y 2   z y 
   y    ...
8 PCF samples
float lightVisibility_unrolled_circluar8(float3 lightCoord)
{
  const float displace = .5 / depthMapResoluti...
Overview of Gradient Shadow Maps
Multisampling and PCF
Merging the Algorithms
Optimizing Texture Look-ups
Conclusion
• ShaderX4에서 봤던 Acne 제거 기술 복습
 – Slope-scale depth bias,
 – Fuzzy depth comparison,
 – Linearly filtered depth values


• ...
[shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps
[shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps
[shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps
[shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps
[shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps
[shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps
Upcoming SlideShare
Loading in …5
×

of

[shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 1 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 2 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 3 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 4 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 5 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 6 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 7 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 8 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 9 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 10 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 11 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 12 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 13 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 14 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 15 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 16 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 17 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 18 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 19 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 20 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 21 [shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps Slide 22
Upcoming SlideShare
[shaderx4] 4.2 Eliminating Surface Acne with Gradient Shadow Mapping
Next
Download to read offline and view in fullscreen.

2 Likes

Share

Download to read offline

[shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps

Download to read offline

Related Books

Free with a 30 day trial from Scribd

See all

Related Audiobooks

Free with a 30 day trial from Scribd

See all

[shaderx5] 4.2 Multisampling Extension for Gradient Shadow Maps

  1. 1. ShaderX5 4.2 Multisampling Extension for Gradient Shadow Maps ohyecloudyhttp://ohyecloudy.com shader study http://cafe.naver.com/shader.cafe 2010.5.24
  2. 2. Overview of Gradient Shadow Maps Multisampling and PCF Merging the Algorithms Optimizing Texture Look-ups Conclusion

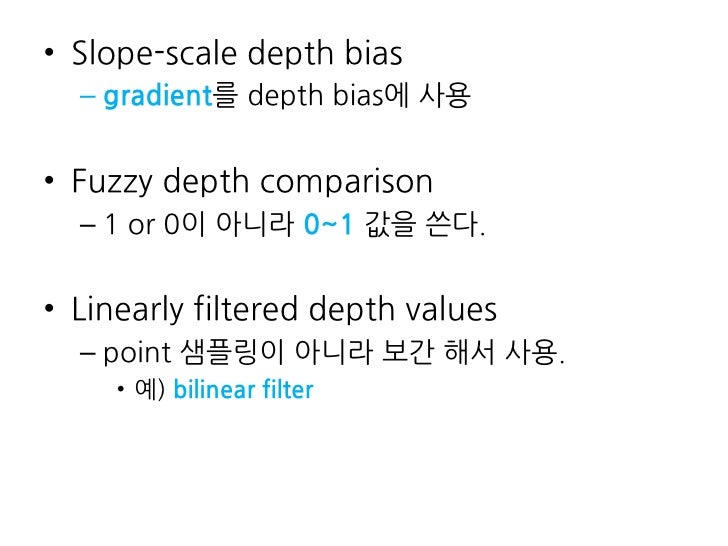

  3. 3. • Slope-scale depth bias – gradient를 depth bias에 사용 • Fuzzy depth comparison – 1 or 0이 아니라 0~1 값을 쓴다. • Linearly filtered depth values – point 샘플링이 아니라 보간 해서 사용. • 예) bilinear filter

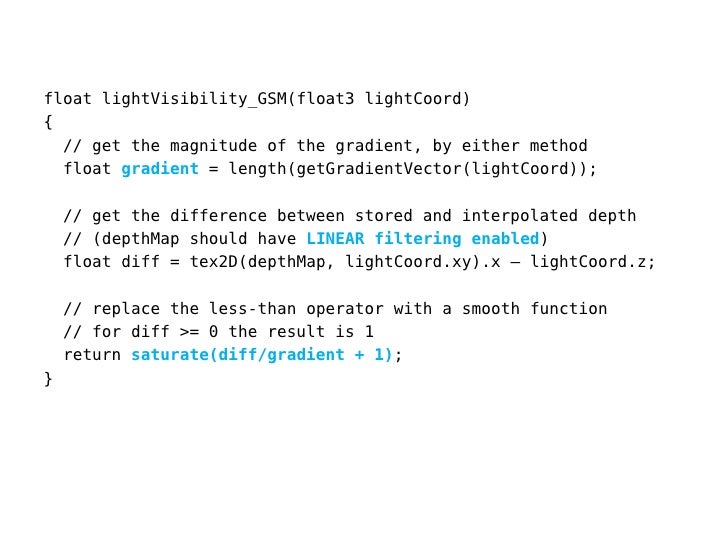

  4. 4. float lightVisibility_GSM(float3 lightCoord) { // get the magnitude of the gradient, by either method float gradient = length(getGradientVector(lightCoord)); // get the difference between stored and interpolated depth // (depthMap should have LINEAR filtering enabled) float diff = tex2D(depthMap, lightCoord.xy).x – lightCoord.z; // replace the less-than operator with a smooth function // for diff >= 0 the result is 1 return saturate(diff/gradient + 1); }

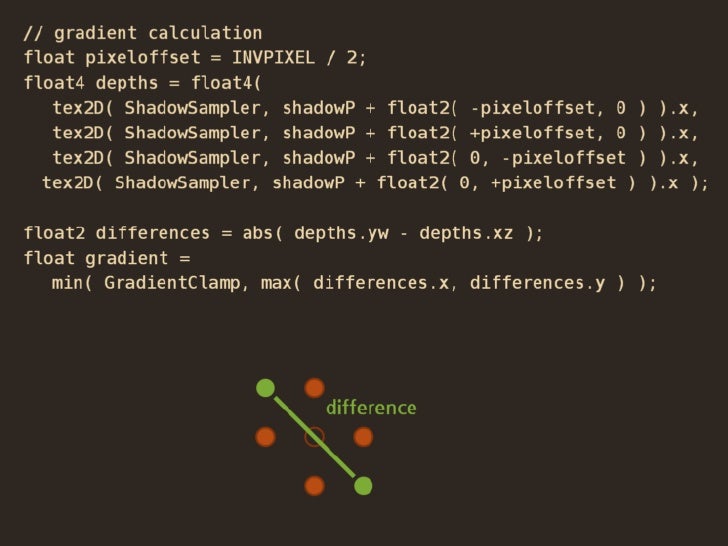

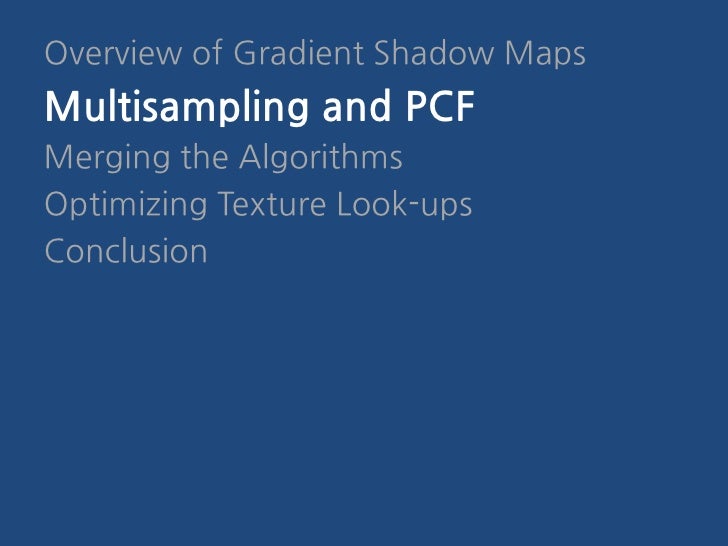

  5. 5. Overview of Gradient Shadow Maps Multisampling and PCF Merging the Algorithms Optimizing Texture Look-ups Conclusion
  6. 6. float lightVisibility_PCF(float3 ligthCoord) { float result = 0; for (int i = 0; i < n; ++i) { float3 offCoord = lightCoord + offset[i]; result += lightCoord.z < tex2D(depthMap, offCoord.xy).x; } return result / n; }
  7. 7. Overview of Gradient Shadow Maps Multisampling and PCF Merging the Algorithms Optimizing Texture Look-ups Conclusion

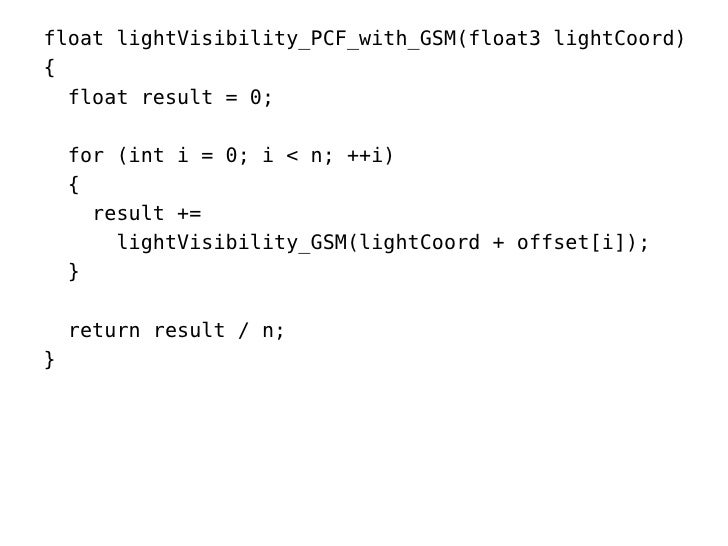

  8. 8. float lightVisibility_PCF_with_GSM(float3 lightCoord) { float result = 0; for (int i = 0; i < n; ++i) { result += lightVisibility_GSM(lightCoord + offset[i]); } return result / n; }

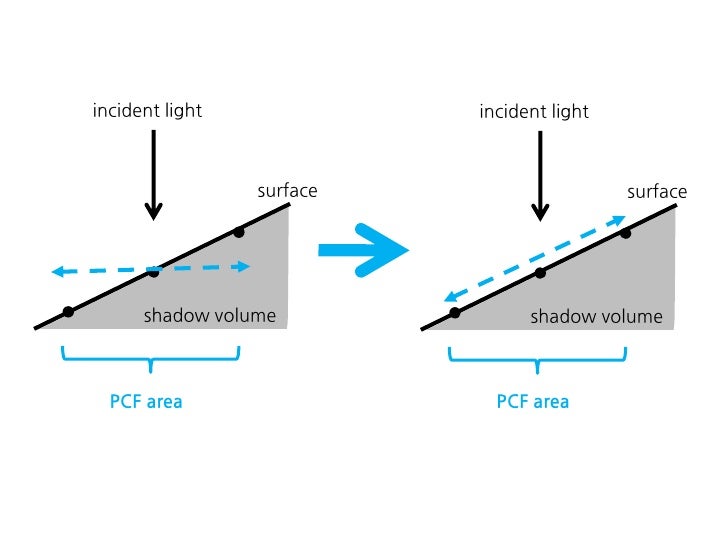

  9. 9. incident light incident light surface surface shadow volume shadow volume PCF area PCF area

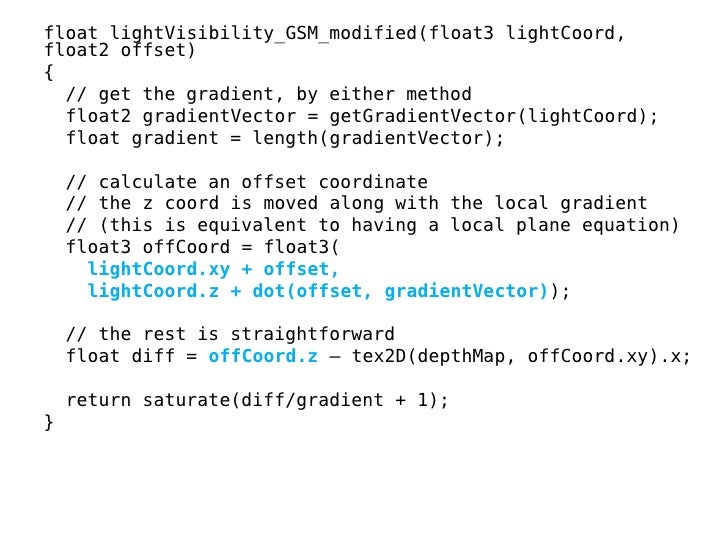

  10. 10. float lightVisibility_GSM_modified(float3 lightCoord, float2 offset) { // get the gradient, by either method float2 gradientVector = getGradientVector(lightCoord); float gradient = length(gradientVector); // calculate an offset coordinate // the z coord is moved along with the local gradient // (this is equivalent to having a local plane equation) float3 offCoord = float3( lightCoord.xy + offset, lightCoord.z + dot(offset, gradientVector)); // the rest is straightforward float diff = offCoord.z – tex2D(depthMap, offCoord.xy).x; return saturate(diff/gradient + 1); }

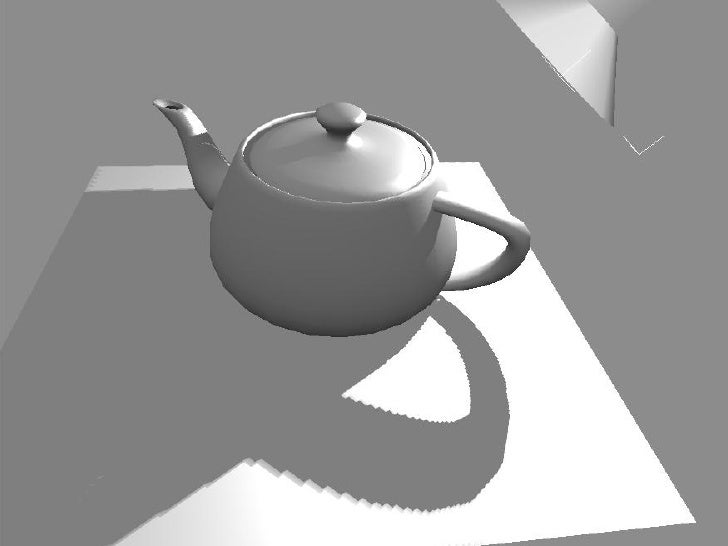

  11. 11. Overview of Gradient Shadow Maps Multisampling and PCF Merging the Algorithms Optimizing Texture Look-ups Conclusion
  12. 12. • depth map에 scalar depth 저장했을 때 – gradient vector : texture loockup 3번 • 추가로 depth sampling 한번, PCF에서 4번 • 전체 PCF 영역에서 평균 gradient를 근사 – 최소 제곱 근사값least squares approximation을 찾기 위한 선형회귀linear regression
  13. 13. z    x 2  xy  1  z x   x    i i i  z   xy  y 2   z y   y   i   i i  공(共)분산 행렬 covariance matrix  z   pi p i  T 1  zi pi  xy 제거   zi xi   z    x     xi2  z   zi yi    y     yi  2   
  14. 14. 8 PCF samples float lightVisibility_unrolled_circluar8(float3 lightCoord) { const float displace = .5 / depthMapResolution; const float displaceLong = 1.41421 * displace; float depths[8] = { tex2D(depthMap, lightCoord.xy + float2(-displaceLong,0)).x, tex2D(depthMap, lightCoord.xy + float2(displaceLong,0)).x, tex2D(depthMap, lightCoord.xy + float2(0,-displaceLong)).x, tex2D(depthMap, lightCoord.xy + float2(0,displaceLong)).x, tex2D(depthMap, lightCoord.xy + float2(-displaceLong,-displaceLong)).x, tex2D(depthMap, lightCoord.xy + float2(displaceLong,-displaceLong)).x, tex2D(depthMap, lightCoord.xy + float2(-displaceLong, displaceLong)).x, tex2D(depthMap, lightCoord.xy + float2(displaceLong, displaceLong)).x }; const float inverseCovariance = 1. / (1 + 1+ 2); float2 gradientVector = float2( depths[1] * 1.41421 + depths[5] + depths[7] -depths[0] * 1.41421 – depths[4] – depths[6], depths[3] * 1.41421 + depths[6] + depths[7] -depths[2] * 1.41421 – depths[4] – depths[5] ) * inverseCovariance; // continue with summation over PCF samples // using the average gradient }
  15. 15. Overview of Gradient Shadow Maps Multisampling and PCF Merging the Algorithms Optimizing Texture Look-ups Conclusion
  16. 16. • ShaderX4에서 봤던 Acne 제거 기술 복습 – Slope-scale depth bias, – Fuzzy depth comparison, – Linearly filtered depth values • 추가로 부드러운 그림자 가장자리(edge)를 만들기 위한 기술 – PCF – 샘플링 회수를 줄이기 위한 근사
