Rancher最速セットアップ理論 プロジェクトr to the next stage

  1. 1. Rancher最速 セットアップ理論 プロジェクトR to the Next Stage       Masayoshi Nomura / @nmrmsys    2018/01/25 Rancher Meetup #03 in Osaka 1 / 16
  2. 2.  ■ なまえ: 野村 昌由  ■ 業務システム開発   とインフラ業  ■ 開発に復帰したはずがインフラ   シェル芸は実⽤主義派、Docker   Rancher、最近はPostgreSQL、   時系列DB、データ分析、IoTも  ■ 所属してる会社が絶賛⼈⼿不⾜   iOS・業務・インフラ・ハード・   その他スゴ腕エンジニアの⽅々   お助け下さい!🐟  @nmrmsys ⾃⼰紹介 2 / 16
  3. 3. 会社紹介   事業所は、新⼤阪、新橋、⼤連、ロス辺りにあります。 3 / 16
  4. 4. 今⽇話す内容 AWSでCloudFormationを使って Rancher環境をサクッと作る⽅法 RancherOSの Community AMIへ cloud-initで Serverをセットアップ 起動スクリプトで Customホスト追加 エージェント実⾏する所まで⾃動化 4 / 16

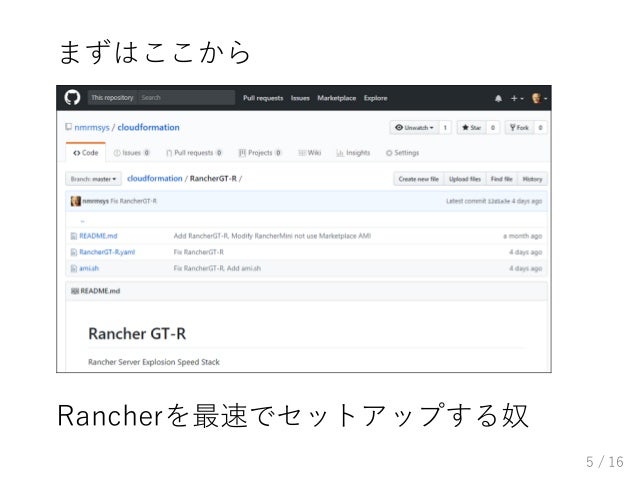

  5. 5. まずはここから Rancherを最速でセットアップする奴 5 / 16

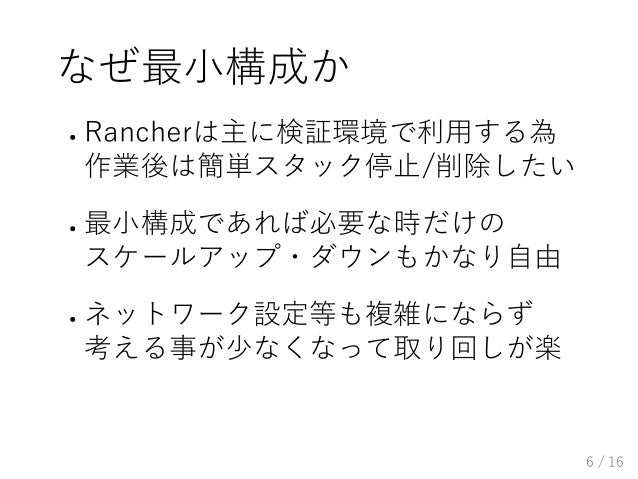

  6. 6. なぜ最⼩構成か Rancherは主に検証環境で利⽤する為 作業後は簡単スタック停⽌/削除したい 最⼩構成であれば必要な時だけの スケールアップ・ダウンもかなり⾃由 ネットワーク設定等も複雑にならず 考える事が少なくなって取り回しが楽 6 / 16

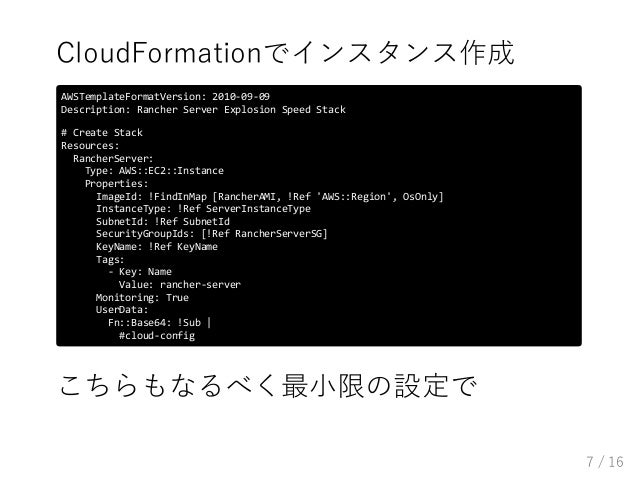

  7. 7. CloudFormationでインスタンス作成 AWSTemplateFormatVersion: 2010-09-09 Description: Rancher Server Explosion Speed Stack # Create Stack Resources: RancherServer: Type: AWS::EC2::Instance Properties: ImageId: !FindInMap [RancherAMI, !Ref 'AWS::Region', OsOnly] InstanceType: !Ref ServerInstanceType SubnetId: !Ref SubnetId SecurityGroupIds: [!Ref RancherServerSG] KeyName: !Ref KeyName Tags: - Key: Name Value: rancher-server Monitoring: True UserData: Fn::Base64: !Sub | #cloud-config こちらもなるべく最⼩限の設定で 7 / 16

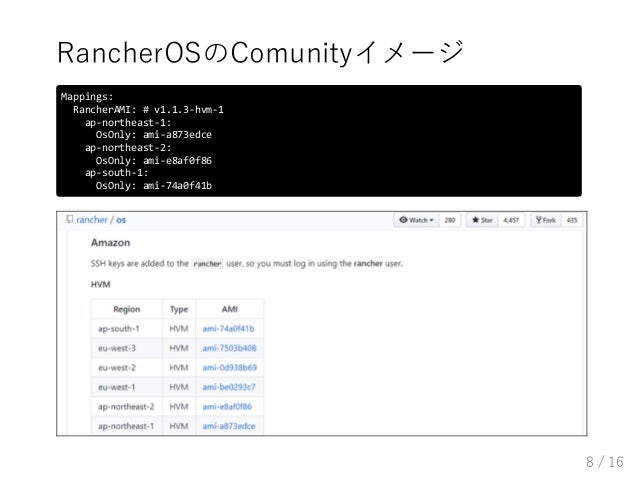

  8. 8. RancherOSのComunityイメージ Mappings: RancherAMI: # v1.1.3-hvm-1 ap-northeast-1: OsOnly: ami-a873edce ap-northeast-2: OsOnly: ami-e8af0f86 ap-south-1: OsOnly: ami-74a0f41b 8 / 16
  9. 9. AWS EC2でのcloud-init設定⽅法 UserData: Fn::Base64: !Sub | #cloud-config rancher: services: rancher-server: image: rancher/server restart: unless-stopped ports: - 8080:8080 runcmd: - echo `date` "runcmd" >> /var/lib/rancher/rancher_server_setup.log Serverサービス起動、コマンド実⾏ 9 / 16

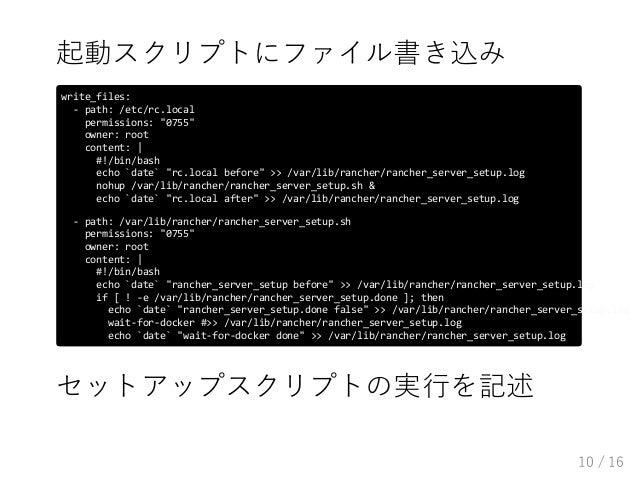

  10. 10. 起動スクリプトにファイル書き込み write_files: - path: /etc/rc.local permissions: "0755" owner: root content: | #!/bin/bash echo `date` "rc.local before" >> /var/lib/rancher/rancher_server_setup.log nohup /var/lib/rancher/rancher_server_setup.sh & echo `date` "rc.local after" >> /var/lib/rancher/rancher_server_setup.log - path: /var/lib/rancher/rancher_server_setup.sh permissions: "0755" owner: root content: | #!/bin/bash echo `date` "rancher_server_setup before" >> /var/lib/rancher/rancher_server_setup.log if [ ! -e /var/lib/rancher/rancher_server_setup.done ]; then echo `date` "rancher_server_setup.done false" >> /var/lib/rancher/rancher_server_setup.log wait-for-docker #>> /var/lib/rancher/rancher_server_setup.log echo `date` "wait-for-docker done" >> /var/lib/rancher/rancher_server_setup.log セットアップスクリプトの実⾏を記述 10 / 16

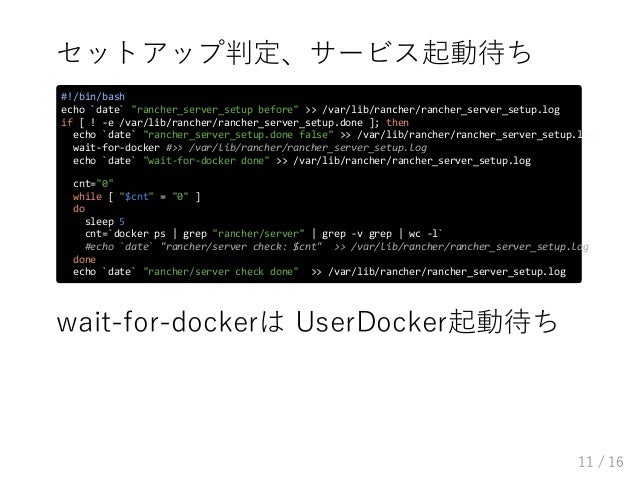

  11. 11. セットアップ判定、サービス起動待ち #!/bin/bash echo `date` "rancher_server_setup before" >> /var/lib/rancher/rancher_server_setup.log if [ ! -e /var/lib/rancher/rancher_server_setup.done ]; then echo `date` "rancher_server_setup.done false" >> /var/lib/rancher/rancher_server_setup.log wait-for-docker #>> /var/lib/rancher/rancher_server_setup.log echo `date` "wait-for-docker done" >> /var/lib/rancher/rancher_server_setup.log cnt="0" while [ "$cnt" = "0" ] do sleep 5 cnt=`docker ps | grep "rancher/server" | grep -v grep | wc -l` #echo `date` "rancher/server check: $cnt" >> /var/lib/rancher/rancher_server_setup.log done echo `date` "rancher/server check done" >> /var/lib/rancher/rancher_server_setup.log wait-for-dockerは UserDocker起動待ち 11 / 16

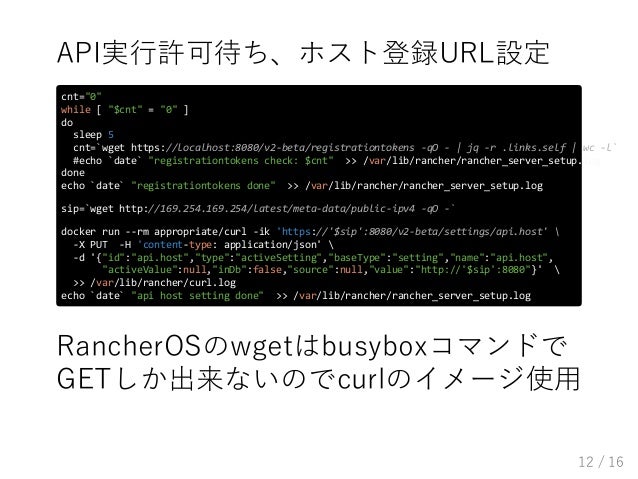

  12. 12. API実⾏許可待ち、ホスト登録URL設定 cnt="0" while [ "$cnt" = "0" ] do sleep 5 cnt=`wget https://localhost:8080/v2-beta/registrationtokens -qO - | jq -r .links.self | wc -l` #echo `date` "registrationtokens check: $cnt" >> /var/lib/rancher/rancher_server_setup.log done echo `date` "registrationtokens done" >> /var/lib/rancher/rancher_server_setup.log sip=`wget http://169.254.169.254/latest/meta-data/public-ipv4 -qO -` docker run --rm appropriate/curl -ik 'https://'$sip':8080/v2-beta/settings/api.host' -X PUT -H 'content-type: application/json' -d '{"id":"api.host","type":"activeSetting","baseType":"setting","name":"api.host", "activeValue":null,"inDb":false,"source":null,"value":"http://'$sip':8080"}' >> /var/lib/rancher/curl.log echo `date` "api host setting done" >> /var/lib/rancher/rancher_server_setup.log RancherOSのwgetはbusyboxコマンドで GETしか出来ないのでcurlのイメージ使⽤ 12 / 16

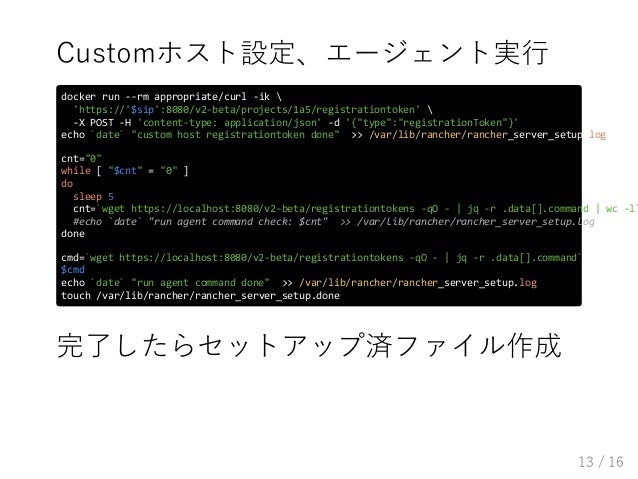

  13. 13. Customホスト設定、エージェント実⾏ docker run --rm appropriate/curl -ik 'https://'$sip':8080/v2-beta/projects/1a5/registrationtoken' -X POST -H 'content-type: application/json' -d '{"type":"registrationToken"}' echo `date` "custom host registrationtoken done" >> /var/lib/rancher/rancher_server_setup.log cnt="0" while [ "$cnt" = "0" ] do sleep 5 cnt=`wget https://localhost:8080/v2-beta/registrationtokens -qO - | jq -r .data[].command | wc -l` #echo `date` "run agent command check: $cnt" >> /var/lib/rancher/rancher_server_setup.log done cmd=`wget https://localhost:8080/v2-beta/registrationtokens -qO - | jq -r .data[].command` $cmd echo `date` "run agent command done" >> /var/lib/rancher/rancher_server_setup.log touch /var/lib/rancher/rancher_server_setup.done 完了したらセットアップ済ファイル作成 13 / 16
  14. 14. それでは実際に⾛らせてみましょう! 14 / 16

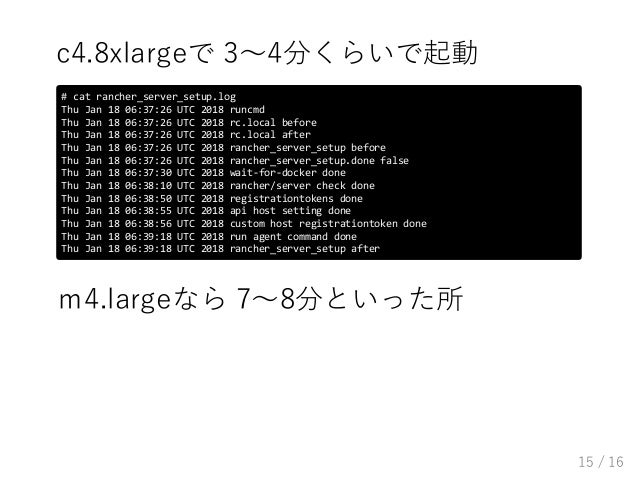

  15. 15. c4.8xlargeで 3〜4分くらいで起動 # cat rancher_server_setup.log Thu Jan 18 06:37:26 UTC 2018 runcmd Thu Jan 18 06:37:26 UTC 2018 rc.local before Thu Jan 18 06:37:26 UTC 2018 rc.local after Thu Jan 18 06:37:26 UTC 2018 rancher_server_setup before Thu Jan 18 06:37:26 UTC 2018 rancher_server_setup.done false Thu Jan 18 06:37:30 UTC 2018 wait-for-docker done Thu Jan 18 06:38:10 UTC 2018 rancher/server check done Thu Jan 18 06:38:50 UTC 2018 registrationtokens done Thu Jan 18 06:38:55 UTC 2018 api host setting done Thu Jan 18 06:38:56 UTC 2018 custom host registrationtoken done Thu Jan 18 06:39:18 UTC 2018 run agent command done Thu Jan 18 06:39:18 UTC 2018 rancher_server_setup after m4.largeなら 7〜8分といった所 15 / 16

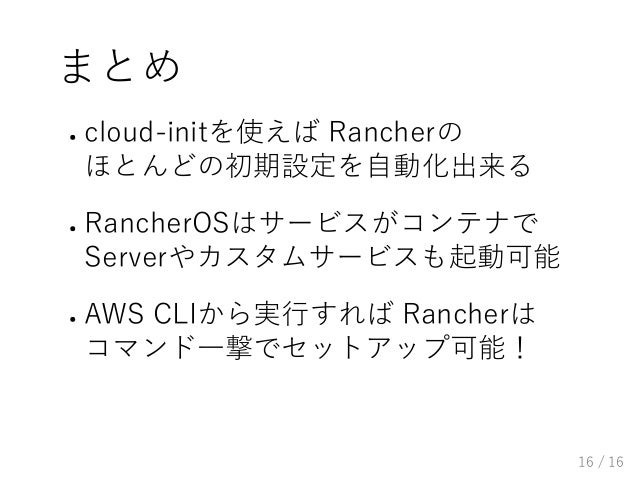

  16. 16. まとめ cloud-initを使えば Rancherの ほとんどの初期設定を⾃動化出来る RancherOSはサービスがコンテナで Serverやカスタムサービスも起動可能 AWS CLIから実⾏すれば Rancherは コマンド⼀撃でセットアップ可能! 16 / 16

×
