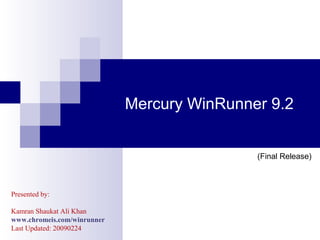

Mercury WinRunner 9.2
(Final Release)
Presented by:
Kamran Shaukat Ali Khan
www.chromeis.com/winrunner
Last Updated: 20090224

2.

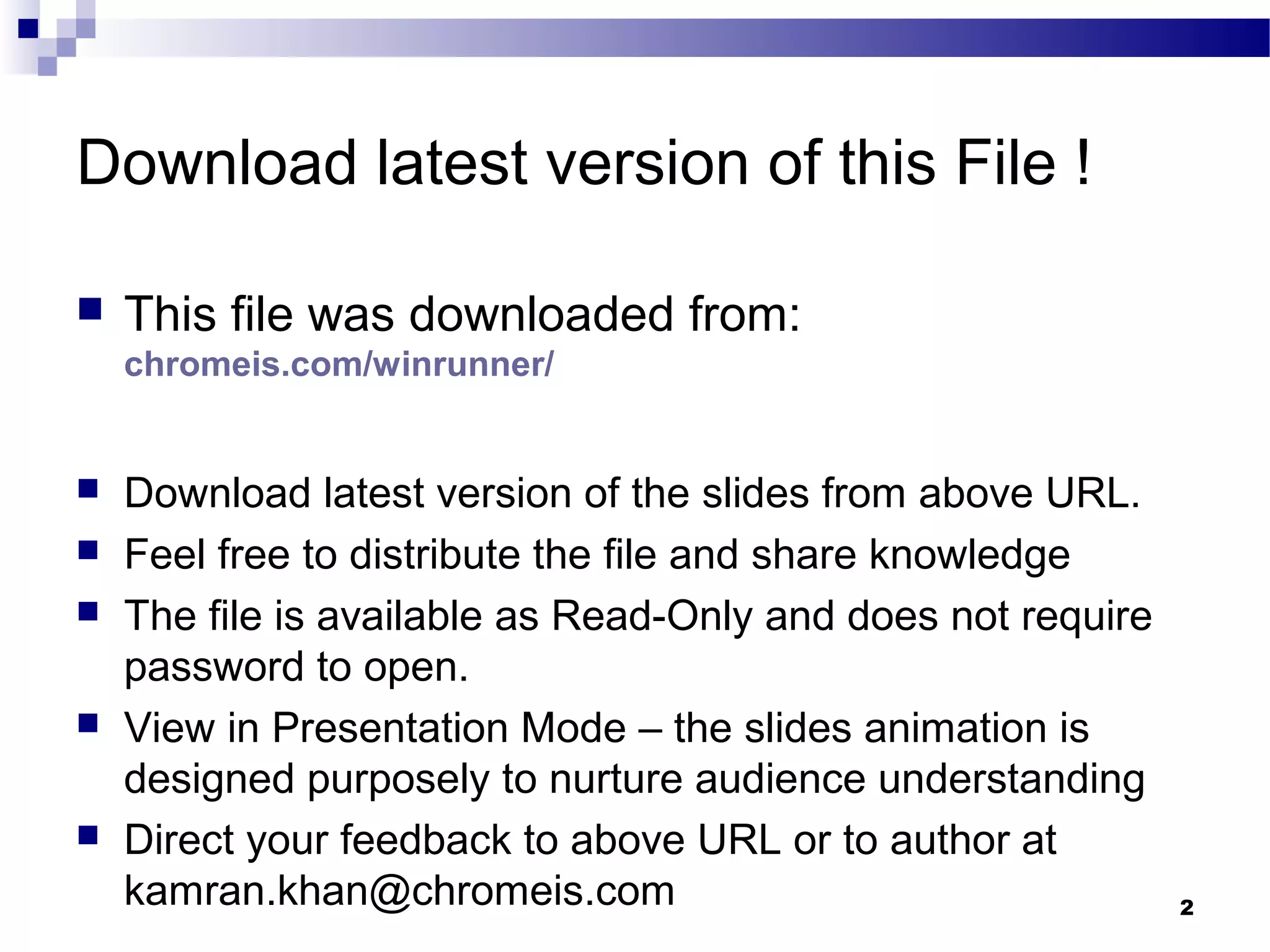

Download latest version of this File !
 This file was downloaded from:
chromeis.com/winrunner/
 Download latest version of the slides from above URL.
 Feel free to distribute the file and share knowledge
 The file is available as Read-Only and does not require
password to open.
 View in Presentation Mode – the slides animation is
designed purposely to nurture audience understanding
 Direct your feedback to above URL or to author at
kamran.khan@chromeis.com 2

3.

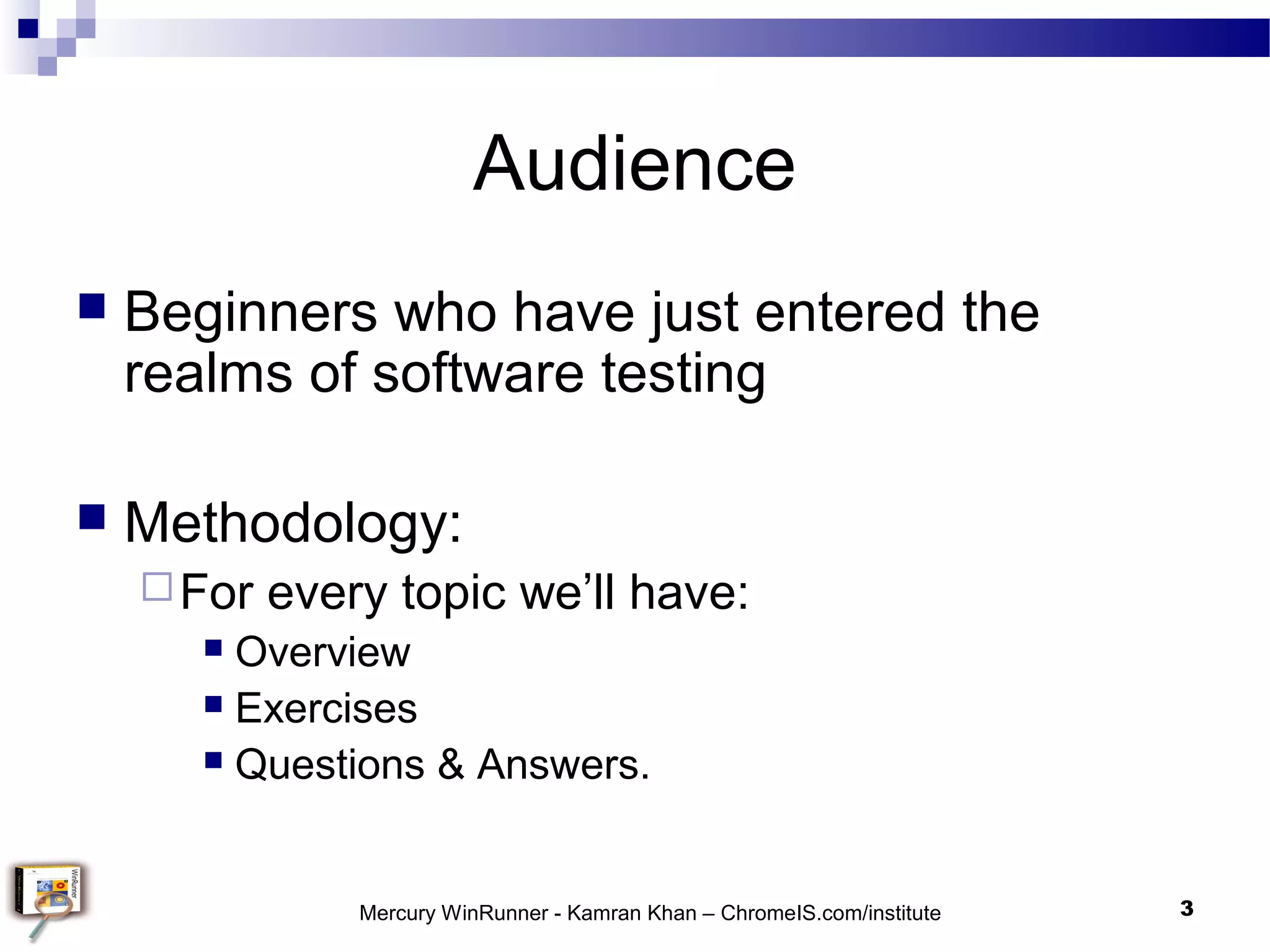

Audience
 Beginners who have just entered the
realms of software testing
 Methodology:
For every topic we’ll have:
 Overview
 Exercises
 Questions & Answers.
Mercury WinRunner - Kamran Khan – ChromeIS.com/institute 3

4.

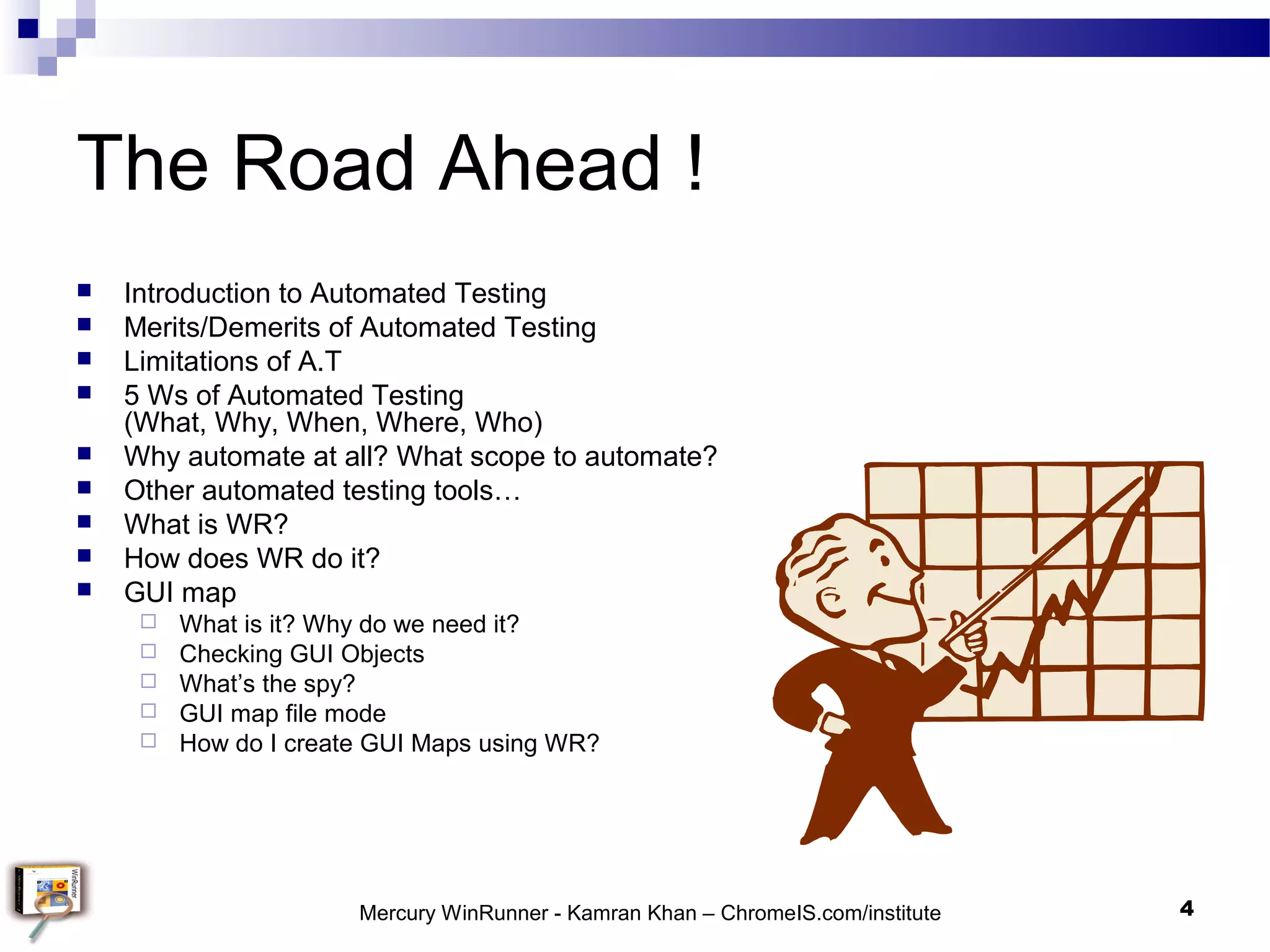

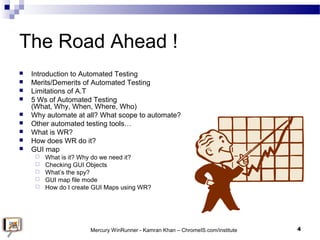

The Road Ahead !
 Introduction to Automated Testing
 Merits/Demerits of Automated Testing
 Limitations of A.T
 5 Ws of Automated Testing
(What, Why, When, Where, Who)
 Why automate at all? What scope to automate?
 Other automated testing tools…
 What is WR?
 How does WR do it?
 GUI map
 What is it? Why do we need it?
 Checking GUI Objects
 What’s the spy?
 GUI map file mode
 How do I create GUI Maps using WR?
4Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

5.

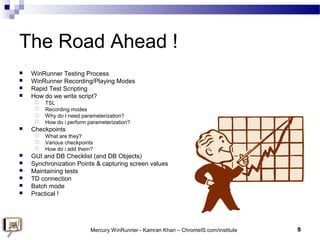

The Road Ahead !
 WinRunner Testing Process
 WinRunner Recording/Playing Modes
 Rapid Test Scripting
 How do we write script?
 TSL
 Recording modes

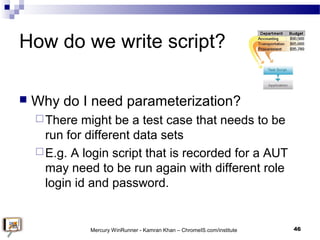

 Why do I need parameterization?
 How do i perform parameterization?
 Checkpoints
 What are they?
 Various checkpoints
 How do i add them?
 GUI and DB Checklist (and DB Objects)
 Synchronization Points & capturing screen values
 Maintaining tests
 TD connection
 Batch mode
 Practical !
5Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

6.

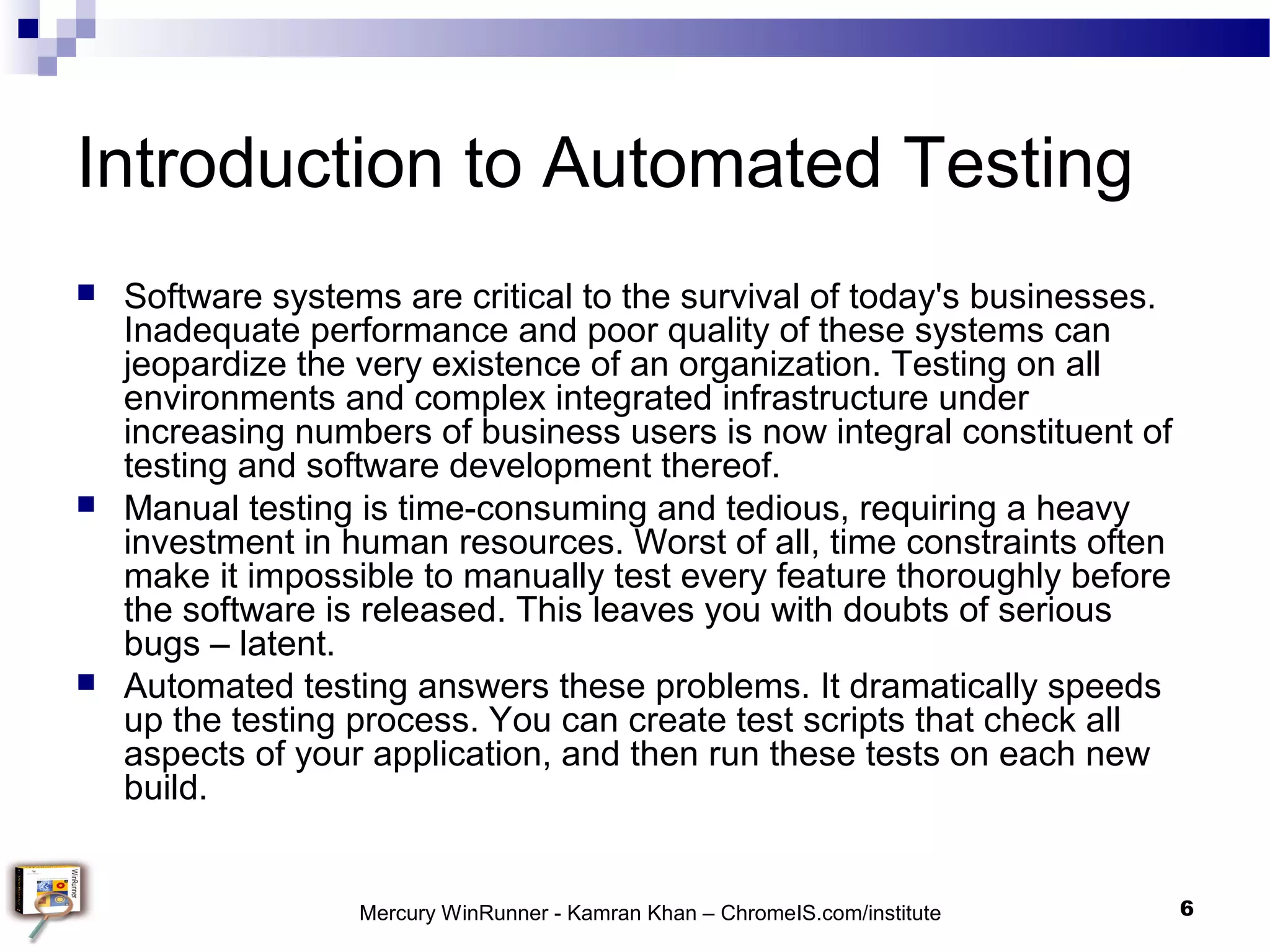

Introduction to Automated Testing
 Software systems are critical to the survival of today's businesses.
Inadequate performance and poor quality of these systems can
jeopardize the very existence of an organization. Testing on all
environments and complex integrated infrastructure under
increasing numbers of business users is now integral constituent of
testing and software development thereof.
 Manual testing is time-consuming and tedious, requiring a heavy
investment in human resources. Worst of all, time constraints often
make it impossible to manually test every feature thoroughly before
the software is released. This leaves you with doubts of serious
bugs – latent.
 Automated testing answers these problems. It dramatically speeds
up the testing process. You can create test scripts that check all
aspects of your application, and then run these tests on each new
build.
6Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

7.

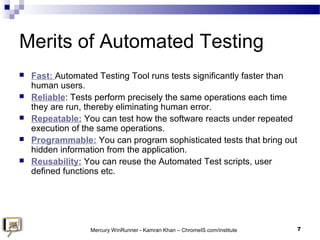

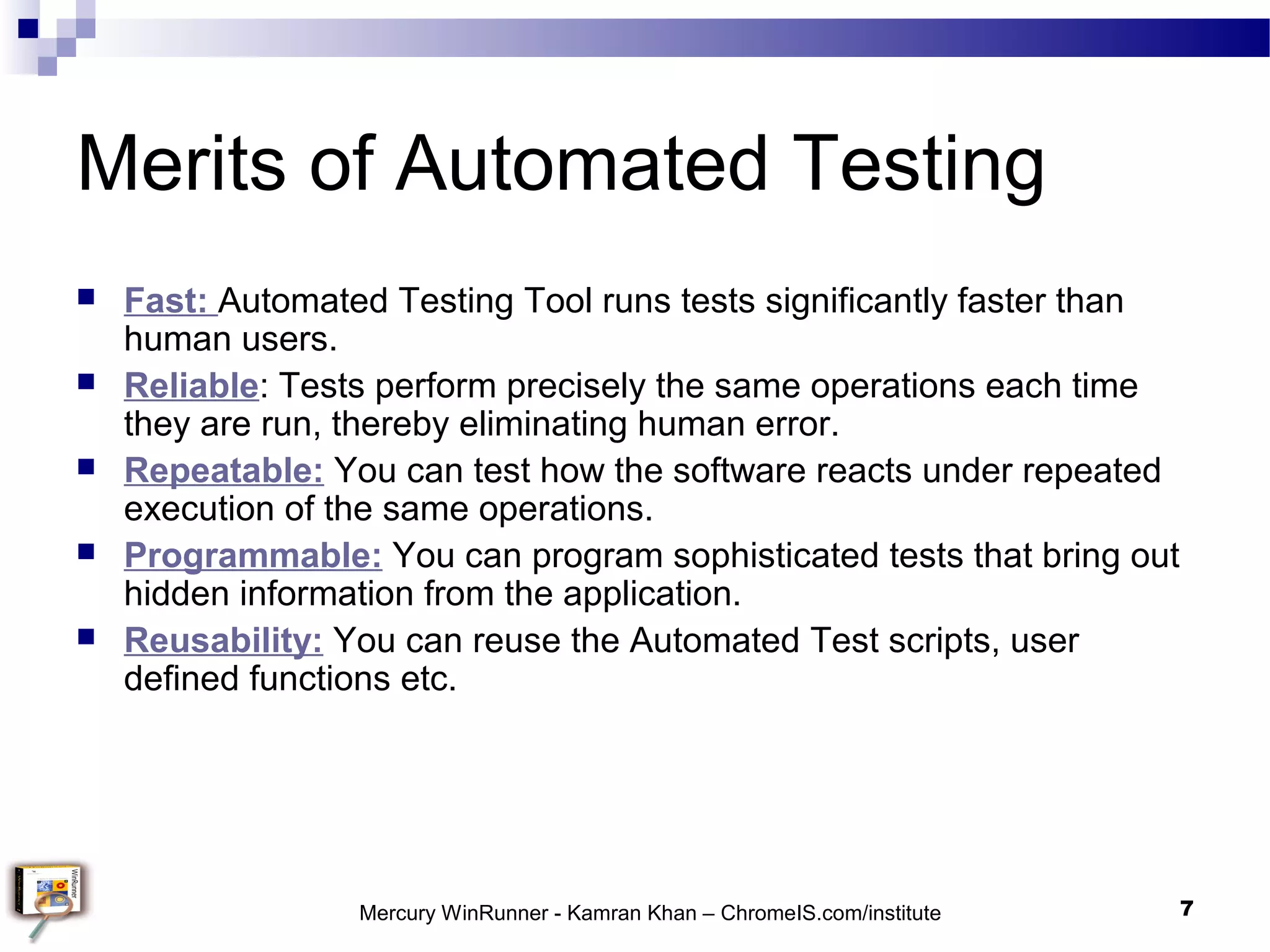

Merits of Automated Testing
 Fast: Automated Testing Tool runs tests significantly faster than
human users.
 Reliable: Tests perform precisely the same operations each time
they are run, thereby eliminating human error.
 Repeatable: You can test how the software reacts under repeated
execution of the same operations.
 Programmable: You can program sophisticated tests that bring out
hidden information from the application.
 Reusability: You can reuse the Automated Test scripts, user
defined functions etc.
7Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

8.

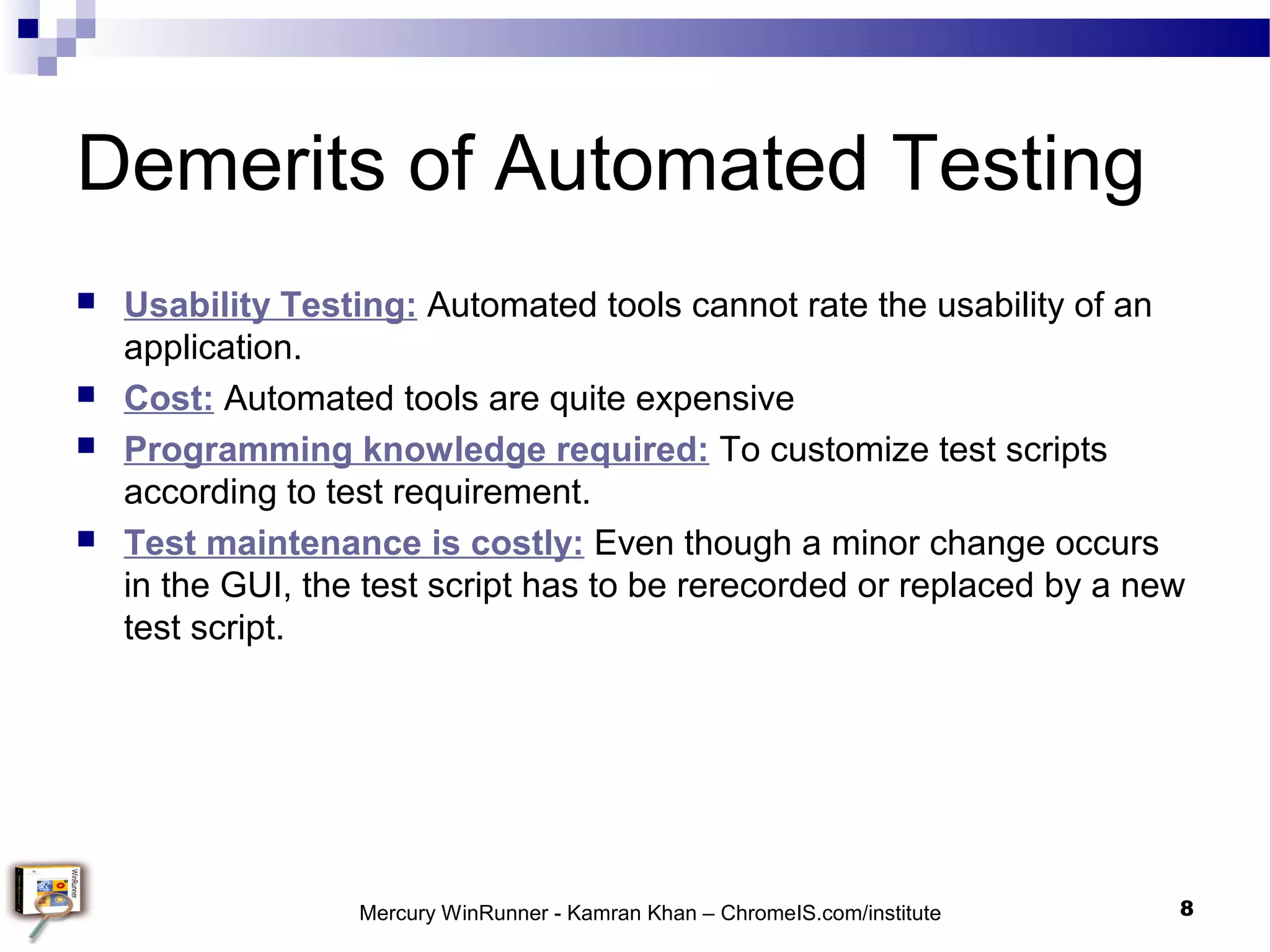

Demerits of Automated Testing
 Usability Testing: Automated tools cannot rate the usability of an
application.
 Cost: Automated tools are quite expensive
 Programming knowledge required: To customize test scripts
according to test requirement.
 Test maintenance is costly: Even though a minor change occurs
in the GUI, the test script has to be rerecorded or replaced by a new
test script.
8Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

9.

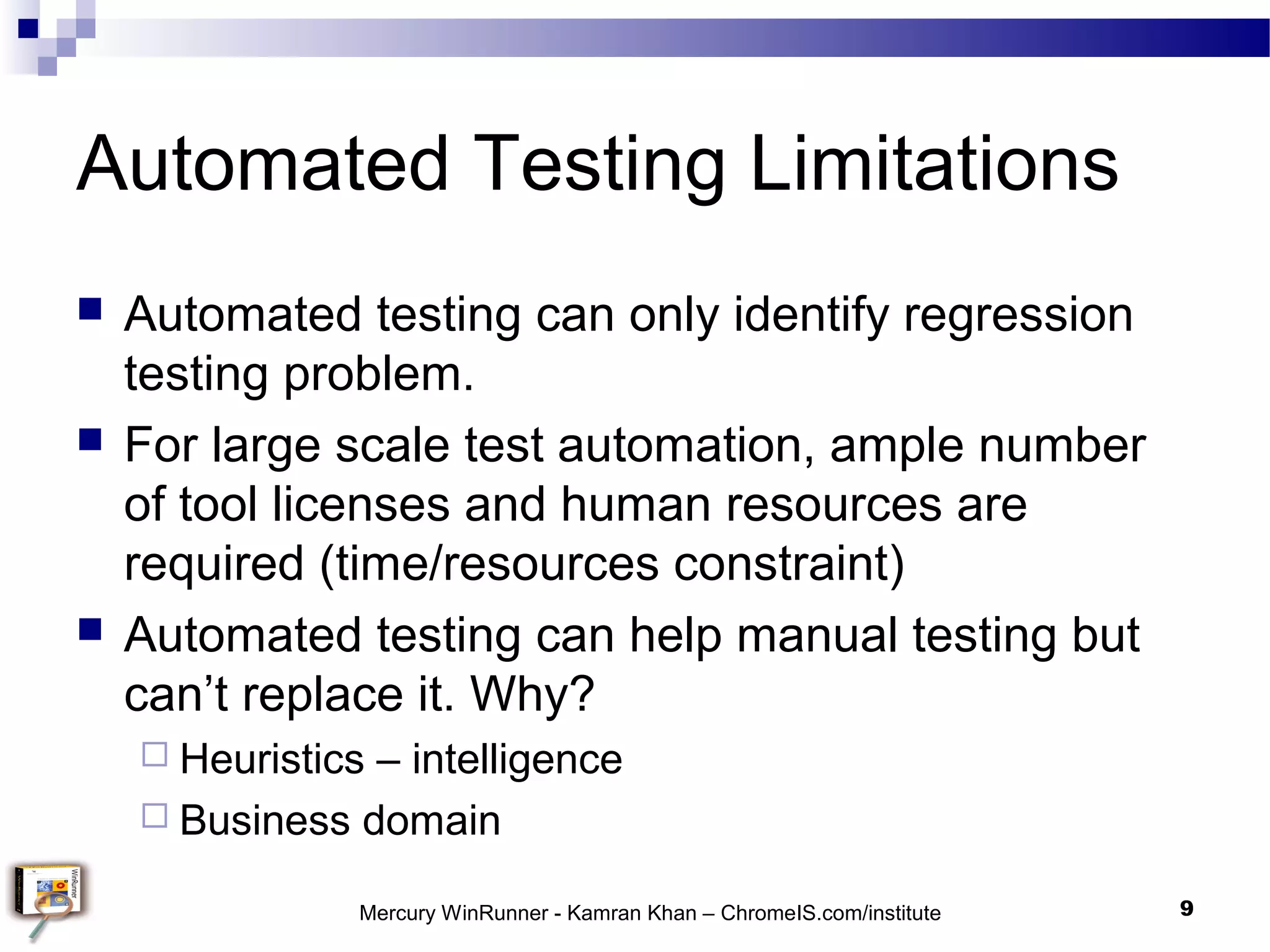

Automated Testing Limitations
 Automated testing can only identify regression
testing problem.
 For large scale test automation, ample number
of tool licenses and human resources are
required (time/resources constraint)
 Automated testing can help manual testing but
can’t replace it. Why?
 Heuristics – intelligence
 Business domain
9Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

10.

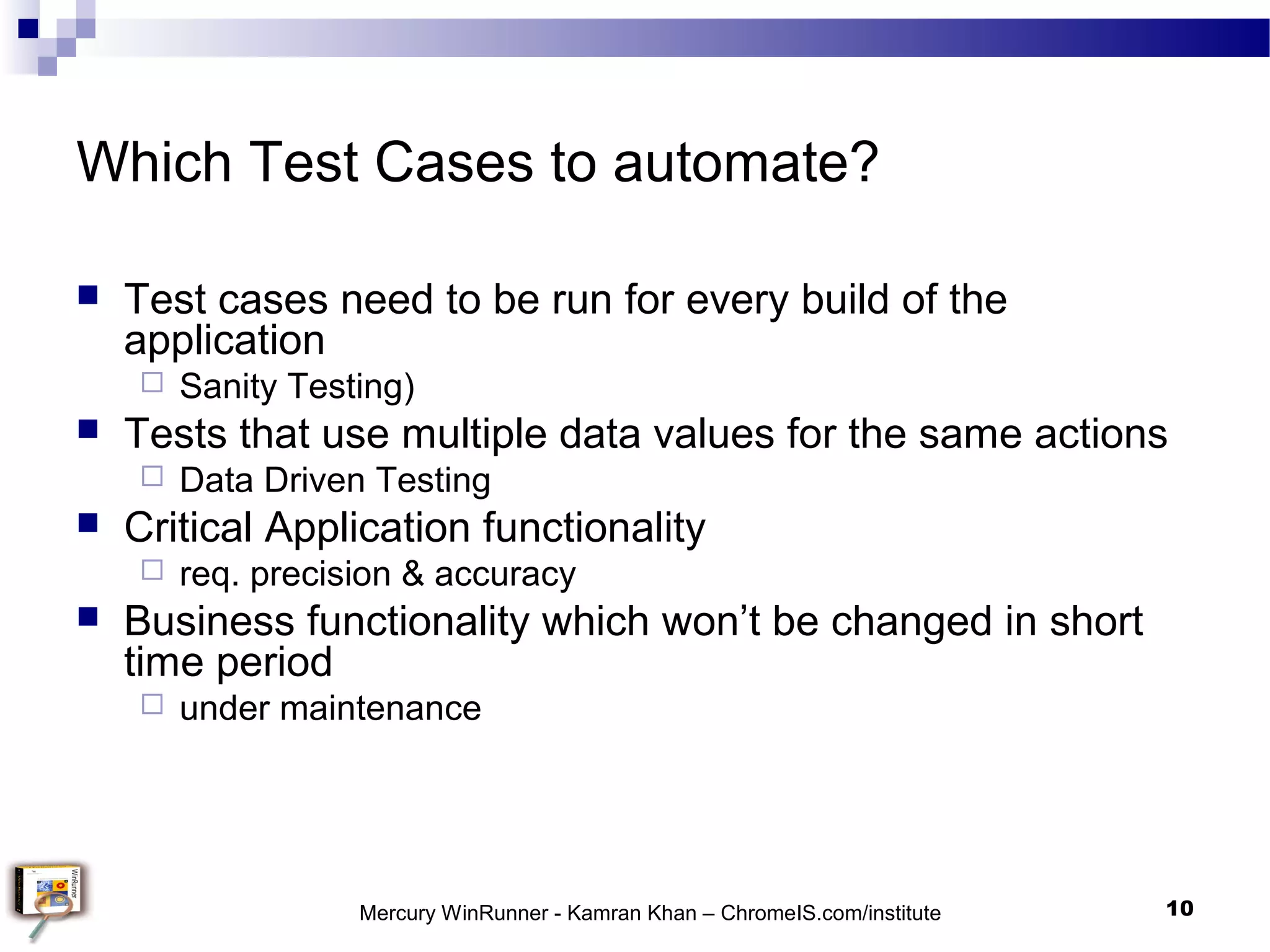

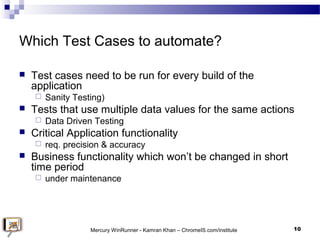

Which Test Cases to automate?
 Test cases need to be run for every build of the
application
 Sanity Testing)
 Tests that use multiple data values for the same actions
 Data Driven Testing
 Critical Application functionality
 req. precision & accuracy
 Business functionality which won’t be changed in short
time period
 under maintenance
10Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

11.

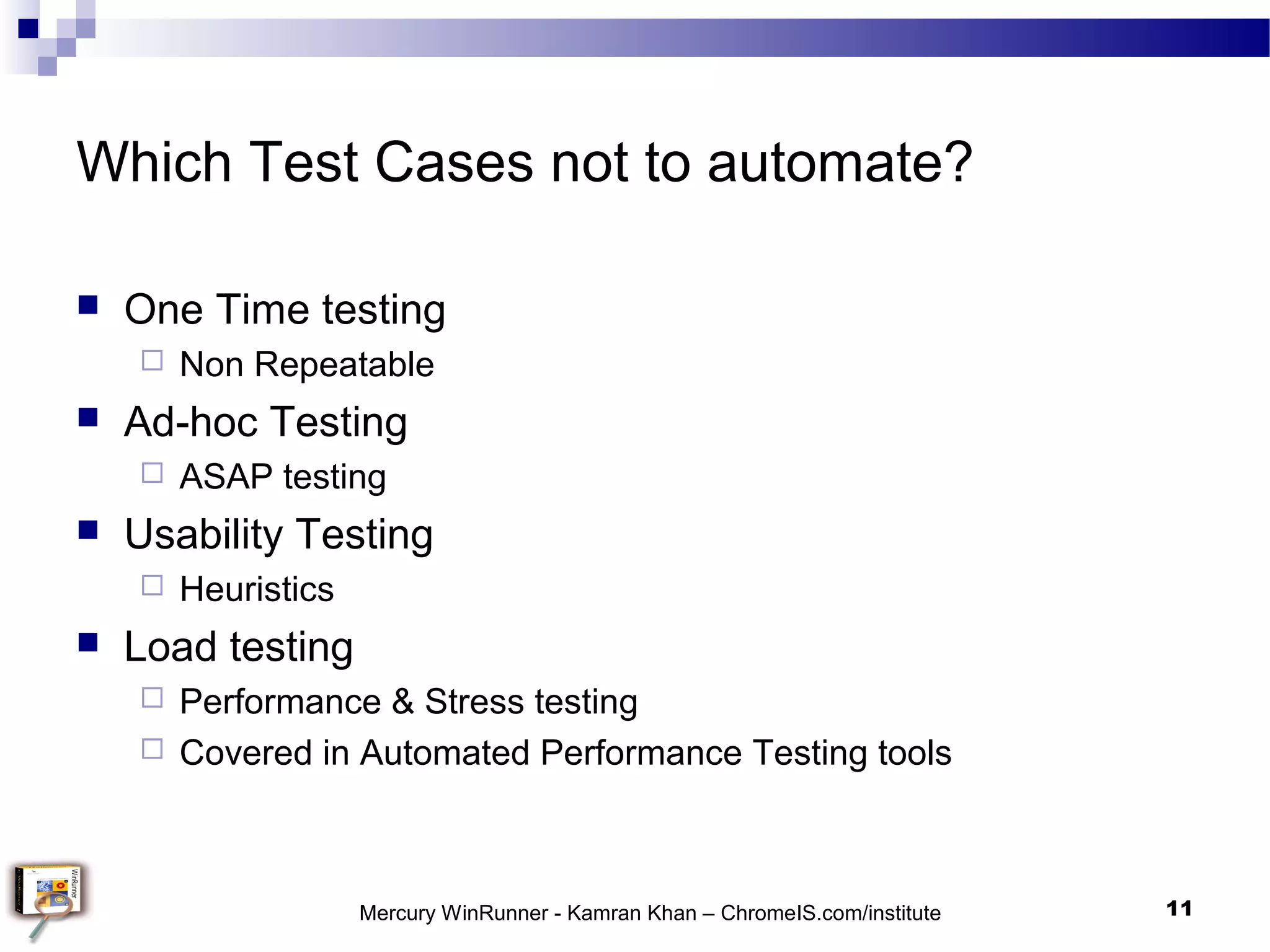

Which Test Cases not to automate?
 One Time testing
 Non Repeatable
 Ad-hoc Testing
 ASAP testing
 Usability Testing
 Heuristics
 Load testing
 Performance & Stress testing
 Covered in Automated Performance Testing tools
11Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

12.
A.T approach at NetSol
 Modular
 Automated test scripts are developed module wise or business
process wise on AUT
 Scenario based:
 Manual testing team provide test cases that are used as an input
for automated test scripts
 Once test scripts are developed, manual testing team
performs the peer review of automated test scripts
 Manual testing team executes the automated test scripts
on new build of the application
12Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

13.

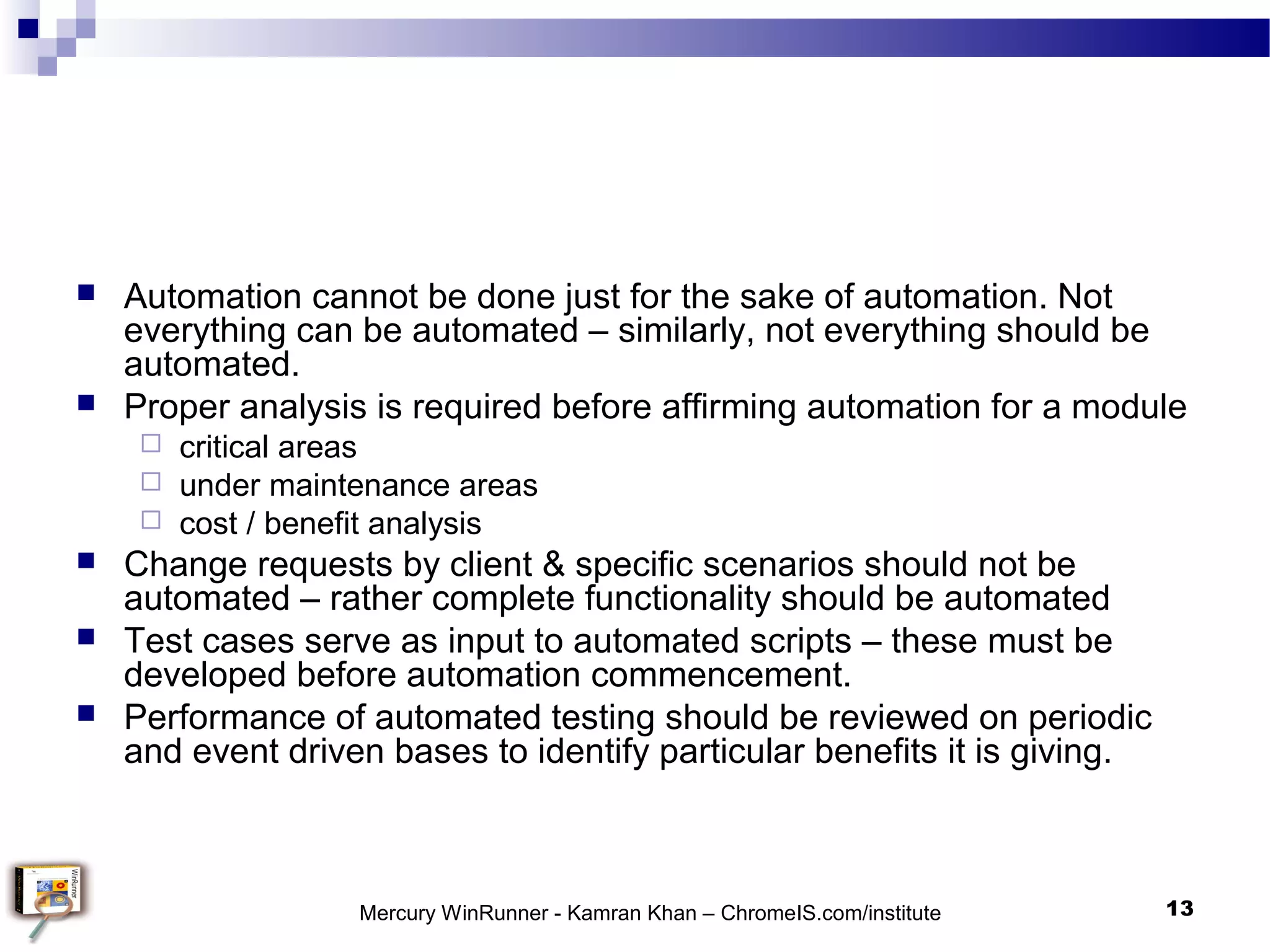

 Automation cannot be done just for the sake of automation. Not
everything can be automated – similarly, not everything should be
automated.
 Proper analysis is required before affirming automation for a module
 critical areas
 under maintenance areas
 cost / benefit analysis
 Change requests by client & specific scenarios should not be
automated – rather complete functionality should be automated
 Test cases serve as input to automated scripts – these must be
developed before automation commencement.
 Performance of automated testing should be reviewed on periodic
and event driven bases to identify particular benefits it is giving.
13Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

14.

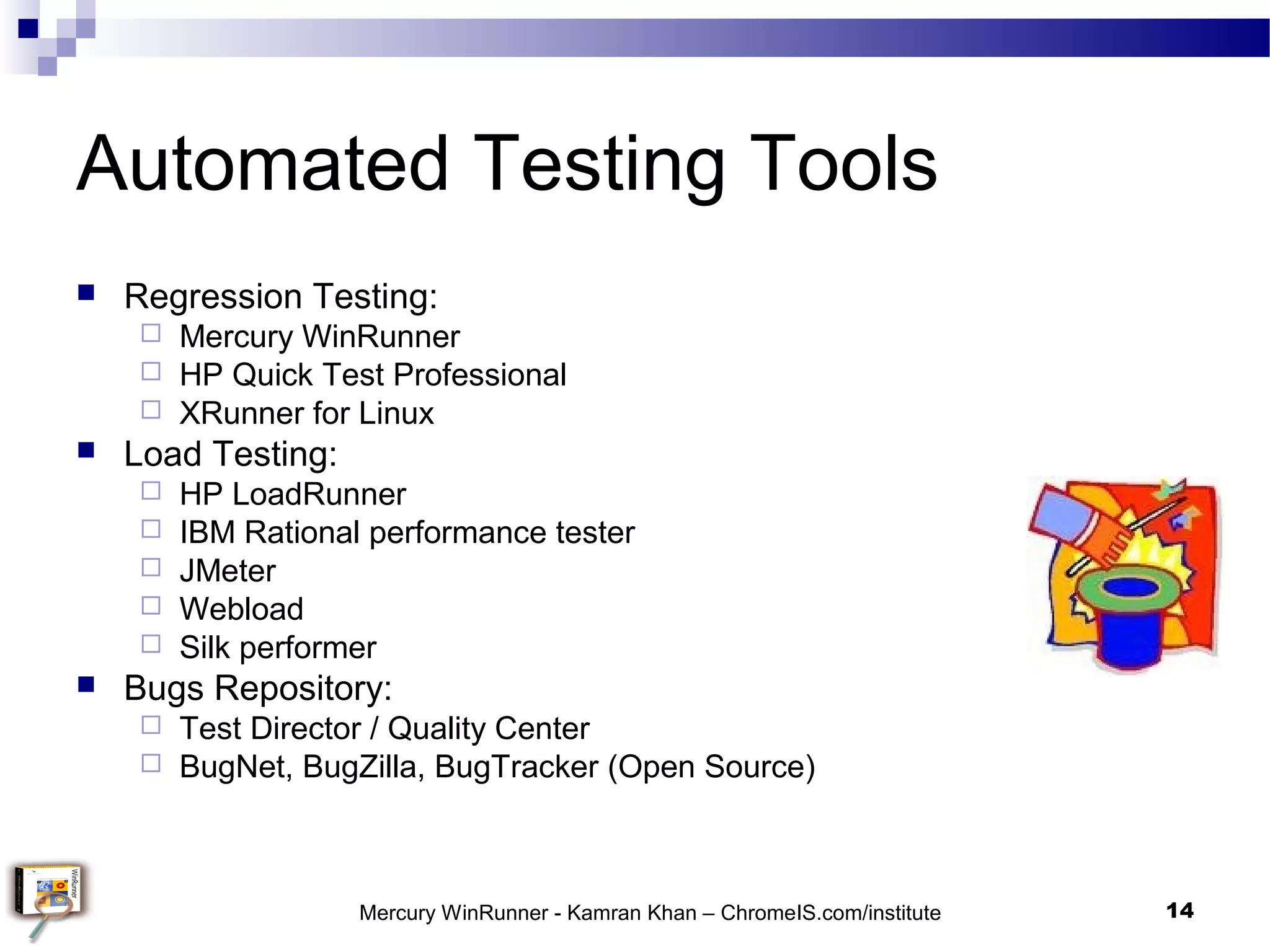

Automated Testing Tools
 Regression Testing:
 Mercury WinRunner
 HP Quick Test Professional
 XRunner for Linux
 Load Testing:
 HP LoadRunner
 IBM Rational performance tester
 JMeter
 Webload
 Silk performer
 Bugs Repository:
 Test Director / Quality Center
 BugNet, BugZilla, BugTracker (Open Source)
14Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

15.

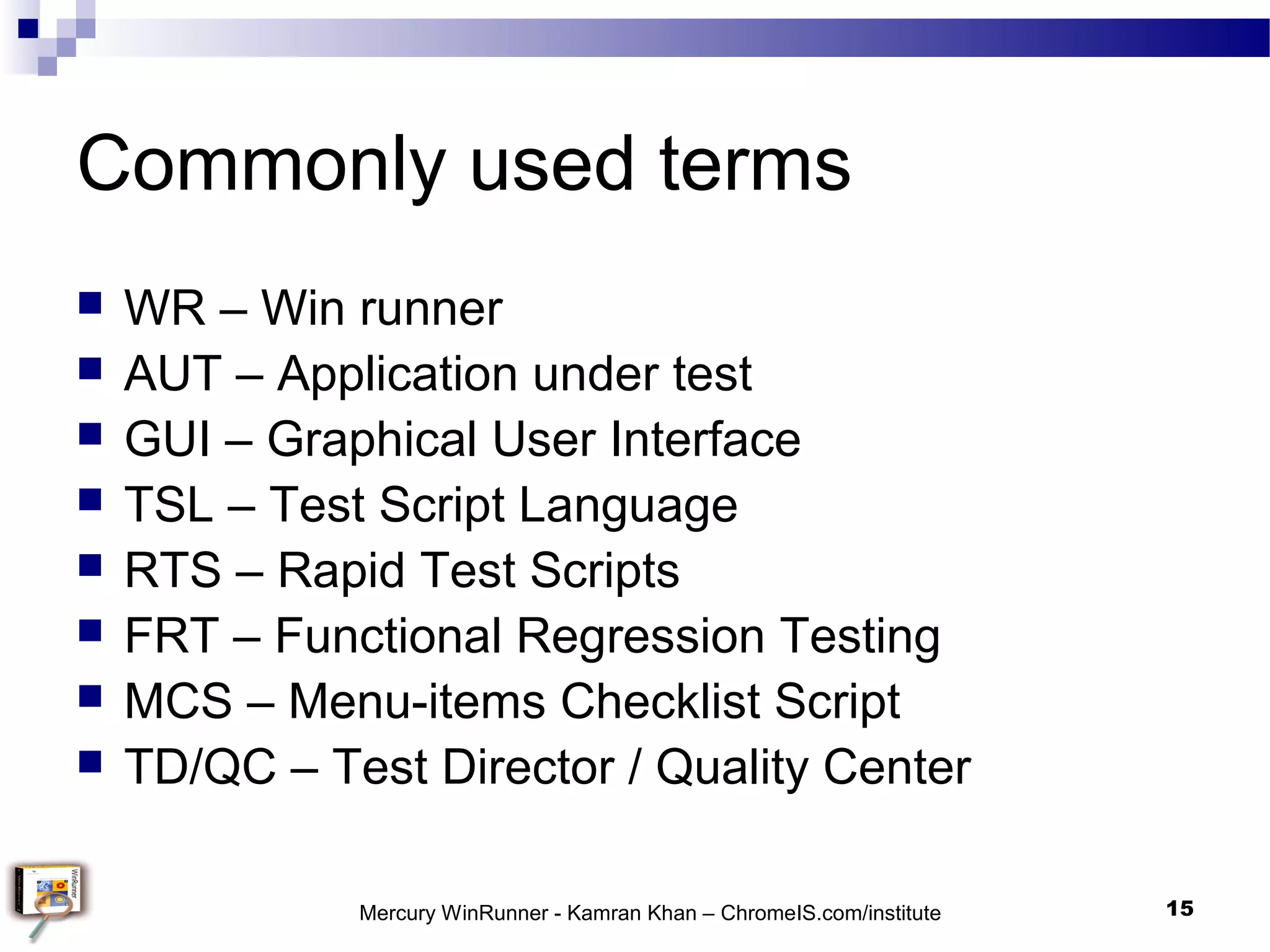

Commonly used terms
 WR – Win runner
 AUT – Application under test
 GUI – Graphical User Interface
 TSL – Test Script Language
 RTS – Rapid Test Scripts
 FRT – Functional Regression Testing
 MCS – Menu-items Checklist Script
 TD/QC – Test Director / Quality Center
15Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

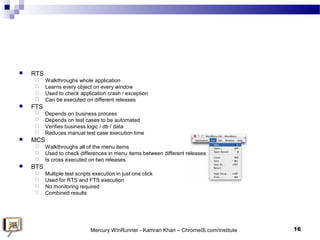

16.
 RTS
 Walkthroughs whole application
 Learns every object on every window
 Used to check application crash / exception
 Can be executed on different releases
 FTS
 Depends on business process
 Depends on test cases to be automated
 Verifies business logic / db / data
 Reduces manual test case execution time
 MCS
 Walkthroughs all of the menu items
 Used to check differences in menu items between different releases
 Is cross executed on two releases
 BTS
 Multiple test scripts execution in just one click
 Used for RTS and FTS execution
 No monitoring required
 Combined results
16Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

17.

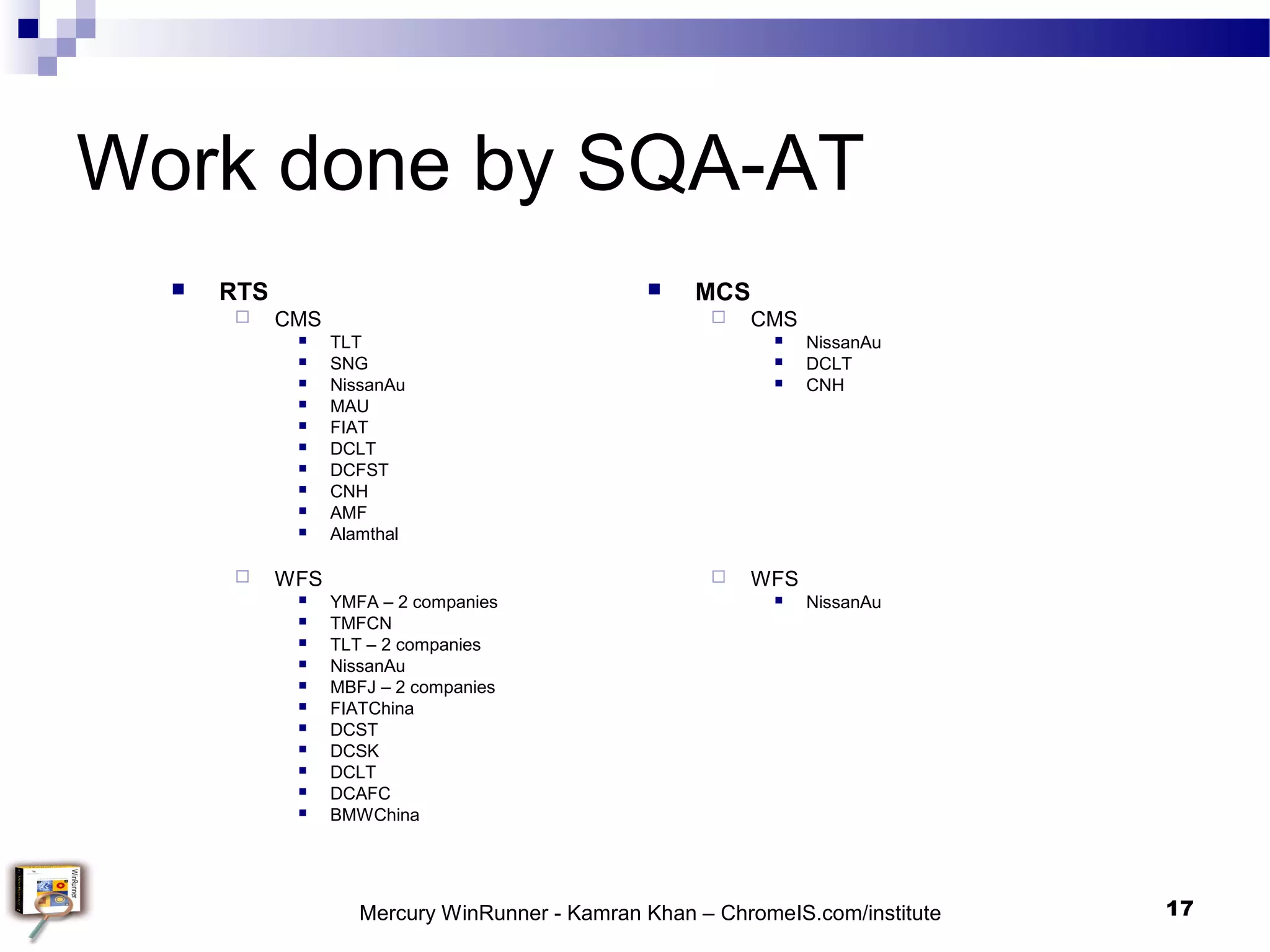

Work done by SQA-AT
 RTS
 CMS
 TLT
 SNG
 NissanAu
 MAU
 FIAT
 DCLT
 DCFST
 CNH
 AMF
 Alamthal
 WFS
 YMFA – 2 companies
 TMFCN
 TLT – 2 companies
 NissanAu
 MBFJ – 2 companies
 FIATChina
 DCST
 DCSK
 DCLT
 DCAFC
 BMWChina
 MCS
 CMS
 NissanAu
 DCLT
 CNH
 WFS
 NissanAu
17Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

18.

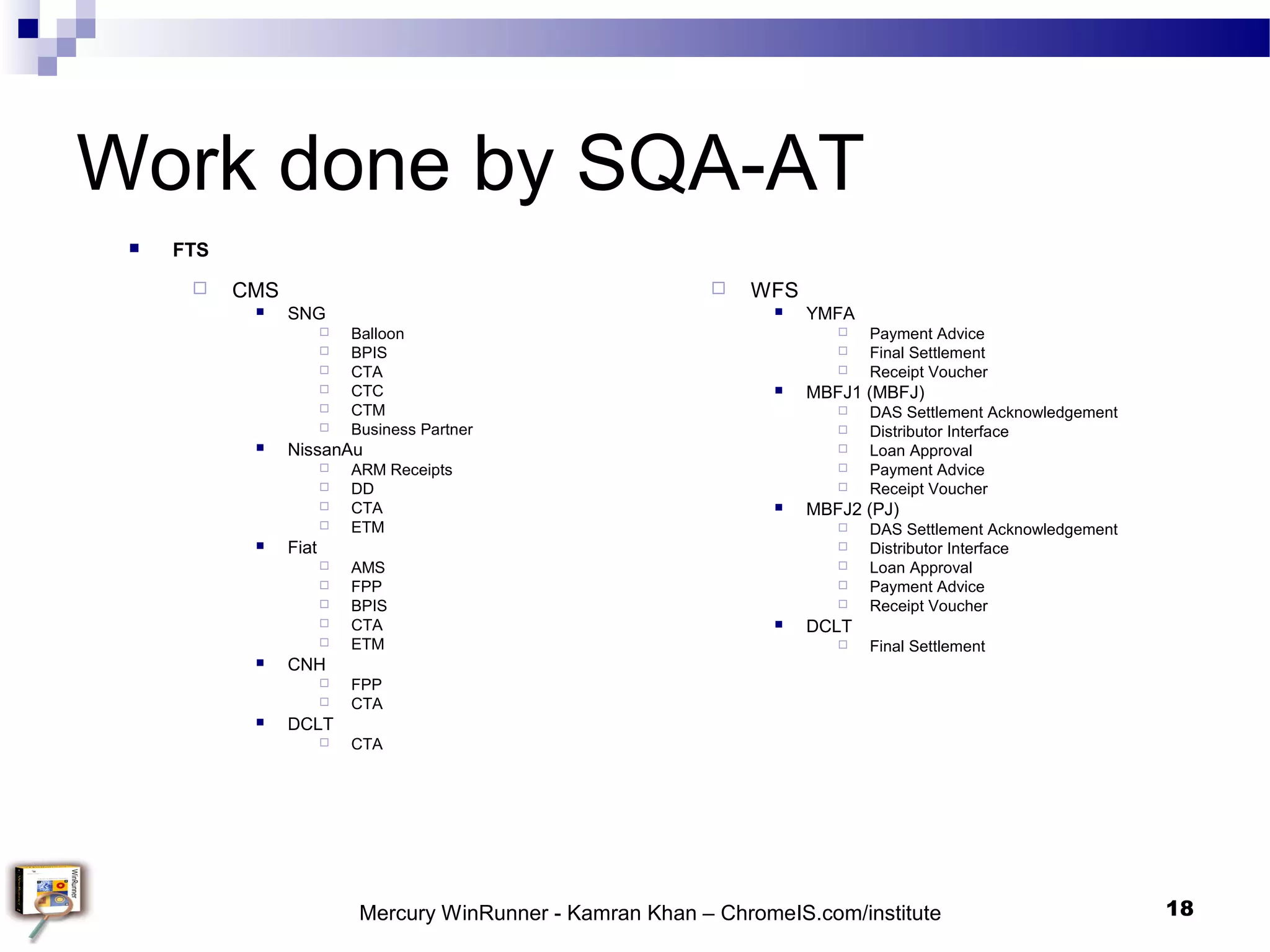

Work done by SQA-AT
 CMS
 SNG
 Balloon
 BPIS
 CTA
 CTC
 CTM
 Business Partner
 NissanAu
 ARM Receipts
 DD
 CTA
 ETM
 Fiat
 AMS
 FPP
 BPIS
 CTA
 ETM
 CNH
 FPP
 CTA
 DCLT
 CTA
 WFS
 YMFA
 Payment Advice
 Final Settlement
 Receipt Voucher
 MBFJ1 (MBFJ)
 DAS Settlement Acknowledgement
 Distributor Interface
 Loan Approval
 Payment Advice
 Receipt Voucher
 MBFJ2 (PJ)
 DAS Settlement Acknowledgement
 Distributor Interface
 Loan Approval
 Payment Advice
 Receipt Voucher
 DCLT
 Final Settlement
 FTS
18Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

19.

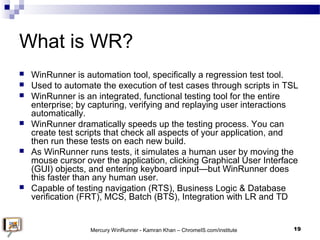

What is WR?
 WinRunner is automation tool, specifically a regression test tool.
 Used to automate the execution of test cases through scripts in TSL
 WinRunner is an integrated, functional testing tool for the entire
enterprise; by capturing, verifying and replaying user interactions
automatically.
 WinRunner dramatically speeds up the testing process. You can
create test scripts that check all aspects of your application, and
then run these tests on each new build.
 As WinRunner runs tests, it simulates a human user by moving the
mouse cursor over the application, clicking Graphical User Interface
(GUI) objects, and entering keyboard input—but WinRunner does
this faster than any human user.
 Capable of testing navigation (RTS), Business Logic & Database
verification (FRT), MCS, Batch (BTS), Integration with LR and TD
19Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

20.

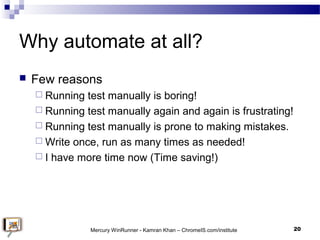

Why automate at all?
 Few reasons
 Running test manually is boring!
 Running test manually again and again is frustrating!
 Running test manually is prone to making mistakes.
 Write once, run as many times as needed!
 I have more time now (Time saving!)
20Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

21.

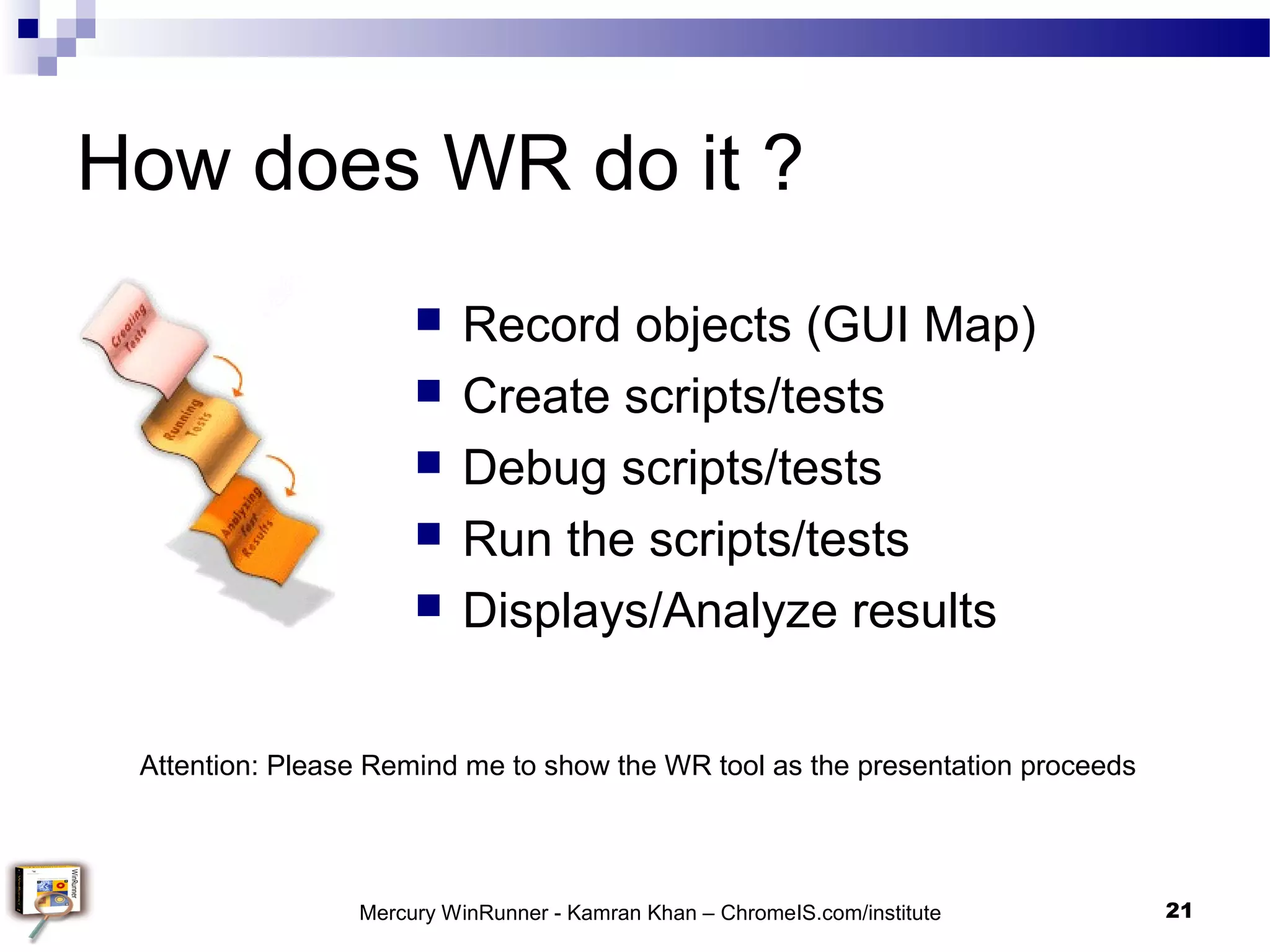

How does WR do it ?
 Record objects (GUI Map)
 Create scripts/tests
 Debug scripts/tests
 Run the scripts/tests
 Displays/Analyze results
Attention: Please Remind me to show the WR tool as the presentation proceeds
21Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

22.

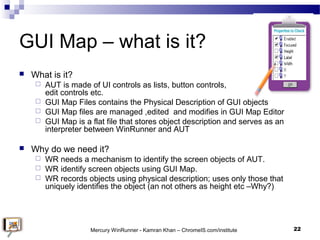

GUI Map – what is it?
 What is it?
 AUT is made of UI controls as lists, button controls,
edit controls etc.
 GUI Map Files contains the Physical Description of GUI objects
 GUI Map files are managed ,edited and modifies in GUI Map Editor
 GUI Map is a flat file that stores object description and serves as an
interpreter between WinRunner and AUT
 Why do we need it?
 WR needs a mechanism to identify the screen objects of AUT.
 WR identify screen objects using GUI Map.
 WR records objects using physical description; uses only those that
uniquely identifies the object (an not others as height etc –Why?)
22Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

23.

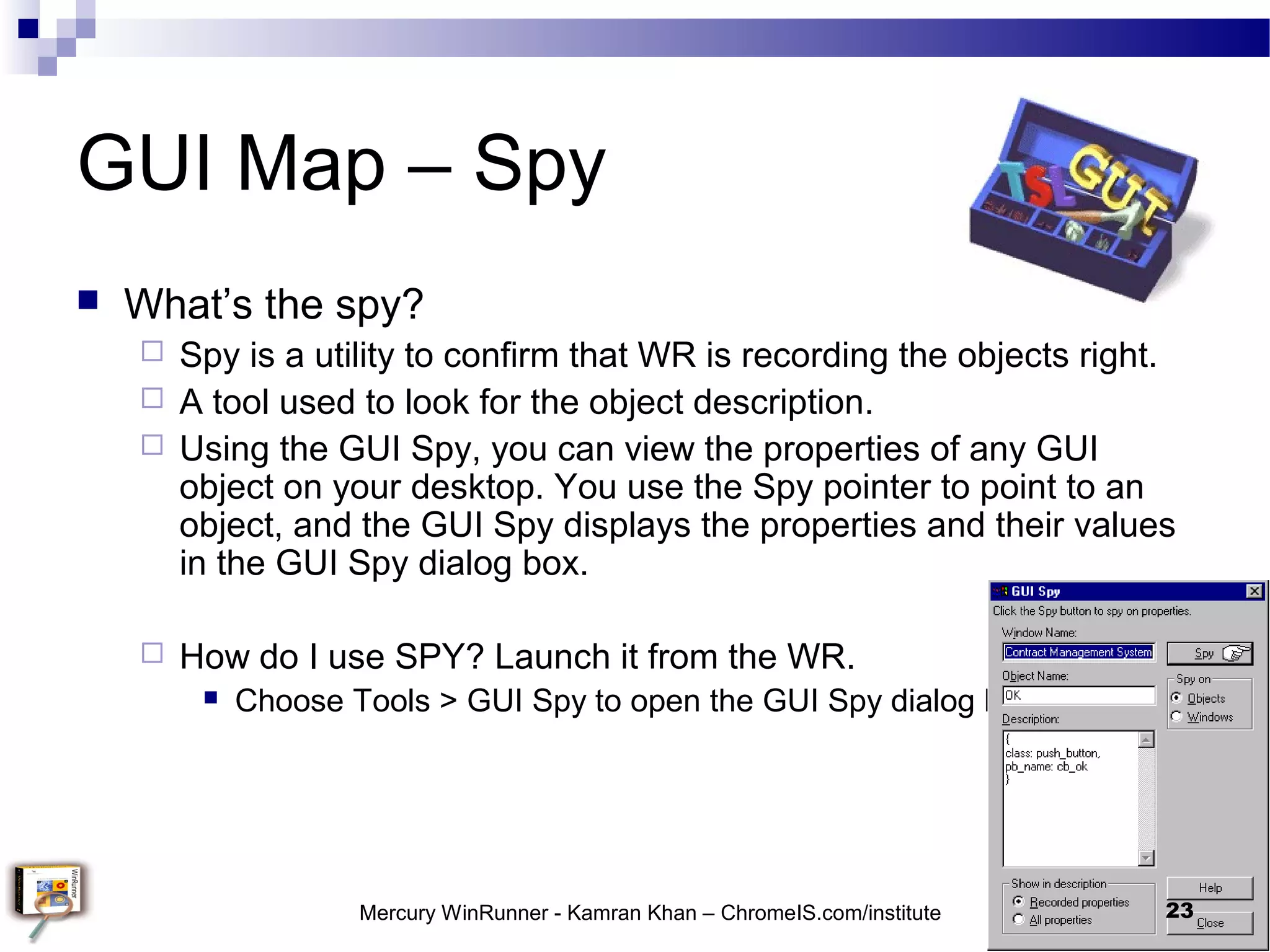

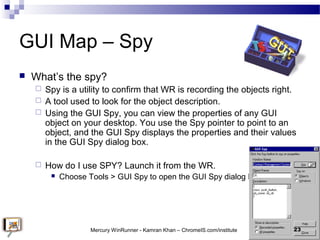

GUI Map – Spy
 What’s the spy?
 Spy is a utility to confirm that WR is recording the objects right.
 A tool used to look for the object description.
 Using the GUI Spy, you can view the properties of any GUI
object on your desktop. You use the Spy pointer to point to an
object, and the GUI Spy displays the properties and their values
in the GUI Spy dialog box.
 How do I use SPY? Launch it from the WR.
 Choose Tools > GUI Spy to open the GUI Spy dialog box.
23Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

24.

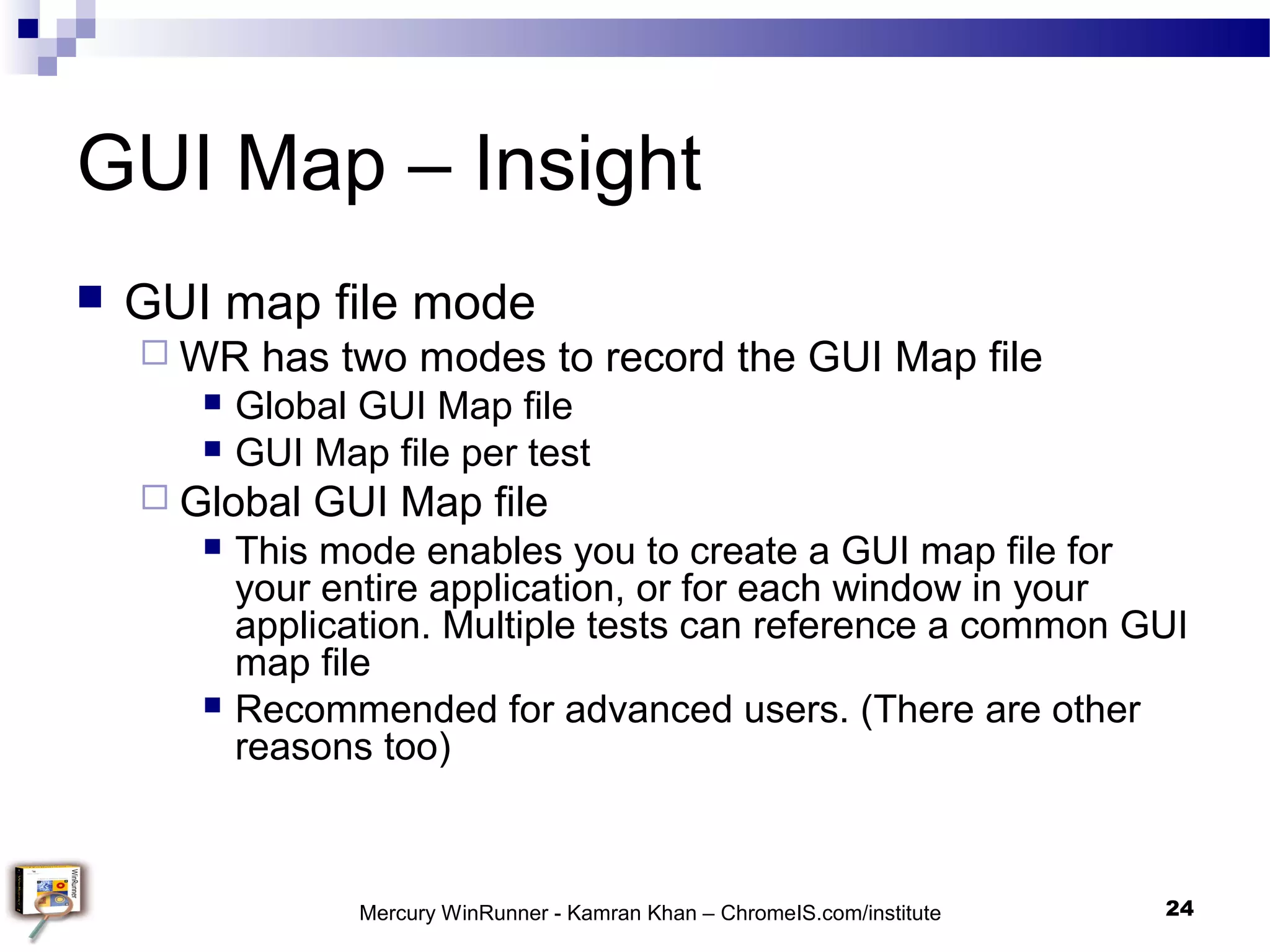

GUI Map – Insight
 GUI map file mode
 WR has two modes to record the GUI Map file
 Global GUI Map file
 GUI Map file per test
 Global GUI Map file
 This mode enables you to create a GUI map file for
your entire application, or for each window in your
application. Multiple tests can reference a common GUI
map file
 Recommended for advanced users. (There are other
reasons too)
24Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

25.

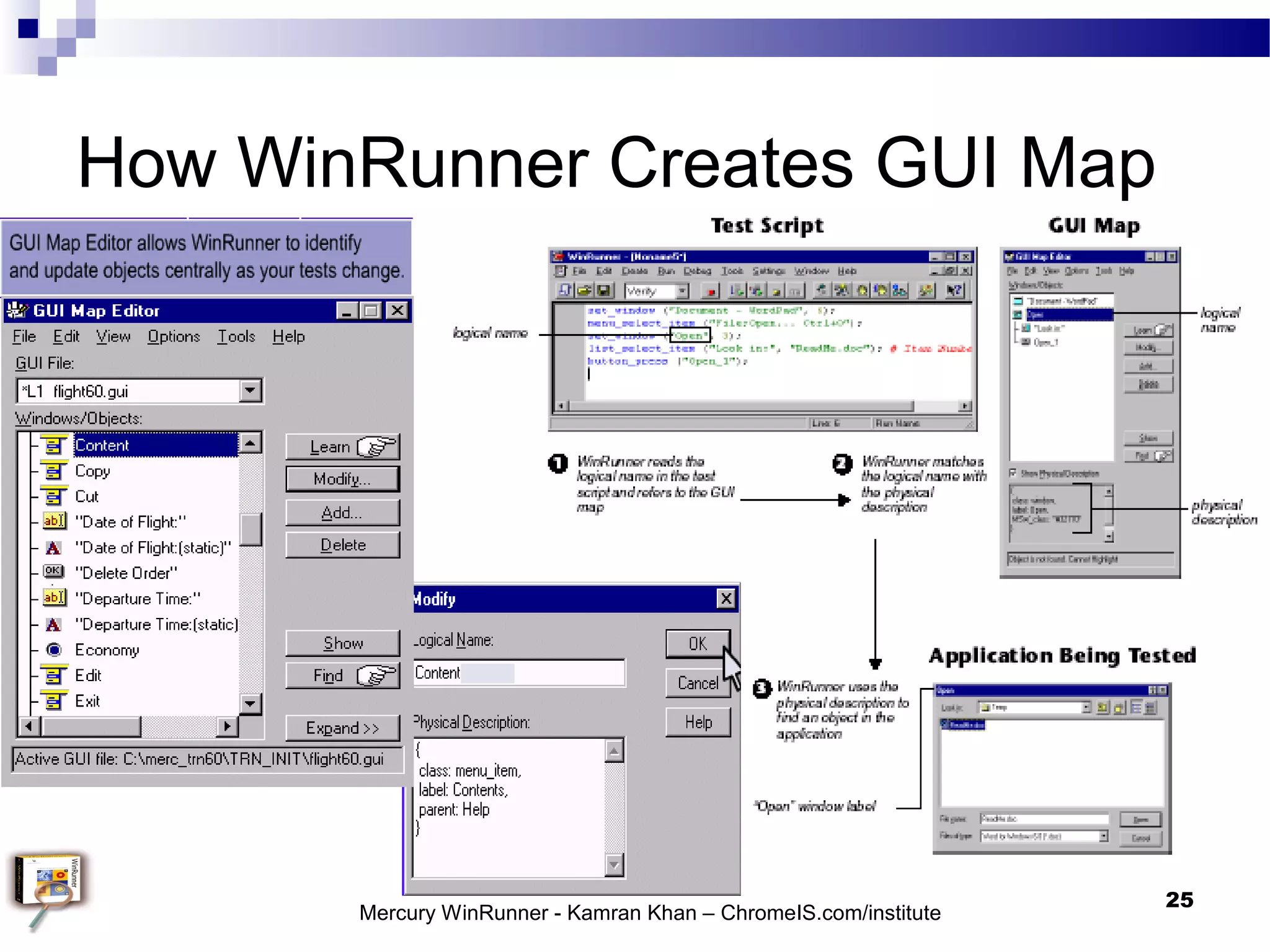

How WinRunner Creates GUI Map
25
Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

26.

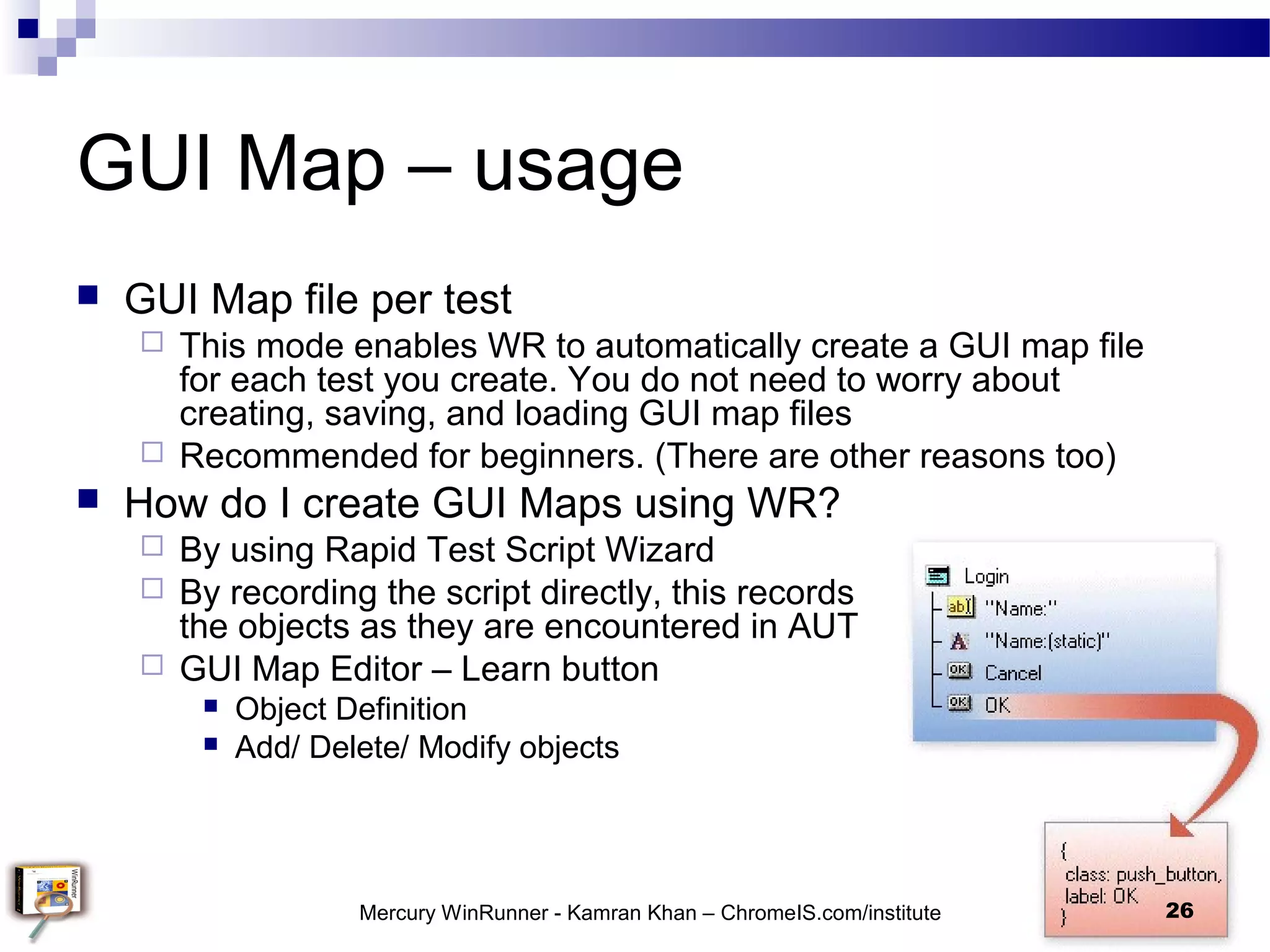

GUI Map – usage
 GUI Map file per test
 This mode enables WR to automatically create a GUI map file
for each test you create. You do not need to worry about
creating, saving, and loading GUI map files
 Recommended for beginners. (There are other reasons too)
 How do I create GUI Maps using WR?
 By using Rapid Test Script Wizard
 By recording the script directly, this records
the objects as they are encountered in AUT
 GUI Map Editor – Learn button
 Object Definition
 Add/ Delete/ Modify objects
26Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

27.

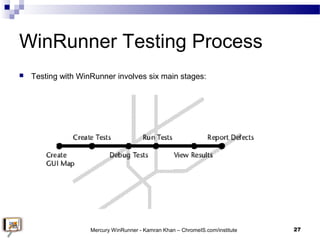

WinRunner Testing Process
 Testing with WinRunner involves six main stages:
27Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

28.

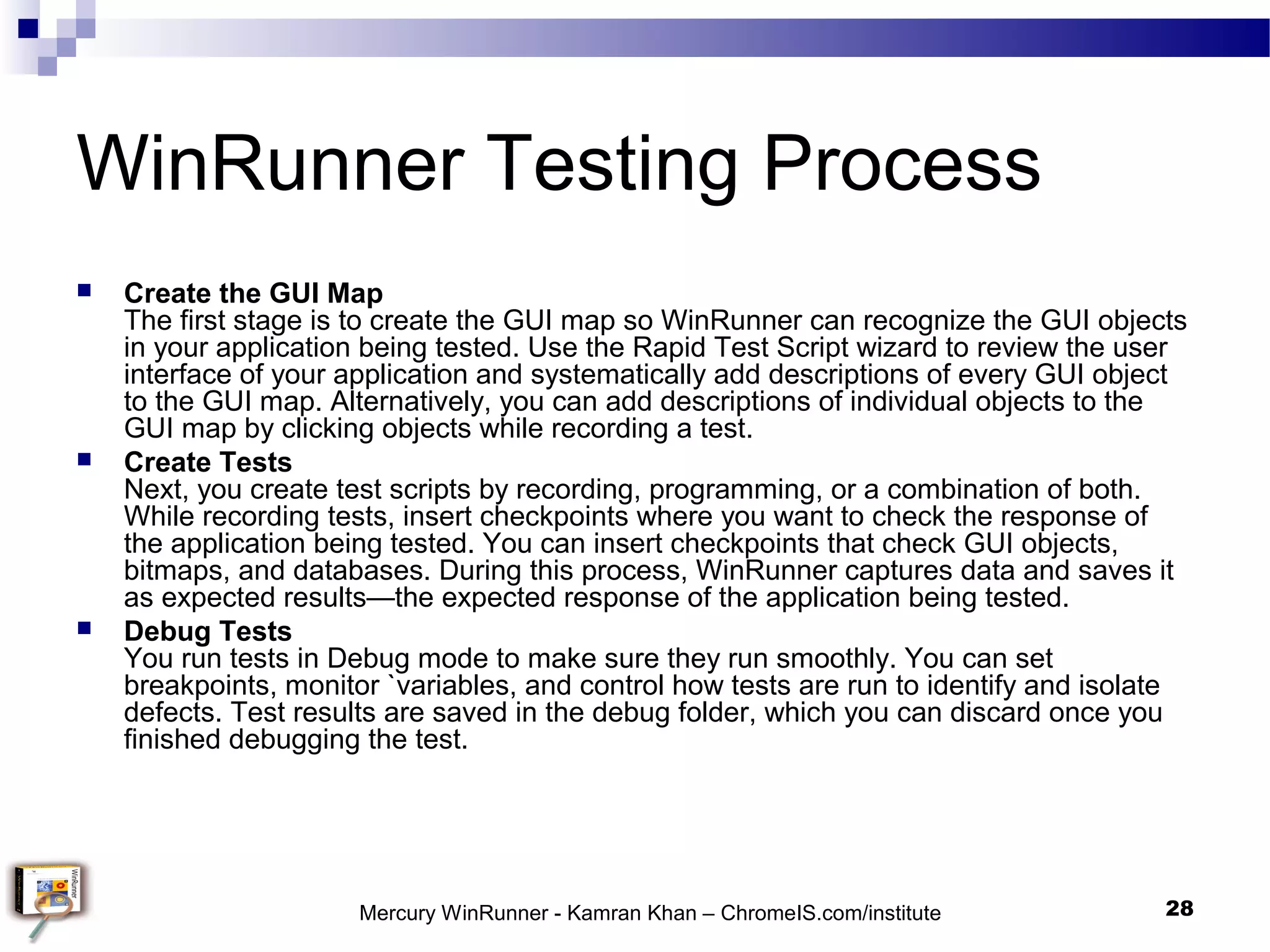

WinRunner Testing Process
 Create the GUI Map
The first stage is to create the GUI map so WinRunner can recognize the GUI objects
in your application being tested. Use the Rapid Test Script wizard to review the user
interface of your application and systematically add descriptions of every GUI object
to the GUI map. Alternatively, you can add descriptions of individual objects to the
GUI map by clicking objects while recording a test.
 Create Tests
Next, you create test scripts by recording, programming, or a combination of both.
While recording tests, insert checkpoints where you want to check the response of
the application being tested. You can insert checkpoints that check GUI objects,
bitmaps, and databases. During this process, WinRunner captures data and saves it
as expected results—the expected response of the application being tested.
 Debug Tests
You run tests in Debug mode to make sure they run smoothly. You can set
breakpoints, monitor `variables, and control how tests are run to identify and isolate
defects. Test results are saved in the debug folder, which you can discard once you
finished debugging the test.
28Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

29.

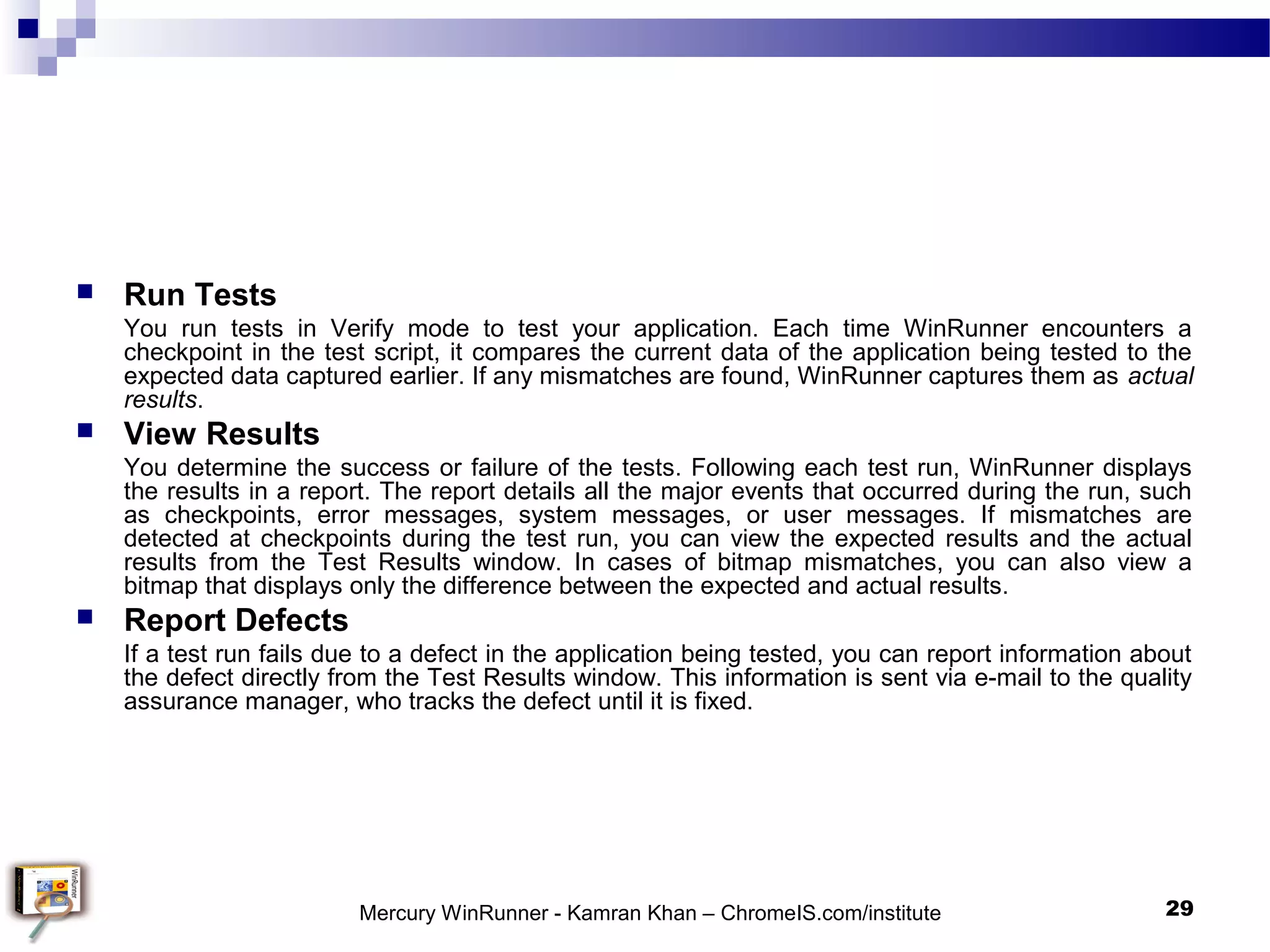

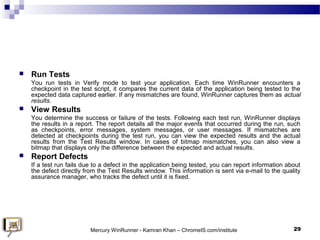

 Run Tests
You run tests in Verify mode to test your application. Each time WinRunner encounters a
checkpoint in the test script, it compares the current data of the application being tested to the
expected data captured earlier. If any mismatches are found, WinRunner captures them as actual
results.
 View Results
You determine the success or failure of the tests. Following each test run, WinRunner displays
the results in a report. The report details all the major events that occurred during the run, such
as checkpoints, error messages, system messages, or user messages. If mismatches are
detected at checkpoints during the test run, you can view the expected results and the actual
results from the Test Results window. In cases of bitmap mismatches, you can also view a
bitmap that displays only the difference between the expected and actual results.
 Report Defects
If a test run fails due to a defect in the application being tested, you can report information about
the defect directly from the Test Results window. This information is sent via e-mail to the quality
assurance manager, who tracks the defect until it is fixed.
29Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

30.

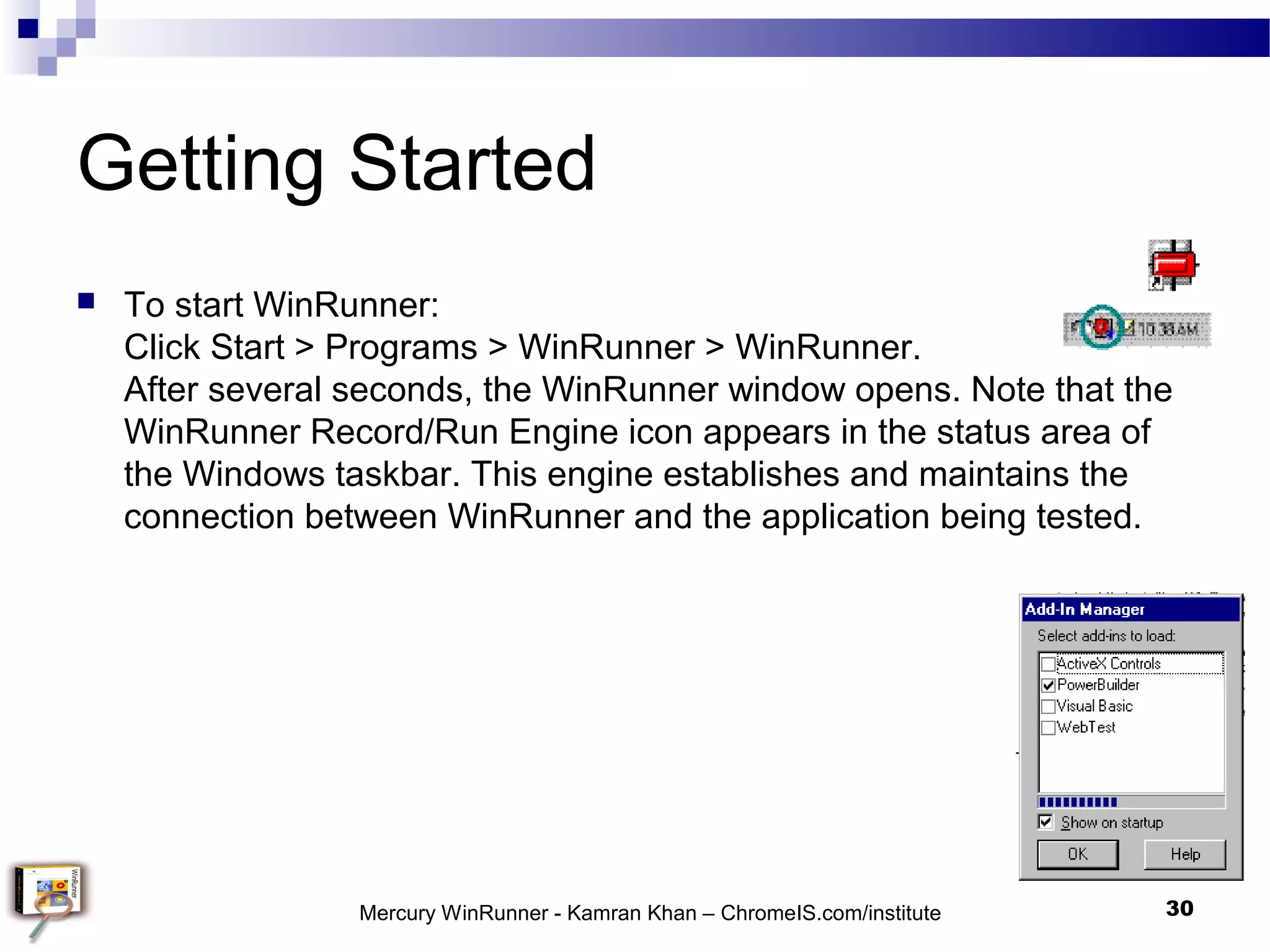

Getting Started
 To start WinRunner:
Click Start > Programs > WinRunner > WinRunner.
After several seconds, the WinRunner window opens. Note that the
WinRunner Record/Run Engine icon appears in the status area of
the Windows taskbar. This engine establishes and maintains the
connection between WinRunner and the application being tested.
30Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

31.

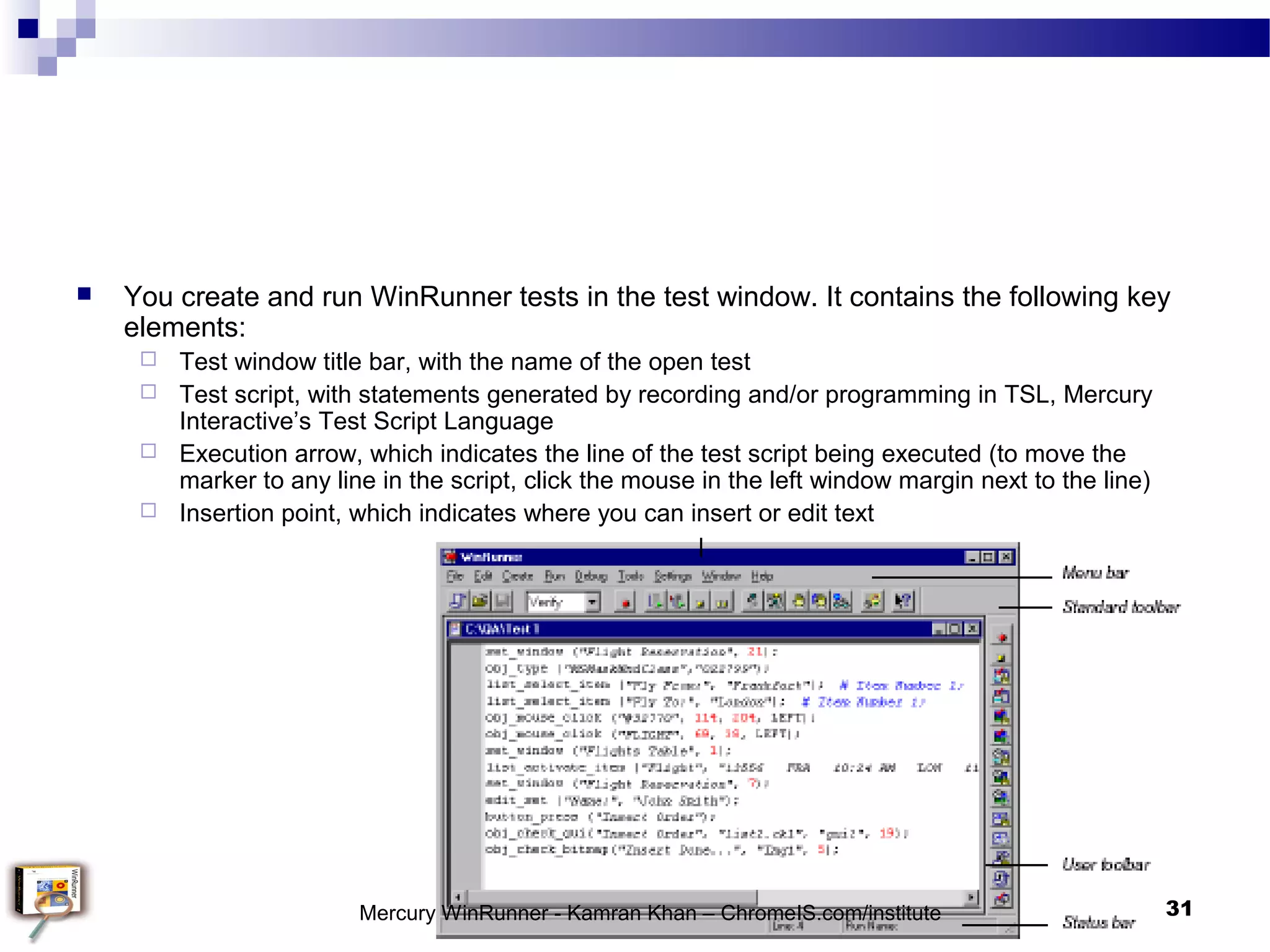

 You create and run WinRunner tests in the test window. It contains the following key
elements:
 Test window title bar, with the name of the open test
 Test script, with statements generated by recording and/or programming in TSL, Mercury
Interactive’s Test Script Language
 Execution arrow, which indicates the line of the test script being executed (to move the
marker to any line in the script, click the mouse in the left window margin next to the line)
 Insertion point, which indicates where you can insert or edit text
31Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

32.

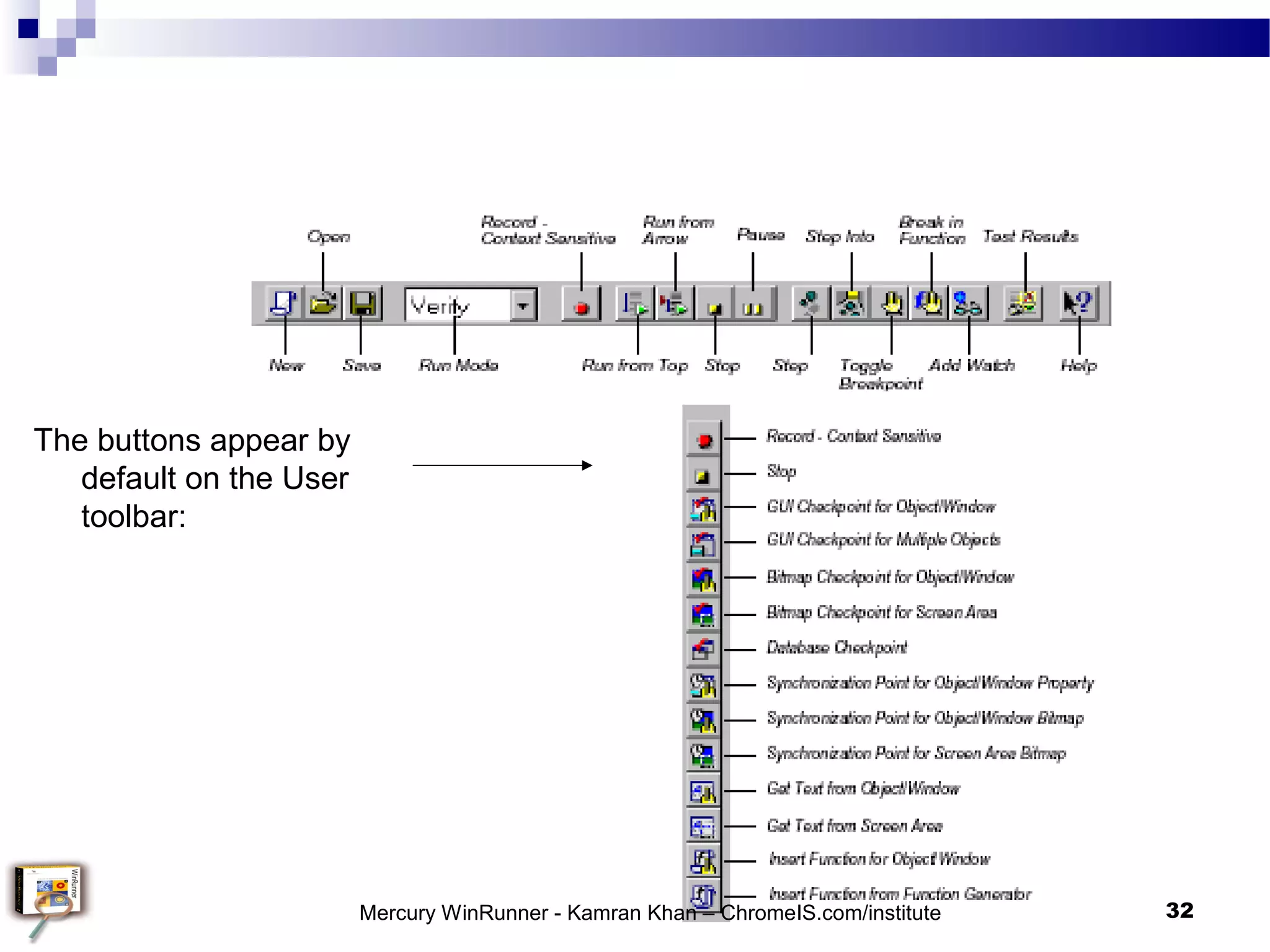

The buttons appear by
default on the User
toolbar:
32Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

33.

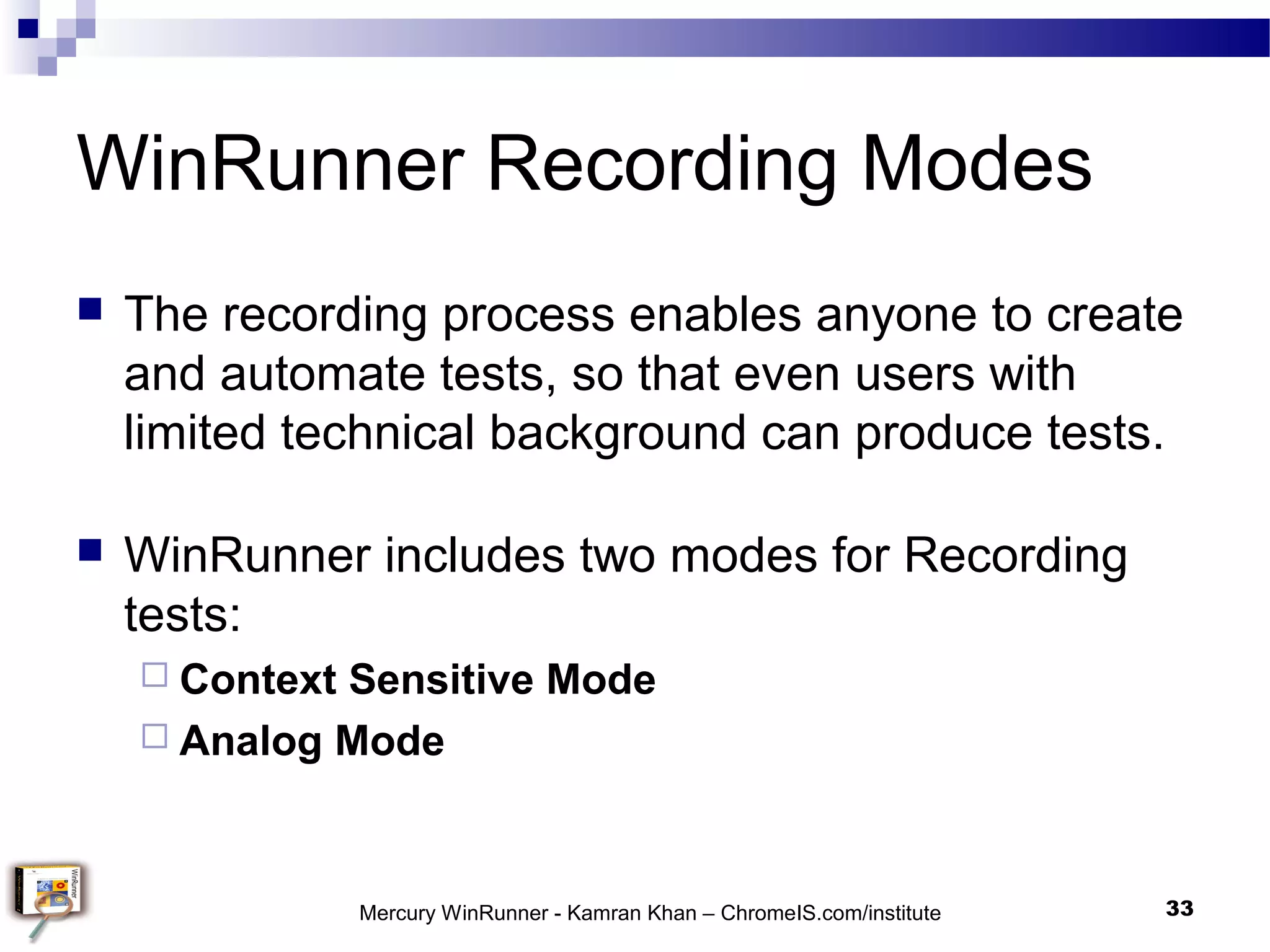

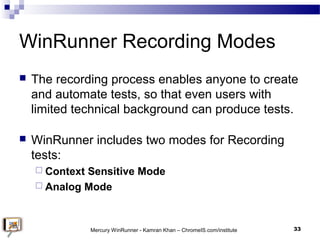

WinRunner Recording Modes
 The recording process enables anyone to create
and automate tests, so that even users with
limited technical background can produce tests.
 WinRunner includes two modes for Recording
tests:
 Context Sensitive Mode
 Analog Mode
33Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

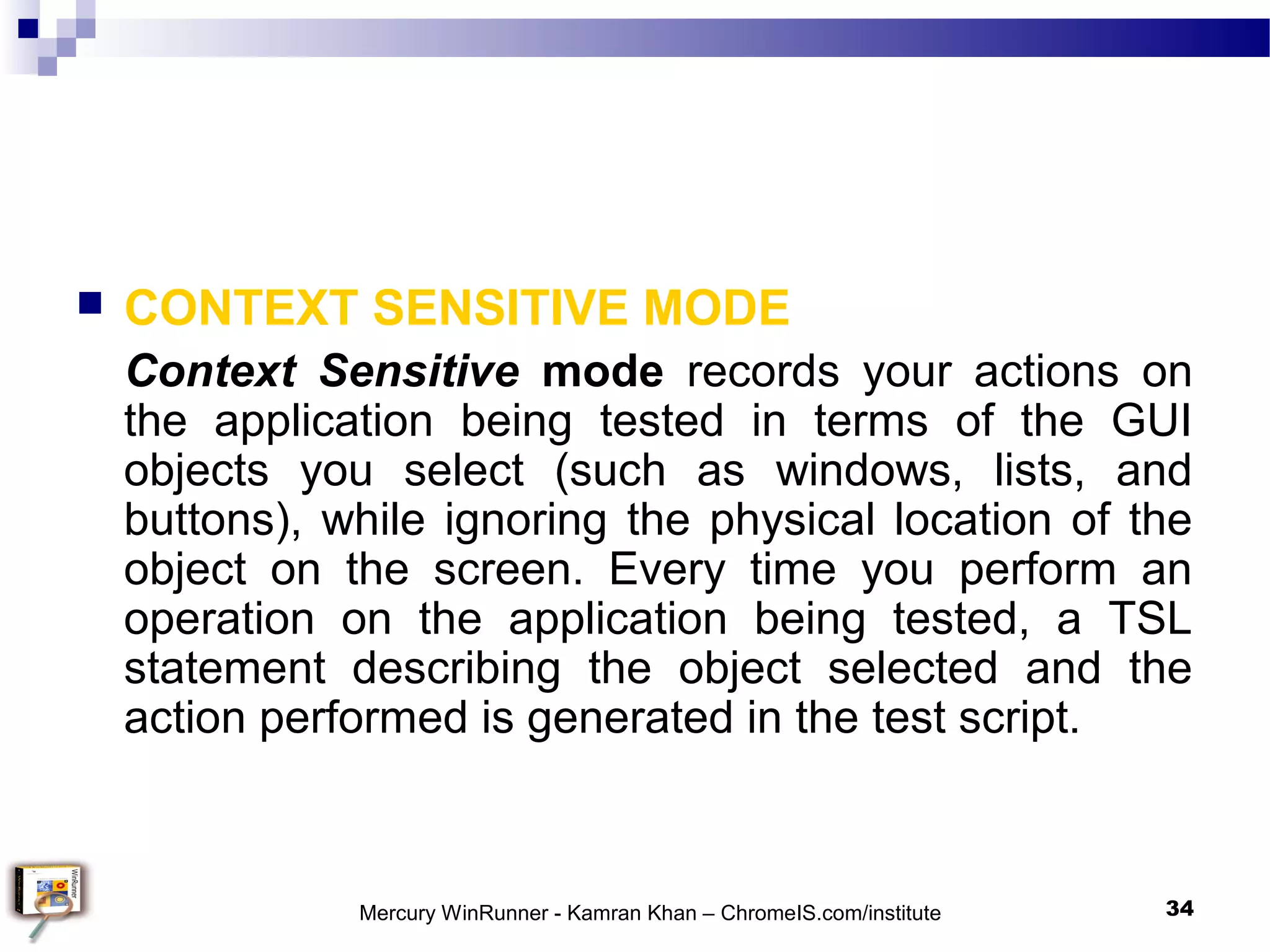

34.
 CONTEXT SENSITIVE MODE
Context Sensitive mode records your actions on
the application being tested in terms of the GUI
objects you select (such as windows, lists, and
buttons), while ignoring the physical location of the
object on the screen. Every time you perform an
operation on the application being tested, a TSL
statement describing the object selected and the
action performed is generated in the test script.
34Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

35.

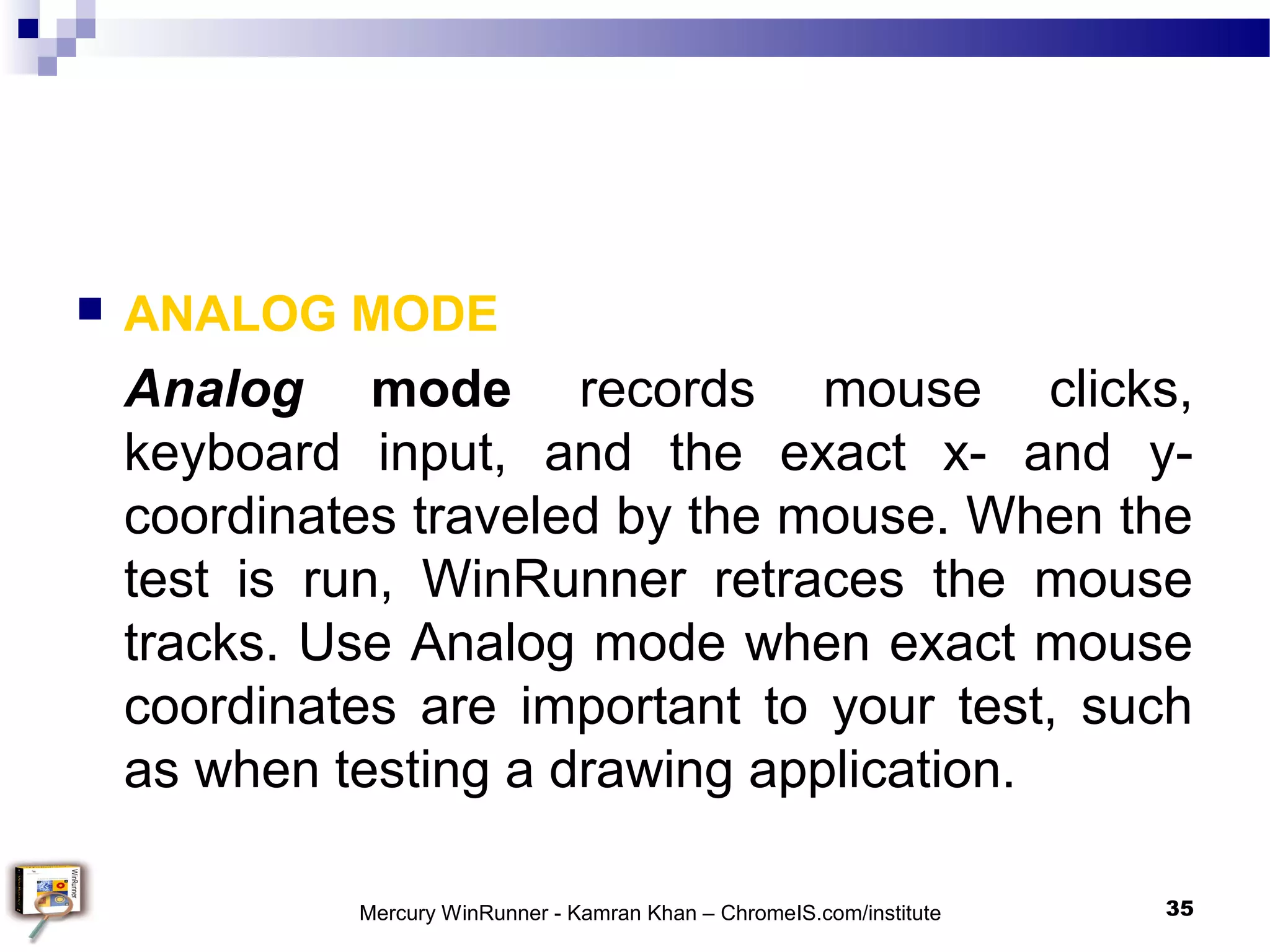

 ANALOG MODE
Analog mode records mouse clicks,
keyboard input, and the exact x- and y-
coordinates traveled by the mouse. When the
test is run, WinRunner retraces the mouse
tracks. Use Analog mode when exact mouse
coordinates are important to your test, such
as when testing a drawing application.
35Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

36.

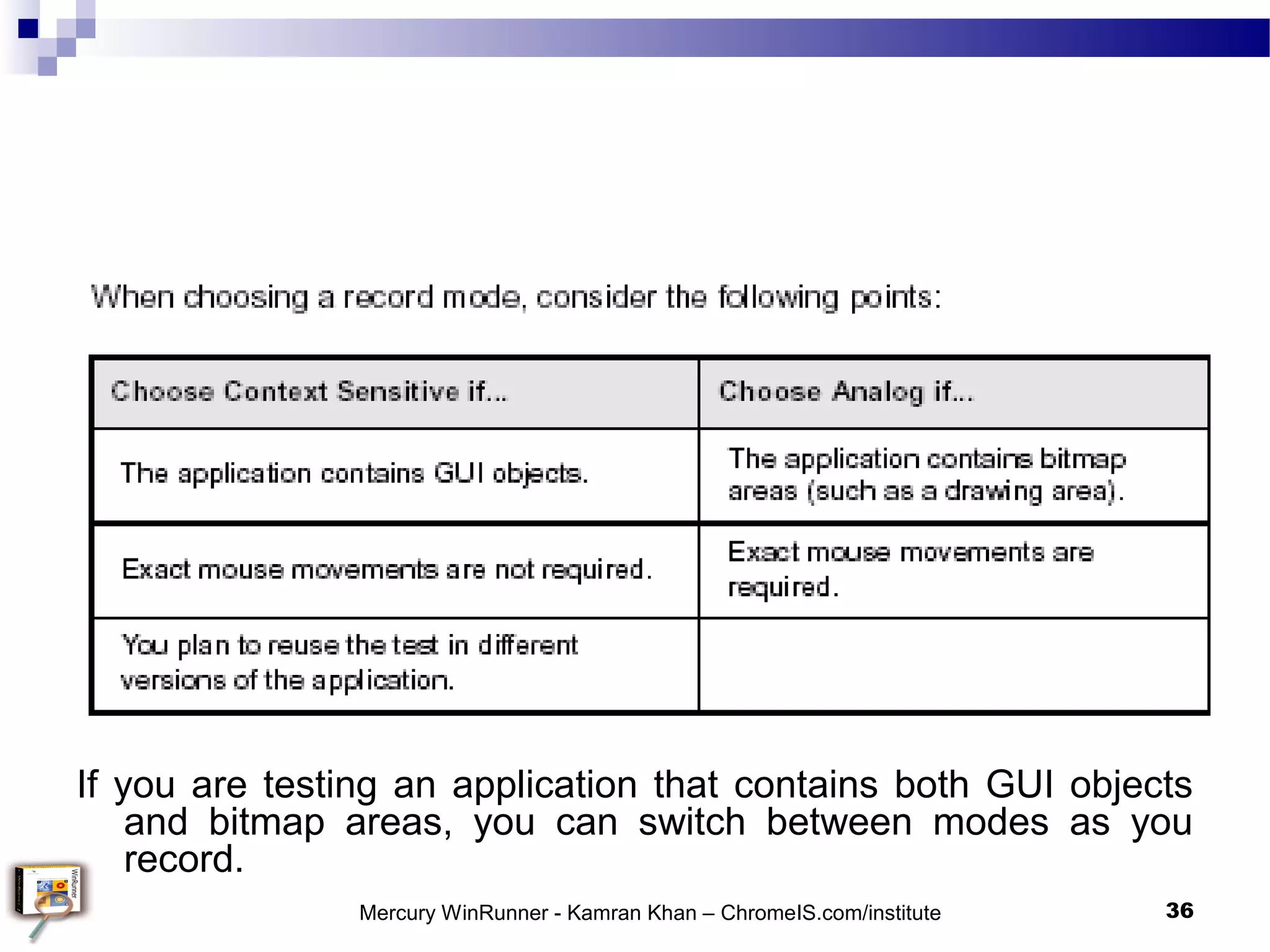

If you are testing an application that contains both GUI objects
and bitmap areas, you can switch between modes as you
record.
36Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

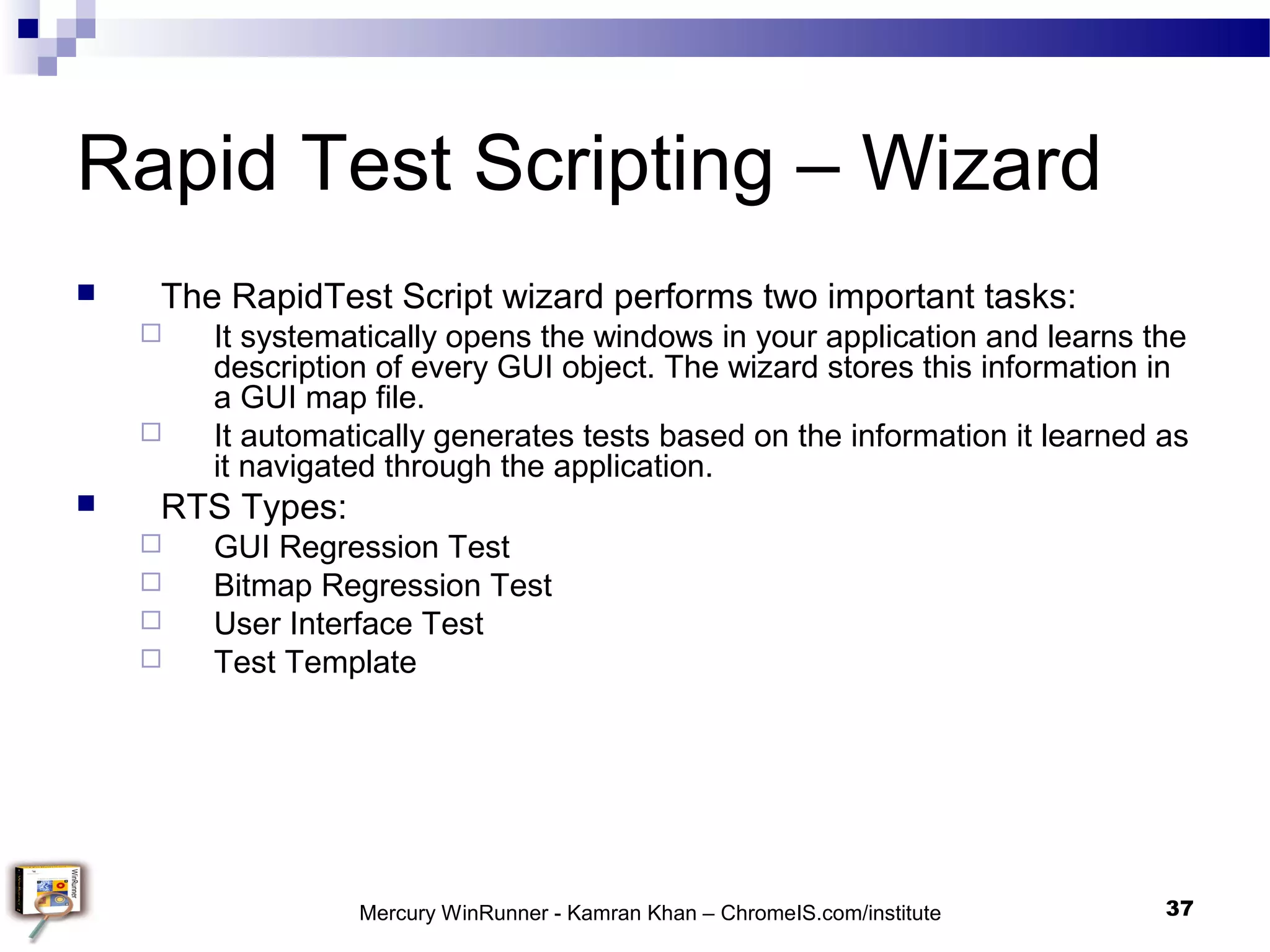

37.

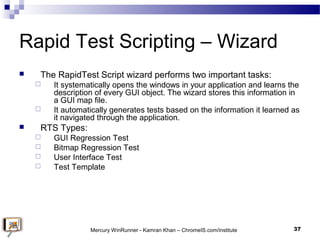

Rapid Test Scripting – Wizard
 The RapidTest Script wizard performs two important tasks:
 It systematically opens the windows in your application and learns the
description of every GUI object. The wizard stores this information in
a GUI map file.
 It automatically generates tests based on the information it learned as
it navigated through the application.
 RTS Types:
 GUI Regression Test
 Bitmap Regression Test
 User Interface Test
 Test Template
37Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

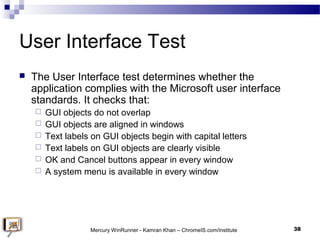

38.

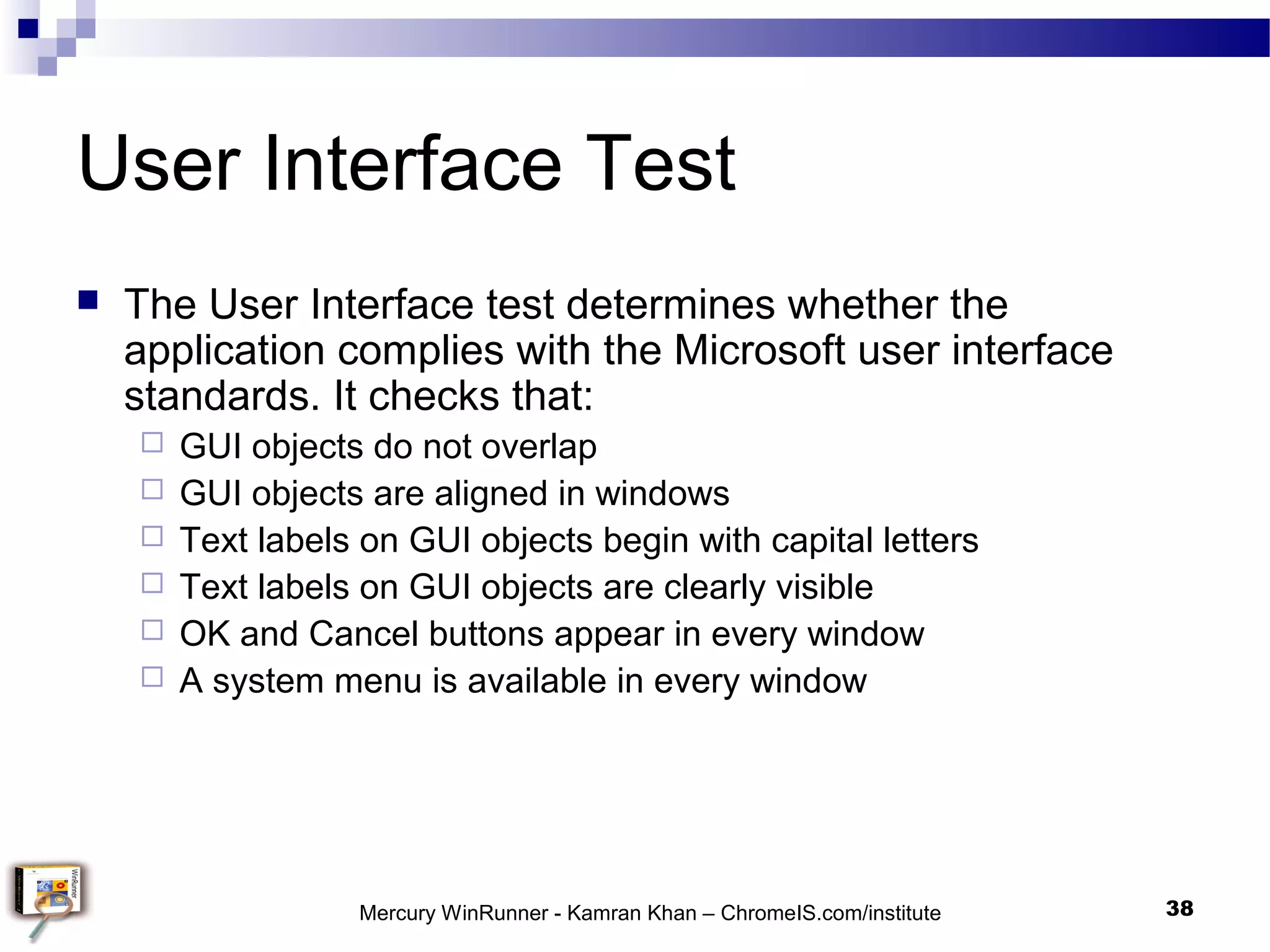

User Interface Test
 The User Interface test determines whether the
application complies with the Microsoft user interface
standards. It checks that:
 GUI objects do not overlap
 GUI objects are aligned in windows
 Text labels on GUI objects begin with capital letters
 Text labels on GUI objects are clearly visible
 OK and Cancel buttons appear in every window
 A system menu is available in every window
38Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

39.

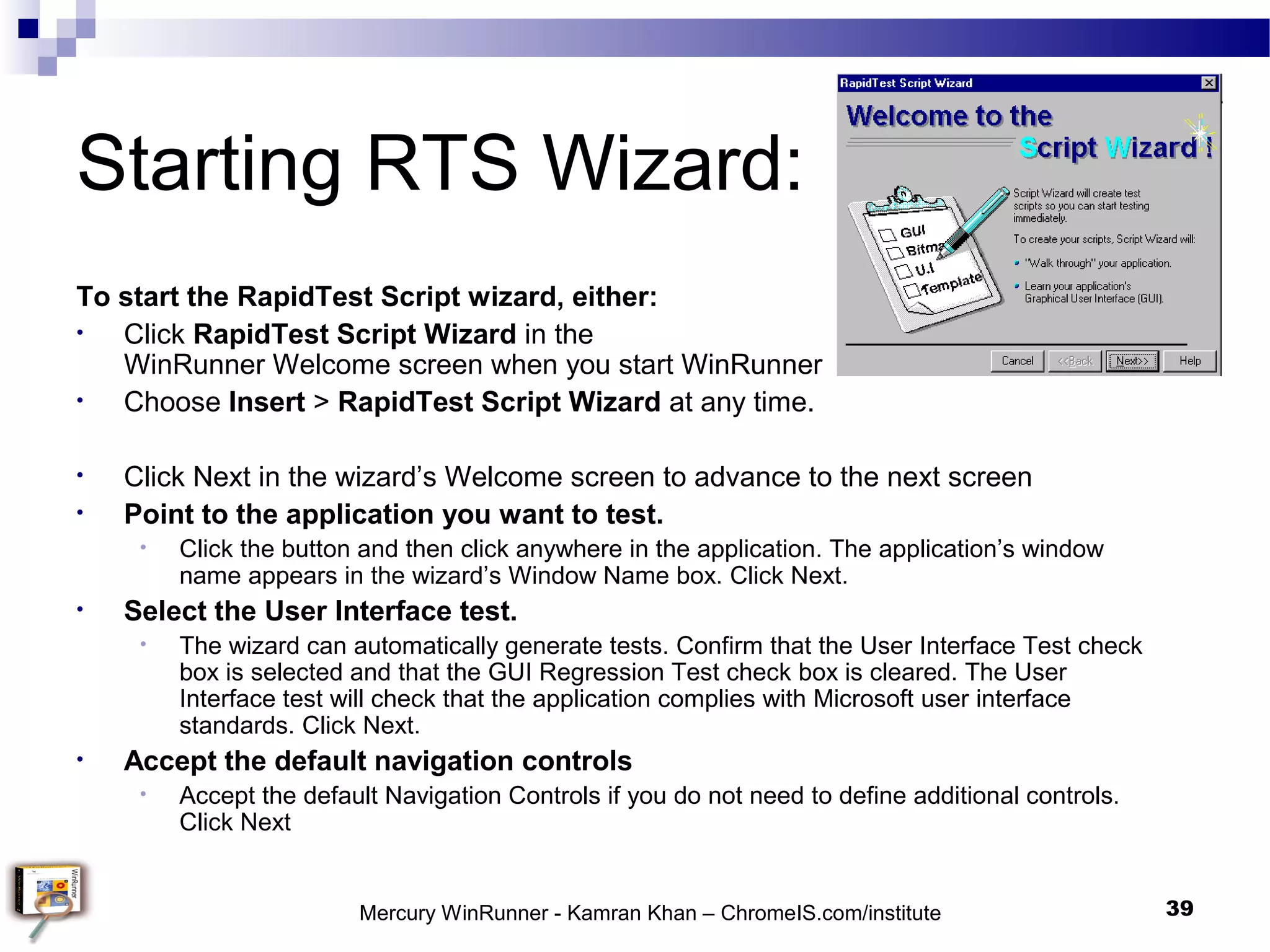

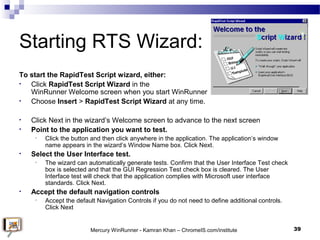

Starting RTS Wizard:
To start the RapidTest Script wizard, either:
• Click RapidTest Script Wizard in the
WinRunner Welcome screen when you start WinRunner
• Choose Insert > RapidTest Script Wizard at any time.
• Click Next in the wizard’s Welcome screen to advance to the next screen
• Point to the application you want to test.
• Click the button and then click anywhere in the application. The application’s window
name appears in the wizard’s Window Name box. Click Next.
• Select the User Interface test.
• The wizard can automatically generate tests. Confirm that the User Interface Test check
box is selected and that the GUI Regression Test check box is cleared. The User
Interface test will check that the application complies with Microsoft user interface
standards. Click Next.
• Accept the default navigation controls
• Accept the default Navigation Controls if you do not need to define additional controls.
Click Next
39Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

40.

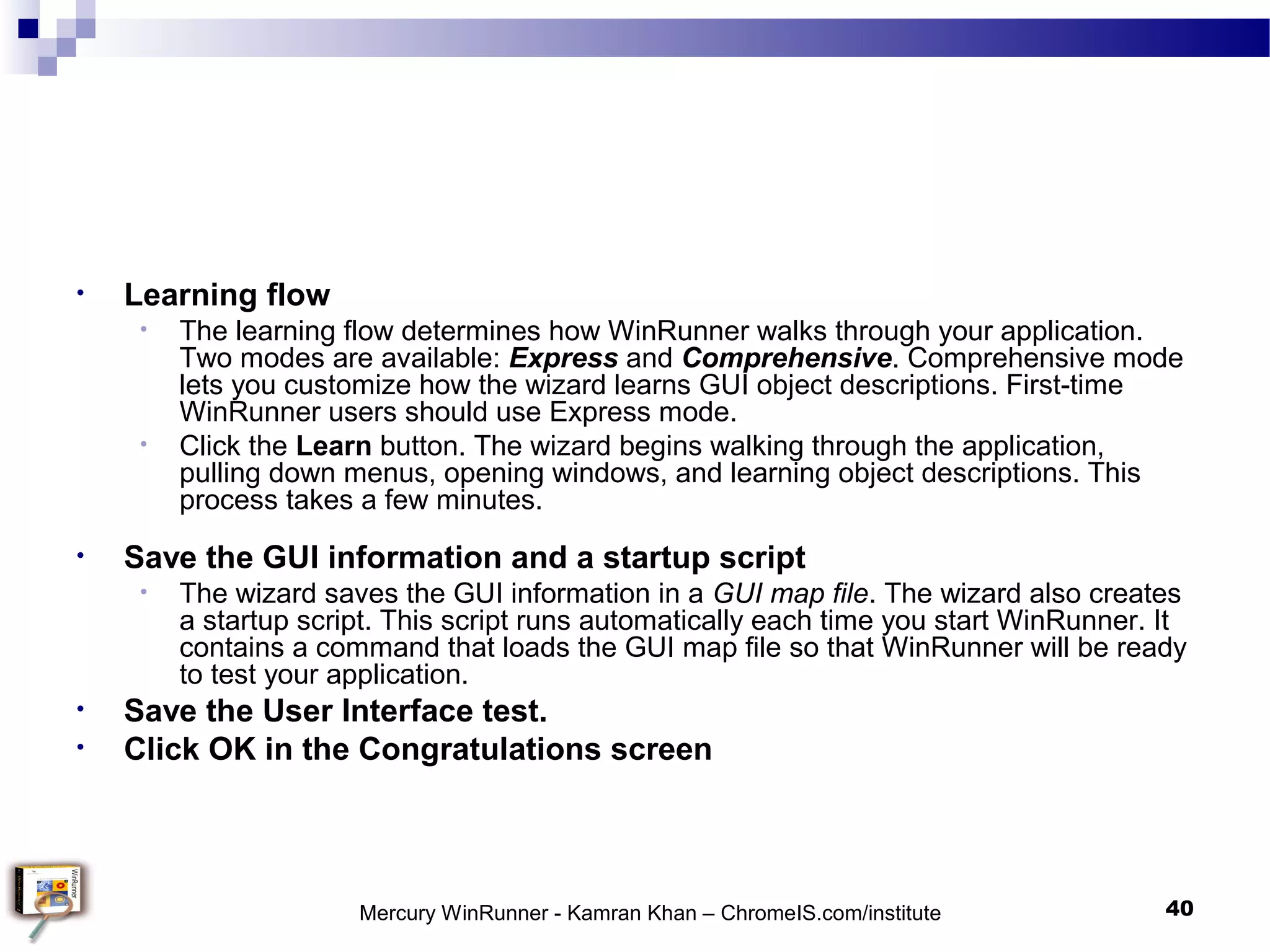

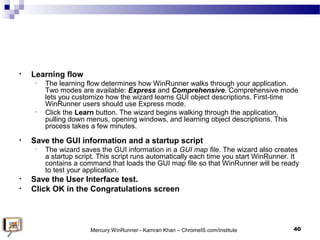

• Learning flow
• The learning flow determines how WinRunner walks through your application.
Two modes are available: Express and Comprehensive. Comprehensive mode
lets you customize how the wizard learns GUI object descriptions. First-time
WinRunner users should use Express mode.
• Click the Learn button. The wizard begins walking through the application,
pulling down menus, opening windows, and learning object descriptions. This
process takes a few minutes.
• Save the GUI information and a startup script
• The wizard saves the GUI information in a GUI map file. The wizard also creates
a startup script. This script runs automatically each time you start WinRunner. It
contains a command that loads the GUI map file so that WinRunner will be ready
to test your application.
• Save the User Interface test.
• Click OK in the Congratulations screen
40Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

41.

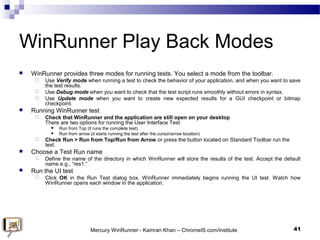

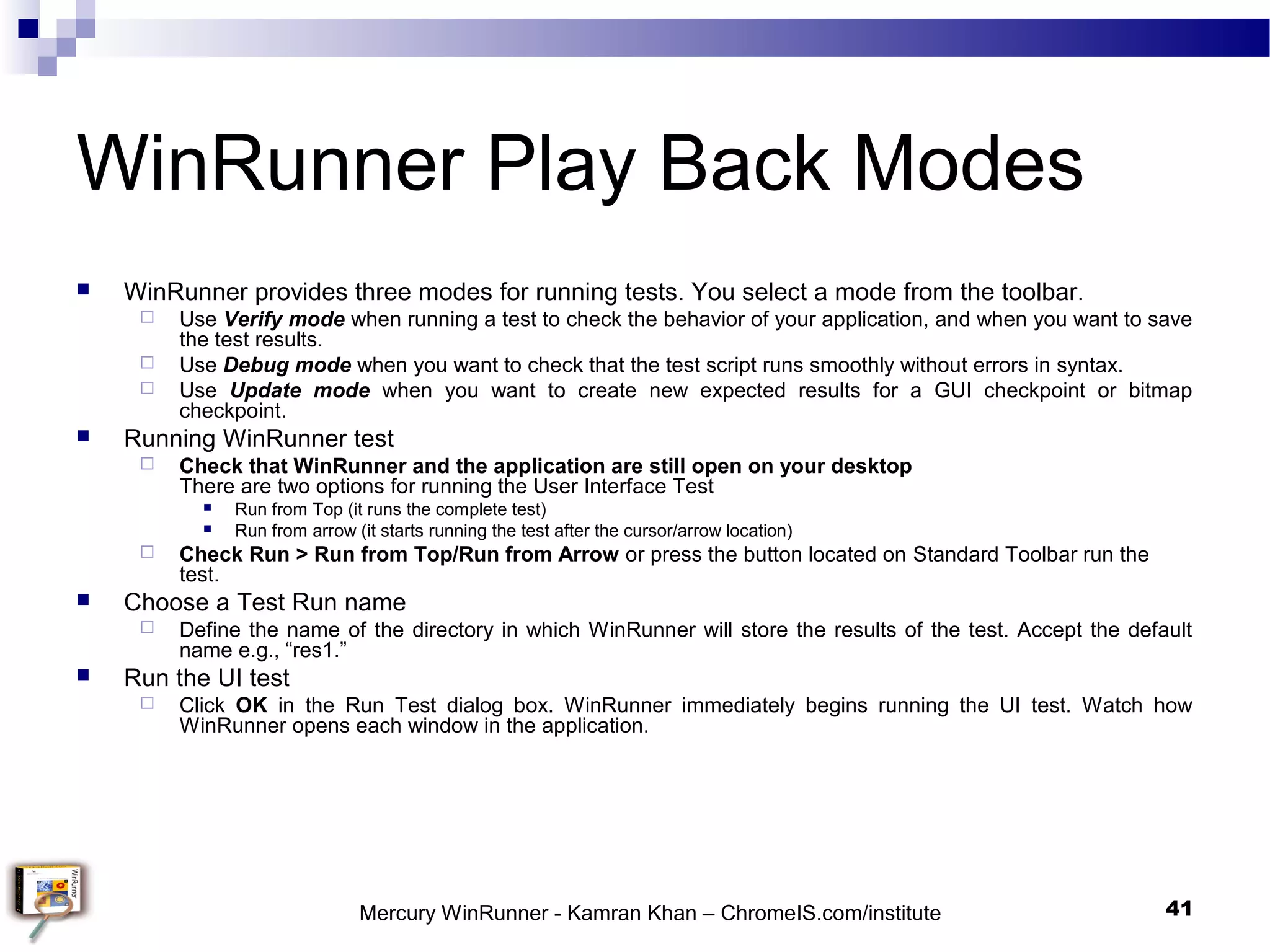

WinRunner Play Back Modes
 WinRunner provides three modes for running tests. You select a mode from the toolbar.
 Use Verify mode when running a test to check the behavior of your application, and when you want to save
the test results.
 Use Debug mode when you want to check that the test script runs smoothly without errors in syntax.
 Use Update mode when you want to create new expected results for a GUI checkpoint or bitmap
checkpoint.
 Running WinRunner test
 Check that WinRunner and the application are still open on your desktop
There are two options for running the User Interface Test
 Run from Top (it runs the complete test)
 Run from arrow (it starts running the test after the cursor/arrow location)
 Check Run > Run from Top/Run from Arrow or press the button located on Standard Toolbar run the
test.
 Choose a Test Run name
 Define the name of the directory in which WinRunner will store the results of the test. Accept the default
name e.g., “res1.”
 Run the UI test
 Click OK in the Run Test dialog box. WinRunner immediately begins running the UI test. Watch how
WinRunner opens each window in the application.
41Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

42.

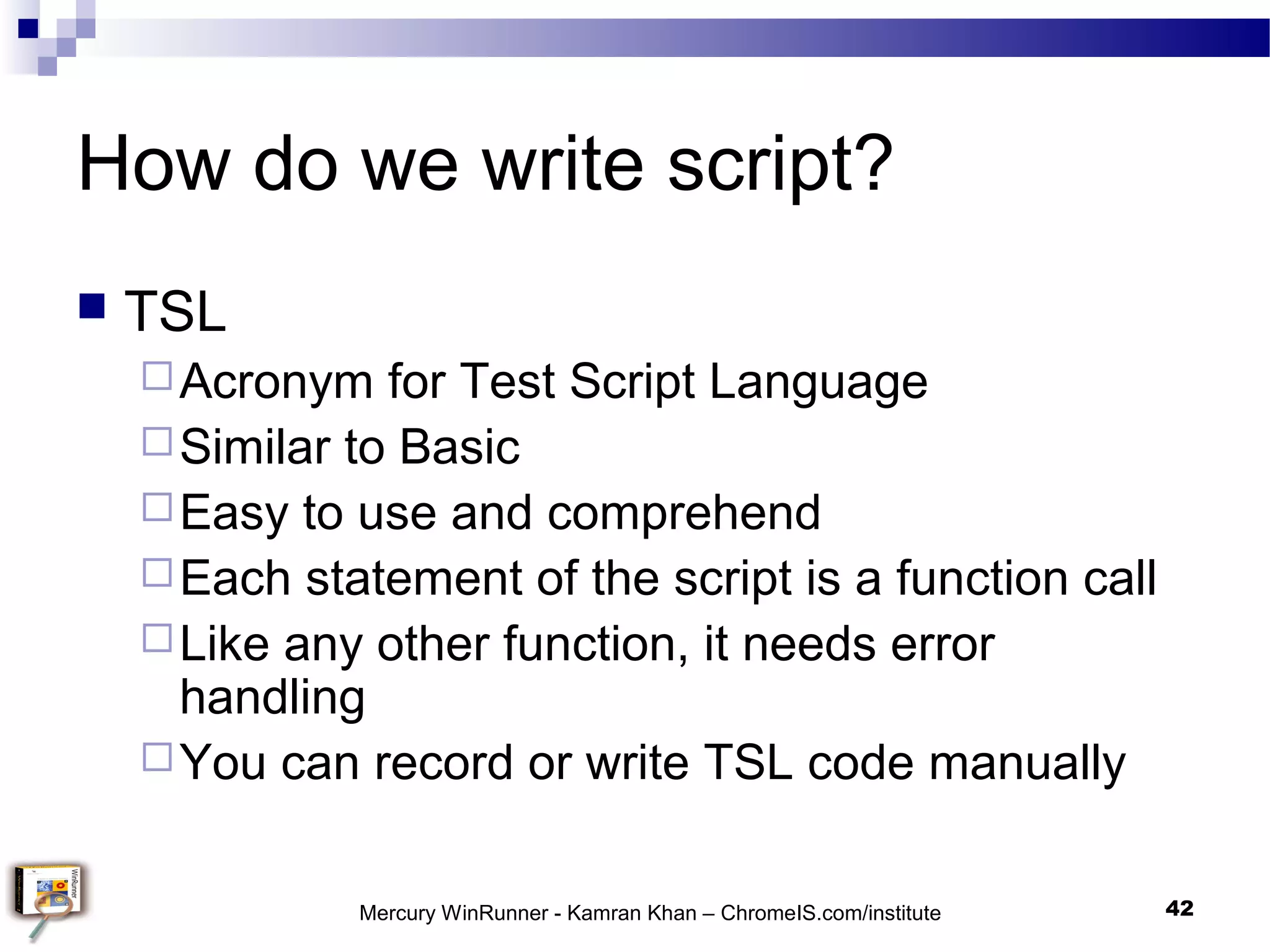

How do we write script?
 TSL
Acronym for Test Script Language
Similar to Basic
Easy to use and comprehend
Each statement of the script is a function call
Like any other function, it needs error
handling
You can record or write TSL code manually
42Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

43.

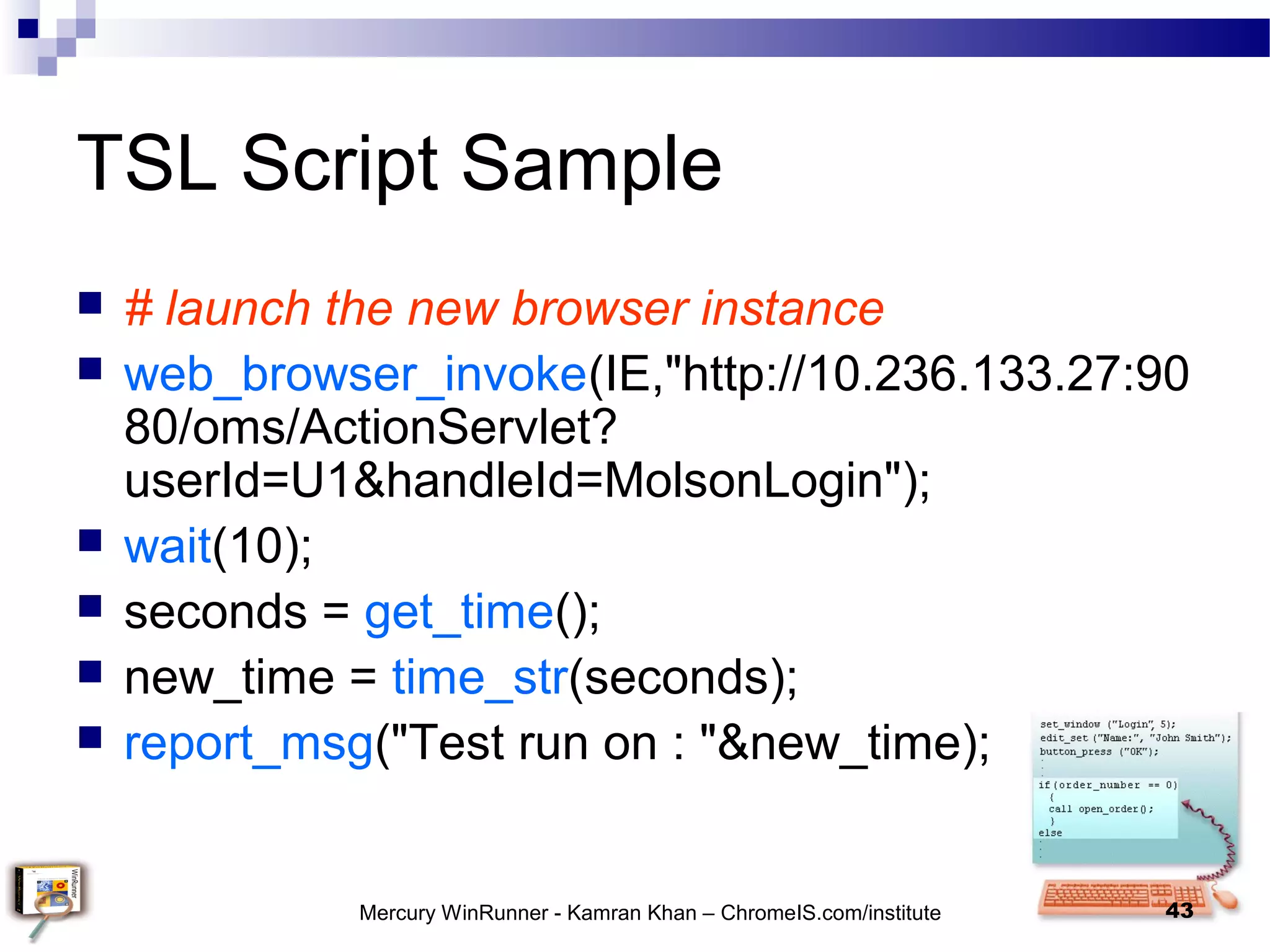

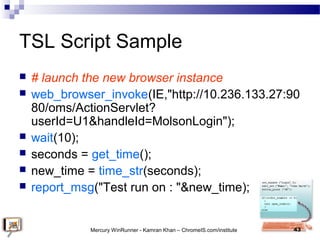

TSL Script Sample
 # launch the new browser instance
 web_browser_invoke(IE,"http://10.236.133.27:90
80/oms/ActionServlet?
userId=U1&handleId=MolsonLogin");
 wait(10);
 seconds = get_time();
 new_time = time_str(seconds);
 report_msg("Test run on : "&new_time);
43Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

44.

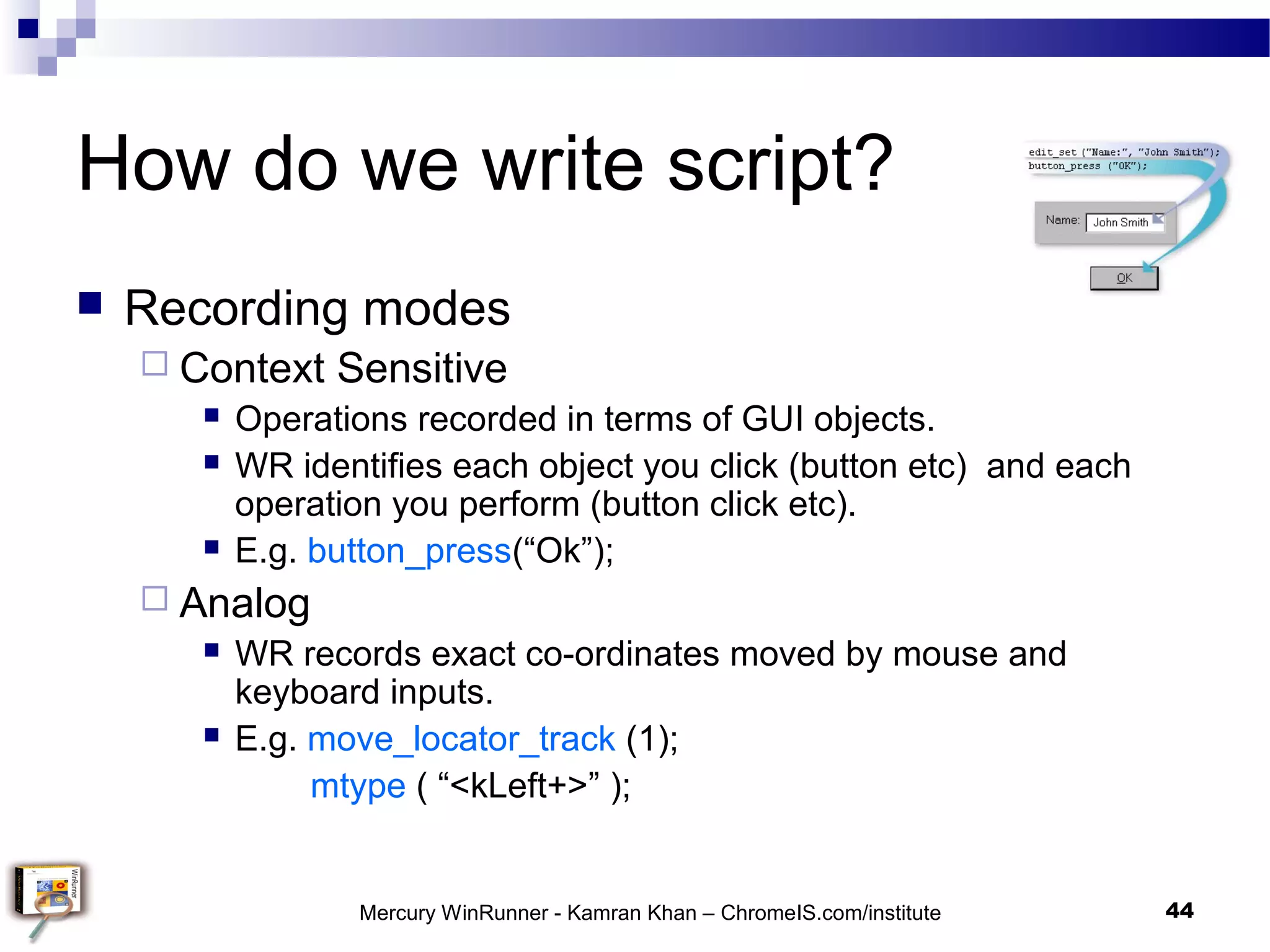

How do we write script?
 Recording modes
 Context Sensitive
 Operations recorded in terms of GUI objects.
 WR identifies each object you click (button etc) and each
operation you perform (button click etc).
 E.g. button_press(“Ok”);
 Analog
 WR records exact co-ordinates moved by mouse and
keyboard inputs.
 E.g. move_locator_track (1);
mtype ( “<kLeft+>” );
44Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

45.

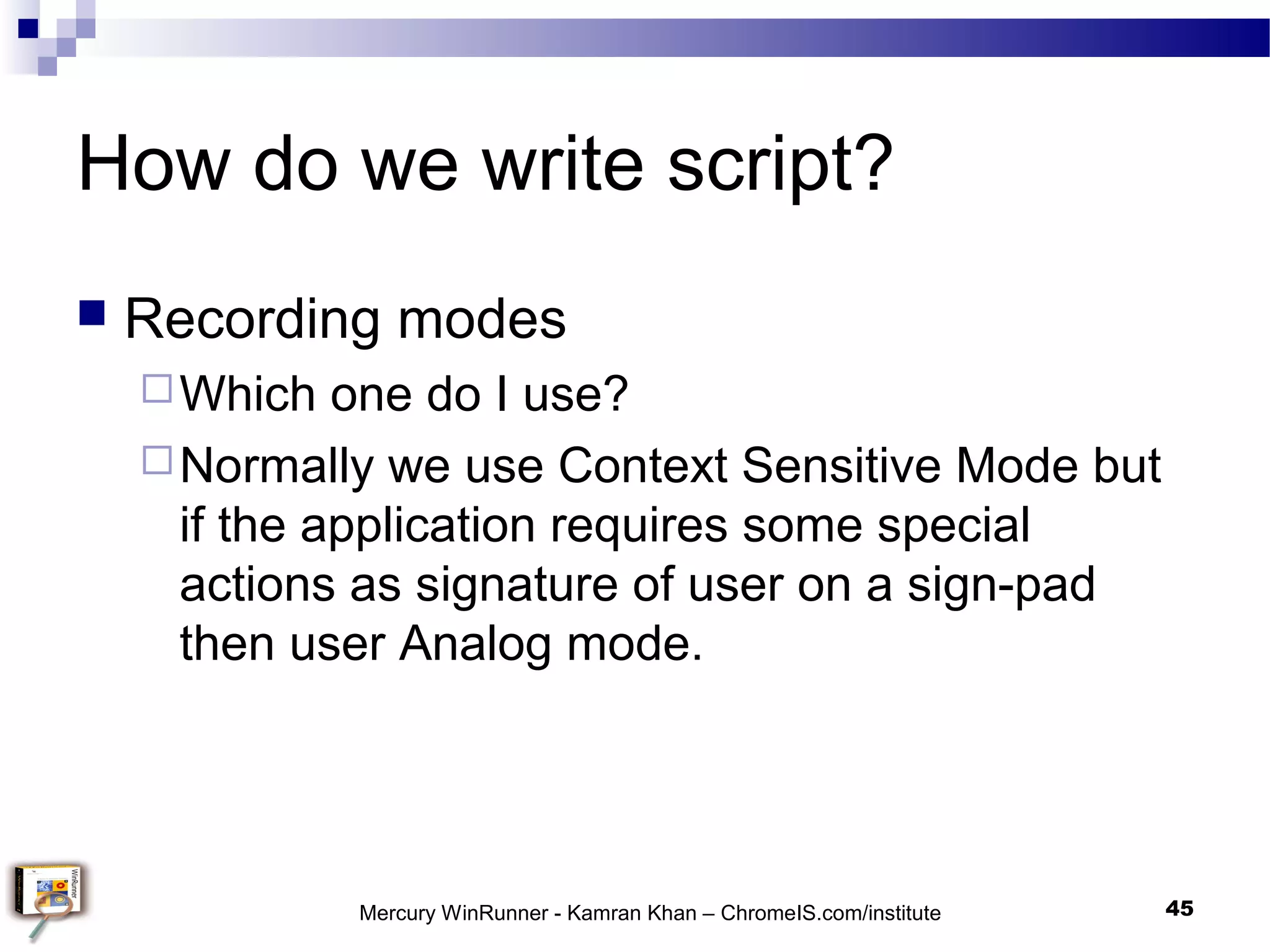

How do we write script?
 Recording modes
Which one do I use?
Normally we use Context Sensitive Mode but
if the application requires some special
actions as signature of user on a sign-pad
then user Analog mode.
45Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

46.

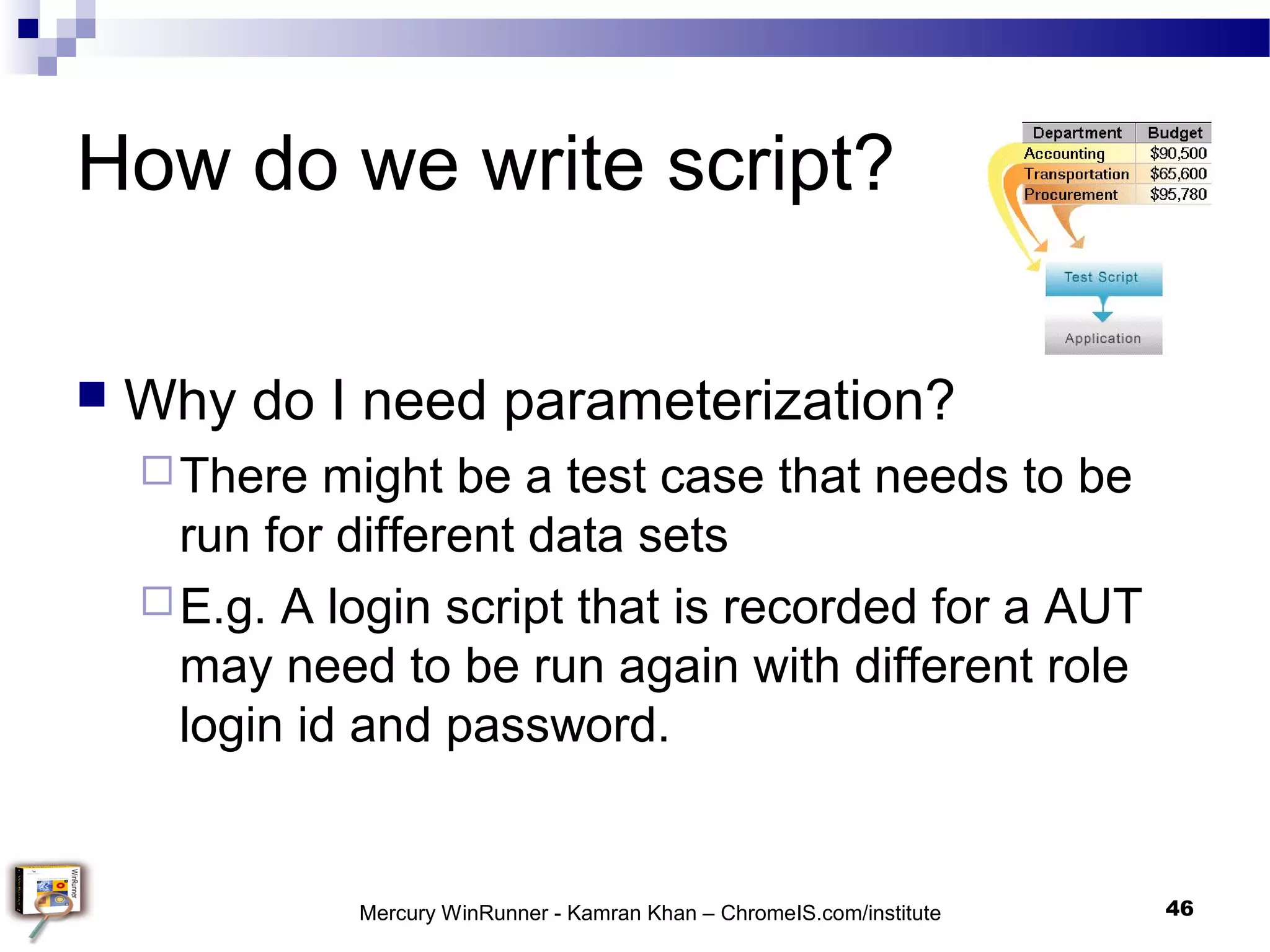

How do we write script?
 Why do I need parameterization?
There might be a test case that needs to be
run for different data sets
E.g. A login script that is recorded for a AUT
may need to be run again with different role
login id and password.
46Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

47.

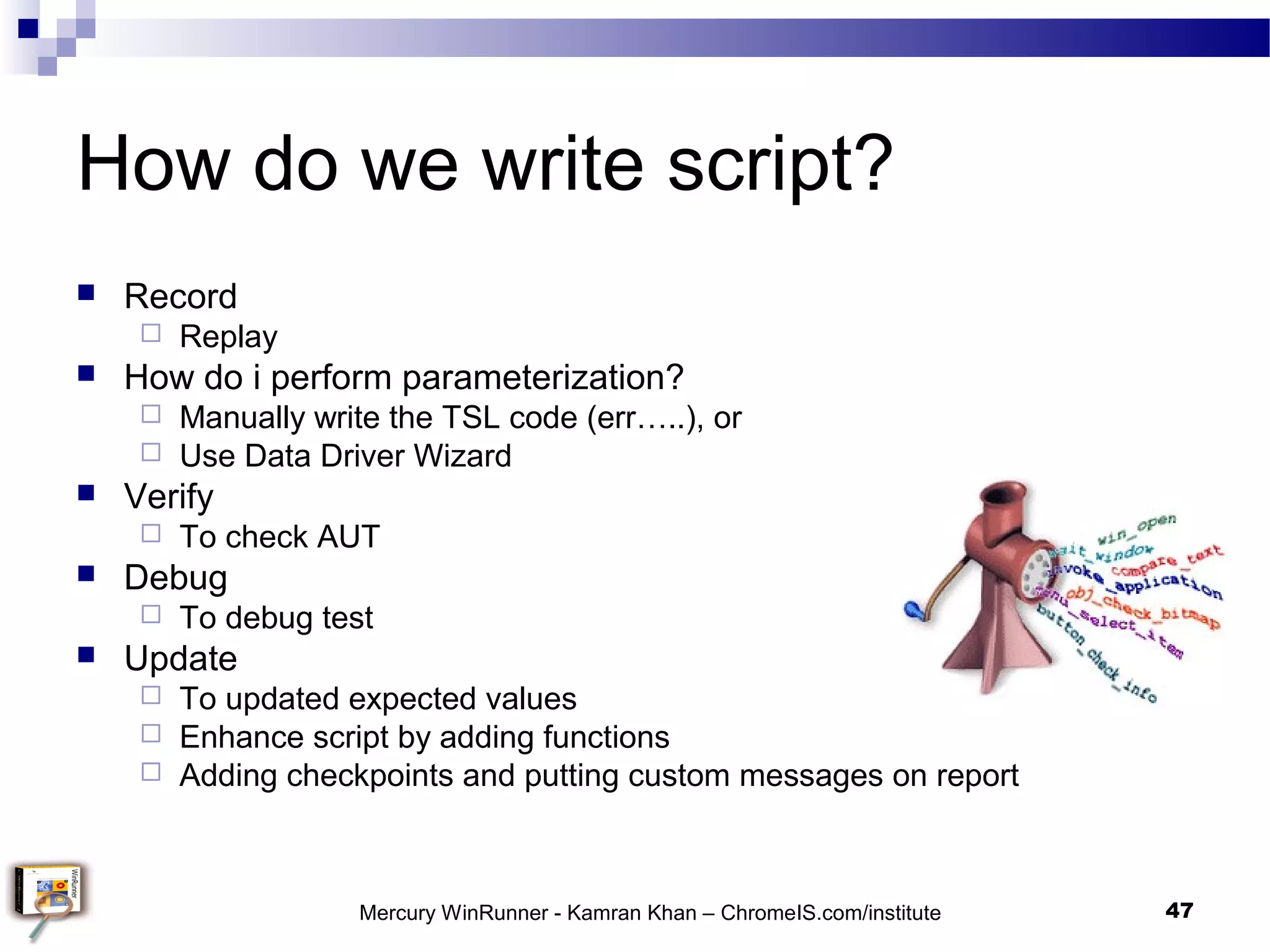

How do we write script?
 Record
 Replay
 How do i perform parameterization?
 Manually write the TSL code (err…..), or
 Use Data Driver Wizard
 Verify
 To check AUT
 Debug
 To debug test
 Update
 To updated expected values
 Enhance script by adding functions
 Adding checkpoints and putting custom messages on report
47Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

48.

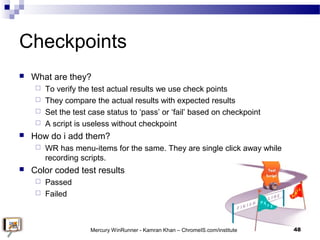

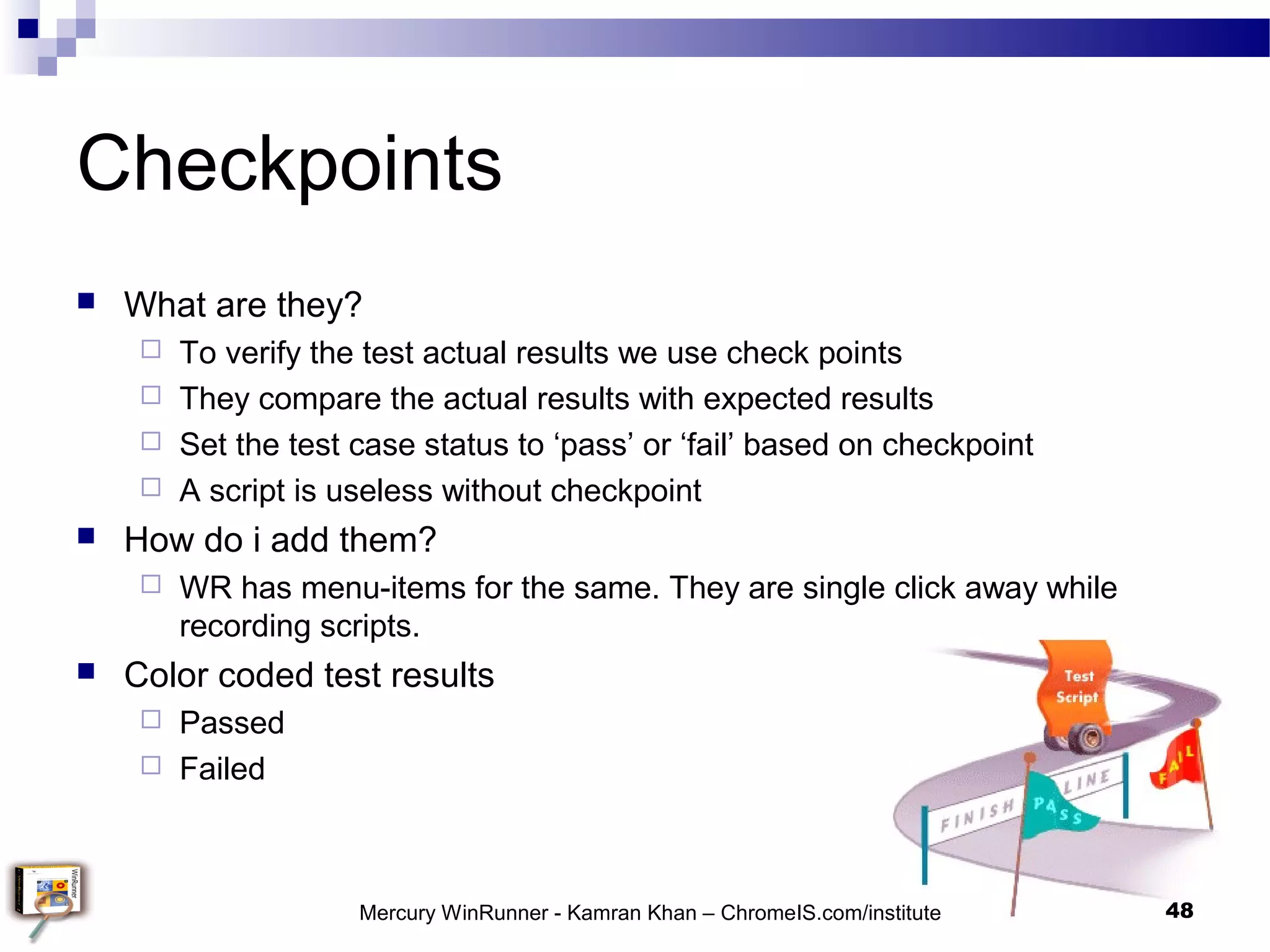

Checkpoints
 What are they?
 To verify the test actual results we use check points
 They compare the actual results with expected results
 Set the test case status to ‘pass’ or ‘fail’ based on checkpoint
 A script is useless without checkpoint
 How do i add them?
 WR has menu-items for the same. They are single click away while
recording scripts.
 Color coded test results
 Passed
 Failed
48Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

49.
Checkpoints

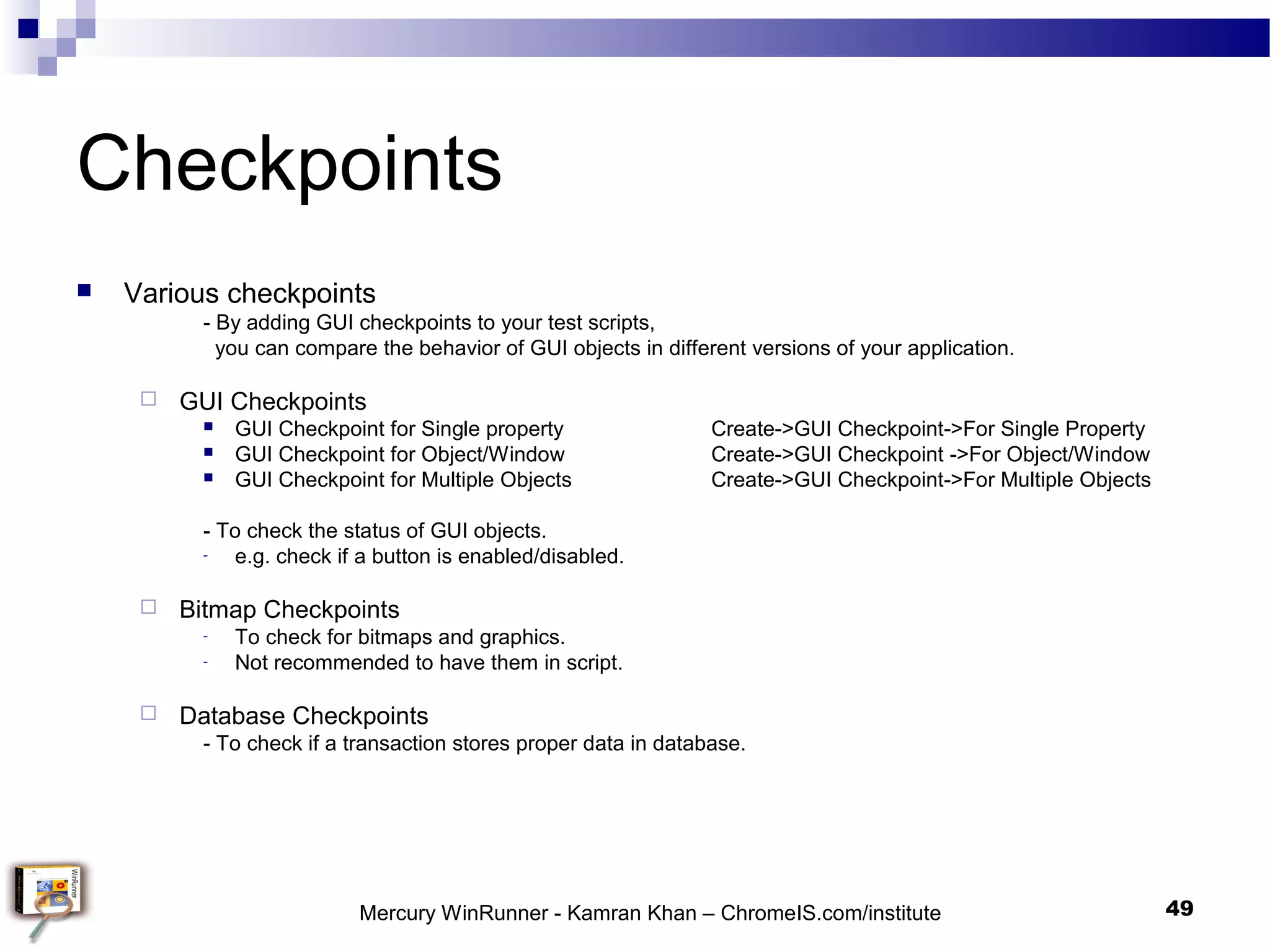

 Various checkpoints
- By adding GUI checkpoints to your test scripts,
you can compare the behavior of GUI objects in different versions of your application.
 GUI Checkpoints
 GUI Checkpoint for Single property Create->GUI Checkpoint->For Single Property
 GUI Checkpoint for Object/Window Create->GUI Checkpoint ->For Object/Window
 GUI Checkpoint for Multiple Objects Create->GUI Checkpoint->For Multiple Objects
- To check the status of GUI objects.
- e.g. check if a button is enabled/disabled.
 Bitmap Checkpoints
- To check for bitmaps and graphics.
- Not recommended to have them in script.
 Database Checkpoints
- To check if a transaction stores proper data in database.
49Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

50.

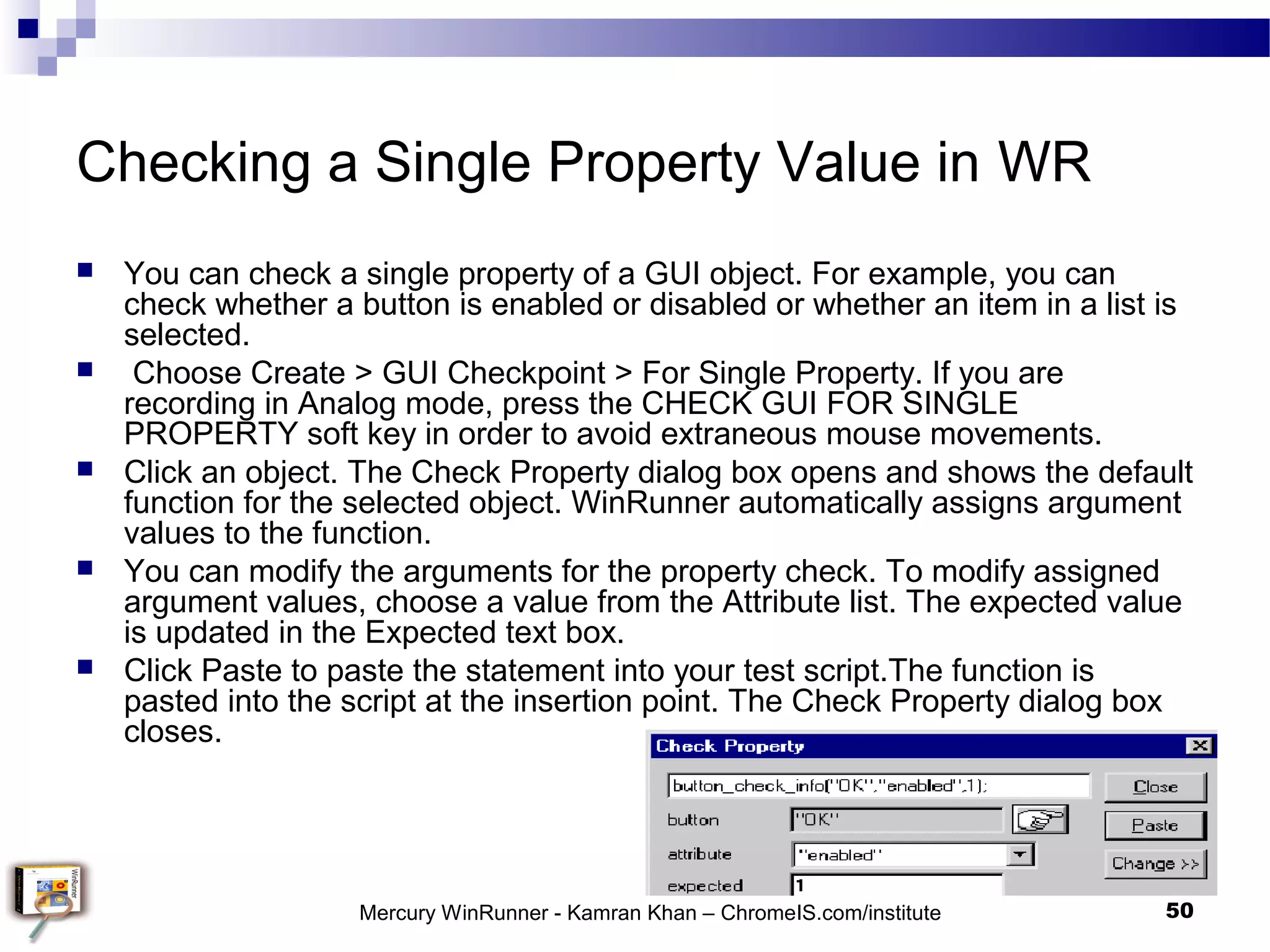

Checking a Single Property Value in WR
 You can check a single property of a GUI object. For example, you can
check whether a button is enabled or disabled or whether an item in a list is
selected.
 Choose Create > GUI Checkpoint > For Single Property. If you are
recording in Analog mode, press the CHECK GUI FOR SINGLE
PROPERTY soft key in order to avoid extraneous mouse movements.
 Click an object. The Check Property dialog box opens and shows the default
function for the selected object. WinRunner automatically assigns argument
values to the function.
 You can modify the arguments for the property check. To modify assigned
argument values, choose a value from the Attribute list. The expected value
is updated in the Expected text box.
 Click Paste to paste the statement into your test script.The function is
pasted into the script at the insertion point. The Check Property dialog box
closes.
50Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

51.

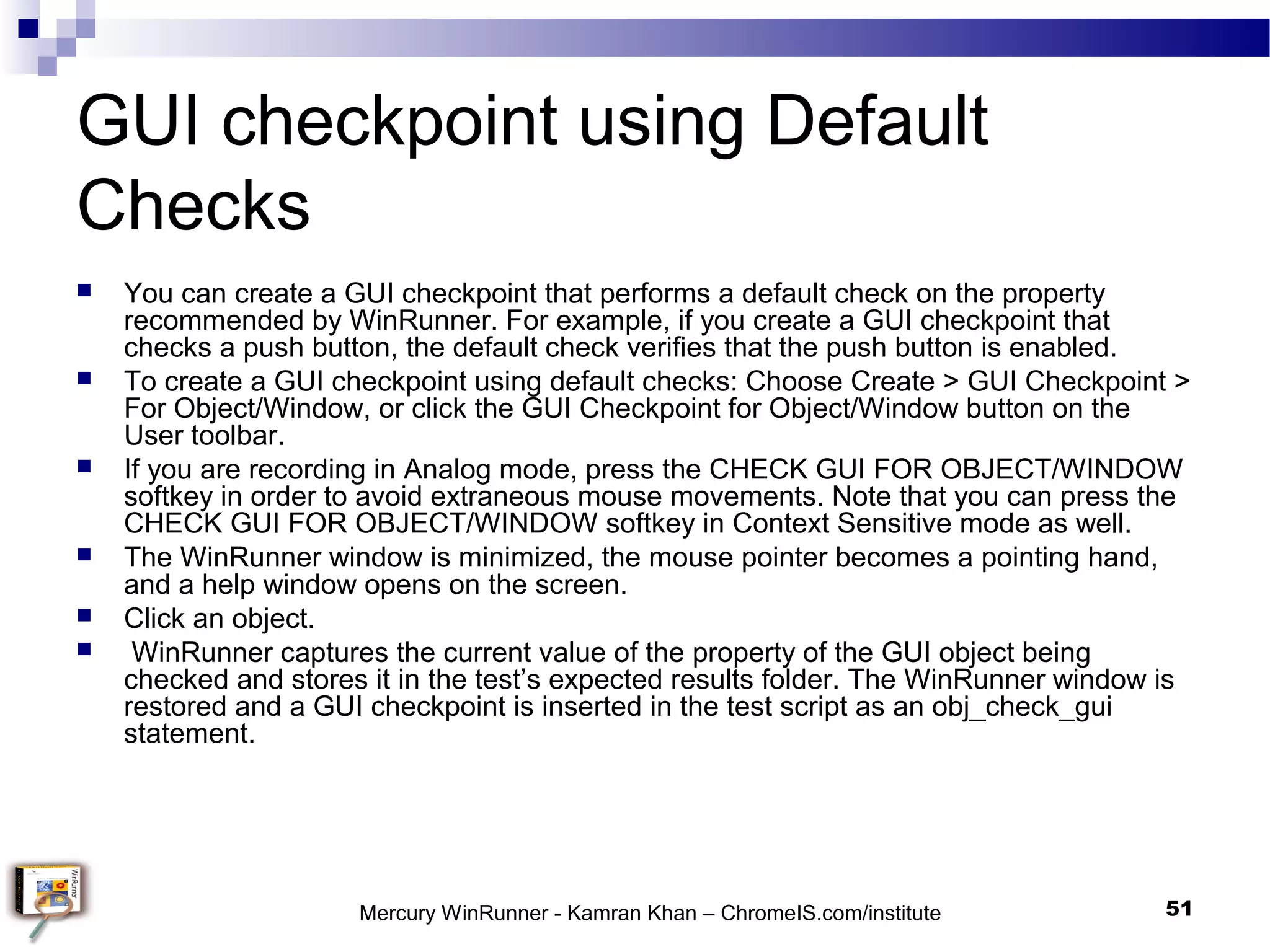

GUI checkpoint using Default
Checks
 You can create a GUI checkpoint that performs a default check on the property
recommended by WinRunner. For example, if you create a GUI checkpoint that
checks a push button, the default check verifies that the push button is enabled.
 To create a GUI checkpoint using default checks: Choose Create > GUI Checkpoint >
For Object/Window, or click the GUI Checkpoint for Object/Window button on the
User toolbar.
 If you are recording in Analog mode, press the CHECK GUI FOR OBJECT/WINDOW
softkey in order to avoid extraneous mouse movements. Note that you can press the
CHECK GUI FOR OBJECT/WINDOW softkey in Context Sensitive mode as well.
 The WinRunner window is minimized, the mouse pointer becomes a pointing hand,
and a help window opens on the screen.
 Click an object.
 WinRunner captures the current value of the property of the GUI object being
checked and stores it in the test’s expected results folder. The WinRunner window is
restored and a GUI checkpoint is inserted in the test script as an obj_check_gui
statement.
51Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

52.

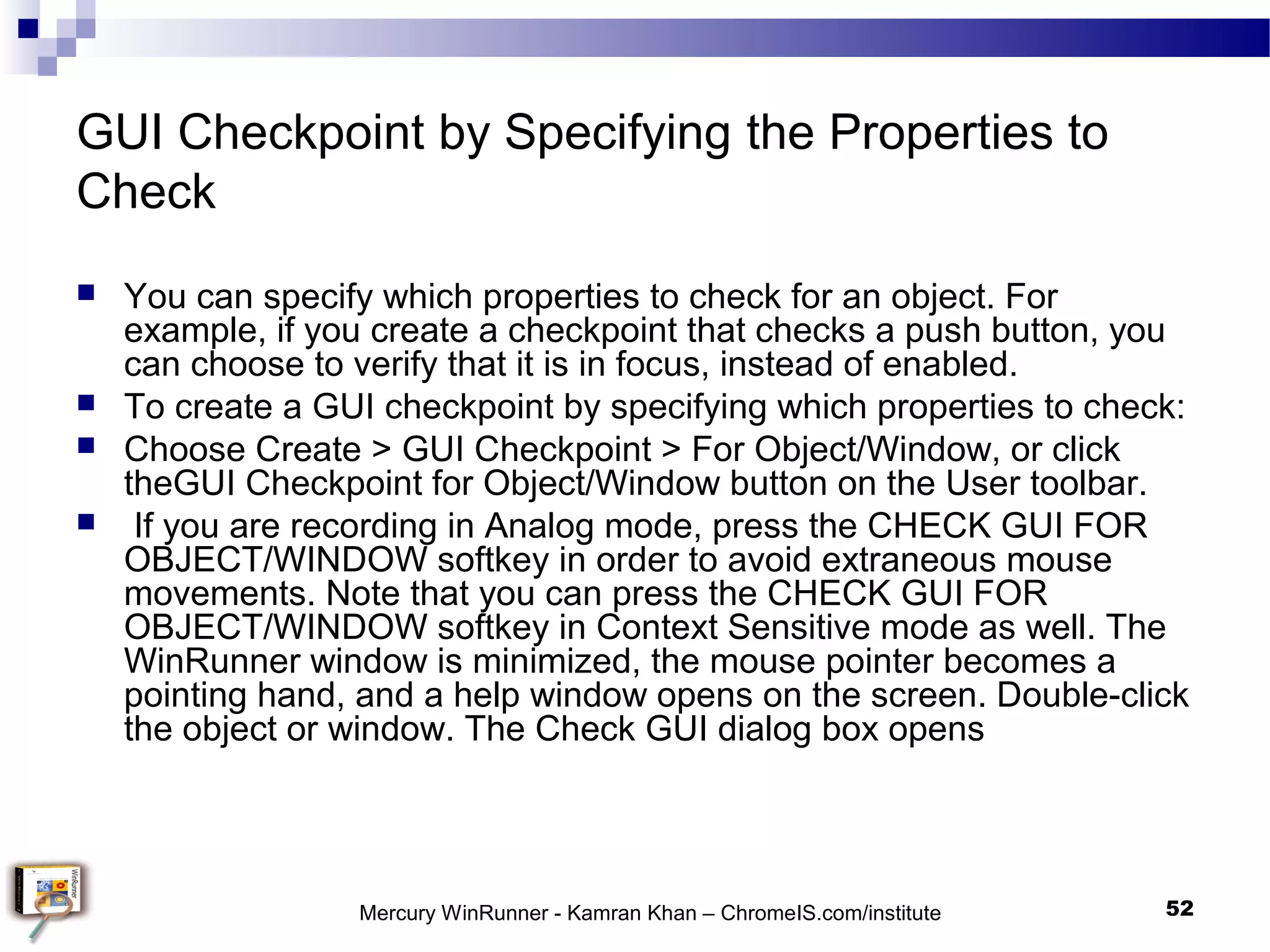

GUI Checkpoint by Specifying the Properties to
Check
 You can specify which properties to check for an object. For
example, if you create a checkpoint that checks a push button, you
can choose to verify that it is in focus, instead of enabled.
 To create a GUI checkpoint by specifying which properties to check:
 Choose Create > GUI Checkpoint > For Object/Window, or click
theGUI Checkpoint for Object/Window button on the User toolbar.
 If you are recording in Analog mode, press the CHECK GUI FOR
OBJECT/WINDOW softkey in order to avoid extraneous mouse
movements. Note that you can press the CHECK GUI FOR
OBJECT/WINDOW softkey in Context Sensitive mode as well. The
WinRunner window is minimized, the mouse pointer becomes a
pointing hand, and a help window opens on the screen. Double-click
the object or window. The Check GUI dialog box opens
52Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

53.

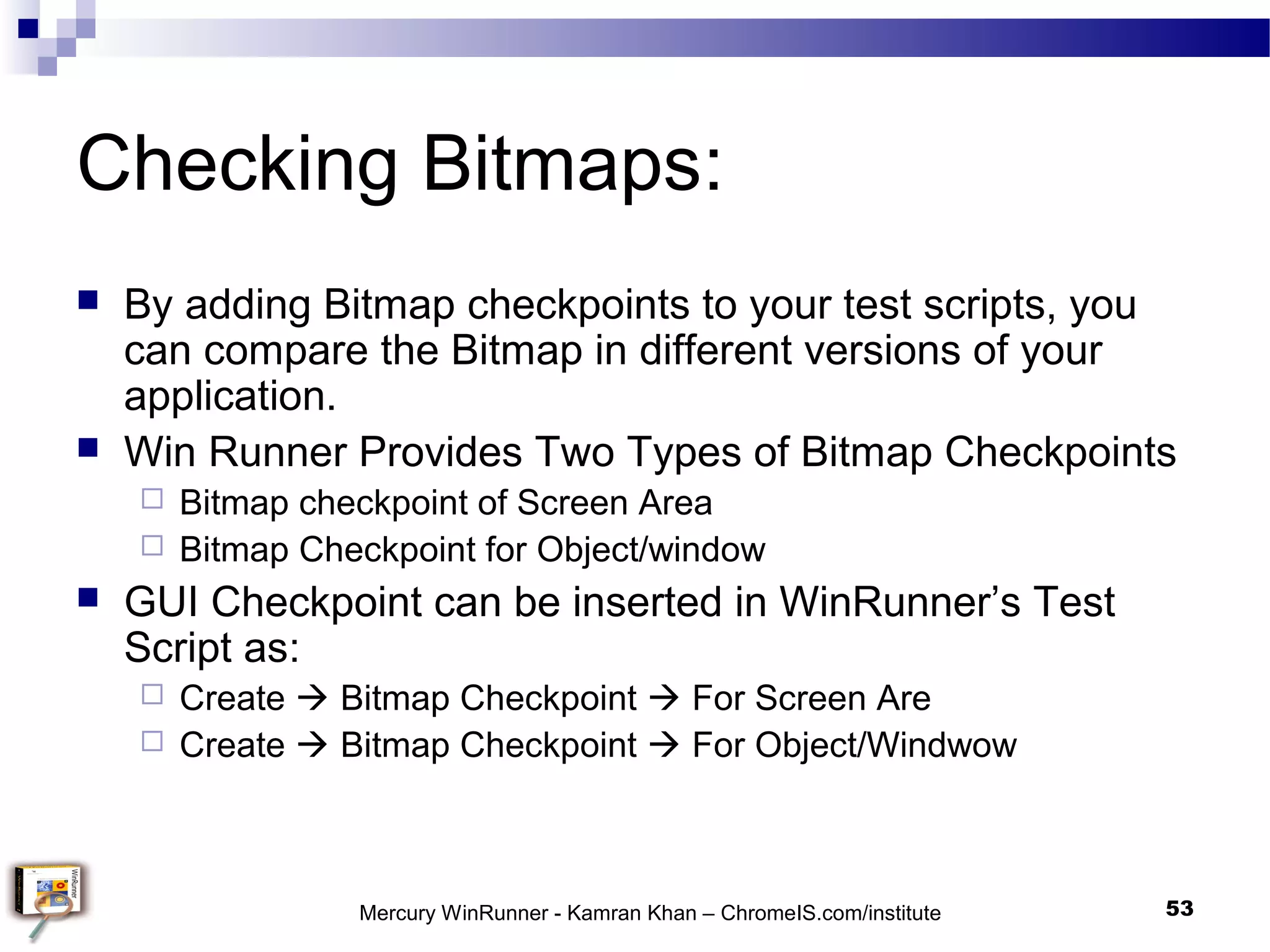

Checking Bitmaps:
 By adding Bitmap checkpoints to your test scripts, you
can compare the Bitmap in different versions of your
application.
 Win Runner Provides Two Types of Bitmap Checkpoints
 Bitmap checkpoint of Screen Area
 Bitmap Checkpoint for Object/window
 GUI Checkpoint can be inserted in WinRunner’s Test
Script as:
 Create  Bitmap Checkpoint  For Screen Are
 Create  Bitmap Checkpoint  For Object/Windwow
53Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

54.

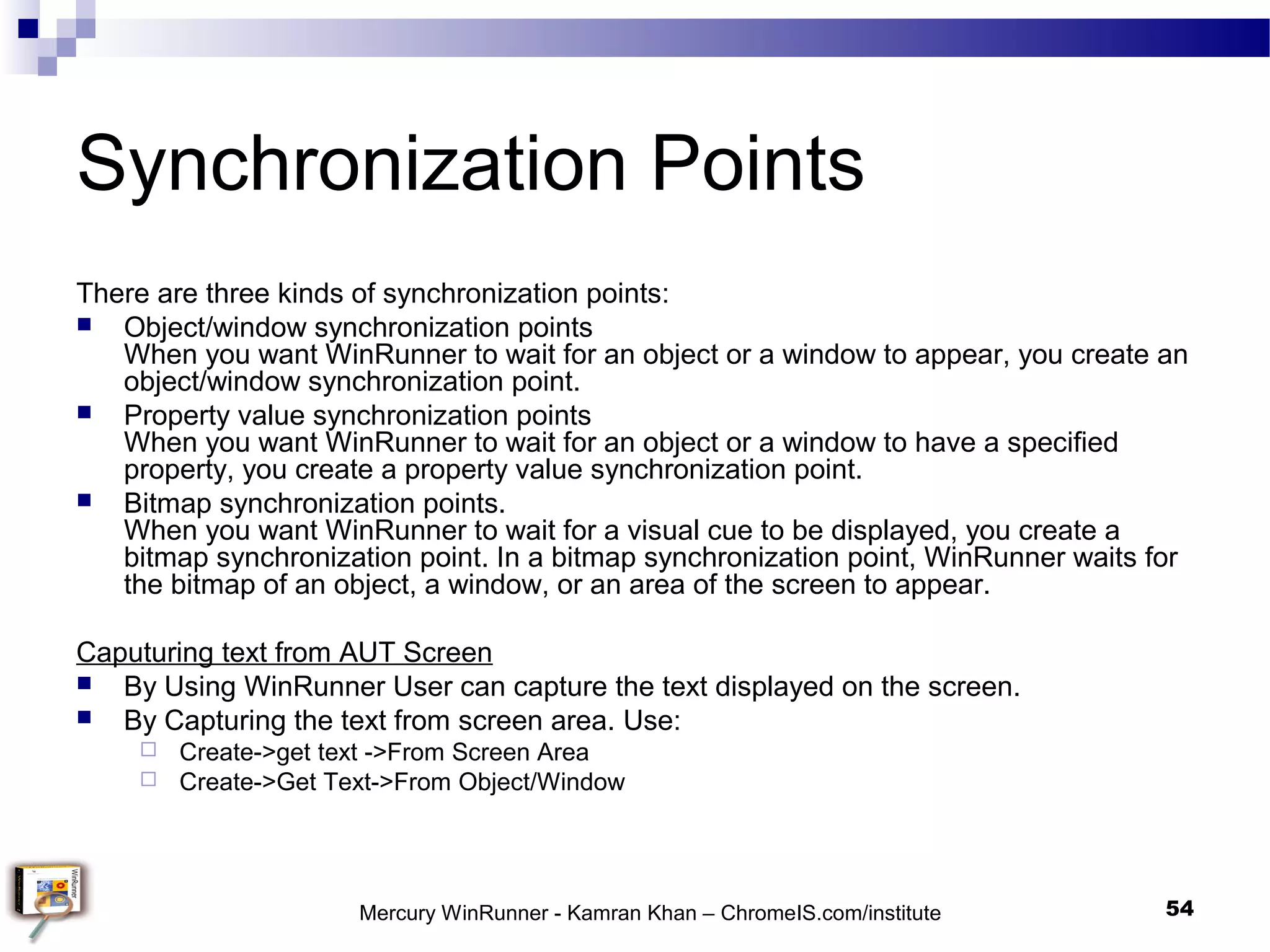

Synchronization Points
There are three kinds of synchronization points:
 Object/window synchronization points
When you want WinRunner to wait for an object or a window to appear, you create an
object/window synchronization point.
 Property value synchronization points
When you want WinRunner to wait for an object or a window to have a specified
property, you create a property value synchronization point.
 Bitmap synchronization points.
When you want WinRunner to wait for a visual cue to be displayed, you create a
bitmap synchronization point. In a bitmap synchronization point, WinRunner waits for
the bitmap of an object, a window, or an area of the screen to appear.
Caputuring text from AUT Screen
 By Using WinRunner User can capture the text displayed on the screen.
 By Capturing the text from screen area. Use:
 Create->get text ->From Screen Area
 Create->Get Text->From Object/Window
54Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

55.

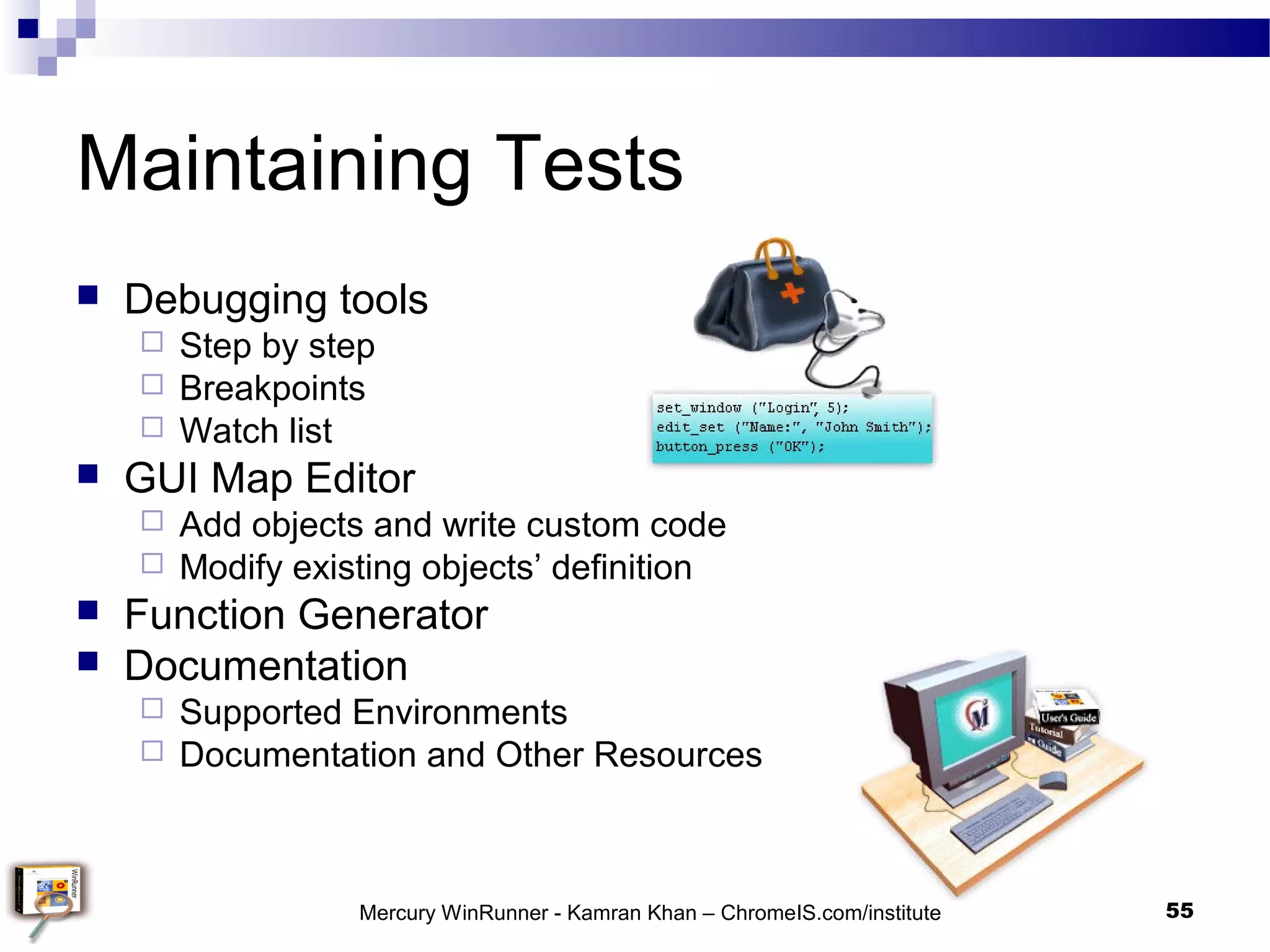

Maintaining Tests
 Debugging tools
 Step by step
 Breakpoints
 Watch list
 GUI Map Editor
 Add objects and write custom code
 Modify existing objects’ definition
 Function Generator
 Documentation
 Supported Environments
 Documentation and Other Resources
55Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

56.

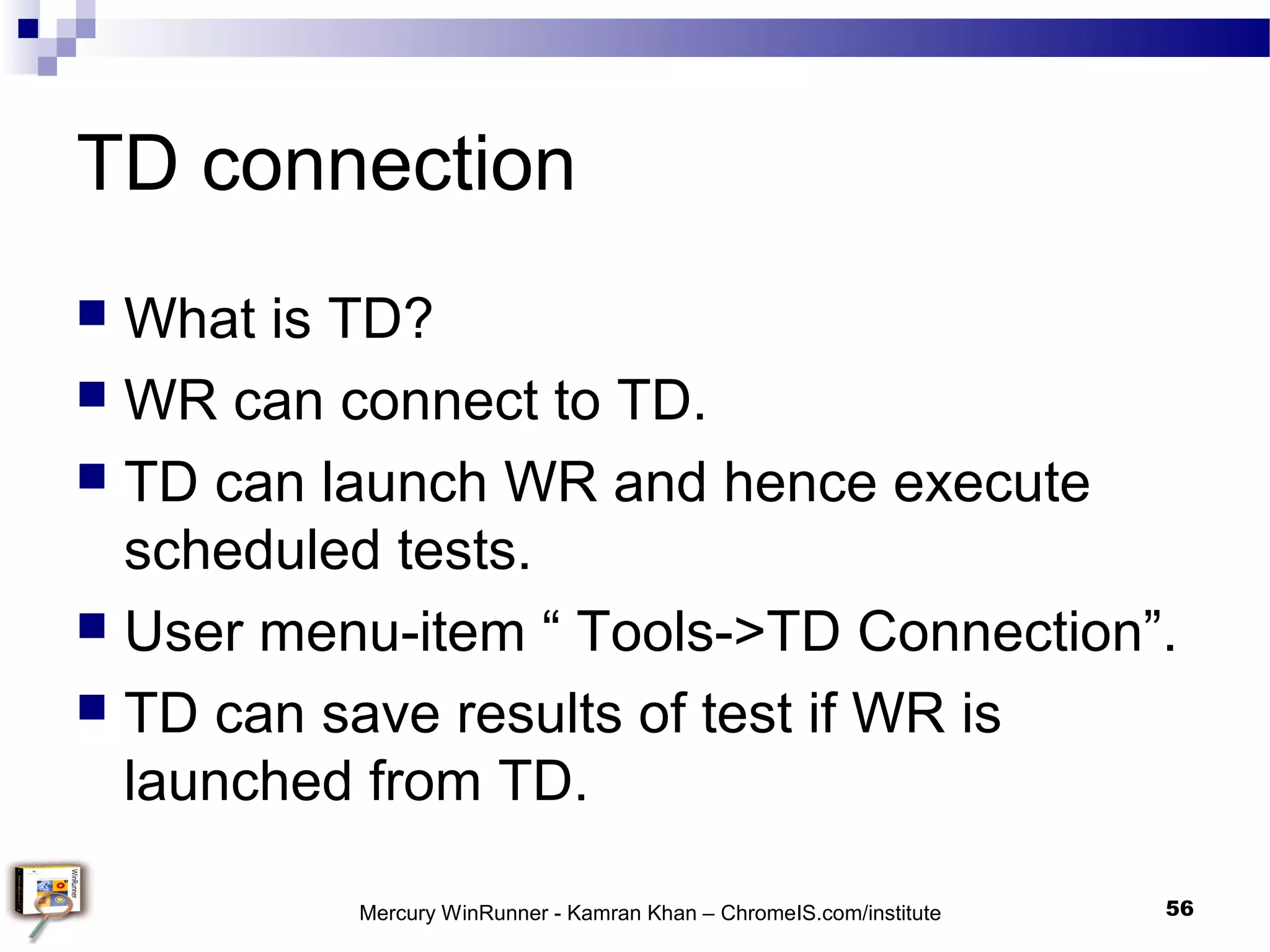

TD connection
 What is TD?
 WR can connect to TD.
 TD can launch WR and hence execute
scheduled tests.
 User menu-item “ Tools->TD Connection”.
 TD can save results of test if WR is
launched from TD.
56Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

57.

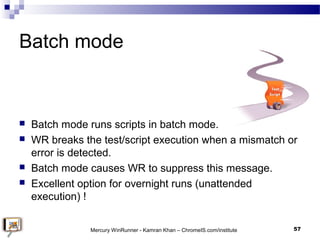

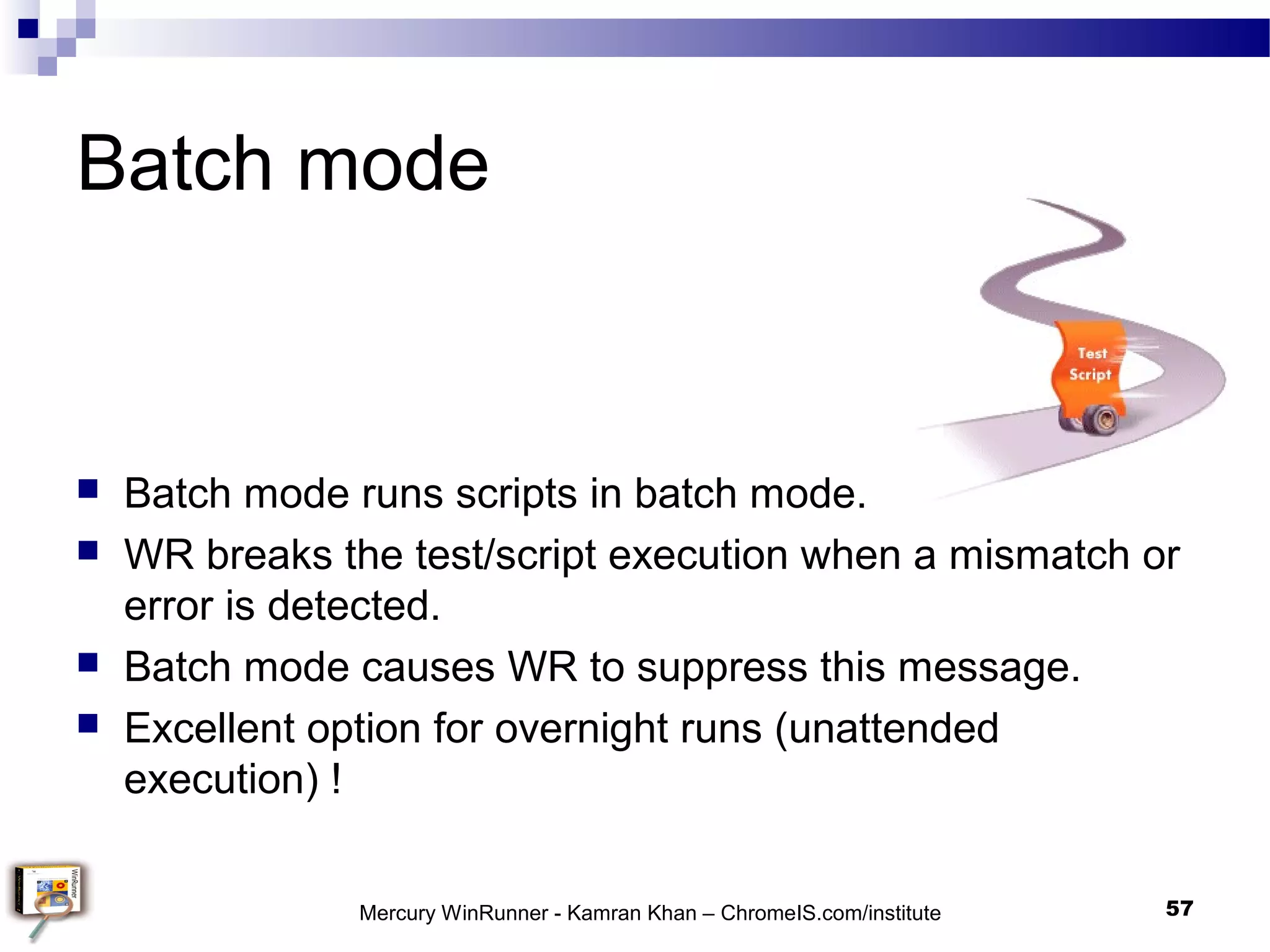

Batch mode
 Batch mode runs scripts in batch mode.
 WR breaks the test/script execution when a mismatch or
error is detected.
 Batch mode causes WR to suppress this message.
 Excellent option for overnight runs (unattended
execution) !
57Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

58.

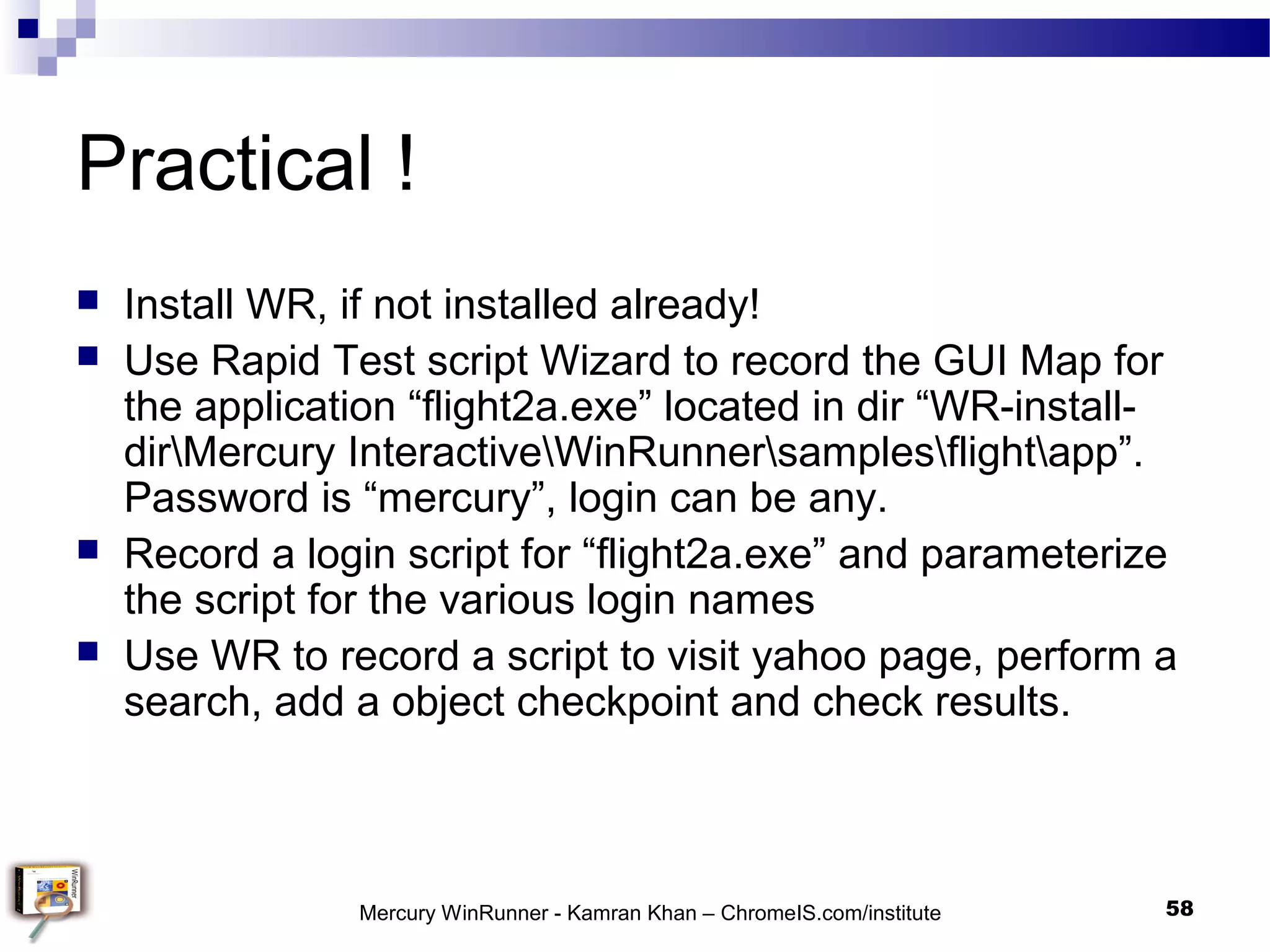

Practical !
 Install WR, if not installed already!
 Use Rapid Test script Wizard to record the GUI Map for
the application “flight2a.exe” located in dir “WR-install-
dirMercury InteractiveWinRunnersamplesflightapp”.
Password is “mercury”, login can be any.
 Record a login script for “flight2a.exe” and parameterize
the script for the various login names
 Use WR to record a script to visit yahoo page, perform a
search, add a object checkpoint and check results.
58Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

59.

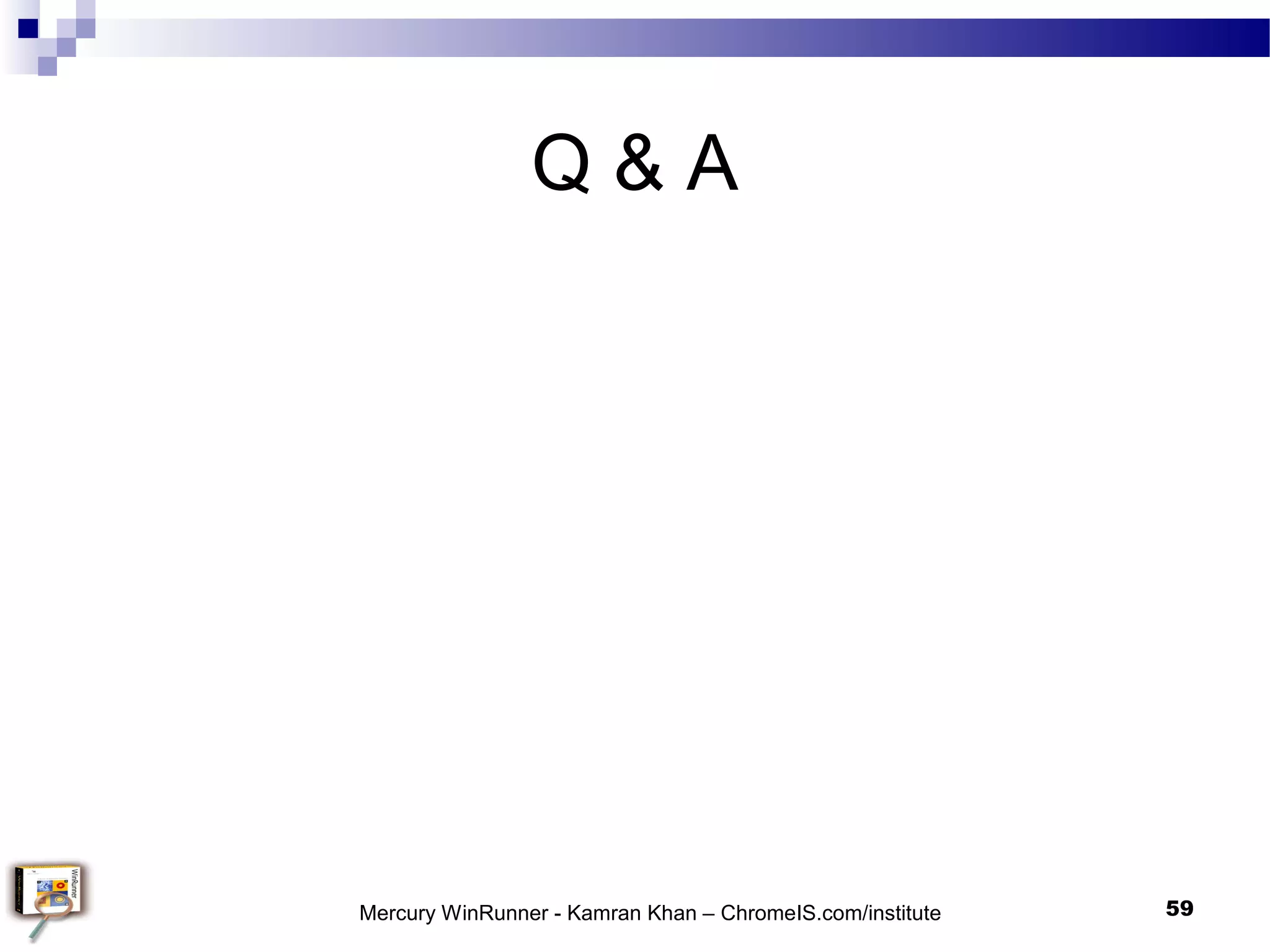

Q & A
59Mercury WinRunner - Kamran Khan – ChromeIS.com/institute

60.
60Mercury WinRunner - Kamran Khan – ChromeIS.com/institute
