1.
Value & Power of
NComputing Solution

2.
2Confidential

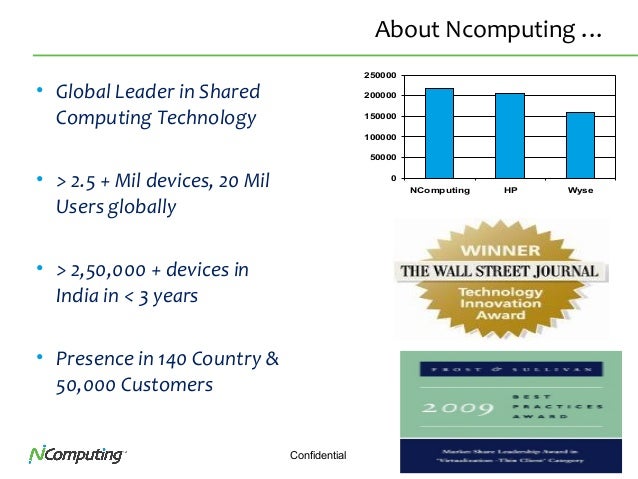

About Ncomputing …
• Global Leader in Shared
Computing Technology
• > 2.5 + Mil devices, 20 Mil
Users globally
• > 2,50,000 + devices in
India in < 3 years
• Presence in 140 Country &
50,000 Customers
0
50000
100000
150000
200000
250000
NComputing HP Wyse

3.
3Confidential
Prestigious and Wide-Ranging Awards
Business Education
Channel
Social ImpactTechnology
Economic
Growth
Economic Development

4.
4Confidential 4
NComputing Goes Mainstream: 2,400,000+ seats

5.
5Confidential

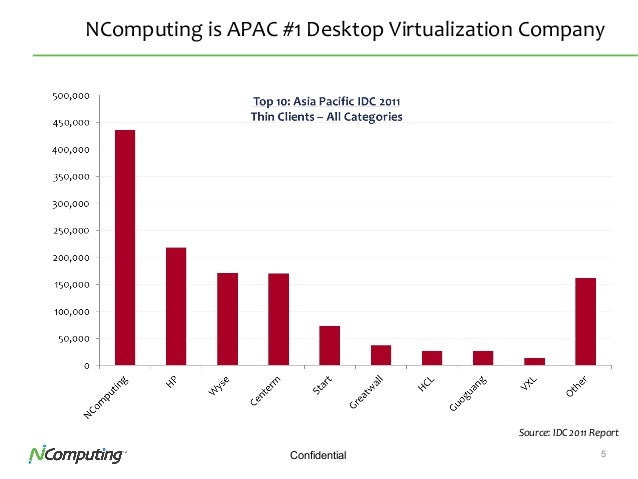

NComputing is APAC #1 Desktop Virtualization Company
Source: IDC 2011 Report

6.
6Confidential 6
Where are those 2,400,000 seats?
Branch offices Public access Factories
Retail Call centers Education
Limited IT staff Cost & maintenance Reliability
Cost & reliability Cost, space, heat, flexibility Cost and obsolescence

7.
7Confidential
Current Desktops are Very Powerful Machines

8.
8Confidential
The Smart Question
Why do we need to buy 10 computers,
when we can just buy one ?

9.
9Confidential
Example: NComputing Setup for a team
3 HOST PCs
Administrator
33 USERS –
All attached simultaneously
11 users per Desktop Computer

10.
10
vSpaceTM
How NComputing works
vSpace desktop virtualization
software creates virtual
independent desktops inside
any Windows or Linux machine.
1
NComputing access devices
are small, silent, energy-
efficient, reliable, and very
inexpensive.
2

11.
11

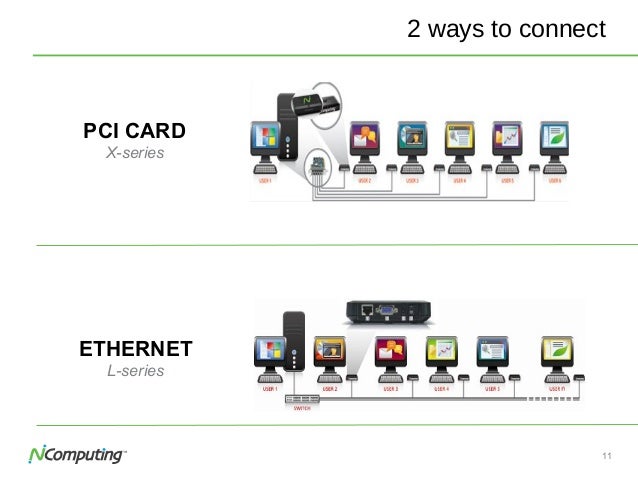

2 ways to connect
ETHERNET
L-series
PCI CARD
X-series

12.
12Confidential

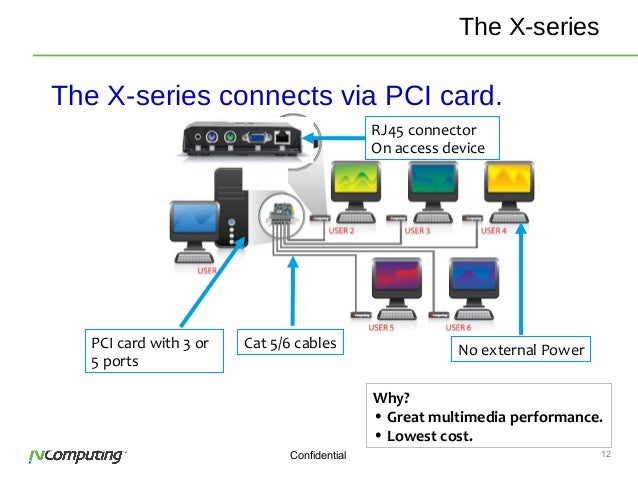

The X-series connects via PCI card.
PCI card with 3 or
5 ports
RJ45 connector
On access device
Cat 5/6 cables
Why?
• Great multimedia performance.
• Lowest cost.
The X-series
No external Power

13.
13
X-series configuration options
adds 3 users per kit adds 5 users per kit
X550 kit
X550
11 usersX550
11 users
X350 kit
1 kit = 4 users
2 kits = 7 users
1 kit = 6 users
2 kits = 11 users

14.
14

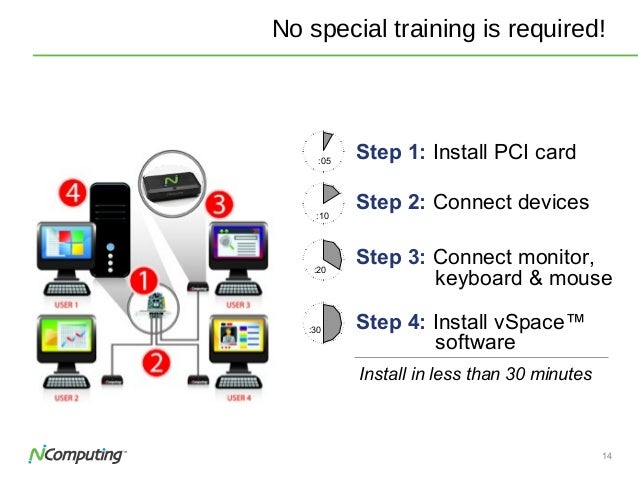

No special training is required!
Step 1: Install PCI card:05
:20
Step 3: Connect monitor,
keyboard & mouse
:10
Step 2: Connect devices
Install in less than 30 minutes
:30 Step 4: Install vSpace™
software

15.
15Confidential

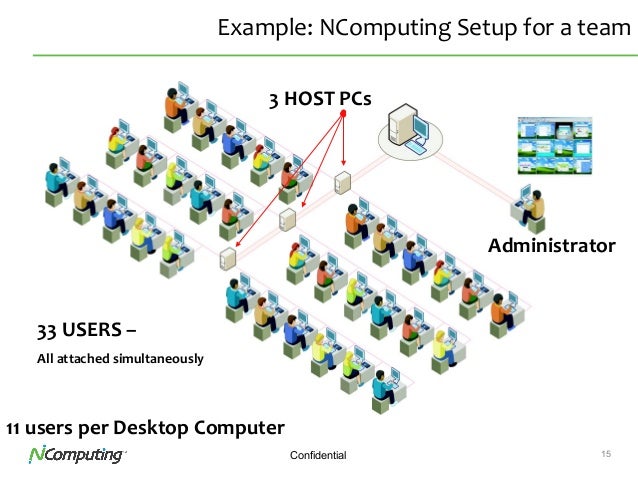

Example: NComputing Setup for a team
3 HOST PCs
Administrator
33 USERS –
All attached simultaneously
11 users per Desktop Computer

16.
16Confidential

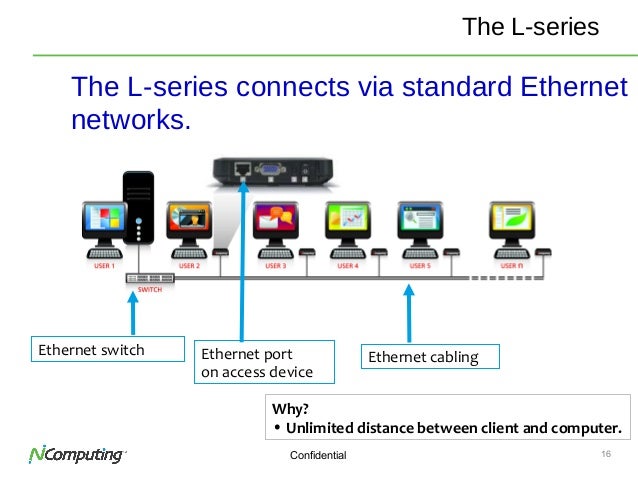

The L-series connects via standard Ethernet
networks.
Ethernet switch Ethernet port
on access device
Ethernet cabling
Why?
• Unlimited distance between client and computer.
The L-series

17.
17Confidential
L-series Product Overview
 Most flexible
 Highest # of users per PC
 Ethernet = no distance limits
 3 watt per user
 Up to 100 users per computer
 Includes vSpace virtualization software

18.
18Confidential 18

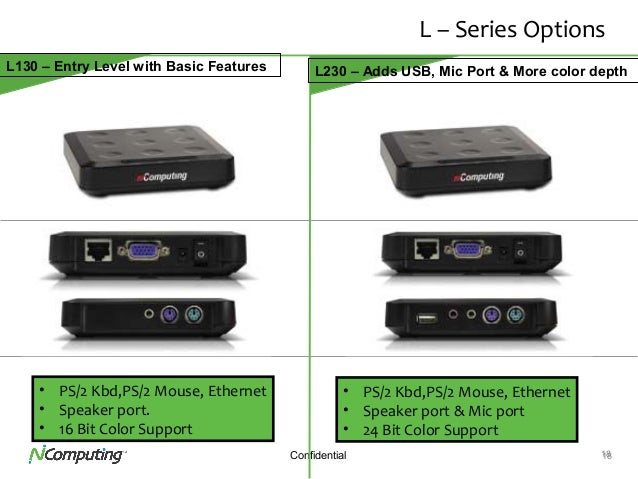

L – Series Options
X550
11 usersX550
11 users
L130 – Entry Level with Basic Features L230 – Adds USB, Mic Port & More color depth
• PS/2 Kbd,PS/2 Mouse, Ethernet
• Speaker port.
• 16 Bit Color Support
• PS/2 Kbd,PS/2 Mouse, Ethernet
• Speaker port & Mic port
• 24 Bit Color Support

19.
19Confidential

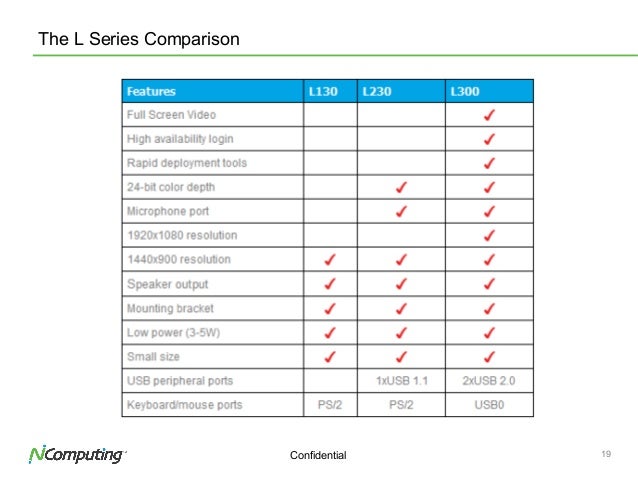

The L Series Comparison

20.
20Confidential

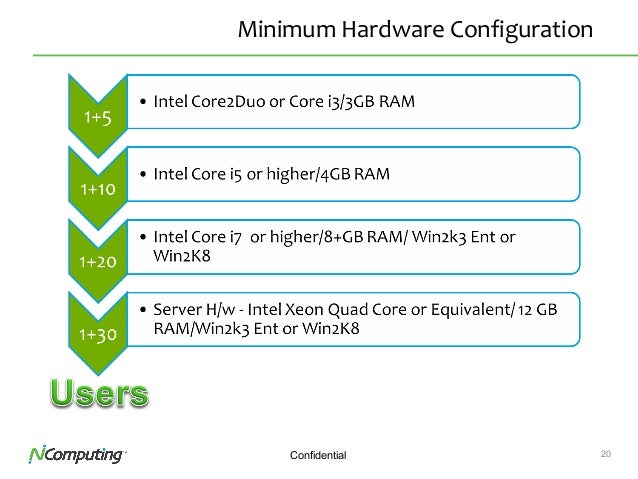

Minimum Hardware Configuration

21.
21Confidential
Basic NComputing vSpace & L-series (100 users on 1 Remote Host)
L-series Access
DeviceServer HW
Rest of network:
- Storage
- Internet
- WAN
- App servers…
LAN
1 Gb/s
End-user Environment
100 Mb/s
Data Center
1 Gb/s
on:
Window
s
Server
or Linux

22.
22

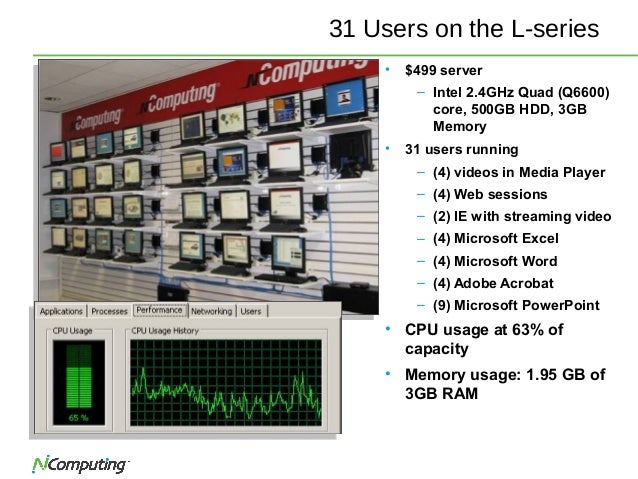

31 Users on the L-series
• $499 server
– Intel 2.4GHz Quad (Q6600)
core, 500GB HDD, 3GB
Memory
• 31 users running
– (4) videos in Media Player
– (4) Web sessions
– (2) IE with streaming video
– (4) Microsoft Excel
– (4) Microsoft Word
– (4) Adobe Acrobat
– (9) Microsoft PowerPoint
• CPU usage at 63% of
capacity
• Memory usage: 1.95 GB of
3GB RAM

23.
23
23
Fast Installation
Step 1: Connect device to
network
:05
:20
Step 3: Install vSpaceTM
software
on host PC
:10
Step 2: Connect monitor,
keyboard & mouse
Install in less than 30 minutes

24.
24Confidential

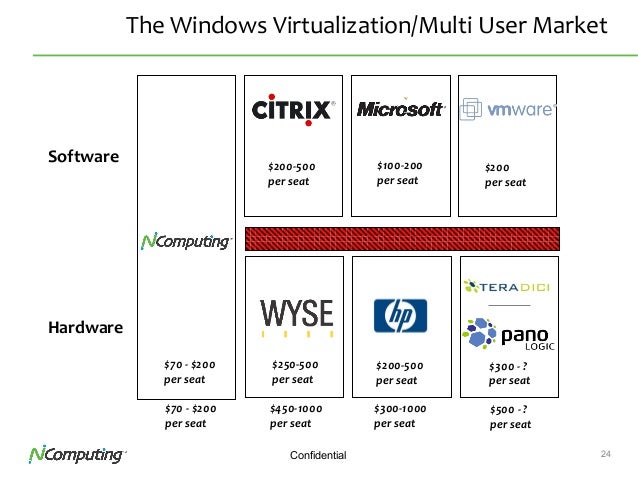

The Windows Virtualization/Multi User Market
Software
Hardware
Enterprise Focused Legacy Pricing Issues Varied priorities
$70 - $200
per seat
$250-500
per seat
$200-500
per seat
$300 - ?
per seat
Uncoordinated roadmapsMarkets Defined by Software License Fees
$70 - $200
per seat
$450-1000
per seat
$300-1000
per seat
$500 - ?
per seat
$200
per seat
$200-500
per seat
$100-200
per seat

25.
25Confidential

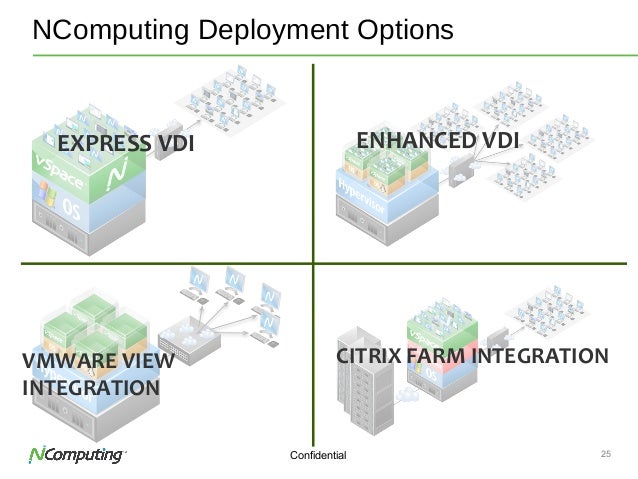

NComputing Deployment Options
EXPRESS VDI ENHANCED VDI
VMWARE VIEW
INTEGRATION
CITRIX FARM INTEGRATION

26.
26Confidential

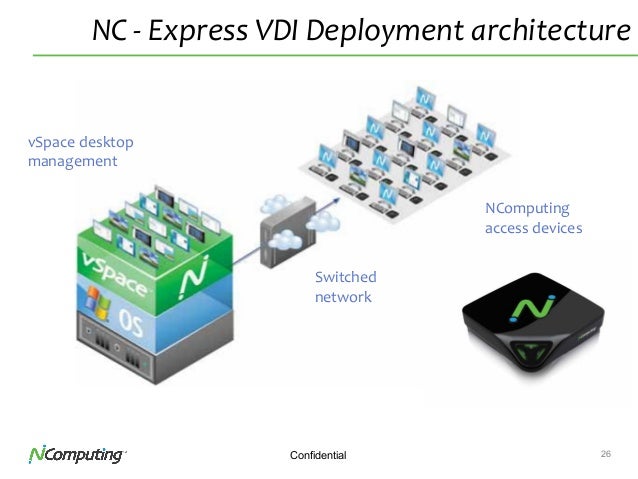

NC - Express VDI Deployment architecture
vSpace desktop
management
Switched
network
NComputing
access devices

27.
27Confidential

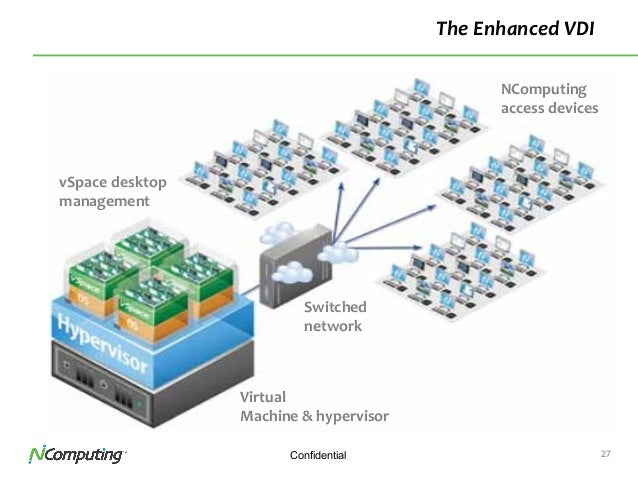

The Enhanced VDI
NComputing
access devices
Switched
network
vSpace desktop
management
Virtual
Machine & hypervisor

28.
28

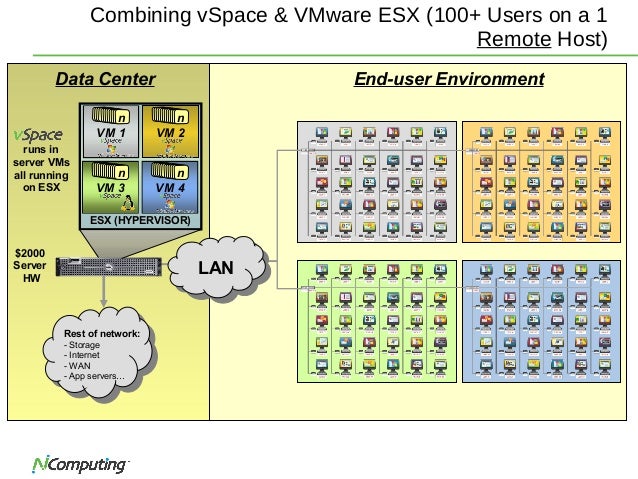

Combining vSpace & VMware ESX (100+ Users on a 1
Remote Host)
$2000
Server
HW
Rest of network:
- Storage
- Internet
- WAN
- App servers…
End-user EnvironmentData Center
runs in
server VMs
all running
on ESX
ESX (HYPERVISOR)
VM 1
n
VM 2
n
VM 3
n
VM 4
n
LAN

29.
29Confidential

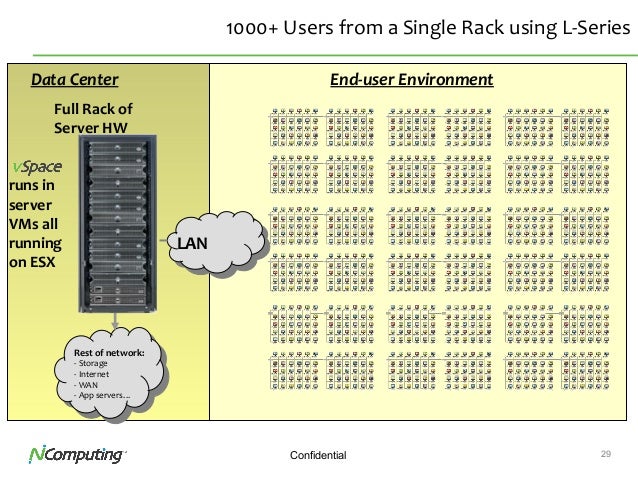

1000+ Users from a Single Rack using L-Series
Full Rack of
Server HW
Rest of network:
- Storage
- Internet
- WAN
- App servers…
End-user EnvironmentData Center
runs in
server
VMs all
running
on ESX
LAN

30.
30Confidential

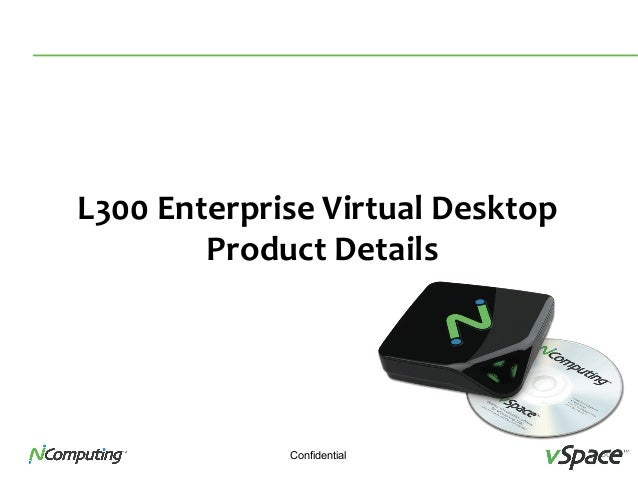

L300 Enterprise Virtual Desktop
Product Details

31.
31Confidential
Customer Benefits
• L300 Ethernet virtual desktop with vSpaceTM
– Breakthrough price / performance
– First hybrid thin client / media player
– Includes vSpace software - enabling as many as 30 users
per host or virtual machine
– Powerful but simple management – configure 10 or
10,000 virtual desktops in minutes
– Works with VMware and Citrix

32.

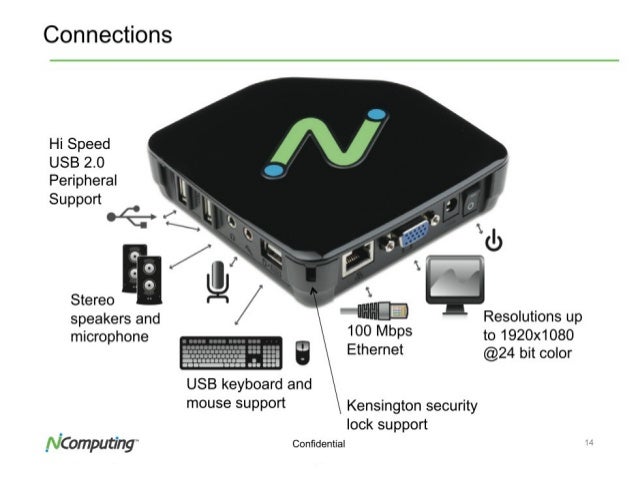

32Confidential32

33.
33Confidential33

34.
34Confidential34

35.
35Confidential35

36.
36ConfidentialNComputing Confidential, Internal Training Materials
vSpace Management Console
• Integrated built-in device
management console
• No need to have additional
management server like other
Thin client deployment

37.
37ConfidentialNComputing Confidential, Internal Training Materials

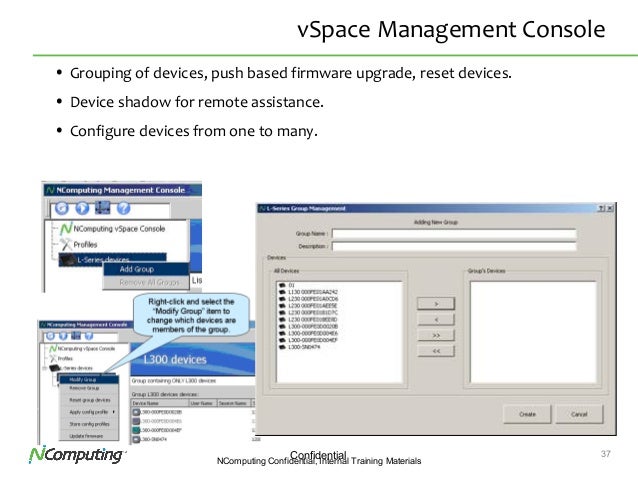

vSpace Management Console
• Grouping of devices, push based firmware upgrade, reset devices.
• Device shadow for remote assistance.
• Configure devices from one to many.

38.
38Confidential
Achieve Zero Footprint with Mounting Option

39.
39Confidential
Must-Watch L300 Videos on YouTube
• L300 Product Review
– http://www.youtube.com/watch?v=GKCPx40taeU
• L300 Evaluation Installation Video
– http://www.youtube.com/watch?v=vddsL3HjzHA
• L300 Performance Comparison with other clients
– http://www.youtube.com/watch?v=3TDERkH9CMg
• L300 Launch Video
– http://www.youtube.com/watch?v=x_Bh8xafJ1o
…and many more.
Search “NComputing” at YouTube.com

40.
40Confidential

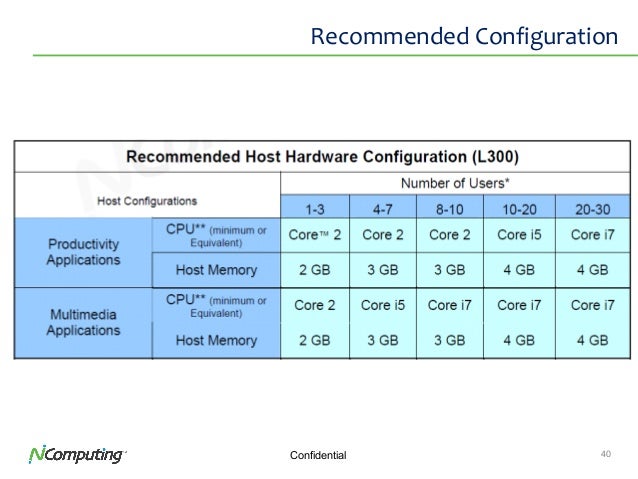

Recommended Configuration

41.
41Confidential

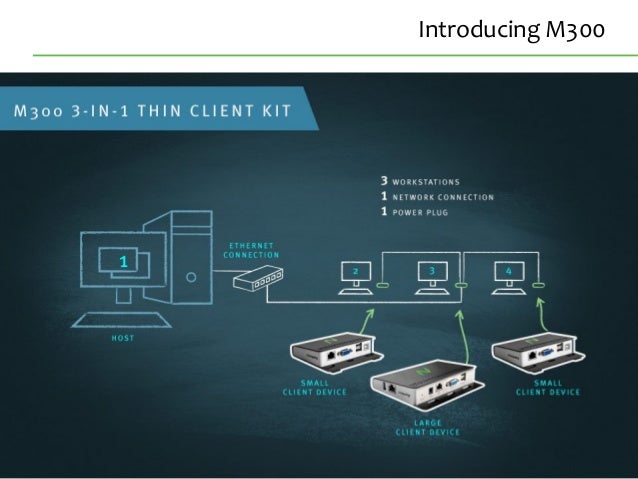

Introducing M300

42.
42Confidential

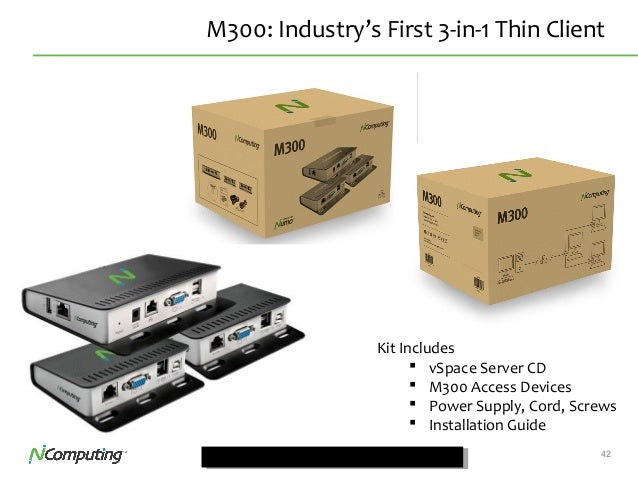

M300: Industry’s First 3-in-1 Thin Client
Kit Includes
 vSpace Server CD
 M300 Access Devices
 Power Supply, Cord, Screws
 Installation Guide

43.
43Confidential

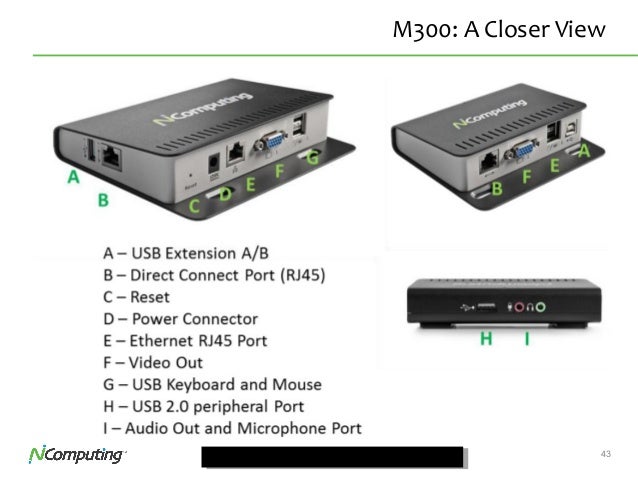

M300: A Closer View

44.
44Confidential

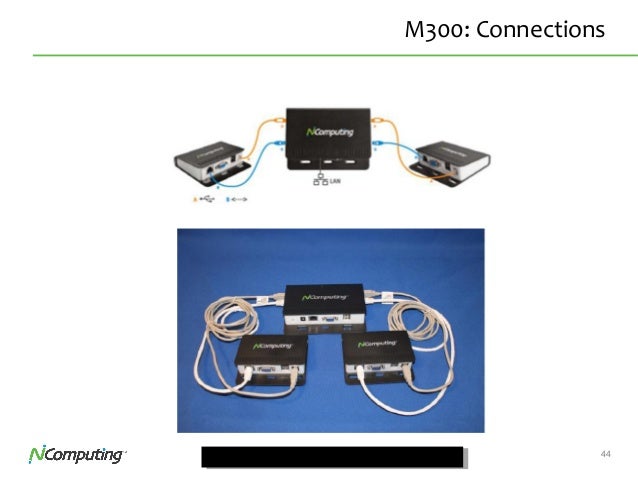

M300: Connections

45.
45Confidential

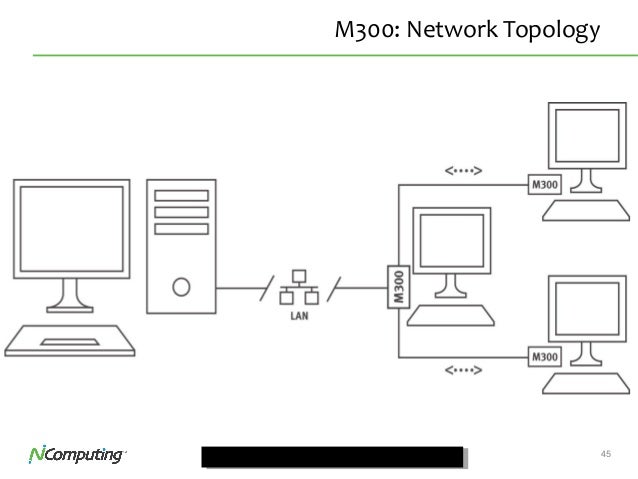

M300: Network Topology

46.
46Confidential

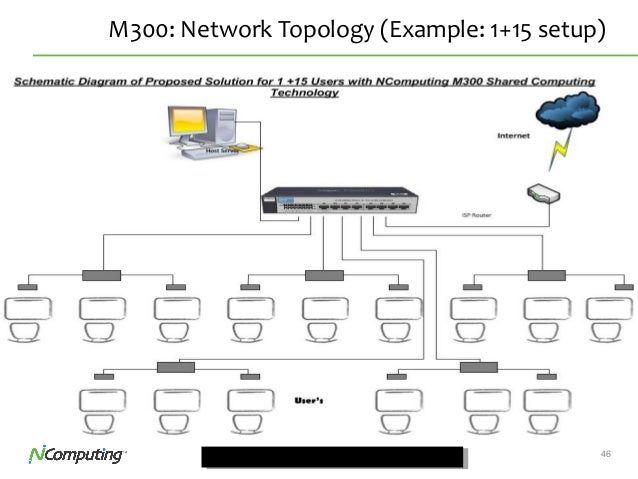

M300: Network Topology (Example: 1+15 setup)

47.
47Confidential 47

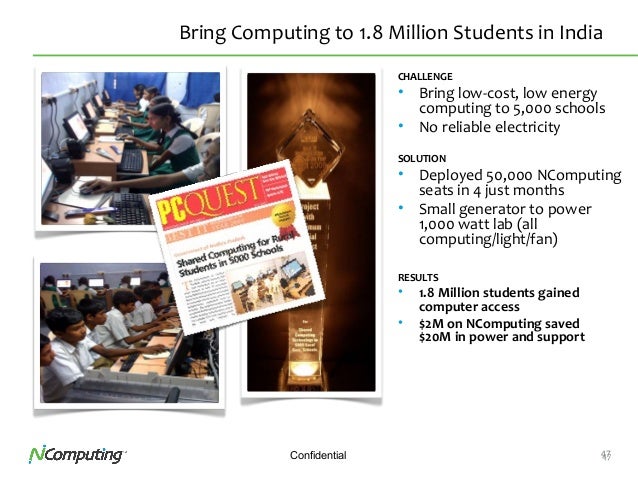

Bring Computing to 1.8 Million Students in India
CHALLENGE
• Bring low-cost, low energy
computing to 5,000 schools
• No reliable electricity
SOLUTION
• Deployed 50,000 NComputing
seats in 4 just months
• Small generator to power
1,000 watt lab (all
computing/light/fan)
RESULTS
• 1.8 Million students gained
computer access
• $2M on NComputing saved
$20M in power and support

48.
48Confidential 48
Bringing Computing to Two Million Students in Panjab
CHALLENGE
•Bring low-cost, low energy computing
to 4,286 govt schools
• No reliable electricity
• Hard to access
SOLUTION
•15 seat computing lab/ school
• 64,000+ NComputing seats
• Partnership with Punjab Province
RESULTS
•Over 2 million students get computer
access for first time
• Government saves Rs. 1.8 Billion
• Low electricity usage

49.
49Confidential 49
Impact on Government – Employees State Insurance Corporation (India)
CHALLENGE
• Build state-of-art IT system on Cloud
Computing model
• Deploy computing stations at over 2,000
hospitals, clinics, and offices
SOLUTION
• 30,000+ NComputing seats across all offices,
hospitals, clinics
• Partnership with Wipro InfoTech
RESULTS
• Lowest cost computing
• 5 watt Green footprint
• Easy to install and manage
ESIC Profile:
• Large insurance/healthcare organization
• Assists over 12 million beneficiaries
• Operates 144 hospitals and 1,388 clinics
• Runs 620 insurance branches

50.
50Confidential

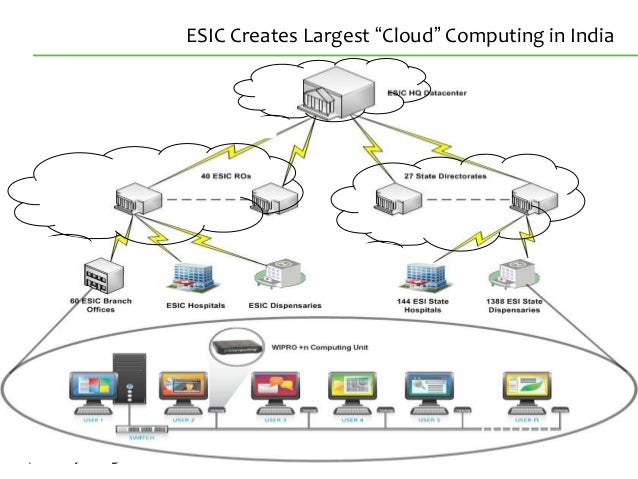

ESIC Creates Largest “Cloud” Computing in India

51.
51Confidential

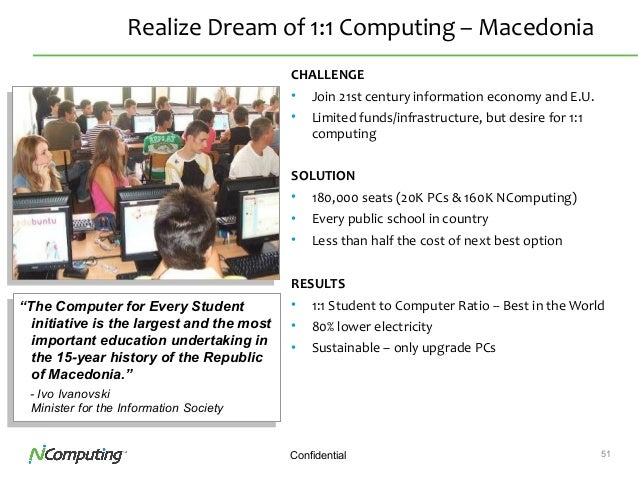

Realize Dream of 1:1 Computing – Macedonia
CHALLENGE
• Join 21st century information economy and E.U.
• Limited funds/infrastructure, but desire for 1:1
computing
SOLUTION
• 180,000 seats (20K PCs & 160K NComputing)
• Every public school in country
• Less than half the cost of next best option
RESULTS
• 1:1 Student to Computer Ratio -- Best in the World
• 80% lower electricity
• Sustainable – only upgrade PCs
“The Computer for Every Student
initiative is the largest and the most
important education undertaking in
the 15-year history of the Republic
of Macedonia.”
- Ivo Ivanovski
Minister for the Information Society
“The Computer for Every Student
initiative is the largest and the most
important education undertaking in
the 15-year history of the Republic
of Macedonia.”
- Ivo Ivanovski
Minister for the Information Society

52.
52Confidential 52

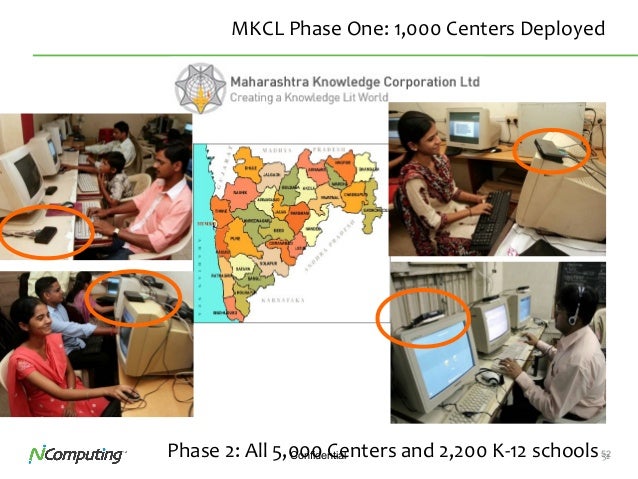

MKCL Phase One: 1,000 Centers Deployed
Phase 2: All 5,000 Centers and 2,200 K-12 schools

53.
53Confidential
Examples of NComputing Users

54.
54Confidential
Sales Resources
• Comprehensive info available @
– www.ncomputing.com
• Customers Success Story & Videos
– http://ncomputing.com/Community/SuccessStories.aspx
– http://ncomputing.com/Community.aspx
• Lot many videos @
– www.youtube.com

55.
Thank You
NCS Support
033 66336524
support@ncs.net.in
