GANGA is a software tool developed for managing jobs in the LHC Computing Grid, originally initiated by the LHCB experiment and adopted by various others. It enables users to specify job parameters, manage input and output files, and interact with different computing backends. The software is open source and has a user-friendly interface compatible with Python, making it suitable for handling large-scale data analysis in particle physics.

1. 1
Ganga
An interface to the LHC computing grid
Matt Williams
University of Birmingham

2. 2

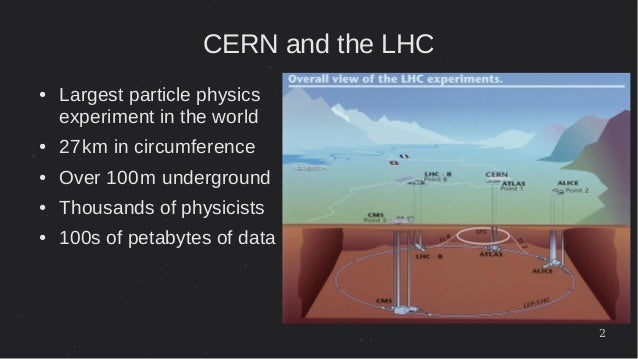

CERN and the LHC
● Largest particle physics
experiment in the world
● 27km in circumference
● Over 100m underground
● Thousands of physicists
● 100s of petabytes of data

3. 3

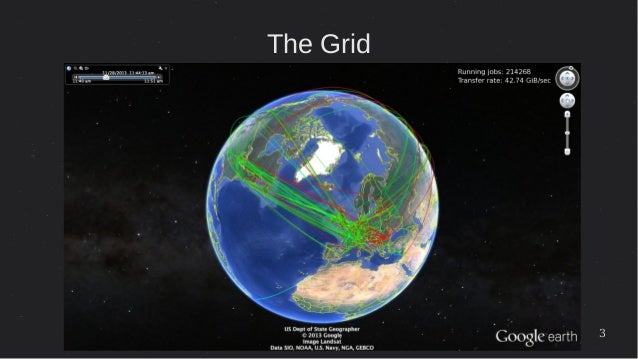

The Grid

4. 4

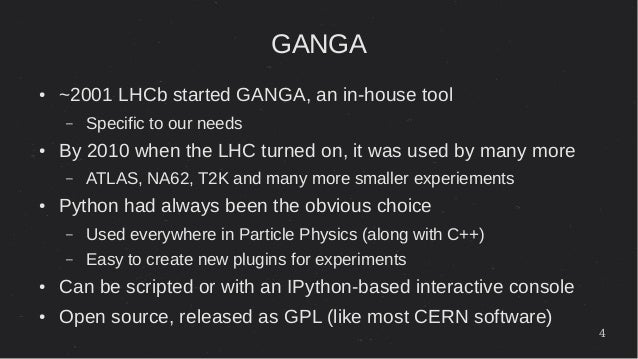

GANGA
● ~2001 LHCb started GANGA, an in-house tool
– Specific to our needs
● By 2010 when the LHC turned on, it was used by many more
– ATLAS, NA62, T2K and many more smaller experiements
● Python had always been the obvious choice
– Used everywhere in Particle Physics (along with C++)
– Easy to create new plugins for experiments
● Can be scripted or with an IPython-based interactive console
● Open source, released as GPL (like most CERN software)

5. 5

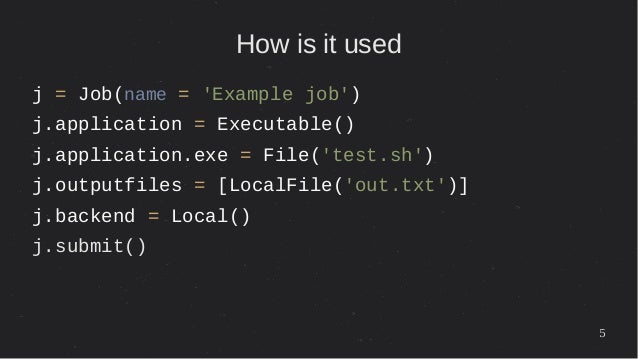

How is it used
j = Job(name = 'Example job')
j.application = Executable()
j.application.exe = File('test.sh')
j.outputfiles = [LocalFile('out.txt')]
j.backend = Local()
j.submit()

6. 6

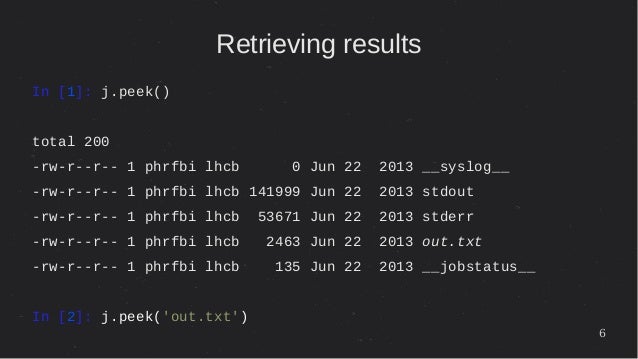

Retrieving results
In [1]: j.peek()
total 200
-rw-r--r-- 1 phrfbi lhcb 0 Jun 22 2013 __syslog__
-rw-r--r-- 1 phrfbi lhcb 141999 Jun 22 2013 stdout
-rw-r--r-- 1 phrfbi lhcb 53671 Jun 22 2013 stderr
-rw-r--r-- 1 phrfbi lhcb 2463 Jun 22 2013 out.txt
-rw-r--r-- 1 phrfbi lhcb 135 Jun 22 2013 __jobstatus__
In [2]: j.peek('out.txt')

7. 7

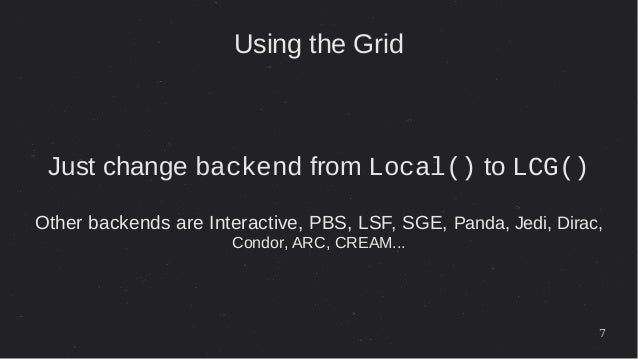

Using the Grid
Just change backend from Local() to LCG()
Other backends are Interactive, PBS, LSF, SGE, Panda, Jedi, Dirac,
Condor, ARC, CREAM...

8. 8

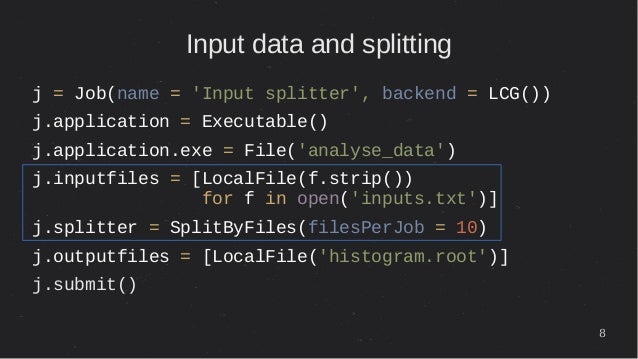

Input data and splitting
j = Job(name = 'Input splitter', backend = LCG())
j.application = Executable()
j.application.exe = File('analyse_data')
j.inputfiles = [LocalFile(f.strip())
for f in open('inputs.txt')]
j.splitter = SplitByFiles(filesPerJob = 10)
j.outputfiles = [LocalFile('histogram.root')]
j.submit()

9. 9

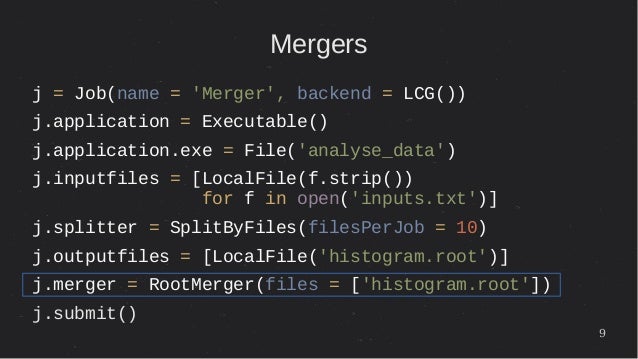

Mergers
j = Job(name = 'Merger', backend = LCG())
j.application = Executable()
j.application.exe = File('analyse_data')
j.inputfiles = [LocalFile(f.strip())
for f in open('inputs.txt')]
j.splitter = SplitByFiles(filesPerJob = 10)
j.outputfiles = [LocalFile('histogram.root')]
j.merger = RootMerger(files = ['histogram.root'])
j.submit()

10. 10

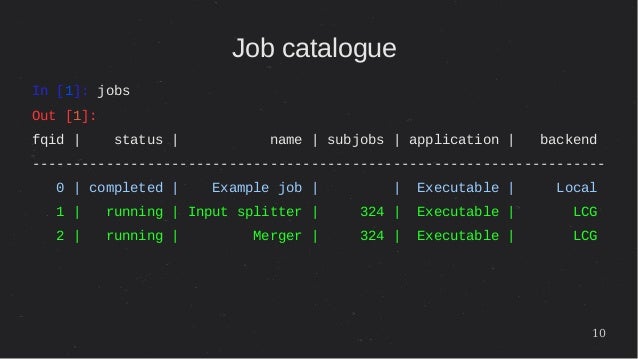

Job catalogue
In [1]: jobs
Out [1]:
fqid | status | name | subjobs | application | backend
----------------------------------------------------------------------
0 | completed | Example job | | Executable | Local
1 | running | Input splitter | 324 | Executable | LCG
2 | running | Merger | 324 | Executable | LCG

11. 11

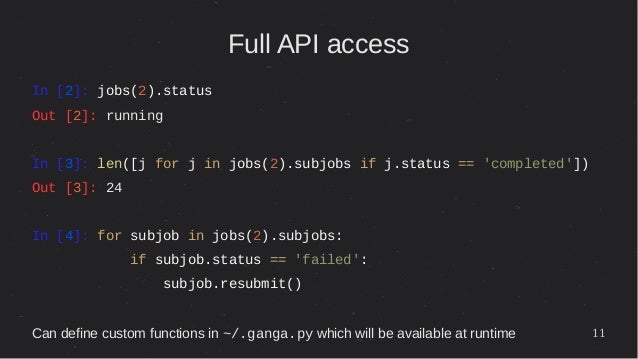

Full API access
In [2]: jobs(2).status
Out [2]: running
In [3]: len([j for j in jobs(2).subjobs if j.status == 'completed'])
Out [3]: 24
In [4]: for subjob in jobs(2).subjobs:
if subjob.status == 'failed':
subjob.resubmit()
Can define custom functions in ~/.ganga.py which will be available at runtime

12. 12

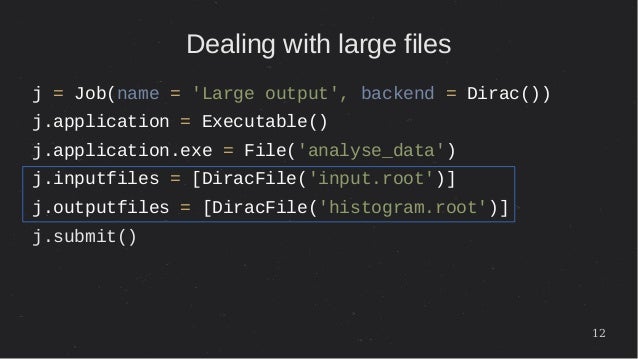

Dealing with large files
j = Job(name = 'Large output', backend = Dirac())
j.application = Executable()
j.application.exe = File('analyse_data')
j.inputfiles = [DiracFile('input.root')]
j.outputfiles = [DiracFile('histogram.root')]
j.submit()

13. 13

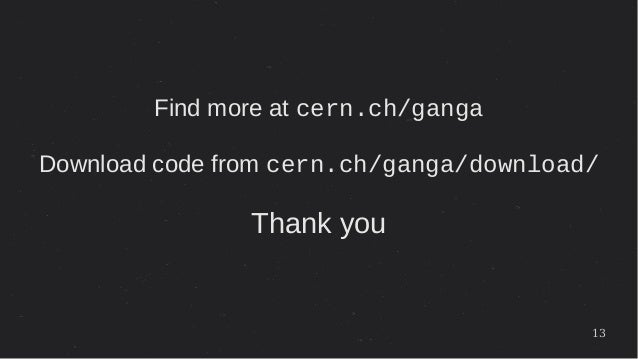

Find more at cern.ch/ganga
Download code from cern.ch/ganga/download/
Thank you
