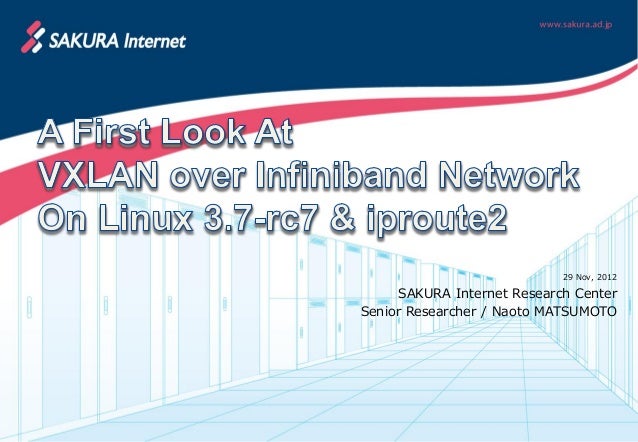

A First Look At VXLAN over Infiniband Network On Linux 3.7-rc7 & iproute2

Naoto MATSUMOTO
Naoto MATSUMOTOSenior Researcher at Naoto MATSUMOTO
29 Nov, 2012

     SAKURA Internet Research Center
Senior Researcher / Naoto MATSUMOTO
VXLAN TESTING Overview
 1) Linux bridge-based VXLAN is developing by Stephen Hemminger & et al.
 http://linux-network-plumber.blogspot.jp/2012/09/just-published-linux-kernel.html
               +config VXLAN
               +    tristate "Virtual eXtensible Local Area Network (VXLAN)"
               +    depends on EXPERIMENTAL
               +    ---help---
               +                This allows one to create vxlan virtual interfaces that provide
               +                Layer 2 Networks over Layer 3 Networks. VXLAN is often used
               +                to tunnel virtual network infrastructure in virtualized environments.
               +                For more information see:
               +                  http://tools.ietf.org/html/draft-mahalingam-dutt-dcops-vxlan-02


 2) Infiniband Adapter is the fastest of all for datacenter networking.


                                                              Dual-port Infiniband FDR 56Gbit/s
                                                                               Host Bus Adapter




       VXLAN + IP over Infiniband Network is AWESOME!.
Buildup to the New Kernel & etc
  1) Install OFED for Infiniband Networking
  # wget https://www.openfabrics.org/downloads/OFED/ofed-1.5.4/OFED-1.5.4.1.tgz
  # tar xzvf ./OFED-1.5.4.1.tgz
  # ./OFED-1.5.4.1/install.pl   /*Install OFED software */
  # sync; sync; sync; reboot;

  2) Linux Kernel Update
  # cd /usr/local/src
  # wget http://www.kernel.org/pub/linux/kernel/v3.0/testing/linux-3.7-rc7.tar.bz2
  # tar xvfj linux-3.7-rc7.tar.bz2
  # cd linux-3.7-rc7
  # cp /boot/config-2.6.32-220.23.1.el6.x86_64 ./.config
  # make oldconfig
  # vi .config
  CONFIG_VXLAN=m          /* Add New Line */
  # make; make modules_install ; make install
  # sync; sync; sync; reboot

  3) iproute2 Update
  # yum install db4-devel.x86_64
  # git clone git://git.kernel.org/pub/scm/linux/kernel/git/shemminger/iproute2.git
  # cd iproute2; ./configure ; make ; make install
                                            Source: SAKURA Internet Research Center. 11/2012: Project THORN
VXLAN Configuration

# uname -a
Linux VXLAN-A 3.7.0-rc7 #1 SMP ....                                            56Gbit/s IPoIB
# ip addr add 10.1.1.1/24 dev ib1                                              IP over Infiniband Network
# ip route add 224.0.0.0/4 dev ib1
# ip link set up dev ib1
# ip link add vxlan99 type vxlan id 5001 group 239.0.0.99 ttl 10 dev ib1       VXLAN Network
# ip addr add 192.168.99.1/24 dev vxlan99
# ip link set up dev vxlan99
# iperf -u -s -B 239.0.0.99 & /* IGMPv3 Join TIPS */



# uname -a
Linux VXLAN-B 3.7.0-rc7 #1 SMP ....
# ip addr add 10.1.1.2/24 dev ib1
# ip route add 224.0.0.0/4 dev ib1
# ip link set up dev ib1
# ip link add vxlan99 type vxlan id 5001 group 239.0.0.99 ttl 10 dev ib1
# ip addr add 192.168.99.2/24 dev vxlan99
# ip link set up dev vxlan99
# iperf -u -s -B 239.0.0.99 & /* IGMPv3 Join TIPS */
                                                 Source: SAKURA Internet Research Center. 11/2012: Project THORN
VXLAN performance check

VXLAN-A# ip link show dev vxlan99
5: vxlan99: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 65470 qdisc
                                                                             56Gbit/s IPoIB
link/ether b2:cc:a5:b8:74:95 brd ff:ff:ff:ff:ff:ff                           IP over Infiniband Network

VXLAN-A# iperf -c 192.168.99.2 -d
:                                                                            VXLAN Network
[ ID] Interval   Transfer  Bandwidth
[ 3] 0.0-10.0 sec 29.7 GBytes 25.5 Gbits/sec




VXLAN-B# ip link show dev vxlan99
5: vxlan99: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 65470 qdisc
link/ether 4a:a6:cb:85:fb:2b brd ff:ff:ff:ff:ff:ff

VXLAN-B# iperf -s & vnstat -l -i ib1
Monitoring ib1... (press CTRL-C to stop)

rx:   18.49 Gbit/s 53431 p/s     tx:   22.82 Gbit/s 58258 p/s

                                               Source: SAKURA Internet Research Center. 11/2012: Project THORN
Traffic Analysis using Wireshark




                                              Outer Header




                                              Inner Header




                   Source: SAKURA Internet Research Center. 11/2012: Project THORN
Debug TIPS for tshark
  1) VXLAN Traffic Monitoring
  # tshark -pni ib1
  Capturing on ib1
   0.000000      10.1.1.1 -> 239.0.0.99 UDP Source port: 38367 Destination port: 8472
   0.001072      10.1.1.2 -> 10.1.1.1  UDP Source port: 39994 Destination port: 8472

  2) IGMPv3 Join/Releave Monitoring
  # tshark -i ib1 -VV
  Frame 1 (56 bytes on wire, 56 bytes captured)
  Internet Protocol, Src: 10.1.1.1 (10.1.1.1), Dst: 224.0.0.22 (224.0.0.22)
  Internet Group Management Protocol
     [IGMP Version: 3]
     Type: Membership Report (0x22)
     Header checksum: 0xea9a [correct]
     Num Group Records: 1
     Group Record : 239.0.0.99 Change To Exclude Mode
        Record Type: Change To Exclude Mode (4)
        Aux Data Len: 0
        Num Src: 0
        Multicast Address: 239.0.0.99 (239.0.0.99)


                                             Source: SAKURA Internet Research Center. 11/2012: Project THORN
Debug TIPS for iproute2
  1) VXLAN Link status
  # ip -d link show dev vxlan99
  5: vxlan99: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 65470 qdisc noqueue state UNKNOWN
     link/ether 4a:a6:cb:85:fb:2b brd ff:ff:ff:ff:ff:ff
     vxlan id 5001 group 239.0.0.99 dev ib1 port 32768 61000 ageing 300

  2) VXLAN IP Address information
  # ip -d addr show dev vxlan99
  5: vxlan99: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 65470 qdisc noqueue state UNKNOWN
     link/ether 4a:a6:cb:85:fb:2b brd ff:ff:ff:ff:ff:ff
     inet 192.168.99.1/24 scope global vxlan99
     inet6 fe80::48a6:cbff:fe85:fb2b/64 scope link
        valid_lft forever preferred_lft forever

  3) VXLAN Network Table Lookup
  # netstat -nr
  Kernel IP routing table
  Destination    Gateway   Genmask        Flags   MSS Window irtt Iface
  10.1.1.0        0.0.0.0 255.255.255.0   U       00      0 ib1
  192.168.99.0 0.0.0.0    255.255.255.0   U       00      0 vxlan99
  224.0.0.0       0.0.0.0 240.0.0.0       U       00      0 ib1
                                      Source: SAKURA Internet Research Center. 11/2012: Project THORN
Thank you for your interest.
