Vegetation structure mapping with airborne and ground-based laser scanning to advance forest fire research Suzanne Marseli...
Acknowledgements • Bushfire and Natural Hazards CRC • ACT Parks and Conservation Service • Earth Observation and Informati...

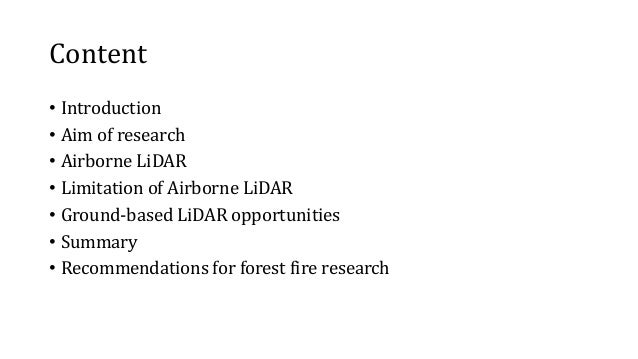

Content • Introduction • Aim of research • Airborne LiDAR • Limitation of Airborne LiDAR • Ground-based LiDAR opportunitie...
Bunyip State Forest, Victoria, 7 February 2009 © AAP 2009

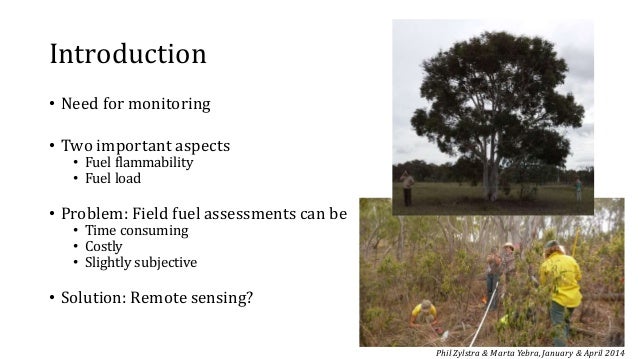

Introduction • Need for monitoring • Two important aspects • Fuel flammability • Fuel load • Problem: Field fuel assessmen...

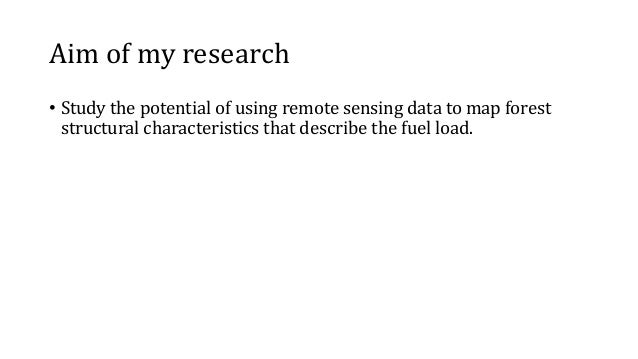

Aim of my research • Study the potential of using remote sensing data to map forest structural characteristics that descri...

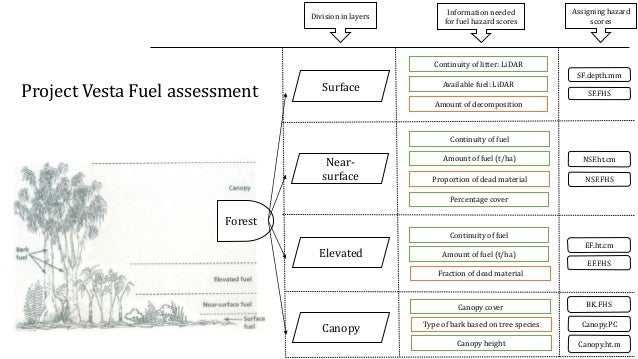

Project Vesta Fuel assessment Forest Surface Near- surface Elevated Canopy Continuity of litter: LiDAR Available fuel: LiD...

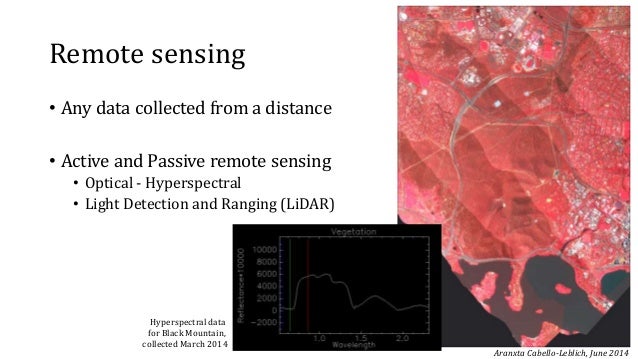

Remote sensing • Any data collected from a distance • Active and Passive remote sensing • Optical - Hyperspectral • Light ...
Light Detection and Ranging (LiDAR) • Airborne LiDAR • Point cloud Airborne LiDAR data (Source: Blair et al. 1999) Full-wa...
LiDAR LiDAR point cloud for 1 isolated tree LiDAR point cloud for Black Mountain Nature Reserve • Point cloud • x,y,z value

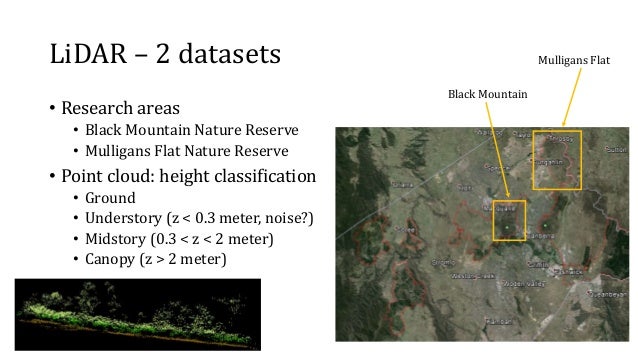

LiDAR – 2 datasets • Research areas • Black Mountain Nature Reserve • Mulligans Flat Nature Reserve • Point cloud: height ...

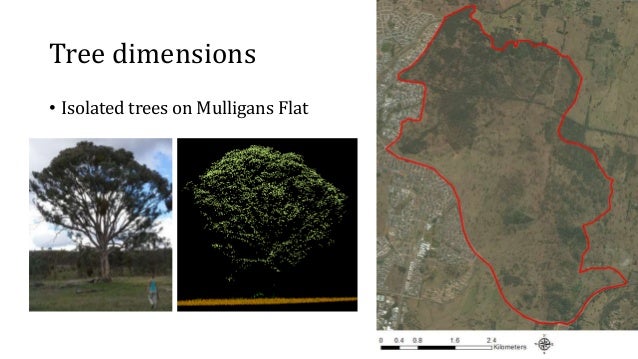

Tree dimensions • Isolated trees on Mulligans Flat

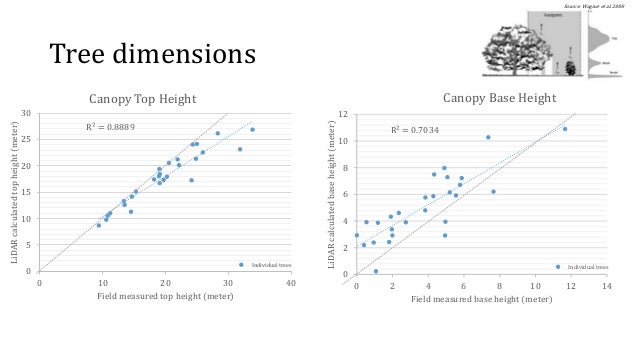

Tree dimensions R² = 0.8889 0 5 10 15 20 25 30 0 10 20 30 40 LiDARcalculatedtopheight(meter) Field measured top height (me...

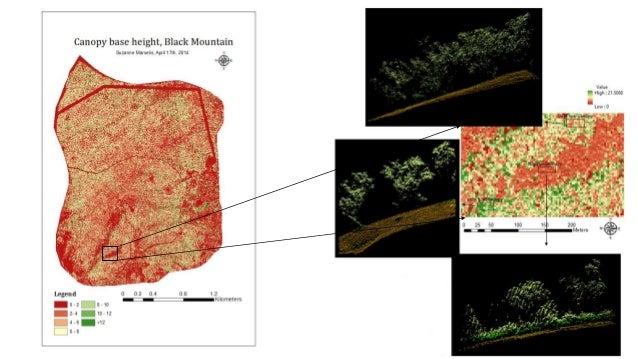

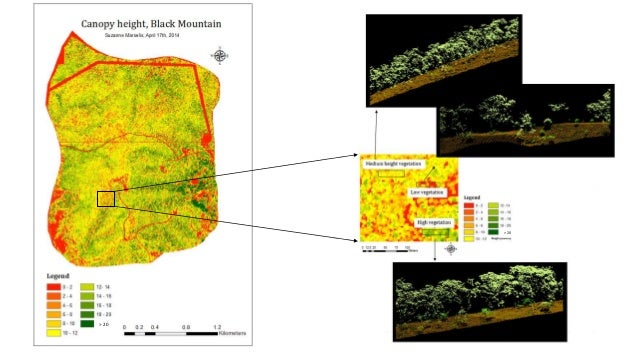

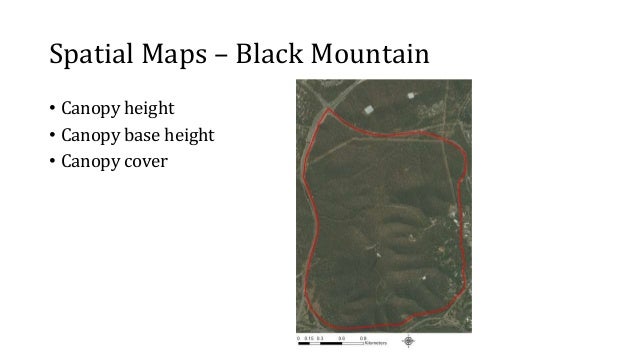

Spatial Maps – Black Mountain • Canopy height • Canopy base height • Canopy cover
> 20 > 20

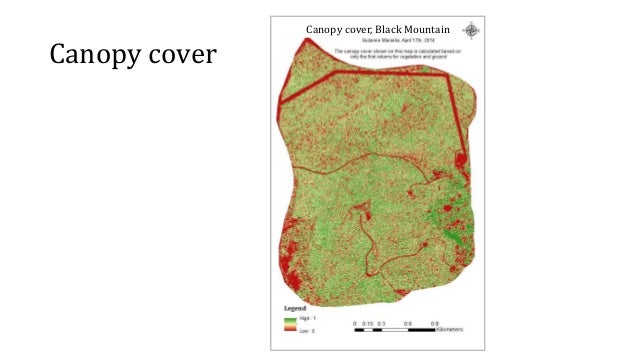

Canopy cover Canopy cover, Black Mountain

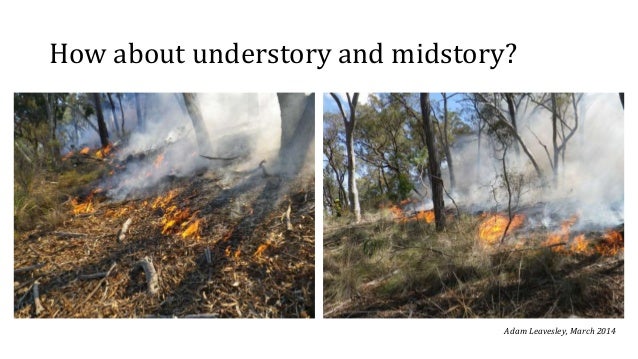

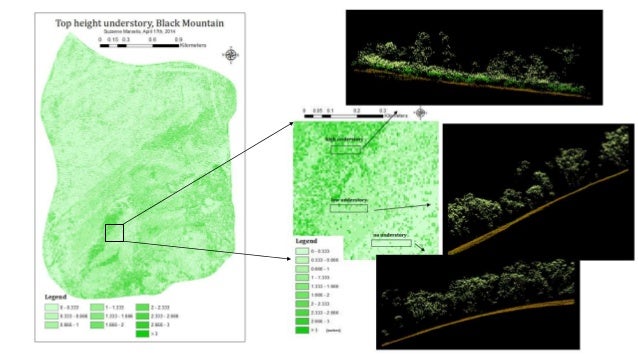

How about understory and midstory? Adam Leavesley, March 2014
Source: Wagner et al. 2008

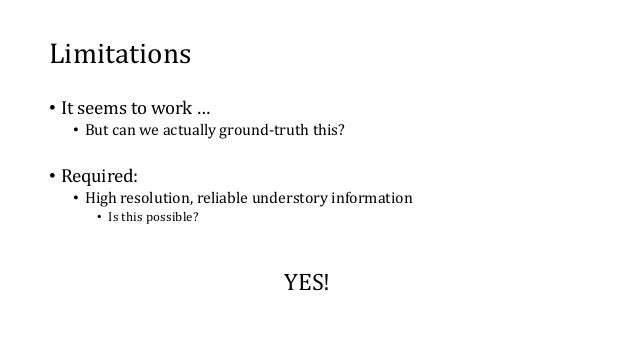

Limitations • It seems to work … • But can we actually ground-truth this? • Required: • High resolution, reliable understo...

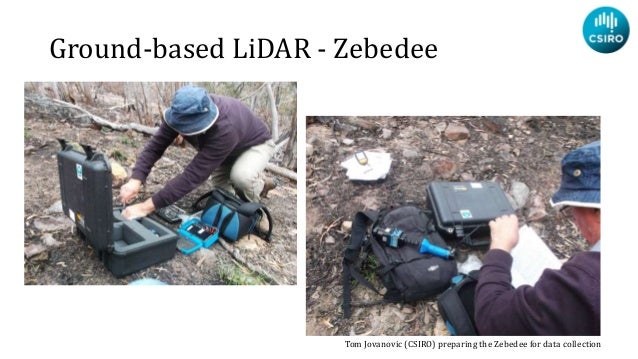

Ground-based LiDAR - Zebedee Tom Jovanovic (CSIRO) preparing the Zebedee for data collection

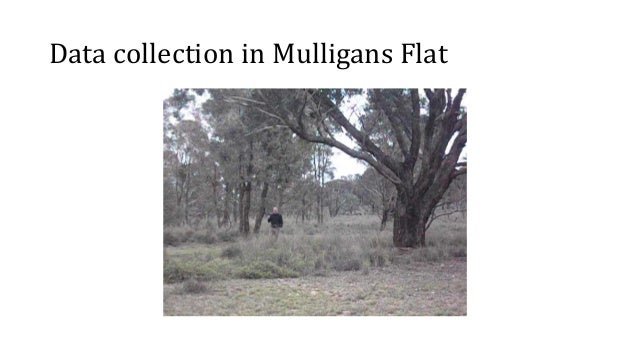

Data collection in Mulligans Flat

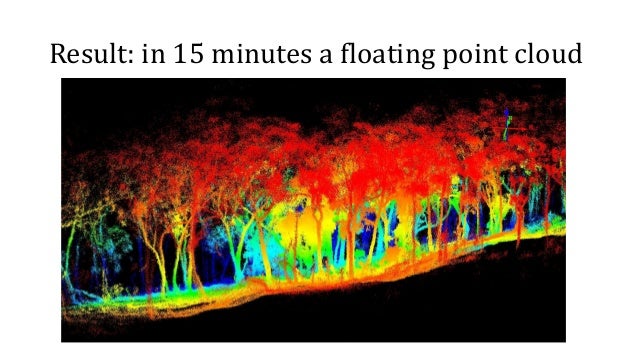

Result: in 15 minutes a floating point cloud

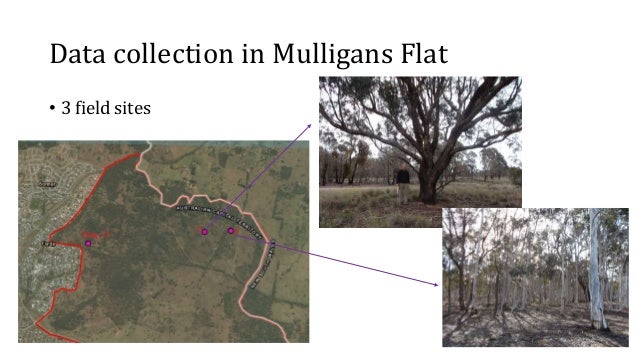

Data collection in Mulligans Flat • 3 field sites

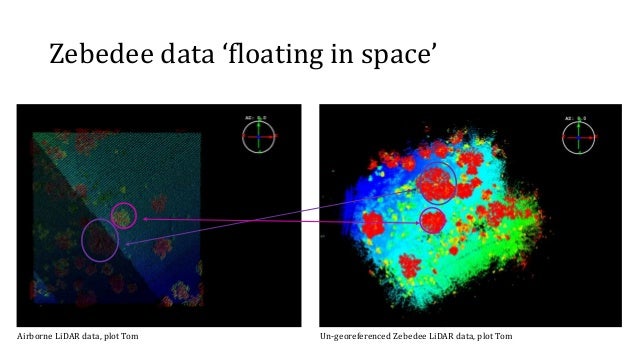

Zebedee data ‘floating in space’ Airborne LiDAR data, plot Tom Un-georeferenced Zebedee LiDAR data, plot Tom

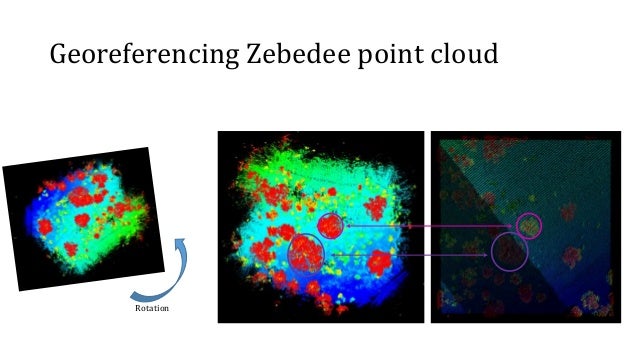

Georeferencing Zebedee point cloud Rotation
Matching two datasets Airborne Ground-based Merged
Compare Zebedee with Airborne LiDAR • Create same classification for Zebedee • Ground • Understory (z < 0.3 meter, noise?)...

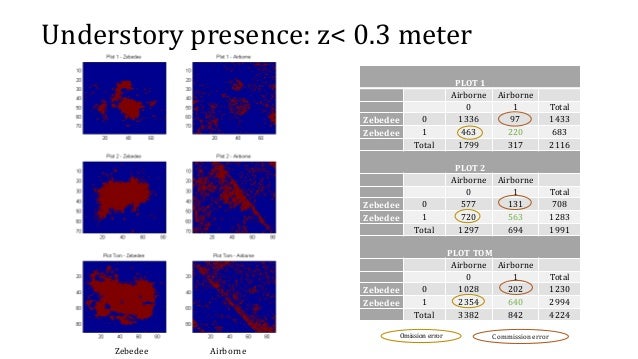

Understory presence: z< 0.3 meter PLOT 1 Airborne Airborne 0 1 Total Zebedee 0 1336 97 1433 Zebedee 1 463 220 683 Total 17...
Midstory presence: 0.3 < z < 2 meter PLOT 1 Airborne Airborne 0 1 Total Zebedee 0 1524 2 1526 Zebedee 1 532 58 590 Total 2...
What else can we do with Zebedee data? • Interpolate tree heights, 1x1 meter resolution Airborne LiDAR Zebedee LiDAR

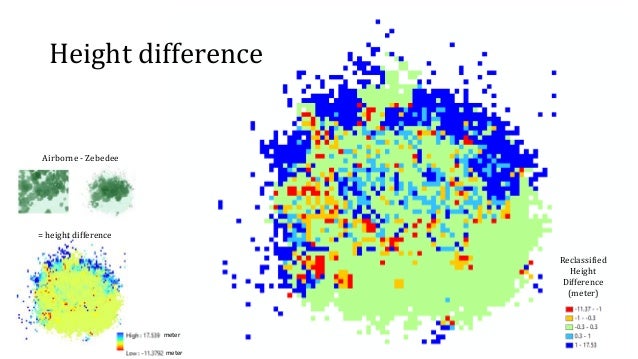

Height difference Airborne - Zebedee = height difference meter meter Reclassified Height Difference (meter)
Height difference (meter) Zebedee point density

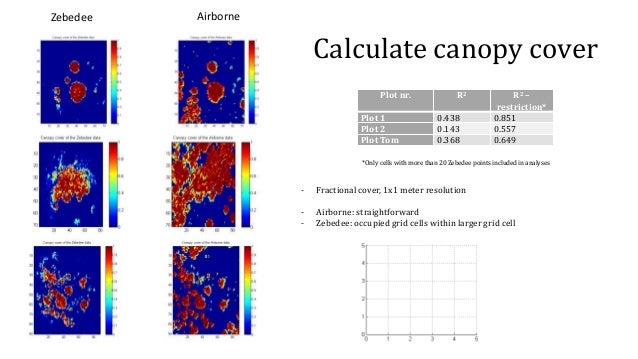

Calculate canopy cover Zebedee Airborne Plot nr. R2 R2 – restriction* Plot 1 0.438 0.851 Plot 2 0.143 0.557 Plot Tom 0.368...

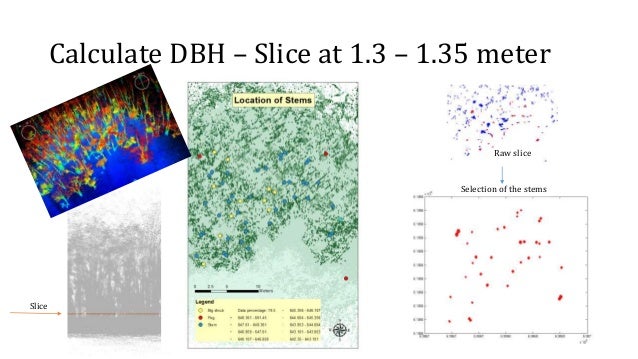

Calculate DBH – Slice at 1.3 – 1.35 meter Slice Raw slice Selection of the stems

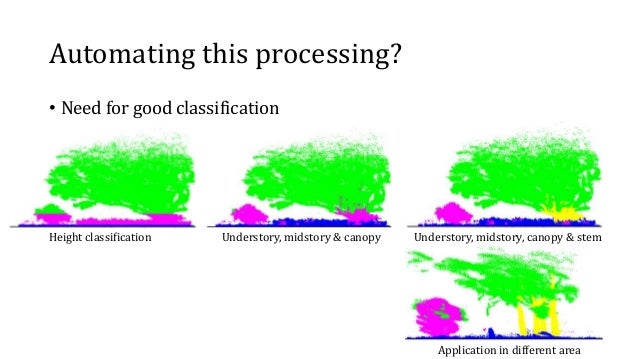

Automating this processing? • Need for good classification Height classification Understory, midstory & canopy Understory,...

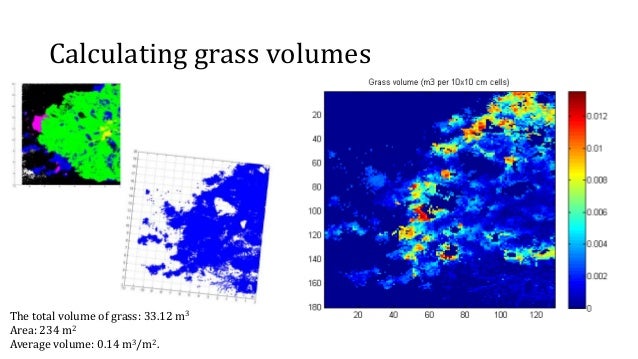

Calculating grass volumes The total volume of grass: 33.12 m3 Area: 234 m2 Average volume: 0.14 m3/m2.
Summary of findings Dataset Pro’s Con’s Airborne - Covers large areas - Canopy height - Canopy base height - Canopy cover ...

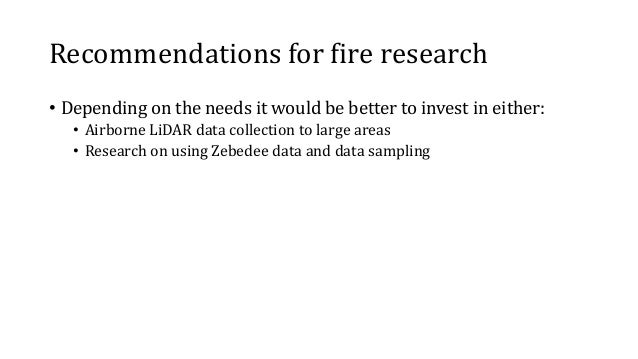

Recommendations for fire research • Depending on the needs it would be better to invest in either: • Airborne LiDAR data c...

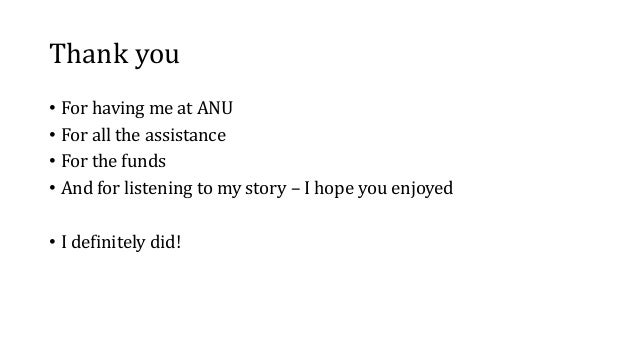

Thank you • For having me at ANU • For all the assistance • For the funds • And for listening to my story – I hope you enj...
Questions? Mourad Bandjee, 2014 Questions?
Clumping

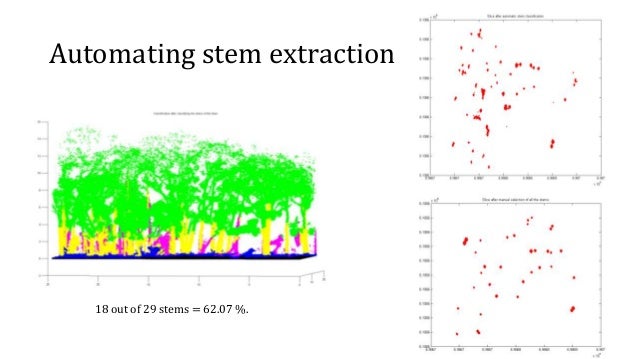

Automating stem extraction 18 out of 29 stems = 62.07 %.

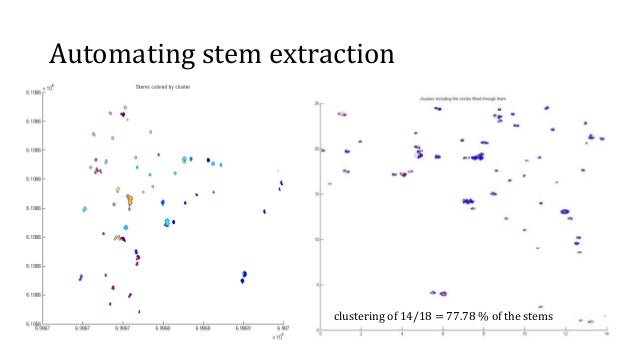

Automating stem extraction clustering of 14/18 = 77.78 % of the stems

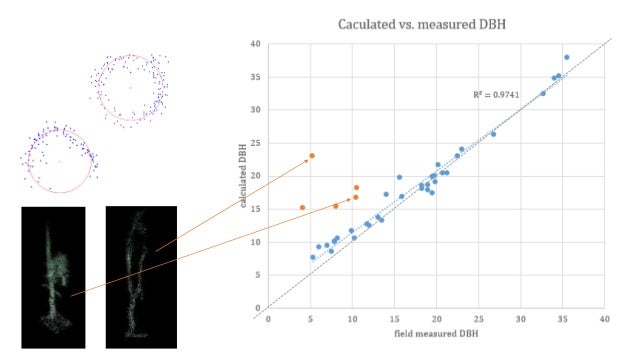

Automating stem extraction R² = 0.9483 0 5 10 15 20 25 30 35 0 5 10 15 20 25 30 35 CalculatedDBH Measured DBH Correlation ...

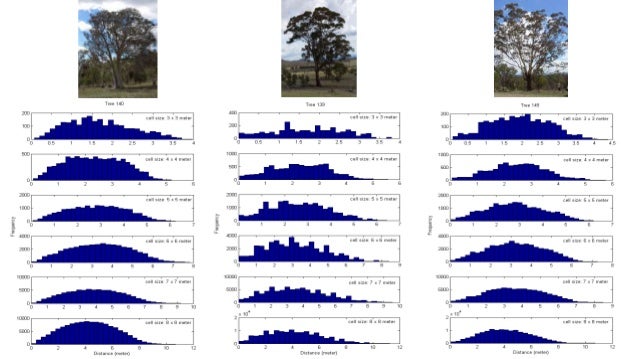

DBH frequency distributions
Calculating shrub & grass dimensions Measure Field – Measured LiDAR - Calculated Error (meter) Grass1 NZ 0.45 0.82 -0.37 E...
Canopy cover & height error
Biomass estimations • Tree recognition • DBH calculations • Height calculations • Allometric equation: Calculate biomass.
Marselis 2014 Vegetation Structure mapping with LiDAR for forest fire research
Marselis 2014 Vegetation Structure mapping with LiDAR for forest fire research
Marselis 2014 Vegetation Structure mapping with LiDAR for forest fire research
Marselis 2014 Vegetation Structure mapping with LiDAR for forest fire research
Marselis 2014 Vegetation Structure mapping with LiDAR for forest fire research
