Intro to Web Archiving

  1. 1. Intro to Web Archiving Dr. Michele C. Weigle, @weiglemc Web Sciences and Digital Libraries (WS-DL) Group, @WebSciDL Department of Computer Science Old Dominion University June 26, 2018 ODU Machine Learning and Data Sciences Camp

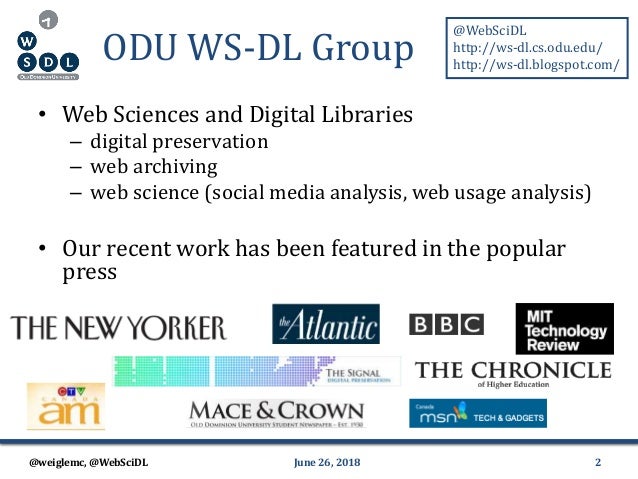

  2. 2. @weiglemc, @WebSciDL ODU WS-DL Group • Web Sciences and Digital Libraries – digital preservation – web archiving – web science (social media analysis, web usage analysis) • Our recent work has been featured in the popular press June 26, 2018 2 @WebSciDL http://ws-dl.cs.odu.edu/ http://ws-dl.blogspot.com/

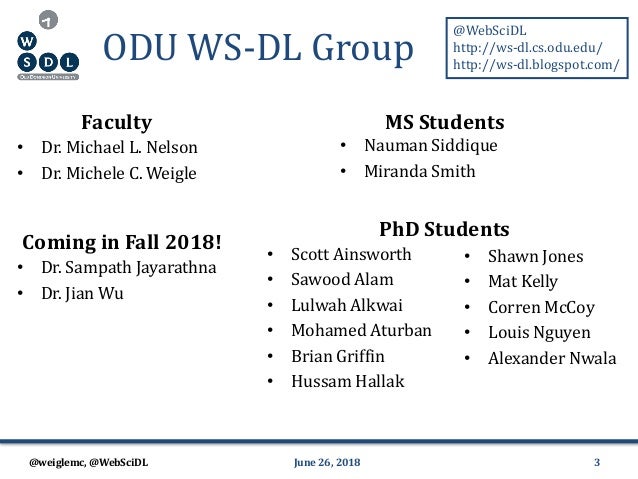

  3. 3. @weiglemc, @WebSciDL ODU WS-DL Group • Scott Ainsworth • Sawood Alam • Lulwah Alkwai • Mohamed Aturban • Brian Griffin • Hussam Hallak • Shawn Jones • Mat Kelly • Corren McCoy • Louis Nguyen • Alexander Nwala June 26, 2018 3 PhD Students • Nauman Siddique • Miranda Smith MS Students Coming in Fall 2018! • Dr. Sampath Jayarathna • Dr. Jian Wu • Dr. Michael L. Nelson • Dr. Michele C. Weigle Faculty @WebSciDL http://ws-dl.cs.odu.edu/ http://ws-dl.blogspot.com/
  4. 4. @weiglemc, @WebSciDL What is the past web? June 26, 2018 4

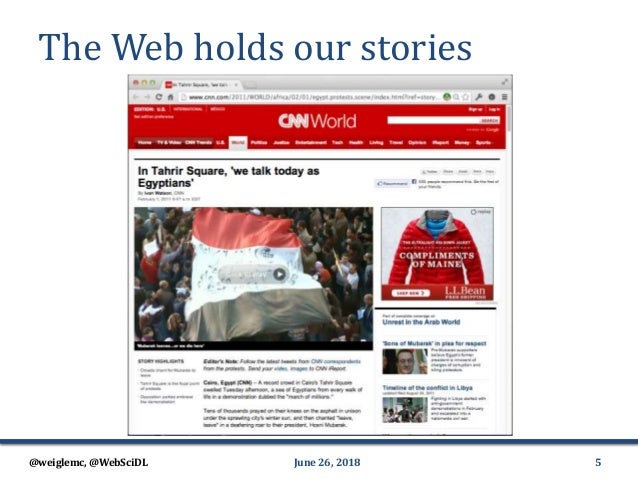

  5. 5. @weiglemc, @WebSciDL The Web holds our stories June 26, 2018 5

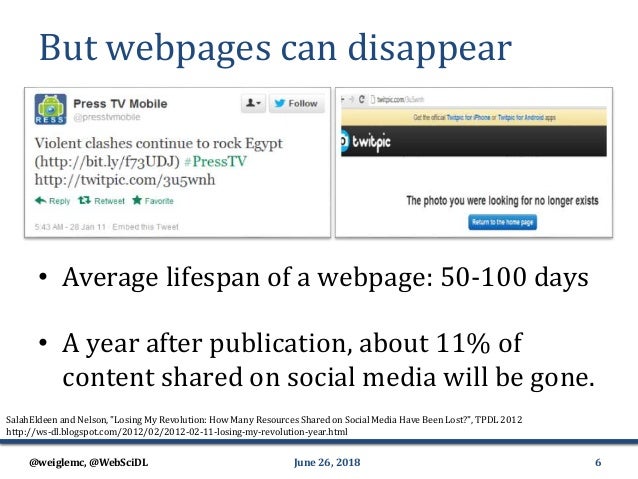

  6. 6. @weiglemc, @WebSciDL But webpages can disappear • Average lifespan of a webpage: 50-100 days • A year after publication, about 11% of content shared on social media will be gone. June 26, 2018 SalahEldeen and Nelson, "Losing My Revolution: How Many Resources Shared on Social Media Have Been Lost?", TPDL 2012 http://ws-dl.blogspot.com/2012/02/2012-02-11-losing-my-revolution-year.html 6

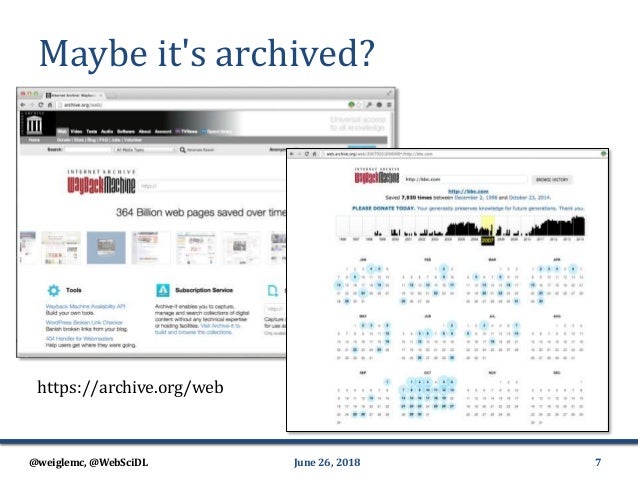

  7. 7. @weiglemc, @WebSciDL Maybe it's archived? June 26, 2018 7 https://archive.org/web

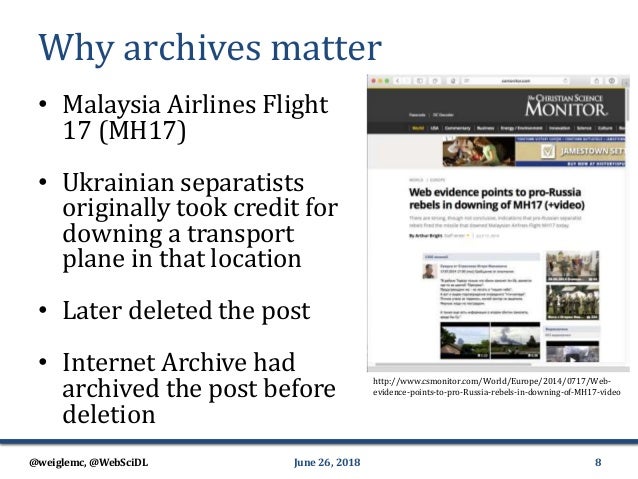

  8. 8. @weiglemc, @WebSciDL Why archives matter • Malaysia Airlines Flight 17 (MH17) • Ukrainian separatists originally took credit for downing a transport plane in that location • Later deleted the post • Internet Archive had archived the post before deletion June 26, 2018 8 http://www.csmonitor.com/World/Europe/2014/0717/Web- evidence-points-to-pro-Russia-rebels-in-downing-of-MH17-video

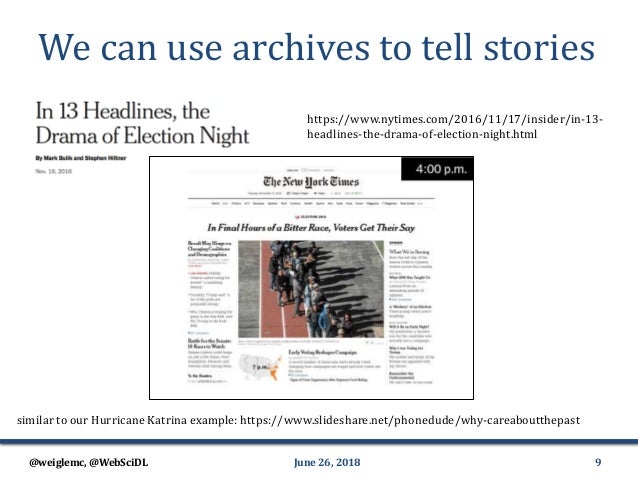

  9. 9. @weiglemc, @WebSciDL We can use archives to tell stories June 26, 2018 9 similar to our Hurricane Katrina example: https://www.slideshare.net/phonedude/why-careaboutthepast https://www.nytimes.com/2016/11/17/insider/in-13- headlines-the-drama-of-election-night.html

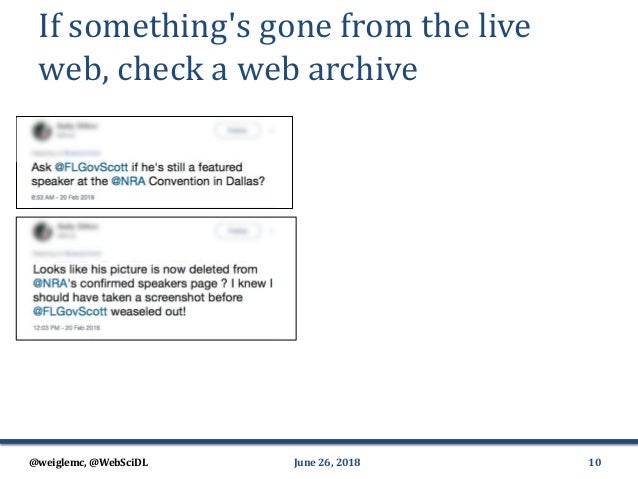

  10. 10. @weiglemc, @WebSciDL If something's gone from the live web, check a web archive June 26, 2018 10

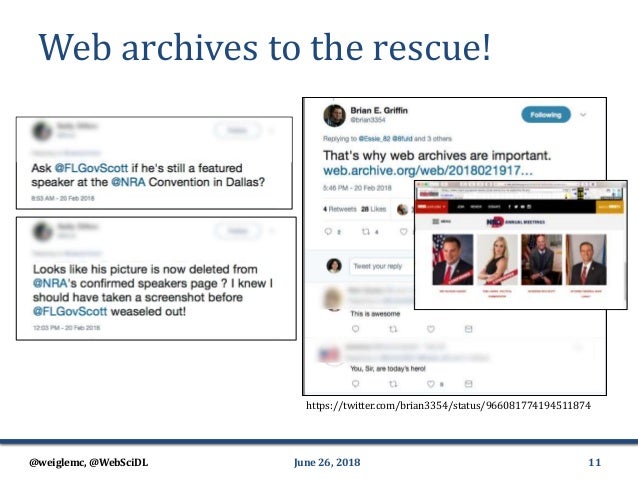

  11. 11. @weiglemc, @WebSciDL Web archives to the rescue! June 26, 2018 11 https://twitter.com/brian3354/status/966081774194511874

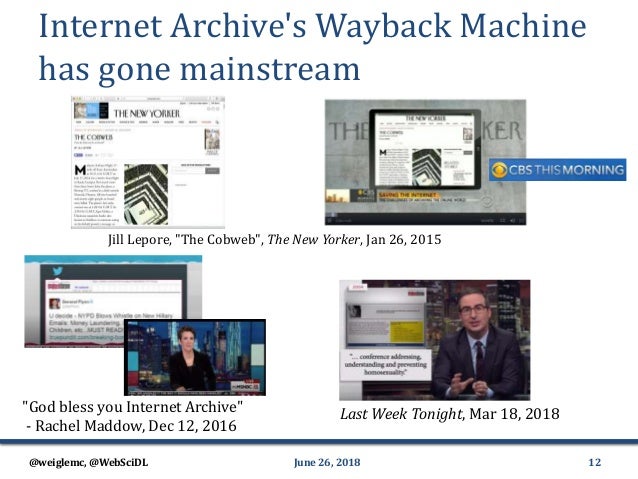

  12. 12. @weiglemc, @WebSciDL Internet Archive's Wayback Machine has gone mainstream June 26, 2018 12 "God bless you Internet Archive" - Rachel Maddow, Dec 12, 2016 Last Week Tonight, Mar 18, 2018 Jill Lepore, "The Cobweb", The New Yorker, Jan 26, 2015

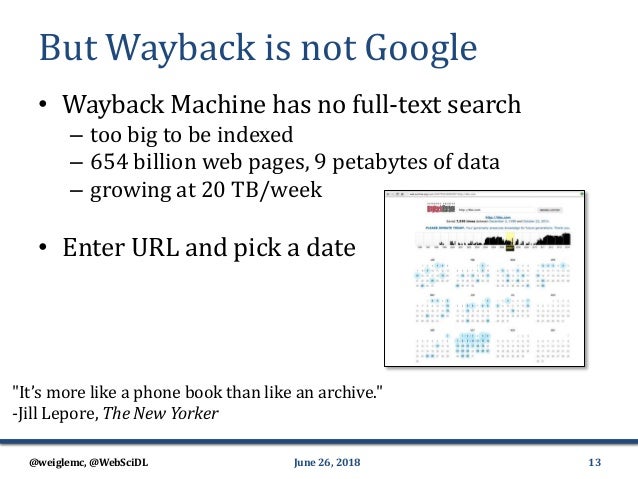

  13. 13. @weiglemc, @WebSciDL But Wayback is not Google • Wayback Machine has no full-text search – too big to be indexed – 654 billion web pages, 9 petabytes of data – growing at 20 TB/week • Enter URL and pick a date June 26, 2018 13 "It’s more like a phone book than like an archive." -Jill Lepore, The New Yorker

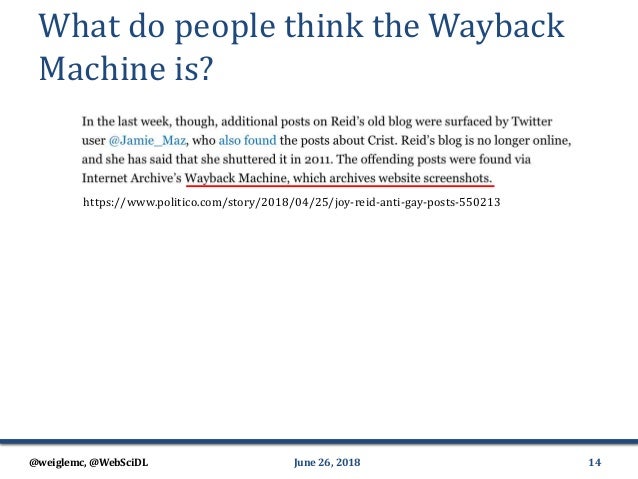

  14. 14. @weiglemc, @WebSciDL What do people think the Wayback Machine is? June 26, 2018 14 https://www.politico.com/story/2018/04/25/joy-reid-anti-gay-posts-550213
  15. 15. @weiglemc, @WebSciDL What do people think the Wayback Machine is? June 26, 2018 15 https://www.cnn.com/2018/02/16/politics/richard-pinedo-guilty-plea/index.html https://www.politico.com/story/2018/04/25/joy-reid-anti-gay-posts-550213 https://web.archive.org/web/20180115103952/https:/auctionessistance.com/

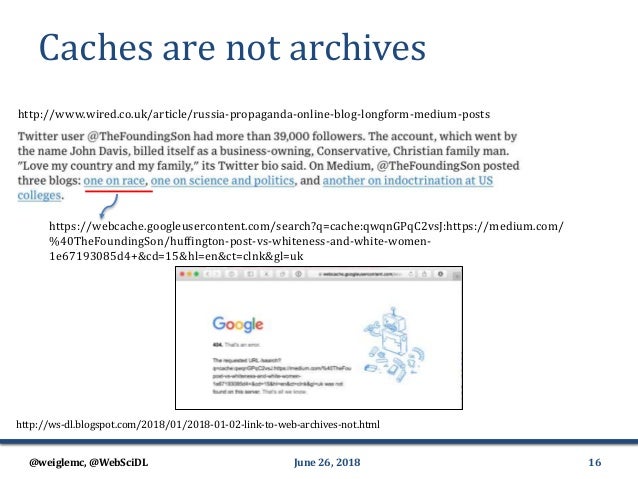

  16. 16. @weiglemc, @WebSciDL Caches are not archives June 26, 2018 16 http://ws-dl.blogspot.com/2018/01/2018-01-02-link-to-web-archives-not.html http://www.wired.co.uk/article/russia-propaganda-online-blog-longform-medium-posts https://webcache.googleusercontent.com/search?q=cache:qwqnGPqC2vsJ:https://medium.com/ %40TheFoundingSon/huffington-post-vs-whiteness-and-white-women- 1e67193085d4+&cd=15&hl=en&ct=clnk&gl=uk

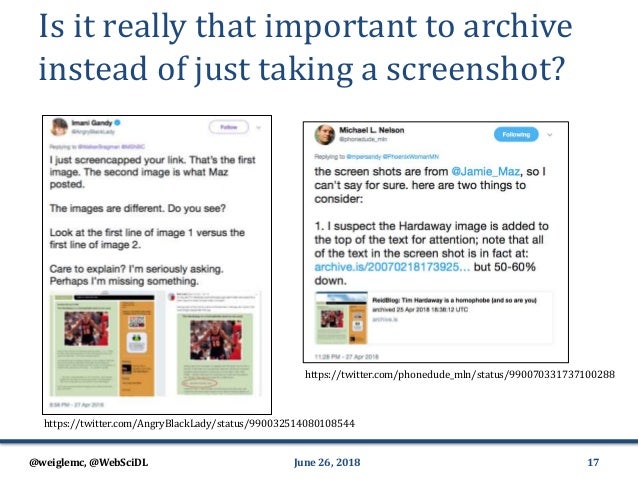

  17. 17. @weiglemc, @WebSciDL Is it really that important to archive instead of just taking a screenshot? June 26, 2018 17 https://twitter.com/AngryBlackLady/status/990032514080108544 https://twitter.com/phonedude_mln/status/990070331737100288

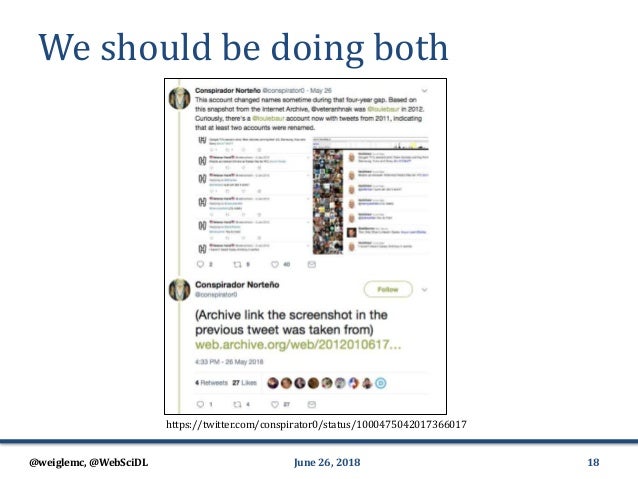

  18. 18. @weiglemc, @WebSciDL We should be doing both June 26, 2018 18 https://twitter.com/conspirator0/status/1000475042017366017

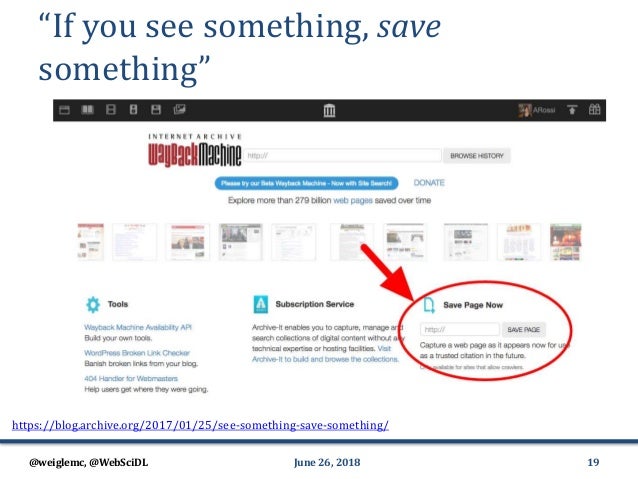

  19. 19. @weiglemc, @WebSciDL “If you see something, save something” June 26, 2018 19 https://blog.archive.org/2017/01/25/see-something-save-something/

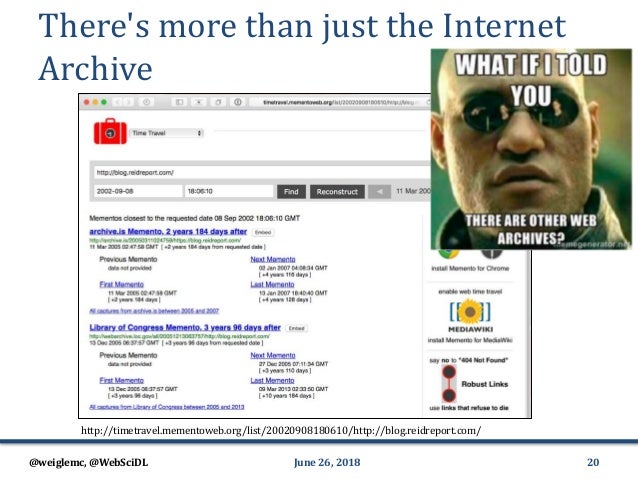

  20. 20. @weiglemc, @WebSciDL There's more than just the Internet Archive June 26, 2018 20 http://timetravel.mementoweb.org/list/20020908180610/http://blog.reidreport.com/

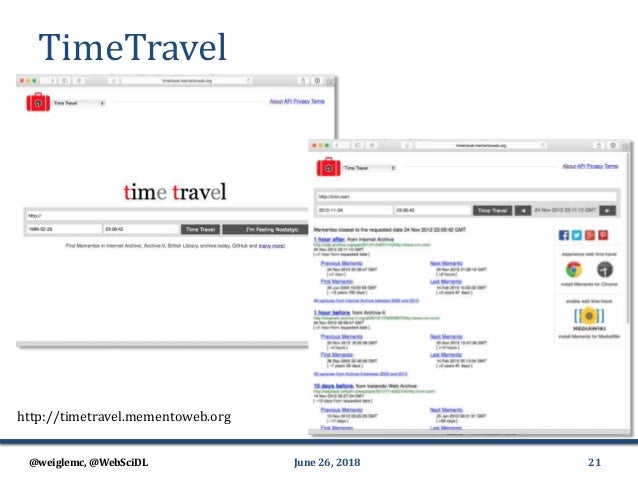

  21. 21. @weiglemc, @WebSciDL TimeTravel June 26, 2018 21 http://timetravel.mementoweb.org

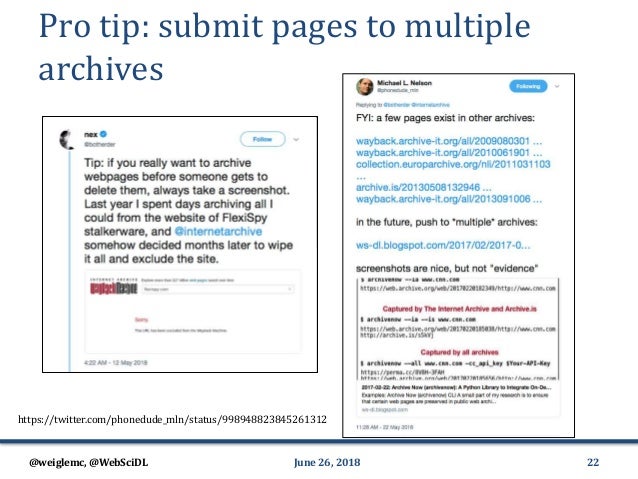

  22. 22. @weiglemc, @WebSciDL Pro tip: submit pages to multiple archives June 26, 2018 22 https://twitter.com/phonedude_mln/status/998948823845261312

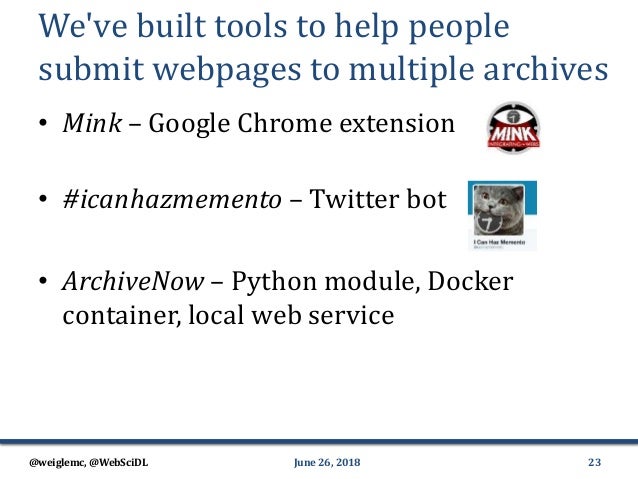

  23. 23. @weiglemc, @WebSciDL We've built tools to help people submit webpages to multiple archives • Mink – Google Chrome extension • #icanhazmemento – Twitter bot • ArchiveNow – Python module, Docker container, local web service June 26, 2018 23

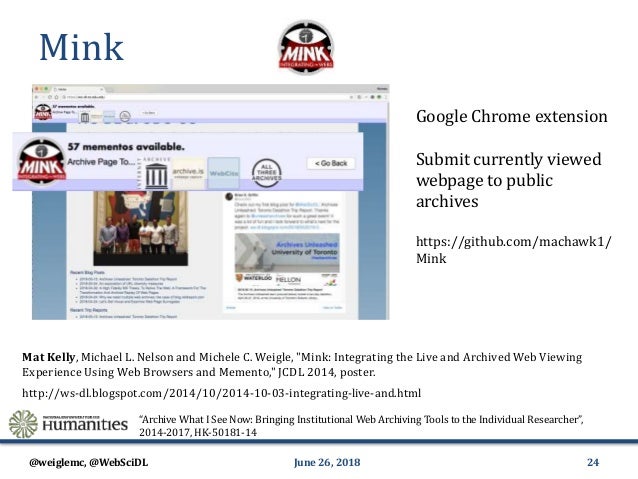

  24. 24. @weiglemc, @WebSciDL Mink June 26, 2018 24 “Archive What I See Now: Bringing Institutional Web Archiving Tools to the Individual Researcher”, 2014-2017, HK-50181-14 Mat Kelly, Michael L. Nelson and Michele C. Weigle, "Mink: Integrating the Live and Archived Web Viewing Experience Using Web Browsers and Memento," JCDL 2014, poster. http://ws-dl.blogspot.com/2014/10/2014-10-03-integrating-live-and.html Google Chrome extension Submit currently viewed webpage to public archives https://github.com/machawk1/ Mink

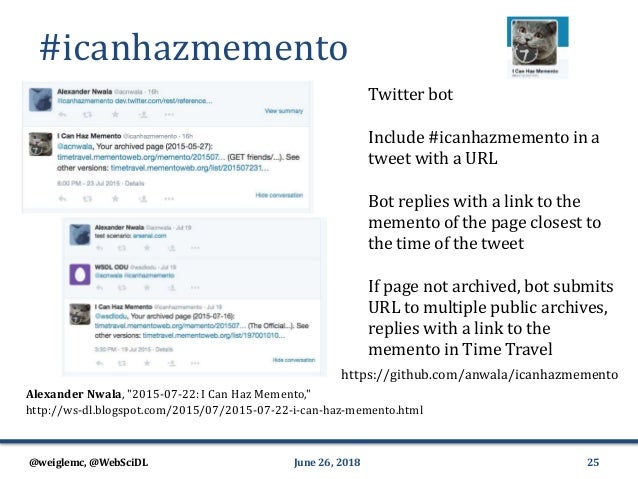

  25. 25. @weiglemc, @WebSciDL #icanhazmemento June 26, 2018 25 http://ws-dl.blogspot.com/2015/07/2015-07-22-i-can-haz-memento.html Twitter bot Include #icanhazmemento in a tweet with a URL Bot replies with a link to the memento of the page closest to the time of the tweet If page not archived, bot submits URL to multiple public archives, replies with a link to the memento in Time Travel Alexander Nwala, "2015-07-22: I Can Haz Memento," https://github.com/anwala/icanhazmemento

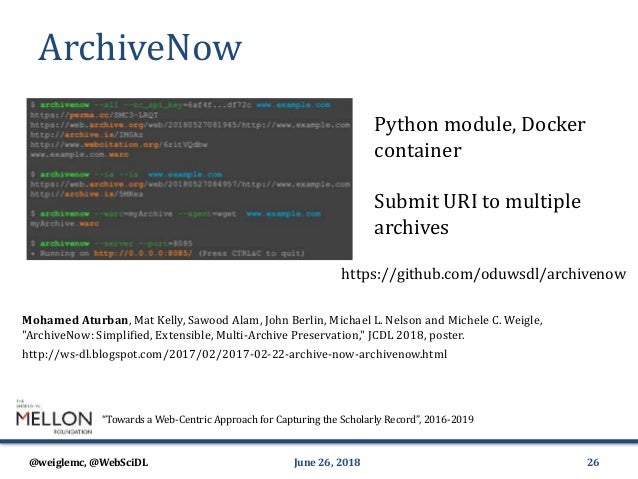

  26. 26. @weiglemc, @WebSciDL ArchiveNow June 26, 2018 26 Mohamed Aturban, Mat Kelly, Sawood Alam, John Berlin, Michael L. Nelson and Michele C. Weigle, "ArchiveNow: Simplified, Extensible, Multi-Archive Preservation," JCDL 2018, poster. http://ws-dl.blogspot.com/2017/02/2017-02-22-archive-now-archivenow.html Python module, Docker container Submit URI to multiple archives “Towards a Web-Centric Approach for Capturing the Scholarly Record”, 2016-2019 https://github.com/oduwsdl/archivenow
  27. 27. @weiglemc, @WebSciDL Memento: Time Travel for the Web Access mementos in multiple web archives Memento’s core components: • A bridge between present and past: link and content negotiation • A bridge between past and present: link June 26, 2018 27

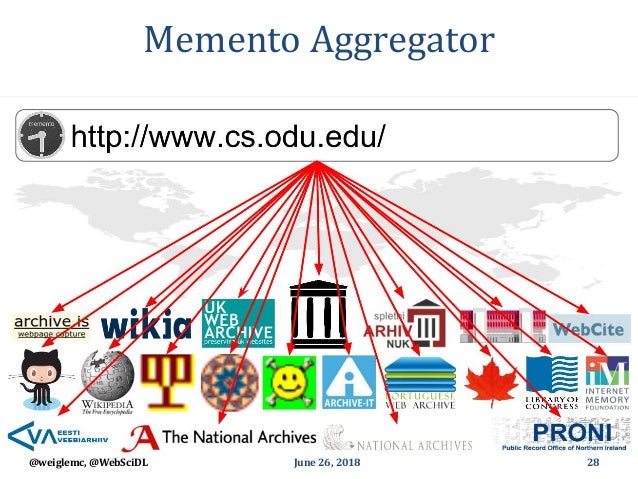

  28. 28. @weiglemc, @WebSciDL Memento Aggregator June 26, 2018 28

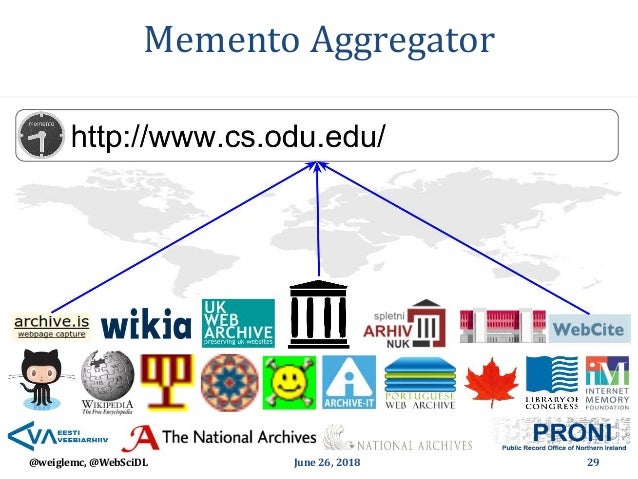

  29. 29. @weiglemc, @WebSciDL Memento Aggregator June 26, 2018 29
  30. 30. @weiglemc, @WebSciDL How can I use Memento? June 26, 2018 Memento for Chrome http://ws-dl.blogspot.com/2013/10/2013-10-14-right-click-to-past-memento.html http://ws-dl.blogspot.com/2014/10/2014-10-03-integrating-live-and.html http://timetravel.mementoweb.org 30 Mink

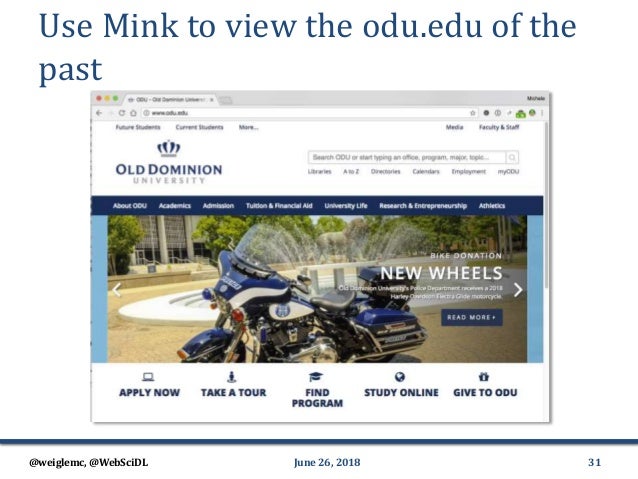

  31. 31. @weiglemc, @WebSciDL Use Mink to view the odu.edu of the past June 26, 2018 31

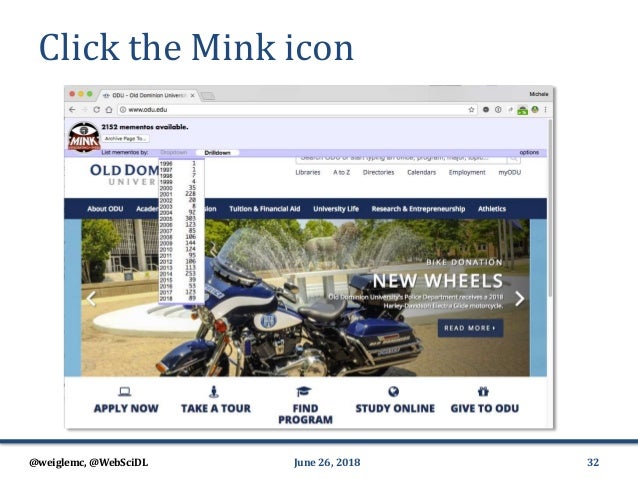

  32. 32. @weiglemc, @WebSciDL Click the Mink icon June 26, 2018 32

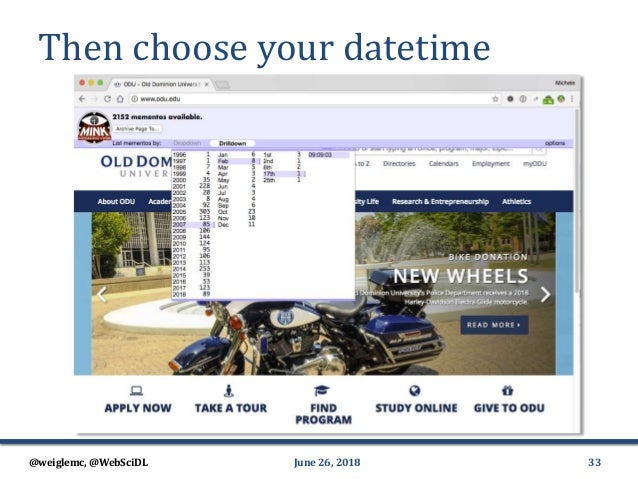

  33. 33. @weiglemc, @WebSciDL Then choose your datetime June 26, 2018 33

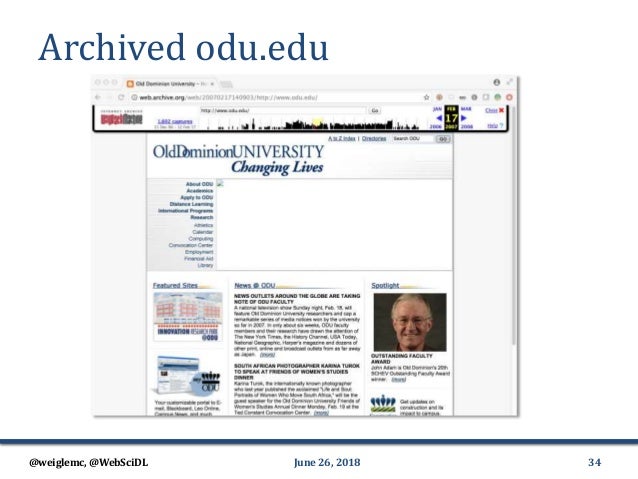

  34. 34. @weiglemc, @WebSciDL Archived odu.edu June 26, 2018 34

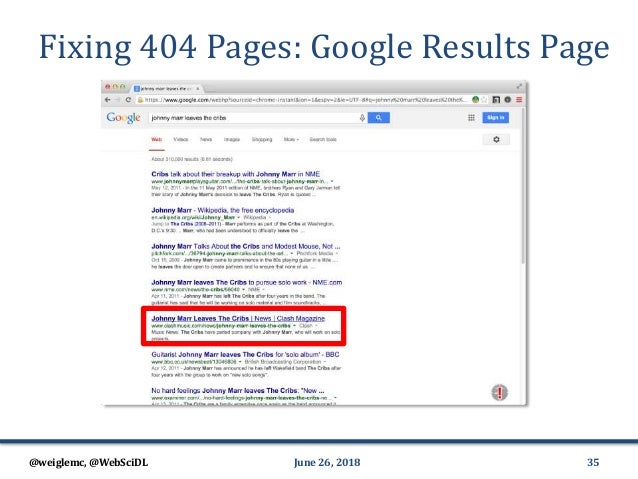

  35. 35. @weiglemc, @WebSciDL Fixing 404 Pages: Google Results Page June 26, 2018 35

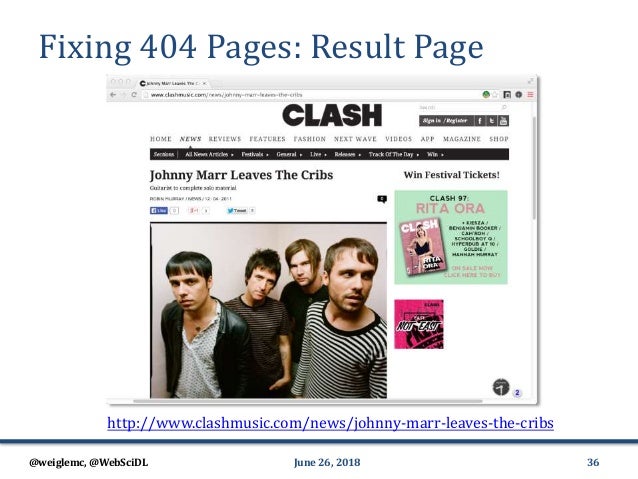

  36. 36. @weiglemc, @WebSciDL Fixing 404 Pages: Result Page June 26, 2018 36 http://www.clashmusic.com/news/johnny-marr-leaves-the-cribs

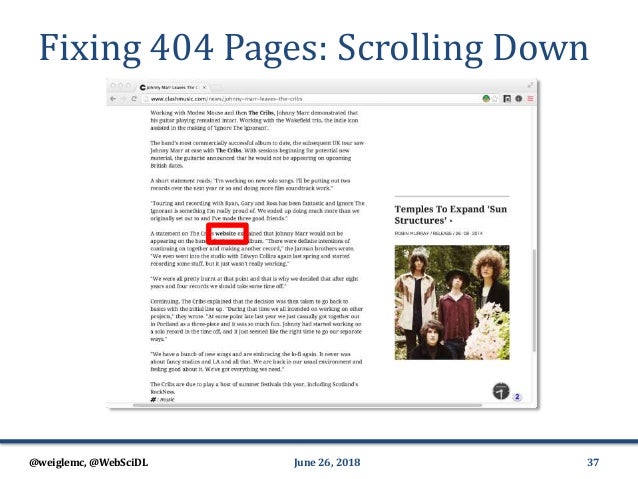

  37. 37. @weiglemc, @WebSciDL Fixing 404 Pages: Scrolling Down June 26, 2018 37

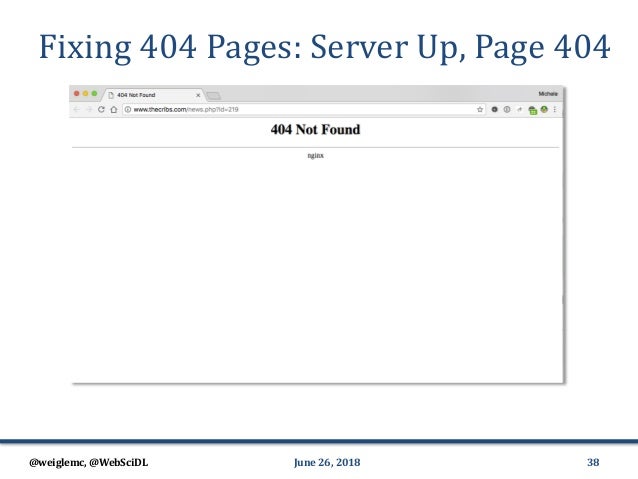

  38. 38. @weiglemc, @WebSciDL Fixing 404 Pages: Server Up, Page 404 June 26, 2018 38

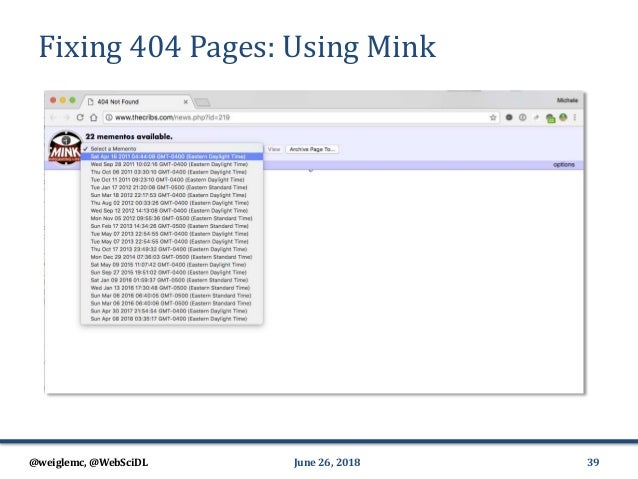

  39. 39. @weiglemc, @WebSciDL Fixing 404 Pages: Using Mink June 26, 2018 39

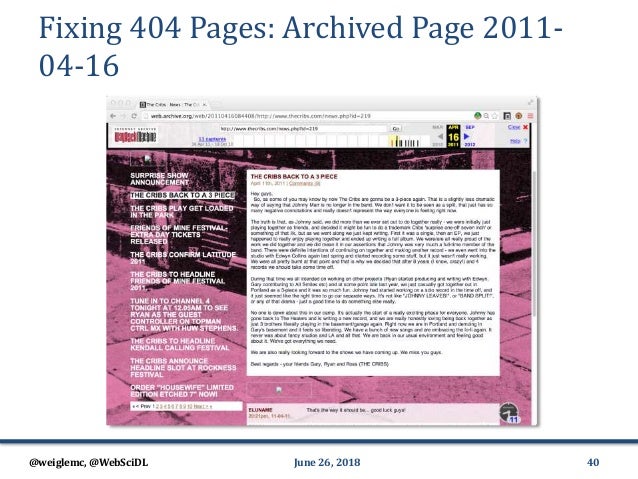

  40. 40. @weiglemc, @WebSciDL Fixing 404 Pages: Archived Page 2011- 04-16 June 26, 2018 40

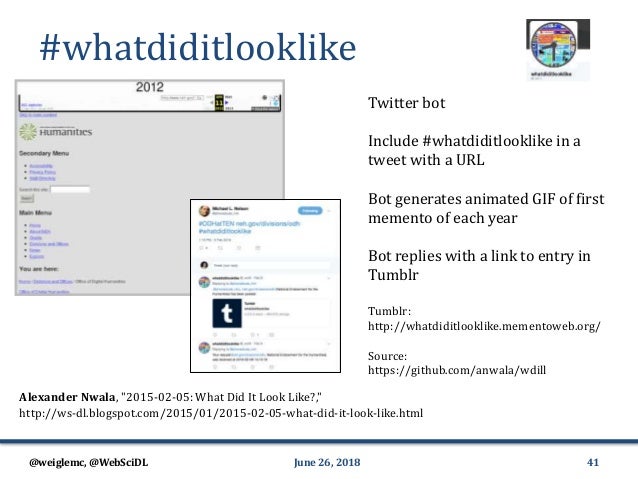

  41. 41. @weiglemc, @WebSciDL #whatdiditlooklike June 26, 2018 41 http://ws-dl.blogspot.com/2015/01/2015-02-05-what-did-it-look-like.html Twitter bot Include #whatdiditlooklike in a tweet with a URL Bot generates animated GIF of first memento of each year Bot replies with a link to entry in Tumblr Tumblr: http://whatdiditlooklike.mementoweb.org/ Source: https://github.com/anwala/wdill Alexander Nwala, "2015-02-05: What Did It Look Like?,"

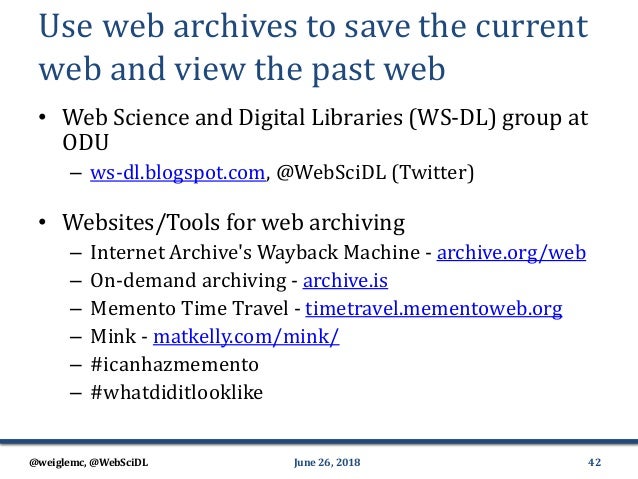

  42. 42. @weiglemc, @WebSciDL Use web archives to save the current web and view the past web • Web Science and Digital Libraries (WS-DL) group at ODU – ws-dl.blogspot.com, @WebSciDL (Twitter) • Websites/Tools for web archiving – Internet Archive's Wayback Machine - archive.org/web – On-demand archiving - archive.is – Memento Time Travel - timetravel.mementoweb.org – Mink - matkelly.com/mink/ – #icanhazmemento – #whatdiditlooklike June 26, 2018 42

×
