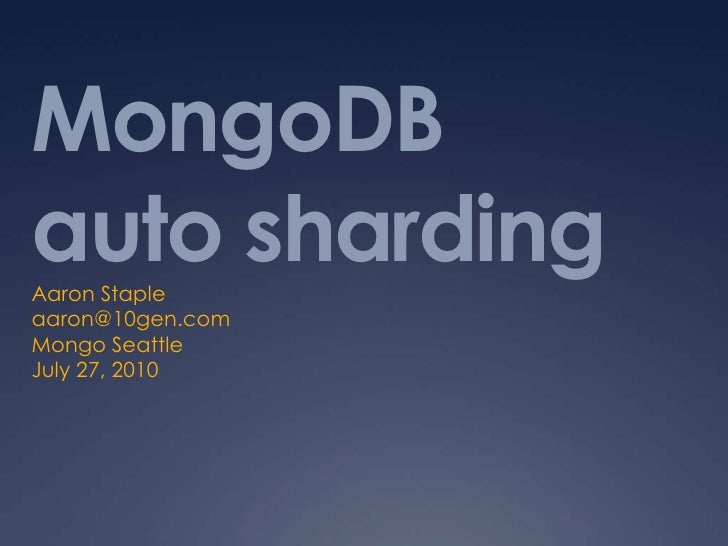

  1. 1. MongoDBauto sharding<br />Aaron Staple<br />aaron@10gen.com<br />Mongo Seattle<br />July 27, 2010<br />
  2. 2. MongoDB v1.6out next week!<br />
  3. 3. Why Scale Horizontally?<br />Vertical scaling is expensive<br />Horizontal scaling is more incremental – works well in the cloud<br />Will always be able to scale wider than higher<br />
  4. 4. Distribution Models<br />Ad-hoc partitioning<br />Consistent hashing (dynamo)<br />Range based partitioning (BigTable/PNUTS)<br />
  5. 5. Auto Sharding<br />Each piece of data is exclusively controlled by a single node (shard)<br />Each node (shard) has exclusive control over a well defined subset of the data<br />Database operations run against one shard when possible, multiple when necessary<br />As system load changes, assignment of data to shards is rebalanced automatically<br />
  6. 6. Mongo Sharding<br />Basic goal is to make this<br />mongod<br />mongod<br />mongod<br />?<br />client<br />
  7. 7. Mongo Sharding<br />Look like this<br />mongod<br />client<br />
  8. 8. Mongo Sharding<br />Mapping of documents to shards controlled by shard key<br />Can convert from single master to sharded cluster with 0 downtime<br />Most functionality of a single Mongo master is preserved<br />Fully consistent<br />
  9. 9. Shard Key<br />
  10. 10. Shard Key Examples<br />{ user_id: 1 }<br />{ state: 1 }<br />{ lastname: 1, firstname: 1 }<br />{ tag: 1, timestamp: -1 }<br />{ _id: 1 }<br />This is the default<br />Careful when using ObjectId<br />
  11. 11. Architecture Overview<br />5500 <= user_id < +inf<br />-inf <= user_id < 2000<br />2000 <= user_id < 5500<br />mongod<br />mongod<br />mongod<br />mongos<br />client<br />
  12. 12. Query I<br />Shard key { user_id: 1 }<br />db.users.find( { user_id: 5000 } )<br />Query appropriate shard<br />
  13. 13. Query II<br />Shard key { user_id: 1 }<br />db.users.find( { user_id: { $gt: 4000, $lt: 6000 } } )<br />Query appropriate shard(s)<br />
  14. 14. { a : …, b : …, c : … } a is declared shard key<br />find( { a : { $gt : 333, $lt : 400 } )<br />
  15. 15. { a : …, b : …, c : … } a is declared shard key<br />find( { a : { $gt : 333, $lt : 2012 } )<br />
  16. 16. Query III<br />Shard key { user_id: 1 }<br />db.users.find( { hometown: ‘Seattle’ } )<br />Query all shards<br />
  17. 17. { a : …, b : …, c : … } a is declared shard key<br />find( { a : { $gt : 333, $lt : 2012 } )<br />
  18. 18. { a : …, b : …, c : … } secondary query, secondary index<br />ensureIndex({b:1})<br />find( { b : 99 } )<br />This case good when m is small (such as here), also when the queries are large tasks<br />
  19. 19. Query IV<br />Shard key { user_id: 1 }<br />db.users.find( { hometown: ‘Seattle’ } ).sort( { user_id: 1 } )<br />Query all shards, in sequence<br />
  20. 20. Query V<br />Shard key { user_id: 1 }<br />db.users.find( { hometown: ‘Seattle’ } ).sort( { lastname: 1 } )<br />Query all shards in parallel, perform merge sort<br />Secondary index in { lastname: 1 } can be used<br />
  21. 21. Map/Reduce<br />Map/Reduce was designed for distributed systems<br />Map/Reduce jobs will run on all relevant shards in parallel, subject to query spec<br />
  22. 22. Map/Reduce<br />> m = function() { emit(this.user_id, 1); }<br />> r = function(k,vals) { return 1; }<br />> res = db.events.mapReduce(m, r, { query : {type:'sale'} });<br />> db[res.result].find().limit(2)<br />{ "_id" : 8321073716060 , "value" : 1 }<br />{ "_id" : 7921232311289 , "value" : 1 }<br />
  23. 23. Writes<br />Inserts routed to appropriate shard (inserted doc must contain shard key)<br />Removes call upon matching shards<br />Updates call upon matching shards<br />Writes parallel if asynchronous, sequential if synchronous<br />Updates cannot modify the shard key<br />
  24. 24. Choice of Shard Key<br />Key per document that is generally a component of your queries<br />Often you want a unique key<br />If not, consider granularity of key and potentially add fields<br />The shard key is generally comprised of fields you would put in an index if operating on a single machine<br />But in a sharded configuration, the shard key will be indexed automatically<br />
  25. 25. Shard Key Examples (again)<br />{ user_id: 1 }<br />{ state: 1 }<br />{ lastname: 1, firstname: 1 }<br />{ tag: 1, timestamp: -1 }<br />{ _id: 1 }<br />This is the default<br />Careful when using ObjectId<br />
  26. 26. Bit.ly Example<br />~50M users<br />~10K concurrently using server at peak<br />~12.5B shortens per month (1K/sec peak)<br />History of all shortens per user stored in mongo<br />
  27. 27. Bit.ly Example - Schema<br />{ "_id" : "lthp", "domain" : null, "keyword" : null, "title" : "bit.ly, a simple urlshortener", "url" : "http://jay.bit.ly/", "labels" : [<br /> {"text" : "lthp",<br /> "name" : "user_hash"},<br /> {"text" : "BUFx",<br /> "name" : "global_hash"},<br /> {"text" : "http://jay.bit.ly/",<br /> "name" : "url"},<br /> {"text" : "bit.ly, a simple urlshortener",<br /> "name" : "title"}<br />], "ts" : 1229375771, "global_hash" : "BUFx", "user" : "jay", "media_type" : null }<br />
  28. 28. Bit.ly Example<br />Shard key { user: 1 }<br />Indices<br />{ _id: 1 }<br />{ user: 1 }<br />{ global_hash: 1 }<br />{ user: 1, ts: -1 }<br />Query<br />db.history.find( { <br /> user : user,<br />labels.text : …<br /> } ).sort( { ts: -1 } )<br />
  29. 29. Balancing<br />The whole point of autosharding is that mongo balances the shards for you<br />The balancing algorithm is complicated, basic idea is that this<br />1000 <= user_id < +inf<br />-inf <= user_id < 1000<br />
  30. 30. Balancing<br />Becomes this<br />3000 <= user_id < +inf<br />-inf <= user_id < 3000<br />
  31. 31. Balancing<br />Current balancing metric is data size<br />Future possibilities – cpu, disk utilization<br />There is some flexibility built into the partitioning algorithm – so we aren’t thrashing data back and forth between shards<br />Only move one ‘chunk’ of data at a time – a conservative choice that limits total overhead of balancing<br />
  32. 32. System Architecture<br />
  33. 33. Shard<br />Regular mongodprocess(es), storing all documents for a given key range<br />Handles all reads/writes for this key range as well<br />Each shard indexes the data contained within it<br />Can be single mongod, master/slave, or replica set<br />
  34. 34. Shard - Chunk<br />In a sharded cluster, shards partitioned by shard key<br />Within a shard, chunks partitioned by shard key<br />A chunk is the smallest unit of data for balancing<br />Data moves between chunks at chunk granularity<br />Upper limit on chunk size is 200MB<br />Special case if shard key range is open ended<br />
  35. 35. Shard - Replica Sets<br />Replica sets provide data redundancy and auto failover<br />In the case of sharding, this means redundancy and failover per shard<br />All typical replica set operations are possible<br />For example, write with w=N<br />Replica sets were specifically designed to work as shards<br />
  36. 36. System Architecture<br />
  37. 37. Mongos<br />Sharding router – distributes reads/writes to sharded cluster<br />Client interface is the same as a mongod<br />Can have as many mongos instances as you want<br />Can run on app server machine to avoid extra network traffic<br />Mongos also initiates balancing operations<br />Keeps metadata per chunk in RAM – 1MB RAM per 1TB of user data in cluster<br />
  38. 38. System Architecture<br />
  39. 39. Config Server<br />3 Config servers<br />Changes are made with a 2 phase commit<br />If any of the 3 servers goes down, config data becomes read only<br />Sharded cluster will remain online as long as 1 of the config servers is running<br />Config metadata size estimate<br />1MB metadata per 1TB data in cluster<br />
  40. 40. Shared Machines<br />
  41. 41. Bit.ly Architecture<br />
  42. 42. Limitations<br />Unique index constraints not expressed by shard key are not enforced across shards<br />Updates to a document’s shard key aren’t allowed (you can remove and reinsert, but it’s not atomic)<br />Balancing metric is limited to # of chunks right now – but this will be enhanced<br />Right now only one chunk moves in the cluster at a time – this means balancing can be slow, it’s a conservative choice we’ve made to keep the overhead of balancing low for now<br />20 petabyte size limit<br />
  43. 43. Start Up Config Servers<br />$ mkdir -p ~/dbs/config<br />$ ./mongod --dbpath ~/dbs/config --port 20000<br />Repeat as necessary<br />
  44. 44. Start Up Mongos<br />$ ./mongos --port 30000 --configdb localhost:20000<br />No dbpath<br />Repeat as necessary<br />
  45. 45. Start Up Shards<br />$ mkdir -p ~/dbs/shard1 <br />$ ./mongod --dbpath ~/dbs/shard1 --port 10000<br />Repeat as necessary<br />
  46. 46. Configure Shards<br />$ ./mongo localhost:30000/admin<br />> db.runCommand({addshard : "localhost:10000", allowLocal : true})<br />{<br />"added" : "localhost:10000",<br /> "ok" : true<br />}<br />Repeat as necessary<br />
  47. 47. Shard Data<br />> db.runCommand({"enablesharding" : "foo"})<br />> db.runCommand({"shardcollection" : "foo.bar", "key" : {"_id" : 1}})<br />Repeat as necessary<br />
  48. 48. Production Configuration<br />Multiple config servers<br />Multiple mongos servers<br />Replica sets for each shard<br />Use getLastError/w correctly<br />
  49. 49. Looking at config data<br />Mongo shell connected to config server, config database<br />> db.shards.find()<br /> { "_id" : "shard0", "host" : "localhost:10000" }<br /> { "_id" : "shard1", "host" : "localhost:10001" }<br />
  50. 50. Looking at config data<br />> db.databases.find() <br />{ "_id" : "admin", "partitioned" : false, "primary" : "config" } <br />{ "_id" : "foo", "partitioned" : false, "primary" : "shard1" } <br />{ "_id" : "x", "partitioned" : false, "primary" : "shard0” }<br />{"_id" : "test", "partitioned" : true, "primary" : "shard0", "sharded" :<br /> {<br /> "test.foo" : { "key" : {"x" : 1}, "unique" : false }<br /> }<br />}<br />
  51. 51. Looking at config data<br />> db.chunks.find() <br />{"_id" : "test.foo-x_MinKey",<br /> "lastmod" : { "t" : 1276636243000, "i" : 1 },<br /> "ns" : "test.foo",<br /> "min" : {"x" : { $minKey : 1 } },<br /> "max" : {"x" : { $maxKey : 1 } },<br /> "shard" : "shard0”<br />}<br />
  52. 52. Looking at config data<br />> db.printShardingStatus() <br />--- Sharding Status ---<br />sharding version: { "_id" : 1, "version" : 3 }<br /> shards:<br /> { "_id" : "shard0", "host" : "localhost:10000" }<br /> { "_id" : "shard1", "host" : "localhost:10001" } <br />databases:<br /> { "_id" : "admin", "partitioned" : false, "primary" : "config" } <br /> { "_id" : "foo", "partitioned" : false, "primary" : "shard1" } <br /> { "_id" : "x", "partitioned" : false, "primary" : "shard0" } <br /> { "_id" : "test", "partitioned" : true, "primary" : "shard0","sharded" : { "test.foo" : { "key" : { "x" : 1 }, "unique" : false } } }<br />test.foo chunks:<br /> { "x" : { $minKey : 1 } } -->> { "x" : { $maxKey : 1 } } on : shard0 { "t" : 1276636243 …<br />
  53. 53. Give it a Try!<br />Download from mongodb.org<br />Sharding production ready in 1.6, which is scheduled for release next week<br />For now use 1.5 (unstable) to try sharding<br />

×
