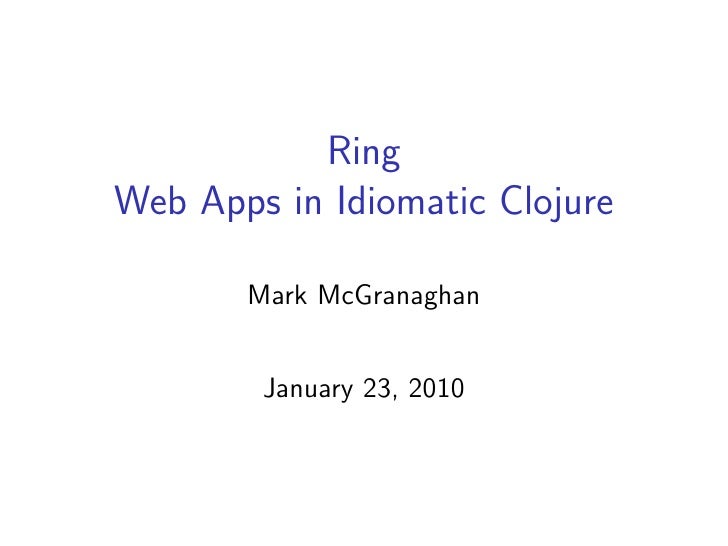

Ring
Web Apps in Idiomatic Clojure

       Mark McGranaghan


        January 23, 2010
About Mark



    Bowdoin College ’10
    Clojure user since 2008
    Open source: http://github.com/mmcgrana
Motivation for Ring
Motivation for Ring


     Abstract HTTP
Motivation for Ring


     Abstract HTTP
     Write apps in idiomatic Clojure
Motivation for Ring


     Abstract HTTP
     Write apps in idiomatic Clojure
     Share code across web frameworks
Motivation for Ring


     Abstract HTTP
     Write apps in idiomatic Clojure
     Share code across web frameworks
     D...
Motivation for Ring


     Abstract HTTP
     Write apps in idiomatic Clojure
     Share code across web frameworks
     D...
The Ring Project
The Ring Project



     Spec
The Ring Project



     Spec
     Library
The Ring Project



     Spec
     Library
     Ecosystem
Overview of Ring
Overview of Ring


     Handlers are functions
Overview of Ring


     Handlers are functions
     that take requests as Clojure maps
Overview of Ring


     Handlers are functions
     that take requests as Clojure maps
     and return responses as Clojur...
Overview of Ring


     Handlers are functions
     that take requests as Clojure maps
     and return responses as Clojur...
Overview of Ring


     Handlers are functions
     that take requests as Clojure maps
     and return responses as Clojur...
“Ring”
Request Map


  {:uri              <String>
   :query-string     <String>
   :request-method   <Keyword>
   :headers      ...
Response Map



  {:status <Integer>
   :headers <IPersistentMap>
   :body    <String, ISeq, File, InputStream>}
Example: Hello World


  (defn app [req]
    {:status 200
     :headers {"Content-Type" "text/html"}
     :body    (str "H...
Example: Hello World


  (defn app [req]
    {:status 200
     :headers {"Content-Type" "text/html"}
     :body    (str "H...
Example: Hello World
Example: Stacktraces


  (defn app [req]
    ("o noes"))
Example: Stacktraces


  (defn app [req]
    ("o noes"))

  (use ’ring.adapter.jetty)
  (use ’ring.middleware.stacktrace)
...
Example: Stacktraces
Example: Static Files

  (defn dynamic-app [req]
    (...))
Example: Static Files

  (defn dynamic-app [req]
    (...))

  (use ’ring.middleware.file)
  (use ’ring.middleware.file-in...
Example: Testability
Example: Testability


  (defn my-app [req]
    (...))
Example: Testability


  (defn my-app [req]
    (...))

  (deftest not-found-error
    (let [req {:uri "/bogus/uri"}
     ...
Ring and Web Frameworks
Ring and Web Frameworks



     Foundation, not replacement
Ring and Web Frameworks



     Foundation, not replacement
     Avoid duplication and share code
Ring and Web Frameworks



     Foundation, not replacement
     Avoid duplication and share code
     Compojure, Conjure,...
Ring and Web Frameworks



     Foundation, not replacement
     Avoid duplication and share code
     Compojure, Conjure,...
Ring Middleware
Ring Middleware


     ring.middleware.reload: Automatically
     reload namespaces
Ring Middleware


     ring.middleware.reload: Automatically
     reload namespaces
     ring.middleware.params: Get reque...
Ring Middleware


     ring.middleware.reload: Automatically
     reload namespaces
     ring.middleware.params: Get reque...
Other Components
Other Components


    ring.util.servlet: If you really want a
    Servlet
Other Components


    ring.util.servlet: If you really want a
    Servlet
    ring.adapter.httpcore: Adapter for HTTP
   ...
Other Components


    ring.util.servlet: If you really want a
    Servlet
    ring.adapter.httpcore: Adapter for HTTP
   ...
Other Components


    ring.util.servlet: If you really want a
    Servlet
    ring.adapter.httpcore: Adapter for HTTP
   ...
Future Work
Future Work


     Middleware and utility extraction from
     frameworks
Future Work


     Middleware and utility extraction from
     frameworks
     Not a framework itself
Future Work


     Middleware and utility extraction from
     frameworks
     Not a framework itself
     More use in pro...
Future Work


     Middleware and utility extraction from
     frameworks
     Not a framework itself
     More use in pro...
Learn More



     http://github.com/mmcgrana/ring
     ring/example/*.clj
     ring/SPEC
Upcoming SlideShare
Loading in …5
×

Ring: Web Apps in Idiomatic Clojure

15,860 views

Published on

Published in: Technology, Education
0 Comments
26 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
15,860
On SlideShare
0
From Embeds
0
Number of Embeds
126
Actions
Shares
0
Downloads
182
Comments
0
Likes
26
Embeds 0
No embeds

No notes for slide

Ring: Web Apps in Idiomatic Clojure

  1. 1. Ring Web Apps in Idiomatic Clojure Mark McGranaghan January 23, 2010
  2. 2. About Mark Bowdoin College ’10 Clojure user since 2008 Open source: http://github.com/mmcgrana
  3. 3. Motivation for Ring
  4. 4. Motivation for Ring Abstract HTTP
  5. 5. Motivation for Ring Abstract HTTP Write apps in idiomatic Clojure
  6. 6. Motivation for Ring Abstract HTTP Write apps in idiomatic Clojure Share code across web frameworks
  7. 7. Motivation for Ring Abstract HTTP Write apps in idiomatic Clojure Share code across web frameworks Deploy on a variety of web servers
  8. 8. Motivation for Ring Abstract HTTP Write apps in idiomatic Clojure Share code across web frameworks Deploy on a variety of web servers WSGI & Rack
  9. 9. The Ring Project
  10. 10. The Ring Project Spec
  11. 11. The Ring Project Spec Library
  12. 12. The Ring Project Spec Library Ecosystem
  13. 13. Overview of Ring
  14. 14. Overview of Ring Handlers are functions
  15. 15. Overview of Ring Handlers are functions that take requests as Clojure maps
  16. 16. Overview of Ring Handlers are functions that take requests as Clojure maps and return responses as Clojure map
  17. 17. Overview of Ring Handlers are functions that take requests as Clojure maps and return responses as Clojure map Adapters run handlers on a web server
  18. 18. Overview of Ring Handlers are functions that take requests as Clojure maps and return responses as Clojure map Adapters run handlers on a web server Middleware augments handlers
  19. 19. “Ring”
  20. 20. Request Map {:uri <String> :query-string <String> :request-method <Keyword> :headers <IPersistentMap> :body <InputStream> ... ...}
  21. 21. Response Map {:status <Integer> :headers <IPersistentMap> :body <String, ISeq, File, InputStream>}
  22. 22. Example: Hello World (defn app [req] {:status 200 :headers {"Content-Type" "text/html"} :body (str "Hi from " (:server-name req))})
  23. 23. Example: Hello World (defn app [req] {:status 200 :headers {"Content-Type" "text/html"} :body (str "Hi from " (:server-name req))}) (use ’ring.adapter.jetty) (run-jetty app {:port 8080})
  24. 24. Example: Hello World
  25. 25. Example: Stacktraces (defn app [req] ("o noes"))
  26. 26. Example: Stacktraces (defn app [req] ("o noes")) (use ’ring.adapter.jetty) (use ’ring.middleware.stacktrace) (run-jetty (wrap-stacktrace app) {:port 8080})
  27. 27. Example: Stacktraces
  28. 28. Example: Static Files (defn dynamic-app [req] (...))
  29. 29. Example: Static Files (defn dynamic-app [req] (...)) (use ’ring.middleware.file) (use ’ring.middleware.file-info) (def app (-> dynamic-app (wrap-file "public") (wrap-file-info)))
  30. 30. Example: Testability
  31. 31. Example: Testability (defn my-app [req] (...))
  32. 32. Example: Testability (defn my-app [req] (...)) (deftest not-found-error (let [req {:uri "/bogus/uri"} resp (my-app req)] (is (= 404 (:status resp)))))
  33. 33. Ring and Web Frameworks
  34. 34. Ring and Web Frameworks Foundation, not replacement
  35. 35. Ring and Web Frameworks Foundation, not replacement Avoid duplication and share code
  36. 36. Ring and Web Frameworks Foundation, not replacement Avoid duplication and share code Compojure, Conjure, Weld all targeting Ring
  37. 37. Ring and Web Frameworks Foundation, not replacement Avoid duplication and share code Compojure, Conjure, Weld all targeting Ring Compojure case study
  38. 38. Ring Middleware
  39. 39. Ring Middleware ring.middleware.reload: Automatically reload namespaces
  40. 40. Ring Middleware ring.middleware.reload: Automatically reload namespaces ring.middleware.params: Get request params as a map
  41. 41. Ring Middleware ring.middleware.reload: Automatically reload namespaces ring.middleware.params: Get request params as a map ring.middleware.cookies: Cookie jar abstraction
  42. 42. Other Components
  43. 43. Other Components ring.util.servlet: If you really want a Servlet
  44. 44. Other Components ring.util.servlet: If you really want a Servlet ring.adapter.httpcore: Adapter for HTTP Core library
  45. 45. Other Components ring.util.servlet: If you really want a Servlet ring.adapter.httpcore: Adapter for HTTP Core library ring.handler.dump: See the request map
  46. 46. Other Components ring.util.servlet: If you really want a Servlet ring.adapter.httpcore: Adapter for HTTP Core library ring.handler.dump: See the request map ring.examples.*: Runnable examples
  47. 47. Future Work
  48. 48. Future Work Middleware and utility extraction from frameworks
  49. 49. Future Work Middleware and utility extraction from frameworks Not a framework itself
  50. 50. Future Work Middleware and utility extraction from frameworks Not a framework itself More use in production?
  51. 51. Future Work Middleware and utility extraction from frameworks Not a framework itself More use in production? User needs?
  52. 52. Learn More http://github.com/mmcgrana/ring ring/example/*.clj ring/SPEC

×
