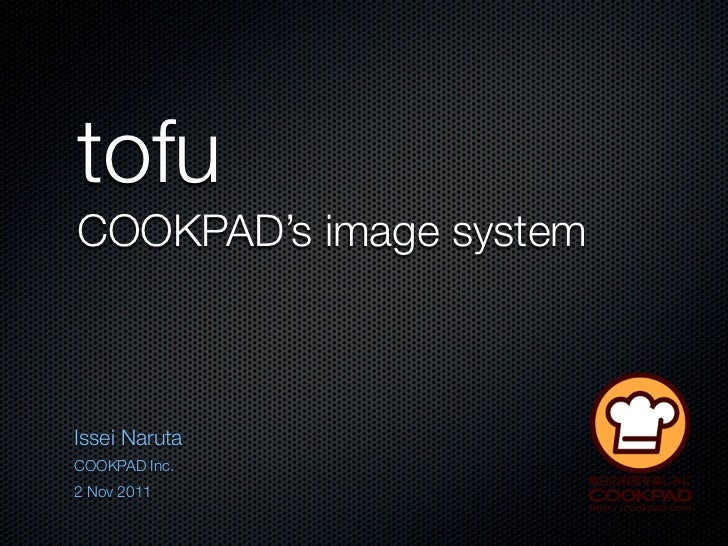

tofuCOOKPAD’s image systemIssei NarutaCOOKPAD Inc.2 Nov 2011
about meIssei Naruta (             )Engineer, COOKPAD Inc.Infrastructure Team  image system / high performance webtwitter:...
cookpad.com900 million PV/monthOver 1 million recipesRails 3AWS(Amazon Web Services)
COOKPAD.has_many(:thumbnails)                    280x280                     144x216original image (1000x1000)
When/How do wegenerate thumbnails?
BEFORE TOFU (a year ago)  User                        Generate thumbnailsuploadsan image                app (rails)     or...
ProblemWe should generate thumbnails ofall existing images as new sizewhen another size thumbnails are needed(We have 7 mi...
AFTER TOFU (now)  User                         Store original imageuploadsan image                 app (rails)     origina...
AFTER TOFU (now)Store original image     Generate thumbnails                            On demand                       to...
tofu architecture             akamai (cdn)                  ELBApache        Apache            Apache(mod_tofu)    (mod_to...
mod_tofu.soC (Apache module)ApacheImageMagick
thumbnail url         category thumbnail sizehttp://hostname/recipes/1/280/0e473ffbce0eb1e28a892fe4086b65b6.jpg           ...
resizing                                    height=free                    width=280 /recipes/1/280/0e473ffbce0eb1e28a892f...
cropping                                  100 x 100                               & center cropping/recipes/1/100x100c/819...
jpeg quality (for mobile)    low        ‘100x100cq10’               ‘100x100cq30’               ‘100x100cq50’             ...
On-demand resizing by urlFastScalable
On-demand resizing by urlFastScalable
Peak traffic             akamai (cdn)                    7000 req/sec                  ELB              800 req/sec        ...
fetch images   from S3  resize byImageMagick
On-demand resizing by urlFastScalable
tofu scalability = AWS scalability                         akamai (cdn)                                                 au...
tofu effect Our prototyping workflow became more fast and flexible Save storage diskspace Maintenance becomes easily
Thank you for your listening
