Interaction Paradigms
Interaction Frameworks




WS 08/09

Sigrun Ritter
Sebastian Weinhold
Innovations
Memex

„ A Memex is a device in which an individual stores
all his books, records and communications and
which is mechaniz...
oNLine system



Human Augmentation
           System
Idea is to enhance and augment human
intelligence


„ It seemed clear to everyone else at the time that
nobody would ever ...
The computer as a communication device
Vision of a heterogenous computer network
means diversity of technologies and platforms




 Early vision of the Internet ?
The ultimate
        display



          New ways

          of interacting

          with computers
A display that would create a realistic environment
in which the user would interact with haptic,
auditory and visual stim...
Innovations
Now that we have
seen some big ideas,
the question arises,
where do innovations
come from?


Let's consider th...
1.   understand current technology
     and the way people use these

2.   then apply that knowledge to the
     design of...
Criterias for analyzing a computational system


     Physical computing environment

     Social computing environment

 ...
safety        efficiency
user space   work space
lightning          noise
              pollution
Criterias for analyzing a computational system


     Physical computing environment

     Social computing environment

 ...
Social environment

                                 affects the way

                                 people use

       ...
Criterias for analyzing a computational system


     Physical computing environment

     Social computing environment

 ...
age
     disabilities
technical knowledge
   degree of focus
  cognitive stress
Interaction Paradigms

A model of HCI including all aspects of interaction.

We can analyze systems by applying the 5W+H :...
Personal computing
One example:



What/How? Main interaction architecture is the
desktop environment; access without cons...
Other paradigms

Large-scale computing

Networked computing

  Mobile computing
New paradigms
Embodied Virtuality

      The 3 ideas


1.   Pervasive computing

2.   Invisible computing

3.   Wearable computing
Virtual Reality

1.   Non-immersive computing

     screen-based, pointer-driven,
     3D graphical representations

     ...
Made with Pov-Ray
Virtual Reality

2.   Immersive computing

     overall goal is the realization
     of the ultimate display

     active ...
shows visual and auditory integration
demonstrates visual and haptic integration (University of Paderborn)
Interaction
Frameworks
The Structure of an Action   (Norman)




             execution
   goal                  evaluation




Evaluation
Interaction Framework     (Abowd, Beale)



                   Output
    presentation               observation




Syste...
Gulf of Execution/Evaluation




System                Our goals
Semantic Distance
distance between the available functionality of the
system and the functionality required to complete a
...
Mental Model

1.   cognitive representation of how something
     is constructed and how it functions

2. derived from int...
Mapping
describes how we make connections
between things
Take Home Message


A natural mapping extremely increases usability of an
interface, therefore use it whenever it is possi...
The ultimative user experience:

Interaction Styles
Command Line
Menu-Based Interface
Form Fill-In
Question and Answer
Metaphors
Direct Manipulation: GUI
Into the next dimension:

3D-Environments
http://farm4.static.flickr.com/3249/2600392875_56e4af66a4.jpg?v=0
Zoomable Interfaces




          3D-Space Visual File System for Mac OS X
Google Earth
Natural Language




  I haven't listened to The Coral
  for a long time.
Connecting the web with language
Discussion

The interaction style that is dominant today with regard to personal
computing is the two-dimensional GUI. Can...
Interaction Paradigms
Interaction Paradigms
Upcoming SlideShare
Loading in …5
×

Interaction Paradigms

17,438 views

Published on

Introduction to interaction paradigms in computational devices.

Presentation by Sigrun Ritter, Sebastian Weinhold

Published in: Design

Interaction Paradigms

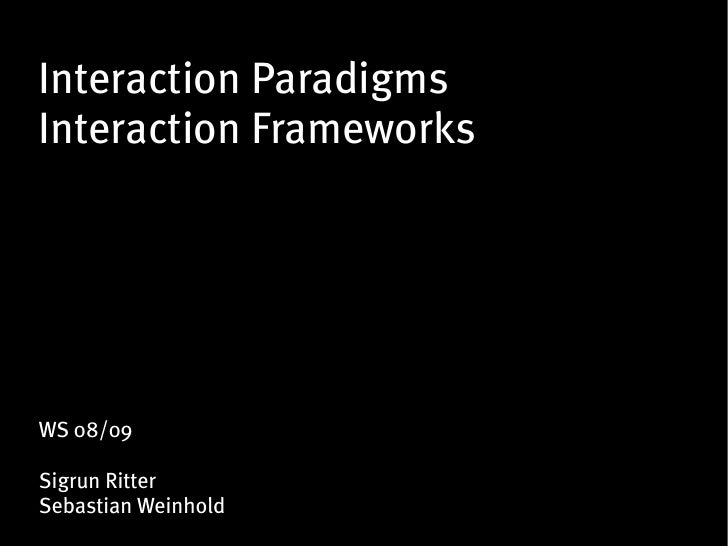

  1. 1. Interaction Paradigms Interaction Frameworks WS 08/09 Sigrun Ritter Sebastian Weinhold
