It is hard to compute fixity on archived web pages

  1. 1. It is hard to compute fixity on archived web pages Mohamed Aturban, Michael L. Nelson, Michele C. Weigle Web Science and Digital Libraries Research Group Old Dominion University, Norfolk, VA, 23529 Old Dominion University WADL 2018, June 6, 2018, Fort Worth, TX, USA Supported in part by The Andrew W. Mellon Foundation (AMF) grant 11600663 WADL 2018, 2018-06-06 @maturban1

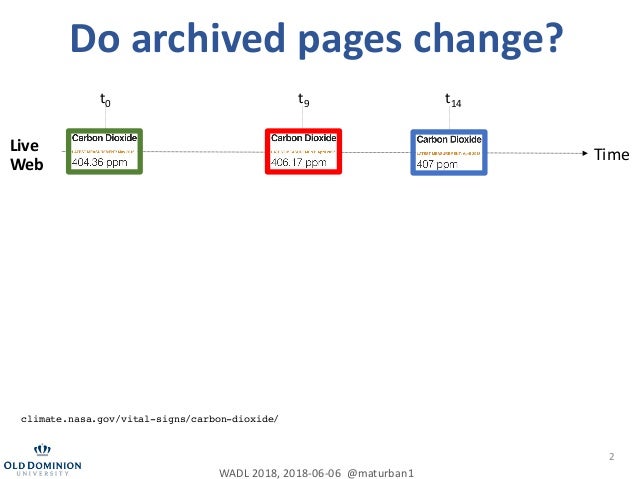

  2. 2. 2 Do archived pages change? Time climate.nasa.gov/vital-signs/carbon-dioxide/ Live Web t0 t9 t14 WADL 2018, 2018-06-06 @maturban1

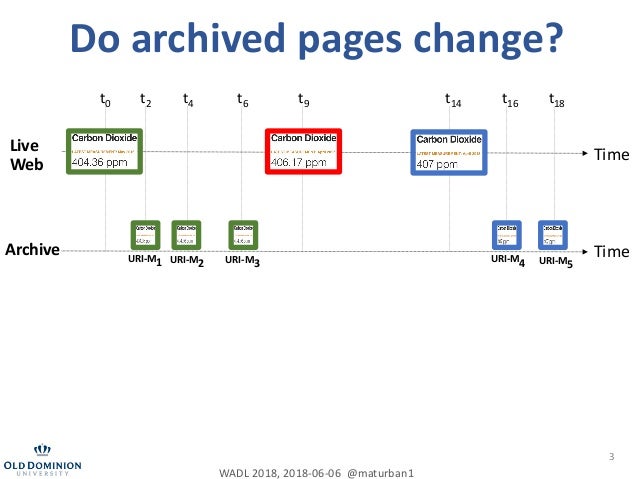

  3. 3. 3 Do archived pages change? TimeLive Web TimeArchive URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 t0 t2 t4 t6 t9 t14 t16 t18 WADL 2018, 2018-06-06 @maturban1

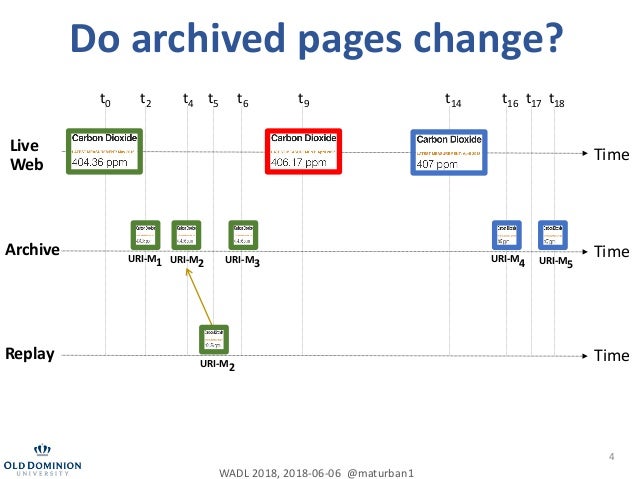

  4. 4. 4 Do archived pages change? TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 WADL 2018, 2018-06-06 @maturban1

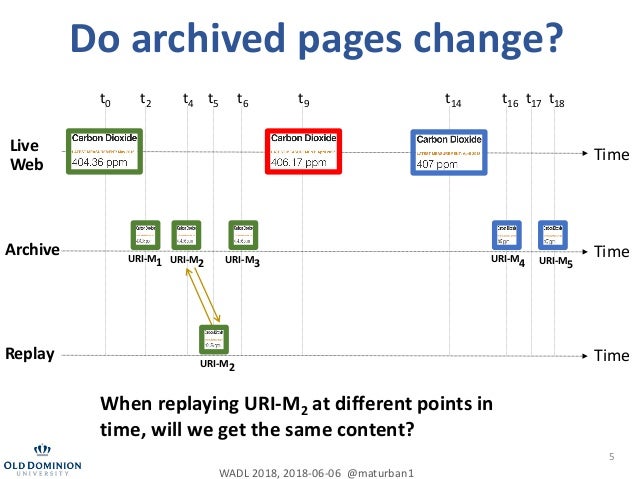

  5. 5. 5 Do archived pages change? TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 WADL 2018, 2018-06-06 @maturban1 When replaying URI-M2 at different points in time, will we get the same content?

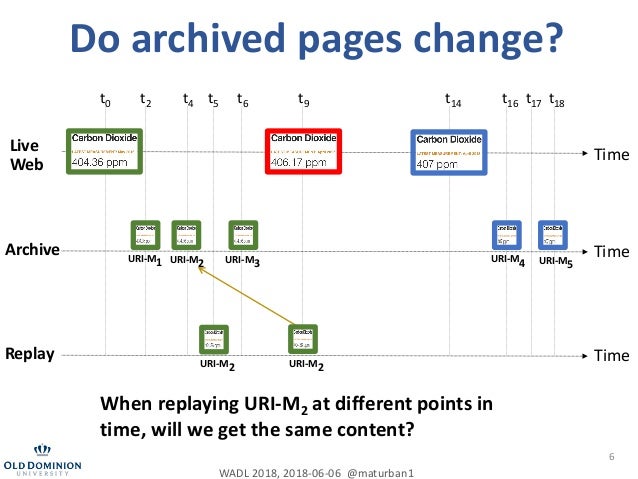

  6. 6. 6 Do archived pages change? TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 WADL 2018, 2018-06-06 @maturban1 When replaying URI-M2 at different points in time, will we get the same content?
  7. 7. 7 Do archived pages change? TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 WADL 2018, 2018-06-06 @maturban1 When replaying URI-M2 at different points in time, will we get the same content?

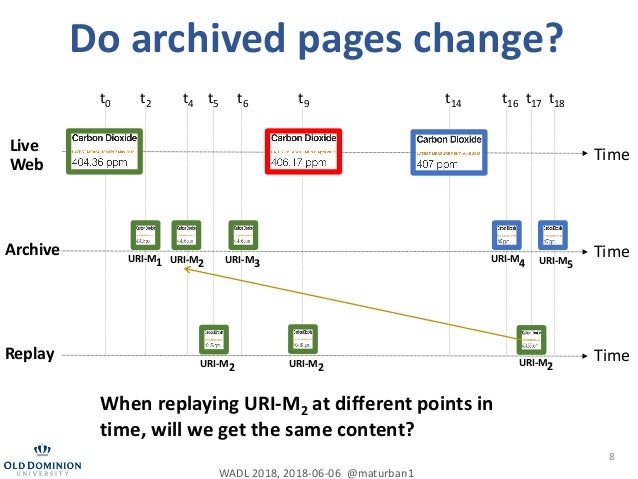

  8. 8. 8 Do archived pages change? TimeLive Web TimeArchive Replay Time When replaying URI-M2 at different points in time, will we get the same content? URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 WADL 2018, 2018-06-06 @maturban1

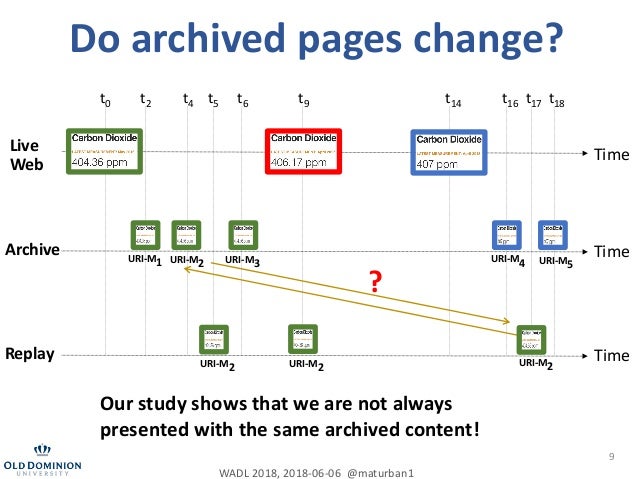

  9. 9. 9 Do archived pages change? TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 WADL 2018, 2018-06-06 @maturban1 Our study shows that we are not always presented with the same archived content! ?

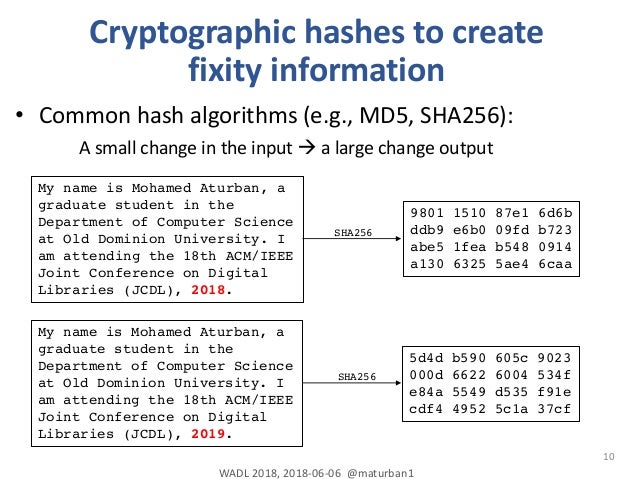

  10. 10. 10 Cryptographic hashes to create fixity information • Common hash algorithms (e.g., MD5, SHA256): A small change in the input à a large change output My name is Mohamed Aturban, a graduate student in the Department of Computer Science at Old Dominion University. I am attending the 18th ACM/IEEE Joint Conference on Digital Libraries (JCDL), 2018. SHA256 9801 1510 87e1 6d6b ddb9 e6b0 09fd b723 abe5 1fea b548 0914 a130 6325 5ae4 6caa My name is Mohamed Aturban, a graduate student in the Department of Computer Science at Old Dominion University. I am attending the 18th ACM/IEEE Joint Conference on Digital Libraries (JCDL), 2019. SHA256 5d4d b590 605c 9023 000d 6622 6004 534f e84a 5549 d535 f91e cdf4 4952 5c1a 37cf WADL 2018, 2018-06-06 @maturban1

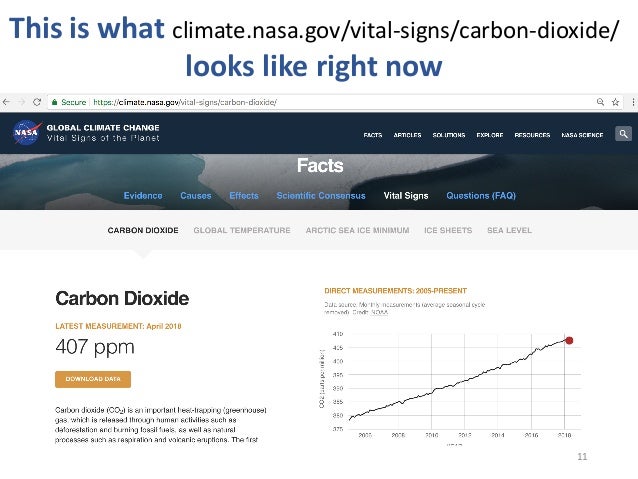

  11. 11. 11 This is what climate.nasa.gov/vital-signs/carbon-dioxide/ looks like right now

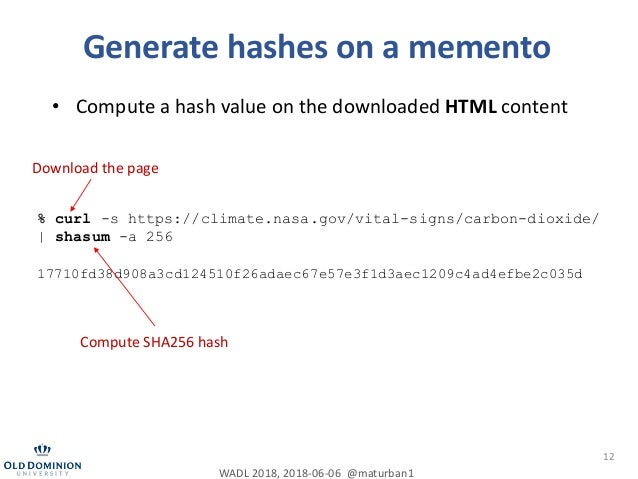

  12. 12. 12 Generate hashes on a memento • Compute a hash value on the downloaded HTML content % curl -s https://climate.nasa.gov/vital-signs/carbon-dioxide/ | shasum -a 256 17710fd38d908a3cd124510f26adaec67e57e3f1d3aec1209c4ad4efbe2c035d Compute SHA256 hash Download the page WADL 2018, 2018-06-06 @maturban1

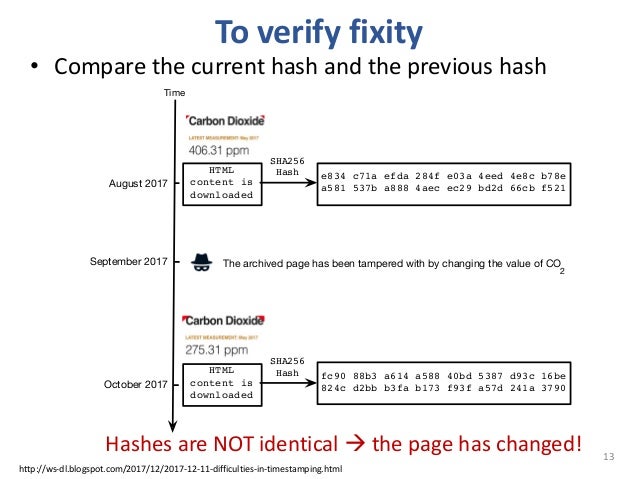

  13. 13. Time HTML content is downloaded e834 c71a efda 284f e03a 4eed 4e8c b78e a581 537b a888 4aec ec29 bd2d 66cb f521 SHA256 Hash HTML content is downloaded fc90 88b3 a614 a588 40bd 5387 d93c 16be 824c d2bb b3fa b173 f93f a57d 241a 3790 SHA256 Hash August 2017 October 2017 The archived page has been tampered with by changing the value of COSeptember 2017 2 13 • Compare the current hash and the previous hash To verify fixity Hashes are NOT identical à the page has changed! http://ws-dl.blogspot.com/2017/12/2017-12-11-difficulties-in-timestamping.html

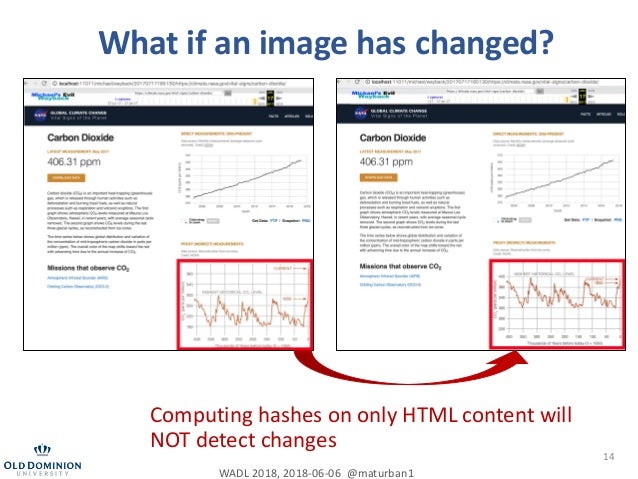

  14. 14. 14 What if an image has changed? Computing hashes on only HTML content will NOT detect changes WADL 2018, 2018-06-06 @maturban1

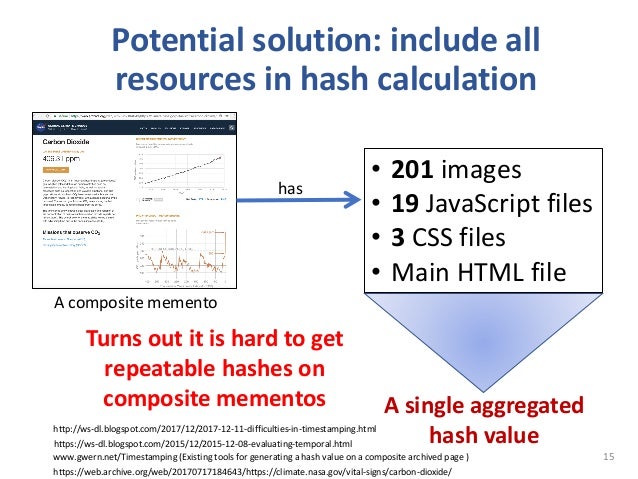

  15. 15. 15 Potential solution: include all resources in hash calculation https://web.archive.org/web/20170717184643/https://climate.nasa.gov/vital-signs/carbon-dioxide/ • 201 images • 19 JavaScript files • 3 CSS files • Main HTML file A single aggregated hash value www.gwern.net/Timestamping (Existing tools for generating a hash value on a composite archived page ) has A composite memento https://ws-dl.blogspot.com/2015/12/2015-12-08-evaluating-temporal.html http://ws-dl.blogspot.com/2017/12/2017-12-11-difficulties-in-timestamping.html Turns out it is hard to get repeatable hashes on composite mementos

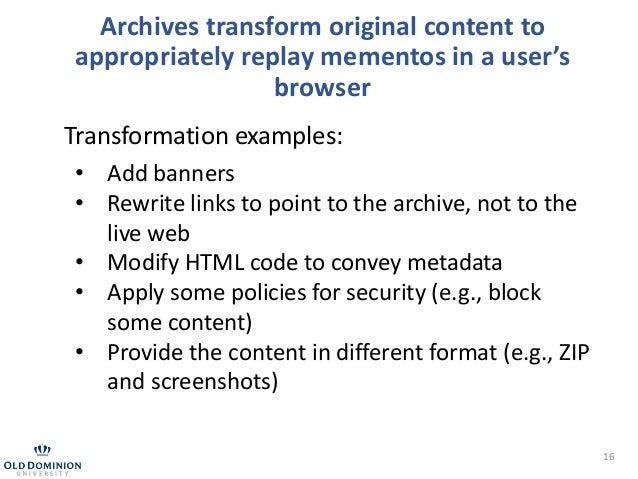

  16. 16. 16 Archives transform original content to appropriately replay mementos in a user’s browser • Add banners • Rewrite links to point to the archive, not to the live web • Modify HTML code to convey metadata • Apply some policies for security (e.g., block some content) • Provide the content in different format (e.g., ZIP and screenshots) Transformation examples:

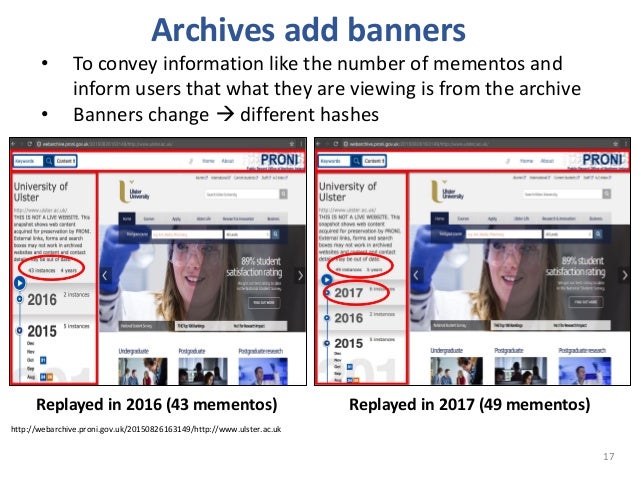

  17. 17. 17 Archives add banners • To convey information like the number of mementos and inform users that what they are viewing is from the archive • Banners change à different hashes Replayed in 2016 (43 mementos) Replayed in 2017 (49 mementos) http://webarchive.proni.gov.uk/20150826163149/http://www.ulster.ac.uk

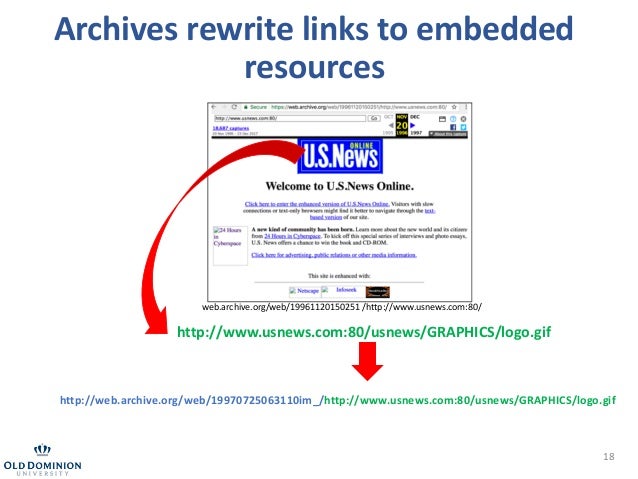

  18. 18. 18 Archives rewrite links to embedded resources web.archive.org/web/19961120150251 /http://www.usnews.com:80/ http://web.archive.org/web/19970725063110im_/http://www.usnews.com:80/usnews/GRAPHICS/logo.gif http://www.usnews.com:80/usnews/GRAPHICS/logo.gif

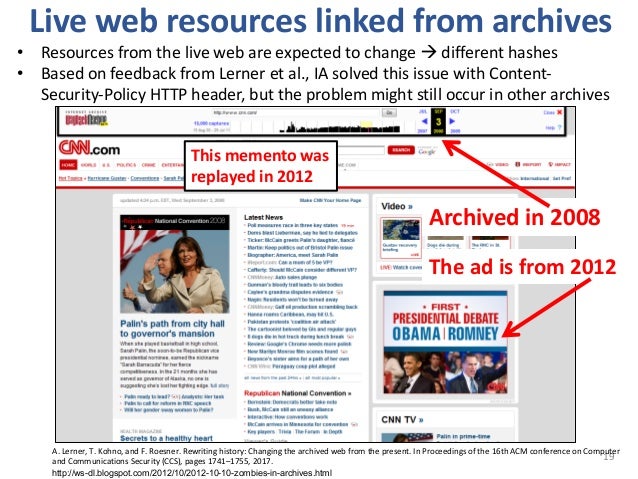

  19. 19. 19 Live web resources linked from archives • Resources from the live web are expected to change à different hashes • Based on feedback from Lerner et al., IA solved this issue with Content- Security-Policy HTTP header, but the problem might still occur in other archives http://ws-dl.blogspot.com/2012/10/2012-10-10-zombies-in-archives.html Archived in 2008 The ad is from 2012 This memento was replayed in 2012 A. Lerner, T. Kohno, and F. Roesner. Rewriting history: Changing the archived web from the present. In Proceedings of the 16th ACM conference on Computer and Communications Security (CCS), pages 1741–1755, 2017.

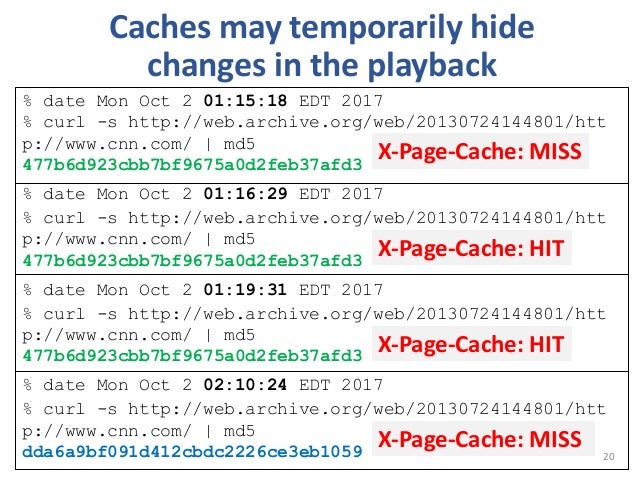

  20. 20. 20 Caches may temporarily hide changes in the playback % date Mon Oct 2 01:15:18 EDT 2017 % curl -s http://web.archive.org/web/20130724144801/htt p://www.cnn.com/ | md5 477b6d923cbb7bf9675a0d2feb37afd3 % date Mon Oct 2 01:16:29 EDT 2017 % curl -s http://web.archive.org/web/20130724144801/htt p://www.cnn.com/ | md5 477b6d923cbb7bf9675a0d2feb37afd3 % date Mon Oct 2 01:19:31 EDT 2017 % curl -s http://web.archive.org/web/20130724144801/htt p://www.cnn.com/ | md5 477b6d923cbb7bf9675a0d2feb37afd3 % date Mon Oct 2 02:10:24 EDT 2017 % curl -s http://web.archive.org/web/20130724144801/htt p://www.cnn.com/ | md5 dda6a9bf091d412cbdc2226ce3eb1059 X-Page-Cache: MISS X-Page-Cache: HIT X-Page-Cache: MISS X-Page-Cache: HIT
  21. 21. 21 Dynamic content by JS à different hashes WADL 2018, 2018-06-06 @maturban1

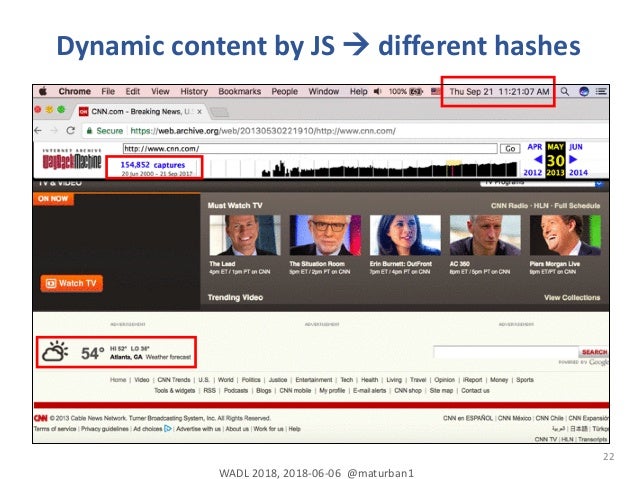

  22. 22. 22 Dynamic content by JS à different hashes WADL 2018, 2018-06-06 @maturban1

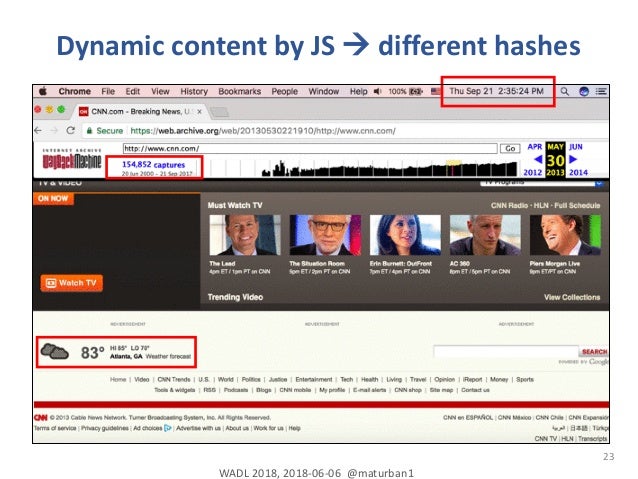

  23. 23. 23 Dynamic content by JS à different hashes WADL 2018, 2018-06-06 @maturban1

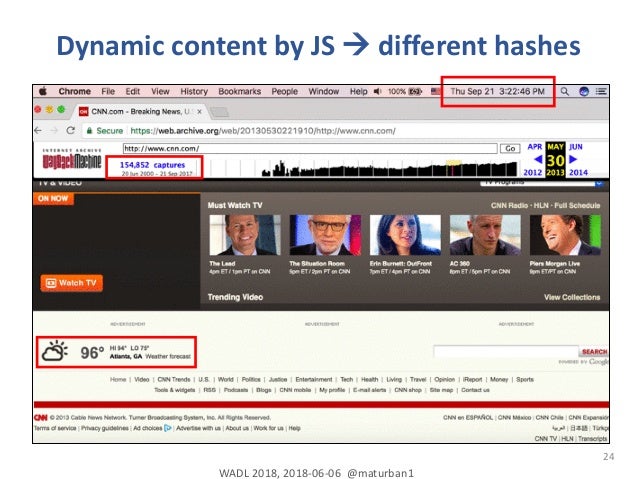

  24. 24. 24 Dynamic content by JS à different hashes WADL 2018, 2018-06-06 @maturban1

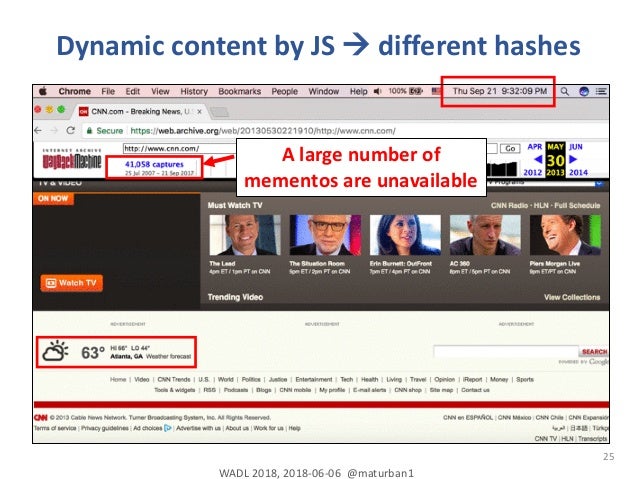

  25. 25. 25 Dynamic content by JS à different hashes A large number of mementos are unavailable WADL 2018, 2018-06-06 @maturban1

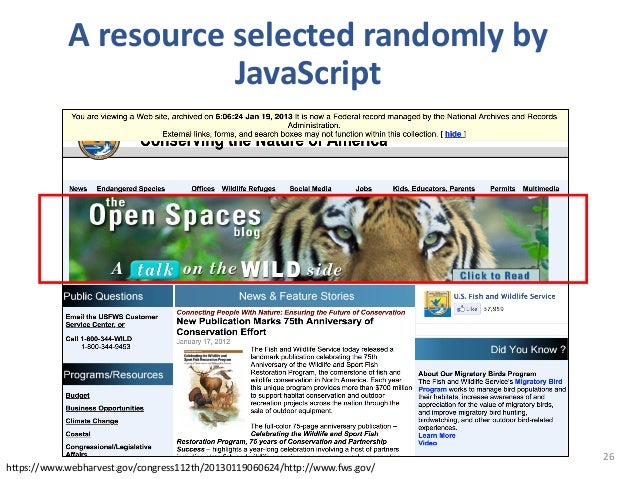

  26. 26. 26 A resource selected randomly by JavaScript https://www.webharvest.gov/congress112th/20130119060624/http://www.fws.gov/

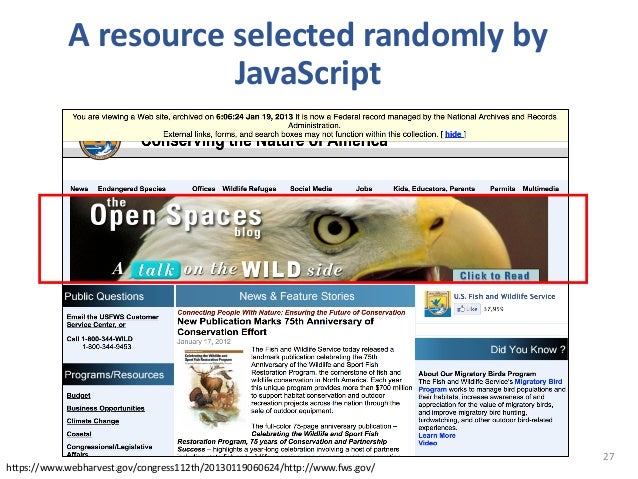

  27. 27. 27 https://www.webharvest.gov/congress112th/20130119060624/http://www.fws.gov/ A resource selected randomly by JavaScript

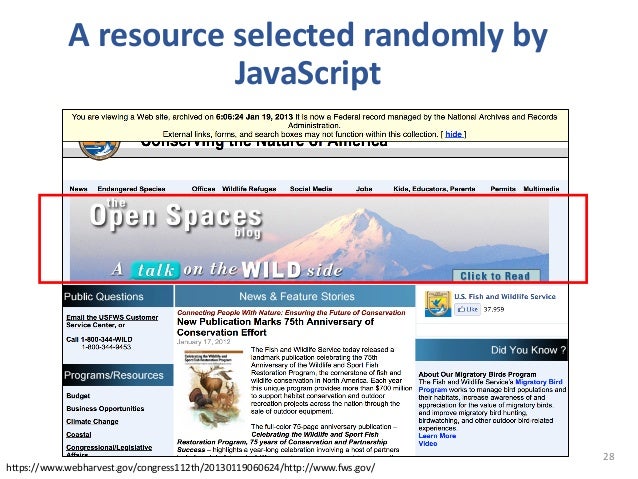

  28. 28. 28 https://www.webharvest.gov/congress112th/20130119060624/http://www.fws.gov/ A resource selected randomly by JavaScript

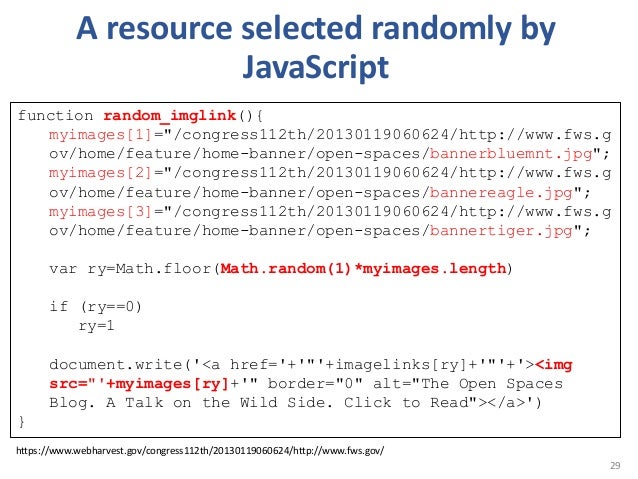

  29. 29. 29 https://www.webharvest.gov/congress112th/20130119060624/http://www.fws.gov/ A resource selected randomly by JavaScript function random_imglink(){ myimages[1]="/congress112th/20130119060624/http://www.fws.g ov/home/feature/home-banner/open-spaces/bannerbluemnt.jpg"; myimages[2]="/congress112th/20130119060624/http://www.fws.g ov/home/feature/home-banner/open-spaces/bannereagle.jpg"; myimages[3]="/congress112th/20130119060624/http://www.fws.g ov/home/feature/home-banner/open-spaces/bannertiger.jpg"; var ry=Math.floor(Math.random(1)*myimages.length) if (ry==0) ry=1 document.write('<a href='+'"'+imagelinks[ry]+'"'+'><img src="'+myimages[ry]+'" border="0" alt="The Open Spaces Blog. A Talk on the Wild Side. Click to Read"></a>') }

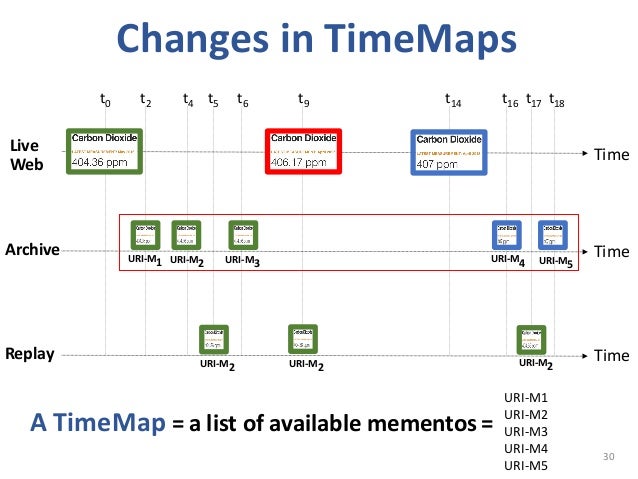

  30. 30. 30 Changes in TimeMaps TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 A TimeMap = a list of available mementos = URI-M1 URI-M2 URI-M3 URI-M4 URI-M5

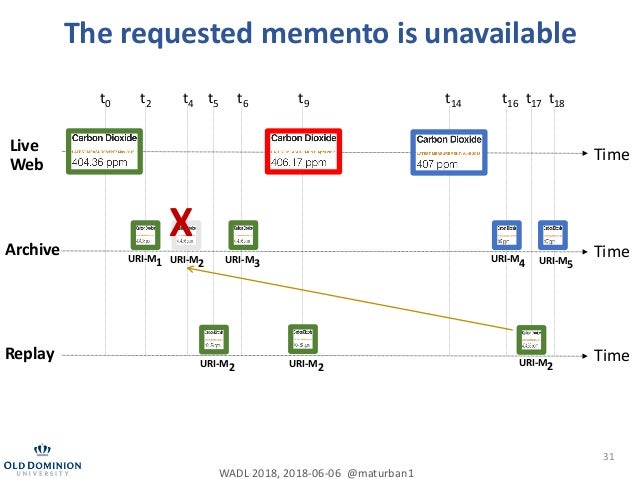

  31. 31. 31 The requested memento is unavailable TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 X WADL 2018, 2018-06-06 @maturban1

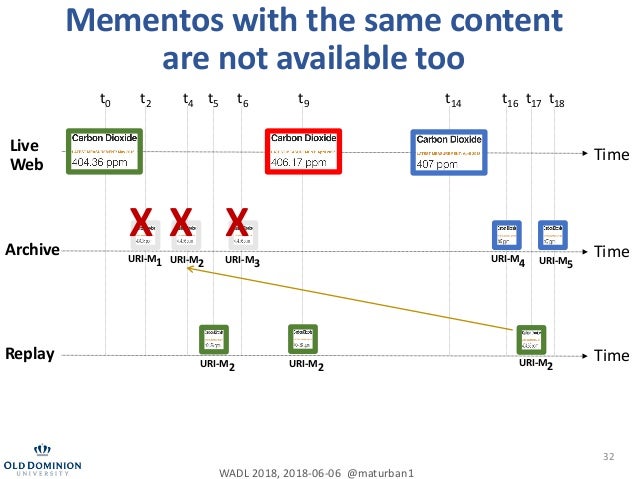

  32. 32. 32 Mementos with the same content are not available too TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 XX X WADL 2018, 2018-06-06 @maturban1

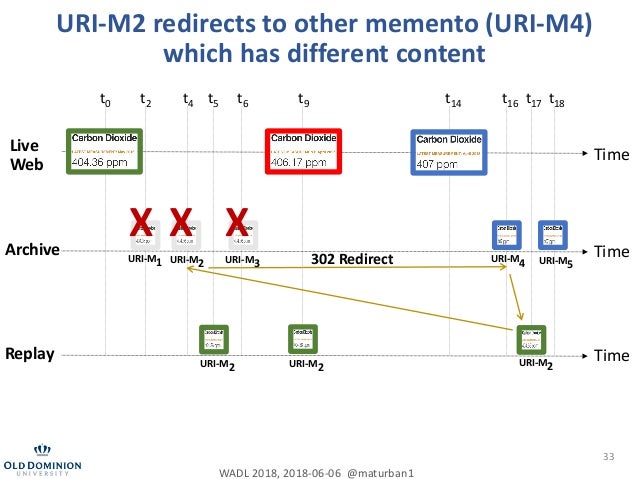

  33. 33. 33 URI-M2 redirects to other memento (URI-M4) which has different content TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 XX X WADL 2018, 2018-06-06 @maturban1 302 Redirect

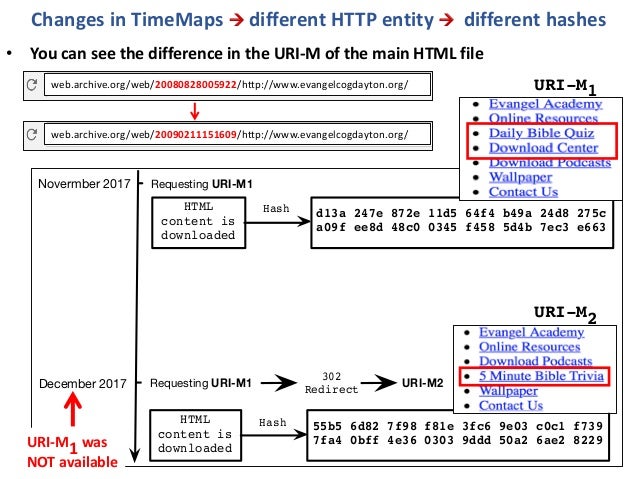

  34. 34. HTML content is downloaded d13a 247e 872e 11d5 64f4 b49a 24d8 275c a09f ee8d 48c0 0345 f458 5d4b 7ec3 e663 Hash HTML content is downloaded 55b5 6d82 7f98 f81e 3fc6 9e03 c0c1 f739 7fa4 0bff 4e36 0303 9ddd 50a2 6ae2 8229 Hash Novermber 2017 December 2017 302 Redirect Requesting URI-M1 Requesting URI-M1 URI-M2 Changes in TimeMaps à different HTTP entity à different hashes URI-M1 was NOT available URI-M1 URI-M2 • You can see the difference in the URI-M of the main HTML file web.archive.org/web/20080828005922/http://www.evangelcogdayton.org/ web.archive.org/web/20090211151609/http://www.evangelcogdayton.org/

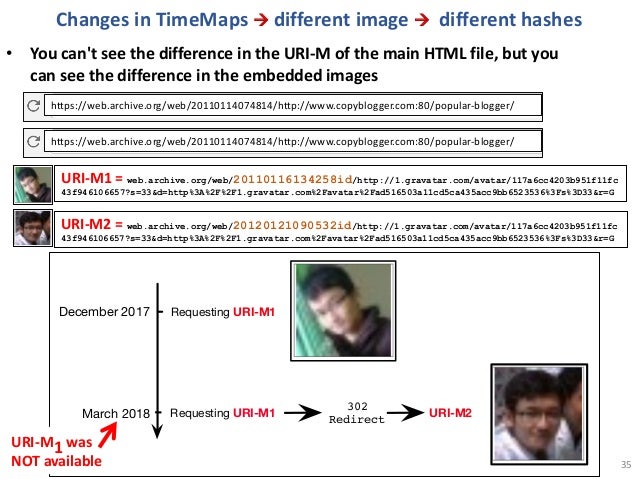

  35. 35. December 2017 March 2018 302 Redirect Requesting URI-M1 Requesting URI-M1 URI-M2 35 URI-M1 was NOT available URI-M1 = web.archive.org/web/20110116134258id/http://1.gravatar.com/avatar/117a6cc4203b951f11fc 43f946106657?s=33&d=http%3A%2F%2F1.gravatar.com%2Favatar%2Fad516503a11cd5ca435acc9bb6523536%3Fs%3D33&r=G URI-M2 = web.archive.org/web/20120121090532id/http://1.gravatar.com/avatar/117a6cc4203b951f11fc 43f946106657?s=33&d=http%3A%2F%2F1.gravatar.com%2Favatar%2Fad516503a11cd5ca435acc9bb6523536%3Fs%3D33&r=G Changes in TimeMaps à different image à different hashes • You can't see the difference in the URI-M of the main HTML file, but you can see the difference in the embedded images https://web.archive.org/web/20110114074814/http://www.copyblogger.com:80/popular-blogger/ https://web.archive.org/web/20110114074814/http://www.copyblogger.com:80/popular-blogger/

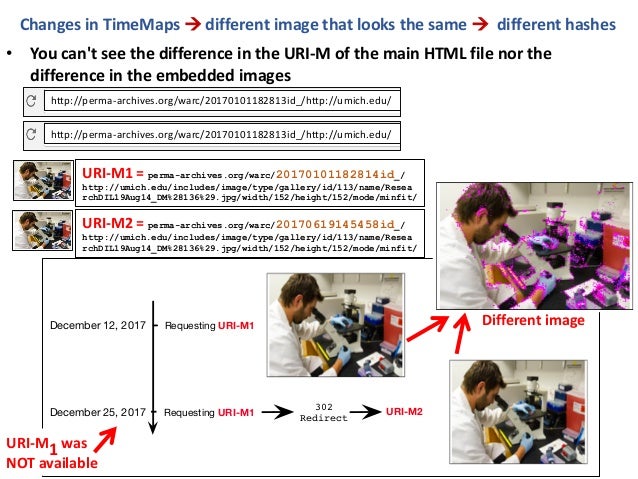

  36. 36. December 12, 2017 302 Redirect Requesting URI-M1 Requesting URI-M1 URI-M2December 25, 2017 URI-M1 = perma-archives.org/warc/20170101182814id_/ http://umich.edu/includes/image/type/gallery/id/113/name/Resea rchDIL19Aug14_DM%28136%29.jpg/width/152/height/152/mode/minfit/ URI-M2 = perma-archives.org/warc/20170619145458id_/ http://umich.edu/includes/image/type/gallery/id/113/name/Resea rchDIL19Aug14_DM%28136%29.jpg/width/152/height/152/mode/minfit/ URI-M1 was NOT available Different image Changes in TimeMaps à different image that looks the same à different hashes • You can't see the difference in the URI-M of the main HTML file nor the difference in the embedded images http://perma-archives.org/warc/20170101182813id_/http://umich.edu/ http://perma-archives.org/warc/20170101182813id_/http://umich.edu/
  37. 37. 37 Transient error • Incomplete HTTP entity http://webarchive.nationalarchives.gov.uk/20170303010736id_/https://cereals.ahdb.org.uk/media/1157842/corporate-strategy-1.jpg Download the image on December 7, 2017 WARC/1.0 WARC-Type: response WARC-Target-URI: http://webarchive.nationalarchive s.gov.uk/20170303010736id_/https: //cereals.ahdb.org.uk/media/11578 42/corporate-strategy-1.jpg WARC-Date: 2017-12-07T10:04:18Z … Content-Length: 459640 HTTP/1.0 200 Content-Type: image/jpeg Content-Length: 642336 Date: Thu, 07 Dec 2017 10:04:18 GMT … The first Content-length should be bigger than the second one WADL 2018, 2018-06-06 @maturban1

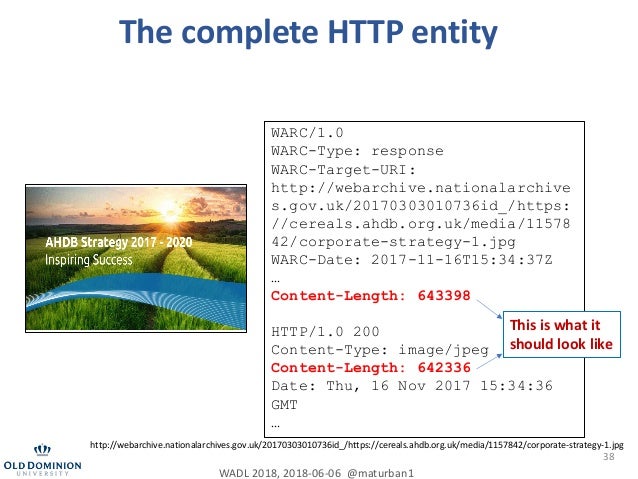

  38. 38. 38 The complete HTTP entity http://webarchive.nationalarchives.gov.uk/20170303010736id_/https://cereals.ahdb.org.uk/media/1157842/corporate-strategy-1.jpg WARC/1.0 WARC-Type: response WARC-Target-URI: http://webarchive.nationalarchive s.gov.uk/20170303010736id_/https: //cereals.ahdb.org.uk/media/11578 42/corporate-strategy-1.jpg WARC-Date: 2017-11-16T15:34:37Z … Content-Length: 643398 HTTP/1.0 200 Content-Type: image/jpeg Content-Length: 642336 Date: Thu, 16 Nov 2017 15:34:36 GMT … This is what it should look like WADL 2018, 2018-06-06 @maturban1

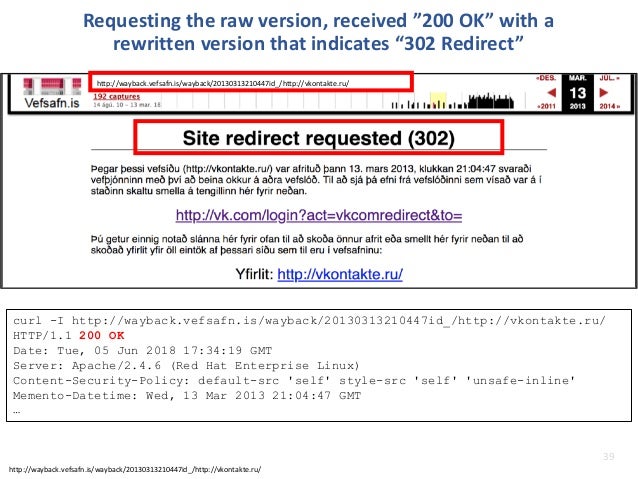

  39. 39. 39 http://wayback.vefsafn.is/wayback/20130313210447id_/http://vkontakte.ru/ Requesting the raw version, received ”200 OK” with a rewritten version that indicates “302 Redirect” curl -I http://wayback.vefsafn.is/wayback/20130313210447id_/http://vkontakte.ru/ HTTP/1.1 200 OK Date: Tue, 05 Jun 2018 17:34:19 GMT Server: Apache/2.4.6 (Red Hat Enterprise Linux) Content-Security-Policy: default-src 'self' style-src 'self' 'unsafe-inline' Memento-Datetime: Wed, 13 Mar 2013 21:04:47 GMT … http://wayback.vefsafn.is/wayback/20130313210447id_/http://vkontakte.ru/

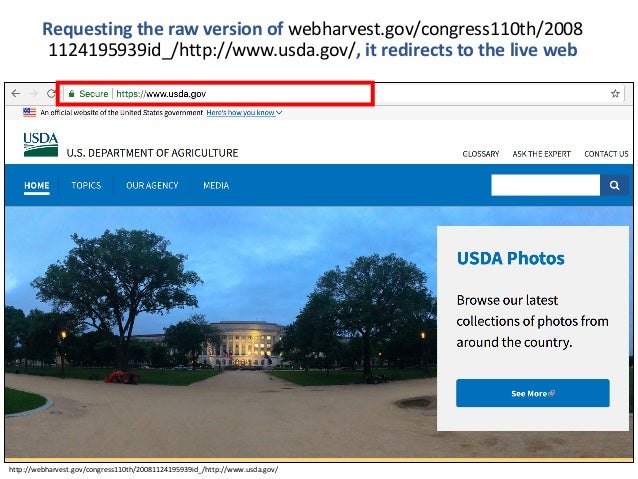

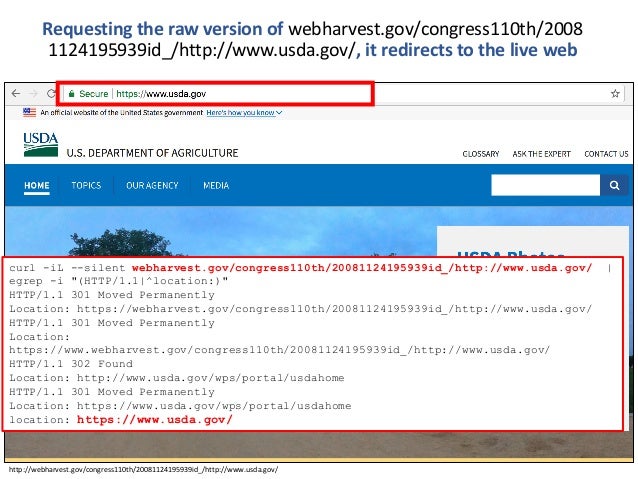

  40. 40. 40 http://webharvest.gov/congress110th/20081124195939id_/http://www.usda.gov/ Requesting the raw version of webharvest.gov/congress110th/2008 1124195939id_/http://www.usda.gov/, it redirects to the live web
  41. 41. 41 http://webharvest.gov/congress110th/20081124195939id_/http://www.usda.gov/ Requesting the raw version of webharvest.gov/congress110th/2008 1124195939id_/http://www.usda.gov/, it redirects to the live web curl -iL --silent webharvest.gov/congress110th/20081124195939id_/http://www.usda.gov/ | egrep -i "(HTTP/1.1|^location:)" HTTP/1.1 301 Moved Permanently Location: https://webharvest.gov/congress110th/20081124195939id_/http://www.usda.gov/ HTTP/1.1 301 Moved Permanently Location: https://www.webharvest.gov/congress110th/20081124195939id_/http://www.usda.gov/ HTTP/1.1 302 Found Location: http://www.usda.gov/wps/portal/usdahome HTTP/1.1 301 Moved Permanently Location: https://www.usda.gov/wps/portal/usdahome location: https://www.usda.gov/

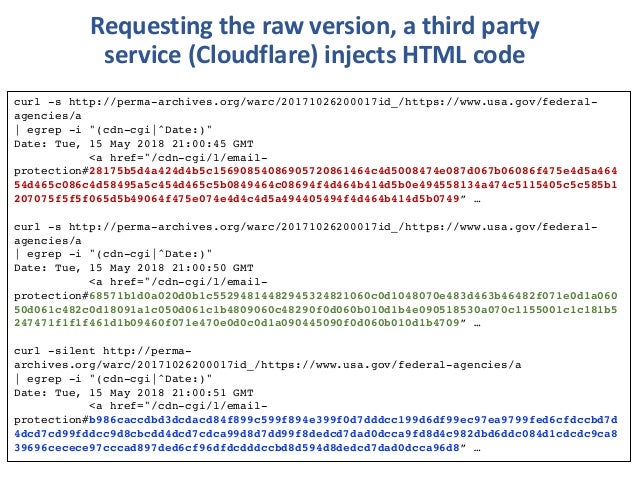

  42. 42. Requesting the raw version, a third party service (Cloudflare) injects HTML code curl -s http://perma-archives.org/warc/20171026200017id_/https://www.usa.gov/federal- agencies/a | egrep -i "(cdn-cgi|^Date:)" Date: Tue, 15 May 2018 21:00:45 GMT <a href="/cdn-cgi/l/email- protection#28175b5d4a424d4b5c15690854086905720861464c4d5008474e087d067b06086f475e4d5a464 54d465c086c4d58495a5c454d465c5b0849464c08694f4d464b414d5b0e494558134a474c5115405c5c585b1 207075f5f5f065d5b49064f475e074e4d4c4d5a494405494f4d464b414d5b0749” … curl -s http://perma-archives.org/warc/20171026200017id_/https://www.usa.gov/federal- agencies/a | egrep -i "(cdn-cgi|^Date:)" Date: Tue, 15 May 2018 21:00:50 GMT <a href="/cdn-cgi/l/email- protection#68571b1d0a020d0b1c55294814482945324821060c0d1048070e483d463b46482f071e0d1a060 50d061c482c0d18091a1c050d061c1b4809060c48290f0d060b010d1b4e090518530a070c1155001c1c181b5 247471f1f1f461d1b09460f071e470e0d0c0d1a090445090f0d060b010d1b4709” … curl -silent http://perma- archives.org/warc/20171026200017id_/https://www.usa.gov/federal-agencies/a | egrep -i "(cdn-cgi|^Date:)" Date: Tue, 15 May 2018 21:00:51 GMT <a href="/cdn-cgi/l/email- protection#b986caccdbd3dcdacd84f899c599f894e399f0d7dddcc199d6df99ec97ea9799fed6cfdccbd7d 4dcd7cd99fddcc9d8cbcdd4dcd7cdca99d8d7dd99f8dedcd7dad0dcca9fd8d4c982dbd6ddc084d1cdcdc9ca8 39696cecece97cccad897ded6cf96dfdcdddccbd8d594d8dedcd7dad0dcca96d8” …

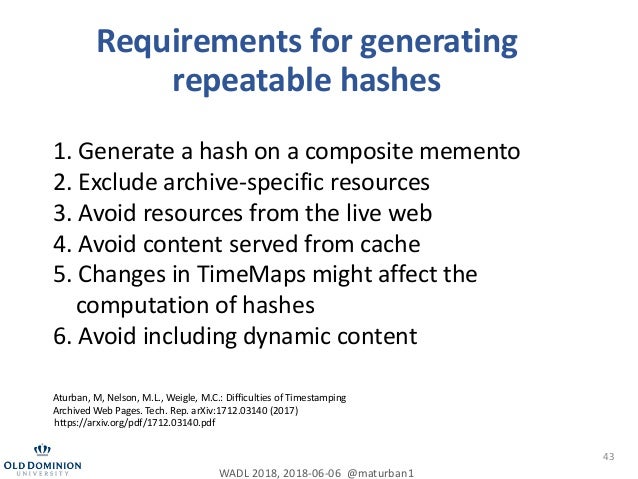

  43. 43. 43 Requirements for generating repeatable hashes 1. Generate a hash on a composite memento 2. Exclude archive-specific resources 3. Avoid resources from the live web 4. Avoid content served from cache 5. Changes in TimeMaps might affect the computation of hashes 6. Avoid including dynamic content https://arxiv.org/pdf/1712.03140.pdf WADL 2018, 2018-06-06 @maturban1 Aturban, M, Nelson, M.L., Weigle, M.C.: Difficulties of Timestamping Archived Web Pages. Tech. Rep. arXiv:1712.03140 (2017)
  44. 44. 44 Our study indicates that 28% of mementos produce different hashes • 17,074 archived page • From 17 public web archives • Downloaded 20 times • Between November 16, 2017 and March 27, 2018 WADL 2018, 2018-06-06 @maturban1 Preliminary work

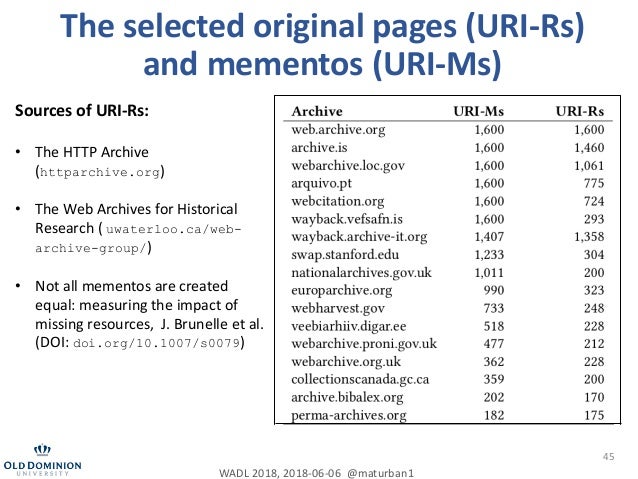

  45. 45. 45 The selected original pages (URI-Rs) and mementos (URI-Ms) Sources of URI-Rs: • The HTTP Archive (httparchive.org) • The Web Archives for Historical Research ( uwaterloo.ca/web- archive-group/) • Not all mementos are created equal: measuring the impact of missing resources, J. Brunelle et al. (DOI: doi.org/10.1007/s0079) WADL 2018, 2018-06-06 @maturban1

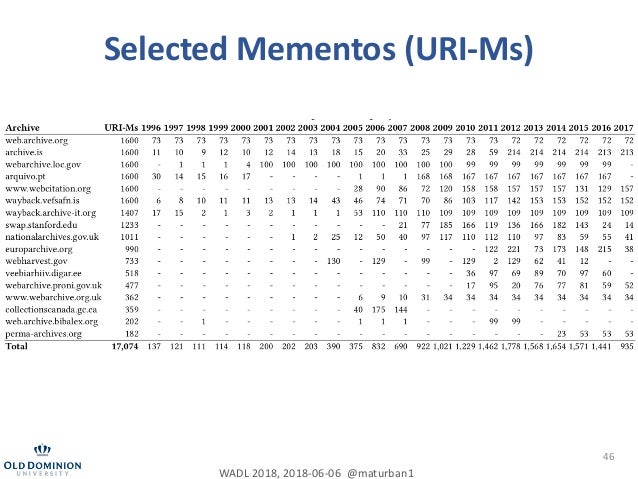

  46. 46. 46 Selected Mementos (URI-Ms) WADL 2018, 2018-06-06 @maturban1

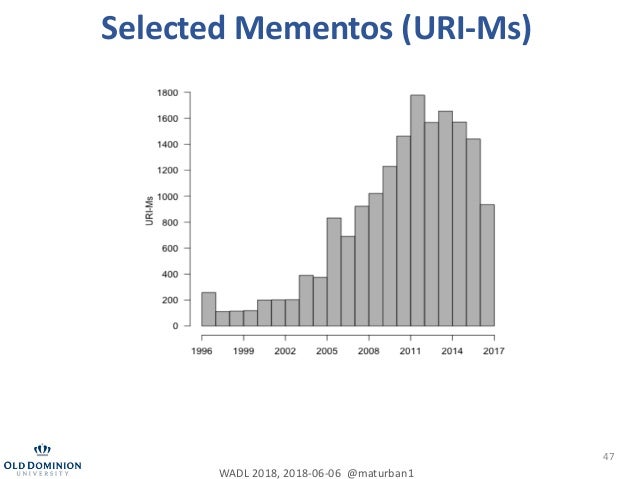

  47. 47. 47 Selected Mementos (URI-Ms) WADL 2018, 2018-06-06 @maturban1

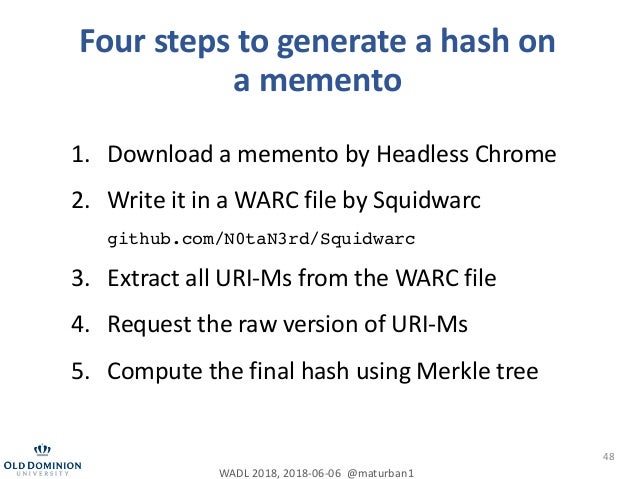

  48. 48. 48 Four steps to generate a hash on a memento 1. Download a memento by Headless Chrome 2. Write it in a WARC file by Squidwarc github.com/N0taN3rd/Squidwarc 3. Extract all URI-Ms from the WARC file 4. Request the raw version of URI-Ms 5. Compute the final hash using Merkle tree WADL 2018, 2018-06-06 @maturban1

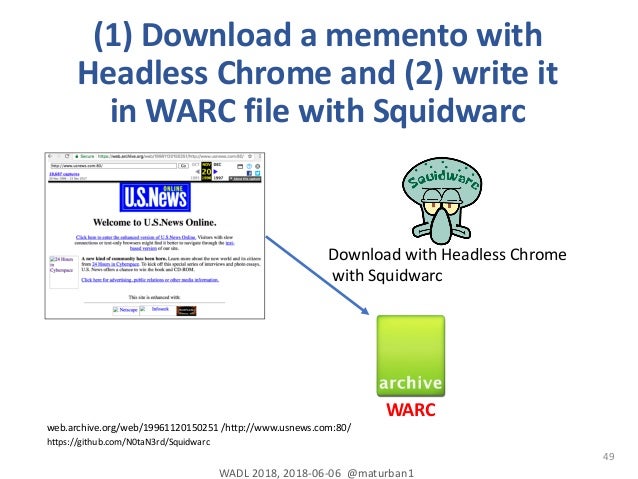

  49. 49. 49 (1) Download a memento with Headless Chrome and (2) write it in WARC file with Squidwarc https://github.com/N0taN3rd/Squidwarc web.archive.org/web/19961120150251 /http://www.usnews.com:80/ Download with Headless Chrome with Squidwarc WARC WADL 2018, 2018-06-06 @maturban1

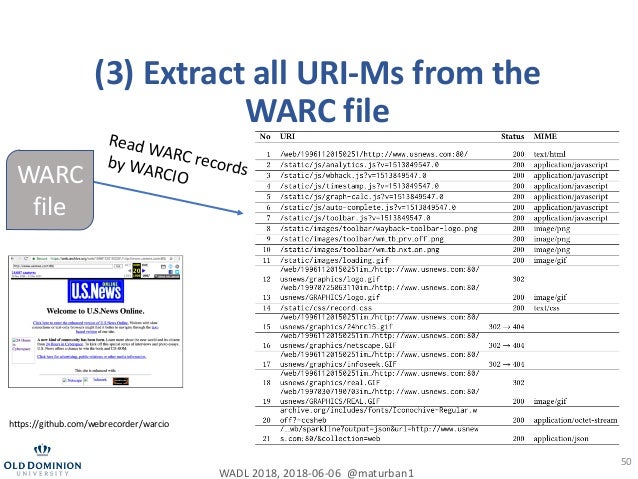

  50. 50. 50 (3) Extract all URI-Ms from the WARC file Read WARC recordsby WARCIOWARC file https://github.com/webrecorder/warcio WADL 2018, 2018-06-06 @maturban1

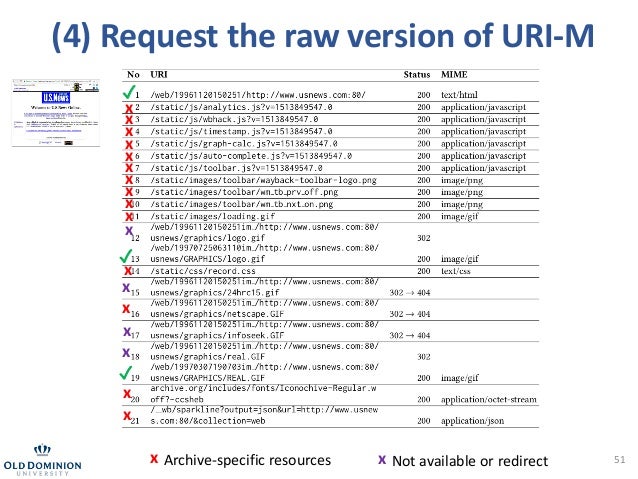

  51. 51. 51 (4) Request the raw version of URI-M x x x x x x x x x x x x x x x x ✓ ✓ ✓ x Archive-specific resources x Not available or redirect x x

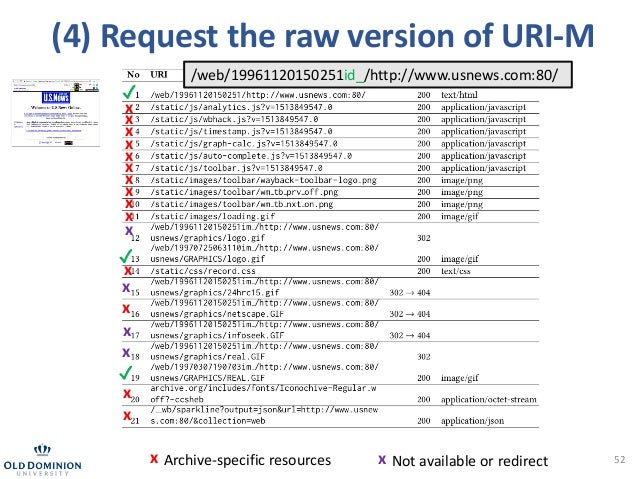

  52. 52. 52 (4) Request the raw version of URI-M x x x x x x x x x x x x x x x x ✓ ✓ ✓ x Archive-specific resources x Not available or redirect x x /web/19961120150251id_/http://www.usnews.com:80/

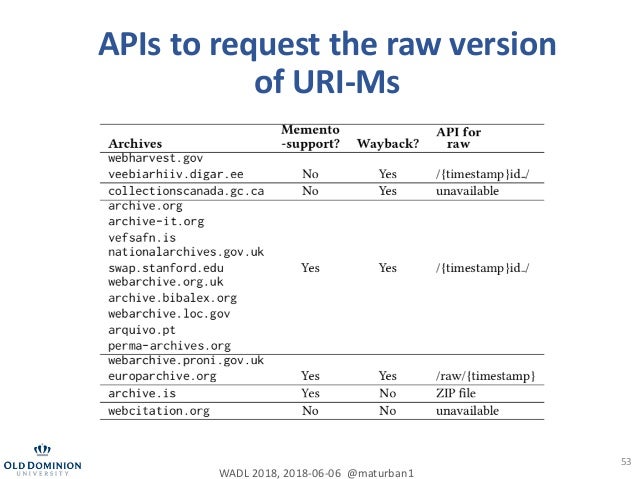

  53. 53. 53 APIs to request the raw version of URI-Ms WADL 2018, 2018-06-06 @maturban1

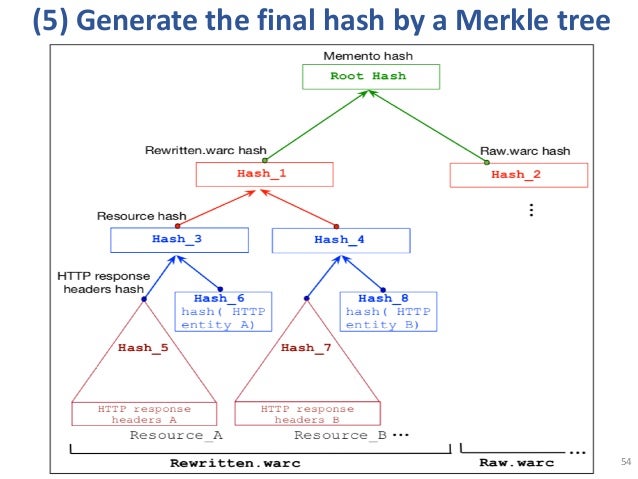

  54. 54. 54 (5) Generate the final hash by a Merkle tree

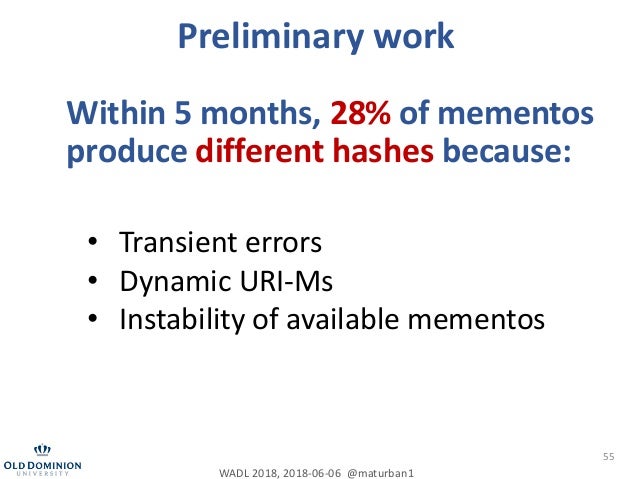

  55. 55. 55 Within 5 months, 28% of mementos produce different hashes because: • Transient errors • Dynamic URI-Ms • Instability of available mementos WADL 2018, 2018-06-06 @maturban1 Preliminary work

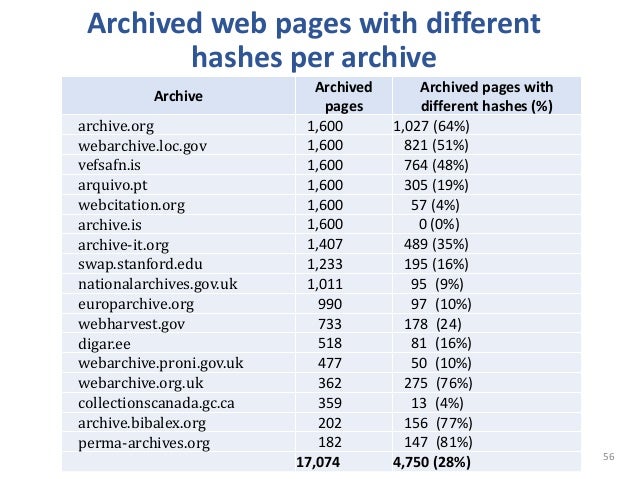

  56. 56. 56 Archive Archived pages Archived pages with different hashes (%) archive.org 1,600 1,027 (64%) webarchive.loc.gov 1,600 821 (51%) vefsafn.is 1,600 764 (48%) arquivo.pt 1,600 305 (19%) webcitation.org 1,600 57 (4%) archive.is 1,600 0 (0%) archive-it.org 1,407 489 (35%) swap.stanford.edu 1,233 195 (16%) nationalarchives.gov.uk 1,011 95 (9%) europarchive.org 990 97 (10%) webharvest.gov 733 178 (24) digar.ee 518 81 (16%) webarchive.proni.gov.uk 477 50 (10%) webarchive.org.uk 362 275 (76%) collectionscanada.gc.ca 359 13 (4%) archive.bibalex.org 202 156 (77%) perma-archives.org 182 147 (81%) 17,074 4,750 (28%) Archived web pages with different hashes per archive

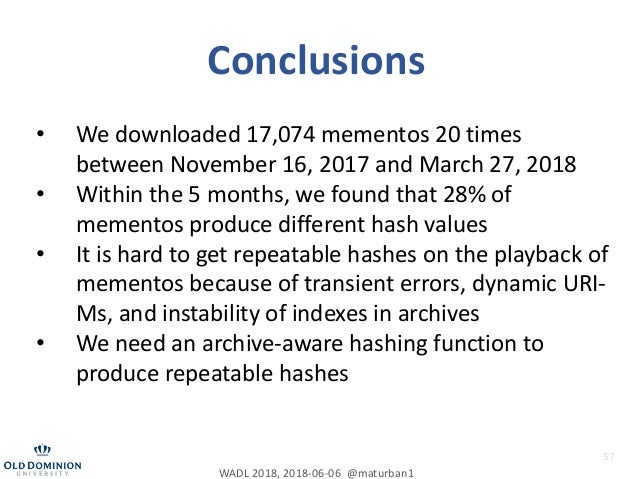

  57. 57. 57 Conclusions • We downloaded 17,074 mementos 20 times between November 16, 2017 and March 27, 2018 • Within the 5 months, we found that 28% of mementos produce different hash values • It is hard to get repeatable hashes on the playback of mementos because of transient errors, dynamic URI- Ms, and instability of indexes in archives • We need an archive-aware hashing function to produce repeatable hashes WADL 2018, 2018-06-06 @maturban1

×
