Establishing and Verifying Fixity of Archived Web Pages

  1. 1. Establishing and Verifying Fixity of Archived Web Pages Mohamed Aturban Old Dominion University Advisors: Dr. Michele C. Weigle and Dr. Michael L. Nelson JCDL 2018 Doctoral Consortium June 3, 2018 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

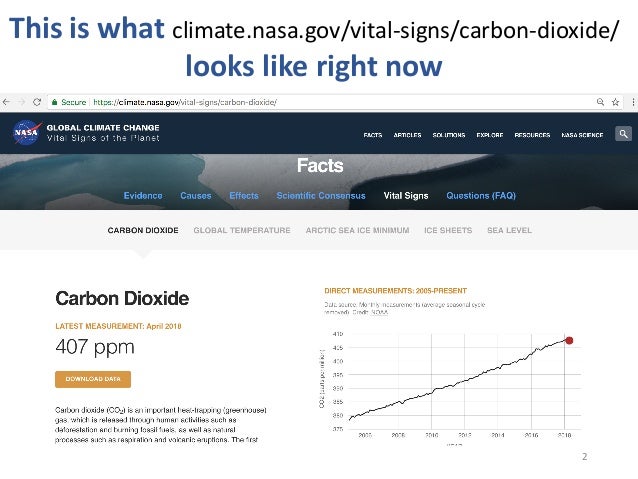

  2. 2. 2 This is what climate.nasa.gov/vital-signs/carbon-dioxide/ looks like right now

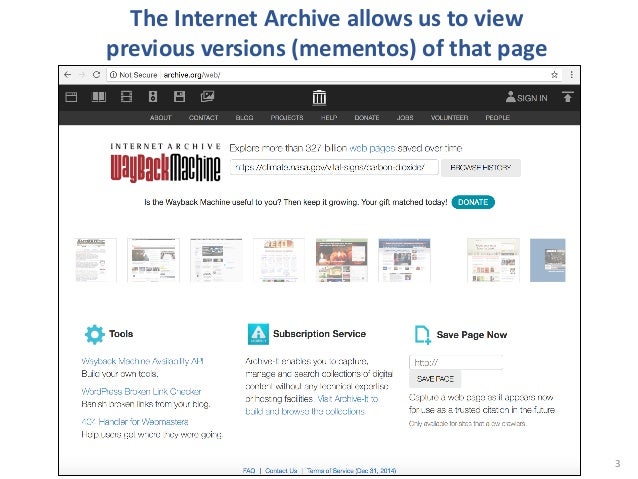

  3. 3. 3 The Internet Archive allows us to view previous versions (mementos) of that page

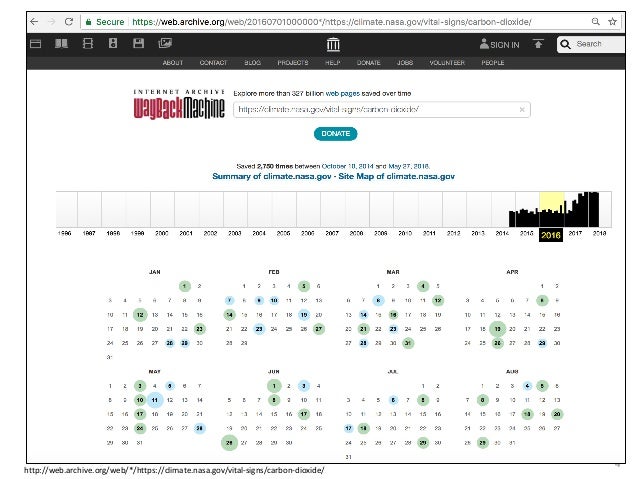

  4. 4. 4 http://web.archive.org/web/*/https://climate.nasa.gov/vital-signs/carbon-dioxide/

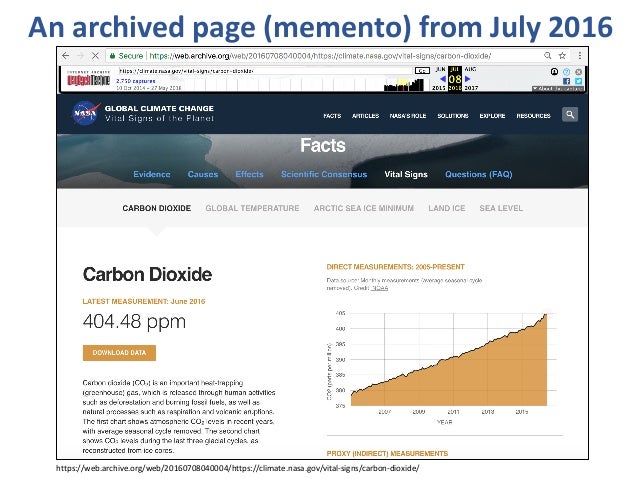

  5. 5. https://web.archive.org/web/20160708040004/https://climate.nasa.gov/vital-signs/carbon-dioxide/ An archived page (memento) from July 2016

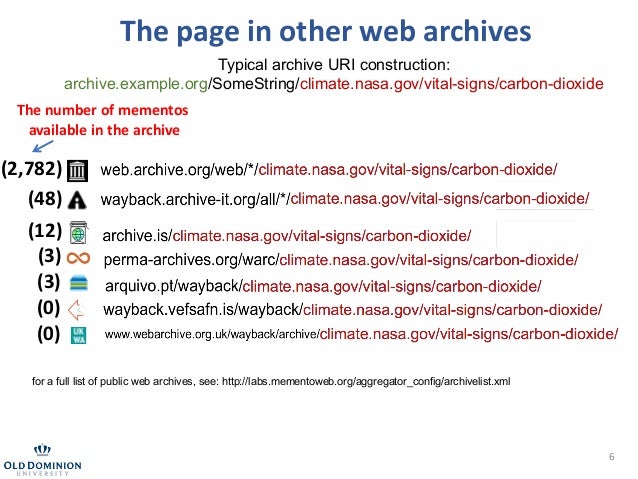

  6. 6. 6 The page in other web archives for a full list of public web archives, see: http://labs.mementoweb.org/aggregator_config/archivelist.xml Typical archive URI construction: archive.example.org/SomeString/climate.nasa.gov/vital-signs/carbon-dioxide (2,782) (48) (3) (12) (0) (0) (3) The number of mementos available in the archive

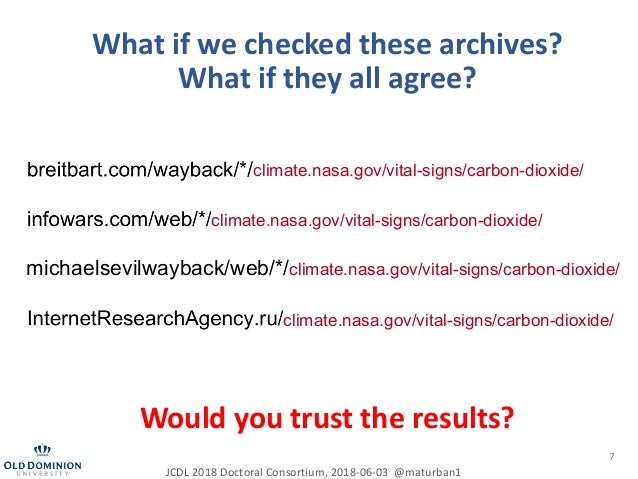

  7. 7. 7 What if we checked these archives? What if they all agree? Would you trust the results? climate.nasa.gov/vital-signs/carbon-dioxide/ climate.nasa.gov/vital-signs/carbon-dioxide/ climate.nasa.gov/vital-signs/carbon-dioxide/ climate.nasa.gov/vital-signs/carbon-dioxide/ michaelsevilwayback/web/*/climate.nasa.gov/vital-signs/carbon-dioxide/ JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

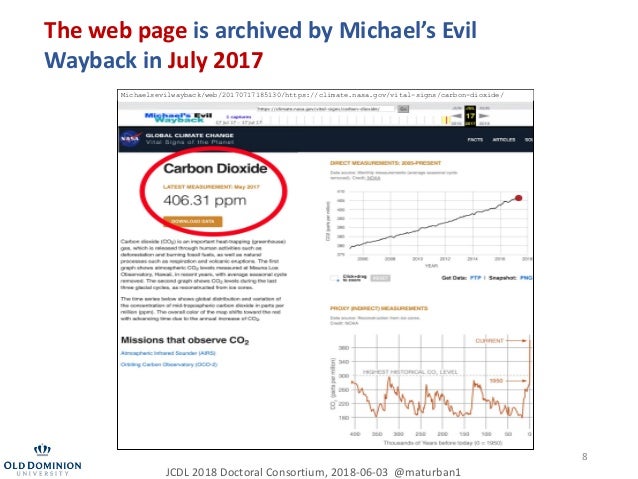

  8. 8. 8 The web page is archived by Michael’s Evil Wayback in July 2017 Michaelsevilwayback/web/20170717185130/https://climate.nasa.gov/vital-signs/carbon-dioxide/ JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

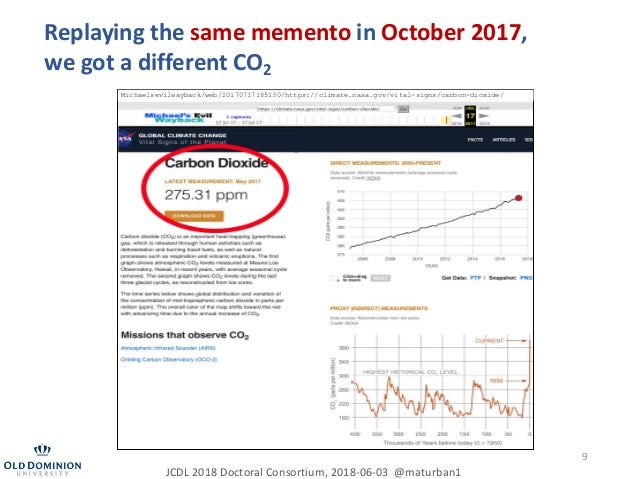

  9. 9. 9 Replaying the same memento in October 2017, we got a different CO2 Michaelsevilwayback/web/20170717185130/https://climate.nasa.gov/vital-signs/carbon-dioxide/ JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

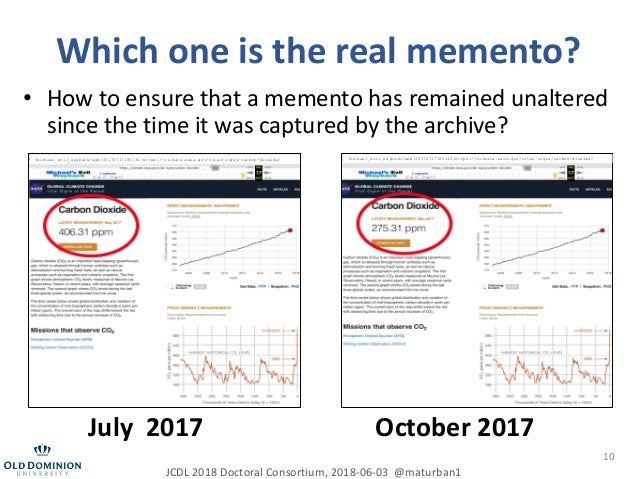

  10. 10. 10 Which one is the real memento? July 2017 October 2017 • How to ensure that a memento has remained unaltered since the time it was captured by the archive? JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 Michael_evil_wayback/web/20170717185130/https://climate.nasa.gov/vital-signs/carbon-dioxide/ Michael_evil_wayback/web/20170717185130/https://climate.nasa.gov/vital-signs/carbon-dioxide/

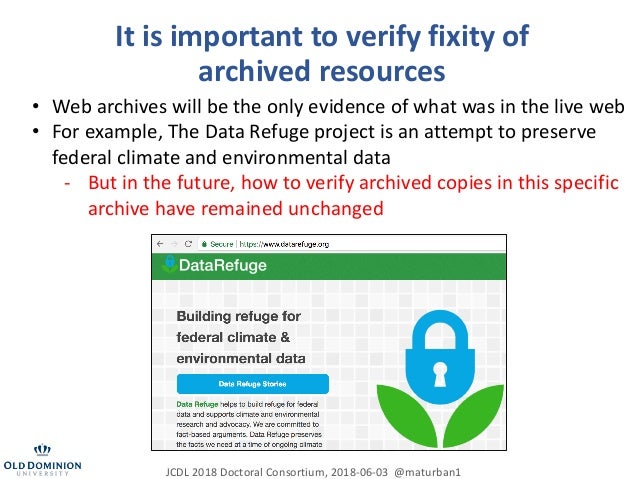

  11. 11. It is important to verify fixity of archived resources • Web archives will be the only evidence of what was in the live web • For example, The Data Refuge project is an attempt to preserve federal climate and environmental data - But in the future, how to verify archived copies in this specific archive have remained unchanged JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

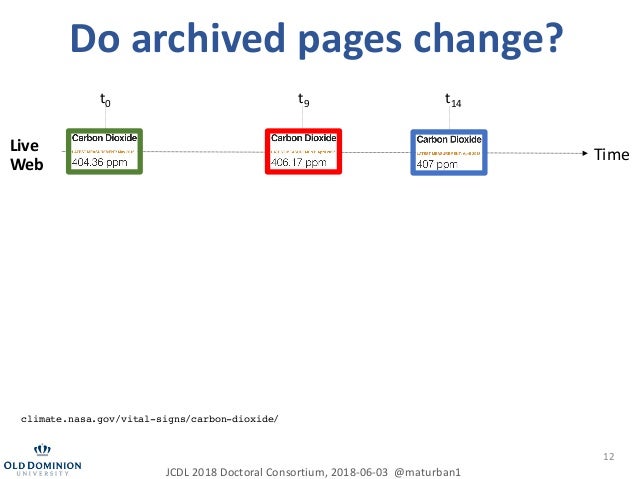

  12. 12. 12 Do archived pages change? Time climate.nasa.gov/vital-signs/carbon-dioxide/ Live Web t0 t9 t14 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

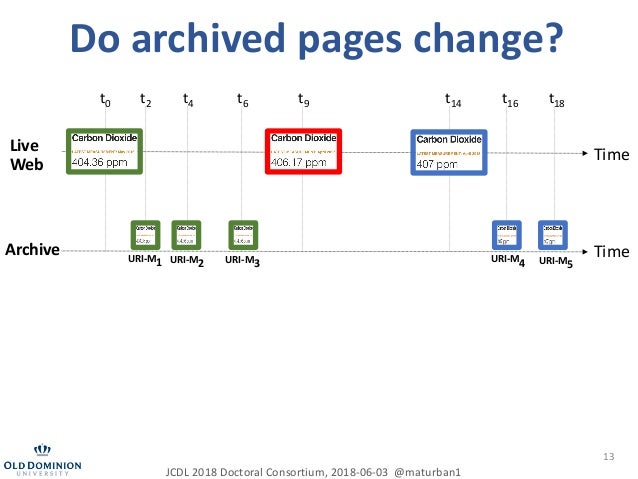

  13. 13. 13 Do archived pages change? TimeLive Web TimeArchive URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 t0 t2 t4 t6 t9 t14 t16 t18 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

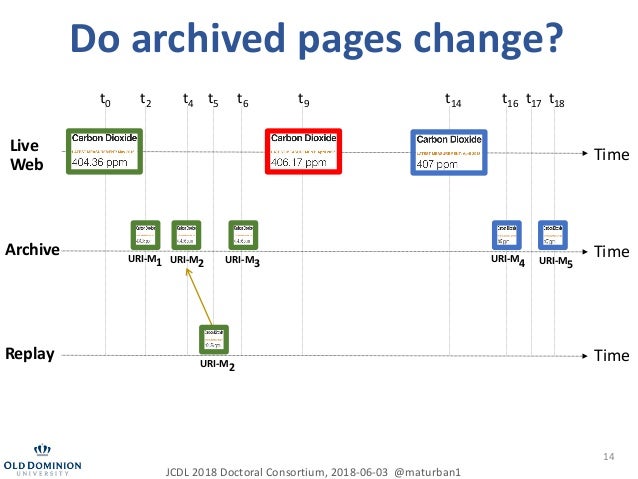

  14. 14. 14 Do archived pages change? TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

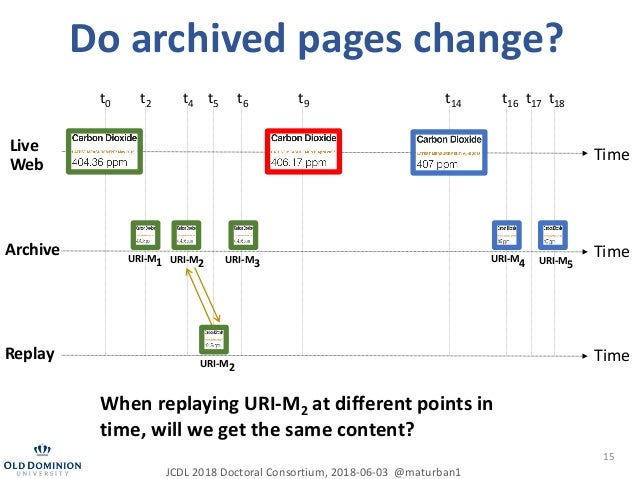

  15. 15. 15 Do archived pages change? TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 When replaying URI-M2 at different points in time, will we get the same content?
  16. 16. 16 Do archived pages change? TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 When replaying URI-M2 at different points in time, will we get the same content?

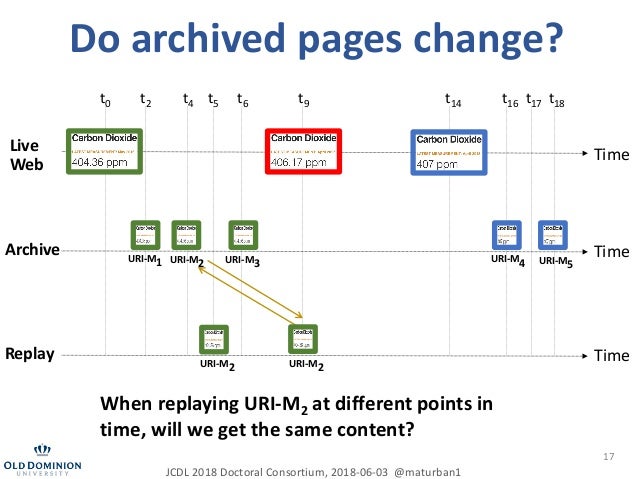

  17. 17. 17 Do archived pages change? TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 When replaying URI-M2 at different points in time, will we get the same content?
  18. 18. 18 Do archived pages change? TimeLive Web TimeArchive Replay Time When replaying URI-M2 at different points in time, will we get the same content? URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

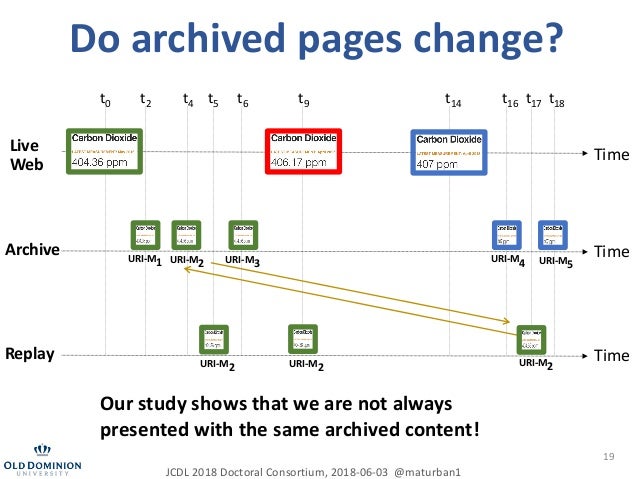

  19. 19. 19 Do archived pages change? TimeLive Web TimeArchive Replay Time Our study shows that we are not always presented with the same archived content! URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

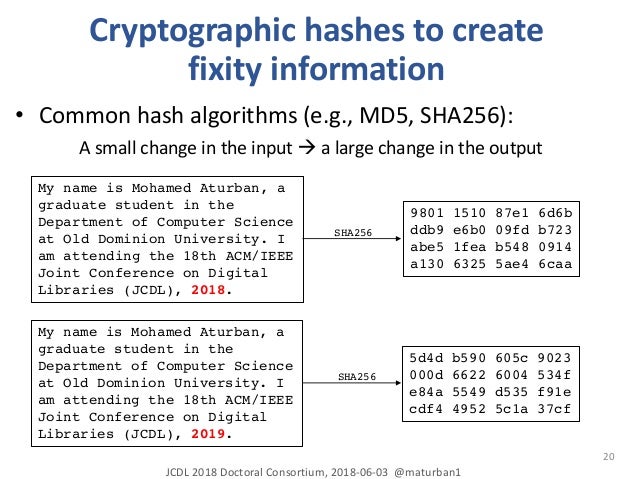

  20. 20. 20 Cryptographic hashes to create fixity information • Common hash algorithms (e.g., MD5, SHA256): A small change in the input à a large change in the output My name is Mohamed Aturban, a graduate student in the Department of Computer Science at Old Dominion University. I am attending the 18th ACM/IEEE Joint Conference on Digital Libraries (JCDL), 2018. SHA256 9801 1510 87e1 6d6b ddb9 e6b0 09fd b723 abe5 1fea b548 0914 a130 6325 5ae4 6caa My name is Mohamed Aturban, a graduate student in the Department of Computer Science at Old Dominion University. I am attending the 18th ACM/IEEE Joint Conference on Digital Libraries (JCDL), 2019. SHA256 5d4d b590 605c 9023 000d 6622 6004 534f e84a 5549 d535 f91e cdf4 4952 5c1a 37cf JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

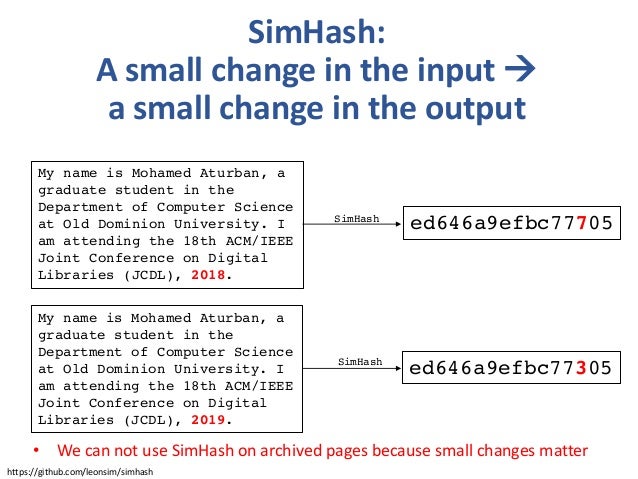

  21. 21. SimHash: A small change in the input à a small change in the output My name is Mohamed Aturban, a graduate student in the Department of Computer Science at Old Dominion University. I am attending the 18th ACM/IEEE Joint Conference on Digital Libraries (JCDL), 2018. SimHash ed646a9efbc77705 My name is Mohamed Aturban, a graduate student in the Department of Computer Science at Old Dominion University. I am attending the 18th ACM/IEEE Joint Conference on Digital Libraries (JCDL), 2019. SimHash ed646a9efbc77305 https://github.com/leonsim/simhash • We can not use SimHash on archived pages because small changes matter
  22. 22. 22 SimHash: large changes in the input à large changes in the output My name is Mohamed Aturban, a graduate student in the Department of Computer Science at Old Dominion University. I am attending the 18th ACM/IEEE Joint Conference on Digital Libraries (JCDL), 2018. SimHash ed646a9efbc77705 My name is Sawood Alam, a graduate student in the Department of Computer Science at Old Dominion University. I am attending the 19th ACM/IEEE Joint Conference on Digital Libraries (JCDL), 2019. SimHash ed666bdefbc77205 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

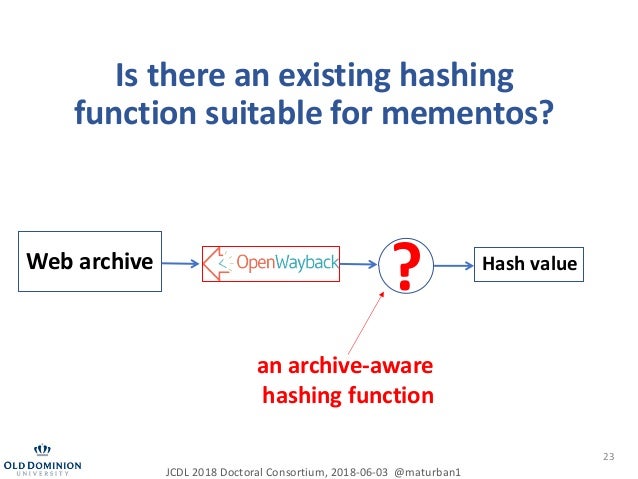

  23. 23. 23 Is there an existing hashing function suitable for mementos? JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 Web archive Hash value ? an archive-aware hashing function

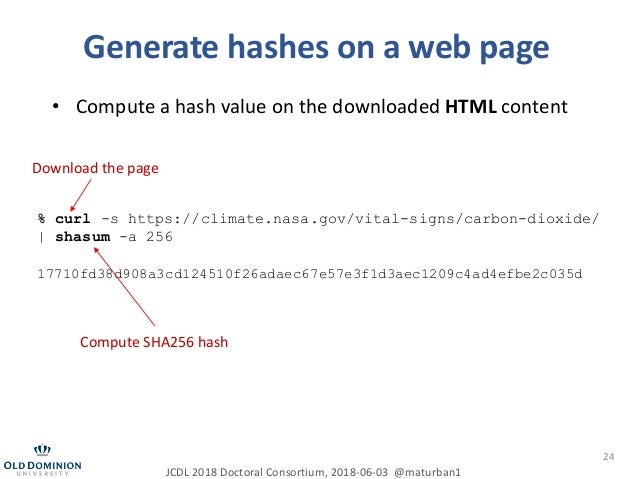

  24. 24. 24 Generate hashes on a web page • Compute a hash value on the downloaded HTML content % curl -s https://climate.nasa.gov/vital-signs/carbon-dioxide/ | shasum -a 256 17710fd38d908a3cd124510f26adaec67e57e3f1d3aec1209c4ad4efbe2c035d Compute SHA256 hash Download the page JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

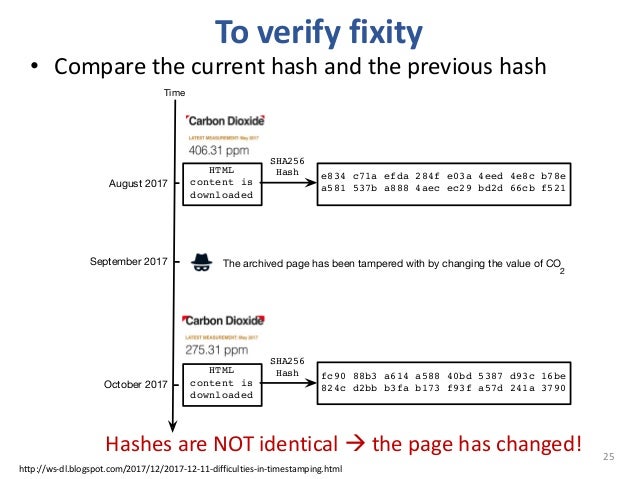

  25. 25. Time HTML content is downloaded e834 c71a efda 284f e03a 4eed 4e8c b78e a581 537b a888 4aec ec29 bd2d 66cb f521 SHA256 Hash HTML content is downloaded fc90 88b3 a614 a588 40bd 5387 d93c 16be 824c d2bb b3fa b173 f93f a57d 241a 3790 SHA256 Hash August 2017 October 2017 The archived page has been tampered with by changing the value of COSeptember 2017 2 25 • Compare the current hash and the previous hash To verify fixity Hashes are NOT identical à the page has changed! http://ws-dl.blogspot.com/2017/12/2017-12-11-difficulties-in-timestamping.html

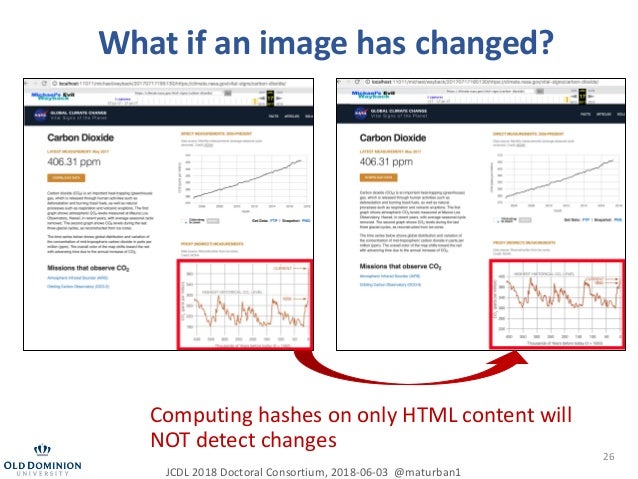

  26. 26. 26 What if an image has changed? Computing hashes on only HTML content will NOT detect changes JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

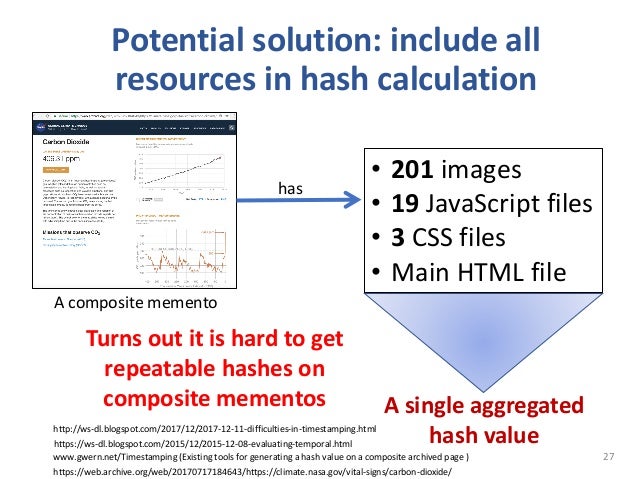

  27. 27. 27 Potential solution: include all resources in hash calculation https://web.archive.org/web/20170717184643/https://climate.nasa.gov/vital-signs/carbon-dioxide/ • 201 images • 19 JavaScript files • 3 CSS files • Main HTML file A single aggregated hash value www.gwern.net/Timestamping (Existing tools for generating a hash value on a composite archived page ) has A composite memento https://ws-dl.blogspot.com/2015/12/2015-12-08-evaluating-temporal.html http://ws-dl.blogspot.com/2017/12/2017-12-11-difficulties-in-timestamping.html Turns out it is hard to get repeatable hashes on composite mementos

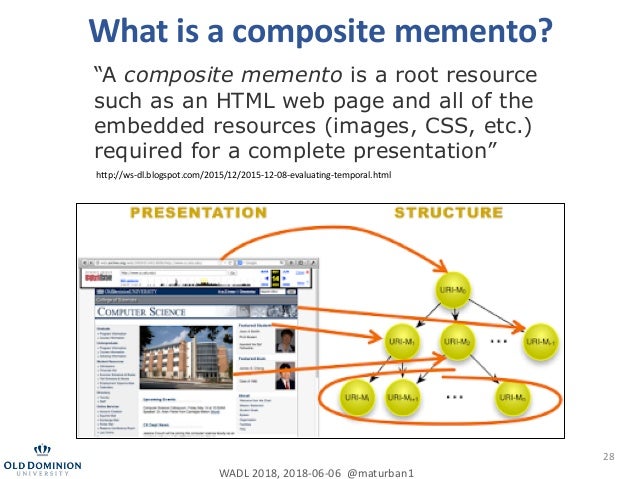

  28. 28. 28 What is a composite memento? “A composite memento is a root resource such as an HTML web page and all of the embedded resources (images, CSS, etc.) required for a complete presentation” http://ws-dl.blogspot.com/2015/12/2015-12-08-evaluating-temporal.html WADL 2018, 2018-06-06 @maturban1

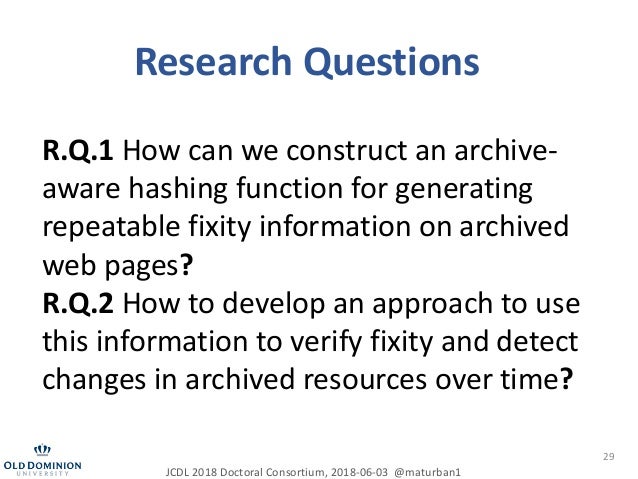

  29. 29. 29 Research Questions R.Q.1 How can we construct an archive- aware hashing function for generating repeatable fixity information on archived web pages? R.Q.2 How to develop an approach to use this information to verify fixity and detect changes in archived resources over time? JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

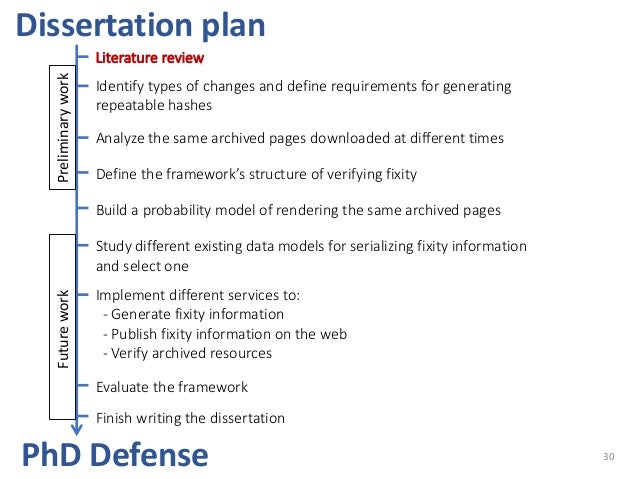

  30. 30. 30 Dissertation plan Literature review Identify types of changes and define requirements for generating repeatable hashes Build a probability model of rendering the same archived pages PhD Defense Study different existing data models for serializing fixity information and select one Implement different services to: - Generate fixity information - Publish fixity information on the web - Verify archived resources Evaluate the framework Finish writing the dissertation Define the framework’s structure of verifying fixity Analyze the same archived pages downloaded at different times PreliminaryworkFuturework

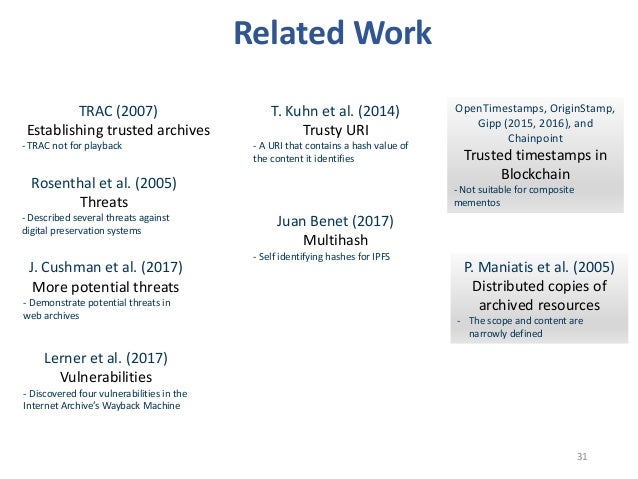

  31. 31. 31 Related Work TRAC (2007) Establishing trusted archives - TRAC not for playback Lerner et al. (2017) Vulnerabilities - Discovered four vulnerabilities in the Internet Archive’s Wayback Machine J. Cushman et al. (2017) More potential threats - Demonstrate potential threats in web archives Rosenthal et al. (2005) Threats - Described several threats against digital preservation systems Juan Benet (2017) Multihash - Self identifying hashes for IPFS OpenTimestamps, OriginStamp, Gipp (2015, 2016), and Chainpoint Trusted timestamps in Blockchain - Not suitable for composite mementos T. Kuhn et al. (2014) Trusty URI - A URI that contains a hash value of the content it identifies P. Maniatis et al. (2005) Distributed copies of archived resources - The scope and content are narrowly defined

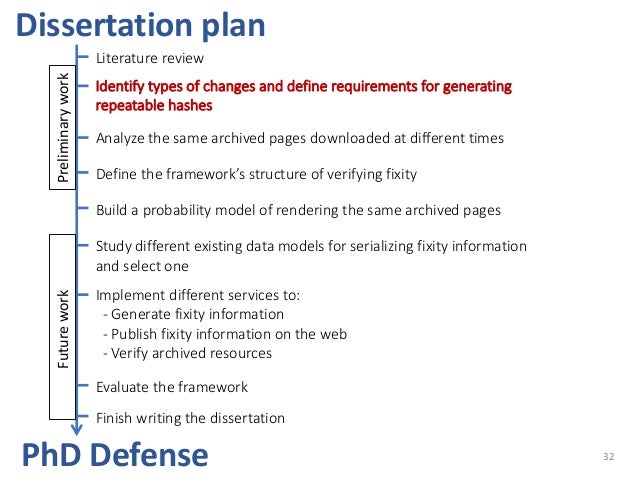

  32. 32. 32 Dissertation plan Literature review Identify types of changes and define requirements for generating repeatable hashes Build a probability model of rendering the same archived pages PhD Defense Study different existing data models for serializing fixity information and select one Implement different services to: - Generate fixity information - Publish fixity information on the web - Verify archived resources Evaluate the framework Finish writing the dissertation Define the framework’s structure of verifying fixity Analyze the same archived pages downloaded at different times PreliminaryworkFuturework

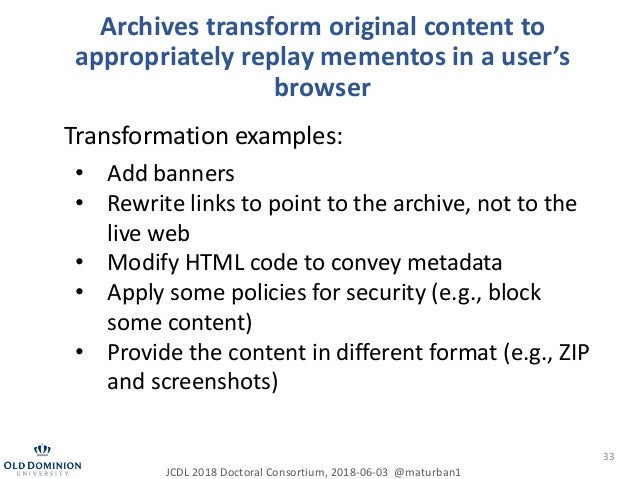

  33. 33. 33 Archives transform original content to appropriately replay mementos in a user’s browser • Add banners • Rewrite links to point to the archive, not to the live web • Modify HTML code to convey metadata • Apply some policies for security (e.g., block some content) • Provide the content in different format (e.g., ZIP and screenshots) Transformation examples: JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

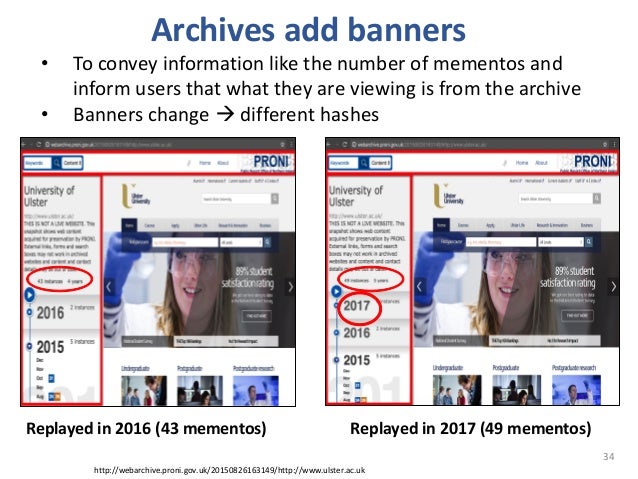

  34. 34. 34 Archives add banners • To convey information like the number of mementos and inform users that what they are viewing is from the archive • Banners change à different hashes Replayed in 2016 (43 mementos) Replayed in 2017 (49 mementos) http://webarchive.proni.gov.uk/20150826163149/http://www.ulster.ac.uk

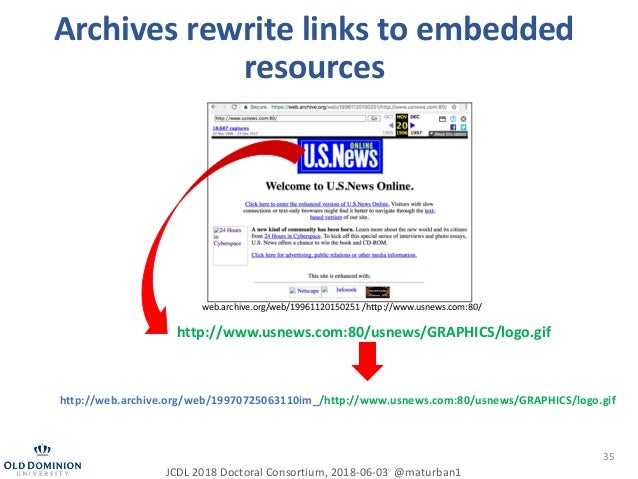

  35. 35. 35 Archives rewrite links to embedded resources web.archive.org/web/19961120150251 /http://www.usnews.com:80/ http://web.archive.org/web/19970725063110im_/http://www.usnews.com:80/usnews/GRAPHICS/logo.gif http://www.usnews.com:80/usnews/GRAPHICS/logo.gif JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

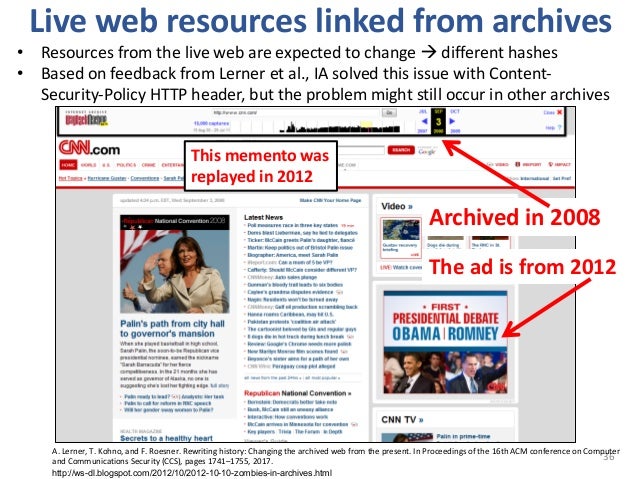

  36. 36. 36 Live web resources linked from archives • Resources from the live web are expected to change à different hashes • Based on feedback from Lerner et al., IA solved this issue with Content- Security-Policy HTTP header, but the problem might still occur in other archives http://ws-dl.blogspot.com/2012/10/2012-10-10-zombies-in-archives.html Archived in 2008 The ad is from 2012 This memento was replayed in 2012 A. Lerner, T. Kohno, and F. Roesner. Rewriting history: Changing the archived web from the present. In Proceedings of the 16th ACM conference on Computer and Communications Security (CCS), pages 1741–1755, 2017.

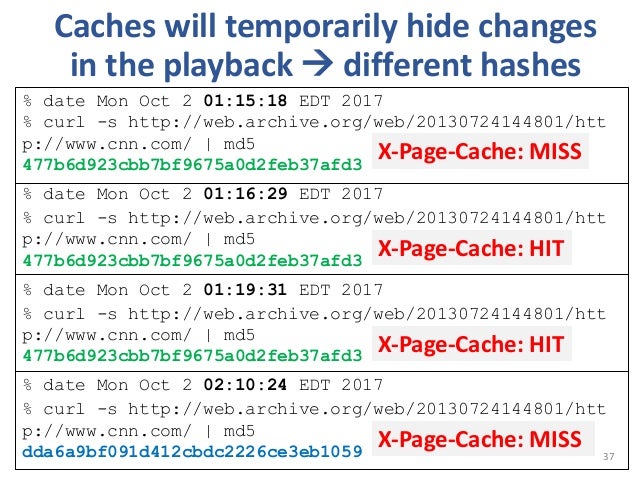

  37. 37. 37 Caches will temporarily hide changes in the playback à different hashes % date Mon Oct 2 01:15:18 EDT 2017 % curl -s http://web.archive.org/web/20130724144801/htt p://www.cnn.com/ | md5 477b6d923cbb7bf9675a0d2feb37afd3 % date Mon Oct 2 01:16:29 EDT 2017 % curl -s http://web.archive.org/web/20130724144801/htt p://www.cnn.com/ | md5 477b6d923cbb7bf9675a0d2feb37afd3 % date Mon Oct 2 01:19:31 EDT 2017 % curl -s http://web.archive.org/web/20130724144801/htt p://www.cnn.com/ | md5 477b6d923cbb7bf9675a0d2feb37afd3 % date Mon Oct 2 02:10:24 EDT 2017 % curl -s http://web.archive.org/web/20130724144801/htt p://www.cnn.com/ | md5 dda6a9bf091d412cbdc2226ce3eb1059 X-Page-Cache: MISS X-Page-Cache: HIT X-Page-Cache: MISS X-Page-Cache: HIT

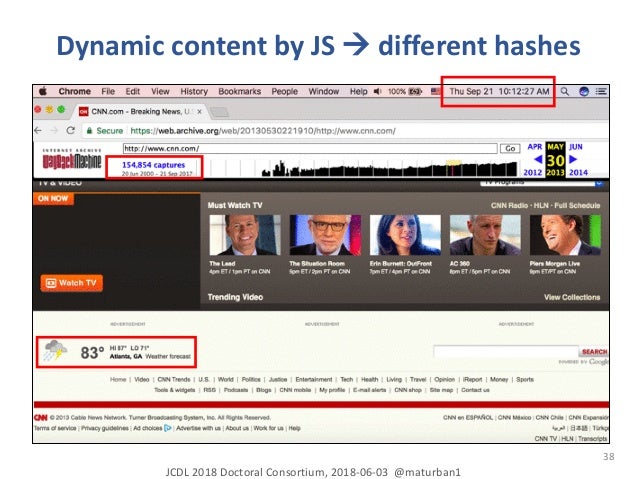

  38. 38. 38 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 Dynamic content by JS à different hashes

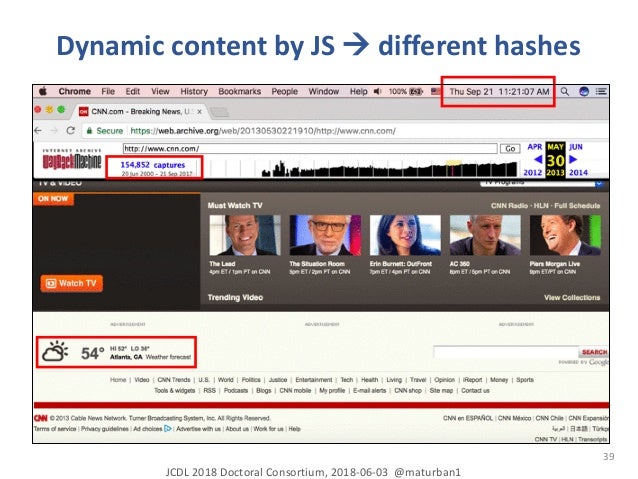

  39. 39. 39 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 Dynamic content by JS à different hashes
  40. 40. 40 Dynamic content by JS à different hashes JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

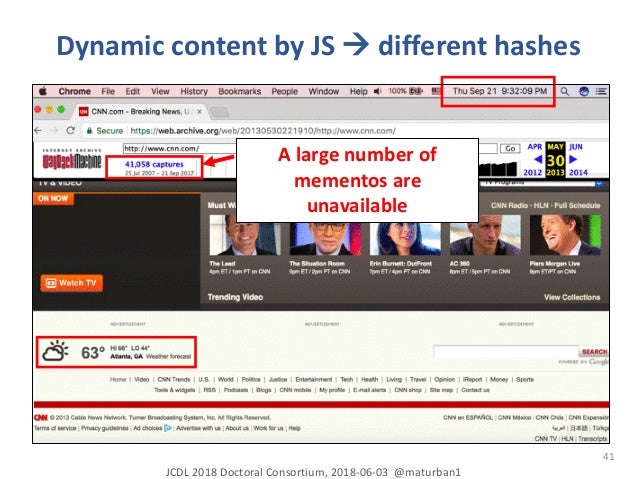

  41. 41. 41 Dynamic content by JS à different hashes JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 A large number of mementos are unavailable

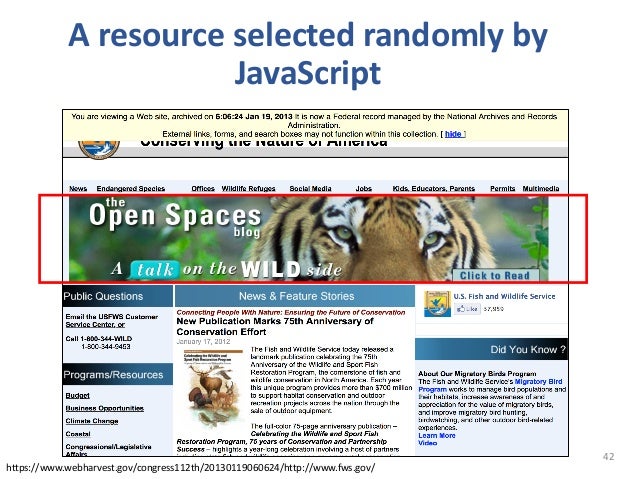

  42. 42. 42 A resource selected randomly by JavaScript https://www.webharvest.gov/congress112th/20130119060624/http://www.fws.gov/

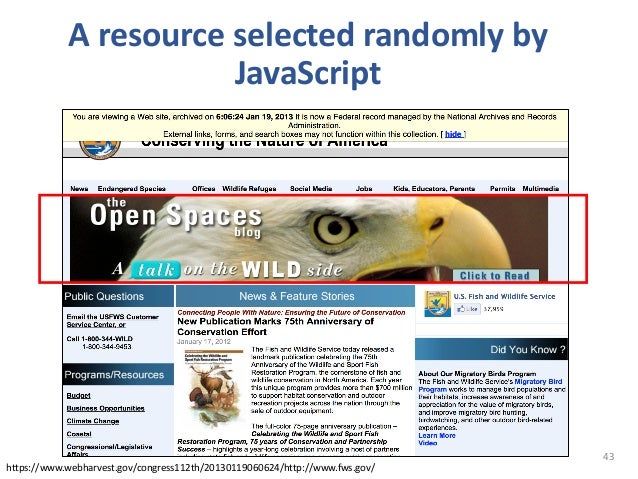

  43. 43. 43 https://www.webharvest.gov/congress112th/20130119060624/http://www.fws.gov/ A resource selected randomly by JavaScript
  44. 44. 44 https://www.webharvest.gov/congress112th/20130119060624/http://www.fws.gov/ A resource selected randomly by JavaScript

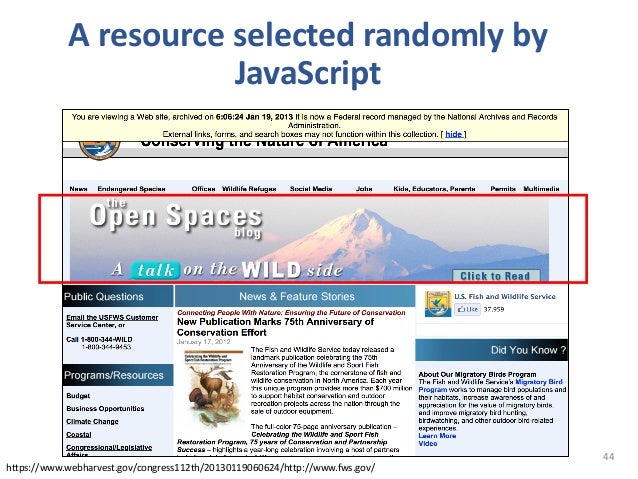

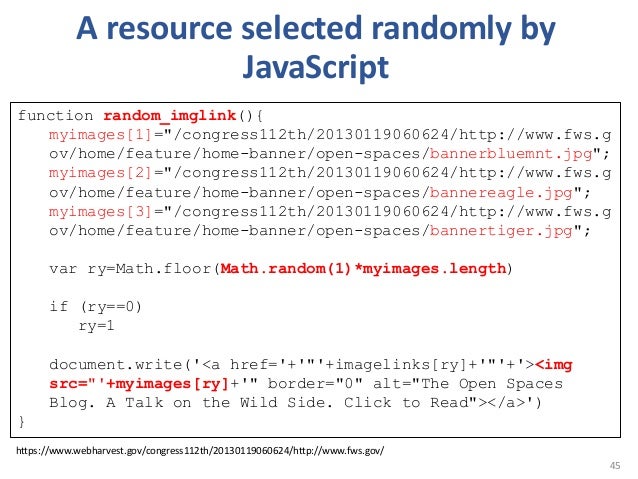

  45. 45. 45 https://www.webharvest.gov/congress112th/20130119060624/http://www.fws.gov/ A resource selected randomly by JavaScript function random_imglink(){ myimages[1]="/congress112th/20130119060624/http://www.fws.g ov/home/feature/home-banner/open-spaces/bannerbluemnt.jpg"; myimages[2]="/congress112th/20130119060624/http://www.fws.g ov/home/feature/home-banner/open-spaces/bannereagle.jpg"; myimages[3]="/congress112th/20130119060624/http://www.fws.g ov/home/feature/home-banner/open-spaces/bannertiger.jpg"; var ry=Math.floor(Math.random(1)*myimages.length) if (ry==0) ry=1 document.write('<a href='+'"'+imagelinks[ry]+'"'+'><img src="'+myimages[ry]+'" border="0" alt="The Open Spaces Blog. A Talk on the Wild Side. Click to Read"></a>') }

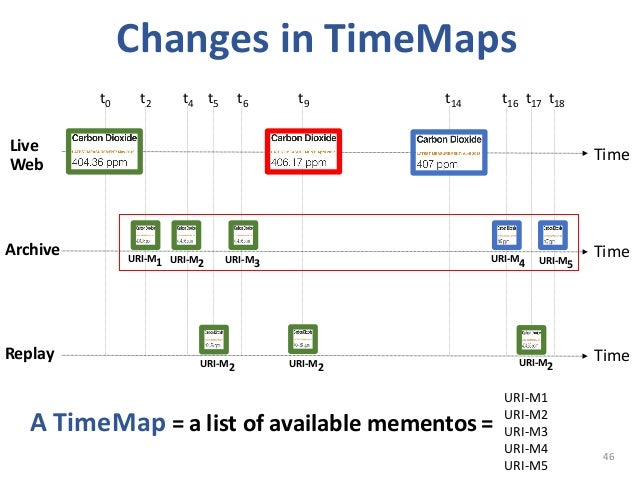

  46. 46. 46 Changes in TimeMaps TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 A TimeMap = a list of available mementos = URI-M1 URI-M2 URI-M3 URI-M4 URI-M5

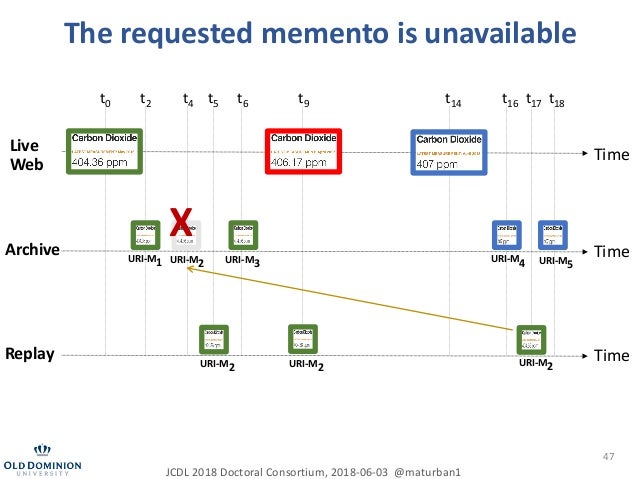

  47. 47. 47 The requested memento is unavailable TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 X JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

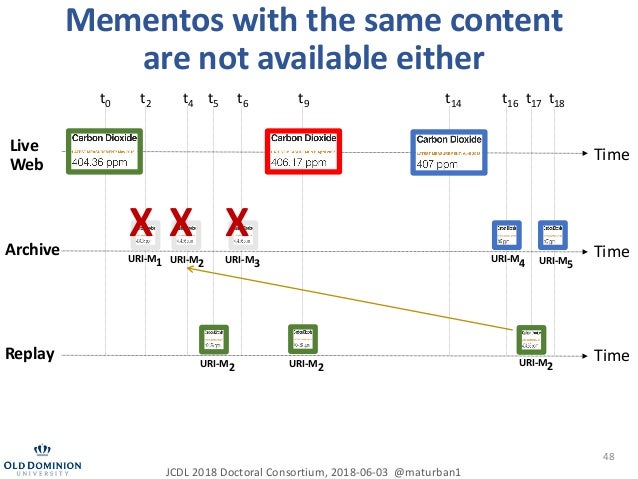

  48. 48. 48 Mementos with the same content are not available either TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 X JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 X X

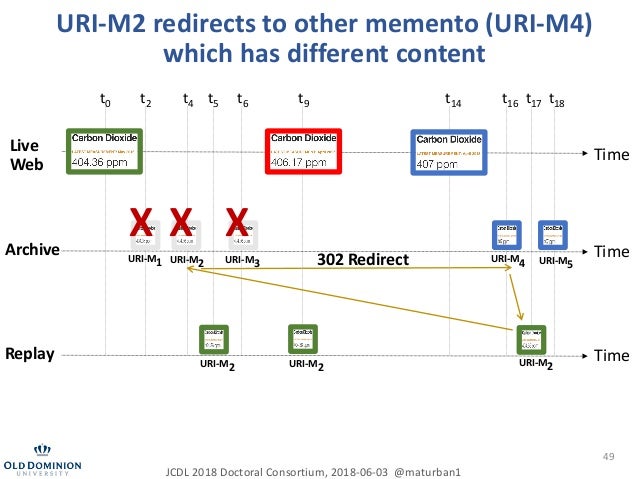

  49. 49. 49 URI-M2 redirects to other memento (URI-M4) which has different content TimeLive Web TimeArchive Replay Time URI-M1 URI-M2 URI-M3 URI-M4 URI-M5 URI-M2 URI-M2 URI-M2 t0 t2 t4 t5 t6 t9 t14 t16 t17 t18 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 XX X 302 Redirect

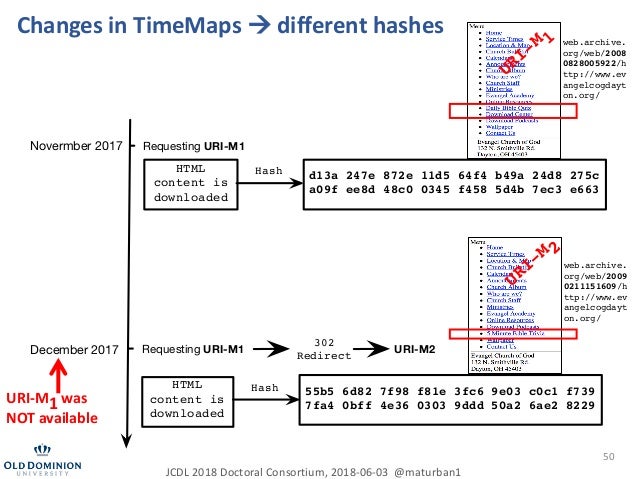

  50. 50. HTML content is downloaded d13a 247e 872e 11d5 64f4 b49a 24d8 275c a09f ee8d 48c0 0345 f458 5d4b 7ec3 e663 Hash HTML content is downloaded 55b5 6d82 7f98 f81e 3fc6 9e03 c0c1 f739 7fa4 0bff 4e36 0303 9ddd 50a2 6ae2 8229 Hash Novermber 2017 December 2017 302 Redirect Requesting URI-M1 Requesting URI-M1 URI-M2 50 Changes in TimeMaps à different hashes URI-M1 was NOT available JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 web.archive. org/web/2008 0828005922/h ttp://www.ev angelcogdayt on.org/ web.archive. org/web/2009 0211151609/h ttp://www.ev angelcogdayt on.org/ URI-M 1 URI-M 2

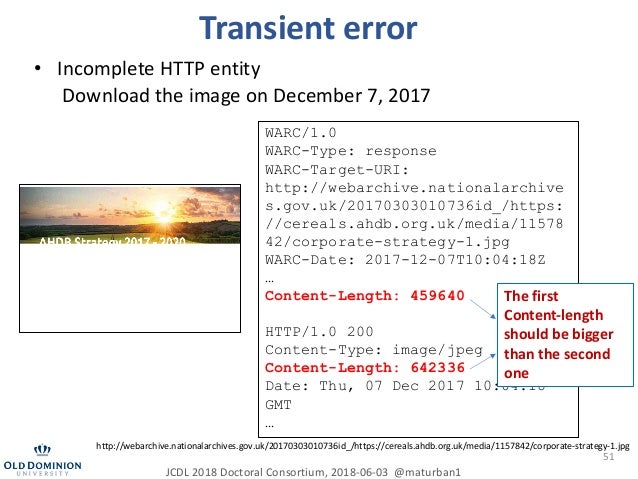

  51. 51. 51 Transient error • Incomplete HTTP entity http://webarchive.nationalarchives.gov.uk/20170303010736id_/https://cereals.ahdb.org.uk/media/1157842/corporate-strategy-1.jpg Download the image on December 7, 2017 WARC/1.0 WARC-Type: response WARC-Target-URI: http://webarchive.nationalarchive s.gov.uk/20170303010736id_/https: //cereals.ahdb.org.uk/media/11578 42/corporate-strategy-1.jpg WARC-Date: 2017-12-07T10:04:18Z … Content-Length: 459640 HTTP/1.0 200 Content-Type: image/jpeg Content-Length: 642336 Date: Thu, 07 Dec 2017 10:04:18 GMT … JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 The first Content-length should be bigger than the second one

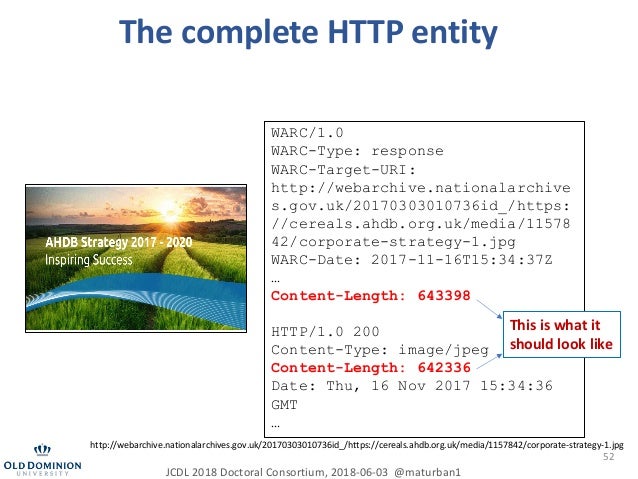

  52. 52. 52 The complete HTTP entity http://webarchive.nationalarchives.gov.uk/20170303010736id_/https://cereals.ahdb.org.uk/media/1157842/corporate-strategy-1.jpg WARC/1.0 WARC-Type: response WARC-Target-URI: http://webarchive.nationalarchive s.gov.uk/20170303010736id_/https: //cereals.ahdb.org.uk/media/11578 42/corporate-strategy-1.jpg WARC-Date: 2017-11-16T15:34:37Z … Content-Length: 643398 HTTP/1.0 200 Content-Type: image/jpeg Content-Length: 642336 Date: Thu, 16 Nov 2017 15:34:36 GMT … JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 This is what it should look like

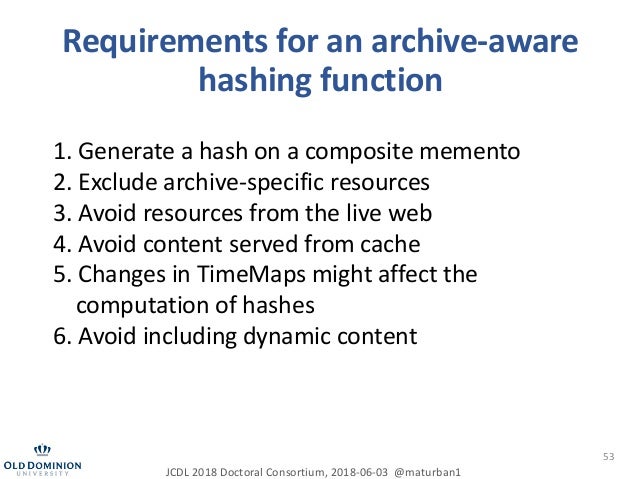

  53. 53. 53 Requirements for an archive-aware hashing function 1. Generate a hash on a composite memento 2. Exclude archive-specific resources 3. Avoid resources from the live web 4. Avoid content served from cache 5. Changes in TimeMaps might affect the computation of hashes 6. Avoid including dynamic content JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

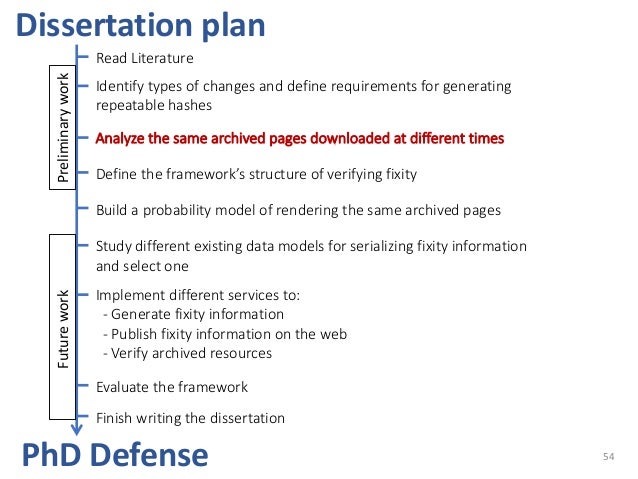

  54. 54. 54 Dissertation plan Read Literature Identify types of changes and define requirements for generating repeatable hashes Build a probability model of rendering the same archived pages PhD Defense Study different existing data models for serializing fixity information and select one Implement different services to: - Generate fixity information - Publish fixity information on the web - Verify archived resources Evaluate the framework Finish writing the dissertation Define the framework’s structure of verifying fixity Analyze the same archived pages downloaded at different times PreliminaryworkFuturework

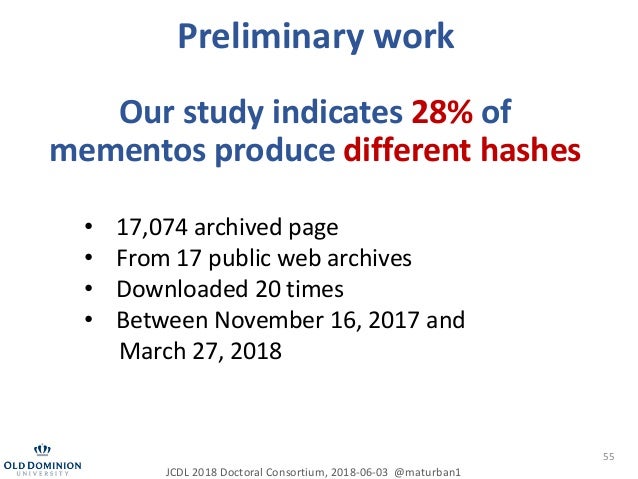

  55. 55. 55 Our study indicates 28% of mementos produce different hashes • 17,074 archived page • From 17 public web archives • Downloaded 20 times • Between November 16, 2017 and March 27, 2018 JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 Preliminary work

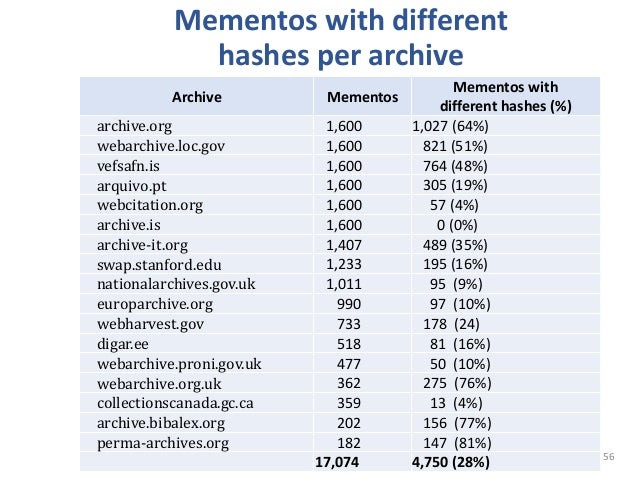

  56. 56. 56 Archive Mementos Mementos with different hashes (%) archive.org 1,600 1,027 (64%) webarchive.loc.gov 1,600 821 (51%) vefsafn.is 1,600 764 (48%) arquivo.pt 1,600 305 (19%) webcitation.org 1,600 57 (4%) archive.is 1,600 0 (0%) archive-it.org 1,407 489 (35%) swap.stanford.edu 1,233 195 (16%) nationalarchives.gov.uk 1,011 95 (9%) europarchive.org 990 97 (10%) webharvest.gov 733 178 (24) digar.ee 518 81 (16%) webarchive.proni.gov.uk 477 50 (10%) webarchive.org.uk 362 275 (76%) collectionscanada.gc.ca 359 13 (4%) archive.bibalex.org 202 156 (77%) perma-archives.org 182 147 (81%) 17,074 4,750 (28%) Mementos with different hashes per archive

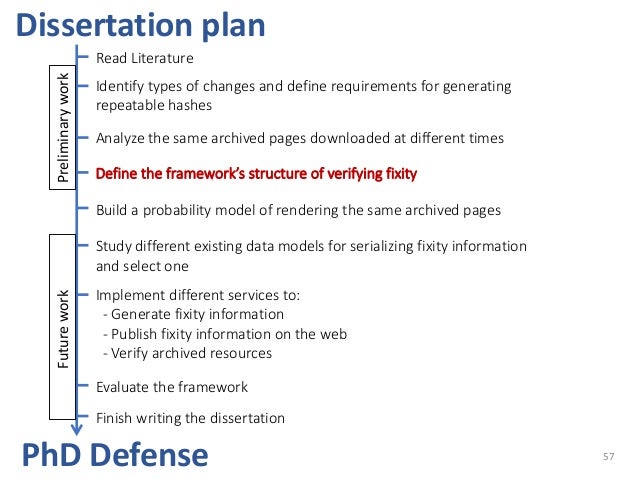

  57. 57. 57 Dissertation plan Read Literature Identify types of changes and define requirements for generating repeatable hashes Build a probability model of rendering the same archived pages PhD Defense Study different existing data models for serializing fixity information and select one Implement different services to: - Generate fixity information - Publish fixity information on the web - Verify archived resources Evaluate the framework Finish writing the dissertation Define the framework’s structure of verifying fixity Analyze the same archived pages downloaded at different times PreliminaryworkFuturework

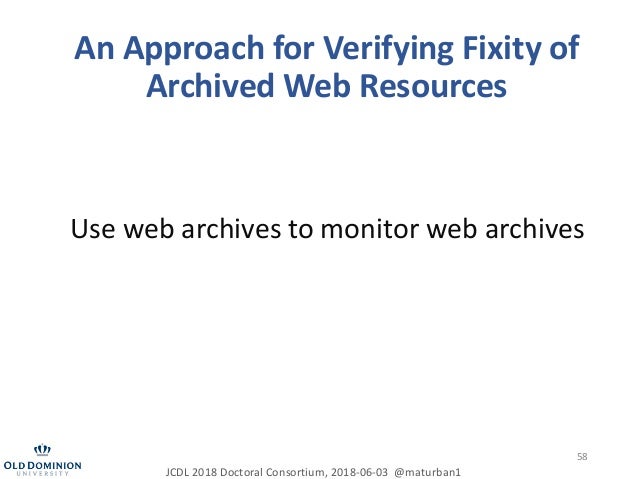

  58. 58. An Approach for Verifying Fixity of Archived Web Resources 58 Use web archives to monitor web archives JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

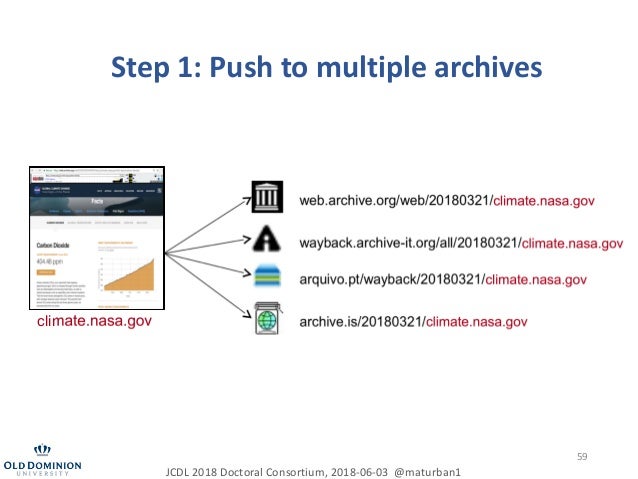

  59. 59. Step 1: Push to multiple archives 59 climate.nasa.gov climate.nasa.gov climate.nasa.gov climate.nasa.gov climate.nasa.gov JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

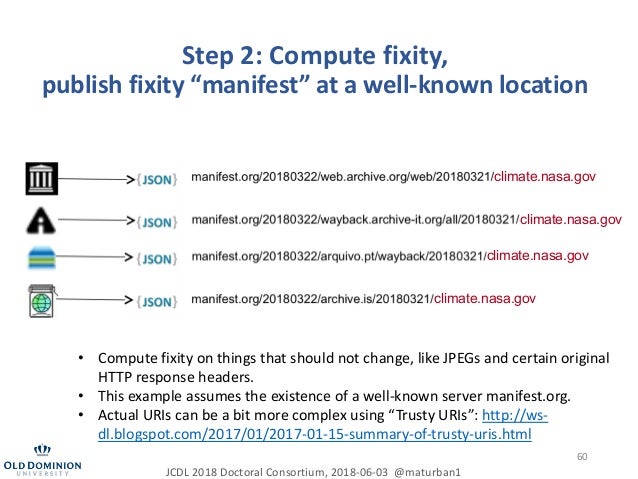

  60. 60. Step 2: Compute fixity, publish fixity “manifest” at a well-known location 60 climate.nasa.gov climate.nasa.gov climate.nasa.gov climate.nasa.gov • Compute fixity on things that should not change, like JPEGs and certain original HTTP response headers. • This example assumes the existence of a well-known server manifest.org. • Actual URIs can be a bit more complex using “Trusty URIs”: http://ws- dl.blogspot.com/2017/01/2017-01-15-summary-of-trusty-uris.html JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

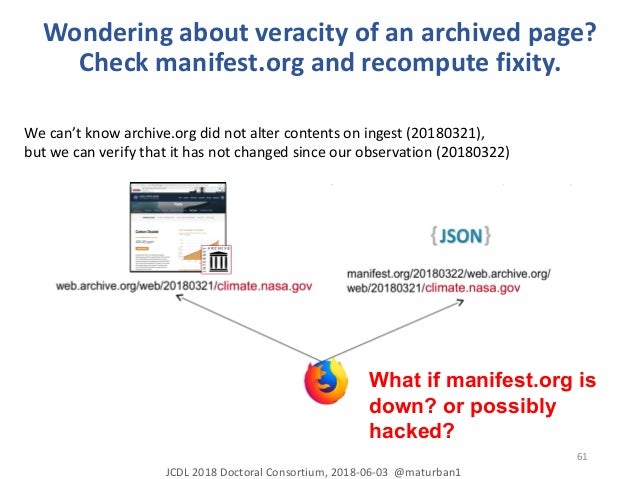

  61. 61. Wondering about veracity of an archived page? Check manifest.org and recompute fixity. 61 climate.nasa.gov climate.nasa.gov We can’t know archive.org did not alter contents on ingest (20180321), but we can verify that it has not changed since our observation (20180322) What if manifest.org is down? or possibly hacked? JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

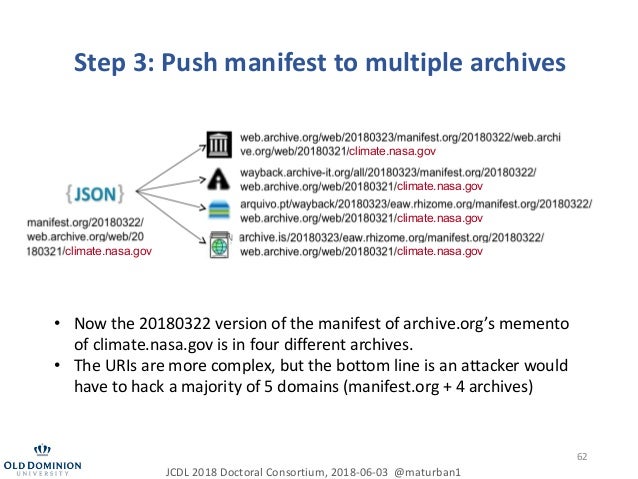

  62. 62. Step 3: Push manifest to multiple archives 62 climate.nasa.gov climate.nasa.gov climate.nasa.gov climate.nasa.gov climate.nasa.gov • Now the 20180322 version of the manifest of archive.org’s memento of climate.nasa.gov is in four different archives. • The URIs are more complex, but the bottom line is an attacker would have to hack a majority of 5 domains (manifest.org + 4 archives) JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

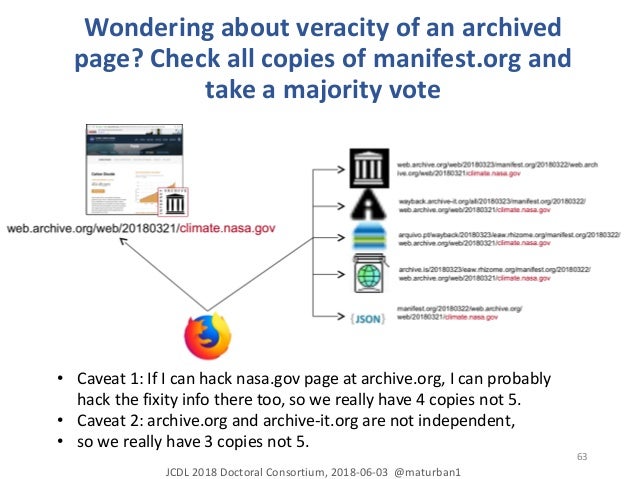

  63. 63. Wondering about veracity of an archived page? Check all copies of manifest.org and take a majority vote 63 climate.nasa.gov climate.nasa.gov climate.nasa.gov climate.nasa.gov climate.nasa.gov climate.nasa.gov • Caveat 1: If I can hack nasa.gov page at archive.org, I can probably hack the fixity info there too, so we really have 4 copies not 5. • Caveat 2: archive.org and archive-it.org are not independent, • so we really have 3 copies not 5. JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

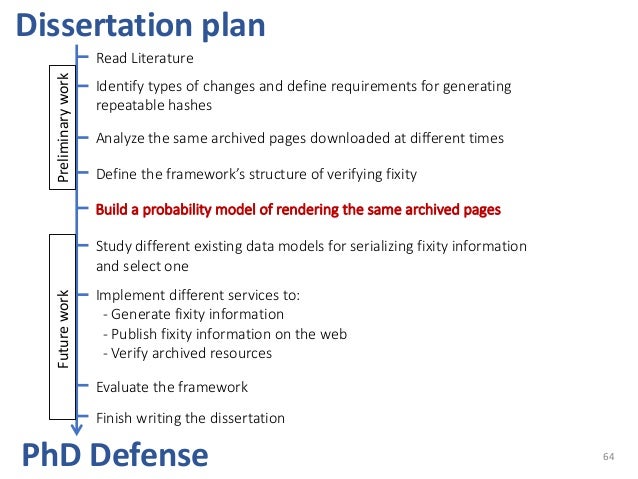

  64. 64. 64 Dissertation plan Read Literature Identify types of changes and define requirements for generating repeatable hashes Build a probability model of rendering the same archived pages PhD Defense Study different existing data models for serializing fixity information and select one Implement different services to: - Generate fixity information - Publish fixity information on the web - Verify archived resources Evaluate the framework Finish writing the dissertation Define the framework’s structure of verifying fixity Analyze the same archived pages downloaded at different times PreliminaryworkFuturework

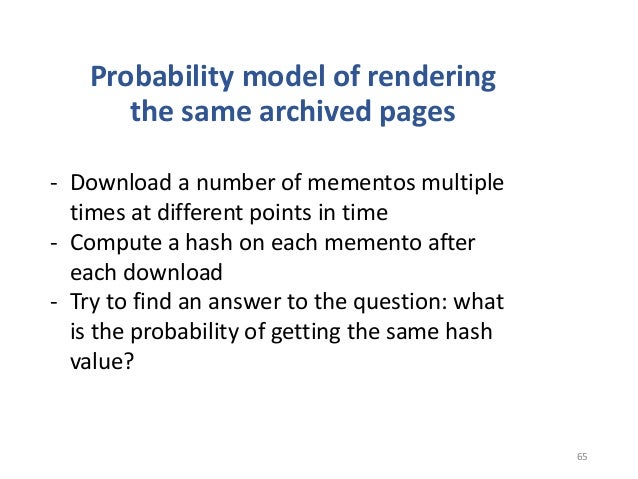

  65. 65. Probability model of rendering the same archived pages 65 - Download a number of mementos multiple times at different points in time - Compute a hash on each memento after each download - Try to find an answer to the question: what is the probability of getting the same hash value?

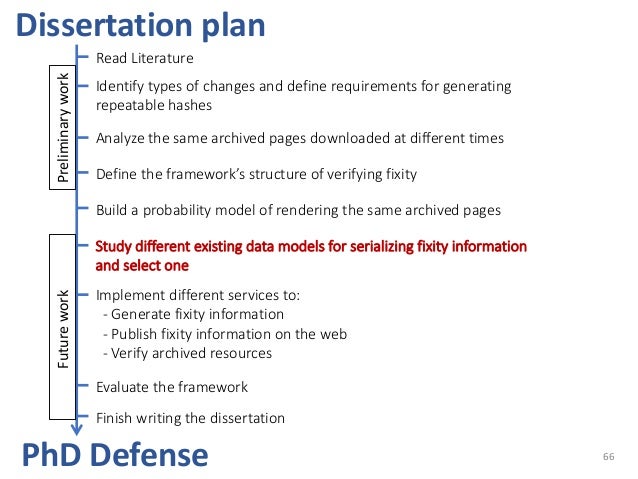

  66. 66. 66 Dissertation plan Read Literature Identify types of changes and define requirements for generating repeatable hashes Build a probability model of rendering the same archived pages PhD Defense Study different existing data models for serializing fixity information and select one Implement different services to: - Generate fixity information - Publish fixity information on the web - Verify archived resources Evaluate the framework Finish writing the dissertation Define the framework’s structure of verifying fixity Analyze the same archived pages downloaded at different times PreliminaryworkFuturework

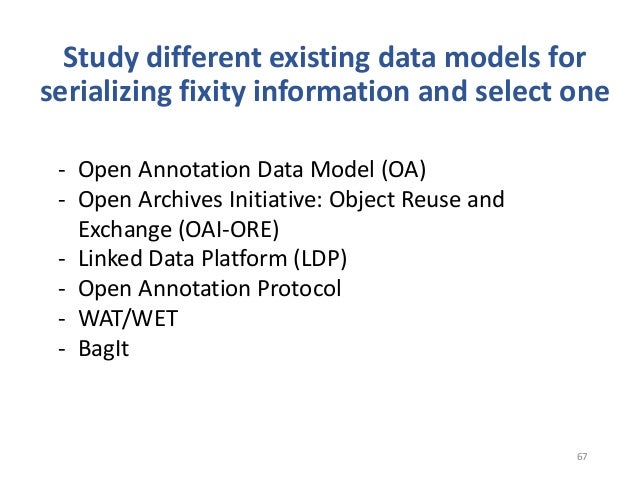

  67. 67. 67 - Open Annotation Data Model (OA) - Open Archives Initiative: Object Reuse and Exchange (OAI-ORE) - Linked Data Platform (LDP) - Open Annotation Protocol - WAT/WET - BagIt Study different existing data models for serializing fixity information and select one

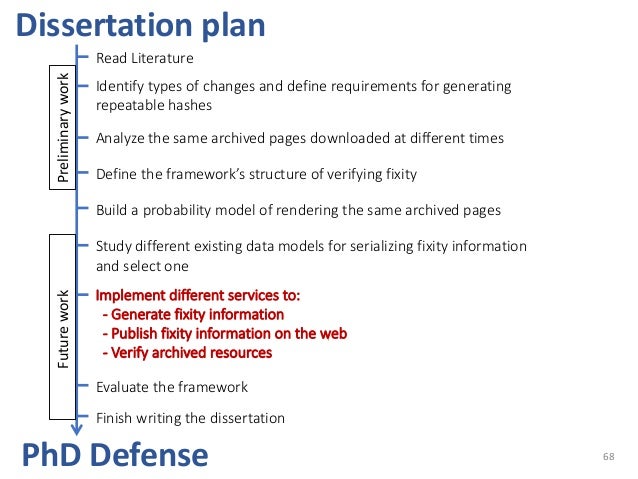

  68. 68. 68 Dissertation plan Read Literature Identify types of changes and define requirements for generating repeatable hashes Build a probability model of rendering the same archived pages PhD Defense Study different existing data models for serializing fixity information and select one Implement different services to: - Generate fixity information - Publish fixity information on the web - Verify archived resources Evaluate the framework Finish writing the dissertation Define the framework’s structure of verifying fixity Analyze the same archived pages downloaded at different times PreliminaryworkFuturework

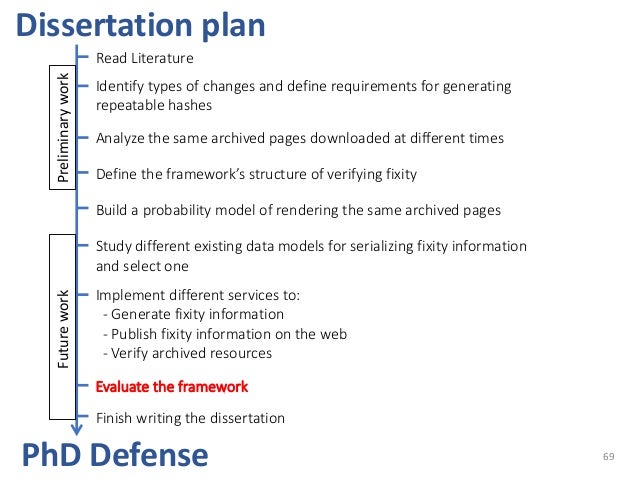

  69. 69. 69 Dissertation plan Read Literature Identify types of changes and define requirements for generating repeatable hashes Build a probability model of rendering the same archived pages PhD Defense Study different existing data models for serializing fixity information and select one Implement different services to: - Generate fixity information - Publish fixity information on the web - Verify archived resources Evaluate the framework Finish writing the dissertation Define the framework’s structure of verifying fixity Analyze the same archived pages downloaded at different times PreliminaryworkFuturework

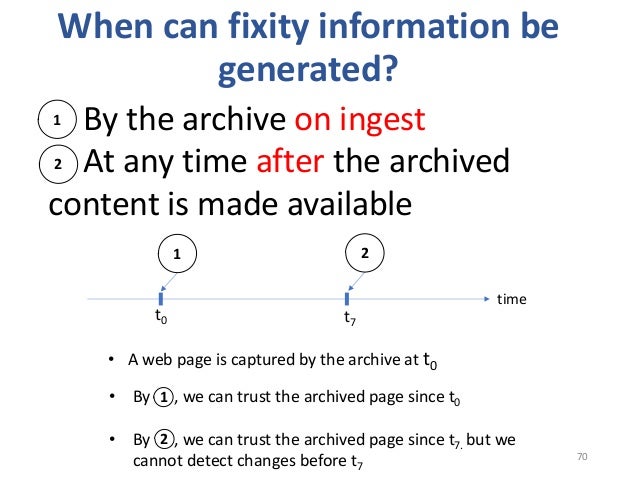

  70. 70. When can fixity information be generated? 70 1. By the archive on ingest 2. At any time after the archived content is made available time • A web page is captured by the archive at t0 1 t0 t7 1 2 • By , we can trust the archived page since t0 • By , we can trust the archived page since t7. but we cannot detect changes before t7 1 2 2

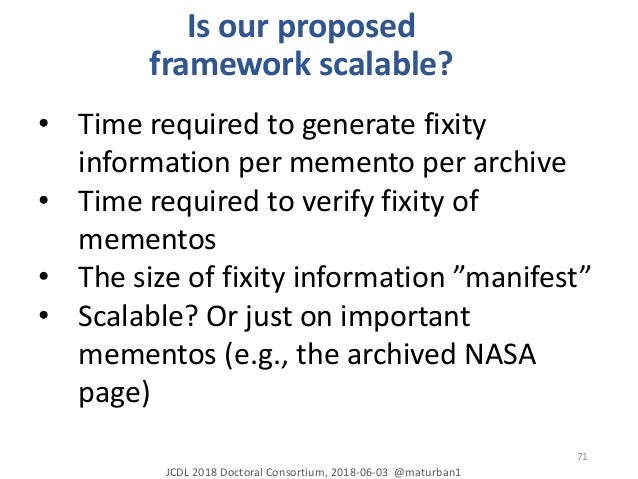

  71. 71. Is our proposed framework scalable? 71 • Time required to generate fixity information per memento per archive • Time required to verify fixity of mementos • The size of fixity information ”manifest” • Scalable? Or just on important mementos (e.g., the archived NASA page) JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

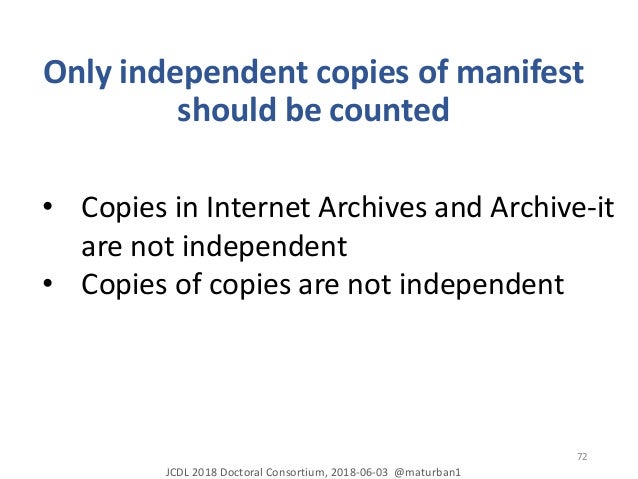

  72. 72. Only independent copies of manifest should be counted 72 • Copies in Internet Archives and Archive-it are not independent • Copies of copies are not independent JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1

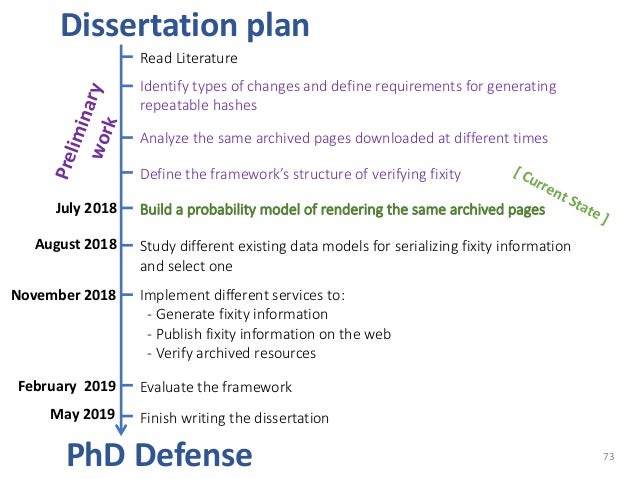

  73. 73. 73 Dissertation plan Read Literature Identify types of changes and define requirements for generating repeatable hashes Build a probability model of rendering the same archived pages PhD Defense Study different existing data models for serializing fixity information and select one Implement different services to: - Generate fixity information - Publish fixity information on the web - Verify archived resources Evaluate the framework Finish writing the dissertation Define the framework’s structure of verifying fixity Analyze the same archived pages downloaded at different times [ Current State ] Preliminarywork July 2018 November 2018 August 2018 February 2019 May 2019
  74. 74. Extra slides 74

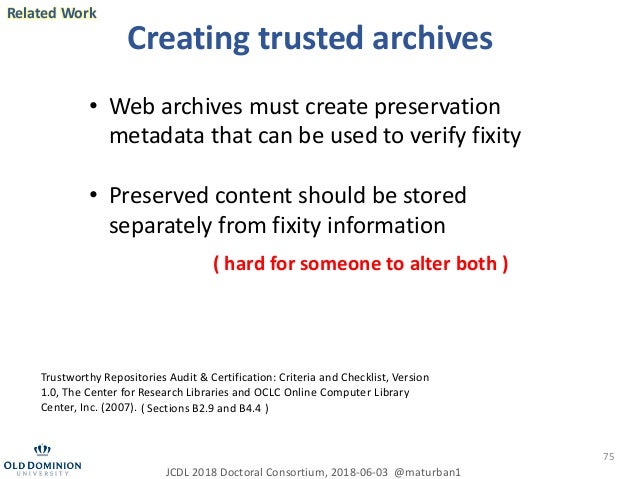

  75. 75. 75 Creating trusted archives JCDL 2018 Doctoral Consortium, 2018-06-03 @maturban1 Trustworthy Repositories Audit & Certification: Criteria and Checklist, Version 1.0, The Center for Research Libraries and OCLC Online Computer Library Center, Inc. (2007). ( Sections B2.9 and B4.4 ) • Web archives must create preservation metadata that can be used to verify fixity • Preserved content should be stored separately from fixity information ( hard for someone to alter both ) Related Work
  76. 76. 76 Threats • D. S. H. Rosenthal, T. Lipkis, T. S. Robertson, and S. Morabito. Transparent Format Migration of Preserved Web Content. D-Lib Magazine, 11(1), 2005. • A. Lerner, T. Kohno, and F. Roesner. Rewriting history: Changing the archived web from the present. In Proceedings of the 16th ACM conference on Computer and Communications Security (CCS), pages 1741–1755, 2017. • J. Cushman and I. Kreymer. Thinking like a hacker: Security Considerations for High-Fidelity Web Archives. http://labs.rhizome.org/presentations/security.html, May 2017. • Rosenthal et al. described several threats against digital preservation systems: • Lerner et al. discovered four vulnerabilities in the Internet Archive’s Wayback Machine (i.e., Archive-Escapes, Same-Origin Escapes, Archive- Escapes + Same-Origin Escapes, and Anachronism- Injection) that attackers can leverage to modify a user’s view in a browser • Cushman and Kreymer created a shared repository in May 2017 to demonstrate potential threats in web archives (e.g., controlling a user’s account due to Cross-Site Request Forgery (CSRF) or archived web resources reaching out to the live web) - Media failure, software failure, failure of network services, natural disaster, internal attack, organizational failure, hardware failure, … Related Work

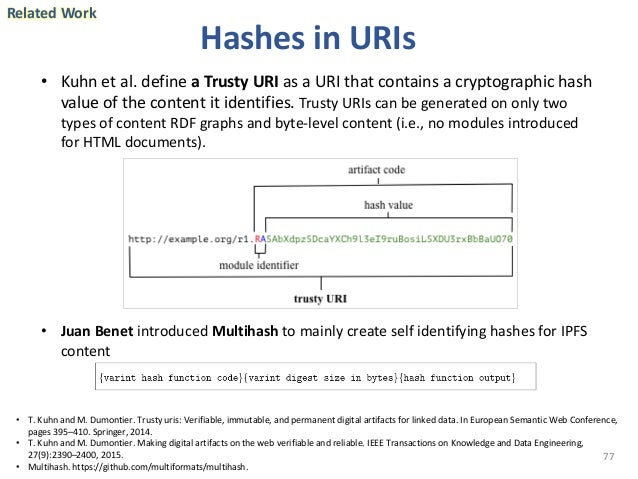

  77. 77. 77 Hashes in URIs • T. Kuhn and M. Dumontier. Trusty uris: Verifiable, immutable, and permanent digital artifacts for linked data. In European Semantic Web Conference, pages 395–410. Springer, 2014. • T. Kuhn and M. Dumontier. Making digital artifacts on the web verifiable and reliable. IEEE Transactions on Knowledge and Data Engineering, 27(9):2390–2400, 2015. • Multihash. https://github.com/multiformats/multihash. • Kuhn et al. define a Trusty URI as a URI that contains a cryptographic hash value of the content it identifies. Trusty URIs can be generated on only two types of content RDF graphs and byte-level content (i.e., no modules introduced for HTML documents). Related Work • Juan Benet introduced Multihash to mainly create self identifying hashes for IPFS content

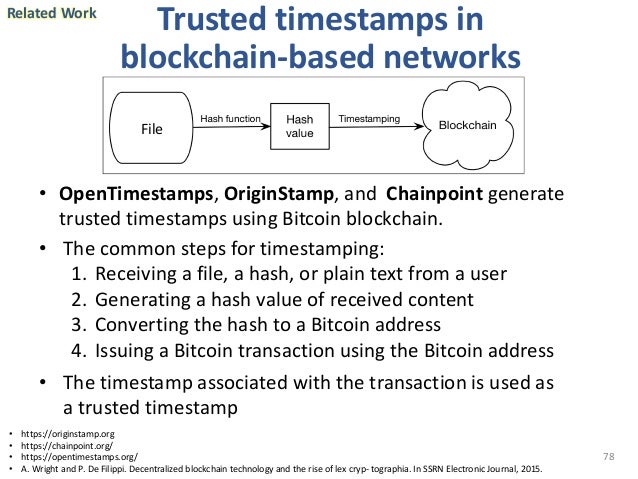

  78. 78. 78 Trusted timestamps in blockchain-based networks • https://originstamp.org • https://chainpoint.org/ • https://opentimestamps.org/ • A. Wright and P. De Filippi. Decentralized blockchain technology and the rise of lex cryp- tographia. In SSRN Electronic Journal, 2015. • OpenTimestamps, OriginStamp, and Chainpoint generate trusted timestamps using Bitcoin blockchain. Related Work File • The common steps for timestamping: 1. Receiving a file, a hash, or plain text from a user 2. Generating a hash value of received content 3. Converting the hash to a Bitcoin address 4. Issuing a Bitcoin transaction using the Bitcoin address • The timestamp associated with the transaction is used as a trusted timestamp

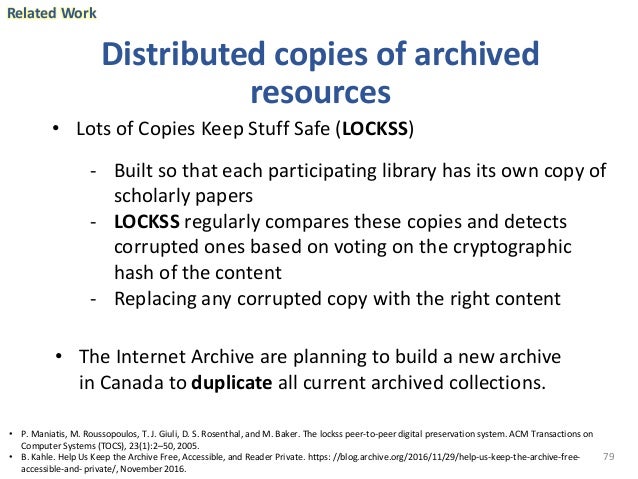

  79. 79. 79 Distributed copies of archived resources • P. Maniatis, M. Roussopoulos, T. J. Giuli, D. S. Rosenthal, and M. Baker. The lockss peer-to-peer digital preservation system. ACM Transactions on Computer Systems (TOCS), 23(1):2–50, 2005. • B. Kahle. Help Us Keep the Archive Free, Accessible, and Reader Private. https: //blog.archive.org/2016/11/29/help-us-keep-the-archive-free- accessible-and- private/, November 2016. Related Work - Built so that each participating library has its own copy of scholarly papers - LOCKSS regularly compares these copies and detects corrupted ones based on voting on the cryptographic hash of the content - Replacing any corrupted copy with the right content • The Internet Archive are planning to build a new archive in Canada to duplicate all current archived collections. • Lots of Copies Keep Stuff Safe (LOCKSS)

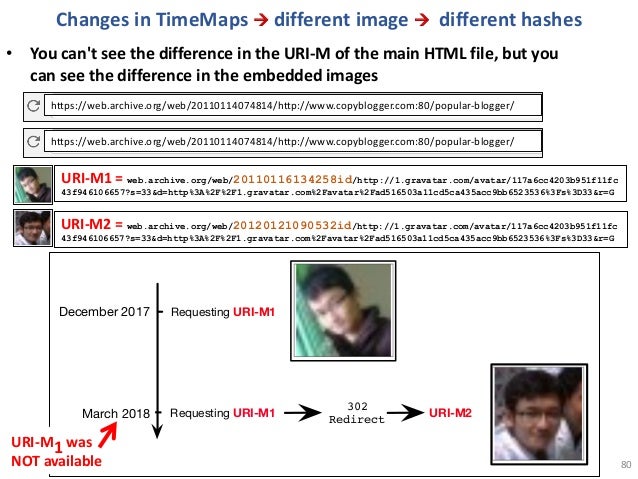

  80. 80. December 2017 March 2018 302 Redirect Requesting URI-M1 Requesting URI-M1 URI-M2 80 URI-M1 was NOT available URI-M1 = web.archive.org/web/20110116134258id/http://1.gravatar.com/avatar/117a6cc4203b951f11fc 43f946106657?s=33&d=http%3A%2F%2F1.gravatar.com%2Favatar%2Fad516503a11cd5ca435acc9bb6523536%3Fs%3D33&r=G URI-M2 = web.archive.org/web/20120121090532id/http://1.gravatar.com/avatar/117a6cc4203b951f11fc 43f946106657?s=33&d=http%3A%2F%2F1.gravatar.com%2Favatar%2Fad516503a11cd5ca435acc9bb6523536%3Fs%3D33&r=G Changes in TimeMaps à different image à different hashes • You can't see the difference in the URI-M of the main HTML file, but you can see the difference in the embedded images https://web.archive.org/web/20110114074814/http://www.copyblogger.com:80/popular-blogger/ https://web.archive.org/web/20110114074814/http://www.copyblogger.com:80/popular-blogger/

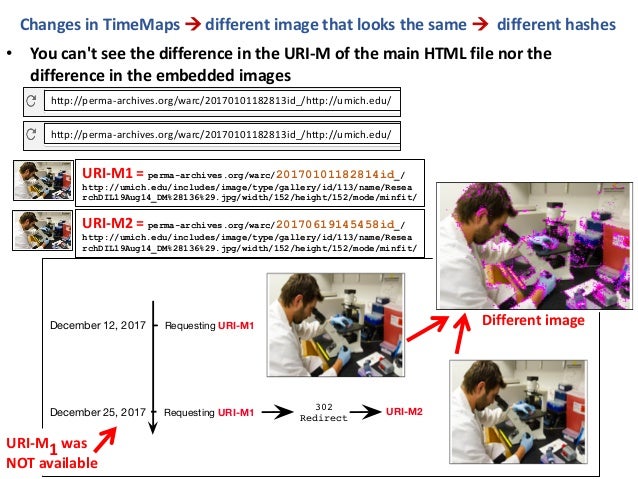

  81. 81. December 12, 2017 302 Redirect Requesting URI-M1 Requesting URI-M1 URI-M2December 25, 2017 URI-M1 = perma-archives.org/warc/20170101182814id_/ http://umich.edu/includes/image/type/gallery/id/113/name/Resea rchDIL19Aug14_DM%28136%29.jpg/width/152/height/152/mode/minfit/ URI-M2 = perma-archives.org/warc/20170619145458id_/ http://umich.edu/includes/image/type/gallery/id/113/name/Resea rchDIL19Aug14_DM%28136%29.jpg/width/152/height/152/mode/minfit/ URI-M1 was NOT available Different image Changes in TimeMaps à different image that looks the same à different hashes • You can't see the difference in the URI-M of the main HTML file nor the difference in the embedded images http://perma-archives.org/warc/20170101182813id_/http://umich.edu/ http://perma-archives.org/warc/20170101182813id_/http://umich.edu/

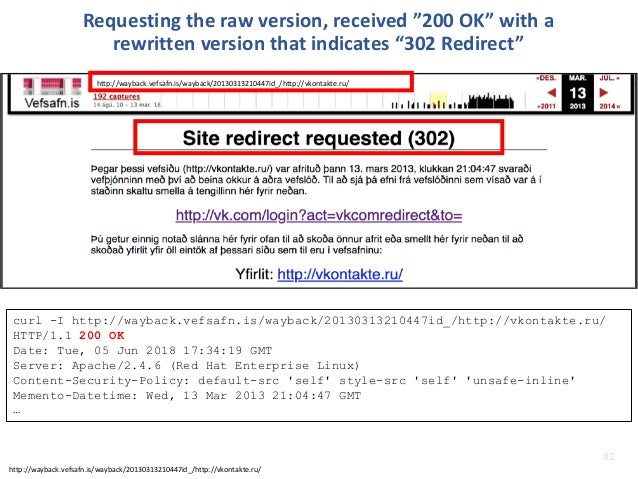

  82. 82. 82 http://wayback.vefsafn.is/wayback/20130313210447id_/http://vkontakte.ru/ Requesting the raw version, received ”200 OK” with a rewritten version that indicates “302 Redirect” curl -I http://wayback.vefsafn.is/wayback/20130313210447id_/http://vkontakte.ru/ HTTP/1.1 200 OK Date: Tue, 05 Jun 2018 17:34:19 GMT Server: Apache/2.4.6 (Red Hat Enterprise Linux) Content-Security-Policy: default-src 'self' style-src 'self' 'unsafe-inline' Memento-Datetime: Wed, 13 Mar 2013 21:04:47 GMT … http://wayback.vefsafn.is/wayback/20130313210447id_/http://vkontakte.ru/
  83. 83. 83 http://webharvest.gov/congress110th/20081124195939id_/http://www.usda.gov/ Requesting the raw version of webharvest.gov/congress110th/2008 1124195939id_/http://www.usda.gov/, it redirects to the live web

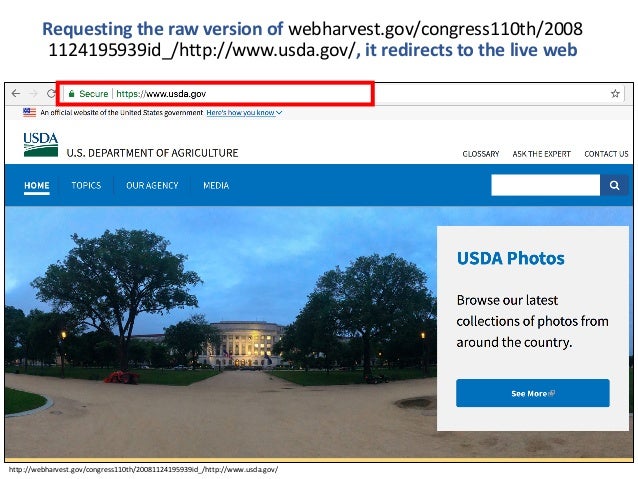

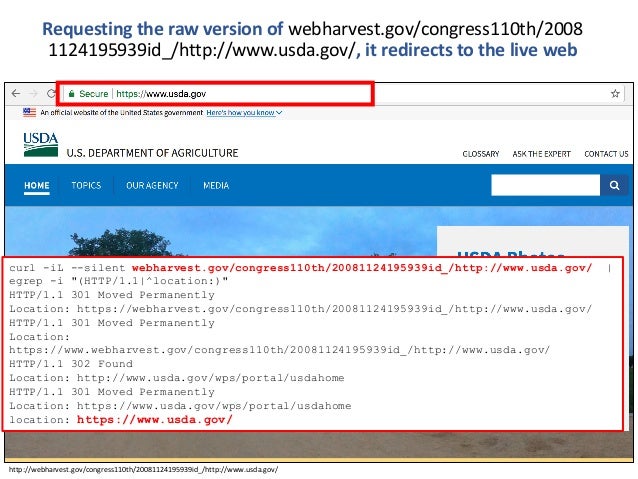

  84. 84. 84 http://webharvest.gov/congress110th/20081124195939id_/http://www.usda.gov/ Requesting the raw version of webharvest.gov/congress110th/2008 1124195939id_/http://www.usda.gov/, it redirects to the live web curl -iL --silent webharvest.gov/congress110th/20081124195939id_/http://www.usda.gov/ | egrep -i "(HTTP/1.1|^location:)" HTTP/1.1 301 Moved Permanently Location: https://webharvest.gov/congress110th/20081124195939id_/http://www.usda.gov/ HTTP/1.1 301 Moved Permanently Location: https://www.webharvest.gov/congress110th/20081124195939id_/http://www.usda.gov/ HTTP/1.1 302 Found Location: http://www.usda.gov/wps/portal/usdahome HTTP/1.1 301 Moved Permanently Location: https://www.usda.gov/wps/portal/usdahome location: https://www.usda.gov/

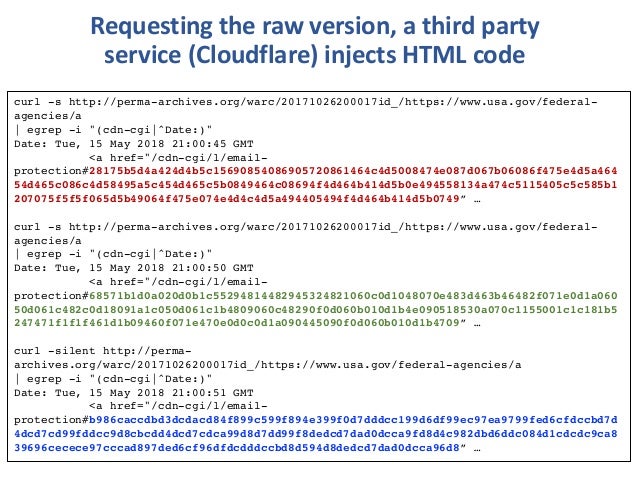

  85. 85. Requesting the raw version, a third party service (Cloudflare) injects HTML code curl -s http://perma-archives.org/warc/20171026200017id_/https://www.usa.gov/federal- agencies/a | egrep -i "(cdn-cgi|^Date:)" Date: Tue, 15 May 2018 21:00:45 GMT <a href="/cdn-cgi/l/email- protection#28175b5d4a424d4b5c15690854086905720861464c4d5008474e087d067b06086f475e4d5a464 54d465c086c4d58495a5c454d465c5b0849464c08694f4d464b414d5b0e494558134a474c5115405c5c585b1 207075f5f5f065d5b49064f475e074e4d4c4d5a494405494f4d464b414d5b0749” … curl -s http://perma-archives.org/warc/20171026200017id_/https://www.usa.gov/federal- agencies/a | egrep -i "(cdn-cgi|^Date:)" Date: Tue, 15 May 2018 21:00:50 GMT <a href="/cdn-cgi/l/email- protection#68571b1d0a020d0b1c55294814482945324821060c0d1048070e483d463b46482f071e0d1a060 50d061c482c0d18091a1c050d061c1b4809060c48290f0d060b010d1b4e090518530a070c1155001c1c181b5 247471f1f1f461d1b09460f071e470e0d0c0d1a090445090f0d060b010d1b4709” … curl -silent http://perma- archives.org/warc/20171026200017id_/https://www.usa.gov/federal-agencies/a | egrep -i "(cdn-cgi|^Date:)" Date: Tue, 15 May 2018 21:00:51 GMT <a href="/cdn-cgi/l/email- protection#b986caccdbd3dcdacd84f899c599f894e399f0d7dddcc199d6df99ec97ea9799fed6cfdccbd7d 4dcd7cd99fddcc9d8cbcdd4dcd7cdca99d8d7dd99f8dedcd7dad0dcca9fd8d4c982dbd6ddc084d1cdcdc9ca8 39696cecece97cccad897ded6cf96dfdcdddccbd8d594d8dedcd7dad0dcca96d8” …

×
