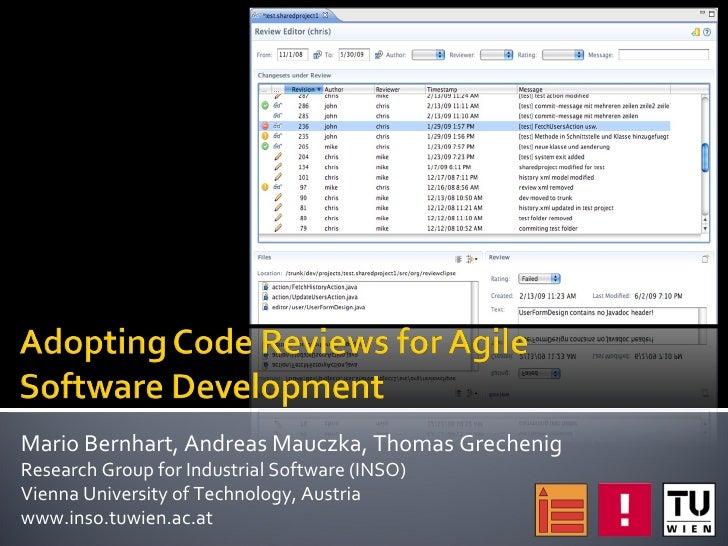

Adopting code reviews for agile software development

  1. 1. Mario Bernhart, Andreas Mauczka, Thomas Grechenig Research Group for Industrial Software (INSO) Vienna University of Technology, Austria
  2. 2. Introduction <ul><li>Code reviews have many benefits, most importantly to find bugs early [1, 2, 3] </li></ul><ul><li>It is commonly accepted that code reviews are resource-intensive [4] </li></ul><ul><li>Due to the lack of time and resources many (agile) software development teams do not perform traditional code reviews [5] </li></ul><ul><li>Code reviews support knowledge sharing [18] and collective code ownership [22] </li></ul>
  3. 3. Code reviews in agile environm. <ul><li>Formal reviews such as the IEEE1028 [2] tend to be too heavyweight in agile contexts [4, 5] </li></ul><ul><li>There is a growing interest in code reviews and review tools in the agile community [24] </li></ul><ul><li>An empirical study [25] proposes a combination of pair programming and code reviews </li></ul><ul><li> Q: How to adopt traditional code reviews to support reviews in an agile environment? </li></ul>
  4. 4. Indust. case: context & problem <ul><li>EHR exchange service for hospitals </li></ul><ul><li>Agile software development project, 24 months, Team of 7, sprint length 4 weeks </li></ul><ul><li>Planned code reviews for 4 days at the end of each sprint : </li></ul><ul><ul><li>1d inspection, 2d rework, 1d re-inspection </li></ul></ul><ul><li> Reviews were mostly challenged or skipped due to time and resource lack especially at the end of the sprint </li></ul>
  5. 5. Adoption strategy <ul><li>Make the reviews a continuous task </li></ul><ul><li>Make each review task smaller </li></ul><ul><li>Create review tasks automatically based on individual team rules </li></ul><ul><li>Make review asynchronous and support distributed reviewing </li></ul><ul><li>Provide a first-class IDE integration for developers </li></ul><ul><li> Continuous Changeset-Based Review CCBR </li></ul>
  6. 6. CCBR description <ul><li>Setup = List of (author, reviewer, filter) </li></ul><ul><ul><li>E.g. (Peter, Mike, *) + (*, Chris, *test*.java) + … </li></ul></ul><ul><li>Continuous review workflow: </li></ul><ul><ul><li>The developer commits to the SCM </li></ul></ul><ul><ul><li>If there is a matching rule: review task is auto-created </li></ul></ul><ul><ul><li>The review is executed by using the compare-view to the previous version of the change-set </li></ul></ul><ul><ul><li>The review result is consumed by the author </li></ul></ul><ul><ul><li>A (negative) review result is followed up and may create a corrective task for the author </li></ul></ul>
  7. 7. CCBR attributes <ul><li>Process Coherence </li></ul><ul><ul><li>Review is done shortly after the development </li></ul></ul><ul><ul><li>Rework is done shortly after the original work </li></ul></ul><ul><ul><li> “ It's All about Feedback and Change” [23] </li></ul></ul><ul><li>Information Coherence </li></ul><ul><ul><li>Changes within one timeframe often correlate [15] </li></ul></ul><ul><li>Task size </li></ul><ul><ul><li>small, typically <200 LOC per review task </li></ul></ul>
  8. 8. CCBR vs. traditional reviews (TR) Inspection Re-work Re-inspection t t Development effort Development effort Inspection, re-work and re-inspection effort TR CCBR
  9. 9. Limitations of CCBR <ul><li>TR sees the „whole“ whereas CCBR only refers to a „small piece“ </li></ul><ul><li>Focus on a stable state (TR) vs. the creation process (CCBR) </li></ul><ul><li>The sum of changed lines in TR < CCBR </li></ul><ul><ul><li>one line of code may be changed more than once </li></ul></ul><ul><li>Pre-commit reviews vs. Post-commit reviews </li></ul>
  10. 10. Review Tool for CCBR <ul><li>Eclipse integrated easy to use UI </li></ul><ul><li>Review scope = one changeset in the SVN </li></ul><ul><li>No additional server (XML/SVN based) </li></ul><ul><li>Works offline </li></ul><ul><li>Works with Subversive and Subclipse </li></ul><ul><li>Flexible filtered review assignments </li></ul><ul><li>Create Mylyn tasks out of (bad) reviews </li></ul><ul><li>Freeware , 10.000+ downloads </li></ul><ul><ul><li> </li></ul></ul>
  11. 11. ReviewClipse Screenshot
  12. 12. ReviewClipse Screenshot
  13. 13. Planned Empirical Evaluation <ul><li>Research Questions </li></ul><ul><ul><li>Is CCBR equally effective as TR? </li></ul></ul><ul><ul><li>Is CCBR equally efficient as TR? </li></ul></ul><ul><ul><li>Is the rework effort of CCBR < TR? </li></ul></ul><ul><li>Plan </li></ul><ul><ul><li>Prestudy with 3/3 and 6 subjects of A and B </li></ul></ul><ul><ul><li>A: In parallel study 30/30 (targets question 1 + 2) </li></ul></ul><ul><ul><li>B: In serial study 60 (targets question 3) </li></ul></ul>
  14. 14. Future Work – Mylyn Reviews <ul><li>Mylyn Reviews is a task-based code review plugin that integrates with Mylyn </li></ul><ul><li>Main Features: </li></ul><ul><ul><li>Do code reviews based on Mylyn tasks </li></ul></ul><ul><ul><li>Incorporate the review tasks in the Mylyn task list </li></ul></ul><ul><ul><li>Provide inline-commenting for source code reviews </li></ul></ul><ul><ul><li>Framework for other review tool integrations </li></ul></ul><ul><li> </li></ul>
  15. 15. References <ul><li>M. Fagan, “Design and code inspections to reduce errors in program development,” IBM Systems Journal , vol. 15, no. 3, pp. 182–211, 1976. </li></ul><ul><li>IEEE standard for software reviews and audits. IEEE STD 1028-2008, pages 1–52, 8 2008. </li></ul><ul><li>R. Baker, “Code reviews enhance software quality,” In Proceedings of the 1997 (19th) International Conference on Software Engineering , pp. 570–571, May 1997. </li></ul><ul><li>M. Ciolkowski, O. Laitenberger, and S. Biffl. “Software reviews, the state of the practice.” Software, IEEE, 20(6):46–51, Nov.-Dec. 2003. </li></ul><ul><li>L. Harjumaa, I. Tervonen, and A. Huttunen. “Peer reviews in real life - motivators and demotivators.” Fifth Int.Conference on Quality Software , 2005, pages 29–36, Sept. 2005. </li></ul><ul><li>J. Remillard. “Source code review systems.” IEEE Software, 22(1):74-77, Jan.-Feb. 2005. </li></ul><ul><li>B. Meyer. “Design and code reviews in the age of the internet.” Commun. ACM, 51(9):66–71, 2008. </li></ul><ul><li>M. Bernhart, C. Mayerhofer, T. Grechenig, “ReviewClipse - Supporting Code-Reviews within the Eclipse IDE”. Talk at EclipseCon 2009 </li></ul><ul><li>M. Stein, J. Riedl, S. J. Harner, and V. Mashayekhi, “A case study of distributed, asynchronous software inspection,” in ICSE ’97: Proceedings of the 19th international conference on Software engineering , (New York, NY, USA), pp. 107–117, ACM, 1997. </li></ul><ul><li>L.-T. Cheng, C. R. de Souza, S. Hupfer, J. Patterson, and S. Ross, “Building collaboration into IDEs,” Queue, vol. 1, no. 9, pp. 40–50, 2004. </li></ul><ul><li>C. R. Prause and S. Apelt, “An approach for continuous inspection of source code,” in Proceedings of the 6th int. workshop on Software quality , (New York, NY, USA), pp. 17–22, ACM, 2008. </li></ul><ul><li>S. P. Berczuk, “Software configuration management patterns - Effective Teamwork”, Practical Integration. Addison-Wesley, 2003. </li></ul><ul><li>Kersten, M. and Murphy, G. C. “Using task context to improve programmer productivity.” In Proceedings of the 14th ACM SIGSOFT international Symposium on Foundations of Software Engineering (Portland, Oregon, USA, November 05 - 11, 2006). SIGSOFT '06/FSE-14. ACM, New York, NY, 1-11. </li></ul><ul><li>B. W. Boehm, Software Engineering Economics. Prentice-Hall, 1981. </li></ul><ul><li>T. Zimmermann, P. Weißgerber, S. Diehl, and A. Zeller. „Mining Version Histories to Guide Software Changes.” Saarland University, September 2003. Proc. 26th International Conference on Software Engineering (ICSE) , Edinburgh, UK, May 2004. </li></ul><ul><li>A. Porter, H. Siy, A. Mockus, and L. Votta, “Understanding the sources of variation in software inspections,” ACM Trans. Softw. Eng. Methodol., vol. 7, no. 1 , pp. 41–79, 1998. </li></ul><ul><li>M. Stein, J. Riedl, S. J. Harner, and V. Mashayekhi, “A case study of distributed, asynchronous software inspection.” in ICSE ’97: Proceedings of the 19th international conference on Software engineering , (New York, NY, USA), pp. 107–117, ACM, 1997. </li></ul><ul><li>T. Gilb, D. Graham, and S. Finzi. “Software Inspection.” Addison-Wesley Longman Publishing Co., Inc. Boston, MA, USA, 1993. </li></ul><ul><li>C. Mayerhofer. “Design and Development of a Module for Change-Set Based Code Reviews in IDEs” Master Thesis, Vienna University of Technology, 2009. </li></ul><ul><li>Y. Mizuno. “Software quality improvement ,” Computer, vol. 16 , pp. 66–72, März 1983. </li></ul><ul><li>M.Bernhart, C. Mayerhofer, T. Grechenig. „ReviewClipse@Class - Using a Lightweight Continuous Software Reviewing Tool in Undergraduate Software Development Education“ – to appear in Proceedings of the 23rd Annual IEEE-CS Conference on Software Engineering Education and Training </li></ul><ul><li>M. E. Nordberg III, &quot;Managing Code Ownership,&quot; IEEE Software , pp. 26-33, March/April, 2003 </li></ul><ul><li>Williams, L. and Cockburn, A. Agile Software Development: It's All about Feedback and Change, IEEE Computer, Vol. 36, No., 6, pp. 83-85, June 2003. </li></ul><ul><li>W. Seliga, S. Ginter, “Effective code reviews in agile teams” Talk at Agile 2009 </li></ul><ul><li>D. Winkler and S. Biffl. “An empirical study on design quality improvement from best-practice inspection and pair programming.” Product-Focused Software Process Improvement, pages 319–333, 2006. </li></ul><ul><li>P. Grünbacher, M. Halling, and S. Biffl. “An empirical study on groupware support for software inspection meetings.” Automated Software Engineering, International Conference on, 0:4, 2003. </li></ul>
