1.
Continuous Integration
PRACTICES
to improve
software quality

2.
2
“Our highest priority is to satisfy the customer through
early and continuous delivery of valuable software.”
The Agile Manifesto, First Principle

3.
Practices
01

4.

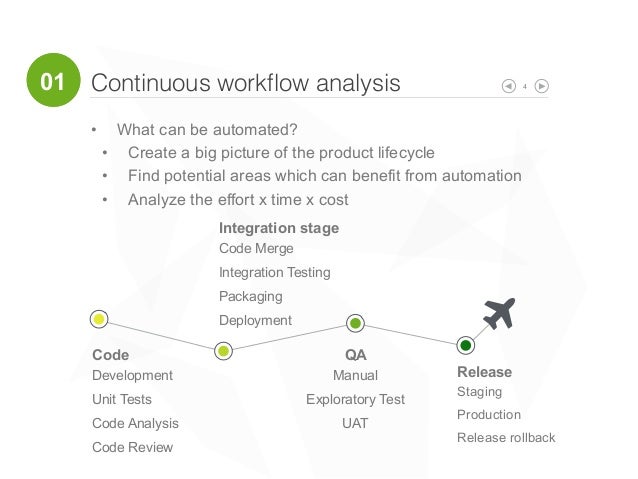

Continuous workflow analysis 4
• What can be automated?
• Create a big picture of the product lifecycle
• Find potential areas which can benefit from automation
• Analyze the effort x time x cost
!
Code
Development
Unit Tests
Code Analysis
Code Review
Integration stage
Code Merge
Integration Testing
Packaging
Deployment
QA
Manual
Exploratory Test
UAT
Release
Staging
Production
Release rollback
01

5.

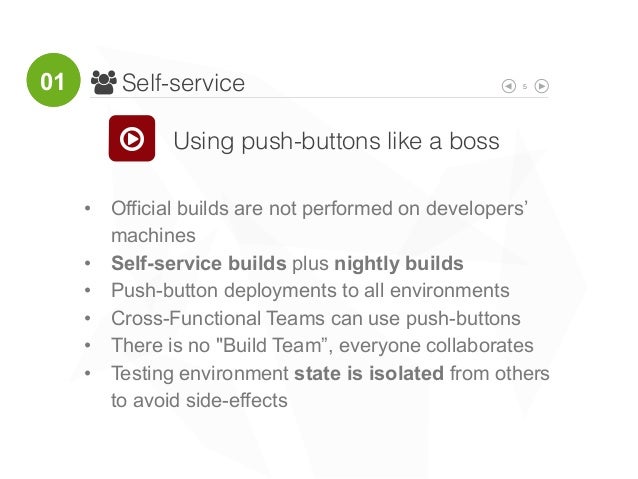

" Self-service 5
• Official builds are not performed on developers’
machines
• Self-service builds plus nightly builds
• Push-button deployments to all environments
• Cross-Functional Teams can use push-buttons
• There is no "Build Team”, everyone collaborates
• Testing environment state is isolated from others
to avoid side-effects
Using push-buttons like a boss○
01

6.

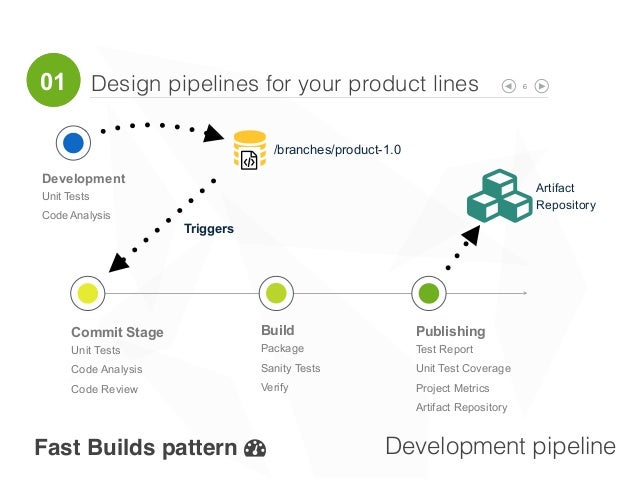

Design pipelines for your product lines 6
Commit Stage
Unit Tests
Code Analysis
Code Review
%
Triggers
/branches/product-1.0
Development
Unit Tests
Code Analysis
Development pipeline
Build
Package
Sanity Tests
Verify
Publishing
Test Report
Unit Test Coverage
Project Metrics
Artifact Repository
Fast Builds pattern &
Artifact
Repository'
01

7.

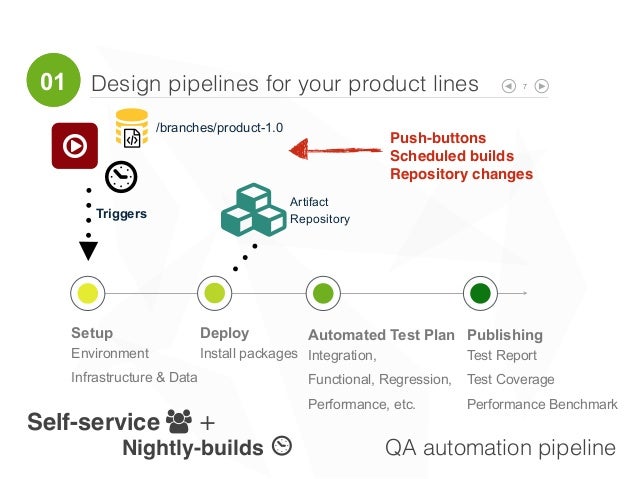

7
Setup
Environment
Infrastructure & Data
QA automation pipeline
Deploy
Install packages
Automated Test Plan
Integration,
Functional, Regression,
Performance, etc.
Publishing
Test Report
Test Coverage
Performance Benchmark
○ Push-buttons
Scheduled builds
Repository changes
{
%
/branches/product-1.0
Triggers
Design pipelines for your product lines
Self-service " +
Nightly-builds {
Artifact
Repository'
01

8.

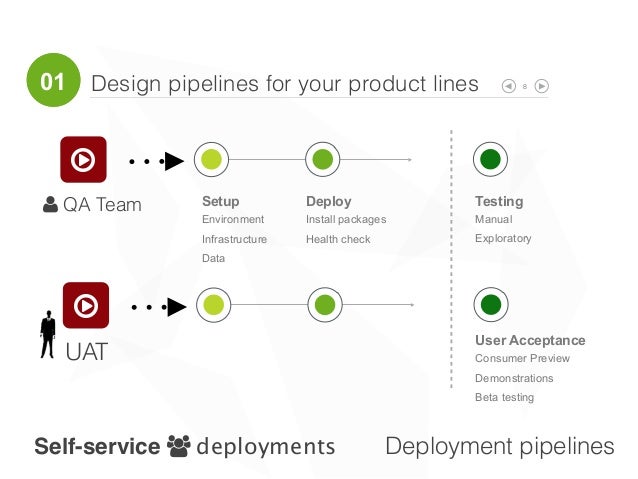

8
Setup
Environment
Infrastructure
Data
Testing
Manual
Exploratory
○
Deploy
Install packages
Health check
○
( QA Team
UAT
Self-service " deployments
Design pipelines for your product lines
Deployment pipelines
User Acceptance
Consumer Preview
Demonstrations
Beta testing
01

9.
Patterns
02

10.

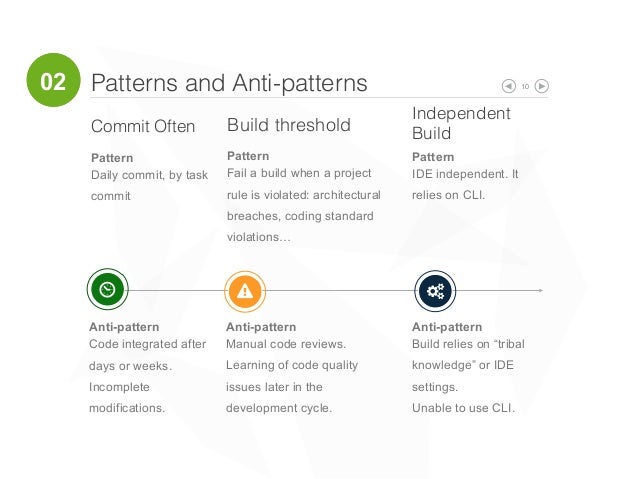

Patterns and Anti-patterns 10
{ ) *
Anti-pattern
Code integrated after
days or weeks.
Incomplete
modifications.
Pattern
Daily commit, by task
commit
Anti-pattern
Manual code reviews.
Learning of code quality
issues later in the
development cycle.
Pattern
Fail a build when a project
rule is violated: architectural
breaches, coding standard
violations…
Anti-pattern
Build relies on “tribal
knowledge” or IDE
settings.
Unable to use CLI.
Pattern
IDE independent. It
relies on CLI.
Commit Often Build threshold
Independent
Build
02

11.

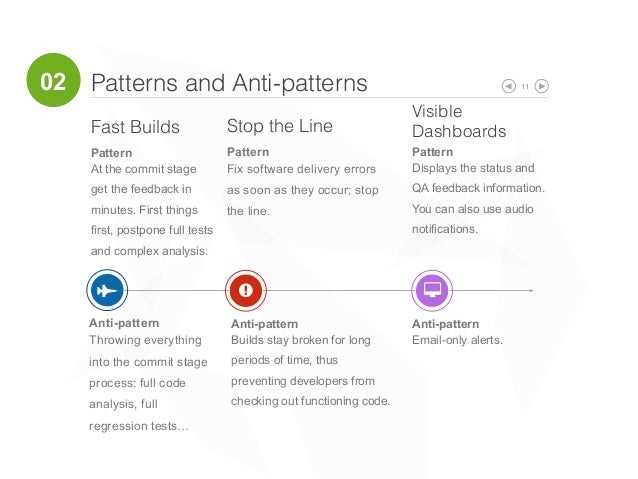

11
Anti-pattern
Throwing everything
into the commit stage
process: full code
analysis, full
regression tests…
Pattern
At the commit stage
get the feedback in
minutes. First things
first, postpone full tests
and complex analysis.
Anti-pattern
Builds stay broken for long
periods of time, thus
preventing developers from
checking out functioning code.
Pattern
Fix software delivery errors
as soon as they occur; stop
the line.
Anti-pattern
Email-only alerts.
Pattern
Displays the status and
QA feedback information.
You can also use audio
notifications.
Fast Builds Stop the Line
Visible
Dashboards
Patterns and Anti-patterns
+),-
02

12.

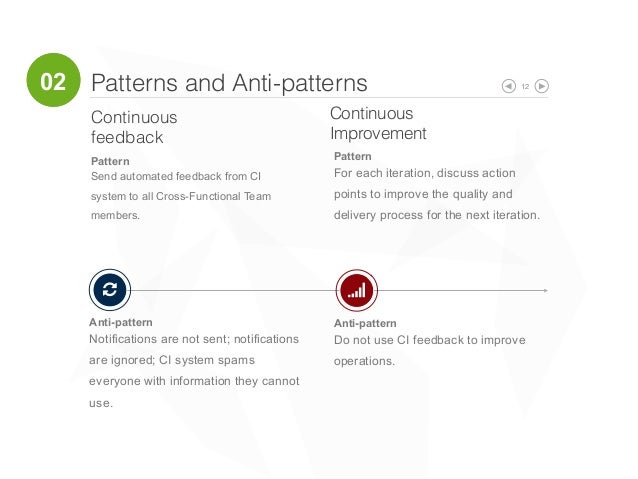

12
Anti-pattern
Notifications are not sent; notifications
are ignored; CI system spams
everyone with information they cannot
use.
Pattern
Send automated feedback from CI
system to all Cross-Functional Team
members.
Anti-pattern
Do not use CI feedback to improve
operations.
Pattern
For each iteration, discuss action
points to improve the quality and
delivery process for the next iteration.
Continuous
feedback
Continuous
Improvement
Patterns and Anti-patterns
. /
02

13.
Agile
Integration
03

14.

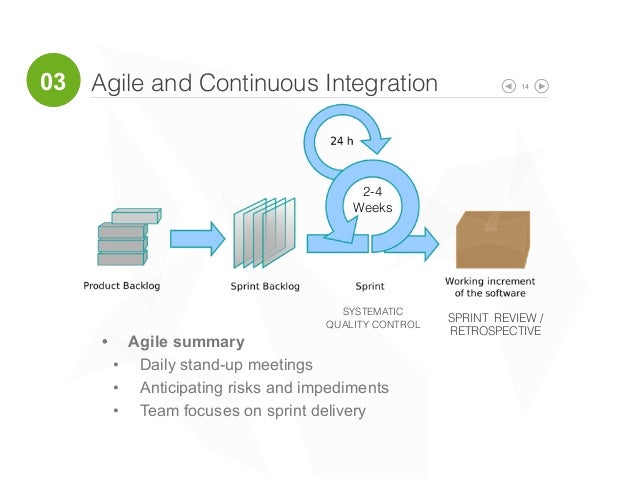

Agile and Continuous Integration 14
• Agile summary
• Daily stand-up meetings
• Anticipating risks and impediments
• Team focuses on sprint delivery
03
SYSTEMATIC
QUALITY CONTROL
SPRINT REVIEW /
RETROSPECTIVE
2-4
Weeks

15.

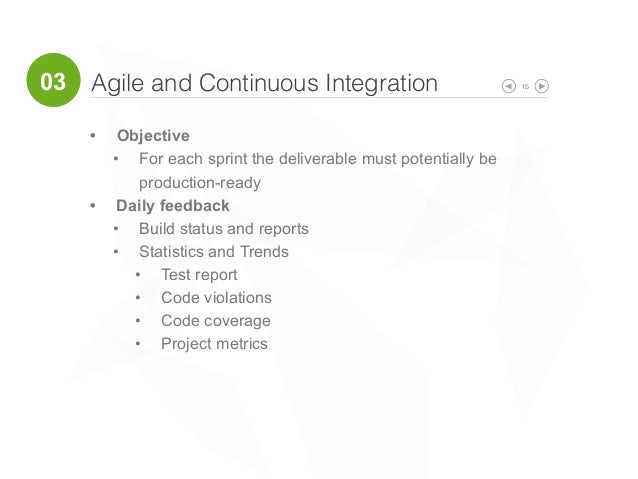

15
• Objective
• For each sprint the deliverable must potentially be
production-ready
• Daily feedback
• Build status and reports
• Statistics and Trends
• Test report
• Code violations
• Code coverage
• Project metrics
Agile and Continuous Integration03

16.
16
• Sprint Retrospective
• Use CI feedback to continuous improve the process
and the product quality
• Diagnosing pitfalls and registering sprint action points
• Unrelated activities (to the backlog)
• Implementing automation tasks
• Monitoring the status
• Preventive maintenance
• Multiple environment management: Build, Testing,
UAT…
Agile and Continuous Integration03

17.
See more…
• Quick start for Continuous Integration
• References:
[1] http://refcardz.dzone.com/refcardz/continuous-delivery-patterns
[2] http://martinfowler.com/articles/continuousIntegration.html
[3] http://guide.agilealliance.org/guide/ci.html
