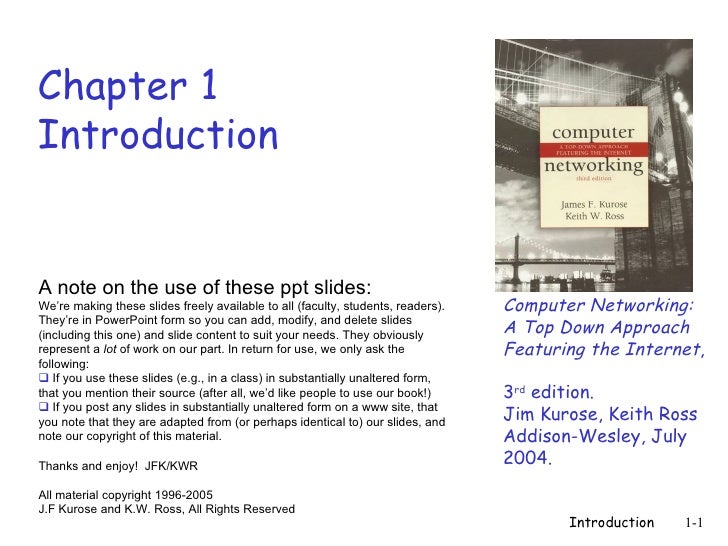

Chapter 1IntroductionA note on the use of these ppt slides:We’re making these slides freely available to all (faculty, stu...
Chapter 1: IntroductionOur goal:              Overview: get “feel” and        what’s the Internet  terminology          ...
Chapter 1: roadmap 1.1 What is the Internet? 1.2 Network edge 1.3 Network core 1.4 Network access and physical media 1.5 I...
What’s the Internet: “nuts and bolts” view  millions of connected            router                                      ...
“Cool” internet appliances                                              Web-enabled toaster +                             ...
What’s the Internet: “nuts and bolts” view   protocols control sending,             router     workstation    receiving o...
What’s the Internet: a service view  communication   infrastructure enables   distributed applications:       Web, email...
What’s a protocol?human protocols:           network protocols: “what’s the time?”        machines rather than “I have ...
What’s a protocol?a human protocol and a computer network protocol:       Hi                               TCP connection ...
Chapter 1: roadmap 1.1 What is the Internet? 1.2 Network edge 1.3 Network core 1.4 Network access and physical media 1.5 I...
A closer look at network structure: network edge:  applications and  hosts network core:   routers   network of    net...
The network edge: end systems (hosts):     run application programs     e.g. Web, email     at “edge of network” clie...
Network edge: connection-oriented service Goal: data transfer              TCP service [RFC 793]   between end systems    ...
Network edge: connectionless service Goal: data transfer          App’s using TCP:   between end systems         HTTP (We...
Chapter 1: roadmap 1.1 What is the Internet? 1.2 Network edge 1.3 Network core 1.4 Network access and physical media 1.5 I...
The Network Core mesh of interconnected  routers the fundamental  question: how is data  transferred through net?    ci...
Network Core: Circuit SwitchingEnd-end resources  reserved for “call” link bandwidth, switch  capacity dedicated resourc...
Network Core: Circuit Switchingnetwork resources              dividing link bandwidth  (e.g., bandwidth)             into...
Circuit Switching: FDM and TDM                         Example:FDM                         4 users      frequency         ...
Numerical example How long does it take to send a file of  640,000 bits from host A to host B over a  circuit-switched ne...
Another numerical example How long does it take to send a file of  640,000 bits from host A to host B over a  circuit-swi...
Network Core: Packet Switchingeach end-end data stream           resource contention:  divided into packets              ...
Packet Switching: Statistical Multiplexing        10 Mb/sA       Ethernet     statistical multiplexing   C                ...
Packet switching versus circuit switchingPacket switching allows more users to use network! 1 Mb/s link each user:    1...
Packet switching versus circuit switching Is packet switching a “slam dunk winner?”  Great for bursty data     resource ...
Packet-switching: store-and-forward              L                  R      R        R Takes L/R seconds to       Example:...
Packet-switched networks: forwarding   Goal: move packets through routers from source to    destination       we’ll stud...
Network Taxonomy                   Telecommunication                       networks     Circuit-switched                  ...
Chapter 1: roadmap 1.1 What is the Internet? 1.2 Network edge 1.3 Network core 1.4 Network access and physical media 1.5 I...
Access networks and physical media Q: How to connect end   systems to edge router?  residential access nets  institution...
Residential access: point to point access Dialup via modem    up to 56Kbps direct access to     router (often less)    ...
Residential access: cable modems  HFC: hybrid fiber coax     asymmetric: up to 30Mbps downstream, 2      Mbps upstream ...
Residential access: cable modems Diagram: http://www.cabledatacomnews.com/cmic/diagram.html   Introduction   1-33
Cable Network Architecture: Overview                                   Typically 500 to 5,000 homes   cable headend       ...
Cable Network Architecture: Overview   cable headend                                   home             cable distribution...
Cable Network Architecture: Overview    server(s)   cable headend                                     home                ...
Cable Network Architecture: Overview           FDM:                                                                      C...
Company access: local area networks  company/univ local area   network (LAN) connects   end system to edge router  Ether...
Wireless access networks shared wireless access  network connects end system  to router                           router ...
Home networksTypical home network components: ADSL or cable modem router/firewall/NAT Ethernet wireless access  point ...
Physical Media                                    Twisted Pair (TP) Bit: propagates between            two insulated cop...
Physical Media: coax, fiber Coaxial cable:                   Fiber optic cable:  two concentric copper           glass f...
Physical media: radio  signal carried in             Radio link types:   electromagnetic                terrestrial micr...
Chapter 1: roadmap 1.1 What is the Internet? 1.2 Network edge 1.3 Network core 1.4 Network access and physical media 1.5 I...
Internet structure: network of networks roughly hierarchical at center: “tier-1” ISPs (e.g., MCI, Sprint, AT&T, Cable  a...
Tier-1 ISP: e.g., SprintSprint US backbone network                                                              DS3 (45 Mb...
Internet structure: network of networks  “Tier-2” ISPs: smaller (often regional) ISPs     Connect to one or more tier-1 ...
Internet structure: network of networks  “Tier-3” ISPs and local ISPs     last hop (“access”) network (closest to end sy...
UMass Campus Network                       Introduction   1-49
Internet structure: network of networks a packet passes through many networks!           local            ISP     Tier 3 ...
Chapter 1: roadmap 1.1 What is the Internet? 1.2 Network edge 1.3 Network core 1.4 Network access and physical media 1.5 I...
How do loss and delay occur?packets queue in router buffers packet arrival rate to link exceeds output link capacity pac...
Four sources of packet delay 1. nodal processing:            2. queueing    check bit errors                time waiti...
Delay in packet-switched networks3. Transmission delay:         4. Propagation delay: R=link bandwidth (bps)        d = ...
Caravan analogy                          100 km               100 km      ten-car     toll                toll      carava...
Caravan analogy (more)                           100 km                    100 km     ten-car    toll                     ...
Nodal delay            d nodal = d proc + d queue + d trans + d prop dproc = processing delay      typically a few micro...
Queueing delay (revisited) R=link bandwidth (bps) L=packet length (bits) a=average packet  arrival rate traffic intensi...
“Real” Internet delays and routes What do “real” Internet delay & loss look like? Traceroute program: provides delay  me...
“Real” Internet delays and routestraceroute: gaia.cs.umass.edu to www.eurecom.fr                                    Three ...
Packet loss queue (aka buffer) preceding link in buffer  has finite capacity when packet arrives to full queue, packet i...
Chapter 1: roadmap 1.1 What is the Internet? 1.2 Network edge 1.3 Network core 1.4 Network access and physical media 1.5 I...
Protocol “Layers”Networks are complex! many “pieces”:   hosts                     Question:   routers                  ...
Organization of air travel    ticket (purchase)                 ticket (complain)    baggage (check)                   bag...
Layering of airline functionalityticket (purchase)                                            ticket (complain)         ti...
Why layering?Dealing with complex systems: explicit structure allows identification,  relationship of complex system’s pi...
Internet protocol stack application: supporting network  applications                         application      FTP, SMTP...
source      message     M    application                                                Encapsulation    segment Ht    M  ...
Chapter 1: roadmap 1.1 What is the Internet? 1.2 Network edge 1.3 Network core 1.4 Network access and physical media 1.5 I...
Internet History1961-1972: Early packet-switching principles 1961: Kleinrock - queueing    1972:  theory shows          ...
Internet History    1972-1980: Internetworking, new and proprietary nets 1970: ALOHAnet satellite                        ...
Internet History1980-1990: new protocols, a proliferation of networks 1983: deployment of       new national networks:  ...
Internet History1990, 2000’s: commercialization, the Web, new apps Early 1990’s: ARPAnet             Late 1990’s – 2000’s...
Introduction   1-74
Introduction: SummaryCovered a “ton” of material!   You now have: Internet overview             context, overview, what...
