Java EE 6, Eclipse, GlassFish @EclipseCon 2010

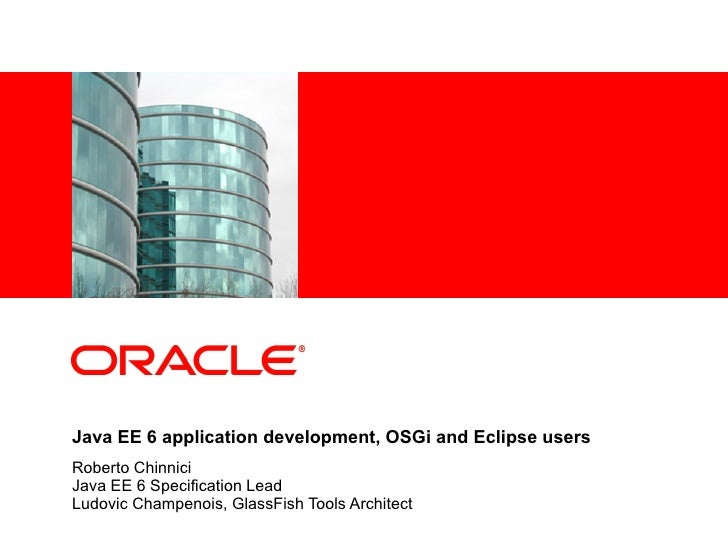

  1. 1. <Insert Picture Here> Java EE 6 application development, OSGi and Eclipse users Roberto Chinnici Java EE 6 Specification Lead Ludovic Champenois, GlassFish Tools Architect
  2. 2. JAVA EE 6 FINAL RELEASE DECEMBER 10, 2009
  3. 3. What's New? • • • • • Several new APIs Web Profile Pluggability/extensibility Dependency injection Lots of improvements to existing APIs
  4. 4. New and updated components • • • • • • • • • EJB 3.1 JPA 2.0 Servlet 3.0 JSF 2.0 JAX-RS 1.1 Connectors 1.6 Bean Validation 1.0 DI 1.0 CDI 1.0 • • • • • • • • • Managed Beans 1.0 Interceptors 1.1 JAX-WS 2.2 JSR-109 1.3 JSP 2.2 EL 2.2 JSR-250 1.1 JASPIC 1.1 JACC 1.5
  5. 5. Web Profile • First Java EE profile to be defined • A fully-functional, mid-size stack for modern web application development • Complete, but not the kitchen sink
  6. 6. Java EE 6 Web Profile Contents JSF 2.0 JSP 2.2 · EL 2.2 · JSTL 1.2 · JSR-45 1.0 Servlet 3.0 EJB 3.1 Lite · DI 1.0 · CDI 1.0 · Managed Beans 1.0 Bean Validation 1.0 · Interceptors 1.1 · JSR-250 1.1 JPA 2.0 · JTA 1.1
  7. 7. Pluggability/Extensibility • Focus on the web tier in this release • Create a level playing field for third-party frameworks • Simplify packaging of web applications
  8. 8. Modular Web Applications • • • • • • Libraries can contain /META-INF/web-fragment.xml web.xml is optional @WebServlet, @WebFilter annotations ServletContainerInitializer interface Programmatic registration of components Resource jars containing /META-INF/resources
  9. 9. Sample Web Fragment Descriptor <web-fragment version=”3.0” xmlns="http://java.sun.com/xml/ns/javaee"> <servlet> <servlet-name>welcome</servlet-name> <servlet-class>WelcomeServlet</servlet-class> </servlet> <listener> <listener-class>RequestListener</listener-class> </listener> </web-fragment>
  10. 10. JAX-RS 1.1 • • • • • RESTful web services API Already widely adopted Really a general, high-level HTTP API Annotation-based programming model Programmatic API when needed
  11. 11. JAX-RS Sample @Path(“widgets/{id}”) @Produces(“application/widgets+xml”) public class WidgetResource { public WidgetResource(@PathParam(“id”) String id) {…} @GET public Widget getWidget() {…} @PUT public void putWidget(Widget widget){…} }
  12. 12. Bean Validation 1.0 • Integrated with JSF, JPA • Declarative constraints using annotations @NotNull @Size(max=40) String address; • Fully extensible: define your own constraints @Email String recipient; • Validator API for programmatic validation validator.validate(obj) → Set<ConstraintViolation>
  13. 13. EJB 3.1 • @Singleton beans • @Startup beans • @Asynchronous invocations @Asynchronous public Future<Integer> compute(); • Define EJBs directly inside a web application • EJBContainer API works on Java SE
  14. 14. Adding an EJB to a Web Application Before BuyBooks.war ShoppingCart EJB Class Now ShoppingCart EJB Class ShoppingCart.jar BuyBooks.ear BuyBooks.war
  15. 15. Dependency Injection • DI + CDI (JSR-330 + JSR-299) • @Resource still around @Resource DataSource myDB; • Added @Inject annotation for typesafe injection @Inject @LoggedIn User user; • Automatic scope management (request, session, etc.) • No configuration: beans discovered at startup • Extensible via the BeanManager API
  16. 16. Dependency Injection Sample @ApplicationScoped public class CheckoutHandler { @Inject public CheckoutHandler( @LoggedIn User user, @Reliable @PayBy(CREDIT_CARD) PaymentProcessor processor, @Default ShoppingCart cart) {…} } Injection points identified by Qualifier + Type @Default can be omitted
  17. 17. JSF 2.0 • • • • • • Facelet as a standard view declaration language Composite components Automatic discovery of component libraries Programmatic and declarative Ajax support System events Validation out-of-the-box
  18. 18. Java EE 6 Platform • • • • More powerful More flexible More extensible Easier to use http://java.sun.com/javaee
  19. 19. What is GlassFish • A Community – Users, Partners, Testers, Developers – Started in 2005 on http://java.net • Application Server – Enterprise Quality and Open Source (CDDL & GPL v2) – Java EE 5 / 6 Reference Implementation • Full Commercial Support from Oracle – Not only a Reference Implementation – Roadmap announced tomorrow regarding HA, Clustering...
  20. 20. GlassFish v3... • The Java EE 6 spec, of course, and... • Beyond the spec – Fast, very fast, small, very small – restart, btrace/dtrace, embedded, modularity, OSGi, RESTful Admin,... – Scripting: jRoR, Grails, and now Django • Update Center: repository of new/updated bundles • Tooling: Netbeans 6.8, IntelliJ,vi, and – Eclipse 3.5, 3.6Mx
  21. 21. Modular and Dynamic • Modular : OSGi: Equinox and Apache Felix • But also Equinox or Static mode, thanks to HK2 – Yet very Fast ! • Painless Java EE 6 development – – – – Via the new/easier APIs Via better tools integration Ultra fast Auto-deploy of all Java EE and static artifacts Application runner • java -jar glassfish.jar foo.war
  22. 22. Web Session Retention • Deployment option to maintain stateful sessions across redeployments – $ asadmin redeploy --properties keepSessions=true myapp.war – Enabled by Default in Eclipse IDE • For All sessions: – Servlets, CDIs, Stateful EJBs,... • Greatly simplifies the development paradigm
  23. 23. GlassFish and OSGi • GlassFish runs on top of OSGi (Felix and Equinox) – GlassFish ships with 200+ bundles • Can use OSGi management tools (CLI or Web) • Any OSGi bundle will run in GlassFish v3 – Drop it in domain1/autodeploy/bundles – Can also asadmin deploy it using --type osgi • Consume OSGi services via @Resource @Resource (mappedName="MYPUREOSGISERVICE") HelloService myOSGiService; • Web Application Bundle (WAB Support)
  24. 24. Demo • GlassFish Java EE dev in Eclipse
  25. 25. Integration with maven 2 • Java EE 6 APIs in Maven repository – http://download.java.net/maven/2/javax/javaee-api/ – Stripped jars: very small <1Mb – Not to be used for Testing • GlassFish Embbeded can run via Maven – mvn gf:run
  26. 26. Update Center: Add/Remove/Update Bundles
  27. 27. Thanks for your attention! • http://java.sun.com/javaee • http://glassfish.org

×
