LINE LIVE のチャットが
30,000+/min のコメント投稿を捌くようになるまで

3,621 views

Published on

JJUG CCC 2018 Spring

Published in: Technology
  • Be the first to comment

LINE LIVE のチャットが
30,000+/min のコメント投稿を捌くようになるまで

  1. 1. LINE LIVE
 30,000+/min Go Hagiwara (Oklahomer) , Dev3 Center
  2. 2. ● Oklahomer
 or ● @ LINE ● LINE LIVE API ● ● ● Bot Framework ChatOps bot ● Java/Golang/Python/Perl
  3. 3. ● LINE ● ● ● ● LINE LIVE

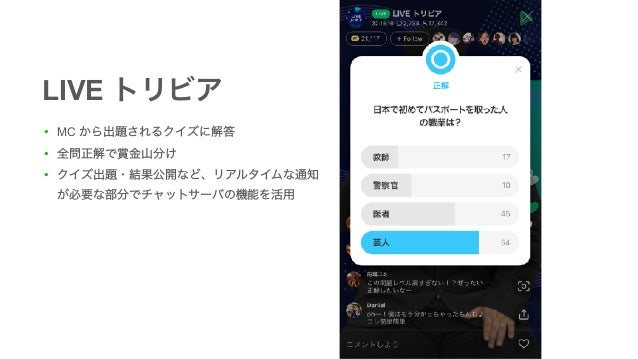

  4. 4. ● MC ● ● LIVE

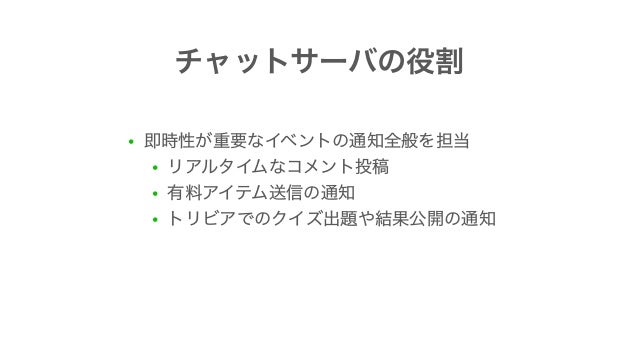

  5. 5. ● ● ● ●

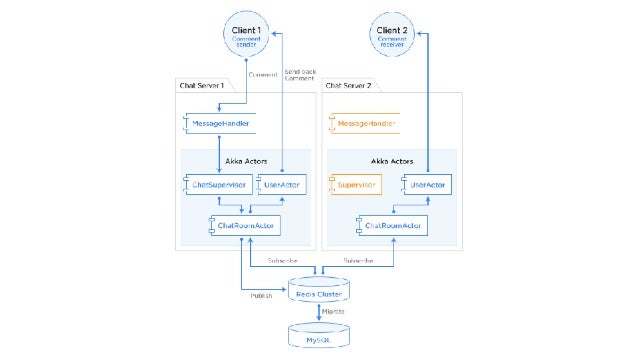

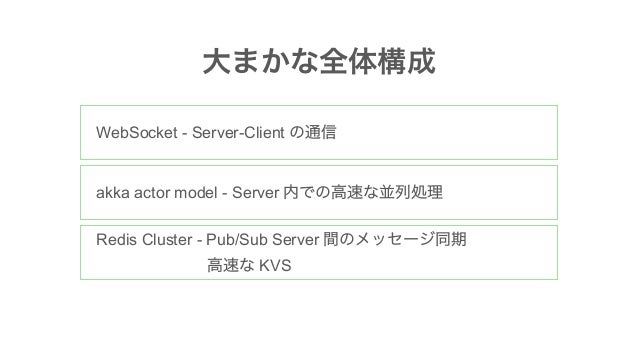

  6. 6. WebSocket - Server-Client akka actor model - Server Redis Cluster - Pub/Sub Server
 KVS
  7. 7. subtitle TITLE

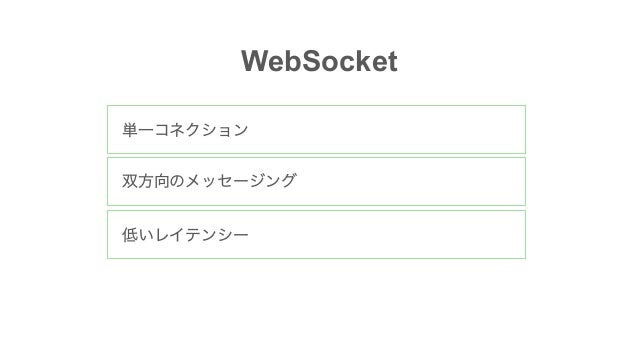

  8. 8. WebSocket

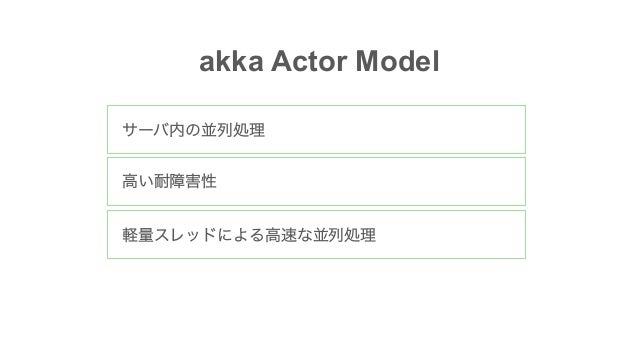

  9. 9. akka Actor Model

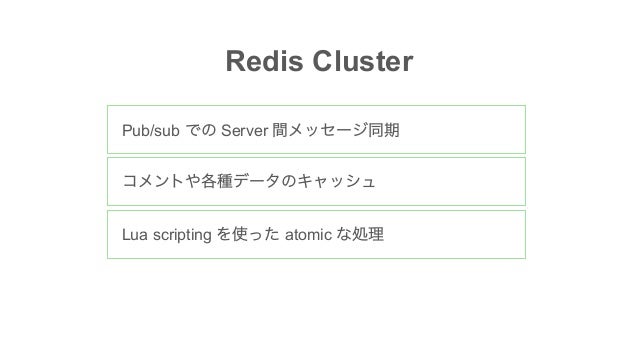

  10. 10. Pub/sub Server Lua scripting atomic Redis Cluster

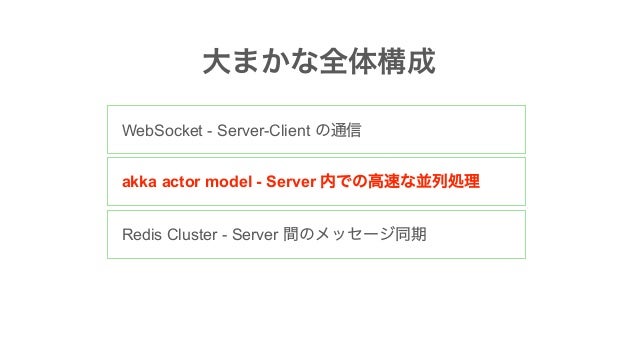

  11. 11. WebSocket - Server-Client akka actor model - Server Redis Cluster - Server

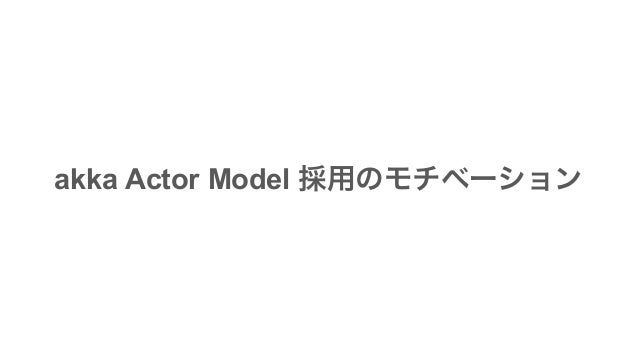

  12. 12. akka Actor Model

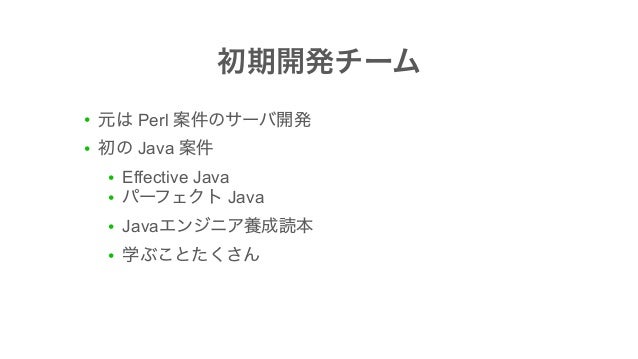

  13. 13. ● Perl ● Java ● Effective Java ● Java ● Java ●

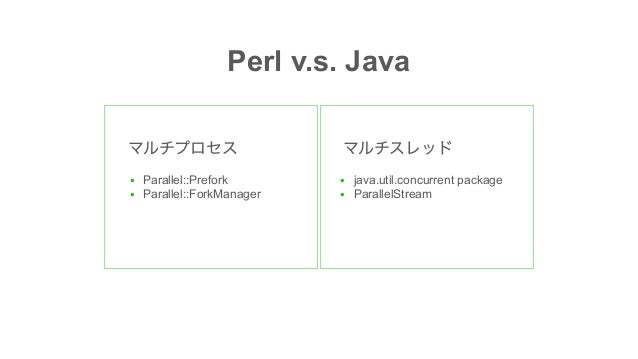

  14. 14. ● Parallel::Prefork ● Parallel::ForkManager ● java.util.concurrent package ● ParallelStream Perl v.s. Java

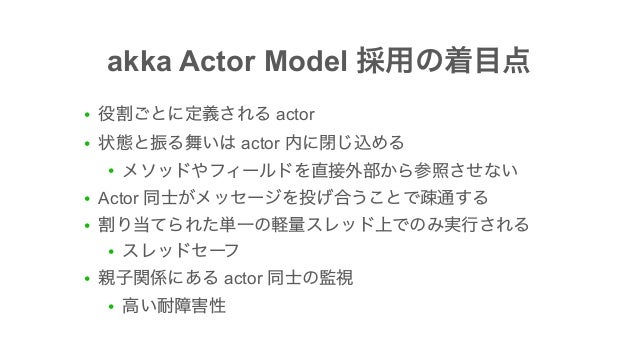

  15. 15. akka Actor Model ● actor ● actor ● ● Actor ● ● ● actor ●
  16. 16. Actor

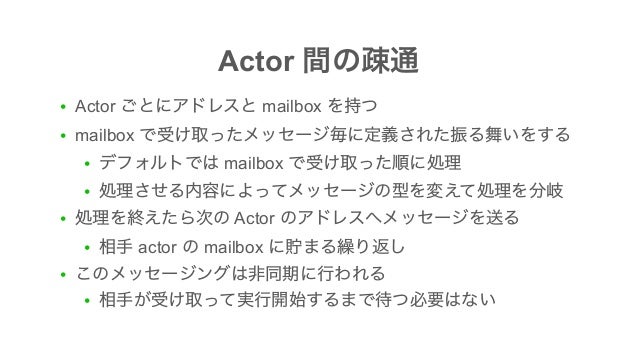

  17. 17. Actor ● Actor mailbox ● mailbox ● mailbox ● ● Actor ● actor mailbox ● ●

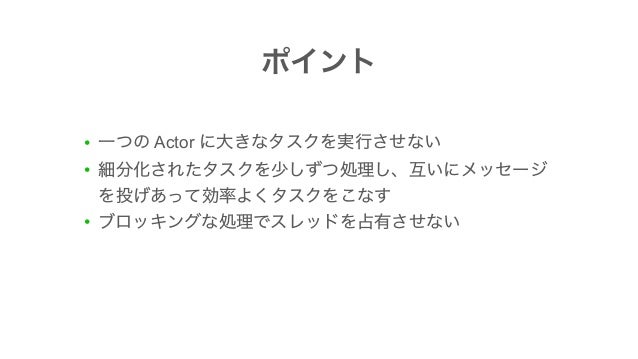

  18. 18. ● Actor ● ●

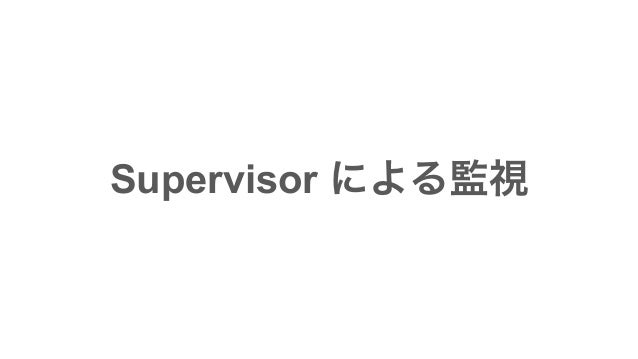

  19. 19. Supervisor

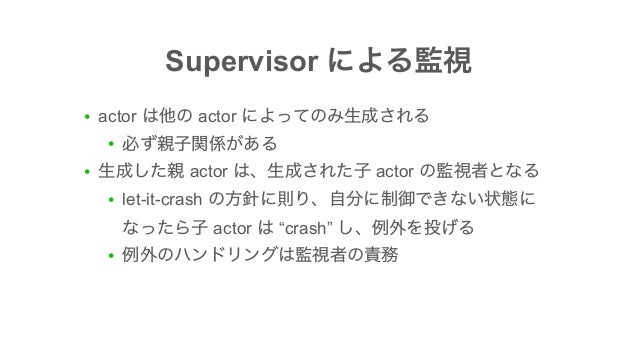

  20. 20. Supervisor ● actor actor ● ● actor actor ● let-it-crash actor “crash” ●

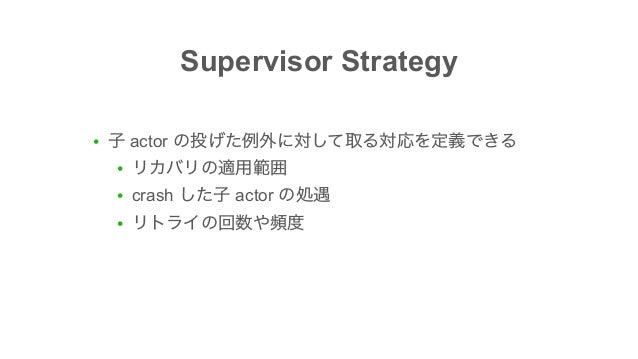

  21. 21. Supervisor Strategy ● actor ● ● crash actor ●

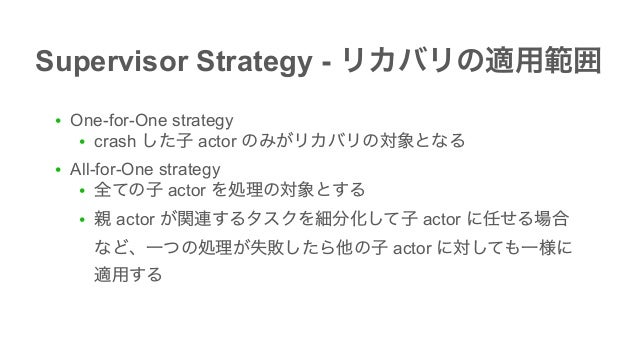

  22. 22. Supervisor Strategy - ● One-for-One strategy ● crash actor ● All-for-One strategy ● actor ● actor actor actor

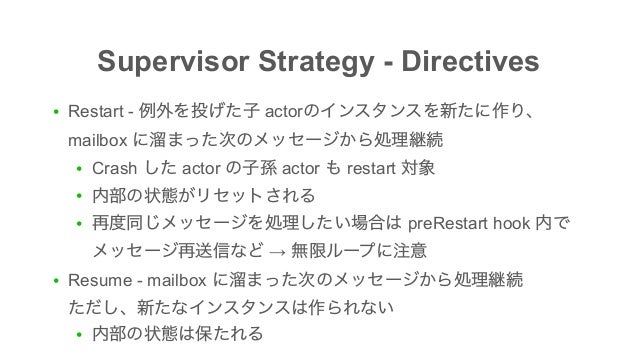

  23. 23. Supervisor Strategy - Directives ● Restart - actor mailbox ● Crash actor actor restart ● ● preRestart hook → ● Resume - mailbox
 ●

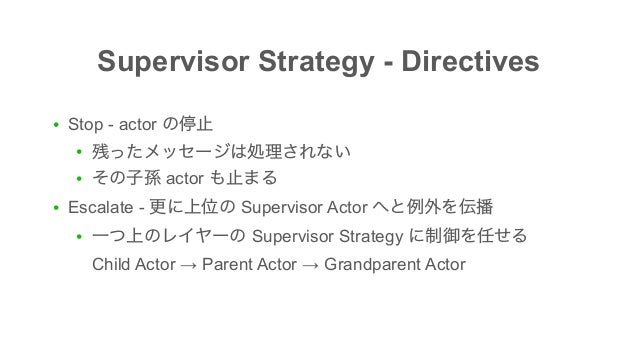

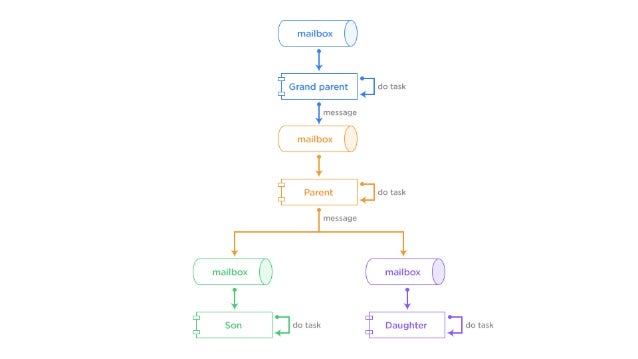

  24. 24. Supervisor Strategy - Directives ● Stop - actor ● ● actor ● Escalate - Supervisor Actor ● Supervisor Strategy
 Child Actor → Parent Actor → Grandparent Actor

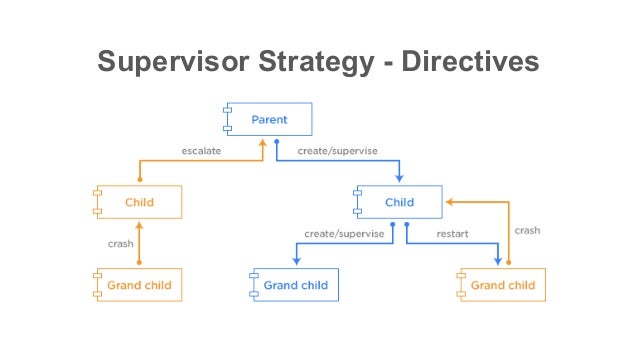

  25. 25. Supervisor Strategy - Directives

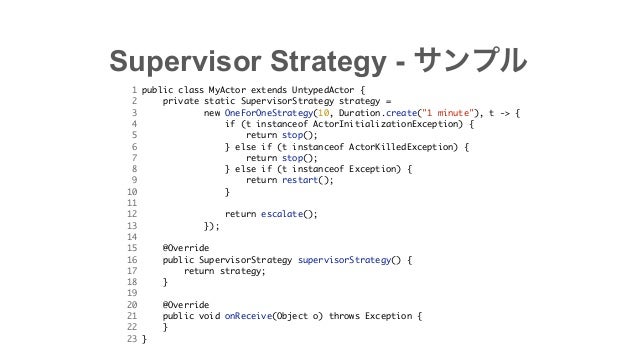

  26. 26. Supervisor Strategy - 1 public class MyActor extends UntypedActor { 2 private static SupervisorStrategy strategy = 3 new OneForOneStrategy(10, Duration.create("1 minute"), t -> { 4 if (t instanceof ActorInitializationException) { 5 return stop(); 6 } else if (t instanceof ActorKilledException) { 7 return stop(); 8 } else if (t instanceof Exception) { 9 return restart(); 10 } 11 12 return escalate(); 13 }); 14 15 @Override 16 public SupervisorStrategy supervisorStrategy() { 17 return strategy; 18 } 19 20 @Override 21 public void onReceive(Object o) throws Exception { 22 } 23 }
  27. 27. Actor

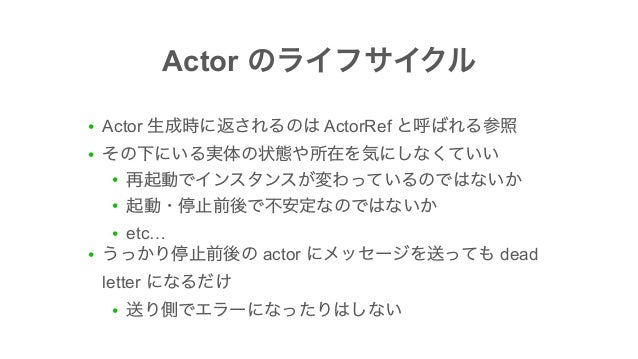

  28. 28. Actor ● Actor ActorRef ● ● ● ● etc… ● actor dead letter ●

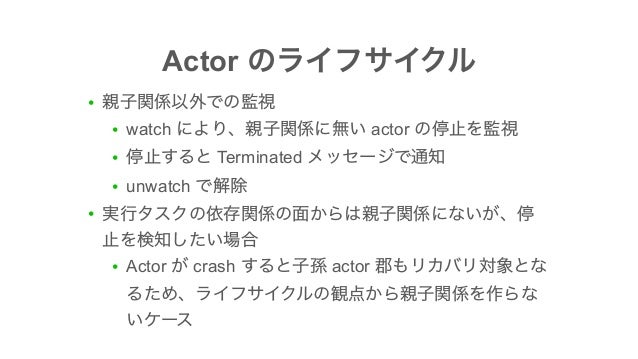

  29. 29. Actor ● ● watch actor ● Terminated ● unwatch ● ● Actor crash actor

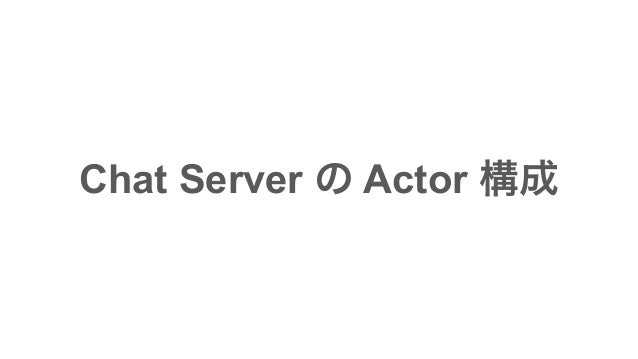

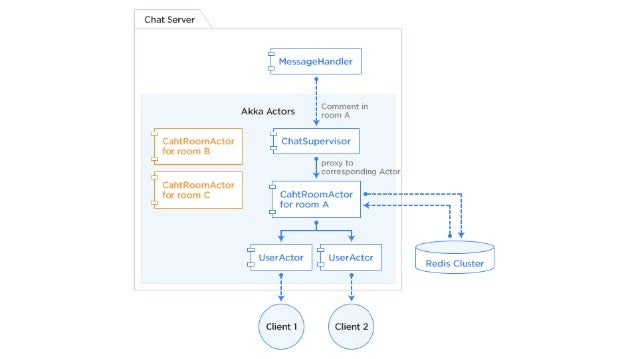

  30. 30. Chat Server Actor

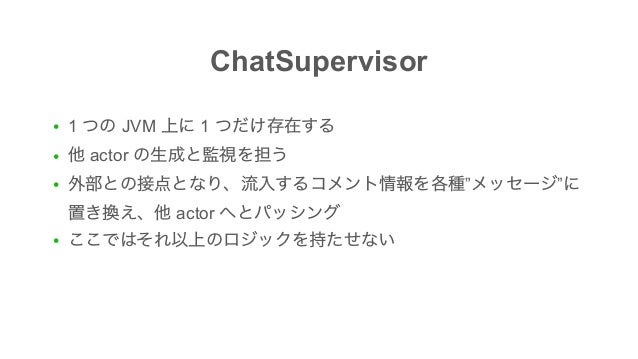

  31. 31. ChatSupervisor ● 1 JVM 1 ● actor ● ” ” actor ●

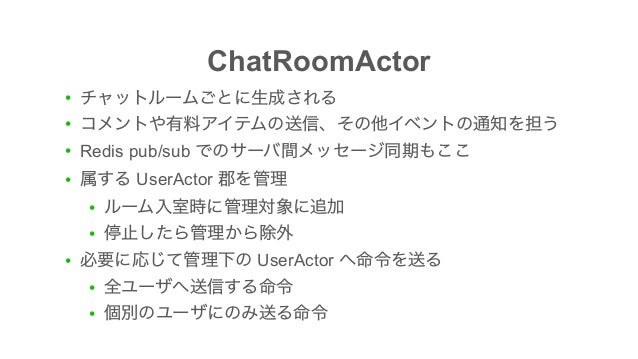

  32. 32. ChatRoomActor ● ● ● Redis pub/sub ● UserActor ● ● ● UserActor ● ●

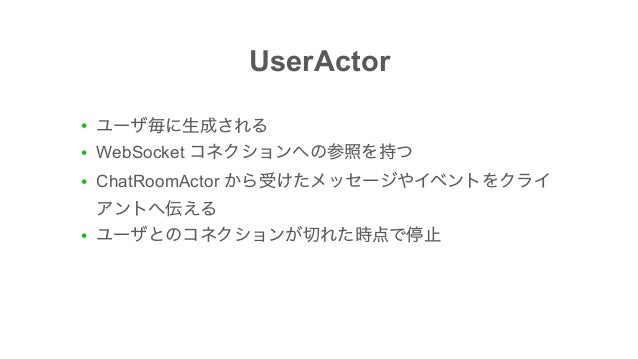

  33. 33. UserActor ● ● WebSocket ● ChatRoomActor ●

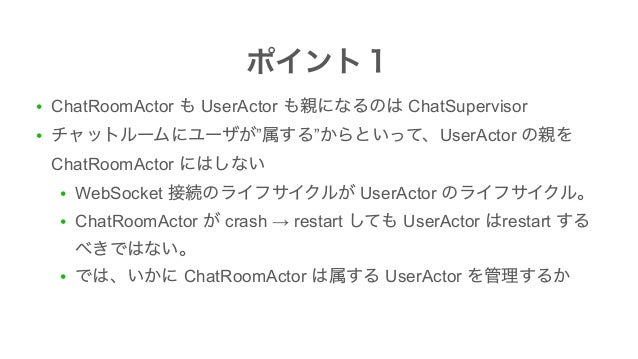

  34. 34. ● ChatRoomActor UserActor ChatSupervisor ● ” ” UserActor ChatRoomActor ● WebSocket UserActor ● ChatRoomActor crash → restart UserActor restart ● ChatRoomActor UserActor
  35. 35. ● ChatRoomActor UserActor ● ChatRoomActor UserActor watch ● UserActor WebSocket UserActor stop ● ChatRoomActor Terminated ● ChatRoomMembers ● ● Watch Terminated ● ChatRoomActor restart ● ChatRoomActor crash UserActor

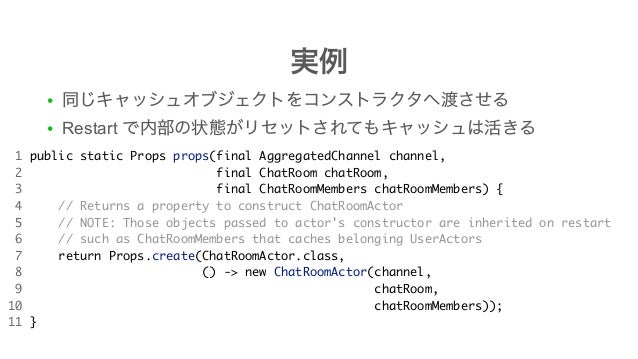

  36. 36. ● ● Restart 1 public static Props props(final AggregatedChannel channel, 2 final ChatRoom chatRoom, 3 final ChatRoomMembers chatRoomMembers) { 4 // Returns a property to construct ChatRoomActor 5 // NOTE: Those objects passed to actor's constructor are inherited on restart 6 // such as ChatRoomMembers that caches belonging UserActors 7 return Props.create(ChatRoomActor.class, 8 () -> new ChatRoomActor(channel, 9 chatRoom, 10 chatRoomMembers)); 11 }

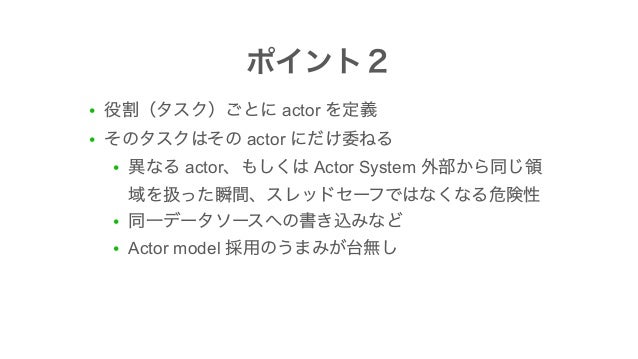

  37. 37. ● actor ● actor ● actor Actor System ● ● Actor model

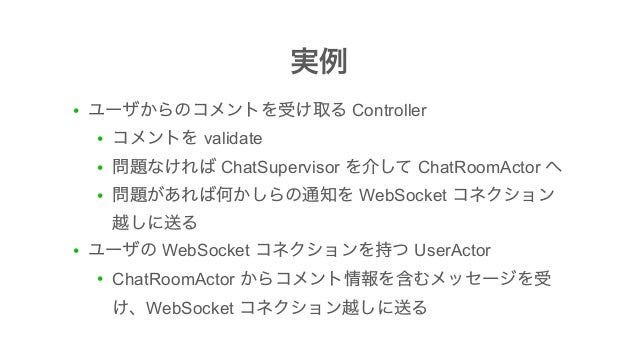

  38. 38. ● Controller ● validate ● ChatSupervisor ChatRoomActor ● WebSocket ● WebSocket UserActor ● ChatRoomActor WebSocket

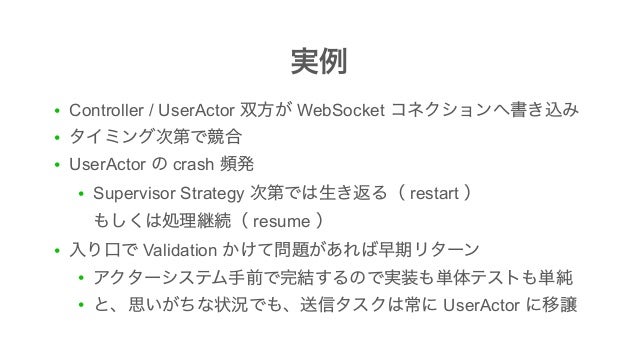

  39. 39. ● Controller / UserActor WebSocket ● ● UserActor crash ● Supervisor Strategy restart
 resume ● Validation ● ● UserActor

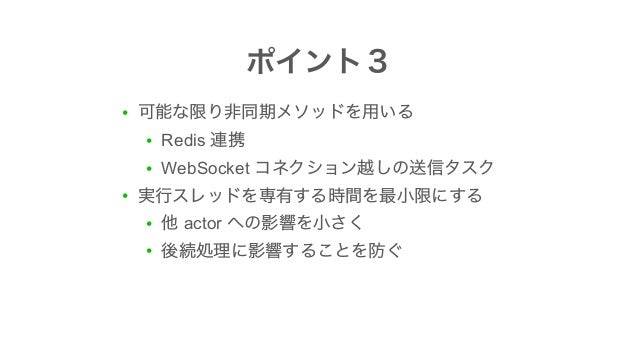

  40. 40. ● ● Redis ● WebSocket ● ● actor ●

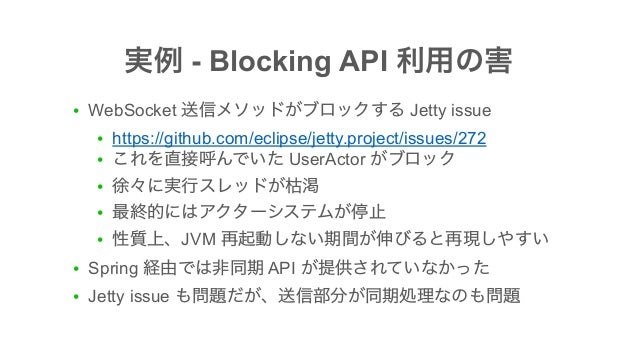

  41. 41. - Blocking API ● WebSocket Jetty issue ● https://github.com/eclipse/jetty.project/issues/272 ● UserActor ● ● ● JVM ● Spring API ● Jetty issue

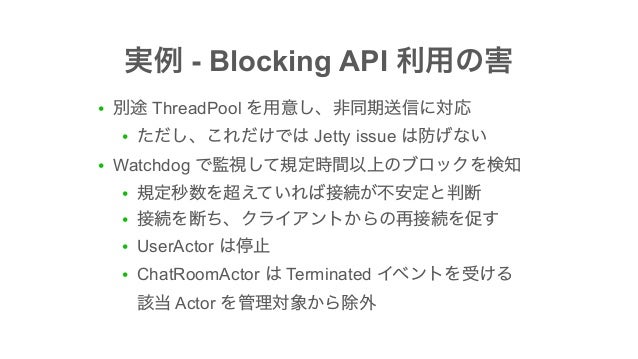

  42. 42. - Blocking API ● ThreadPool ● Jetty issue ● Watchdog ● ● ● UserActor ● ChatRoomActor Terminated
 Actor
  43. 43. ● ● ● ● ● ● ● ●

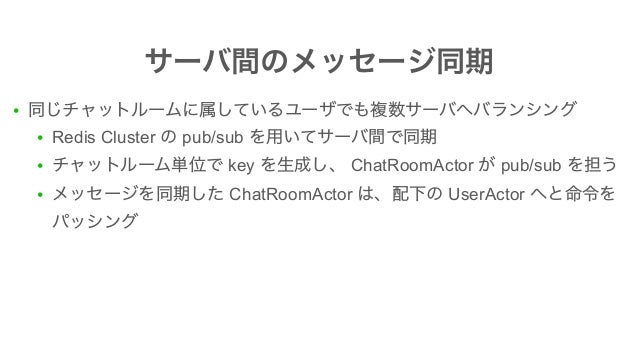

  44. 44. ● ● Redis Cluster pub/sub ● key ChatRoomActor pub/sub ● ChatRoomActor UserActor

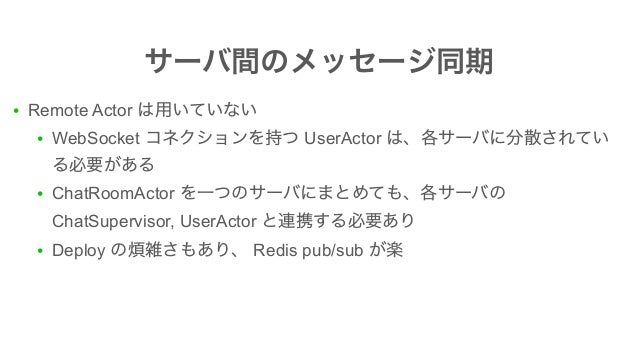

  45. 45. ● Remote Actor ● WebSocket UserActor ● ChatRoomActor ChatSupervisor, UserActor ● Deploy Redis pub/sub
  46. 46. Redis ● Actor Redis Pub/ Sub ● Pub/Sub ● Subscribe ● ● Actor
  47. 47. Lettuce ● Redis Cluster ● Master/slave failover MOVED/ASK node ● API ● Pub/sub subscribe failover ● Lua scripting
  48. 48. Lettuce ● ● Redis Cluster reshard
 validation ● Redis Cluster → application ● Failover reshard ● Periodic refresh ● Adaptive refresh
  49. 49. Lettuce 1 /* 2 To get rid of stale connection and establish new connection when crush/failover occurs, 3 refresh its topologyView periodically. 4 */ 5 ClusterTopologyRefreshOptions topologyRefreshOptions = 6 ClusterTopologyRefreshOptions.builder() 7 .enablePeriodicRefresh(30, TimeUnit.SECONDS) 8 .enableAllAdaptiveRefreshTriggers() 9 .build(); 10 /* 11 Basically we use the default settings, but to avoid connection error caused by newly added server, 12 override the validateClusterNodeMembership and skip validation for new server. 13 */ 14 ClusterClientOptions clusterClientOptions = 15 ClusterClientOptions.builder() 16 .validateClusterNodeMembership(false) 17 .topologyRefreshOptions(topologyRefreshOptions) 18 .build();

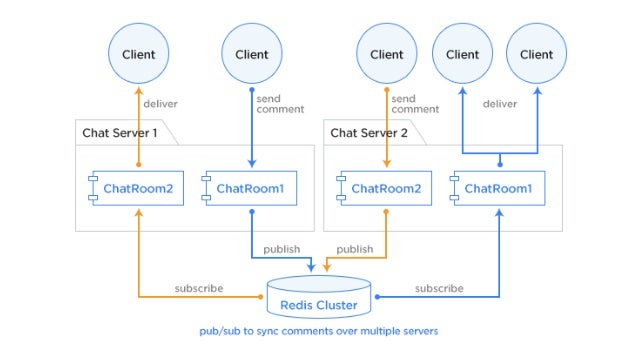

  50. 50. ● WebSocket ● Server - Client ● akka Actor Model ● ● Actor Actor ● Blocking API ● Redis Cluster ● ●
  51. 51. ● LINE LIVE ● ● https://engineering.linecorp.com/ja/blog/detail/85 ● Yet another Akka introduction for dummies ● ● http://blog.oklahome.net/2016/01/akka-introduction-for-dummies.html ● How to cook lettuce @Java casual ● Lettuce ● https://www.slideshare.net/Oklahomer/how-to-cook-lettuce-java- casual
  52. 52. THANK YOU

×
