Efficient And Invincible Big Data Platform In LINE

1,171 views

Published on

Neil Tu
LINE / Data Labs

LINE's services are fast-growing and continuously generating different data and logs. In today's world, data scientists are put to the test to see how they are able to quickly extract valuable information – the modern asset – from massive data sets. Moreover, providing a stable, safe, and efficient mega-platform is imperative. This session will discuss the foundation that enables LINE's Data Labs team to continuously produce data.

Published in: Technology

Efficient And Invincible Big Data Platform In LINE

  1. 1. Efficient and Invincible Big Data Platform in LINE
  2. 2. Neil Tu (杜佐民) ● Data architect and engineer ● Expert on Hadoop distributed system and its ecosystems ● 5+ years of experience in image processing, computer vision, and pattern recognition About Me
  3. 3. Agenda • Data Platforms Within LINE • Pipeline Platform • Analysis Platform • Ecosystem
  4. 4. Data Platforms Within LINE

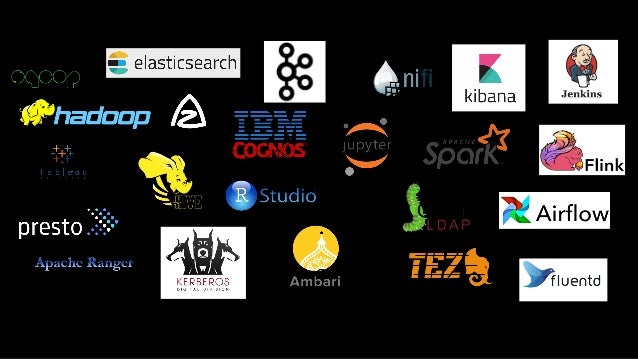

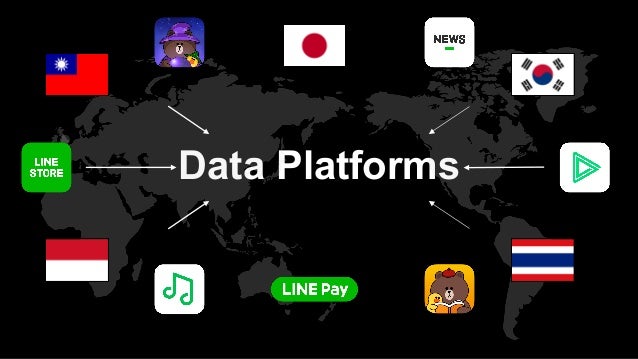

  5. 5. Data Platforms

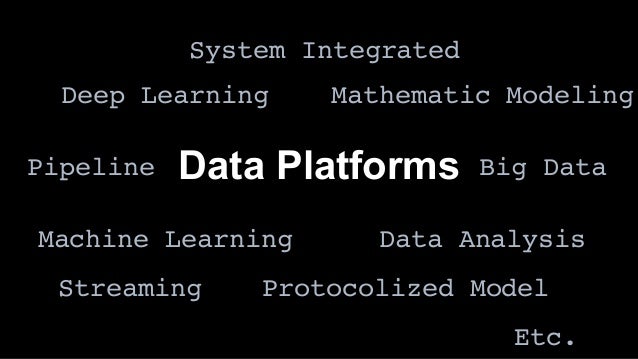

  6. 6. Data Platforms Big Data Data Analysis Mathematic Modeling Pipeline Machine Learning Deep Learning Etc. Protocolized Model System Integrated Streaming

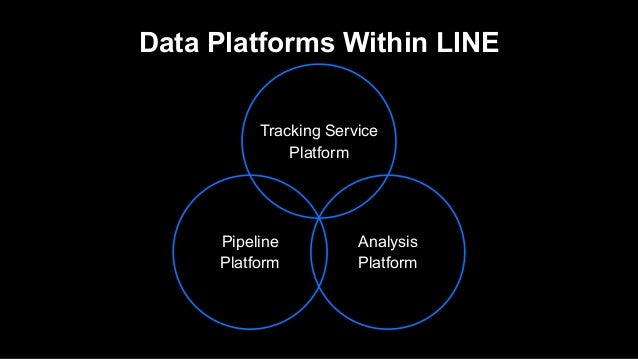

  7. 7. Tracking Service
 Platform Pipeline
 Platform Analysis
 Platform Data Platforms Within LINE
  8. 8. Pipeline Platform

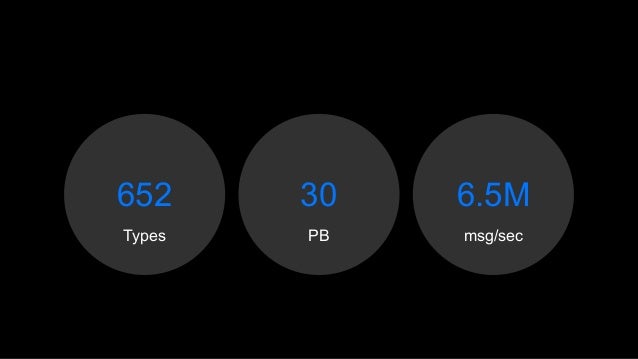

  9. 9. Types 30 PB 6.5M msg/sec 652

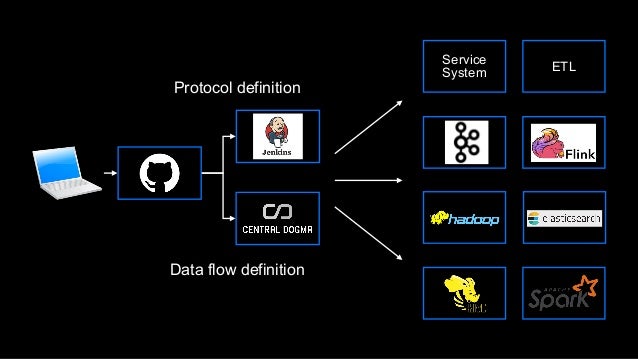

  10. 10. Service
 System ETL Protocol definition Data flow definition

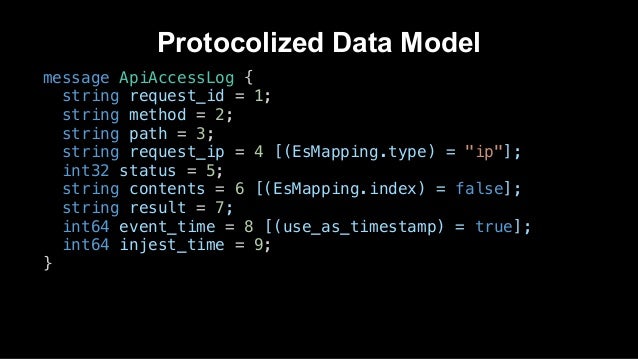

  11. 11. Protocolized Data Model message ApiAccessLog { string request_id = 1; string method = 2; string path = 3; string request_ip = 4 [(EsMapping.type) = "ip"]; int32 status = 5; string contents = 6 [(EsMapping.index) = false]; string result = 7; int64 event_time = 8 [(use_as_timestamp) = true]; int64 injest_time = 9; }
  12. 12. Analysis Platform

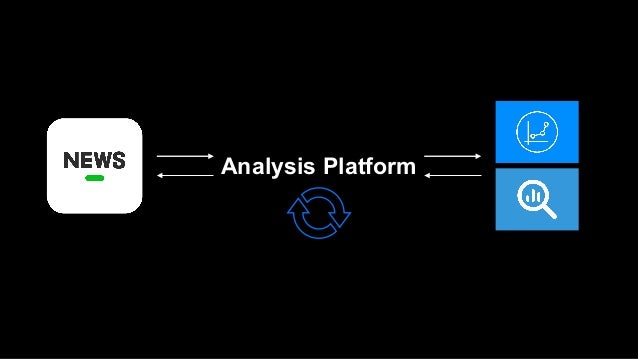

  13. 13. Analysis Platform

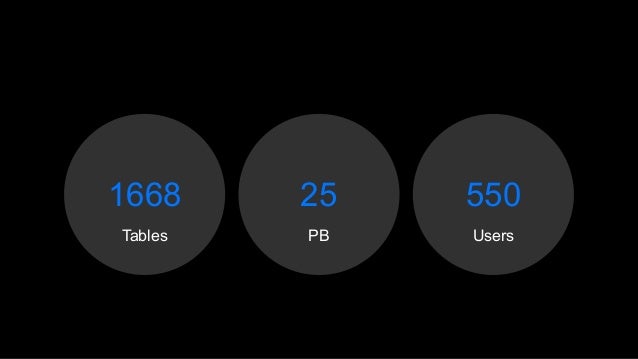

  14. 14. Tables 25 PB 550 Users 1668

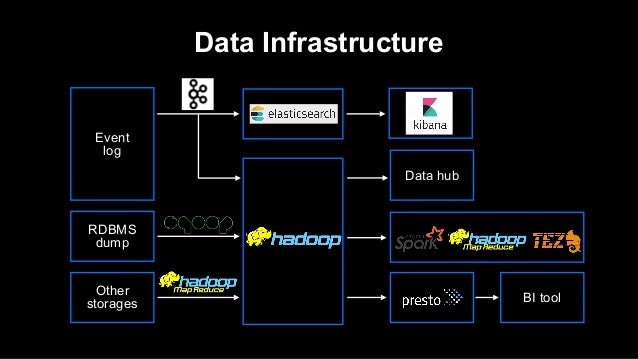

  15. 15. Data Infrastructure BI tool Event
 log RDBMS
 dump Other
 storages Data hub

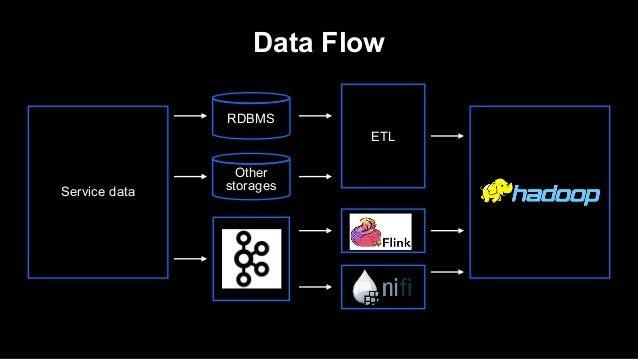

  16. 16. Data Flow RDBMS ETL Service data Other storages

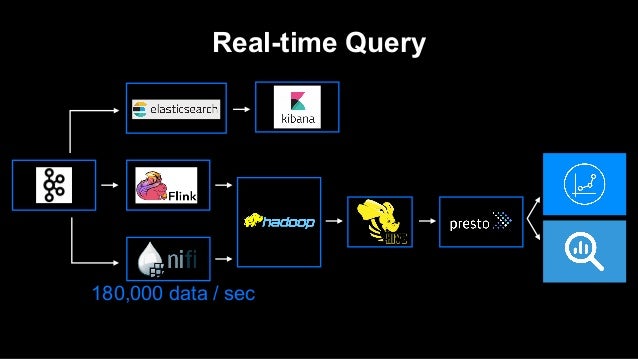

  17. 17. Real-time Query 180,000 data / sec

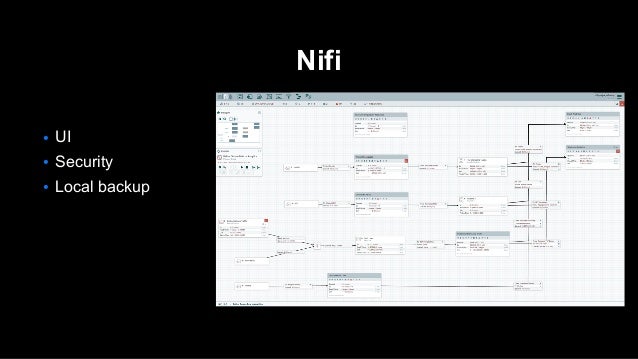

  18. 18. ● UI ● Security ● Local backup Nifi
  19. 19. Ecosystem

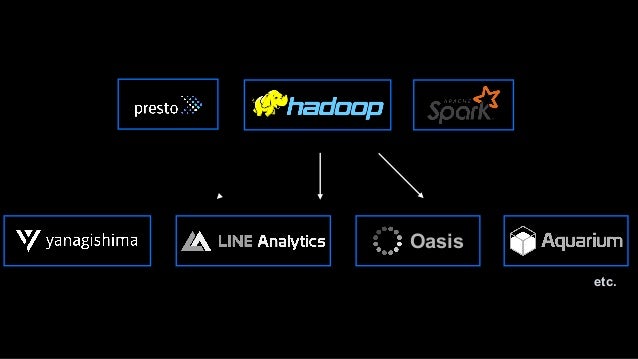

  20. 20. etc. Oasis

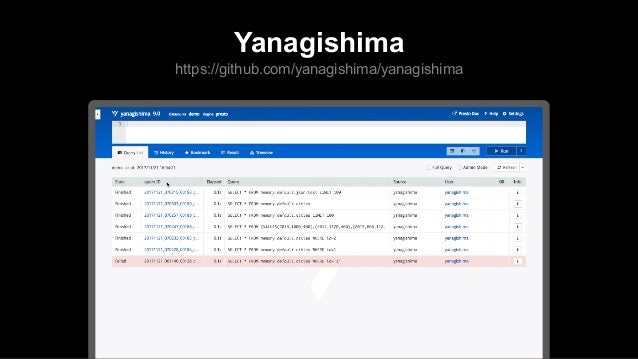

  21. 21. https://github.com/yanagishima/yanagishima Yanagishima
  22. 22. LINE Analytics Reporting Tool
  23. 23. Interactive Data Analytics Tool Oasis
  24. 24. Data Catalog Tool Aquarium

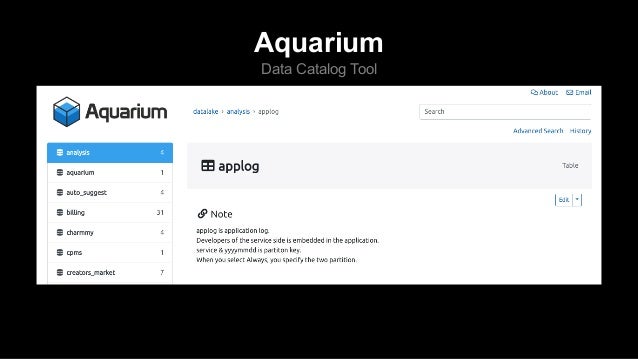

  25. 25. Data Catalog Tool Aquarium

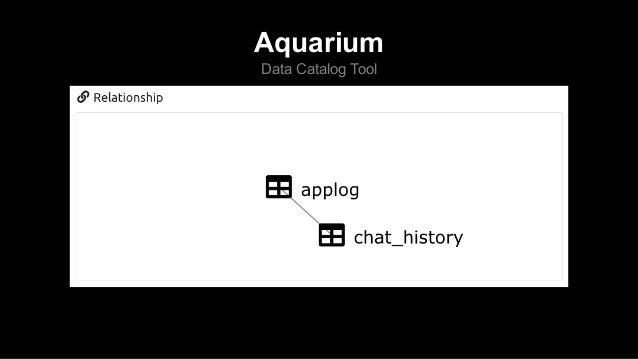

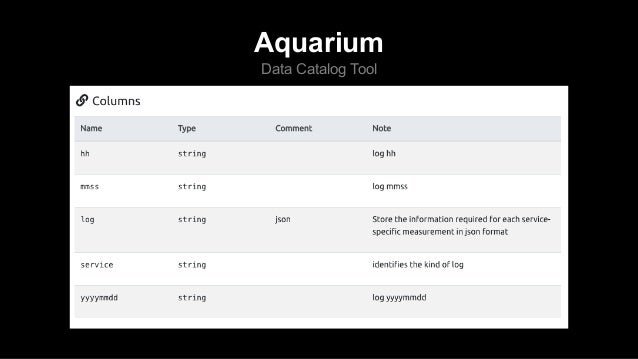

  26. 26. Aquarium Data Catalog Tool
  27. 27. Security

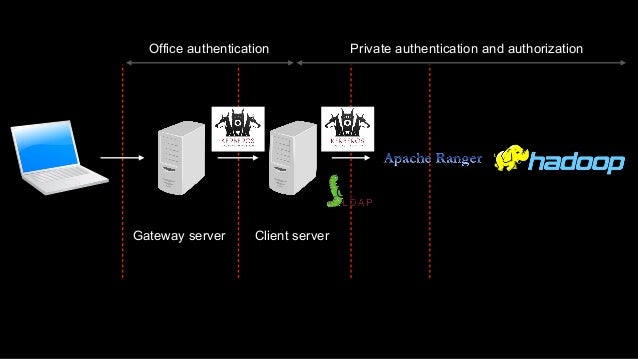

  28. 28. Office authentication Private authentication and authorization Gateway server Client server

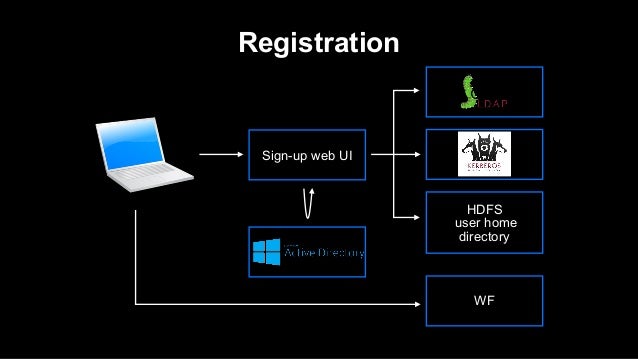

  29. 29. Sign-up web UI HDFS
 user home directory Registration WF
  30. 30. Monitoring

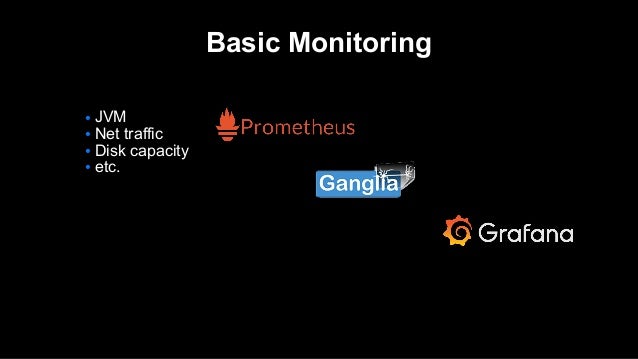

  31. 31. ● JVM ● Net traffic ● Disk capacity ● etc. Basic Monitoring

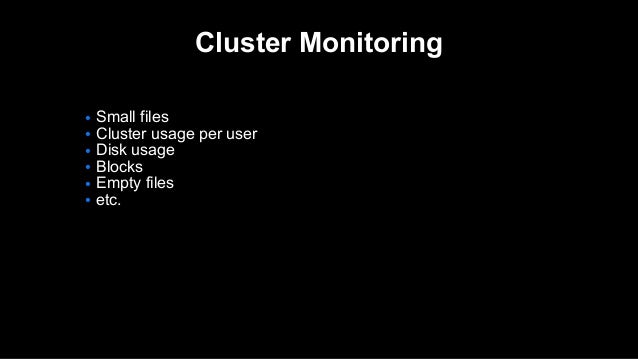

  32. 32. ● Small files ● Cluster usage per user ● Disk usage ● Blocks ● Empty files ● etc. Cluster Monitoring

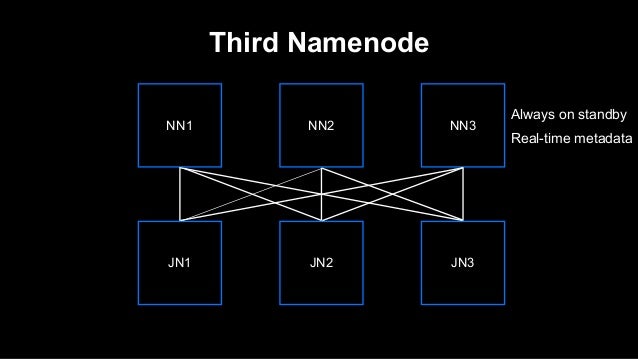

  33. 33. Third Namenode NN1 NN2 NN3 JN1 JN2 JN3 Always on standby Real-time metadata

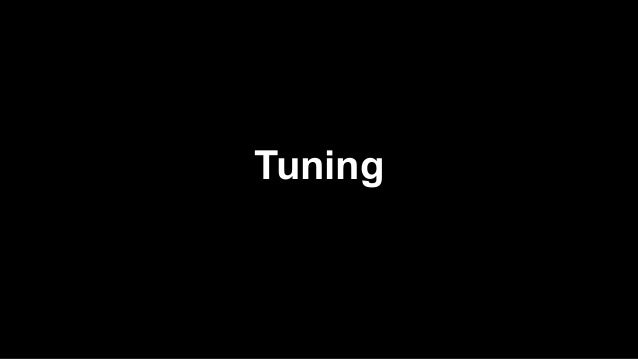

  34. 34. Tuning

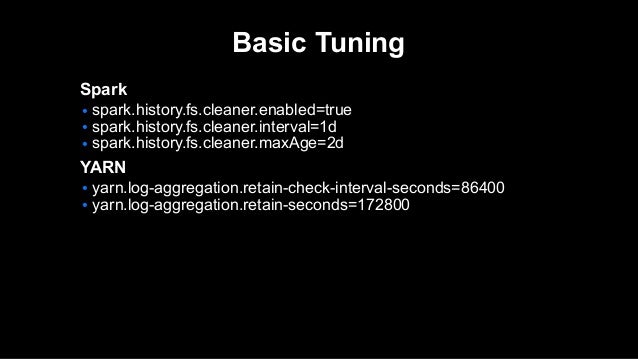

  35. 35. YARN ● yarn.log-aggregation.retain-check-interval-seconds=86400 ● yarn.log-aggregation.retain-seconds=172800 Basic Tuning Spark ● spark.history.fs.cleaner.enabled=true ● spark.history.fs.cleaner.interval=1d ● spark.history.fs.cleaner.maxAge=2d

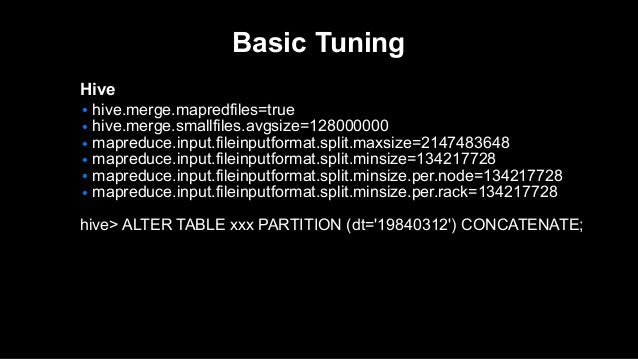

  36. 36. Hive ● hive.merge.mapredfiles=true ● hive.merge.smallfiles.avgsize=128000000 ● mapreduce.input.fileinputformat.split.maxsize=2147483648 ● mapreduce.input.fileinputformat.split.minsize=134217728 ● mapreduce.input.fileinputformat.split.minsize.per.node=134217728 ● mapreduce.input.fileinputformat.split.minsize.per.rack=134217728 hive> ALTER TABLE xxx PARTITION (dt='19840312') CONCATENATE; Basic Tuning
  37. 37. Conclusion
  38. 38. What is required? ● Be patient How to achieve results? ● Trial and error ● Never give up Running a Platform
  39. 39. THANK YOU

×
