7 configuration management

1. DOSE: Deployment and Operations for Software Engineers Configuration management

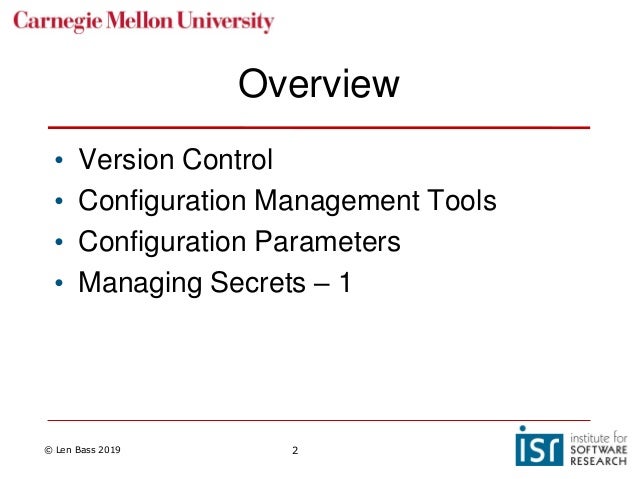

2. © Len Bass 2019 2 Overview • Version Control • Configuration Management Tools • Configuration Parameters • Managing Secrets – 1

3. © Len Bass 2019 3 Version Control Systems (VCS) • Maintains textual information • Shared among team members • Centralized or distributed • Three functions 1. A check-out/check-in process 2. A branch/merge process 3. Tagging or labeling versions

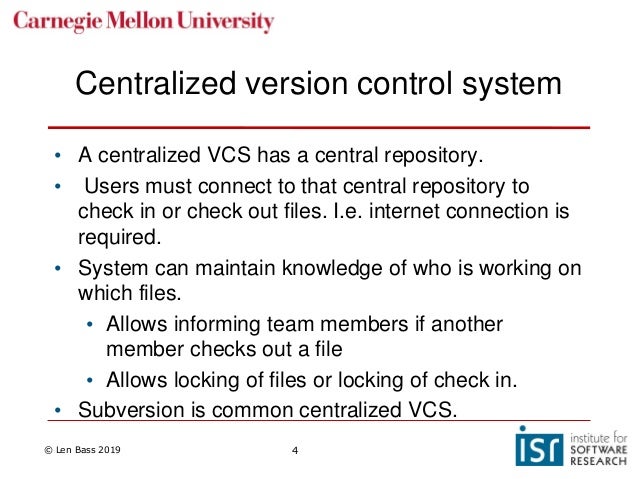

4. © Len Bass 2019 4 Centralized version control system • A centralized VCS has a central repository. • Users must connect to that central repository to check in or check out files. I.e. internet connection is required. • System can maintain knowledge of who is working on which files. • Allows informing team members if another member checks out a file • Allows locking of files or locking of check in. • Subversion is common centralized VCS.

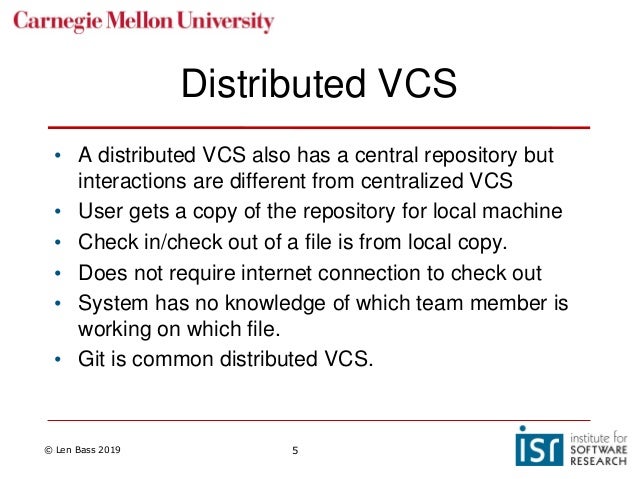

5. © Len Bass 2019 5 Distributed VCS • A distributed VCS also has a central repository but interactions are different from centralized VCS • User gets a copy of the repository for local machine • Check in/check out of a file is from local copy. • Does not require internet connection to check out • System has no knowledge of which team member is working on which file. • Git is common distributed VCS.

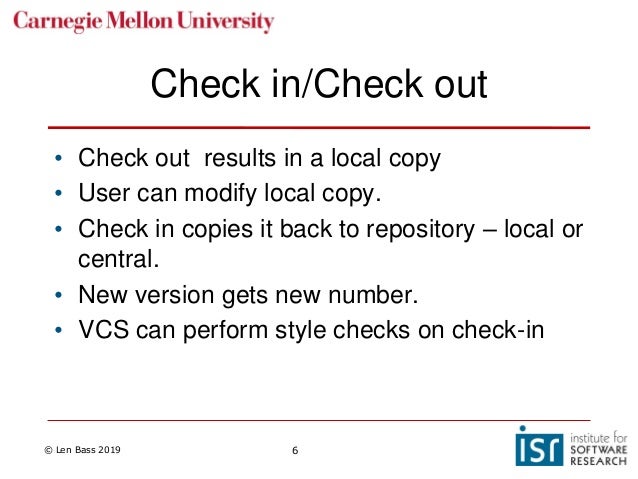

6. © Len Bass 2019 6 Check in/Check out • Check out results in a local copy • User can modify local copy. • Check in copies it back to repository – local or central. • New version gets new number. • VCS can perform style checks on check-in

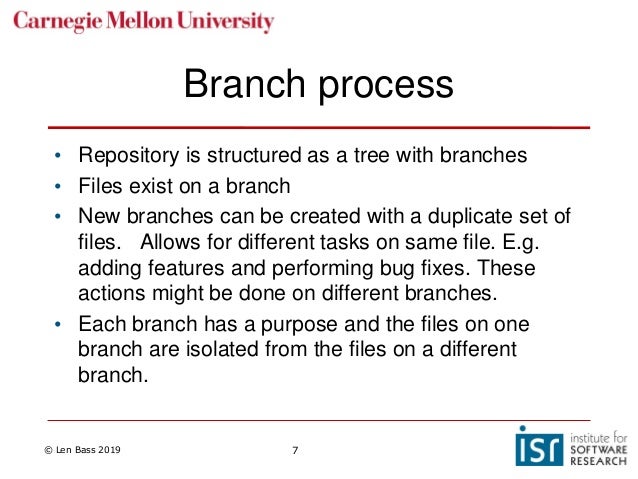

7. © Len Bass 2019 7 Branch process • Repository is structured as a tree with branches • Files exist on a branch • New branches can be created with a duplicate set of files. Allows for different tasks on same file. E.g. adding features and performing bug fixes. These actions might be done on different branches. • Each branch has a purpose and the files on one branch are isolated from the files on a different branch.

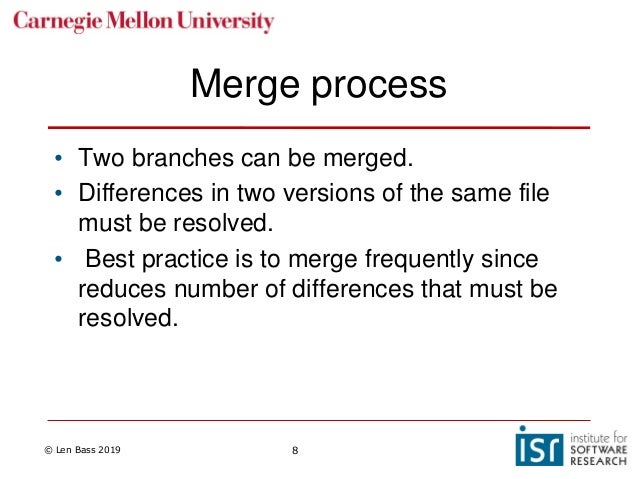

8. © Len Bass 2019 8 Merge process • Two branches can be merged. • Differences in two versions of the same file must be resolved. • Best practice is to merge frequently since reduces number of differences that must be resolved.

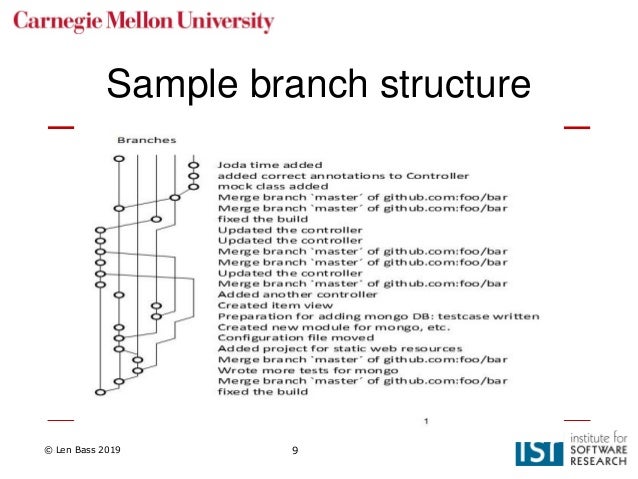

9. © Len Bass 2019 9 Sample branch structure

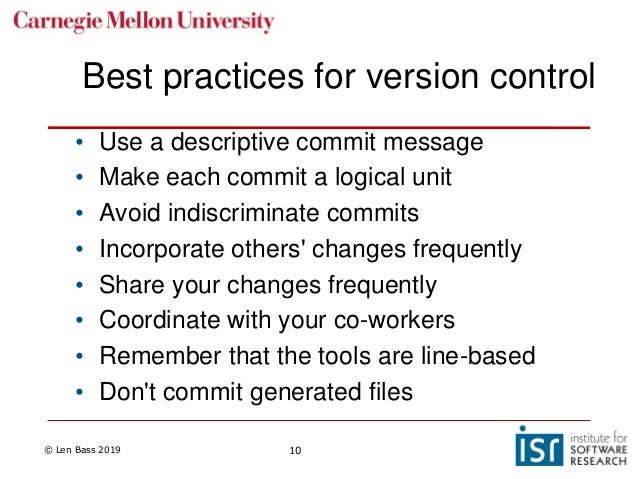

10. © Len Bass 2019 10 Best practices for version control • Use a descriptive commit message • Make each commit a logical unit • Avoid indiscriminate commits • Incorporate others' changes frequently • Share your changes frequently • Coordinate with your co-workers • Remember that the tools are line-based • Don't commit generated files

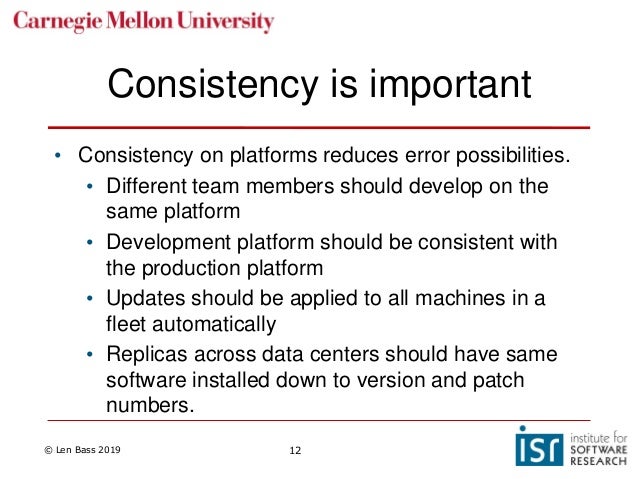

12. © Len Bass 2019 12 Consistency is important • Consistency on platforms reduces error possibilities. • Different team members should develop on the same platform • Development platform should be consistent with the production platform • Updates should be applied to all machines in a fleet automatically • Replicas across data centers should have same software installed down to version and patch numbers.

13. © Len Bass 2019 13 Configuration Management (CM) Systems • The purpose of a configuration management system is to maintain consistency across a set of machines. • Common tools are: • Chef • Puppet • Ansible

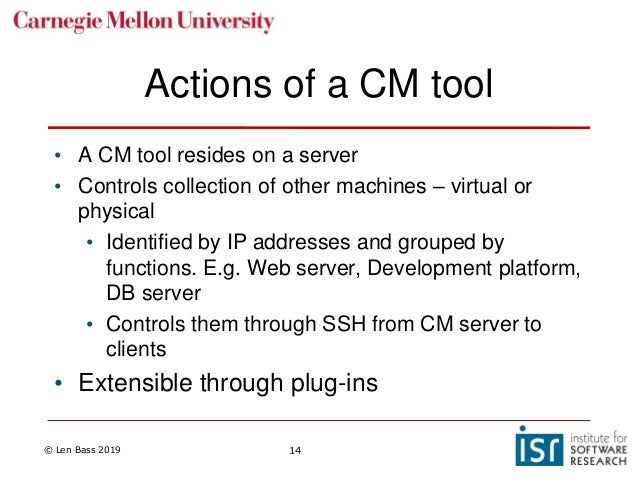

14. © Len Bass 2019 14 Actions of a CM tool • A CM tool resides on a server • Controls collection of other machines – virtual or physical • Identified by IP addresses and grouped by functions. E.g. Web server, Development platform, DB server • Controls them through SSH from CM server to clients • Extensible through plug-ins

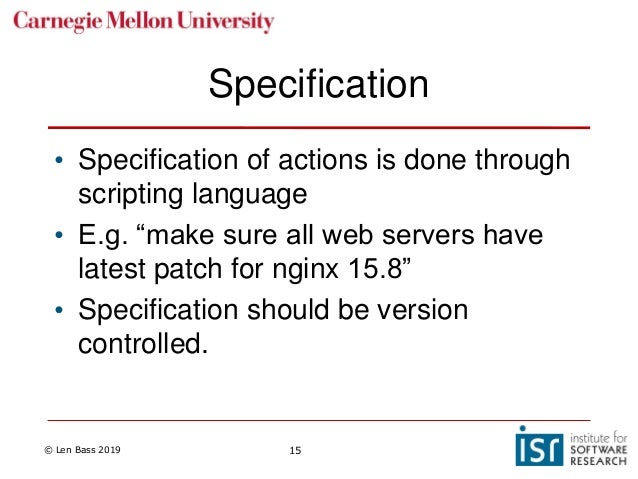

15. © Len Bass 2019 15 Specification • Specification of actions is done through scripting language • E.g. “make sure all web servers have latest patch for nginx 15.8” • Specification should be version controlled.

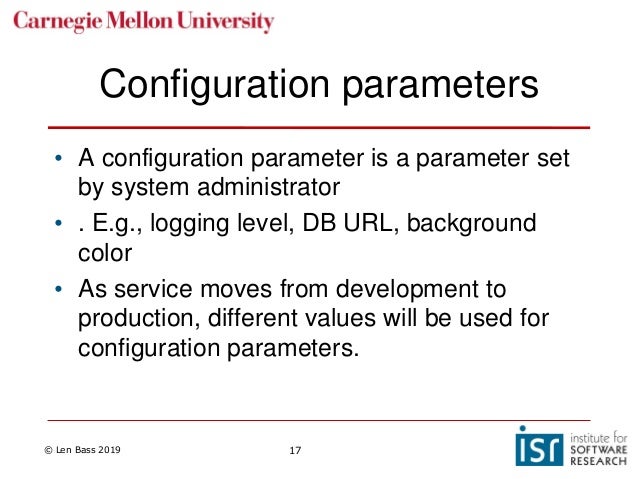

17. © Len Bass 2019 17 Configuration parameters • A configuration parameter is a parameter set by system administrator • . E.g., logging level, DB URL, background color • As service moves from development to production, different values will be used for configuration parameters.

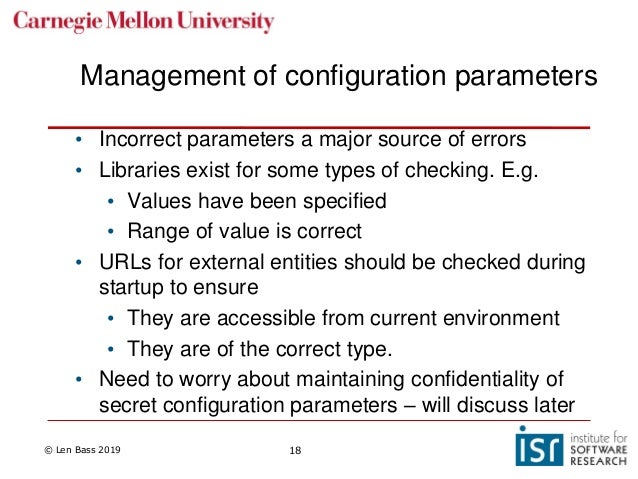

18. © Len Bass 2019 18 Management of configuration parameters • Incorrect parameters a major source of errors • Libraries exist for some types of checking. E.g. • Values have been specified • Range of value is correct • URLs for external entities should be checked during startup to ensure • They are accessible from current environment • They are of the correct type. • Need to worry about maintaining confidentiality of secret configuration parameters – will discuss later

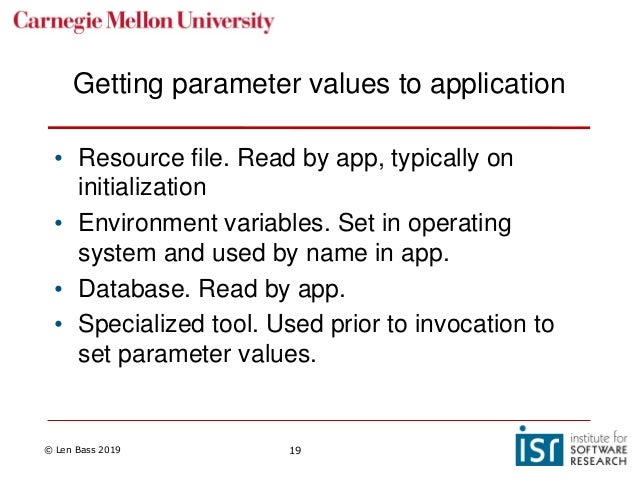

19. © Len Bass 2019 19 Getting parameter values to application • Resource file. Read by app, typically on initialization • Environment variables. Set in operating system and used by name in app. • Database. Read by app. • Specialized tool. Used prior to invocation to set parameter values.

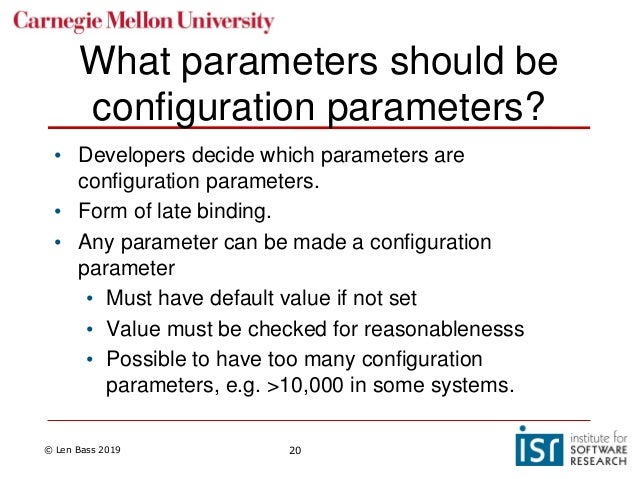

20. © Len Bass 2019 20 What parameters should be configuration parameters? • Developers decide which parameters are configuration parameters. • Form of late binding. • Any parameter can be made a configuration parameter • Must have default value if not set • Value must be checked for reasonablenesss • Possible to have too many configuration parameters, e.g. >10,000 in some systems.

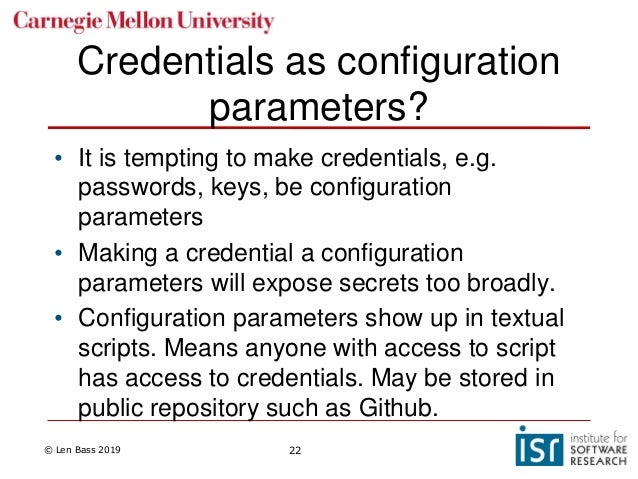

22. © Len Bass 2019 22 Credentials as configuration parameters? • It is tempting to make credentials, e.g. passwords, keys, be configuration parameters • Making a credential a configuration parameters will expose secrets too broadly. • Configuration parameters show up in textual scripts. Means anyone with access to script has access to credentials. May be stored in public repository such as Github.

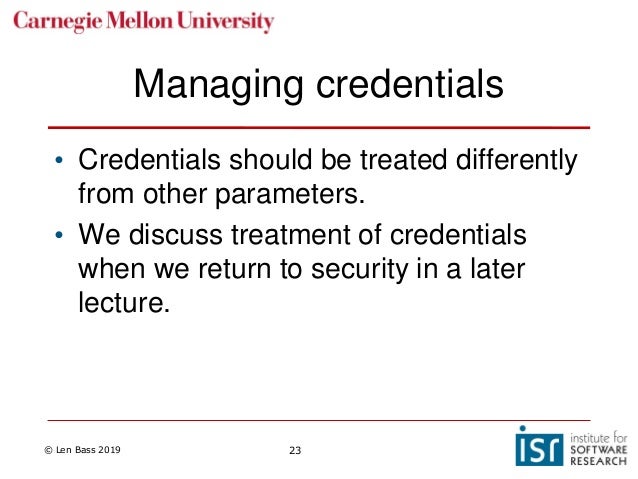

23. © Len Bass 2019 23 Managing credentials • Credentials should be treated differently from other parameters. • We discuss treatment of credentials when we return to security in a later lecture.

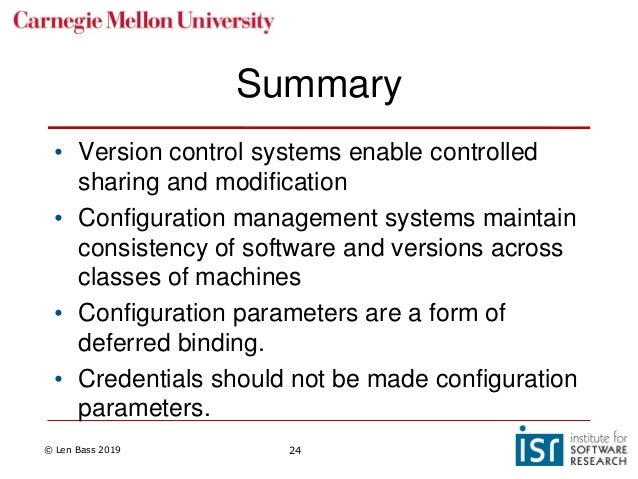

24. © Len Bass 2019 24 Summary • Version control systems enable controlled sharing and modification • Configuration management systems maintain consistency of software and versions across classes of machines • Configuration parameters are a form of deferred binding. • Credentials should not be made configuration parameters.
