1. DOSE: Deployment and Operations for Software Engineers Secure Development

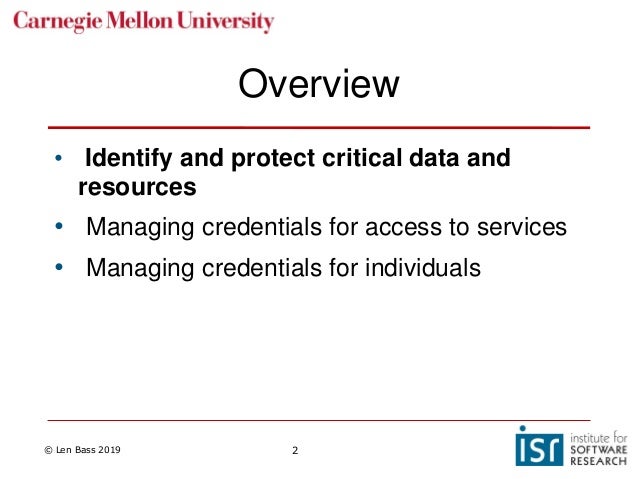

2. © Len Bass 2019 2 Overview • Identify and protect critical data and resources • Managing credentials for access to services • Managing credentials for individuals

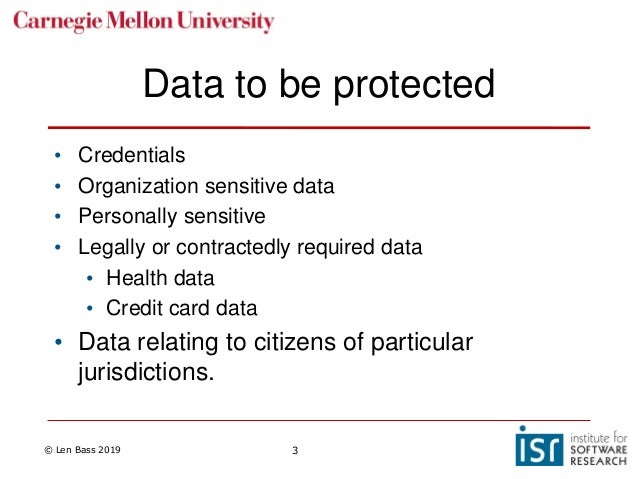

3. © Len Bass 2019 3 Data to be protected • Credentials • Organization sensitive data • Personally sensitive • Legally or contractedly required data • Health data • Credit card data • Data relating to citizens of particular jurisdictions.

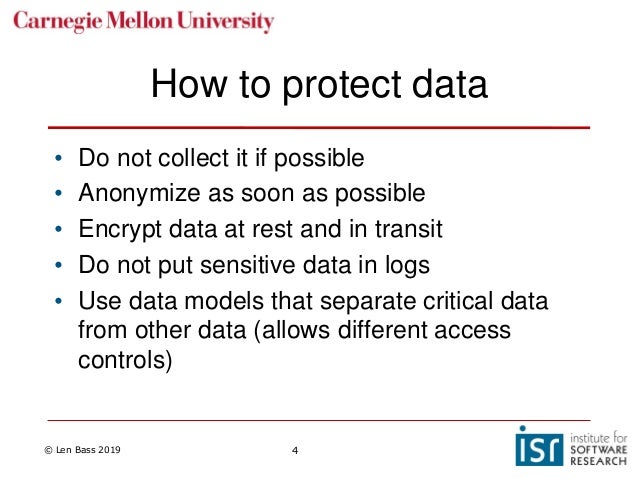

4. © Len Bass 2019 4 How to protect data • Do not collect it if possible • Anonymize as soon as possible • Encrypt data at rest and in transit • Do not put sensitive data in logs • Use data models that separate critical data from other data (allows different access controls)

5. © Len Bass 2019 5 Resources to be protected • Hardware • CPU • Memory • Disk • APIs

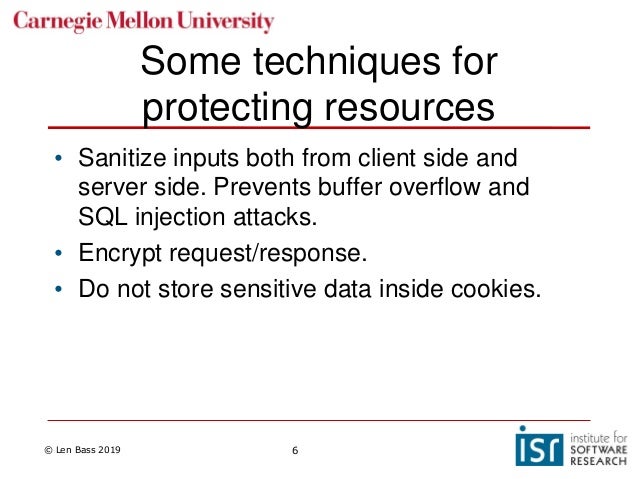

6. © Len Bass 2019 6 Some techniques for protecting resources • Sanitize inputs both from client side and server side. Prevents buffer overflow and SQL injection attacks. • Encrypt request/response. • Do not store sensitive data inside cookies.

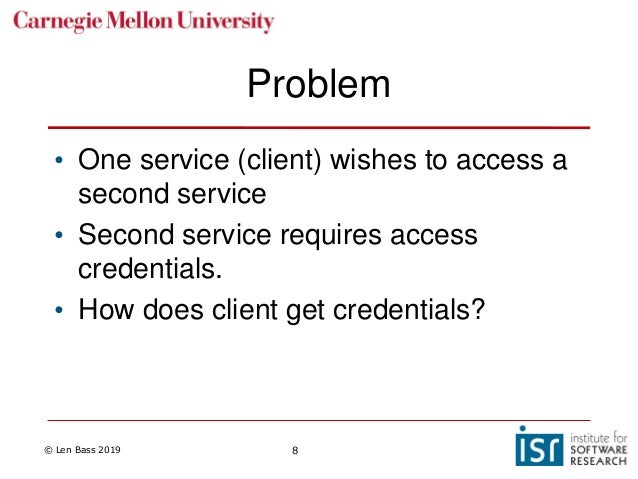

8. © Len Bass 2019 8 Problem • One service (client) wishes to access a second service • Second service requires access credentials. • How does client get credentials?

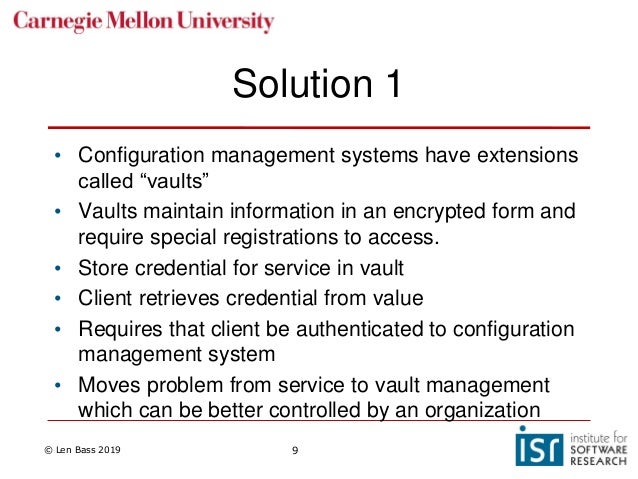

9. © Len Bass 2019 9 Solution 1 • Configuration management systems have extensions called “vaults” • Vaults maintain information in an encrypted form and require special registrations to access. • Store credential for service in vault • Client retrieves credential from value • Requires that client be authenticated to configuration management system • Moves problem from service to vault management which can be better controlled by an organization

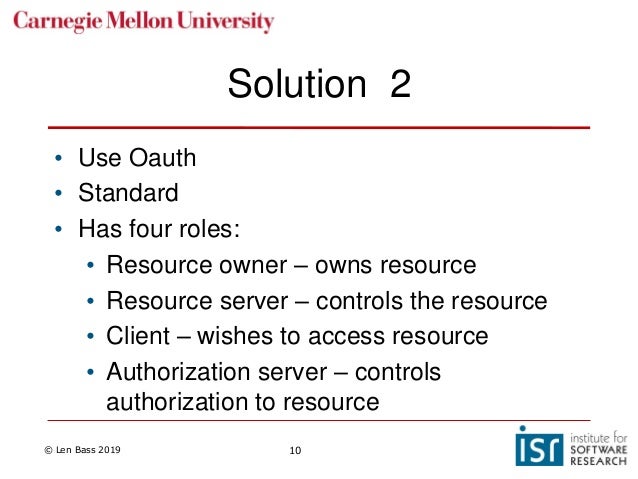

10. © Len Bass 2019 10 Solution 2 • Use Oauth • Standard • Has four roles: • Resource owner – owns resource • Resource server – controls the resource • Client – wishes to access resource • Authorization server – controls authorization to resource

11. © Len Bass 2019 11 Sample OAuth Protocol

13. © Len Bass 2019 13 Principle of least privilege • Individuals should be given the least privileges they need to do their job • System administrators need different privileges than developers than testers, etc

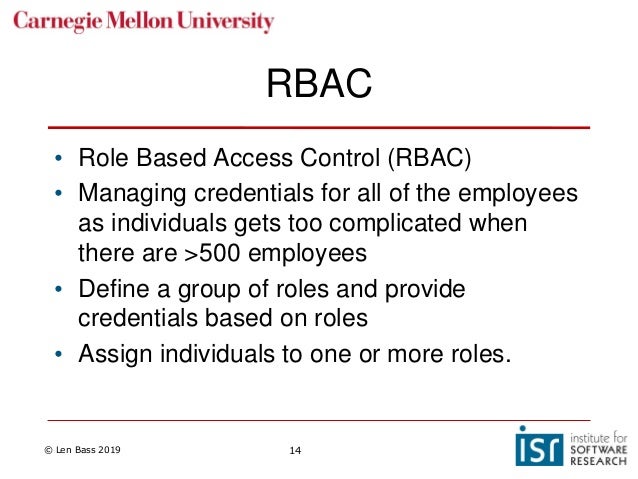

14. © Len Bass 2019 14 RBAC • Role Based Access Control (RBAC) • Managing credentials for all of the employees as individuals gets too complicated when there are >500 employees • Define a group of roles and provide credentials based on roles • Assign individuals to one or more roles.

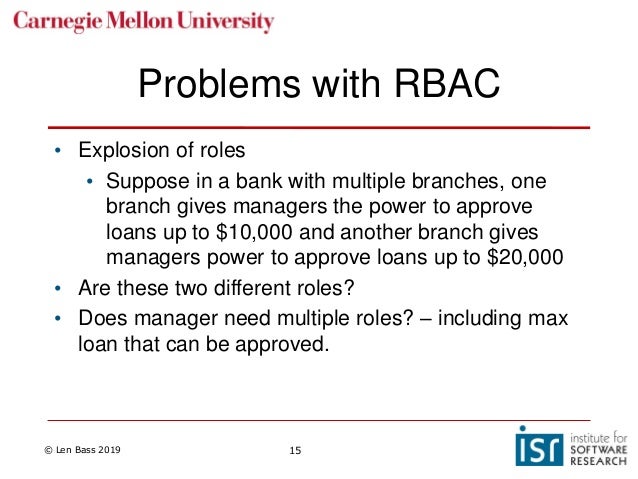

15. © Len Bass 2019 15 Problems with RBAC • Explosion of roles • Suppose in a bank with multiple branches, one branch gives managers the power to approve loans up to $10,000 and another branch gives managers power to approve loans up to $20,000 • Are these two different roles? • Does manager need multiple roles? – including max loan that can be approved.

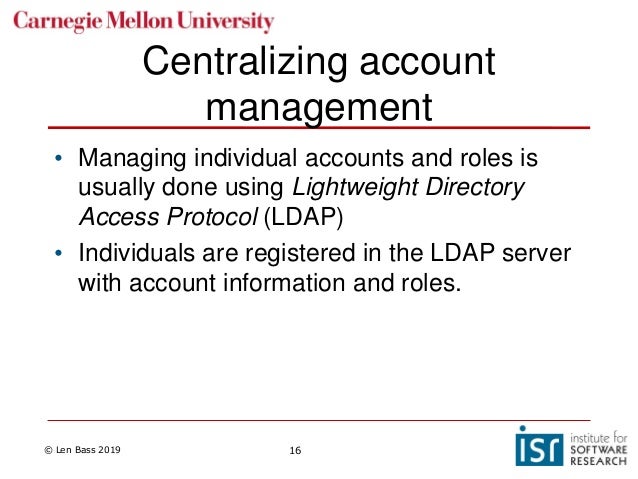

16. © Len Bass 2019 16 Centralizing account management • Managing individual accounts and roles is usually done using Lightweight Directory Access Protocol (LDAP) • Individuals are registered in the LDAP server with account information and roles.

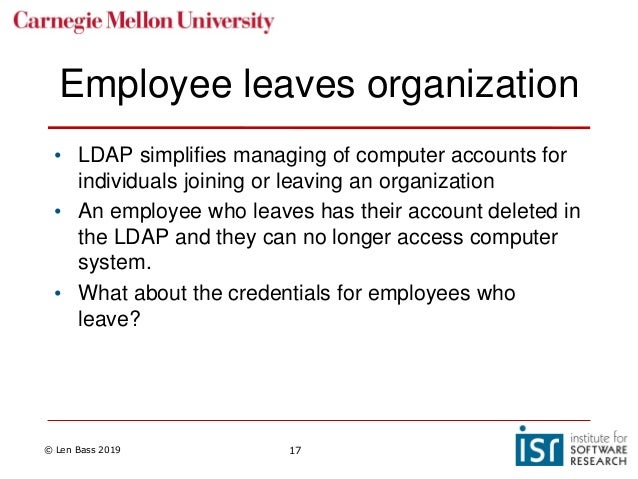

17. © Len Bass 2019 17 Employee leaves organization • LDAP simplifies managing of computer accounts for individuals joining or leaving an organization • An employee who leaves has their account deleted in the LDAP and they can no longer access computer system. • What about the credentials for employees who leave?

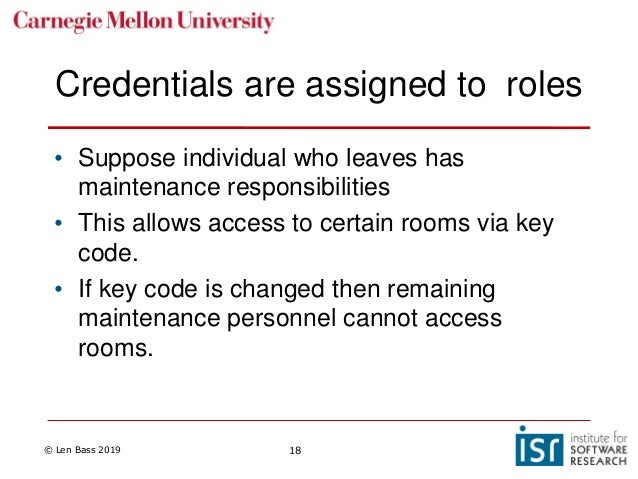

18. © Len Bass 2019 18 Credentials are assigned to roles • Suppose individual who leaves has maintenance responsibilities • This allows access to certain rooms via key code. • If key code is changed then remaining maintenance personnel cannot access rooms.

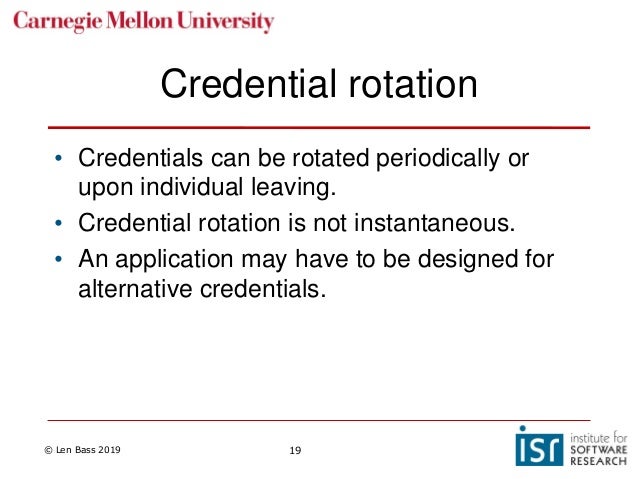

19. © Len Bass 2019 19 Credential rotation • Credentials can be rotated periodically or upon individual leaving. • Credential rotation is not instantaneous. • An application may have to be designed for alternative credentials.

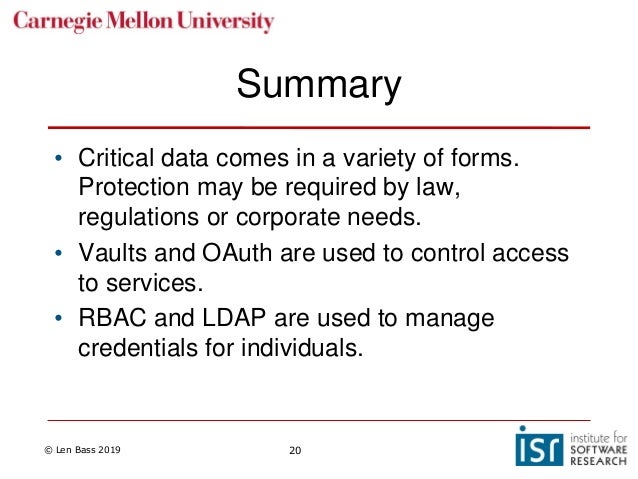

20. © Len Bass 2019 20 Summary • Critical data comes in a variety of forms. Protection may be required by law, regulations or corporate needs. • Vaults and OAuth are used to control access to services. • RBAC and LDAP are used to manage credentials for individuals.

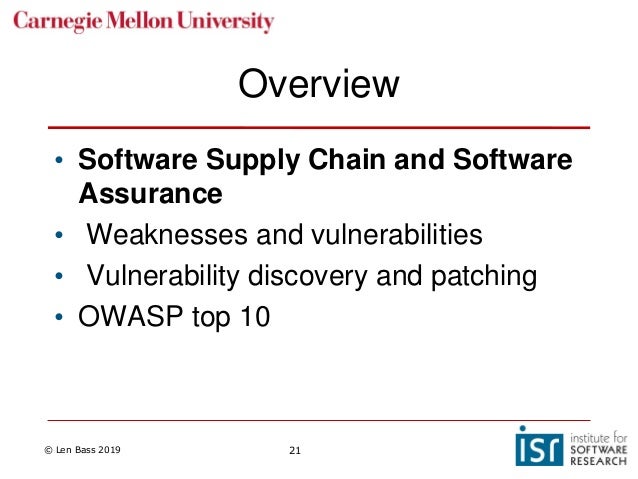

21. © Len Bass 2019 21 Overview • Software Supply Chain and Software Assurance • Weaknesses and vulnerabilities • Vulnerability discovery and patching • OWASP top 10

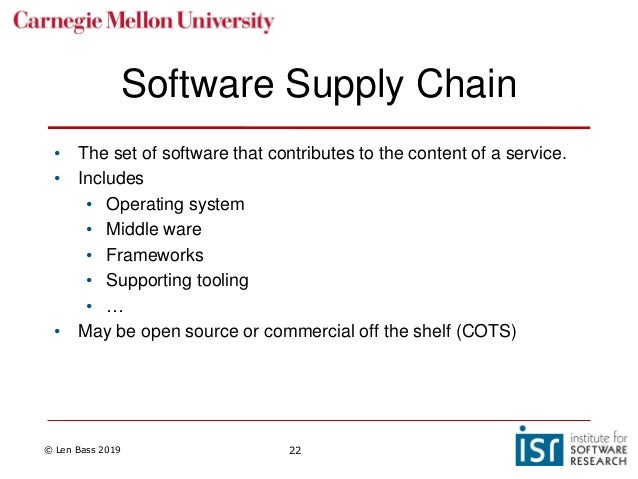

22. © Len Bass 2019 22 Software Supply Chain • The set of software that contributes to the content of a service. • Includes • Operating system • Middle ware • Frameworks • Supporting tooling • … • May be open source or commercial off the shelf (COTS)

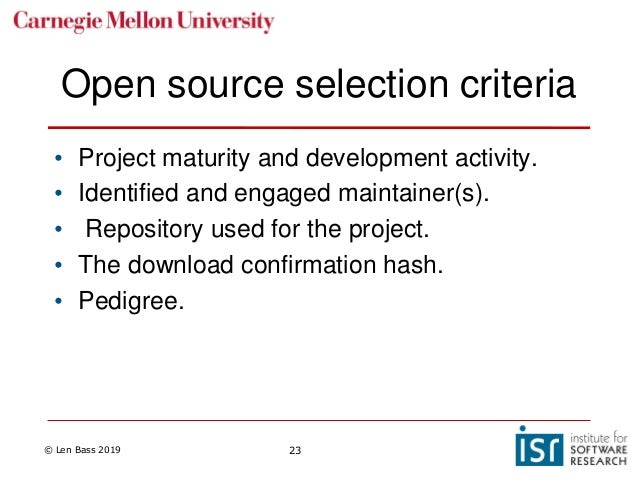

23. © Len Bass 2019 23 Open source selection criteria • Project maturity and development activity. • Identified and engaged maintainer(s). • Repository used for the project. • The download confirmation hash. • Pedigree.

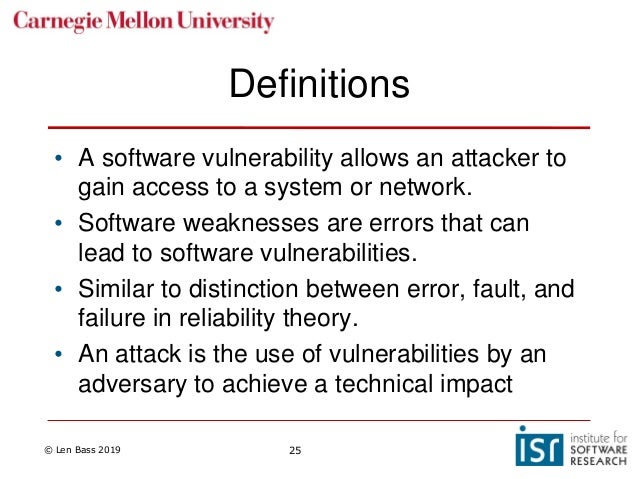

25. © Len Bass 2019 25 Definitions • A software vulnerability allows an attacker to gain access to a system or network. • Software weaknesses are errors that can lead to software vulnerabilities. • Similar to distinction between error, fault, and failure in reliability theory. • An attack is the use of vulnerabilities by an adversary to achieve a technical impact

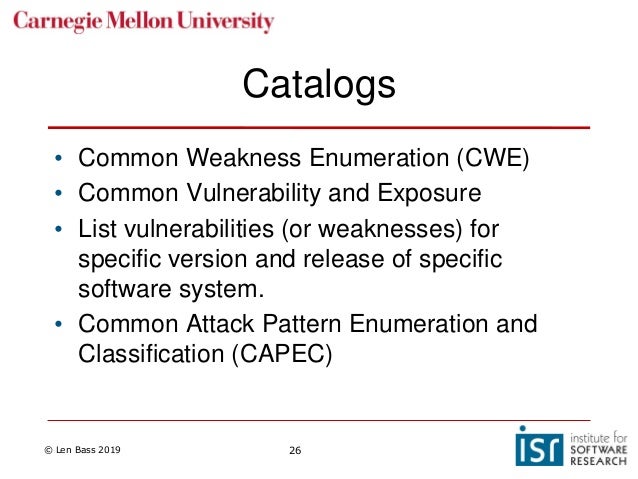

26. © Len Bass 2019 26 Catalogs • Common Weakness Enumeration (CWE) • Common Vulnerability and Exposure • List vulnerabilities (or weaknesses) for specific version and release of specific software system. • Common Attack Pattern Enumeration and Classification (CAPEC)

27. © Len Bass 2019 27 Deployment pipeline • ~15-25% of attacks are by insiders (people working for the organization being attacked). • The deployment pipeline is a good vehicle for an insider attack. E.g. modify CI server to include malware in every build • Processes to protect deployment pipeline include restricting modifications to authorized personnel, broadcasting information about modifications to all team members.

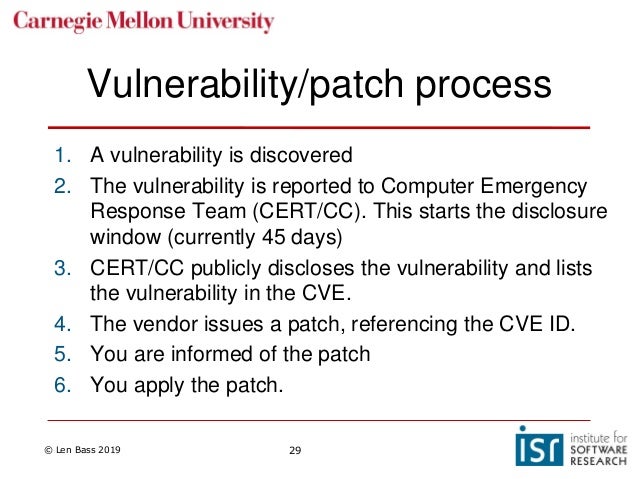

29. © Len Bass 2019 29 Vulnerability/patch process 1. A vulnerability is discovered 2. The vulnerability is reported to Computer Emergency Response Team (CERT/CC). This starts the disclosure window (currently 45 days) 3. CERT/CC publicly discloses the vulnerability and lists the vulnerability in the CVE. 4. The vendor issues a patch, referencing the CVE ID. 5. You are informed of the patch 6. You apply the patch.

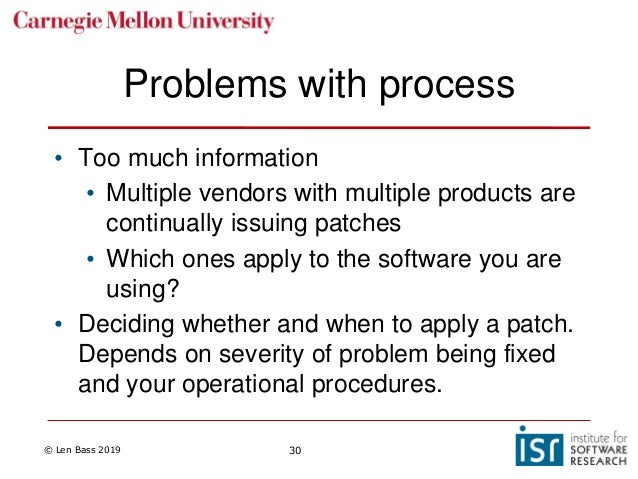

30. © Len Bass 2019 30 Problems with process • Too much information • Multiple vendors with multiple products are continually issuing patches • Which ones apply to the software you are using? • Deciding whether and when to apply a patch. Depends on severity of problem being fixed and your operational procedures.

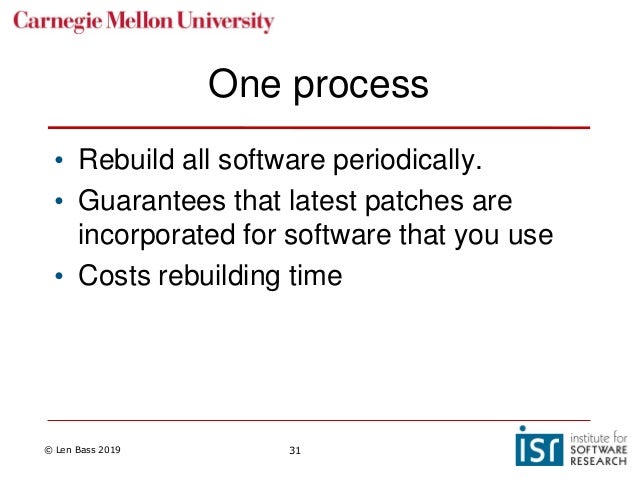

31. © Len Bass 2019 31 One process • Rebuild all software periodically. • Guarantees that latest patches are incorporated for software that you use • Costs rebuilding time

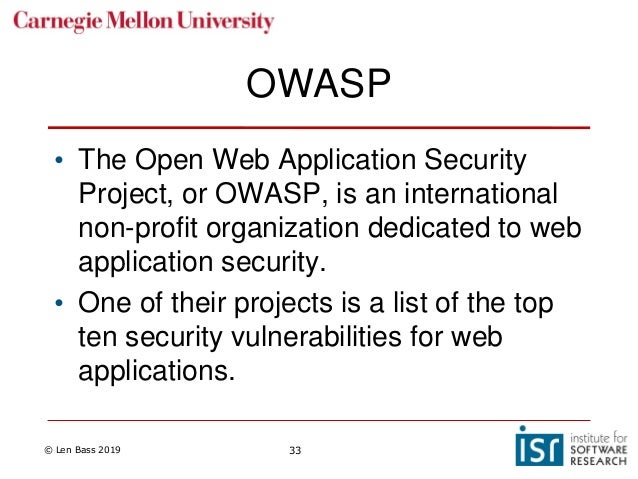

33. © Len Bass 2019 33 OWASP • The Open Web Application Security Project, or OWASP, is an international non-profit organization dedicated to web application security. • One of their projects is a list of the top ten security vulnerabilities for web applications.

34. © Len Bass 2019 34 1 - injection • Injection. injection attacks happen when untrusted data is sent to a code interpreter through a form input or some other data submission to a web application. • Injection attacks can be prevented by validating and/or sanitizing user- submitted data.

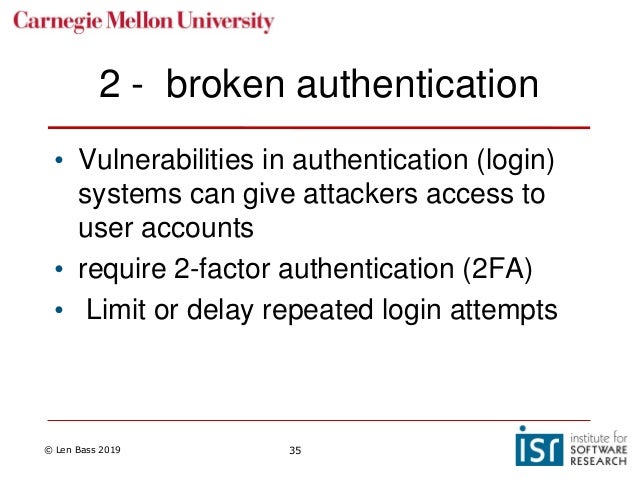

35. © Len Bass 2019 35 2 - broken authentication • Vulnerabilities in authentication (login) systems can give attackers access to user accounts • require 2-factor authentication (2FA) • Limit or delay repeated login attempts

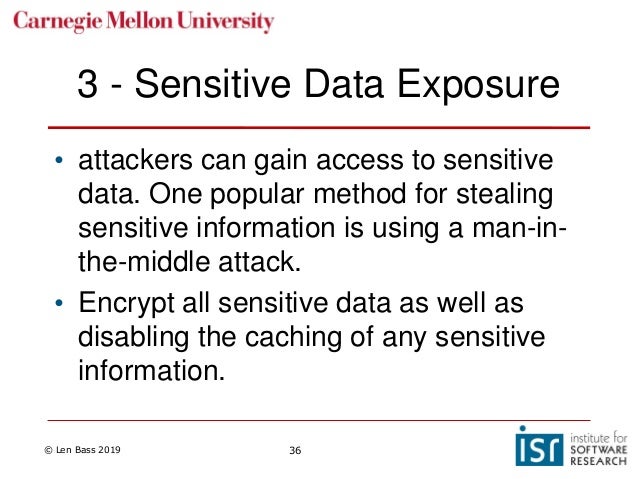

36. © Len Bass 2019 36 3 - Sensitive Data Exposure • attackers can gain access to sensitive data. One popular method for stealing sensitive information is using a man-in- the-middle attack. • Encrypt all sensitive data as well as disabling the caching of any sensitive information.

37. © Len Bass 2019 37 4. XML External Entities • XML input can reference an external entity, attempting to exploit a vulnerability in the parser. • Use a less complex data type such as JSON.

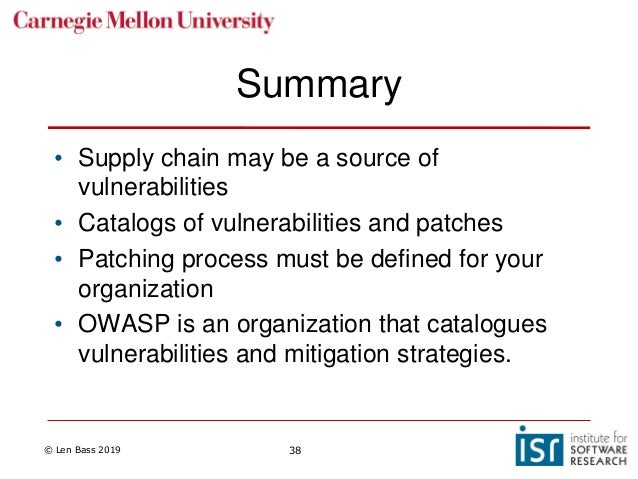

38. © Len Bass 2019 38 Summary • Supply chain may be a source of vulnerabilities • Catalogs of vulnerabilities and patches • Patching process must be defined for your organization • OWASP is an organization that catalogues vulnerabilities and mitigation strategies.
