The gitworkflows(7) illustrated

1. The gitworkflows(7) illustrated by K. Tateishi (@ktateish)

2. What’s gitworkflows? A set of workflows used in the Git project itself. Details are described in the online manual gitworkflows(7) shipped with Git.

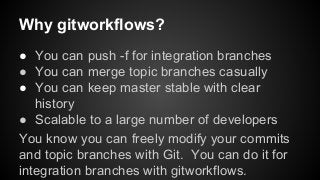

3. Why gitworkflows? ● You can push -f for integration branches ● You can merge topic branches casually ● You can keep master stable with clear history ● Scalable to a large number of developers You know you can freely modify your commits and topic branches with Git. You can do it for integration branches with gitworkflows.

4. In these slides I’ll show you how gitworkflows* work with simple commit graphs. It helps you to understand gitworkflows even though they are little complicated. Here we go. * Maybe slightly different from actual workflows used by git.git, because these slides are based on my interpretation of the gitworkflows(7).

5. There is an initial commit. Let’s start from here.

6. master This is the ‘master’ branch

7. This is the ‘master’ branch

8. Say you need three topics (A, B, C) for the first release. A B C

9. Grow them... A B C

10. And they’ve done. Integrate to master?

11. No. ‘master’ can’t be reset after topics once merged (and pushed to public repositories). Use a ‘throw-away’ integration branch instead.

12. ‘pu’ is the name of the throw-away integration branch. Stands for ‘Proposed Update’ pu

13. ‘pu’ should be branched from the tip of the most advanced non-throw-away branch. ‘master’ would be fine at this time. (You may use git branch pu master)

14. Merge topic A… (checkout pu and merge topic-A. You can use -- no-ff merge like below if you want) merge

15. Merge topic A, B... merge

16. Merge topic A, B and C into ‘pu’. merge

17. Then, let’s do tests especially about interactions among the merged topics/features. (They can’t be tested on each branch)

18. BTW you can push ‘pu’ to public repositories if needed. (push origin pu) e.g. a CI server is watching a public repository for running automated tests and you want to push for it.

19. You may find some bugs/lacks of functionalities on ‘pu’ with integrated state of the three topics.

20. One of them was introduced on topic A So fix it on that topic. commit

21. Others should be added/fixed on each branch. commit

22. And merge them into ‘pu’? No. ‘pu’ is a throw-away integration branch.

23. So reset ‘pu’ to ‘master’ (checkout pu and reset --hard master) reset

24. So reset ‘pu’ to ‘master’ so that throw away the old ‘pu’. (checkout pu and reset --hard master)

25. And then, re-do merges... merge

28. Now you’ve got new ‘pu’ that cleanly merged three topics.

29. Note that all developers involved including you can’t work on ‘pu’. All topics have to be forked off from ‘master’

30. Without reset, resulting branch / commit graph would be little more complicated, even though they have identical trees. trees of these two commits are identical - with reset - without reset

31. OK. Let’s push new ‘pu’ to public repositories and test it.

32. You have to do push -f origin pu or push origin +pu if you’ve pushed old ‘pu’ before, because new ‘pu’ isn’t direct descendant of the old ‘pu’ on origin.

33. After test, you found that two features from topic A, B were good and stable but one from topic C wasn’t.

34. You decide to merge topic A and B into ‘master’ because they are stable enough.

35. Merge topic A… (checkout master and merge topic-A) merge

36. Merge topic A and B into ‘master’. merge

37. # Now topic A, B are not important any more for these slides. # So gray out them.

38. At the same time, a bug on topic C was spotted and fixed. Let’s rebuild ‘pu’. commit

39. ‘pu’ should be reset to ‘master’ again. (checkout pu and reset --hard master) reset

40. Resetting ‘pu’ also means that throwing away the old ‘pu’.

41. And then...

42. Merge topic C, then push ‘master’ and ‘pu’. Again, you have to use forced push for ‘pu’, so you may say: git push origin master +pu (prefix ‘+’ for the branch name means forced push.) merge

43. You want more time to stabilize topic C. So you decide to make the first release with two features already merged into ‘master’.

44. For making release, tag an annotated tag ( ) at ‘master’ tag

45. v1.0.0 The release tag name is ‘v1.0.0’ Then push it. (tag -a ‘v1.0.0’ master and push origin v1. 0.0) tag

46. v1.0.0 was released. v1.0.0

47. You received new topics created after release. They would be branched from ‘master’. new topics

48. Some new topics would be good but some are possibly not good (i.e. break something).

49. So new topics should be merged into ‘pu’ first. merge

50. Merge another topic into ‘pu’ and push it. merge

51. You find two of three active topic branches look good after tests. But you are unsure for... Good Good

52. Unsure for: - Stability of the implementation - Excellence of the design - Requirement of the feature etc.

53. It means that keeping them in ‘pu’ is tiring because they won’t be changed for a while, but merging them into ‘master’ can’t be done because they may be changed or possibly deleted.

54. In other words, you need an integration branch for stabilizing, testing or previews for those topics.

55. ‘next’ is the integration branch for such use. It’s like a hybrid of throw-away and non throw-away. You can reset ‘next’ with an announcement for developers, but don’t do it so frequently. next tag

56. ‘next’ will be branched from ‘master’. (branch next master)

57. Merge the remaining old active topic, C… (checkout next and merge topic-C) merge

58. And merge new one, say topic D. merge

59. Here, ‘pu’ always should be branched from the most advanced non-throw-away integration branch.

60. So let’s rebuild ‘pu’ on ‘next’ at this time. (checkout pu and reset --hard next) reset

61. Old ‘pu’ will be deleted.

62. And then...

63. Merge the remaining new topic, say topic E. merge

64. Then, push ‘next’ and ‘pu’ (push origin next +pu)

65. Note that you and developers involved cannot work on ‘next’ because it sometimes get reset. So all feature branches should be forked off from ‘master’

66. What are the differences between ‘next’ and ‘pu’?

67. ‘pu’ is easily disposable but ‘next’ isn’t.

68. For example, if a topic merged only to ‘pu’ have a bug and fixed on it ... commit

69. Then, simply reset ‘pu’ to ‘next’... (checkout pu and reset --hard next) reset

70. And merge new tip of that topic. (i.e. rewind and reconstruct ‘pu’) merge

71. On the other hand, if a topic kept in ‘next’ have another commit... commit

72. ‘next’ can’t be reset, so just merge new tip of that topic on current ‘next’...

73. Like this. merge

74. And rebuild ‘pu’ on new ‘next’ reset and merge

75. Note that you can merge the new branch head of topic D into ‘pu’ first if needed. (e.g. it has too large impact to merge into ‘next’) merge into ‘pu’ first (+ push and test) if it looks good, then merge into ‘next’ reconstruct ‘pu’. this is identical graph shown in previous page

76. Here is another situation. You got new topic (say F).

77. You found a topic kept in ‘pu’, topic E, was totally broken and the topic developer can’t fix it right away. When it happened, just reconstruct ‘pu’ ignoring broken branches. Broken

78. Reset ‘pu’.... reset

79. And merge again only good branches. merge

80. If the broken branch was rebased with fixes after a while... rebased rebased topic

81. Merge the rebased new branch into ‘pu’ rebased merge

82. If you find a branch kept in ‘next’, e.g. topic C, is broken and it can’t be fixed for a while... Broken

83. You should revert the whole branch (revert -m 1 <merge commit>) revert revert commit reverted merge

84. Of course you should rebuild ‘pu’ and push them. reset and merge

85. After a while, when the topic C was fixed all bugs rebasing it... rebased

86. Merge it into ‘next’... merge

87. And rebuild ‘pu’, then push ‘next’ and ‘pu’. reset and merge

88. Again, note that ‘next’ shouldn’t be reset easily like ‘pu’. When you want to redo something on ‘next’, just revert or re- merge instead.

89. But ‘next’ can be reset with announcements for involved developers when it get awfully dirty with a number of revert and duplicate merges.

90. And you’ll also have chances to reset ‘next’ after feature release. It will be shown later. Let’s keep developing for the second release for now.

91. When you think topics merged into ‘next’ are stable / having good design / etc. you can merge them into ‘master’ Good enough to be merged into ‘master’

92. When you think topics merged into ‘next’ are stable / having good design / etc. you can merge them into ‘master’ Good enough to be merged into ‘master’

93. Repeat ‘pu’ -> ‘next’ -> ‘master’ cycle until enough features required for the next feature release are merged into ‘master’ new topic

94. Repeat ‘pu’ -> ‘next’ -> ‘master’ cycle until enough features required for the next feature release are merged into ‘master’ merge

95. Repeat ‘pu’ -> ‘next’ -> ‘master’ cycle until enough features required for the next feature release are merged into ‘master’ good enough for master

97. Repeat ‘pu’ -> ‘next’ -> ‘master’ cycle until enough features required for the next feature release are merged into ‘master’ good enough for next

98. Repeat ‘pu’ -> ‘next’ -> ‘master’ cycle until enough features required for the next feature release are merged into ‘master’ merge reset and merge

99. Repeat ‘pu’ -> ‘next’ -> ‘master’ cycle until enough features required for the next feature release are merged into ‘master’ new topic

101. Repeat ‘pu’ -> ‘next’ -> ‘master’ cycle until enough features required for the next feature release are merged into ‘master’ good enough for next

102. Repeat ‘pu’ -> ‘next’ -> ‘master’ cycle until enough features required for the next feature release are merged into ‘master’ merge reset and merge

103. These merges in ‘pu’ -> ‘next’ -> ‘master’ order, downstream-ward propagation of features, are called ‘graduate’.

104. Unfortunately sometimes even topics merged into ‘master’ have bugs. Fix them on their topics? No. a bug found

105. Once a topic merged into ‘master’, it will be regarded as ‘master’ itself. So fix branches should be created on ‘master’ for bugs of ‘master’. fix-branch for the bug

106. Merge it into (‘pu’ and) ‘next’ first. merge reset and merge

107. Then merge it into ‘master’ if it looks good. merge

108. Note that you can merge the fix branch into ‘master’ directly when the commits in fix branch are trivial. fix-branch for the bug

109. Note that you can merge the fix branch into ‘master’ directly when the commits in fix branch are trivial. merge

110. But after that, don’t forget to merge ‘master’ into ‘next’ for the fix will be included in ‘next’ (‘next’ must have the bug because it has all topics merged into ‘master’) merge reset and merge

111. There is another situation for fixing bugs. If the release v1.0.0 have a bug, how should we address it? a bug found

112. Fix it on ‘master’ and let v1.0.0 users upgrade to ‘master’? But some v1.0.0 users don’t want to use new features merged into ‘master’.

113. So you want a new integration branch only for bug fixing. ‘maint’ is such a branch. It will be branched from the latest feature release, i.e. v1.0.0. maint create branch

114. The fix branch have to be branched from ‘maint’. Don’t branch from ‘master’ or any upstream. fix-branch for the bug

115. If you branch the fix branch for ‘maint’ from ‘master’... *WRONG* fix-branch for the bug *WRONG*

116. When the fix branch merged into ‘maint’, additional topics are also merged into ‘maint’. Those downwards merging will break ‘maint’ branch. *WRONG* merge *WRONG* unintentionally merged commits

117. You can handle this case by cherry-pick the commit into ‘maint’, but you should take care where you fork off from. cherry-pick workaround

118. So the fix branch should be forked off from ‘maint’. As a general rule, fork off topics from the oldest integration branch which the topics will be finally merged into. fix-branch for the bug

119. Basically merge the fix branch for ‘maint’ into ‘next’ (or ‘pu’) first as usual because ‘maint’ never get reset. merge reset and merge

120. Then merge it into ‘maint’ when it looks good on ‘next’. merge

121. But...

122. Of course you can merge fix branches directly into ‘maint’ when they are trivial. merge

123. Sometimes you should merge ‘maint’ into ‘master’, and merge ‘master’ into ‘next’ for propagation of the fixes. Periodic upward merges are good habits.

124. Sometimes you should merge ‘maint’ into ‘master’, and merge ‘master’ into ‘next’ for propagation of the fixes. Periodic upward merges are good habits. merge

129. Sometimes you should merge ‘maint’ into ‘master’, and merge ‘master’ into ‘next’ for propagation of the fixes. Periodic upward merges are good habits. reset and merge

131. When some fixes accumulated in ‘maint’, publish a fix- release.

132. Tag v1.0.1 on ‘maint’ for the fix-release and push it. v1. 0.1 tag

133. Well, after a while you want to make a new feature-release. And you want have a code-freeze period for this release.

134. To freeze your code, just stop merging feature topics and only merge fix-topics, including ‘maint’, into ‘master’. merge fix branches only while frozen

135. To freeze your code, just stop merging feature topics and only merge fix-topics, including ‘maint’, into ‘master’. fix fix feature

136. To freeze your code, just stop merging feature topics and only merge fix-topics, including ‘maint’, into ‘master’. fix feature fix

137. To freeze your code, just stop merging feature topics and only merge fix-topics, including ‘maint’, into ‘master’. fix feature merging maint is ok fix

138. To freeze your code, just stop merging feature topics and only merge fix-topics, including ‘maint’, into ‘master’. fix feature merging fix branches are also ok fix

139. To freeze your code, just stop merging feature topics and only merge fix-topics, including ‘maint’, into ‘master’. fix feature Don’t merge feature branches fix

140. To freeze your code, just stop merging feature topics and only merge fix-topics, including ‘maint’, into ‘master’. fix feature Don’t merge feature branches fix

142. To freeze your code, just stop merging feature topics and only merge fix-topics, including ‘maint’, into ‘master’. fix feature fix even though good enough for master...

143. To freeze your code, just stop merging feature topics and only merge fix-topics, including ‘maint’, into ‘master’. fix feature Don’t merge ANY feature branches fix

144. To freeze your code, just stop merging feature topics and only merge fix-topics, including ‘maint’, into ‘master’. fix feature Don’t merge ANY feature branches fix

146. You can merge feature topics into ‘next’ for integration of them while ‘master’ is frozen. So you don’t have to stop developing for the code-freeze. merging feature branches are OKay fix feature fix

147. You can merge feature topics into ‘next’ for integration of them while ‘master’ is frozen. So you don’t have to stop developing for the code-freeze. merging fix branches are also OKay fix feature fix

148. You can merge feature topics into ‘next’ for integration of them while ‘master’ is frozen. So you don’t have to stop developing for the code-freeze.

149. You can merge feature topics into ‘next’ for integration of them while ‘master’ is frozen. So you don’t have to stop developing for the code-freeze. rebase rebasing active topics are OKay

150. You can merge feature topics into ‘next’ for integration of them while ‘master’ is frozen. So you don’t have to stop developing for the code-freeze. rebase rebasing active topics are OKay

151. You can merge feature topics into ‘next’ for integration of them while ‘master’ is frozen. So you don’t have to stop developing for the code-freeze. reverting or dropping active branches are also OKay revert

152. You can merge feature topics into ‘next’ for integration of them while ‘master’ is frozen. So you don’t have to stop developing for the code-freeze. reverting or dropping active branches are also OKay

153. The code-freeze period has done. Now you will make feature-release.

154. Before tagging, make sure ‘maint’ is fully merged into ‘master’ by git merge maint on ‘master’. If not merged, some fixes will be missing from the new release. Already fully merged into master in this case

155. Now release it. Tag v1.1.0 on ‘master’ for the feature- release and push it. tag v1. 1.0

156. New release has done. But you have some tasks for the ‘next’ and ‘maint’ after feature-release

157. Let’s do for ‘next’. At first reset ‘next’ to ‘master’ reset to master leave a tag for in case messed up

158. Then merge active topics they weren’t included in the last release. (And rebuild ‘pu’ if needed) merge active branches

159. Then merge active topics they weren’t included in the last release. (And rebuild ‘pu’ if needed) merge active branches

160. Then merge active topics they weren’t included in the last release. (And rebuild ‘pu’ if needed) check diff for making sure that they are equivalentdiff

161. Then merge active topics they weren’t included in the last release. (And rebuild ‘pu’ if needed) rebuild pu

162. This rewind and reconstruction of ‘next’ is for cleaning up the history of it. Actually you can do this anytime with an announcement. But it is good point to do this right after a feature release.

163. This rewind and reconstruction of ‘next’ is for cleaning up the history of it. Actually you can do this anytime with an announcement. But it is good point to do this right after a feature release.

164. Next, let’s see about ‘maint’ The task for ‘maint’ is simple. Just fast-forward ‘maint’ to ‘master’. Fast-Foward to master

165. This is done by git merge --ff-only master on ‘maint’. If it fail, the last release is missing some fixes because ‘maint’ must have some commits that are not in ‘master’. Fast-Foward to master

166. If you merge ‘maint’ into ‘master’ before the release like already shown, the fast-forward will succeed.

167. Note that if you want keep maintenance branch for the previous feature-release, you can leave another maint branch, e.g. maint-1.0, for it. maint-1.0

168. After the feature-release, repeat the same workflows already shown. This is the gitworkflows(7). Keep on developing with it. New topic and...

169. Conclusion (1/2) ● Use throw-away integration branch like pu ● Merge topics into the throw-away(TA) first ● Test in TAs before merging topics into master ● You can use hybrid of TA and non-TA like next ● next can be reset with announcements. ● master and maint cannot be reset

170. Conclusion (2/2) ● Don’t base your work on pu or next ● Fork off topics from the oldest integ-branch which the topics will be finally merged into ● Merge integration branches upwards ● Tag master for feature-releases ● Tag maint for fix-releases

171. See also ● gitworkflows(7) ● Documentation/SubmittingPatches in Git source tree ● MaintNote in ‘todo’ branch of git.git ● the Git Blame blog by Junio C Hamano

172. Q and A

173. Q: What is the difference between next and pu? A: It depends. gitworkflows(7) saids pu, throw-away, is for testing the interaction of topics but according to the recent MaintNotes in the git.git, pu is a sort of reminder for the maintainer. next is said to be for testing/polishing for master in both documents. IMHO pu is a working space and next is a staging area for master. It looks like working tree and index of Git itself.

174. Q: Do I have to keep {‘pu’, ‘next’, ‘maint’} A: No, you don’t. Just create and keep them if you need. But I recommend you to use a throw-away at least. You may keep it in your local repos only (i.e. make sure tests are succeeded and then push master). I’ve seen a project that have only ‘master’, ‘pu’ and another project that have ‘master’, ‘master-pu’, ‘maint’, ‘maint-pu’.

175. Q: Do I have to keep so many topics? A: Yes. You have to keep them until they’ve been merged into ‘master’ or ‘maint’ But you can assign someone you trust to maintain a certain subsystem with gitworkflows. Then you can just merge his/her ‘master’ into your ‘master’. (actually you need a throw-away) This is the reason why gitworkflows is thought to be scalable.

176. Q: Do I have to merge a single branch repeatedly? A: Yes. When you become tired of resolving identical conflicts, enable git-rerere(1). The ‘rerere’ stands for Reuse Recorded Resolution. It will help you to resolve conflicts that have been resolved once before.

177. Q: May I use GitHub pull requests with gitworkflows? A: Yes, of course. For the git.git, GitHub pull requests are simply ignored but it’s just a policy of the project. “Merge Workflow” in the online manual gitworkflows(7) will suit for GitHub users.

178. Thank you
