Jersey Framework 맛보기<br />2011.8.5<br />김용환<br /> knight76 at gmail.com<br />

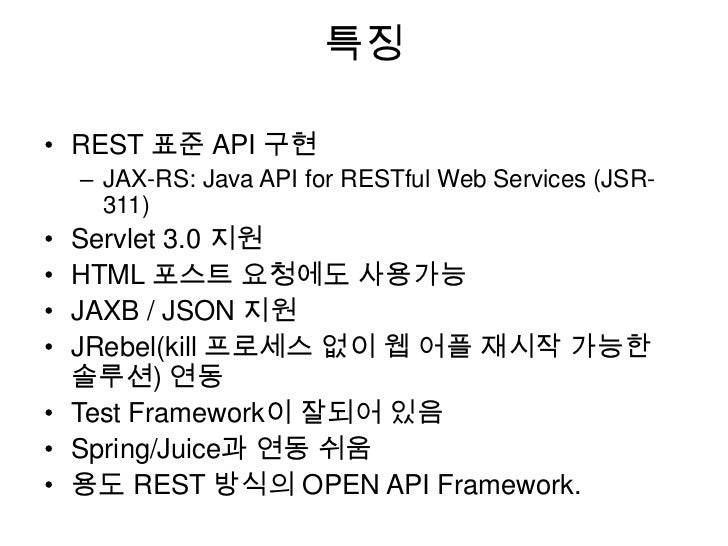

특징 <br />REST 표준 API 구현 <br />JAX-RS: Java API for RESTful Web Services (JSR-311) <br />Servlet 3.0 지원<br />HTML 포스트 요청에도 ...

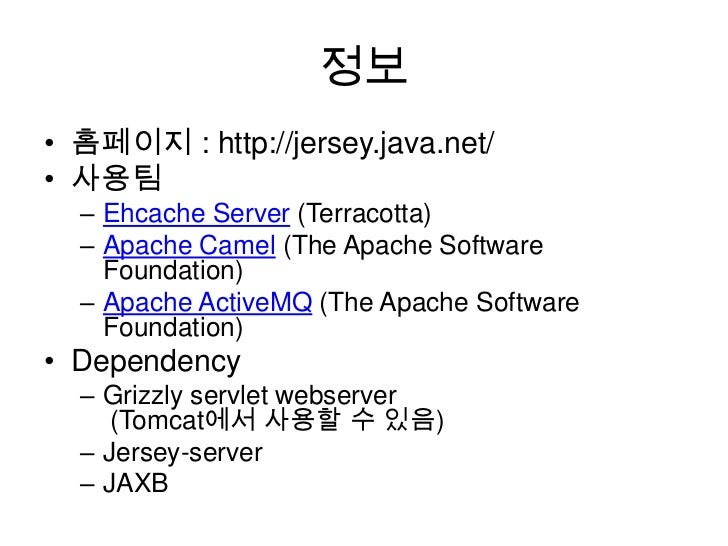

정보<br />홈페이지 : http://jersey.java.net/<br />사용팀<br />Ehcache Server (Terracotta)<br />Apache Camel (The Apache Software Fo...

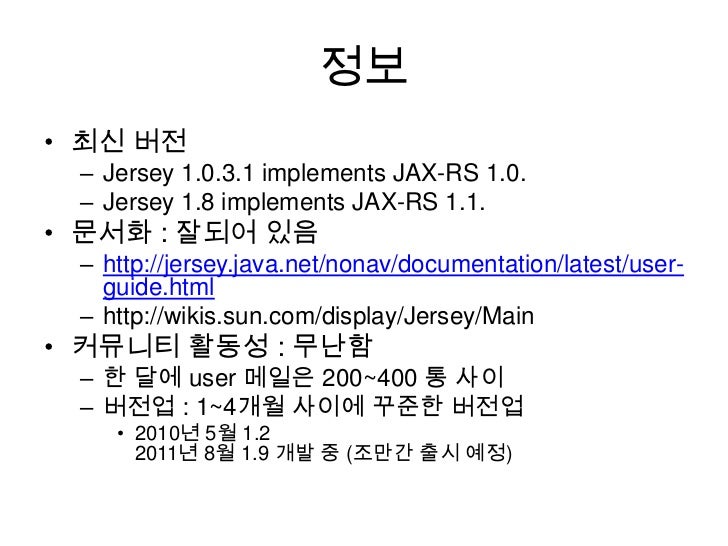

정보<br />최신 버전<br />Jersey 1.0.3.1 implements JAX-RS 1.0.<br />Jersey 1.8 implements JAX-RS 1.1.<br />문서화 : 잘되어 있음<br />htt...
맛보기 Demo<br />import javax.ws.rs.GET;<br />import javax.ws.rs.Path;<br />import javax.ws.rs.Produces;<br />  1     // The ...

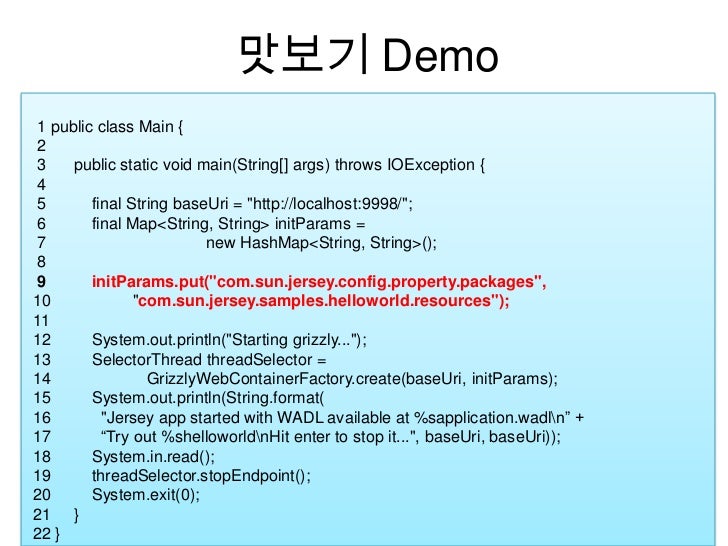

맛보기 Demo<br />  1 public class Main {<br />  2           <br />  3      public static void main(String[] args) throws IOEx...

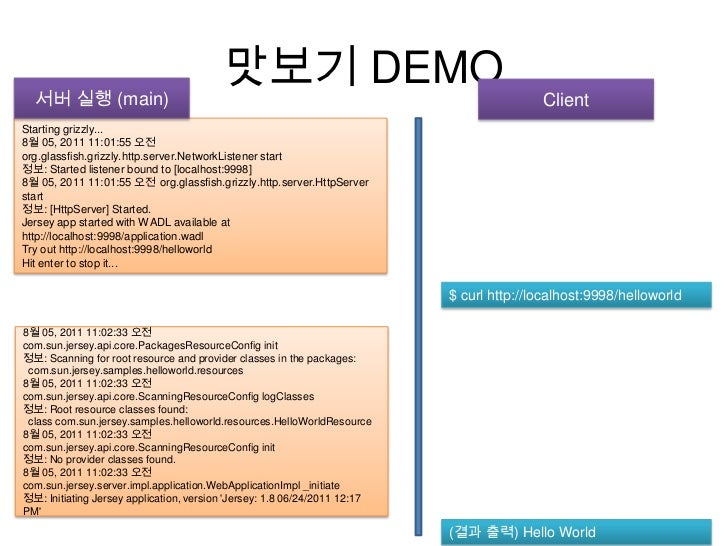

맛보기 DEMO<br />서버 실행 (main)<br />Client<br />Starting grizzly...<br />8월 05, 2011 11:01:55 오전 org.glassfish.grizzly.http.se...

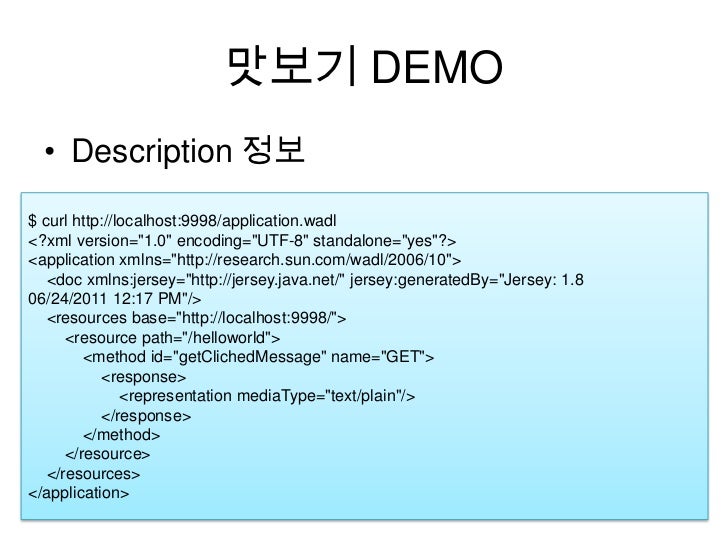

맛보기 DEMO<br />Description 정보<br />$ curl http://localhost:9998/application.wadl<br /><?xml version="1.0" encoding="UTF-8" ...
@PATH<br />상대적인 URI path를 의미<br />예)<br />@Path("/users/{username}") -> http://example.com/users/Galileo<br /> 1 @Path("/u...

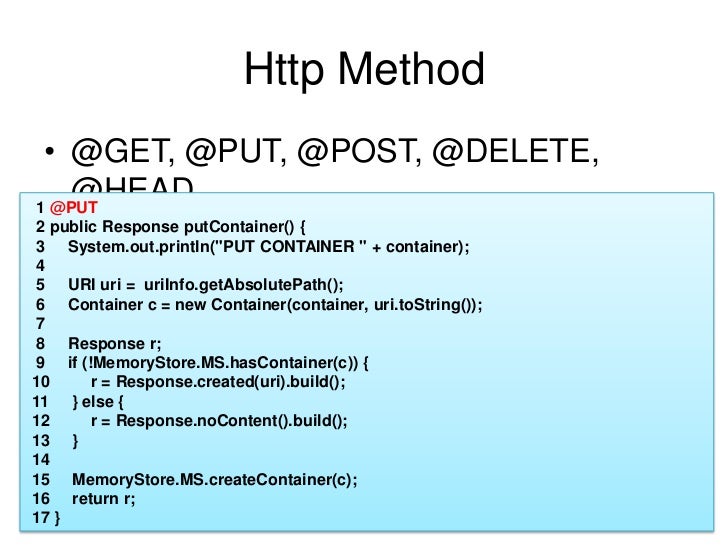

Http Method<br />@GET, @PUT, @POST, @DELETE, @HEAD<br />  1 @PUT<br />  2 public Response putContainer() {<br />  3     Sy...

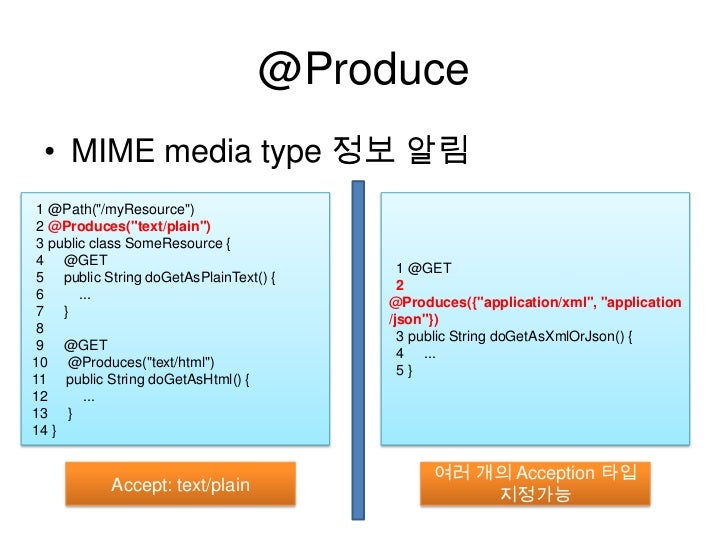

@Produce<br />MIME media type 정보 알림<br />  1 @Path("/myResource")<br />  2 @Produces("text/plain")<br />  3 public class S...

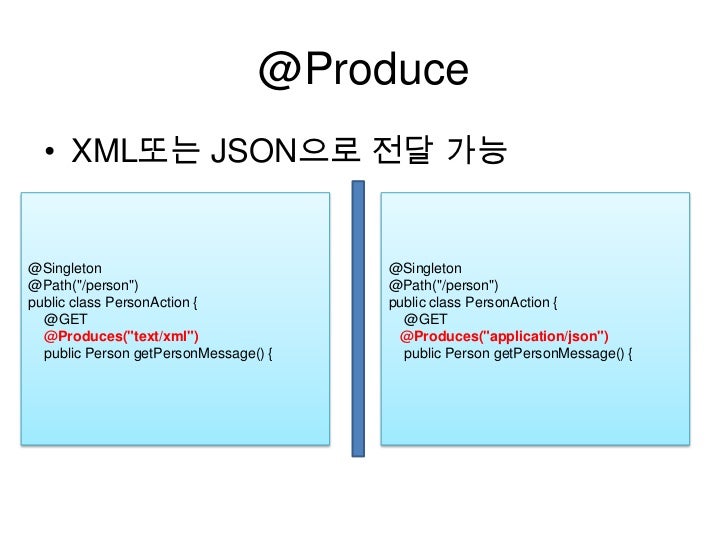

@Produce<br />XML또는 JSON으로 전달 가능<br />@Singleton@Path("/person")public class PersonAction {    @GET    @Produces("text/xml...
@QueryParam<br />Query paramter를 받을 수 있음<br />Default  값 지정 가능<br />  1 @Path("smooth")<br />  2 @GET<br />  3 public Resp...

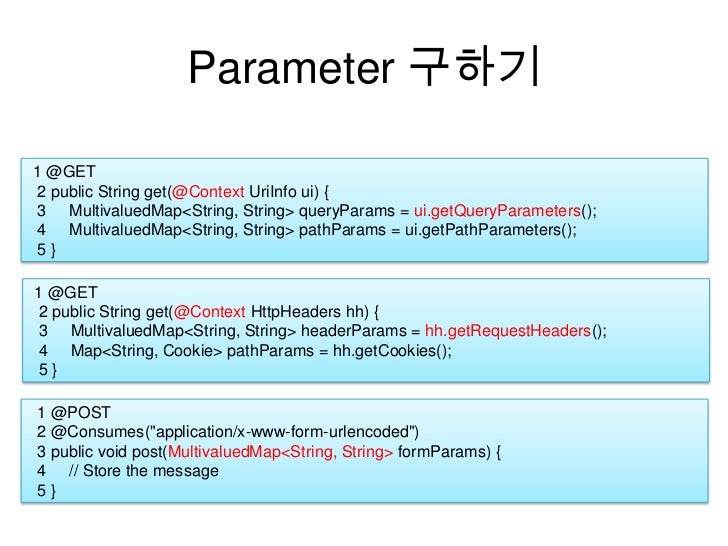

Parameter 구하기<br /> 1 @GET<br />  2 public String get(@Context UriInfoui) {<br />  3     MultivaluedMap<String, String> qu...

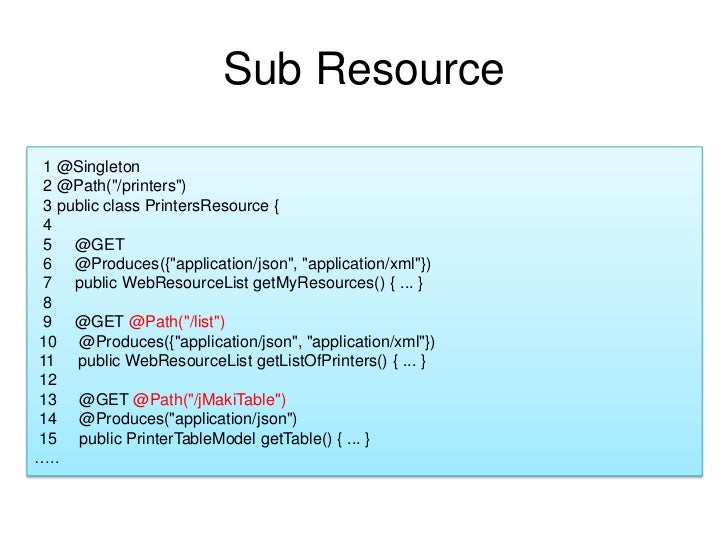

Sub Resource<br />  1 @Singleton<br />  2 @Path("/printers")<br />  3 public class PrintersResource {<br />  4 <br />  5  ...
URI building<br />  1 UriBuilder.fromUri("http://localhost/").<br />  2     path("{a}").<br />  3     queryParam("name", "...

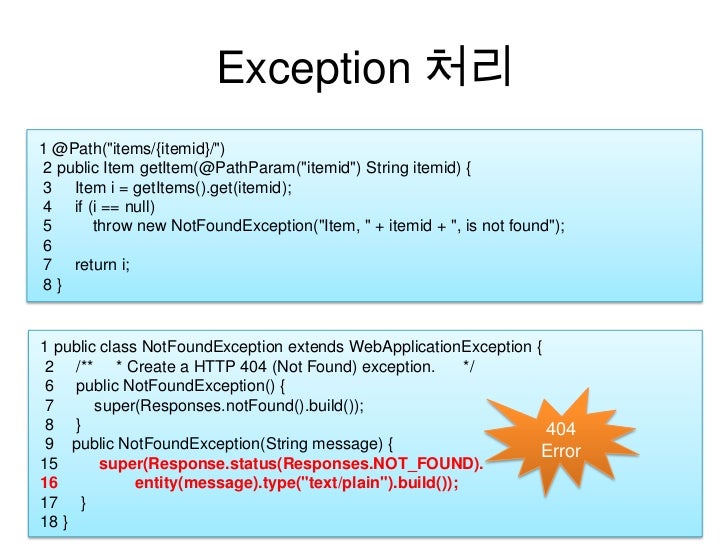

Exception 처리<br /> 1 @Path("items/{itemid}/")<br />  2 public Item getItem(@PathParam("itemid") String itemid) {<br />  3 ...

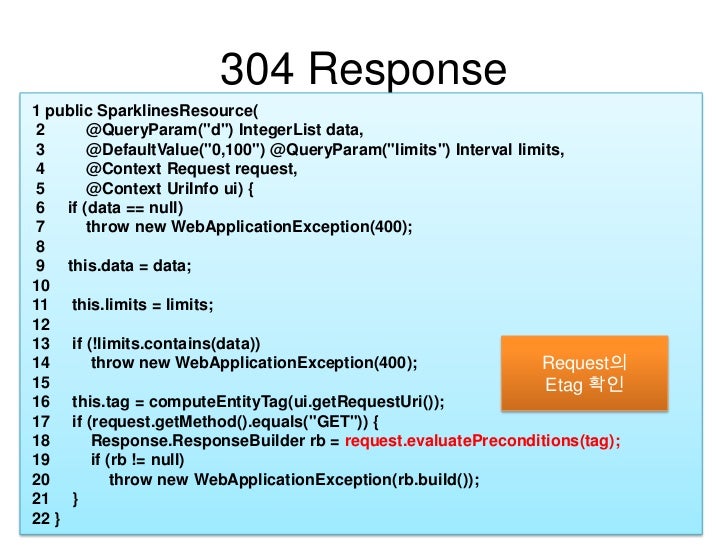

304 Response<br /> 1 public SparklinesResource(<br />  2         @QueryParam("d") IntegerList data,<br />  3         @Defa...
Security<br />  1 @Path("basket")<br />  2 public ShoppingBasketResource get(@Context SecurityContextsc) {<br />  3     if...
Rules of Injection<br /> 1 @Path("id: d+")<br />  2 public class InjectedResource {<br />  3     // Injection onto field<b...

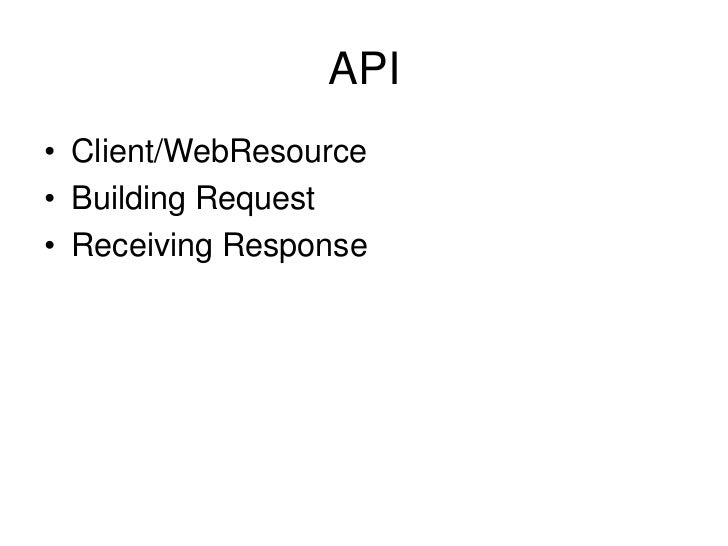

API<br />Client/WebResource<br />Building Request<br />Receiving Response<br />
End of Document<br />
