Hacking iOS GameCenter and Passbook with Proxies
OWASP Boston
November 6, 2013

Who am I?
• Karl Fosaaen
Senior Security Consultant
At NetSPI
Twitter: @kfosaaen

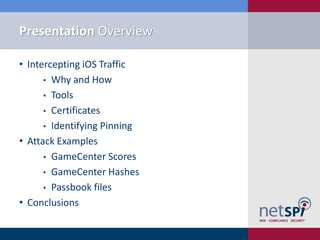

Presentation Overview
• Intercepting iOS Traffic
• Why and How
• Tools
• Certificates
• Identifying Pinning
• Attack Examples
• GameCenter Scores
• GameCenter Hashes
• Passbook files
• Conclusions

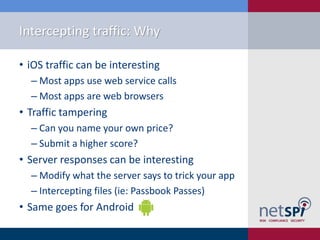

Intercepting traffic: Why
• iOS traffic can be interesting
‒ Most apps use web service calls
‒ Most apps are web browsers
• Traffic tampering
‒ Can you name your own price?
‒ Submit a higher score?
• Server responses can be interesting
‒ Modify what the server says to trick your app
‒ Intercepting files (ie: Passbook Passes)
• Same goes for Android

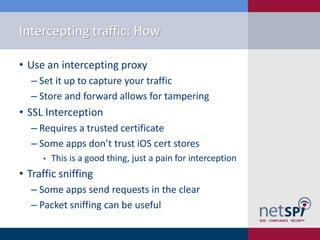

Intercepting traffic: How
• Use an intercepting proxy
‒ Set it up to capture your traffic
‒ Store and forward allows for tampering
• SSL Interception
‒ Requires a trusted certificate
‒ Some apps don’t trust iOS cert stores
•
This is a good thing, just a pain for interception
• Traffic sniffing
‒ Some apps send requests in the clear
‒ Packet sniffing can be useful

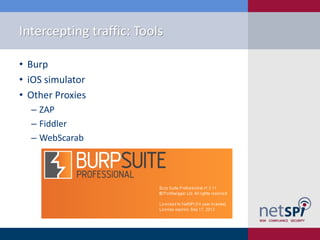

Intercepting traffic: Tools
• Burp
• iOS simulator
• Other Proxies
‒ ZAP
‒ Fiddler
‒ WebScarab

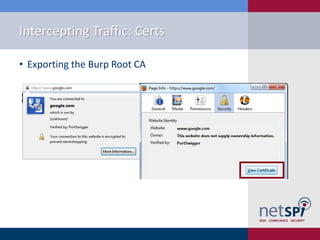

Intercepting Traffic: Certs
• Exporting the Burp Root CA

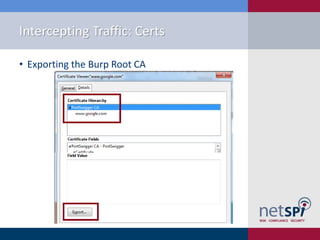

Intercepting Traffic: Certs
• Exporting the Burp Root CA

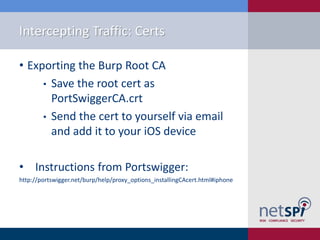

Intercepting Traffic: Certs
• Exporting the Burp Root CA
• Save the root cert as
PortSwiggerCA.crt
• Send the cert to yourself via email
and add it to your iOS device
• Instructions from Portswigger:
http://portswigger.net/burp/help/proxy_options_installingCAcert.html#iphone

Intercepting Traffic: Certs
• Exporting the Burp Root CA
• Certificate installed on iPhone

Intercepting Traffic: Burp

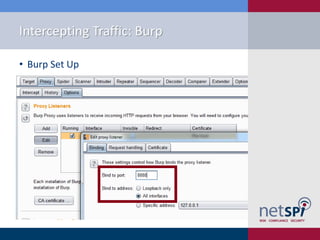

• Burp Set Up

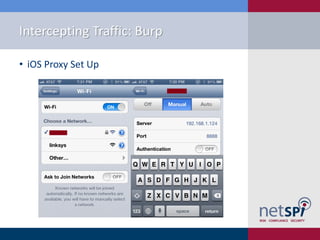

Intercepting Traffic: Burp
• iOS Proxy Set Up

Intercepting Traffic: Burp

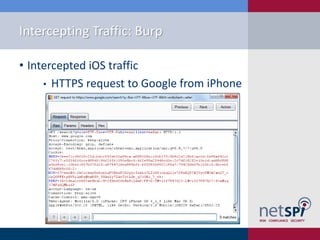

• Intercepted iOS traffic
• HTTPS request to Google from iPhone

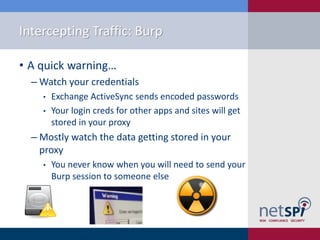

Intercepting Traffic: Burp
• A quick warning…
‒ Watch your credentials
•
•
Exchange ActiveSync sends encoded passwords
Your login creds for other apps and sites will get
stored in your proxy
‒ Mostly watch the data getting stored in your
proxy
•
You never know when you will need to send your
Burp session to someone else

Intercepting Traffic: Certs

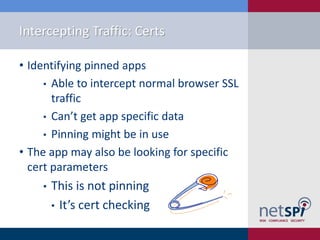

• Identifying pinned apps
• Able to intercept normal browser SSL
traffic
• Can’t get app specific data
• Pinning might be in use
• The app may also be looking for specific
cert parameters
•
This is not pinning
• It’s cert checking

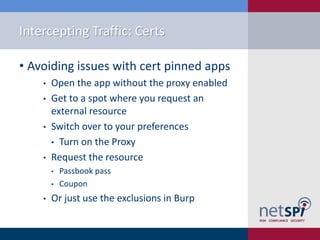

Intercepting Traffic: Certs
• Avoiding issues with cert pinned apps
•
•
•
•
Open the app without the proxy enabled
Get to a spot where you request an
external resource
Switch over to your preferences
• Turn on the Proxy
Request the resource
•
•
•
Passbook pass
Coupon
Or just use the exclusions in Burp

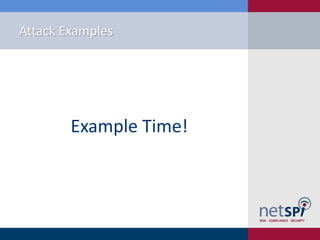

Attack Examples
Example Time!

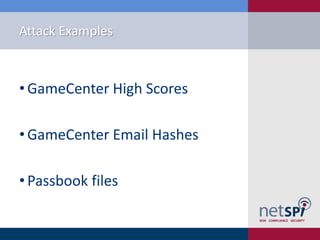

Attack Examples
• GameCenter High Scores
• GameCenter Email Hashes
• Passbook files

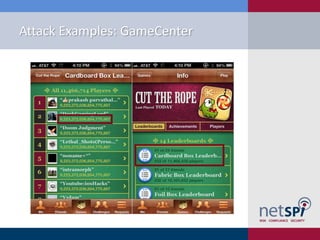

Attack Examples: GameCenter

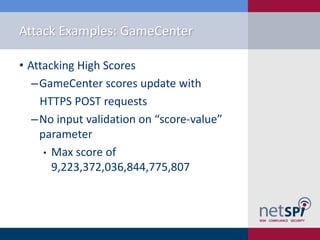

Attack Examples: GameCenter
• Attacking High Scores
‒GameCenter scores update with
HTTPS POST requests
‒No input validation on “score-value”
parameter
• Max score of
9,223,372,036,844,775,807

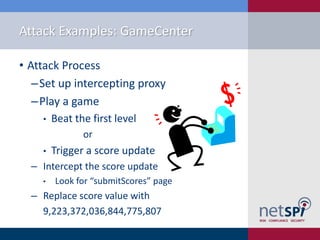

Attack Examples: GameCenter
• Attack Process
‒Set up intercepting proxy
‒Play a game
•
Beat the first level
or
•
Trigger a score update
‒ Intercept the score update
•
Look for “submitScores” page
‒ Replace score value with
9,223,372,036,844,775,807

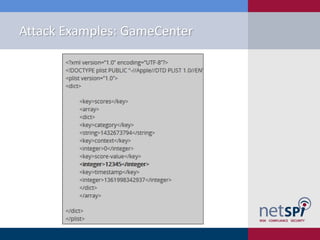

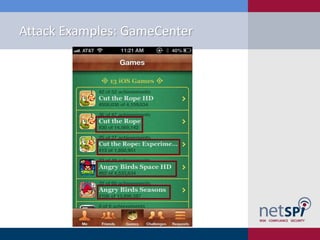

Attack Examples: GameCenter

Attack Examples: GameCenter

Attack Examples: GameCenter

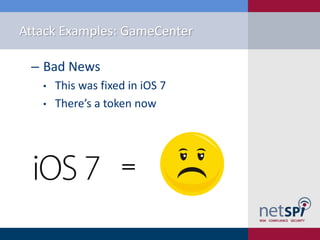

Attack Examples: GameCenter
‒ Bad News
•
•
This was fixed in iOS 7
There’s a token now
=

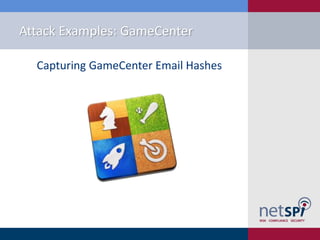

Attack Examples: GameCenter
Capturing GameCenter Email Hashes

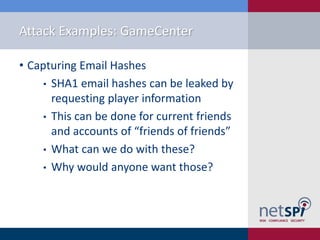

Attack Examples: GameCenter
• Capturing Email Hashes
• SHA1 email hashes can be leaked by
requesting player information
• This can be done for current friends
and accounts of “friends of friends”
• What can we do with these?
• Why would anyone want those?

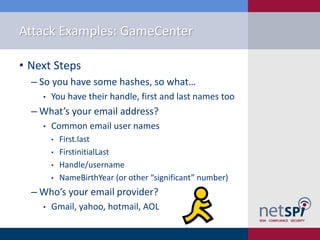

Attack Examples: GameCenter
• Next Steps
‒ So you have some hashes, so what…
•
You have their handle, first and last names too
‒ What’s your email address?
•
Common email user names
•
•
•
•
First.last
FirstinitialLast
Handle/username
NameBirthYear (or other “significant” number)
‒ Who’s your email provider?
•
Gmail, yahoo, hotmail, AOL

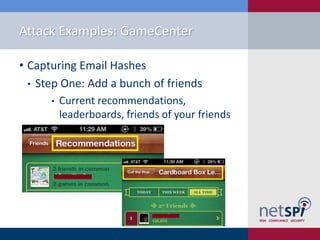

Attack Examples: GameCenter
• Capturing Email Hashes
• Step One: Add a bunch of friends
•
Current recommendations,
leaderboards, friends of your friends

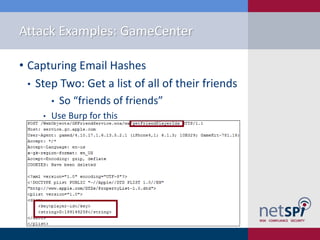

Attack Examples: GameCenter
• Capturing Email Hashes
• Step Two: Get a list of all of their friends
•
•
So “friends of friends”
Use Burp for this

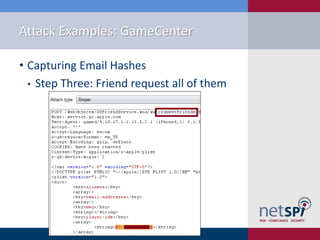

Attack Examples: GameCenter
• Capturing Email Hashes
• Step Three: Friend request all of them

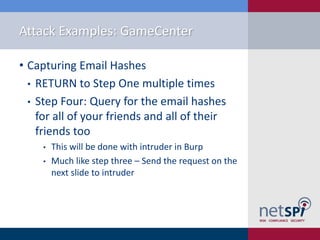

Attack Examples: GameCenter
• Capturing Email Hashes
• RETURN to Step One multiple times

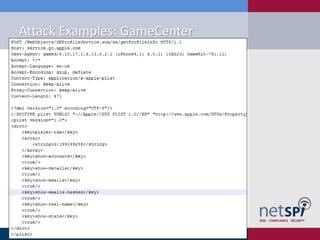

• Step Four: Query for the email hashes
for all of your friends and all of their
friends too
•
•
This will be done with intruder in Burp
Much like step three – Send the request on the
next slide to intruder

Attack Examples: GameCenter

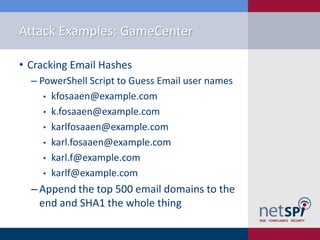

Attack Examples: GameCenter
• Cracking Email Hashes
‒ PowerShell Script to Guess Email user names
• kfosaaen@example.com
• k.fosaaen@example.com
• karlfosaaen@example.com
• karl.fosaaen@example.com
• karl.f@example.com
• karlf@example.com
‒ Append the top 500 email domains to the
end and SHA1 the whole thing

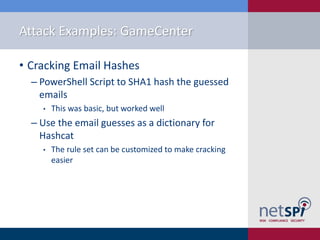

Attack Examples: GameCenter
• Cracking Email Hashes
‒ PowerShell Script to SHA1 hash the guessed
emails
•
This was basic, but worked well
‒ Use the email guesses as a dictionary for
Hashcat
•
The rule set can be customized to make cracking
easier

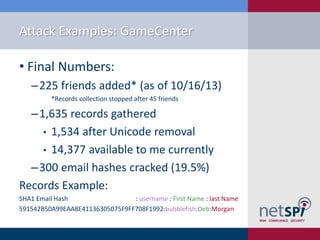

Attack Examples: GameCenter
• Final Numbers:
‒225 friends added* (as of 10/16/13)
*Records collection stopped after 45 friends
‒1,635 records gathered
• 1,534 after Unicode removal
• 14,377 available to me currently
‒300 email hashes cracked (19.5%)
Records Example:
SHA1 Email Hash
: username : First Name : last Name
591542B50A99EAA8E41136305075F9FF708F1992:bubblefish:Deb:Morgan

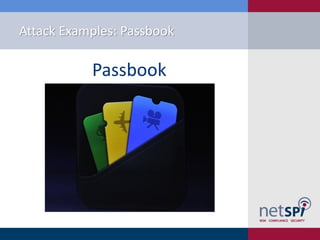

Attack Examples: Passbook
Passbook

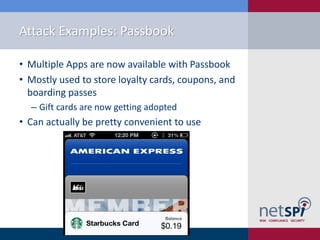

Attack Examples: Passbook
• Multiple Apps are now available with Passbook
• Mostly used to store loyalty cards, coupons, and
boarding passes
‒ Gift cards are now getting adopted
• Can actually be pretty convenient to use

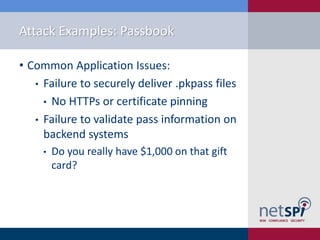

Attack Examples: Passbook
• Common Application Issues:
• Failure to securely deliver .pkpass files
• No HTTPs or certificate pinning
• Failure to validate pass information on
backend systems
•
Do you really have $1,000 on that gift
card?

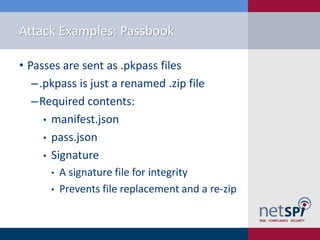

Attack Examples: Passbook
• Passes are sent as .pkpass files
‒.pkpass is just a renamed .zip file
‒Required contents:
• manifest.json
• pass.json
• Signature
•
•
A signature file for integrity
Prevents file replacement and a re-zip

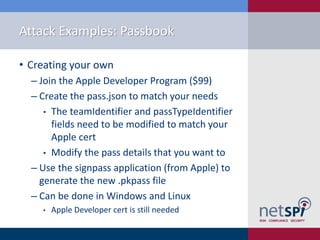

Attack Examples: Passbook
• Creating your own
‒ Join the Apple Developer Program ($99)
‒ Create the pass.json to match your needs
• The teamIdentifier and passTypeIdentifier
fields need to be modified to match your
Apple cert
• Modify the pass details that you want to
‒ Use the signpass application (from Apple) to
generate the new .pkpass file
‒ Can be done in Windows and Linux
•
Apple Developer cert is still needed

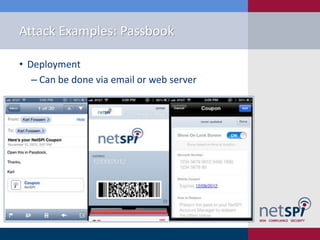

Attack Examples: Passbook
• Deployment
‒ Can be done via email or web server

Attack Examples: Passbook

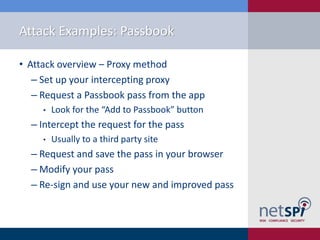

• Attack overview – Proxy method
‒ Set up your intercepting proxy
‒ Request a Passbook pass from the app
•
Look for the “Add to Passbook” button
‒ Intercept the request for the pass
•
Usually to a third party site
‒ Request and save the pass in your browser
‒ Modify your pass
‒ Re-sign and use your new and improved pass

Attack Examples: Passbook

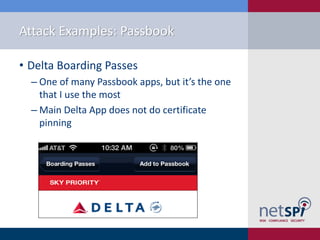

• Delta Boarding Passes
‒ One of many Passbook apps, but it’s the one
that I use the most
‒ Main Delta App does not do certificate
pinning

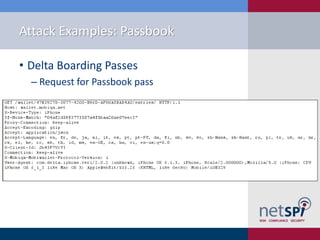

Attack Examples: Passbook
• Delta Boarding Passes
‒ Request for Passbook pass

Attack Examples: Passbook

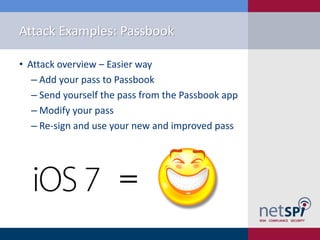

• Attack overview – Easier way
‒ Add your pass to Passbook
‒ Send yourself the pass from the Passbook app
‒ Modify your pass
‒ Re-sign and use your new and improved pass
=

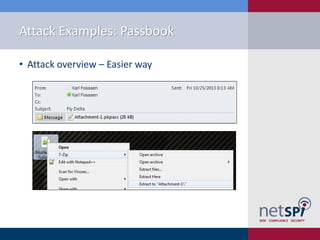

Attack Examples: Passbook
• Attack overview – Easier way

Attack Examples: Passbook
• Attack overview – Easier way

Attack Examples: Passbook

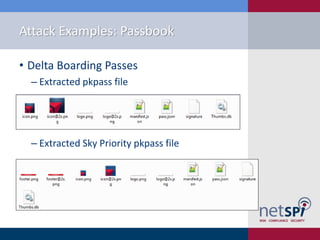

• Delta Boarding Passes
‒ Extracted pkpass file
‒ Extracted Sky Priority pkpass file

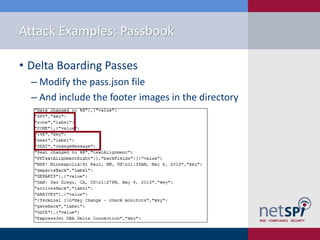

Attack Examples: Passbook
• Delta Boarding Passes
‒ Modify the pass.json file
‒ And include the footer images in the directory

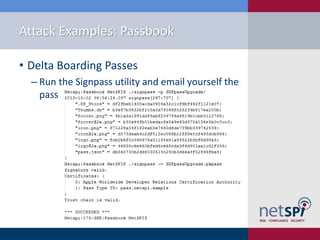

Attack Examples: Passbook
• Delta Boarding Passes
‒ Run the Signpass utility and email yourself the
pass

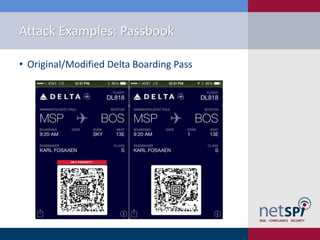

Attack Examples: Passbook
• Original/Modified Delta Boarding Pass

Conclusions
•Fixes
•
•
•
Certificate pinning
Better input validation
Limiting data leakage from apps

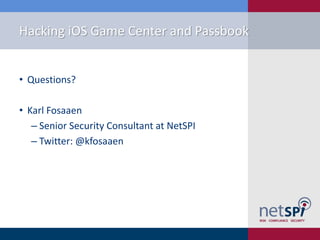

Hacking iOS Game Center and Passbook
• Questions?
• Karl Fosaaen
‒ Senior Security Consultant at NetSPI
‒ Twitter: @kfosaaen
