Android Support Design Library
2015. 7. 12
GDG Korea Android

https://github.com/kunny/blog_samples/tree/master/Android/2015-07-12_Support_Design_Sample

Published in: Software

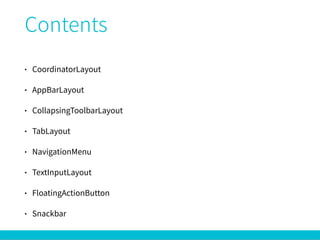

Support Design Library

  1. 1. a.k.a 머티리얼 디자인 과도기

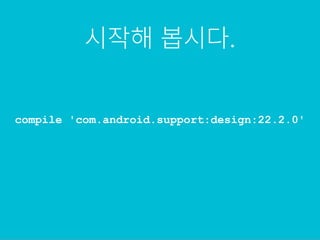

  2. 2. compile 'com.android.support:design:22.2.0'

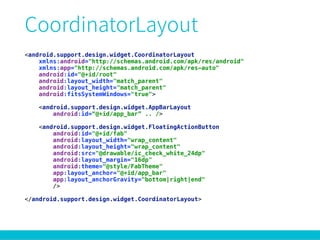

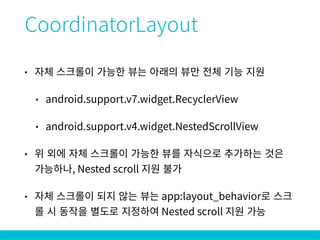

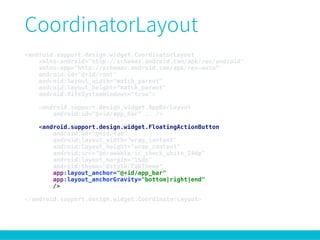

  3. 3. <android.support.design.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 android:id="@+id/root"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:fitsSystemWindows="true">

 <android.support.design.widget.AppBarLayout
 android:id=“@+id/app_bar” .. />

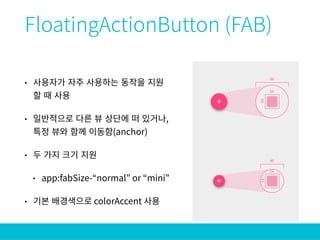

 <android.support.design.widget.FloatingActionButton
 android:id="@+id/fab"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:src="@drawable/ic_check_white_24dp"
 android:layout_margin="16dp"
 android:theme="@style/FabTheme"
 app:layout_anchor="@+id/app_bar"
 app:layout_anchorGravity="bottom|right|end"
 />

 </android.support.design.widget.CoordinatorLayout>
  4. 4. <android.support.design.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 android:id="@+id/root"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:fitsSystemWindows="true">

 <android.support.design.widget.AppBarLayout
 android:id=“@+id/app_bar” .. />

 <android.support.design.widget.FloatingActionButton
 android:id="@+id/fab"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:src="@drawable/ic_check_white_24dp"
 android:layout_margin="16dp"
 android:theme="@style/FabTheme"
 app:layout_anchor="@+id/app_bar"
 app:layout_anchorGravity="bottom|right|end"
 />

 </android.support.design.widget.CoordinatorLayout>

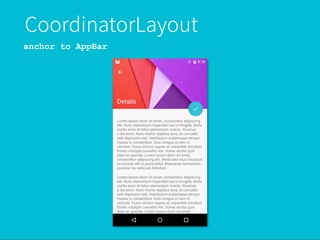

  5. 5. anchor to AppBar
  6. 6. anchor to AppBar

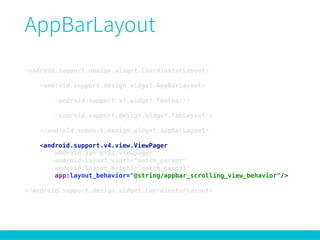

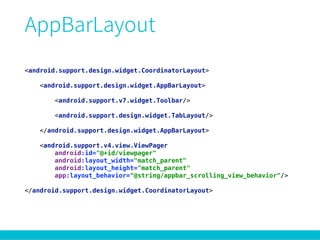

  7. 7. <android.support.design.widget.CoordinatorLayout>

 <android.support.design.widget.AppBarLayout>

 <android.support.v7.widget.Toolbar/>

 <android.support.design.widget.TabLayout/>

 </android.support.design.widget.AppBarLayout>

 <android.support.v4.view.ViewPager
 android:id="@+id/viewpager"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 app:layout_behavior="@string/appbar_scrolling_view_behavior"/>

 </android.support.design.widget.CoordinatorLayout>
  8. 8. <android.support.design.widget.CoordinatorLayout>

 <android.support.design.widget.AppBarLayout>

 <android.support.v7.widget.Toolbar/>

 <android.support.design.widget.TabLayout/>

 </android.support.design.widget.AppBarLayout>

 <android.support.v4.view.ViewPager
 android:id="@+id/viewpager"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 app:layout_behavior="@string/appbar_scrolling_view_behavior"/>

 </android.support.design.widget.CoordinatorLayout>

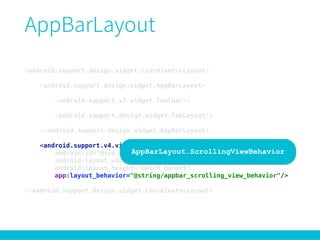

  9. 9. <android.support.design.widget.CoordinatorLayout>

 <android.support.design.widget.AppBarLayout>

 <android.support.v7.widget.Toolbar/>

 <android.support.design.widget.TabLayout/>

 </android.support.design.widget.AppBarLayout>

 <android.support.v4.view.ViewPager
 android:id="@+id/viewpager"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 app:layout_behavior="@string/appbar_scrolling_view_behavior"/>

 </android.support.design.widget.CoordinatorLayout> AppBarLayout.ScrollingViewBehavior

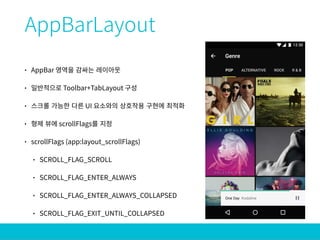

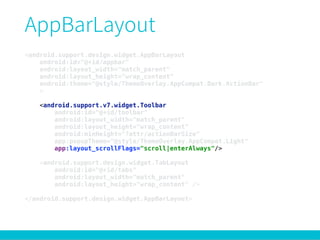

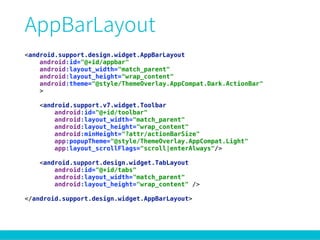

  10. 10. <android.support.design.widget.AppBarLayout
 android:id="@+id/appbar"
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
 >

 <android.support.v7.widget.Toolbar
 android:id="@+id/toolbar"
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:minHeight="?attr/actionBarSize"
 app:popupTheme="@style/ThemeOverlay.AppCompat.Light"
 app:layout_scrollFlags="scroll|enterAlways"/>

 <android.support.design.widget.TabLayout
 android:id="@+id/tabs"
 android:layout_width="match_parent"
 android:layout_height="wrap_content" />

 </android.support.design.widget.AppBarLayout>
  11. 11. <android.support.design.widget.AppBarLayout
 android:id="@+id/appbar"
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
 >

 <android.support.v7.widget.Toolbar
 android:id="@+id/toolbar"
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:minHeight="?attr/actionBarSize"
 app:popupTheme="@style/ThemeOverlay.AppCompat.Light"
 app:layout_scrollFlags="scroll|enterAlways"/>

 <android.support.design.widget.TabLayout
 android:id="@+id/tabs"
 android:layout_width="match_parent"
 android:layout_height="wrap_content" />

 </android.support.design.widget.AppBarLayout>

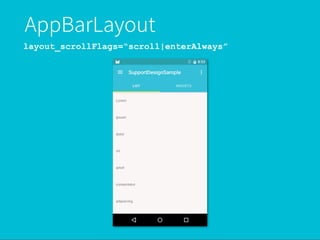

  12. 12. layout_scrollFlags=“scroll|enterAlways”
  13. 13. layout_scrollFlags=“scroll|enterAlways”

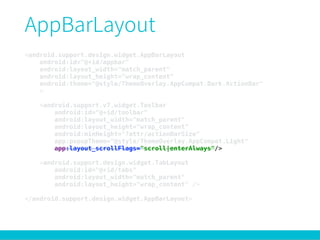

  14. 14. <android.support.design.widget.AppBarLayout
 android:id="@+id/appbar"
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
 >

 <android.support.v7.widget.Toolbar
 android:id="@+id/toolbar"
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:minHeight="?attr/actionBarSize"
 app:popupTheme="@style/ThemeOverlay.AppCompat.Light"
 app:layout_scrollFlags="scroll|enterAlways"/>

 <android.support.design.widget.TabLayout
 android:id="@+id/tabs"
 android:layout_width="match_parent"
 android:layout_height="wrap_content" />

 </android.support.design.widget.AppBarLayout>

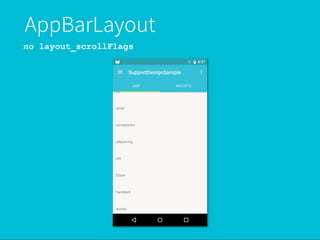

  15. 15. no layout_scrollFlags
  16. 16. no layout_scrollFlags

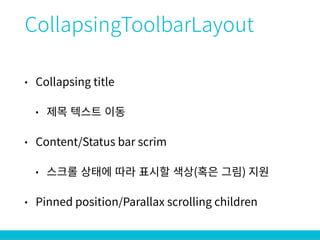

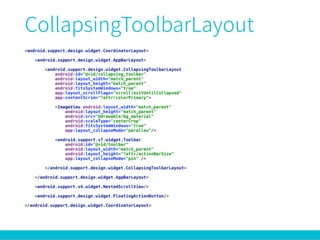

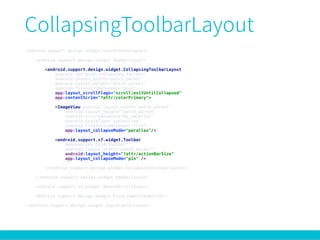

  17. 17. <android.support.design.widget.CoordinatorLayout>

 <android.support.design.widget.AppBarLayout>

 <android.support.design.widget.CollapsingToolbarLayout
 android:id="@+id/collapsing_toolbar"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:fitsSystemWindows="true"
 app:layout_scrollFlags="scroll|exitUntilCollapsed"
 app:contentScrim="?attr/colorPrimary">

 <ImageView android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:src="@drawable/bg_material"
 android:scaleType="centerCrop"
 android:fitsSystemWindows="true"
 app:layout_collapseMode="parallax"/>

 <android.support.v7.widget.Toolbar
 android:id="@+id/toolbar"
 android:layout_width="match_parent"
 android:layout_height="?attr/actionBarSize"
 app:layout_collapseMode="pin" />

 </android.support.design.widget.CollapsingToolbarLayout>

 </android.support.design.widget.AppBarLayout>

 <android.support.v4.widget.NestedScrollView/>

 <android.support.design.widget.FloatingActionButton/>

 </android.support.design.widget.CoordinatorLayout>
  18. 18. <android.support.design.widget.CoordinatorLayout>

 <android.support.design.widget.AppBarLayout>

 <android.support.design.widget.CollapsingToolbarLayout
 android:id="@+id/collapsing_toolbar"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:fitsSystemWindows="true"
 app:layout_scrollFlags="scroll|exitUntilCollapsed"
 app:contentScrim="?attr/colorPrimary">

 <ImageView android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:src="@drawable/bg_material"
 android:scaleType="centerCrop"
 android:fitsSystemWindows="true"
 app:layout_collapseMode="parallax"/>

 <android.support.v7.widget.Toolbar
 android:id="@+id/toolbar"
 android:layout_width="match_parent"
 android:layout_height="?attr/actionBarSize"
 app:layout_collapseMode="pin" />

 </android.support.design.widget.CollapsingToolbarLayout>

 </android.support.design.widget.AppBarLayout>

 <android.support.v4.widget.NestedScrollView/>

 <android.support.design.widget.FloatingActionButton/>

 </android.support.design.widget.CoordinatorLayout>

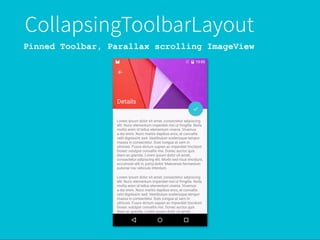

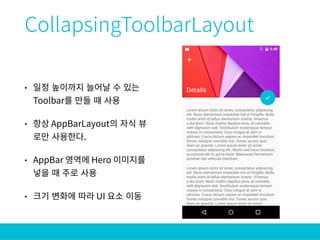

  19. 19. Pinned Toolbar, Parallax scrolling ImageView
  20. 20. Pinned Toolbar, Parallax scrolling ImageView

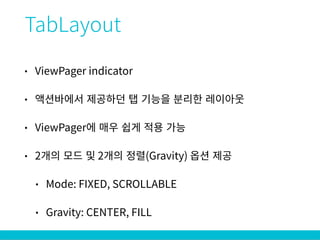

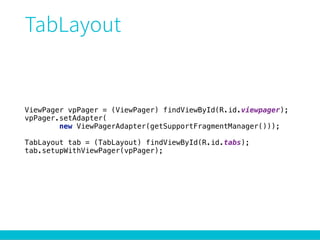

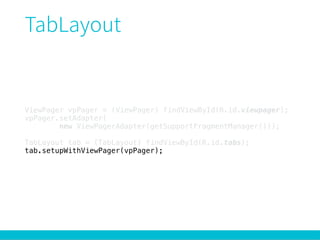

  21. 21. ViewPager vpPager = (ViewPager) findViewById(R.id.viewpager);
 vpPager.setAdapter( new ViewPagerAdapter(getSupportFragmentManager()));

 TabLayout tab = (TabLayout) findViewById(R.id.tabs);
 tab.setupWithViewPager(vpPager);
  22. 22. ViewPager vpPager = (ViewPager) findViewById(R.id.viewpager);
 vpPager.setAdapter( new ViewPagerAdapter(getSupportFragmentManager()));

 TabLayout tab = (TabLayout) findViewById(R.id.tabs);
 tab.setupWithViewPager(vpPager);

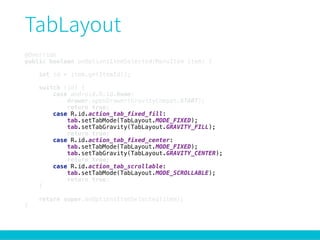

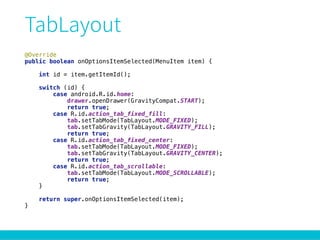

  23. 23. @Override
 public boolean onOptionsItemSelected(MenuItem item) {

 int id = item.getItemId();

 switch (id) {
 case android.R.id.home:
 drawer.openDrawer(GravityCompat.START);
 return true;
 case R.id.action_tab_fixed_fill:
 tab.setTabMode(TabLayout.MODE_FIXED);
 tab.setTabGravity(TabLayout.GRAVITY_FILL);
 return true;
 case R.id.action_tab_fixed_center:
 tab.setTabMode(TabLayout.MODE_FIXED);
 tab.setTabGravity(TabLayout.GRAVITY_CENTER);
 return true;
 case R.id.action_tab_scrollable:
 tab.setTabMode(TabLayout.MODE_SCROLLABLE);
 return true;
 }

 return super.onOptionsItemSelected(item);
 }
  24. 24. @Override
 public boolean onOptionsItemSelected(MenuItem item) {

 int id = item.getItemId();

 switch (id) {
 case android.R.id.home:
 drawer.openDrawer(GravityCompat.START);
 return true;
 case R.id.action_tab_fixed_fill:
 tab.setTabMode(TabLayout.MODE_FIXED);
 tab.setTabGravity(TabLayout.GRAVITY_FILL);
 return true;
 case R.id.action_tab_fixed_center:
 tab.setTabMode(TabLayout.MODE_FIXED);
 tab.setTabGravity(TabLayout.GRAVITY_CENTER);
 return true;
 case R.id.action_tab_scrollable:
 tab.setTabMode(TabLayout.MODE_SCROLLABLE);
 return true;
 }

 return super.onOptionsItemSelected(item);
 }

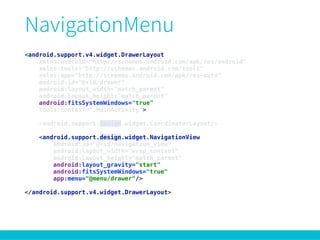

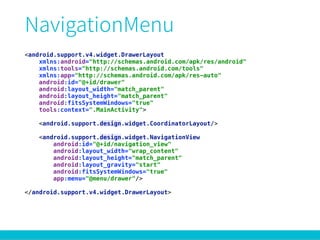

  25. 25. <android.support.v4.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:tools="http://schemas.android.com/tools"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 android:id="@+id/drawer"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:fitsSystemWindows="true"
 tools:context=".MainActivity">

 <android.support.design.widget.CoordinatorLayout/>

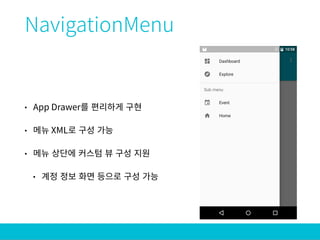

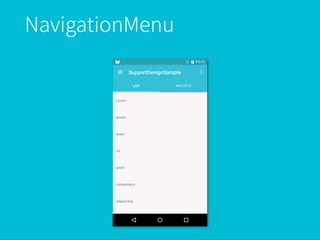

 <android.support.design.widget.NavigationView
 android:id="@+id/navigation_view"
 android:layout_width="wrap_content"
 android:layout_height="match_parent"
 android:layout_gravity="start"
 android:fitsSystemWindows="true"
 app:menu="@menu/drawer"/>

 </android.support.v4.widget.DrawerLayout>

  26. 26. <android.support.v4.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:tools="http://schemas.android.com/tools"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 android:id="@+id/drawer"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:fitsSystemWindows="true"
 tools:context=".MainActivity">

 <android.support.design.widget.CoordinatorLayout/>

 <android.support.design.widget.NavigationView
 android:id="@+id/navigation_view"
 android:layout_width="wrap_content"
 android:layout_height="match_parent"
 android:layout_gravity="start"
 android:fitsSystemWindows="true"
 app:menu="@menu/drawer"/>

 </android.support.v4.widget.DrawerLayout>

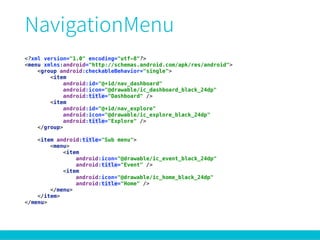

  27. 27. <?xml version="1.0" encoding="utf-8"?>
 <menu xmlns:android="http://schemas.android.com/apk/res/android">
 <group android:checkableBehavior="single">
 <item
 android:id="@+id/nav_dashboard"
 android:icon="@drawable/ic_dashboard_black_24dp"
 android:title="Dashboard" />
 <item
 android:id="@+id/nav_explore"
 android:icon="@drawable/ic_explore_black_24dp"
 android:title="Explore" />
 </group>

 <item android:title="Sub menu">
 <menu>
 <item
 android:icon="@drawable/ic_event_black_24dp"
 android:title="Event" />
 <item
 android:icon="@drawable/ic_home_black_24dp"
 android:title="Home" />
 </menu>
 </item>
 </menu>

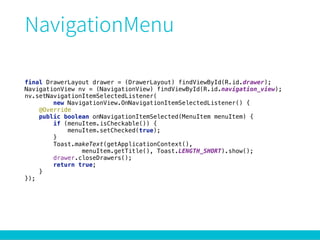

  28. 28. final DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer);
 NavigationView nv = (NavigationView) findViewById(R.id.navigation_view);
 nv.setNavigationItemSelectedListener(
 new NavigationView.OnNavigationItemSelectedListener() {
 @Override
 public boolean onNavigationItemSelected(MenuItem menuItem) {
 if (menuItem.isCheckable()) {
 menuItem.setChecked(true);
 }
 Toast.makeText(getApplicationContext(),
 menuItem.getTitle(), Toast.LENGTH_SHORT).show();
 drawer.closeDrawers();
 return true;
 }
 });

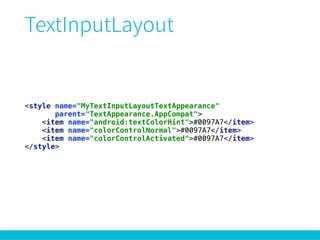

  29. 29. <style name="MyTextInputLayoutTextAppearance" parent="TextAppearance.AppCompat">
 <item name="android:textColorHint">#0097A7</item>
 <item name="colorControlNormal">#0097A7</item>
 <item name="colorControlActivated">#0097A7</item>
 </style>

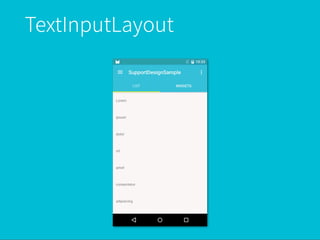

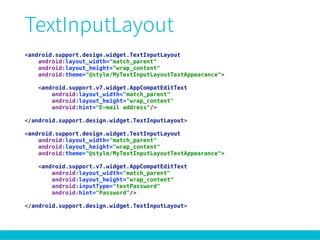

  30. 30. <android.support.design.widget.TextInputLayout
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:theme="@style/MyTextInputLayoutTextAppearance">

 <android.support.v7.widget.AppCompatEditText
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:hint="E-mail address"/>

 </android.support.design.widget.TextInputLayout>

 <android.support.design.widget.TextInputLayout
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:theme="@style/MyTextInputLayoutTextAppearance">

 <android.support.v7.widget.AppCompatEditText
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:inputType="textPassword"
 android:hint="Password"/>

 </android.support.design.widget.TextInputLayout>

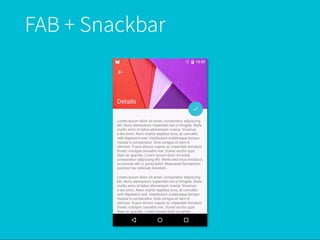

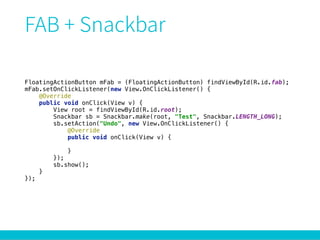

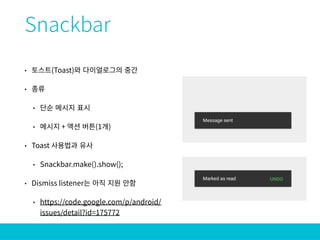

  31. 31. FloatingActionButton mFab = (FloatingActionButton) findViewById(R.id.fab);
 mFab.setOnClickListener(new View.OnClickListener() {
 @Override
 public void onClick(View v) {
 View root = findViewById(R.id.root);
 Snackbar sb = Snackbar.make(root, "Test", Snackbar.LENGTH_LONG);
 sb.setAction("Undo", new View.OnClickListener() {
 @Override
 public void onClick(View v) {

 }
 });
 sb.show();
 }
 });

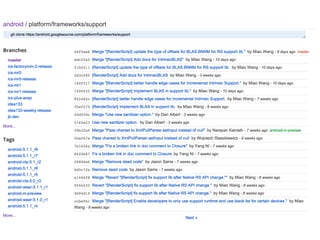

  32. 32. android.googlesource.com/platform/frameworks/support/

×
