Power Cli Workshop London Vmug

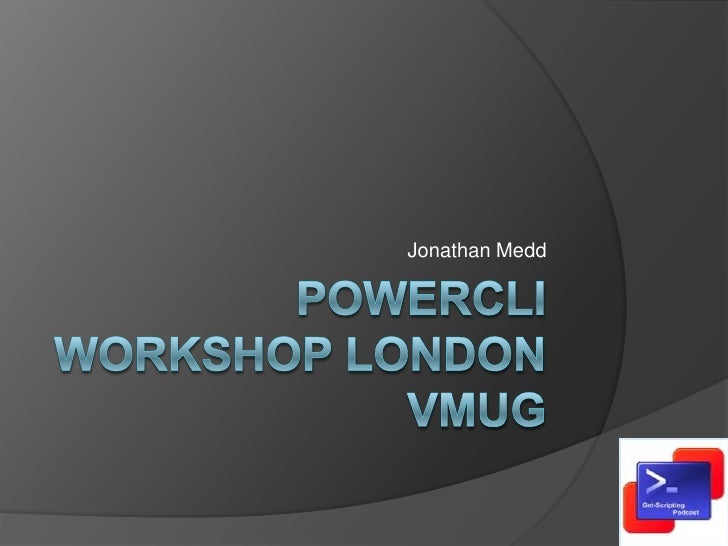

  1. 1. PowerCLI Workshop London VMUG<br />Jonathan Medd<br />
  2. 2. Je ne suis pas Alan Renouf<br />Today’s theme is simple and practical examples to improve the management of your VMware Infrastructure<br />What’s New?<br />Reporting<br />Useful One-Liners / Short Scripts<br />Project Onyx<br />VESI<br />
  3. 3. Buy this book<br />Two ebook copies to give away to those who ask / answer questions<br />
  4. 4. You should also get this<br />Practical PowerCLI examples side-by-side vSphere topics<br />
  5. 5. PowerCLI 4.0 U1 is out!<br />More than 60 new cmdlets since the last release earlier this year<br />Cmdlet reference is now online - http://bit.ly/6Cx1s7<br />vSpherePowerCLI Administration Guide http://bit.ly/08iWLQK<br />Virtu-Al’s summary of the new cmdlets http://bit.ly/8KMGdg<br />
  6. 6. A few of the new cmdlets<br />Set-PowerCLIConfiguration -DefaultServerMode multiple<br />Stop-VMHost Server01 -Confirm (or –whatif) ;-) <br />Set-HardDisk -HardDisk $hd -CapacityKB $extendedCapacity -HostCredential $ hostCred -GuestCredential $guestCred<br />
  7. 7. PowerShell 2.0 is out!<br />More than 100 new cmdlets since v1.0<br />Installed by default in Windows 7 / Server 2008 R2<br />New features: Remoting, Advanced Functions, Background Jobs, ISE<br />
  8. 8. vCheck (Daily Report) <br />Schedule this report to run every day in your environment<br />Have a person dedicated to working through highlighted issues each day – if possible rotate between team members, say weekly<br />http://bit.ly/24KTGe<br />
  9. 9. vCheck<br />
  10. 10. vCheck – New in V3<br />
  11. 11. vCheck Examples - Snapshots<br />Do you know every old Snapshot you have?<br />Hassle the Snapshot Creator<br />Manage those which are required to be kept<br />
  12. 12. vCheck Examples – Too Many CPU’s<br />Weren’t aware of these until they turned up in the daily report<br />Could potentially cause some unnecessary high CPU %RDY times<br />All now down to 2 x vCPU<br />
  13. 13. vCheck Examples – VM’s on Local Storage<br />Often created ‘temporarily’ whilst waiting for SAN space. Still there months later.<br />Could effect host maintenance since can’t be VMotioned<br />
  14. 14. Find Host Version and Build<br />Get-VMHost | Get-View | Select-Object Name, @{N=&quot;Version&quot;;E={$_.config.product.version}}, @{N=&quot;Build&quot;;E={$_.config.product.build}} | Sort-Object Name | Export-CsvC:ScriptsHosts.csv -NoTypeInformation<br />Demo: Get-View Exploring<br />
  15. 15. Who’s seen one of these?<br />Or three in one month? Three different servers, same model, same ESX version, same CPU error<br />
  16. 16. Find Vendor, Model and Bios<br />Get-VMHost | Get-View | Select-Object Name, @{N=&quot;Vendor&quot;;E={$_.summary.hardware.vendor}}, @{N=&quot;Model&quot;;E={$_.summary.hardware.model}}, @{N=&quot;Bios Version&quot;;E={$_.hardware.biosinfo.biosversion}}, @{N=&quot;Release Date&quot;;E={$_.hardware.biosinfo.releasedate}} | Sort-Object Name | Export-Csv C:ScriptsBios.csv -NoTypeInformation<br />Note: Some vendors don’t seem to be populating this information for all models<br />
  17. 17. SVMotion<br />Moved entire production infrastructure between SAN’s in different data centres with no downtime simply by scheduling these commands<br />Get-VM Server01 | Move-VM –Datastore (Get-DataStore Datastore10)<br />Combine with Import-CSV to make it even easier for large batches<br />Watch out for VM’s with multiple disks in different datastores if you have multiple target datastores<br />
  18. 18. Slot Size<br />What are ESX Slot Sizes?<br />‘Prevent VMs from being powered on if they violate availability constraints’<br />Cluster with seemingly plenty of capacity won’t power on VM’s.<br />Watch out for ‘expensive’ VM’s with CPU or Memory reservations, and / or vSMP<br />
  19. 19. Slot Size Code<br />
  20. 20. Project Onyx from PowerCLI team<br />Currently in Alpha<br />Think Macro Recorder for Excel<br />Best for automating things that can’t be automated using native PowerCLI cmdlets<br />Beats having to read the API documentation<br />Project Onyx Demo<br />
  21. 21. The VESI <br />Offshoot from Quest PowerGUI tool<br />PowerShell scripts bundled up into a GUI interface<br />Great for beginners to use PowerShell scripts before getting to grips with writing your own<br />Great for more advanced scripters wishing to share code<br />VESI Demo<br />
  22. 22. Resources<br />http://blogs.vmware.com/vipowershell/<br />http://www.virtu-al.net/<br />http://lucd.info/<br />PowerCLI community forum http://bit.ly/6BwTUS<br />

×
