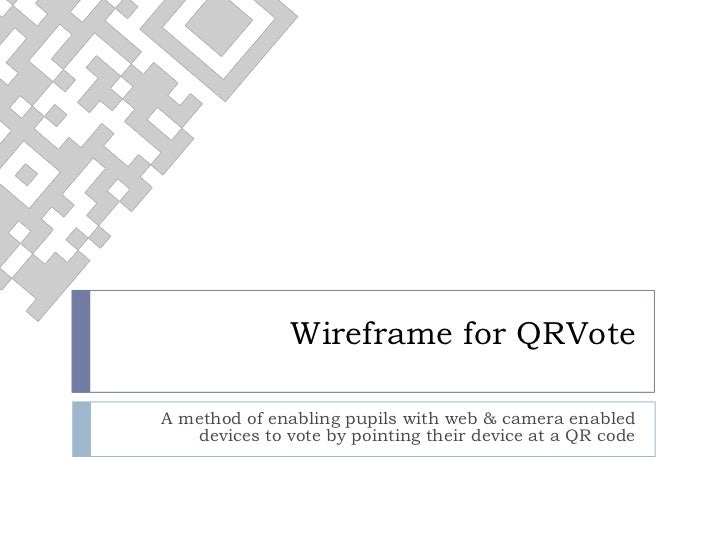

  1. 1. Wireframe for QRVote<br />A method of enabling pupils with web & camera enabled devices to vote by pointing their device at a QR code<br />
  2. 2. Experience<br />Teachers experience:<br />Easily assign a question and multiple answers and share via large display at front of screen (usually an IWB) or printed/electronically distributed to pupils reachable physical environment.<br />Pupils experience:<br />Point at QR code on projected screen OR QR code on sheet of paper/textbook (see slide 3), after a few seconds the vote is registered<br />Note: Use native QR code application (available since late 00’s) or provide third party QR application<br />
  3. 3. Teacher UI<br />The slide shows the proposed teacher experience.<br />
  4. 4. Create your question<br />Type the question: [What colour is a tomato?]<br />Type the possible Answers:<br />[Beige]  input boxes<br />[Red]<br />[Purple]<br />Add another answer<br />Add another question<br />Save and create  button  takes teacher to slide 6 (this is the slide the teacher displays on his/her display for the pupils to begin voting on)<br />
  5. 5. Pupil UI<br />The next slide shows the proposed pupil experience.<br />We imagine the pupil is holding up their device and pointing the camera at a large display.<br />
  6. 6. What colour is a tomato?<br />Beige<br />Purple<br />Red<br />Next Question (only visible to teacher)<br />
  7. 7. Results for What colour is a tomato?<br />
  8. 8. Technical requirements (to develop)<br />Build QR codes on the fly that link to specific URLS<br />Monitor hits on URL (ievote.php?id=1&result=2)<br />Store voting results in a database, can be simple key values or relational.<br />Build graphs on the fly (probably push data to a jQuery graph module)<br />Can we use Google forms for some bits? No<br />
  9. 9. Potential pitfalls<br />Camera too far away from QR codes may register multiple votes<br />Camera too close to QR codes wont be able to vote as it wont be able to get entire QR code in shot<br />Unreliable internet connectivity<br />Unreliable Wireless connectivity<br />Miss-configured portal devices<br />Not every child has a mobile device and schools are sadly slow to adopt the One Device Per Child model<br />Google Docs may be blocked by firewall/filter<br />
  10. 10. Todo list for development (with notes)<br />Investigate Google Forms API<br />Investigate a nice way to build QR codes on the fly<br />Database schema  ID, Question, Answer<br />Investigate Google Graph API<br />
  11. 11. Data model<br />Pupil view: Mobile device Website Google Docs(ajax POST request)  Google Graph API (Ajax Get Request)<br />Teacher view: Website  jQuery QR code  Google Docs API (ajax POST)  Google Graph API (Ajax GET request)<br />Two separate databases, one for q’s, one for results.<br />In theory we should be able to keep everything on Google.com (using CDNs) and Devdomain.com (tickl.co)<br />
  12. 12. Why do things this way?<br />Simplified hosting<br />Empowered by Extensive options of Google APIs and Google Docs<br />Low start up costs<br />Google Docs shouldn’t be blocked by school filter<br />No need for separate MySql database<br />Save on writing our own code<br />Less time spent learning Google’s API and circle jerking the Google hordes<br />Double the unicorns<br />
  13. 13. Why not use Google<br />Better embed support<br />More customization<br />Less reliance on Google<br />Better graph support<br />Simplified programming<br />
  14. 14. Required research areas<br />http://code.google.com/apis/spreadsheets/<br />http://notes.jetienne.com/2011/04/07/jquery-qrcode.html<br />http://code.google.com/apis/chart/<br />http://gdatatips.blogspot.com/2009/07/create-new-google-docs-spreadsheet-from.html<br />http://www.morningcopy.com.au/tutorials/google-forms-and-jquery-validation/<br />http://www.morningcopy.com.au/tutorials/how-to-style-google-forms/<br />http://www.1stwebdesigner.com/css/top-jquery-chart-libraries-interactive-charts/<br />
  15. 15. Estimated hours work<br />5 hours research<br />jQuery Graphs<br />jQuery QR Code<br />4 hours development<br />1 hour database schema design<br />1 hour database creation and writing data objects<br />1 hour voting mechanism<br />1 hour form for posting question<br />6 hours design<br />Home page<br />Teachers create a question page<br />Vote page<br />View result page<br />2 hours building initial Proof Of Concept<br />
  16. 16. Notes<br />Google’s API does not support what we want to do easily<br />Google’s API increases complexity<br />jQQR code = Pass URL as value<br />jQ Graphs = Implemented and looks okay<br />Vote.php is basically the voting function<br />Everything is incredibly insecure<br />Req functions:<br />Create unique IDs<br />Allow extension of questions<br />

×
