Automated Refactoring in
Large Python Codebases
Jimmy Lai, Staff Software Engineer at Carta
July 15, 2022

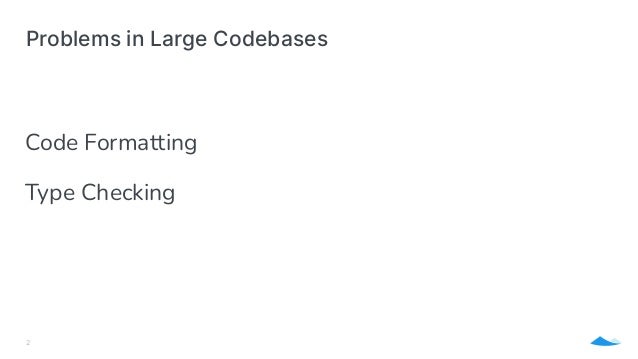

Problems in Large Codebases
Code Formatting
Type Checking
2

3
Startup Founder
Employee
Stock
Option
Investor
Stock
Money
Compensation
Valuation
Tax
Fund Admin.

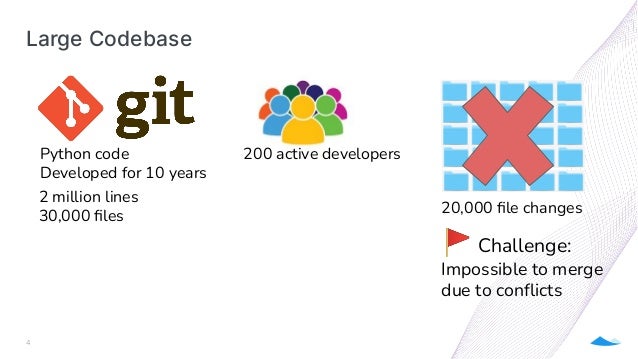

Large Codebase
4
Python code
Developed for 10 years
200 active developers
2 million lines
30,000 files 20,000 file changes
🚩Challenge:
Impossible to merge
due to conflicts

Problem: Code Formatting

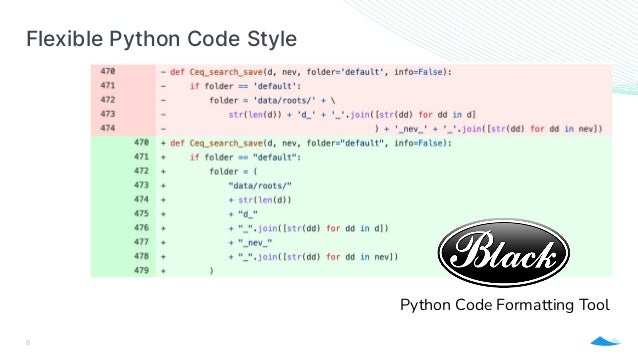

Flexible Python Code Style
6
Python Code Formatting Tool

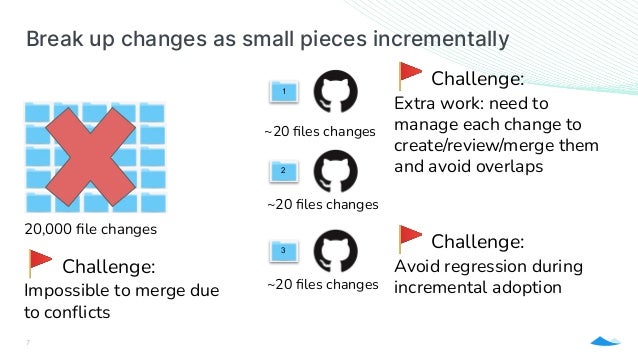

Break up changes as small pieces incrementally
7
20,000 file changes
🚩 Challenge:
Impossible to merge due
to conflicts
🚩Challenge:
Extra work: need to
manage each change to
create/review/merge them
and avoid overlaps
1
~20 files changes
2
~20 files changes
3
~20 files changes
🚩Challenge:
Avoid regression during
incremental adoption

Problem: Type Checking

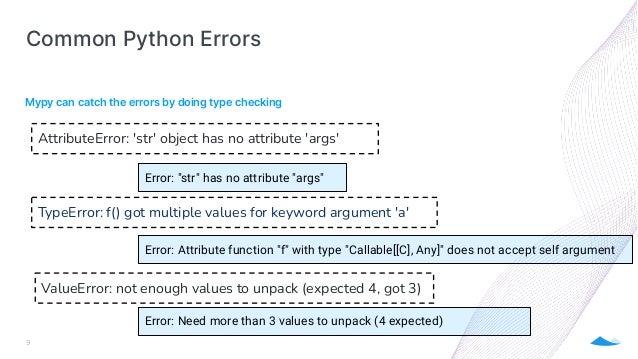

Common Python Errors
Mypy can catch the errors by doing type checking
9
TypeError: f() got multiple values for keyword argument 'a'
AttributeError: 'str' object has no attribute 'args'
ValueError: not enough values to unpack (expected 4, got 3)
Error: "str" has no attribute "args"
Error: Attribute function "f" with type "Callable[[C], Any]" does not accept self argument
Error: Need more than 3 values to unpack (4 expected)

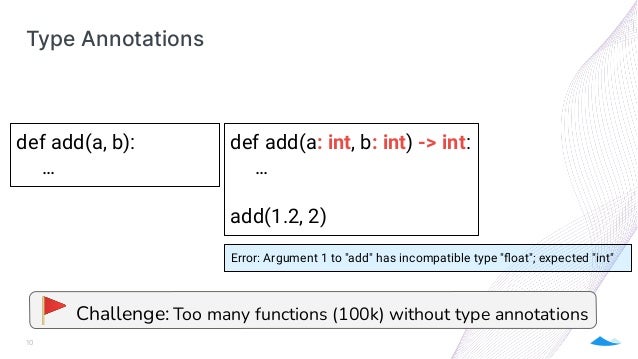

Type Annotations
10
def add(a, b):
…
def add(a: int, b: int) -> int:
…
add(1.2, 2)
Error: Argument 1 to "add" has incompatible type "float"; expected "int"
🚩 Challenge: Too many functions (100k) without type annotations

Solution:
Automated Refactoring

“
What if we can automate
incremental code changes?

The lifecycle of
a code change
code paths 1 2 3 4 5 6
Automatic Refactoring Pull Requests

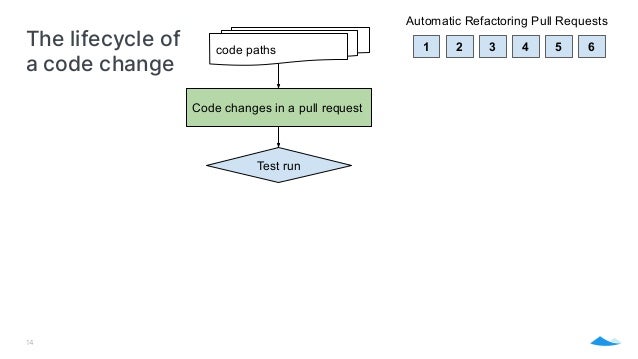

The lifecycle of
a code change
code paths
Code changes in a pull request
1 2 3 4 5 6
Automatic Refactoring Pull Requests
14
Test run

The lifecycle of
a code change
15
code paths
Add reviewers
success
Test run
Test failures
failure
Retry test run after 1 day
Code changes in a pull request
1 2 3 4 5 6
Automatic Refactoring Pull Requests

The lifecycle of
a code change
16
code paths
Add reviewers
success
Test run
Test failures
failure
Retry test run after 1 day
Code changes in a pull request
1 2 3 4 5 6
Automatic Refactoring Pull Requests
Wait for review
Approvals
2
Merge
Add more reviewers
1 + pending for 3 days
Post in reviewer’s
team Slack channel
0

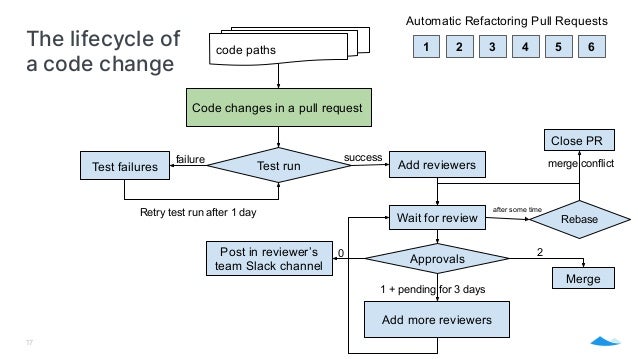

The lifecycle of
a code change
17
code paths
Add reviewers
success
Test run
Test failures
failure
Retry test run after 1 day
Code changes in a pull request
1 2 3 4 5 6
Automatic Refactoring Pull Requests
Wait for review
Approvals
2
Merge
Add more reviewers
1 + pending for 3 days
Post in reviewer’s
team Slack channel
0
after some time
Rebase
Close PR
merge conflict

The lifecycle of
a code change
18
code paths
Add reviewers
success
Test run
Test failures
failure
Retry test run after 1 day
Apply Code Changes
1 2 3 4 5 6
Automatic Refactoring Pull Requests
Wait for review
Approvals
2
Merge
Add more reviewers
1 + pending for 3 days
Post in reviewer’s
team Slack channel
0
after some time
Rebase
Close PR
merge conflict
Automation Actions performed by pipeline jobs

Design and Implementation

Size of Code Change
20
Tradeoffs:
● Too Big: not easy to review
● Too Small: too many pull requests
from os import walk
from pathlib import Path
for dirpath, _, _ in walk("."):
num_files = len(path for path in Path(dirpath).glob("**/*.py"))
if num_files < THRESHOLD:
... # use the dirpath

Number of Pending PRs
21
Tradeoffs:
● Too many concurrent pending PRs introduce too much code review work for developers
● Too few PRs results in slow progress
# gh CLI tool allow searching pending PRs based on label
# gh pr list --label automated-refactoring --json number,headRefName
from subprocess import check_output
from json import loads
pending_prs = loads(check_output(["gh", "pr", "list", "--label",
"automated-refactoring", "--json", "number,headRefName"]).decode())
if len(pending_prs) < PENDING_PR_THRESHOLD:
... # create more PRs

Avoid Duplications
22
Pull request paths should not have overlaps.
Encode the path info as part of the pull request for lookup
Using Git branch name
"black_formatting@dir_a/dir_b"
"black_formatting@dir_a/dir_c"

Incremental Adoption
23
Protect automated refactored files from regression using an enrollment process.
1. When a file is Black formatted, add the file path to an enrollment list.
2. A CI job runs Black format check on all enrolled files to ensure they follow
Black formats.
Once we enrolled the entire codebase, we can run Black on the entire codebase
and remove the enrollment list.
The same approach applies to type annotation adoption.

State Machine Transitions with Periodical Jobs
24
code paths
Add reviewers
success
Test run
Test failures
failure
Retry test run after 1 day
Apply Code Changes
Wait for review
Approvals
2
Merge
Add more reviewers
1 + pending for 3 days
Post in reviewer’s
team Slack channel
0
after some time
Rebase
Close PR
merge conflict
Automation Actions performed by pipeline jobs

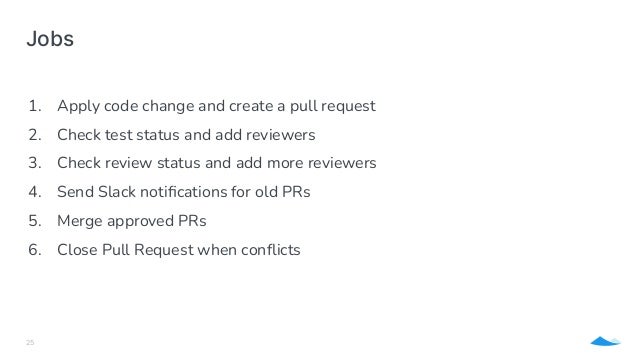

Jobs
25
1. Apply code change and create a pull request
2. Check test status and add reviewers
3. Check review status and add more reviewers
4. Send Slack notifications for old PRs
5. Merge approved PRs
6. Close Pull Request when conflicts

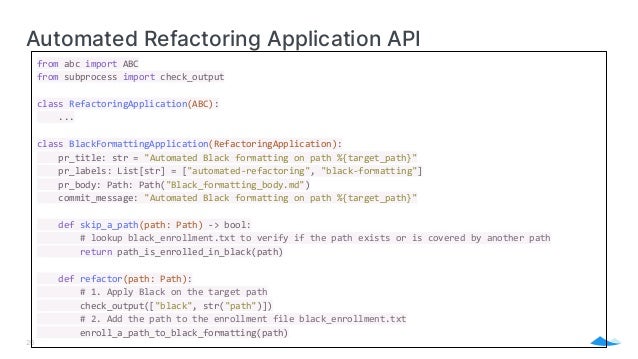

Automated Refactoring Application API
26
from abc import ABC
from subprocess import check_output
class RefactoringApplication(ABC):
...
class BlackFormattingApplication(RefactoringApplication):
pr_title: str = "Automated Black formatting on path %{target_path}"
pr_labels: List[str] = ["automated-refactoring", "black-formatting"]
pr_body: Path: Path("Black_formatting_body.md")
commit_message: "Automated Black formatting on path %{target_path}"
def skip_a_path(path: Path) -> bool:
# lookup black_enrollment.txt to verify if the path exists or is covered by another path
return path_is_enrolled_in_black(path)
def refactor(path: Path):
# 1. Apply Black on the target path
check_output(["black", str("path")])
# 2. Add the path to the enrollment file black_enrollment.txt
enroll_a_path_to_black_formatting(path)

Periodical Jobs
27
27
Using Github workflows to run a Python script every 30 minutes during weekdays
on:
schedule:
- cron: '30 * * * 1,2,3,4,5'
jobs:
runs-on: ubuntu-latest
steps:
name: Apply code change and create a pull request
shell: python
run: |
from subprocess import check_output
check_output([...])
.github/workflows/create_pull_requests.yml

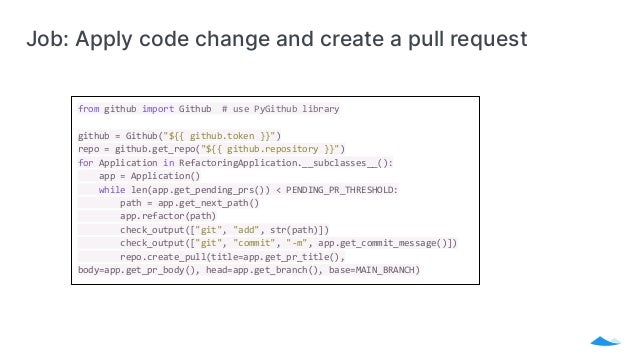

Job: Apply code change and create a pull request
from github import Github # use PyGithub library
github = Github("${{ github.token }}")
repo = github.get_repo("${{ github.repository }}")
for Application in RefactoringApplication.__subclasses__():
app = Application()
while len(app.get_pending_prs()) < PENDING_PR_THRESHOLD:
path = app.get_next_path()
app.refactor(path)
check_output(["git", "add", str(path)])
check_output(["git", "commit", "-m", app.get_commit_message()])
repo.create_pull(title=app.get_pr_title(),
body=app.get_pr_body(), head=app.get_branch(), base=MAIN_BRANCH)

Job: Merge approved PRs
29
from github import Github # use PyGithub library
github = Github("${{ github.token }}")
repo = github.get_repo("${{ github.repository }}")
for issue in repo.legacy_search_issues("open",
"label:automated-refactoring is:pull-request review:approved"):
pull = repo.get_pull(issue.number)
pull.merge()

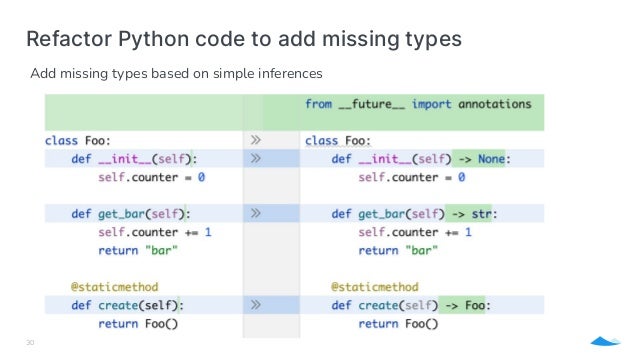

Refactor Python code to add missing types
30
Add missing types based on simple inferences

from pathlib import Path
from libcst import CSTTransformer, FunctionDef, Return, Yield, Annotation, Name, parse_module
class AddMissingNoneReturn(CSTTransformer):
def __init__(self):
self.return_count = 0
def visit_FunctionDef(self, node: FunctionDef) -> None:
self.return_count = 0
def visit_Return(self, node: Return) -> None:
self.return_count += 1
def leave_FunctionDef(self, original_node: FunctionDef, updated_node: FunctionDef) -> FunctionDef:
if updated_node.returns is None and self.return_count == 0:
return updated_node.with_changes(returns=Annotation(annotations=Name("None")))
return updated_node
def refactor(python_file_path: Path):
module = parse_module(python_file_path.read_text())
modified_module = module.visit(AddMissingNoneReturn())
python_file_path.write_text(modified_module.code)
31

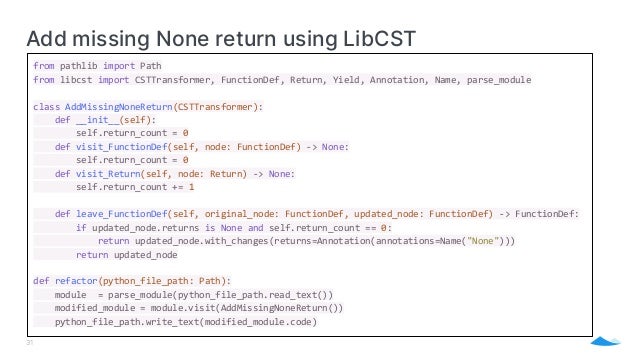

Add missing None return using LibCST

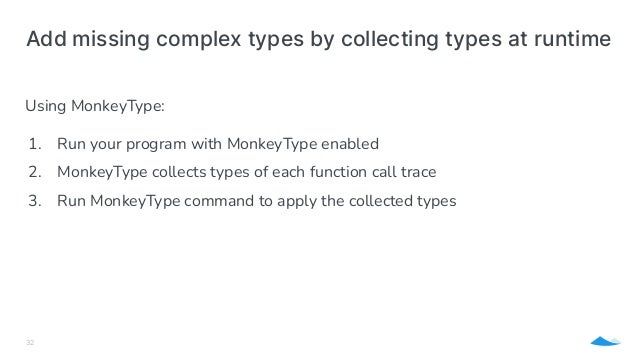

Add missing complex types by collecting types at runtime
32
Using MonkeyType:
1. Run your program with MonkeyType enabled
2. MonkeyType collects types of each function call trace
3. Run MonkeyType command to apply the collected types

Results

34

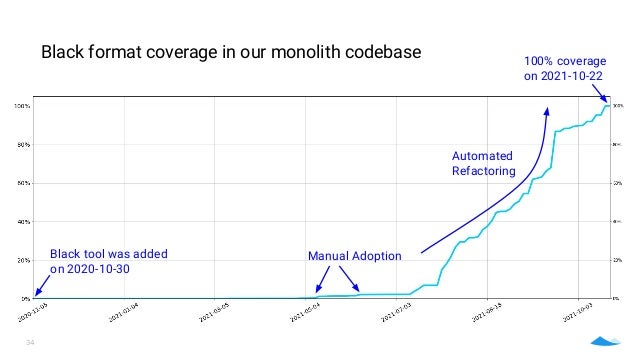

Black format coverage in our monolith codebase
Black tool was added
on 2020-10-30
Manual Adoption
Automated
Refactoring
100% coverage
on 2021-10-22

Type annotation coverage in our monolith codebase
35
Automated
Refactoring

Production type error improvement
36

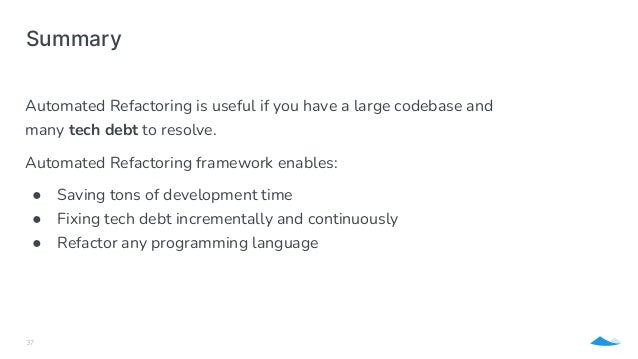

Summary
37
Automated Refactoring is useful if you have a large codebase and
many tech debt to resolve.
Automated Refactoring framework enables:
● Saving tons of development time
● Fixing tech debt incrementally and continuously
● Refactor any programming language

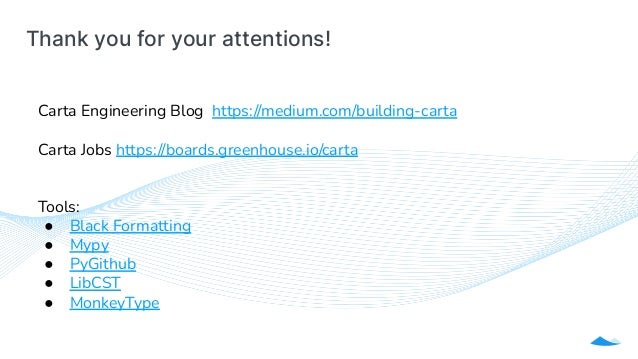

Thank you for your attentions!
Carta Engineering Blog https://medium.com/building-carta
Carta Jobs https://boards.greenhouse.io/carta
Tools:
● Black Formatting
● Mypy
● PyGithub
● LibCST
● MonkeyType
