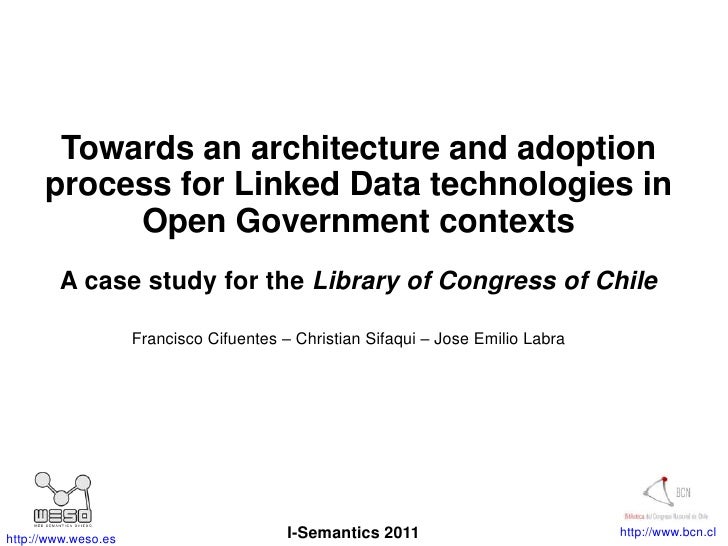

Towards an architecture and adoption process for Linked Data technologies in Open Government contexts<br />A case study fo...
Overview: this talk in 1’<br />Why?<br />Linked Open Data in Public Administrations<br />How?<br />Proposal of Architectur...
Linked Open Data in Public Administrations<br />Why?<br />Government data & actions can be supervised<br />Improve transpa...
Linked Open Data inPublicAdministrations<br />Why?<br />Public value (generates citizen experience)<br />Research & Collab...
Linked Open Data in Public Administrations<br />Why?<br />Public information belongs to citizens<br />Financed by public r...
Linked Open Data inPublic Administrations<br />Why?<br />Legislation is public information…<br />…and must be of public do...
OK, ¡Linked Open Data is good!but…<br />¿Howtopublish it?<br />
Architecture & Adoption Process<br />There is huge interest to publish LOD<br />Practical guidelines & methodologies ?<br ...
Considerations in Public Administrations context<br />Largevolumes of data<br />Semistructuredcontent<br />Contents of gen...
Linked Open Data Architecture<br />How?<br />Web Browser<br />SemanticApplication<br />Client side<br />Server side<br />W...
Adoption Process<br />How?<br />Contextualization<br />Ontology design<br />RDF Graph Modeling<br />Phases<br />SPARQL End...
OK, youproposeanarchitecture & adoptionprocess, but…<br />¿Wheredidyouapplyit?<br />
Contextualization<br />Library of Congress - Chile<br />Where?<br />
Contextualization<br />Where?<br />Leychile 2008<br />Juridical certainty<br />LOD in Leychile: <br />Natural extension<br...
Contextualization<br />Where?<br />Publish Linked Open Data – 5 stars<br />Norms and relationships in a global RDF graph<b...
Contextualization<br />Where?<br /> 300.000 norms and their relationships <br />Modifications, Concordances, etc.<br />Fi...
Contextualization<br />Where?<br />Definition of domain model:<br />Norms, relationships, types of norms, metadata,<br />F...
Domain Ontologies<br />Where?<br />Small Ontology about Norms<br />
RDF Graph Modeling<br />A norm can be modified by another norm<br />Where?<br />Decree 296<br />Published 1995-02-17<br />...
RDF Graph Modeling<br />Where?<br />Careful URI Design<br />Expressiveness<br />
Where?<br />RDF GraphModeling<br />http://datos.bcn.cl/recurso/cl/DTO/ministerio-del-interior/1995-02-17/296/<br />Decree ...
Where?<br />Links to other datasets (Countries for International Treaties)<br />DBPedia, Geonames<br />Reuse vocabularies ...
SPARQL Endpoint<br />Example of query<br />Where?<br />Findallnormsemittedby a municipality between 1995 and 2000 that wer...
RDF Graph Implementation<br />Where?<br />We developed a Linked Data Frontend (WESO-DESH)<br />Content negotiation based o...
RDF Graph Implementation<br />Where?<br />WESO-DESH (Linked Data Frontend)<br />XML Configuration<br />Output HTML+RDFa<br />
26<br />Update Graph Service<br />Where?<br />Automatic extraction & transformation process to update the RDF Graph<br />B...
Documentation<br />Documentation Web Portal: TYPO3 CMS<br />Sections:<br />URI constructionguidelines<br />Examplequeries<...
Non-Functional Requirements<br />Answer time<br />Cache system, Profiling<br />Security & privacity<br />Different views a...
29<br />Optional: Data visualization<br />Where?<br />Protype tool: LODViz (Linked Open Data Vizualization)<br />Based on ...
30<br />Results<br />Public Dataset Catalogs Faceted Browser - CTIC Foundation<br />Five stars Linked Open Data<br />
31<br />Conclusions<br />First stage finished<br />> 300.000 norms exported <br /> 8mill. triples,  27 triples by norm<b...
Future Work<br />Library of Congress of Chile<br />More datasets: Biographies, Geographical data<br />History of Law<br />...
TheEnd<br />http://www.weso.es<br />More Information<br />http://www.bcn.cl<br />
34<br />Main Team<br />Francisco Cifuentes<br />Member of WESO Research Group and Library of Congress of Chile<br />http:/...
Credits<br />Most of the people were obtained from Internet. <br />Imagen transparencia: http://2.bp.blogspot.com/--wFwsKw...
